Clash-De Flexible lock Mechanism Bracelet CAD FILE

Premium Modular Bracelet – CAD Design

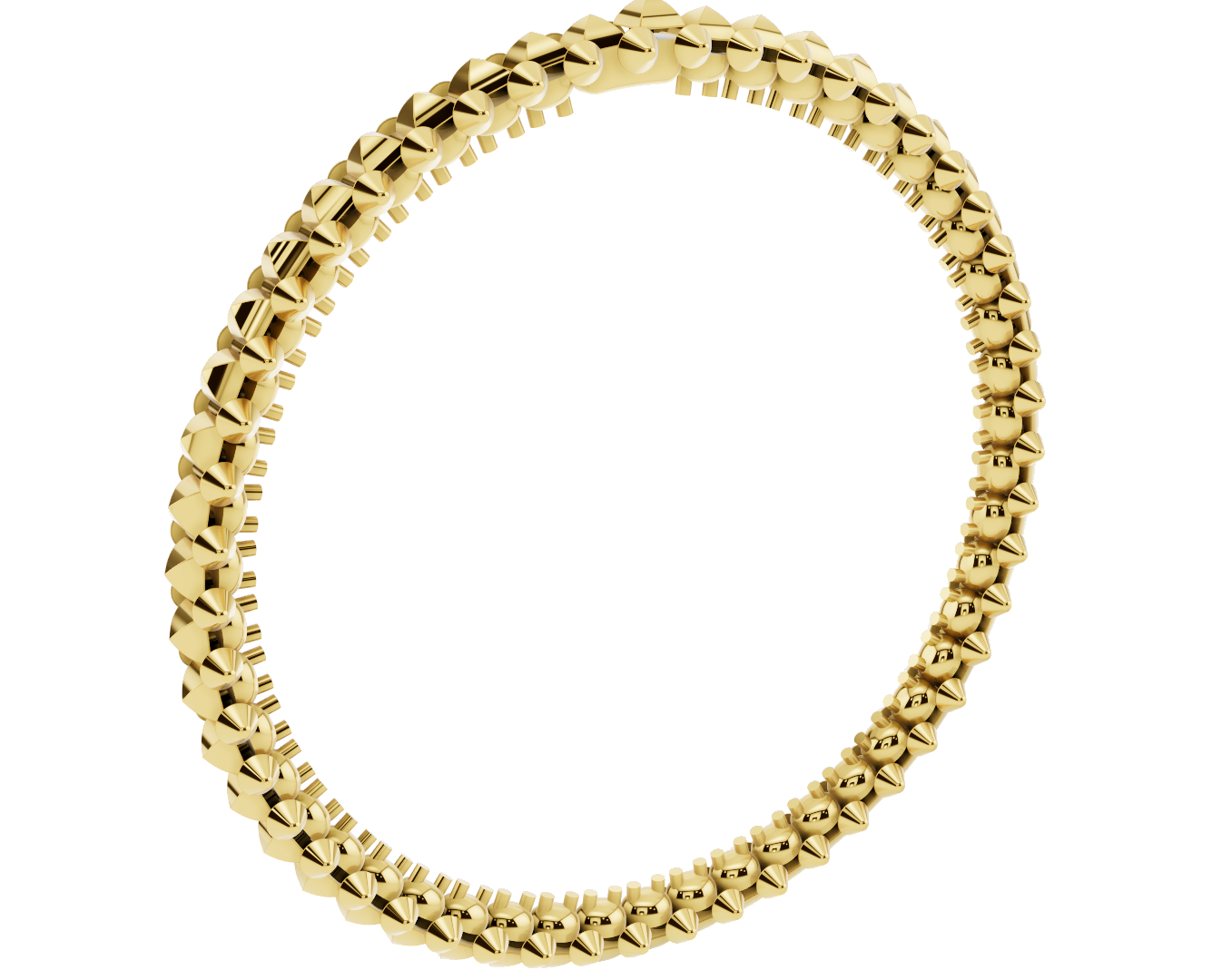

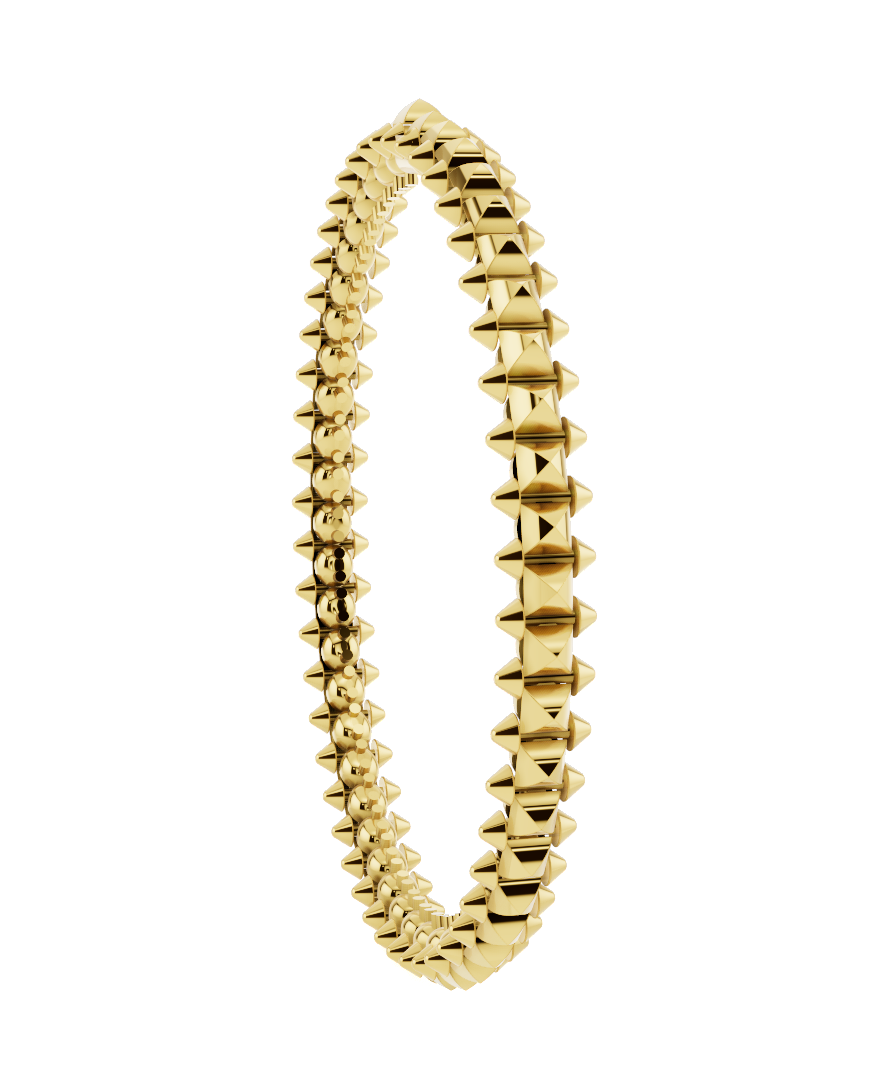

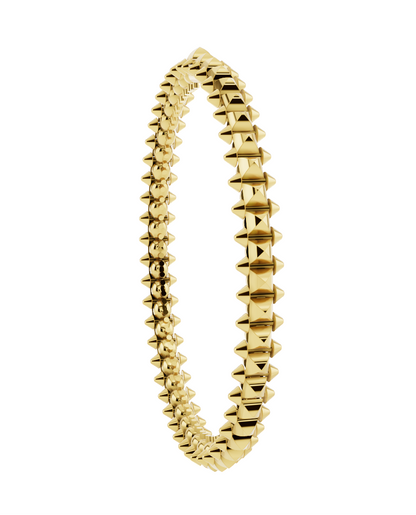

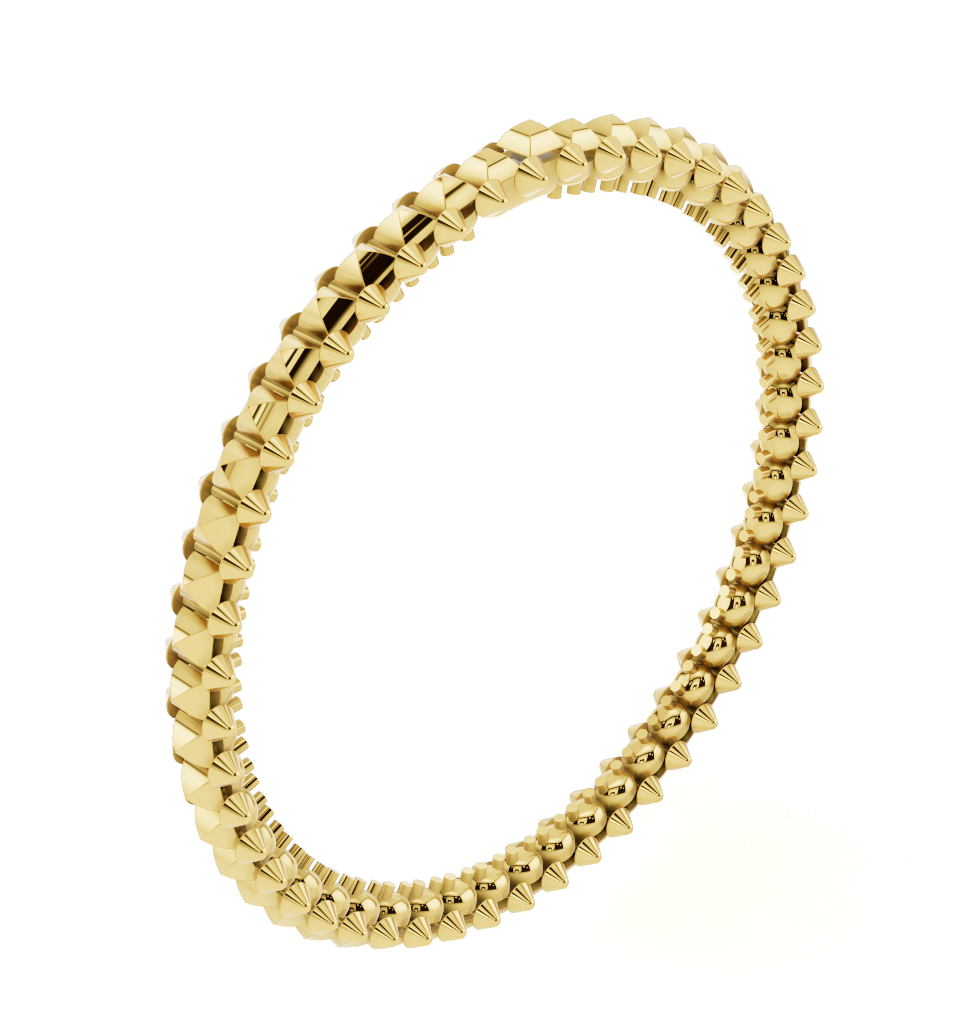

This bracelet features a highly detailed modular construction with precision-engineered components, combining mechanical aesthetics with luxury craftsmanship. The design showcases symmetrical units assembled seamlessly to form a complete circular bracelet.

---

Key Measurements

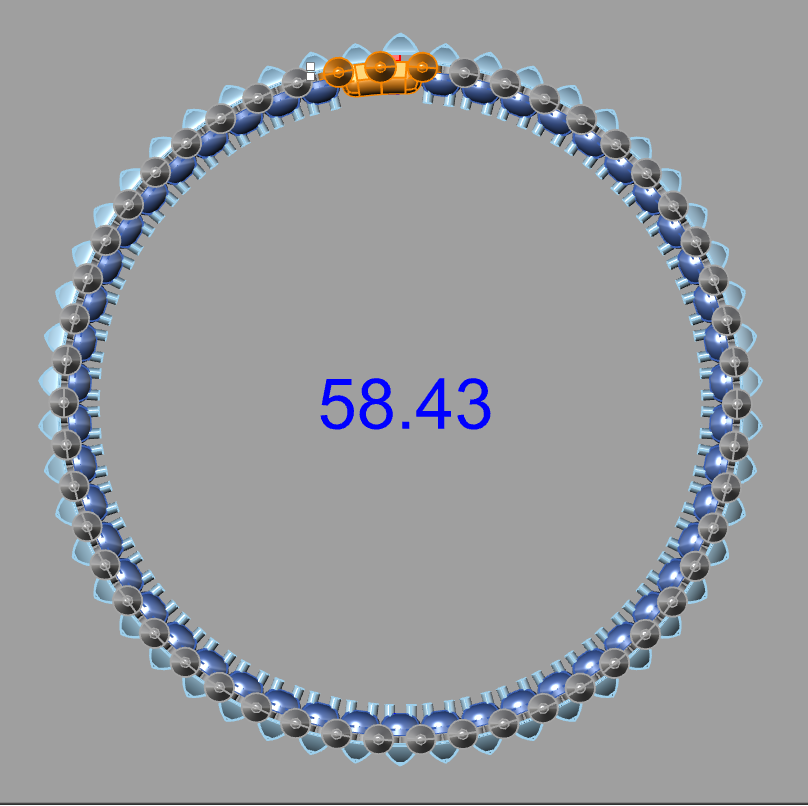

• Inner Diameter: 58.43 mm

• Bracelet Width (Thickness): 6.86 mm

---

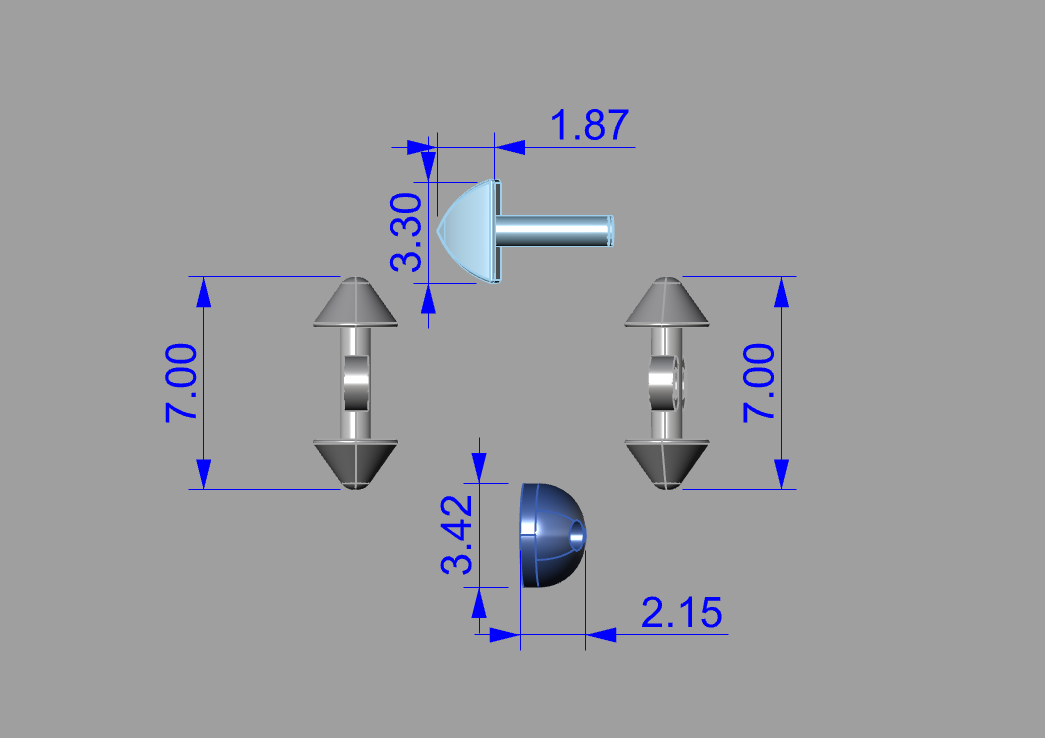

Individual Component Dimensions

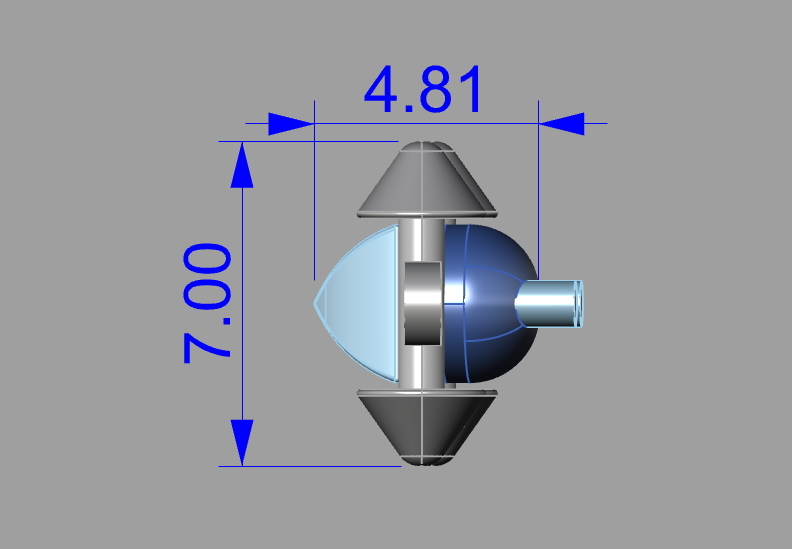

Main Link Unit:

• Height: 7.00 mm

• Width: 4.81 mm

Connector / Pin Element:

• Length: 1.87 mm

• Height: 3.30 mm

Side Dome Element:

• Width: 2.15 mm

• Height: 3.42 mm

---

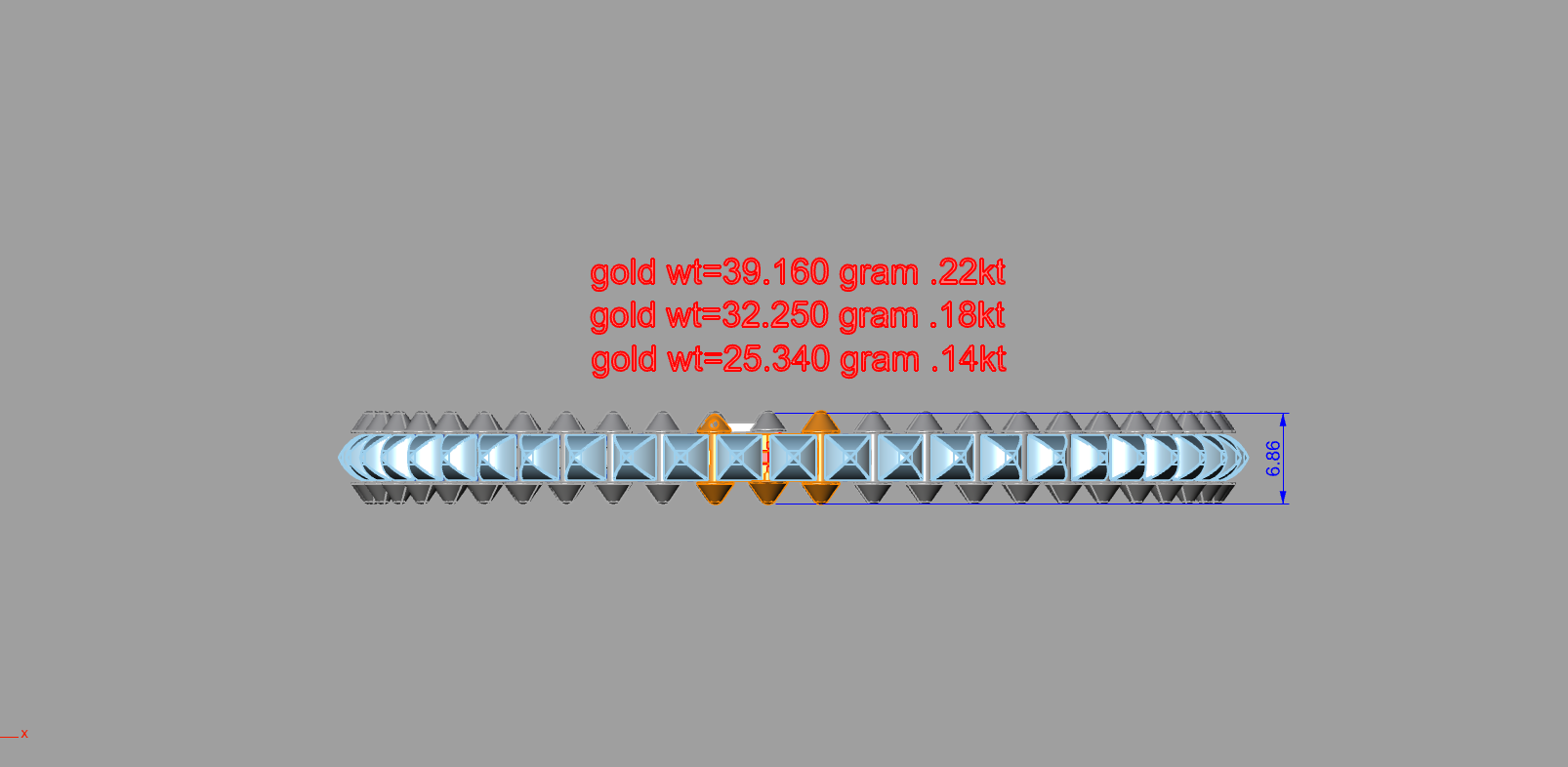

Material Weight (Approx.)

• 22KT Gold: 39.160 grams

• 18KT Gold: 32.250 grams

• 14KT Gold: 25.340 grams

---

Design Highlights

• Precision CAD-based modular assembly

• Smooth interlocking mechanism for flexibility

• Balanced weight distribution for comfortable wear

• Modern geometric + mechanical styling

• Suitable for high-end jewelry manufacturing
