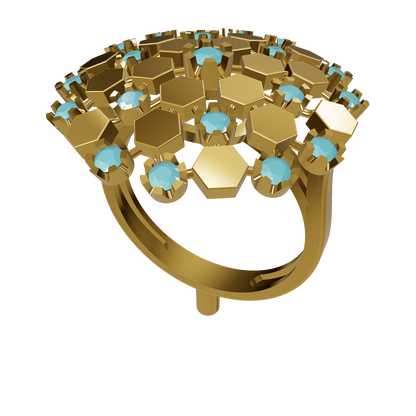

Hexagon Pattern Diamond Ring CAD FILE

This elegant diamond cluster ring features a distinctive honeycomb-inspired geometry, creating a bold yet refined statement. The circular top is composed of precisely aligned hexagonal elements, each accented with round diamonds that enhance brilliance and visual depth. The structured pattern delivers a contemporary look while maintaining classic luxury appeal.



Designed with advanced CAD precision, the ring offers accurate stone placement, balanced proportions, and secure settings for reliable manufacturing. The elevated cluster top provides a strong presence without compromising comfort, while the smooth shank ensures ease of wear for extended use.



Ideal as a statement or cocktail ring, this design is suitable for customization in various gold purities, stone sizes, and finishes, making it adaptable for different market requirements and client preferences.

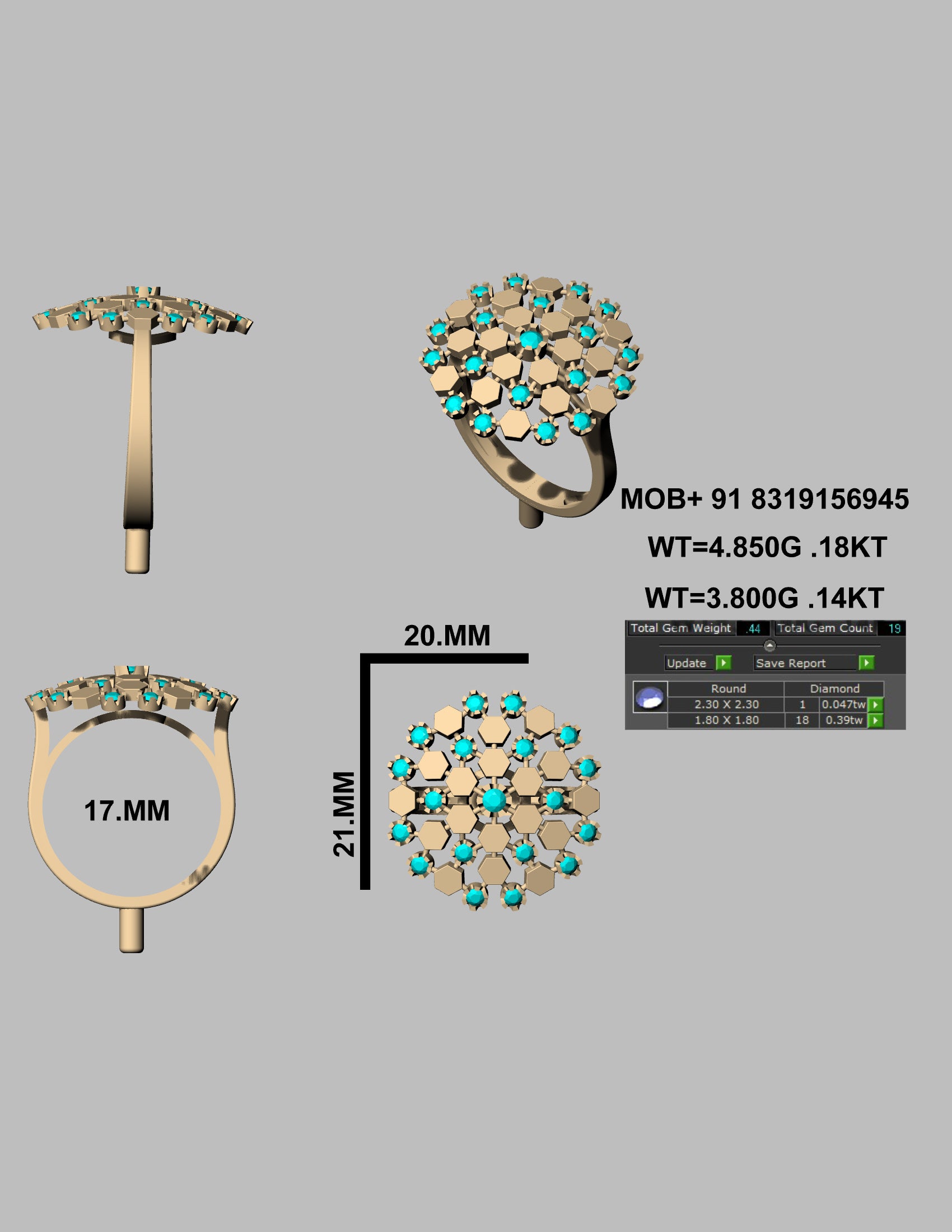

Measurements = Ring Size









• Inner Diameter: 17.0 mm
• Standard Fit: Comfortable daily-wear profile

Top (Head) Dimensions







• Top Width: 20.0 mm
• Top Length: 21.0 mm

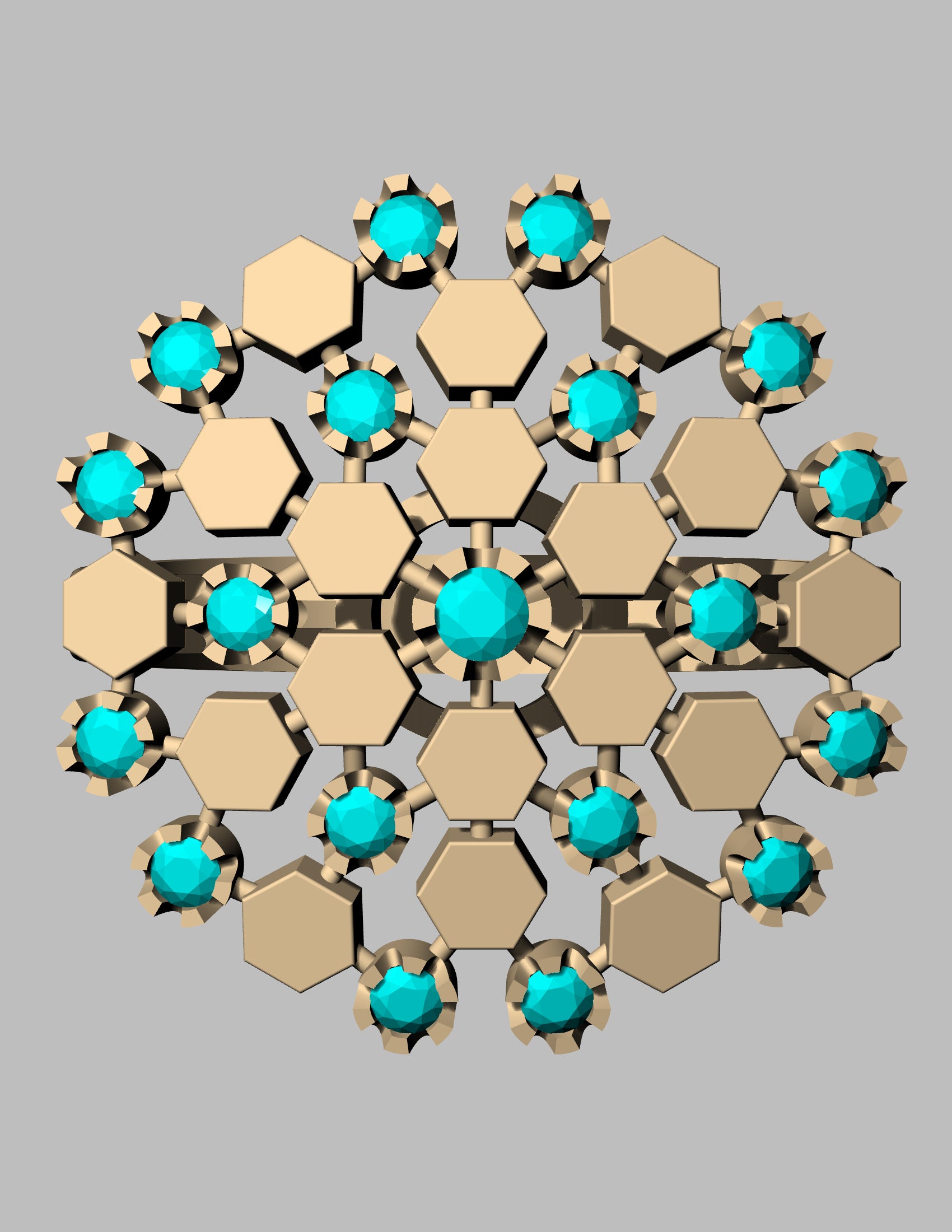

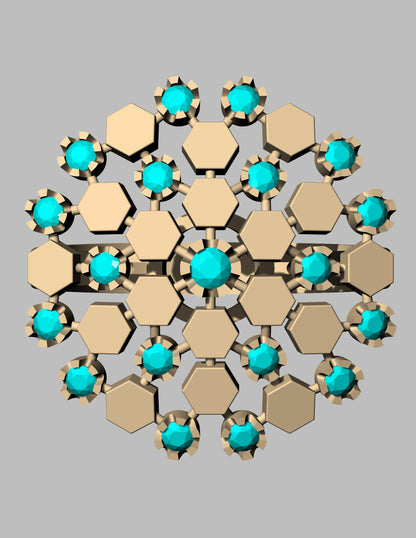

• Design Shape: Round cluster with honeycomb (hexagonal) pattern
• Profile Height: Medium dome (balanced for comfort and presence)

Gold Weight



• 18KT Gold: Approx. 4.850 grams
• 14KT Gold: Approx. 3.800 grams

Diamond Details



• Diamond Shape: Round
• Center Stone Size: 2.30 × 2.30 mm – 1 pc
• Accent Stone Size: 1.80 × 1.80 mm – 18 pcs
