Flexible lock mechanism bracelet CAD FILE
Flexible lock mechanism bracelet CAD FILE
Regular price
Rs. 3,999.00
Regular price
Sale price
Rs. 3,999.00
Shipping calculated at checkout.
JewelryCrafto
Couldn't load pickup availability
Product Description

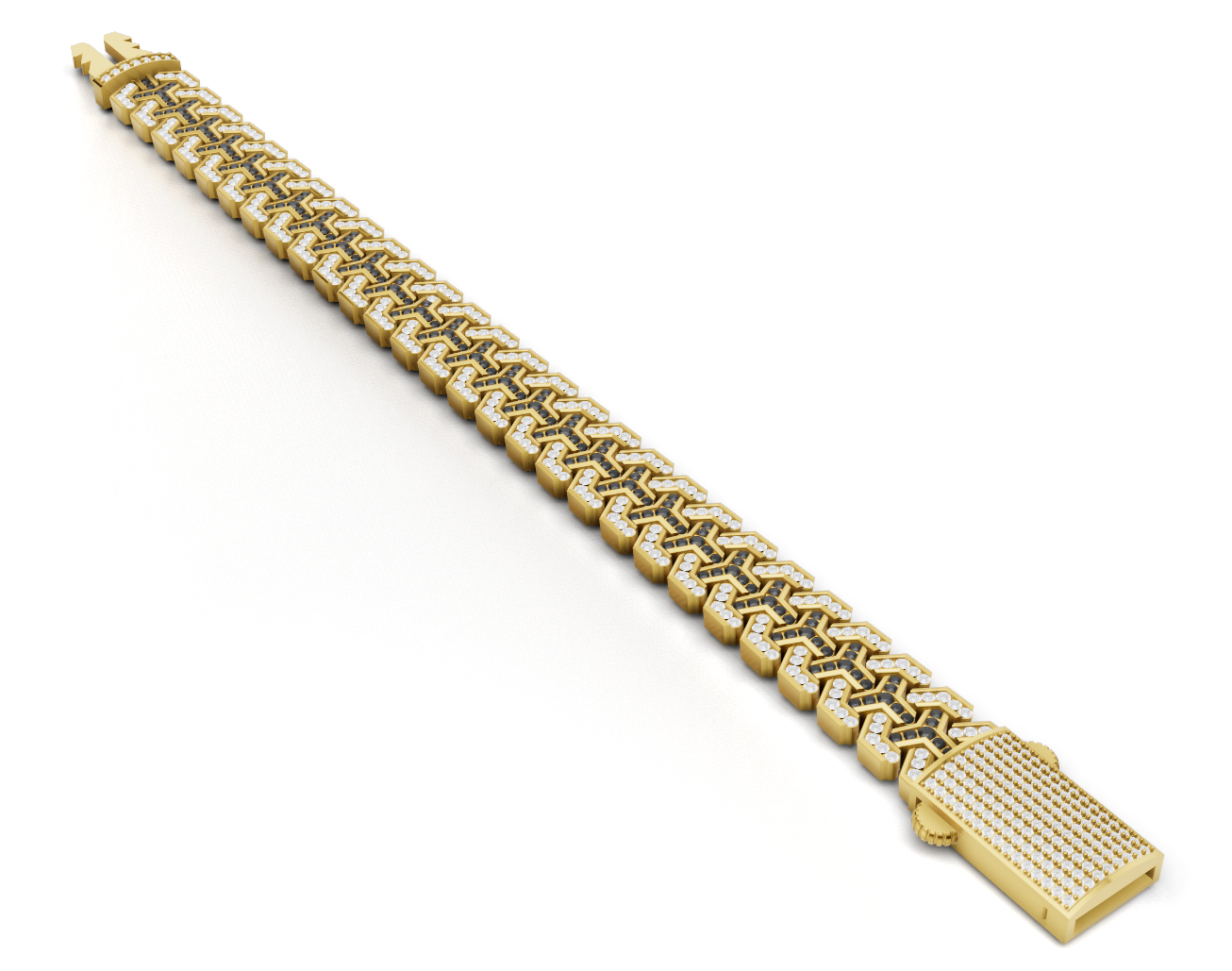

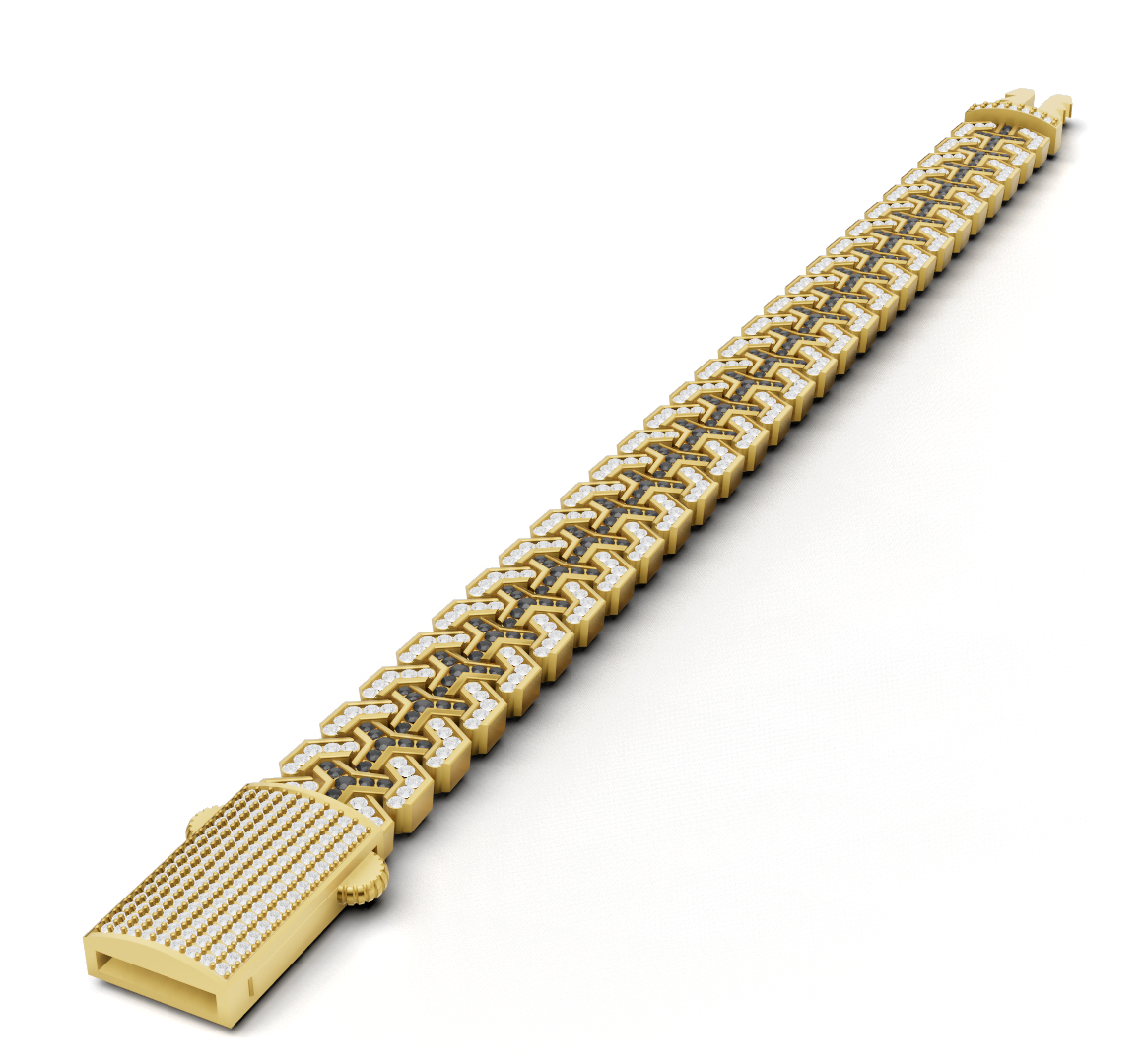

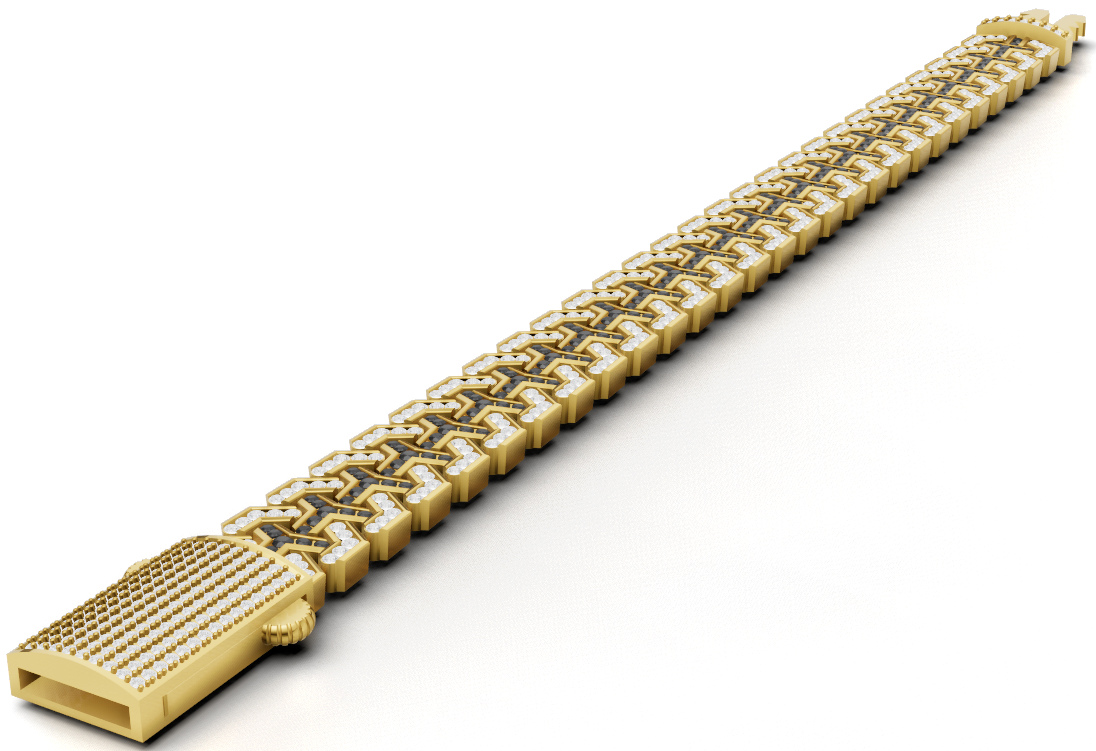

This luxury diamond bracelet features an intricate interlocking link design measuring 191.43 mm in length and 17.27 mm in width. The bracelet is set with 609 round diamonds totaling 4.975 carats, creating a continuous sparkling surface. Crafted with a flexible articulated structure and a secure hidden box clasp, the design offers both comfort and durability. With an estimated gold weight of 49.00 grams in 18K gold or 59.00 grams in 22K gold, this bracelet is ideal for premium jewelry collections and high-end custom manufacturing.
General Information
- Jewelry Type: Flexible Diamond Bracelet
- Style: Interlocking Link / Pavé Diamond Bracelet
- Manufacturing: CAD Designed for Casting & Stone Setting
- Metal Options: 18K Gold / 22K Gold
Overall Measurements

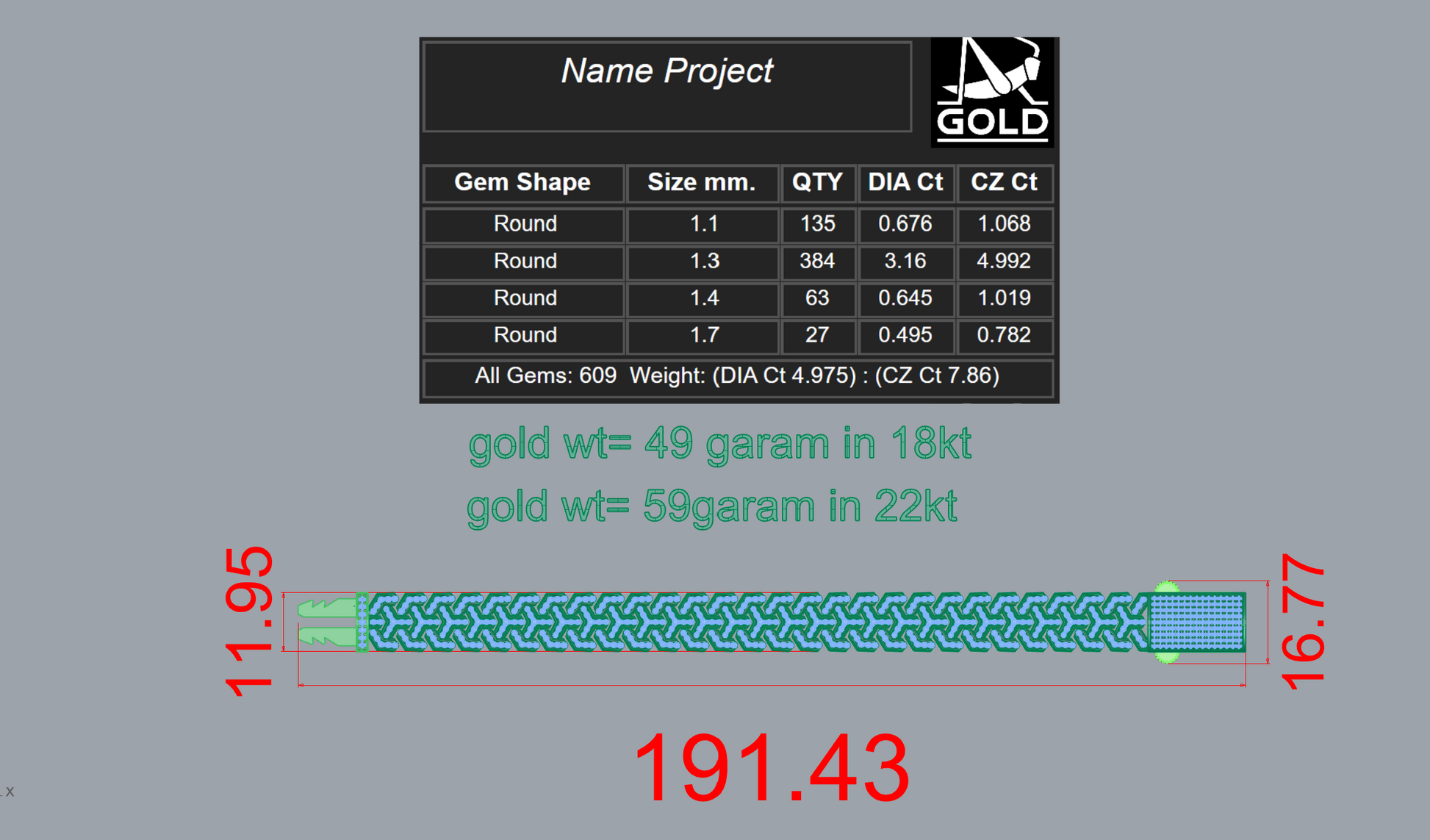

| Parameter | Measurement |
|---|---|
| Total Length | 191.43 mm |

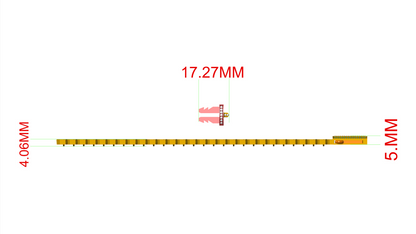

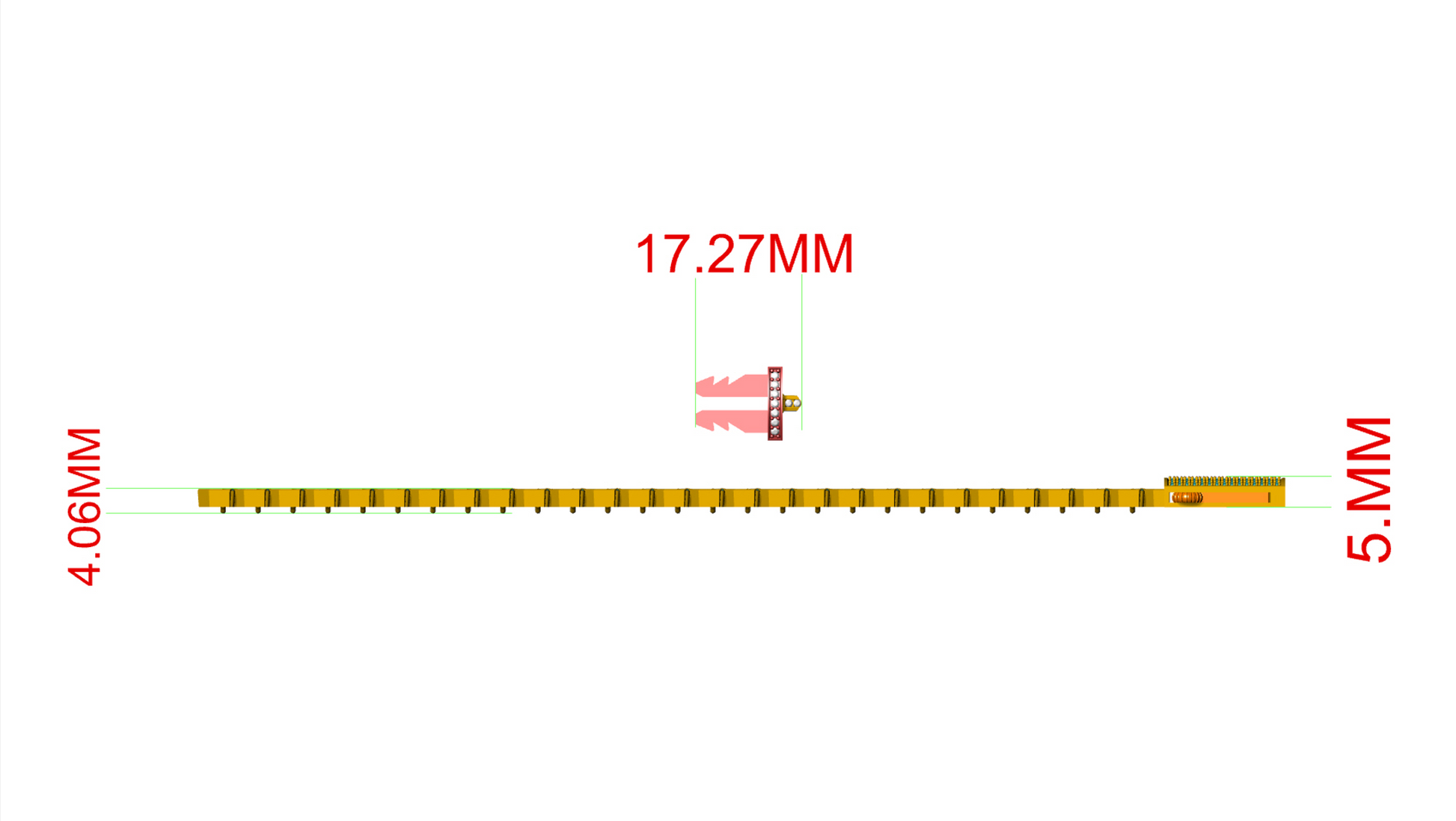

| Bracelet Width | 17.27 mm |
| Side Height (Minimum) | 4.06 mm |
| Side Height (Maximum) | 5.00 mm |
| Clasp Width | 16.77 mm |
| End Width | 11.95 mm |
Metal Weight
| Metal | Approx. Weight |
|---|---|
| 18K Gold | 49.00 g |
| 22K Gold | 59.00 g |
Diamond Details
Round Diamonds

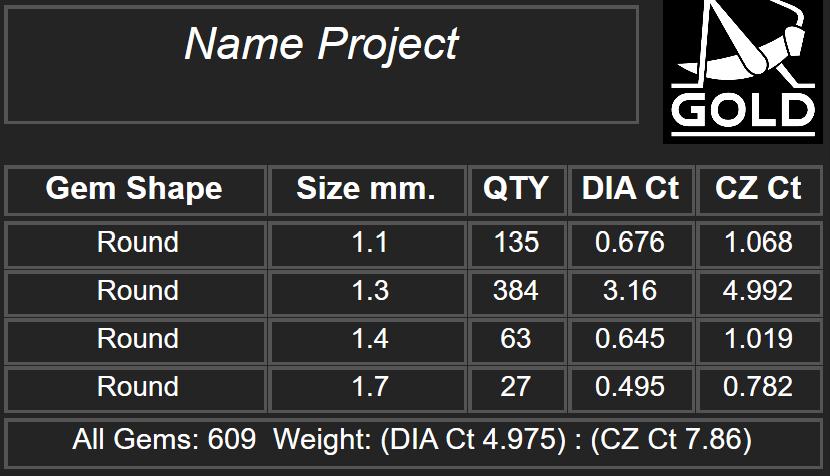

| Size (mm) | Quantity | Total Carat |
|---|---|---|
| 1.10 mm | 135 pcs | 0.676 ct |
| 1.30 mm | 384 pcs | 3.160 ct |
| 1.40 mm | 63 pcs | 0.645 ct |
| 1.70 mm | 27 pcs | 0.495 ct |
Stone Summary
- Total Stones: 609 pcs
- Total Diamond Weight: 4.975 ct
- CZ Equivalent Weight: 7.860 ct
Design Features
- Premium interlocking geometric link pattern.
- Full pavé-set round diamonds throughout the bracelet surface.
- Smooth flexible construction for comfortable wrist movement.
- Hidden box clasp with integrated locking system.
- Continuous diamond layout providing maximum brilliance.
- Heavy luxury bracelet suitable for men's or unisex high-end collections.

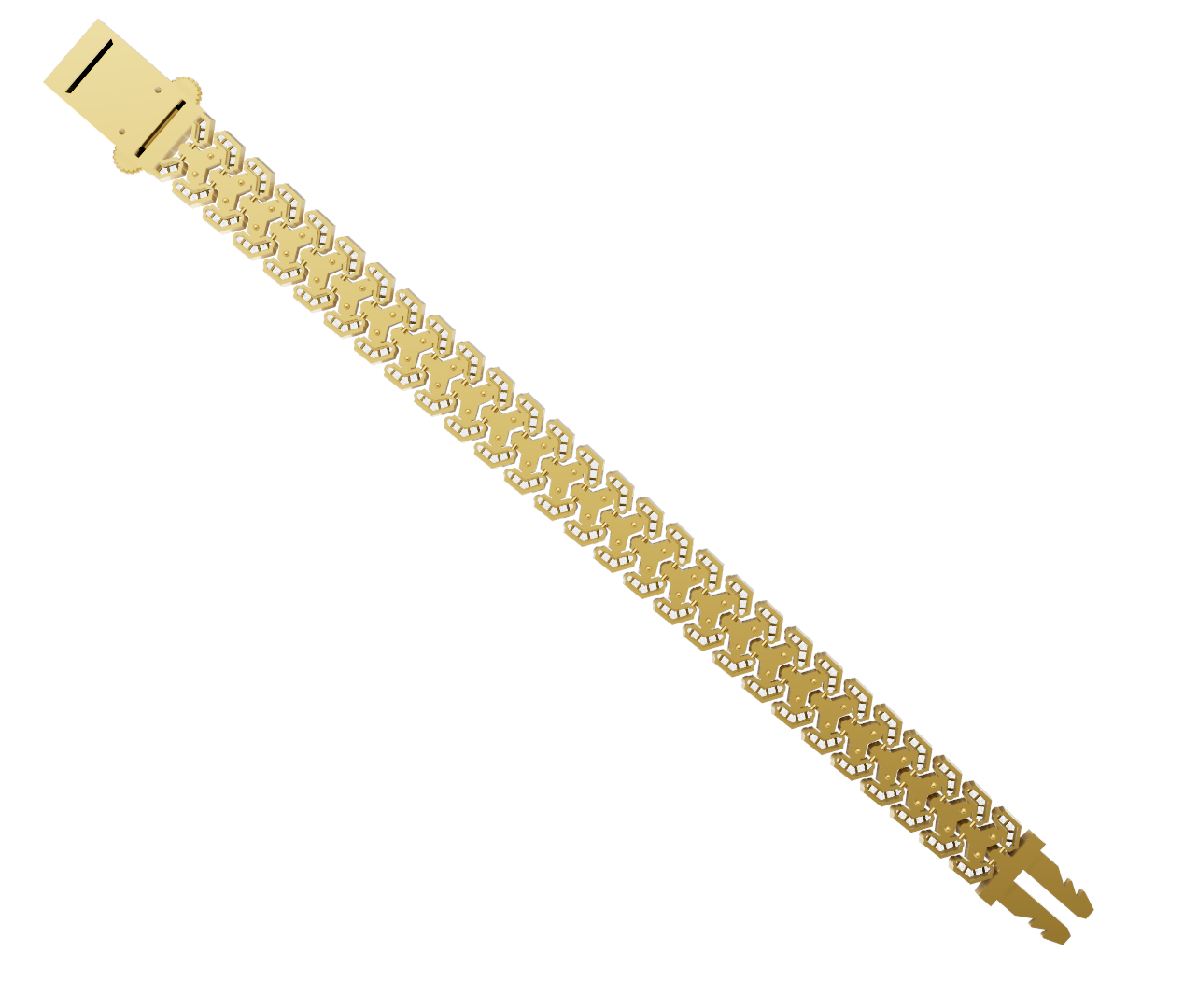

- Strong under-gallery structure for durability and secure stone setting.
CAD Manufacturing Notes
- Recommended casting in 18K or 22K gold.
- Micro pavé setting for 1.10 mm to 1.40 mm stones.
- Shared-prong layout used to maximize stone visibility.
- Hinged flexible links ensure excellent articulation.
- Finished dimensions optimized for a wrist size of approximately 7.5 inches (191.43 mm).
