Geometric Cube Link Bracelet Jewelry CAD Design

Description

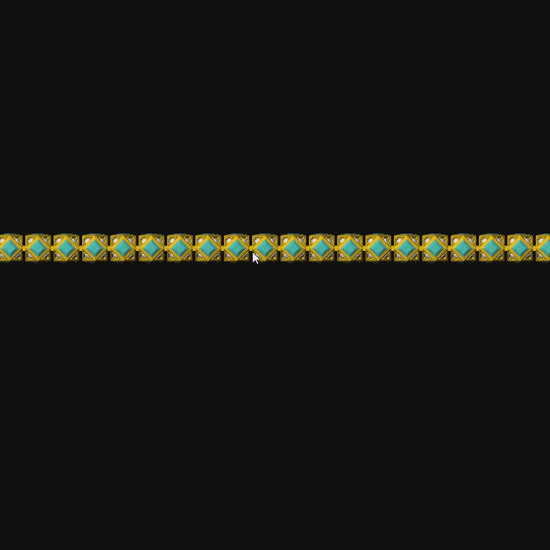

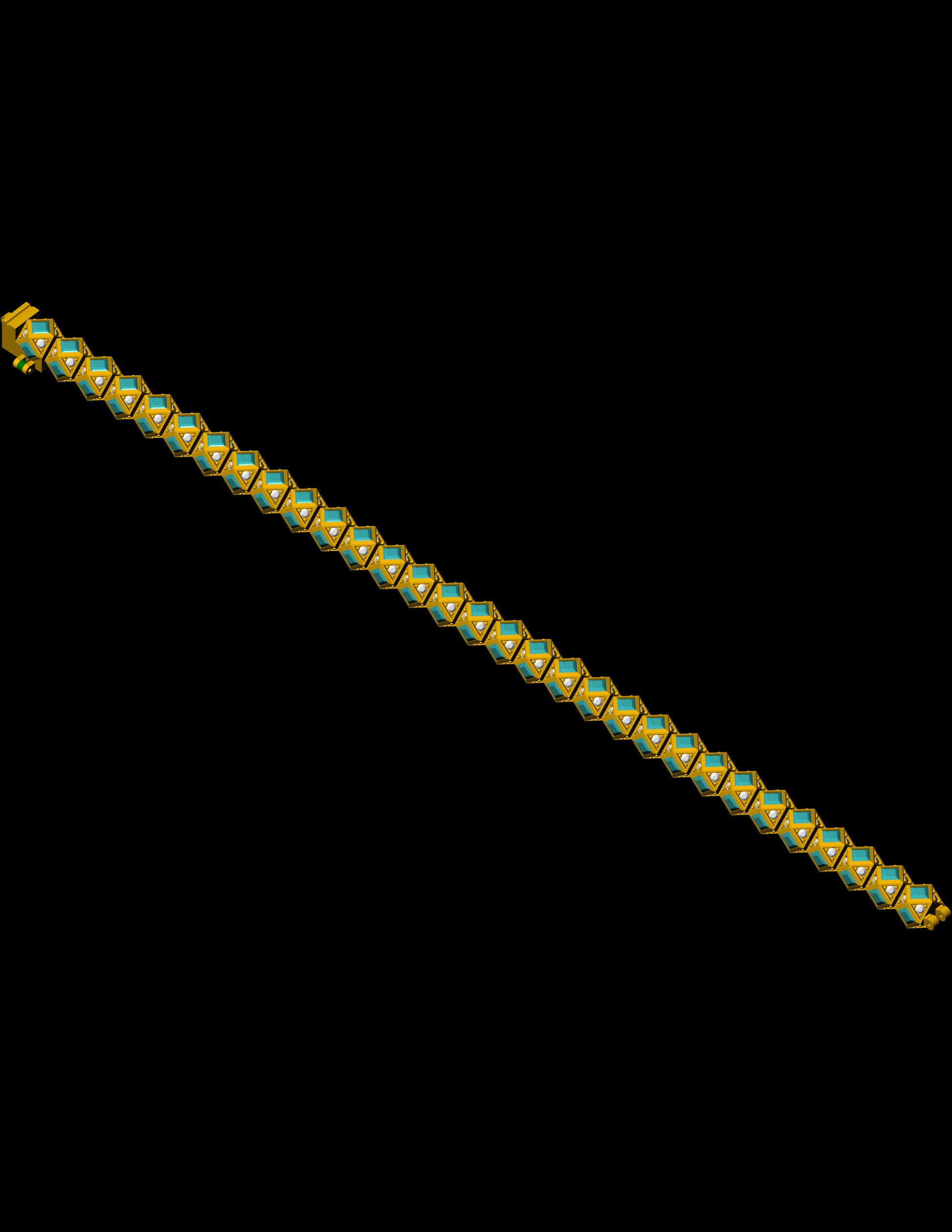

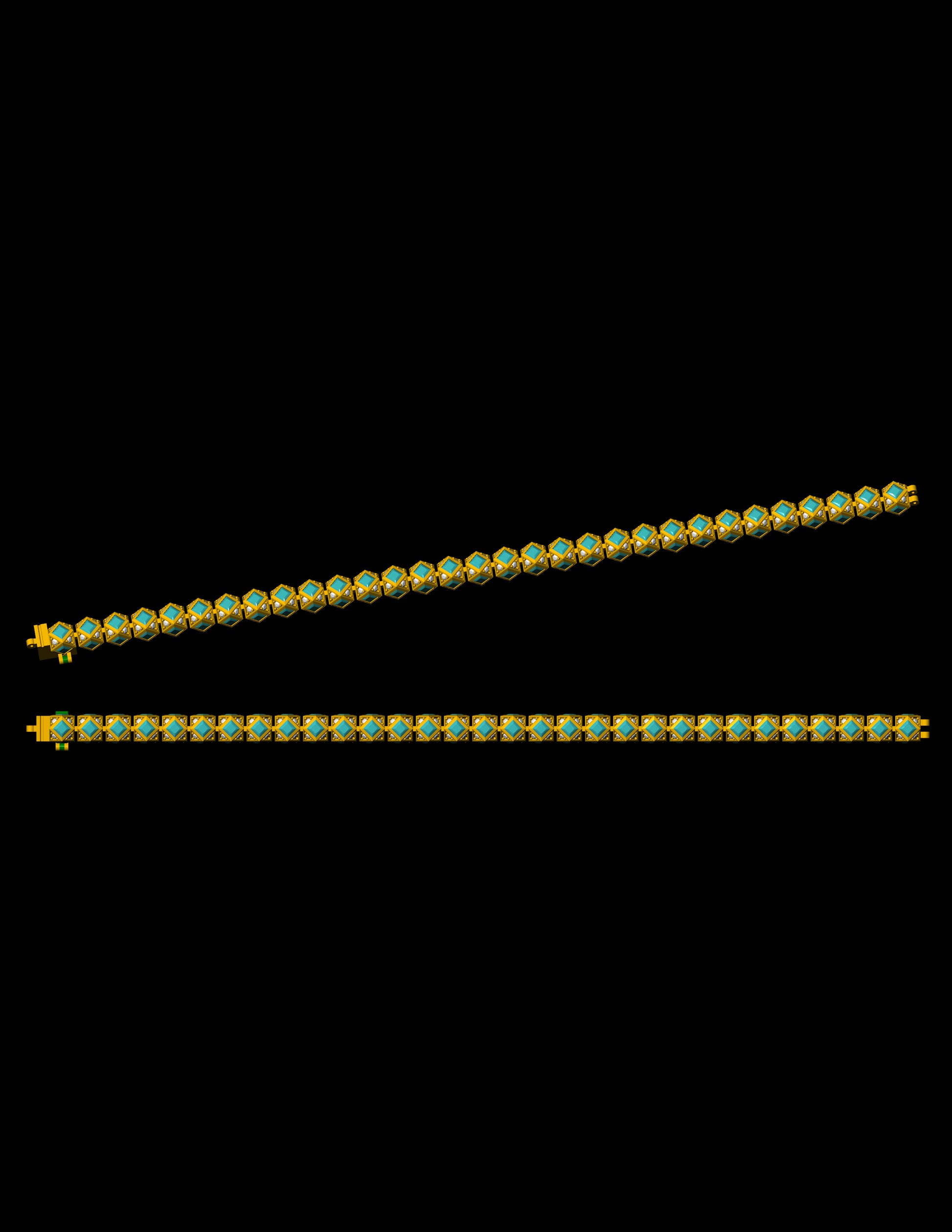

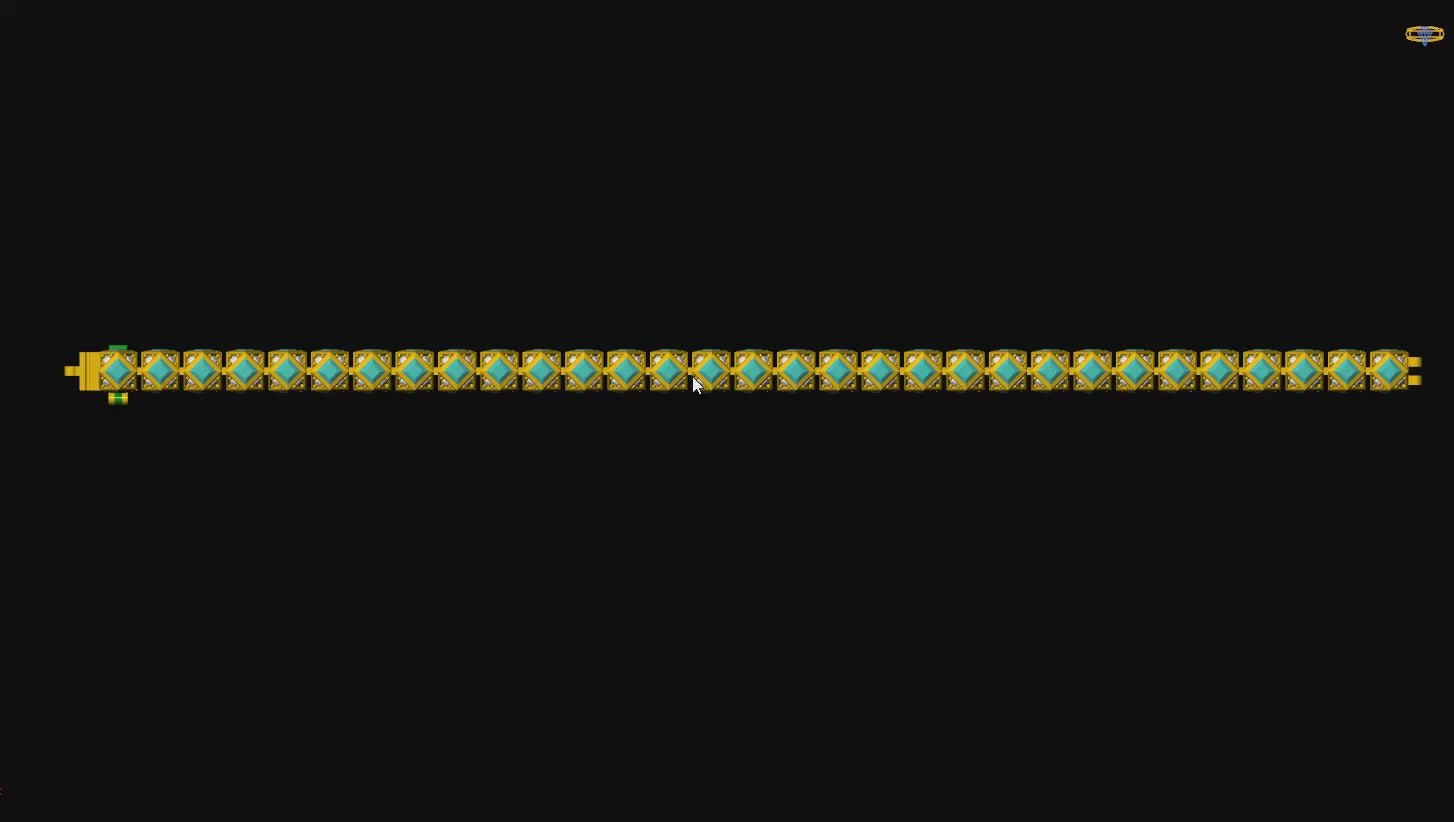

A striking bracelet CAD design featuring interlinked cube-shaped settings with princess-cut and round diamonds. The bold geometric pattern gives this bracelet a luxurious and modern appeal, making it ideal for high-end jewelry production.

This CAD file is engineered for precision, with accurate gemstone layouts and gold weight calculations in 14K, 18K, and 22K.

Specs

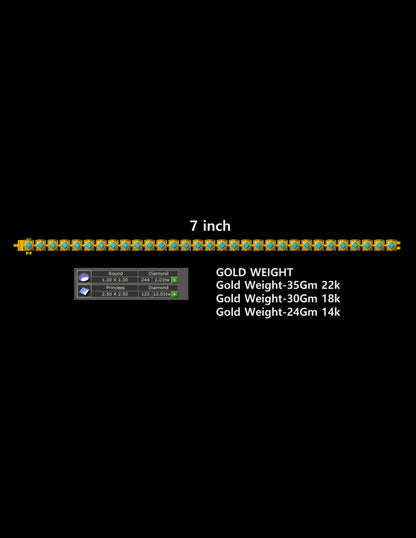

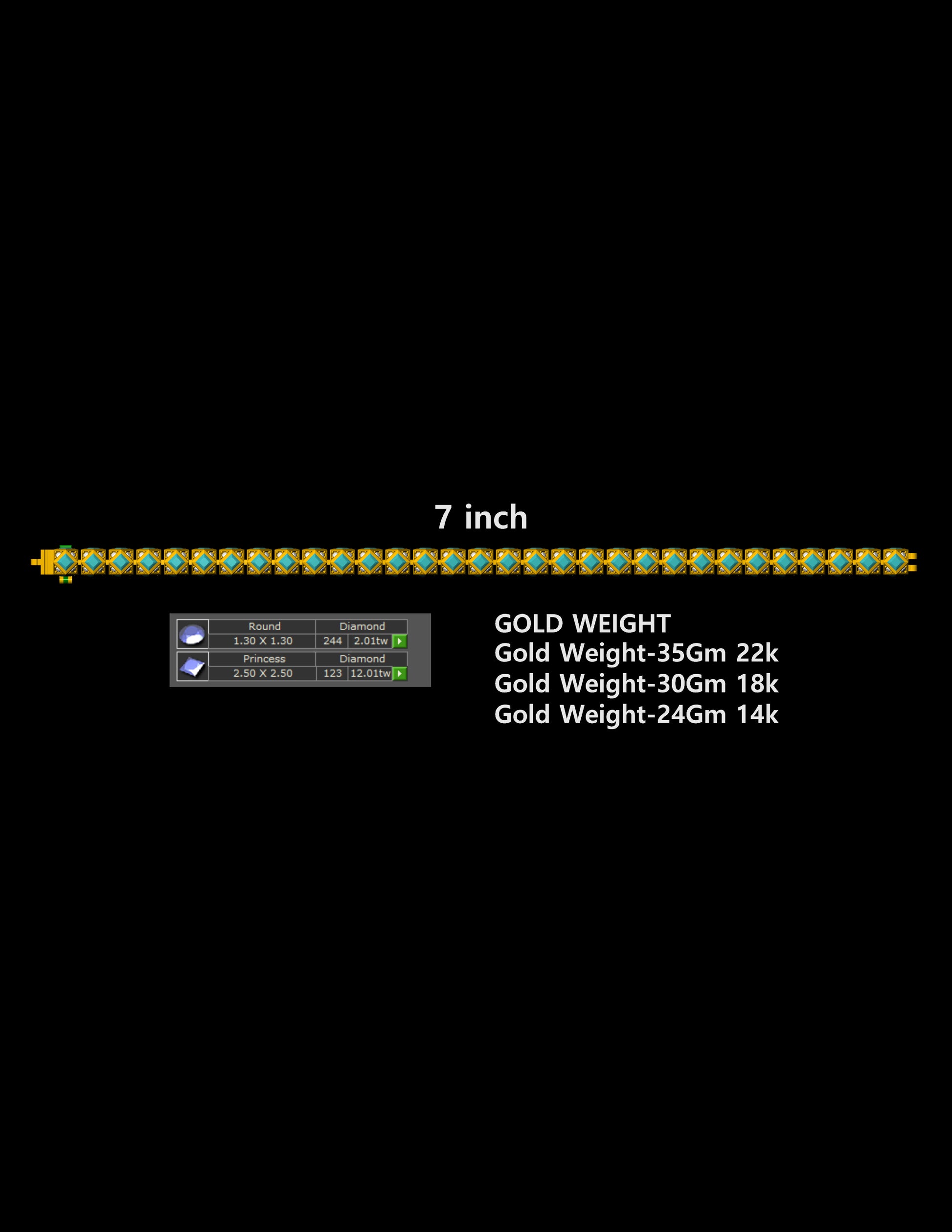

• Length: 7 inches
• Stone Layout:

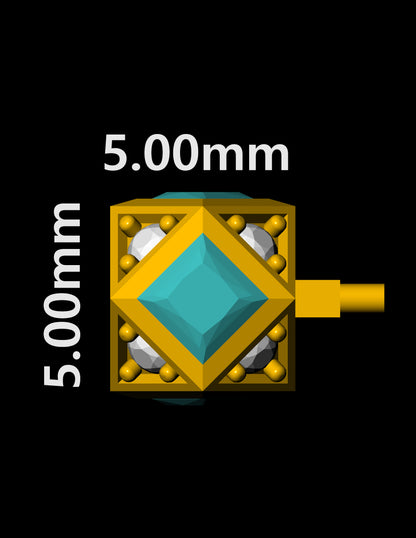

• Princess Cut (2.5 × 2.5 mm): 123 pcs (~12.01 ct)
• Round Cut (1.3 mm): 244 pcs (~2.01 ct)
• Gold Weight (approx.):

• 22K: ~35 g
• 18K: ~30 g
• 14K: ~24 g
• File Formats: 3DM / STL / STEP

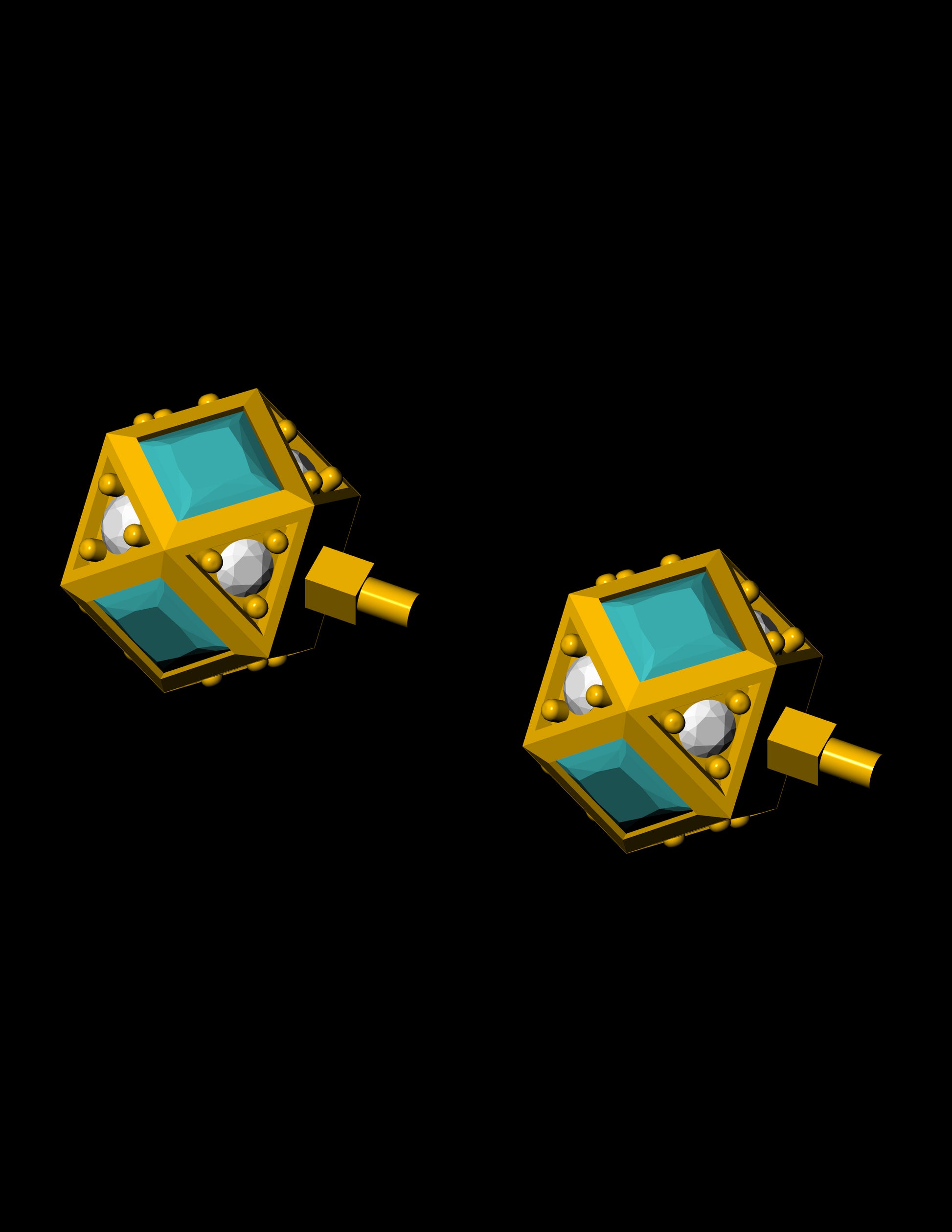

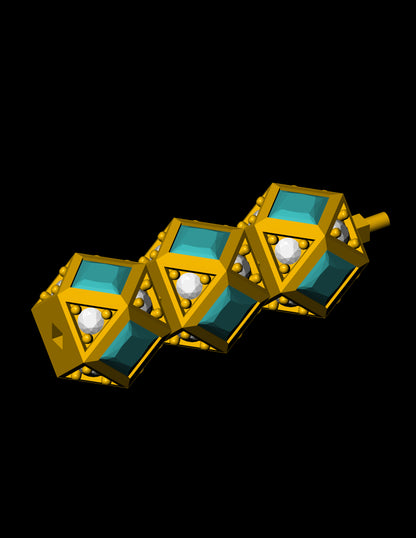

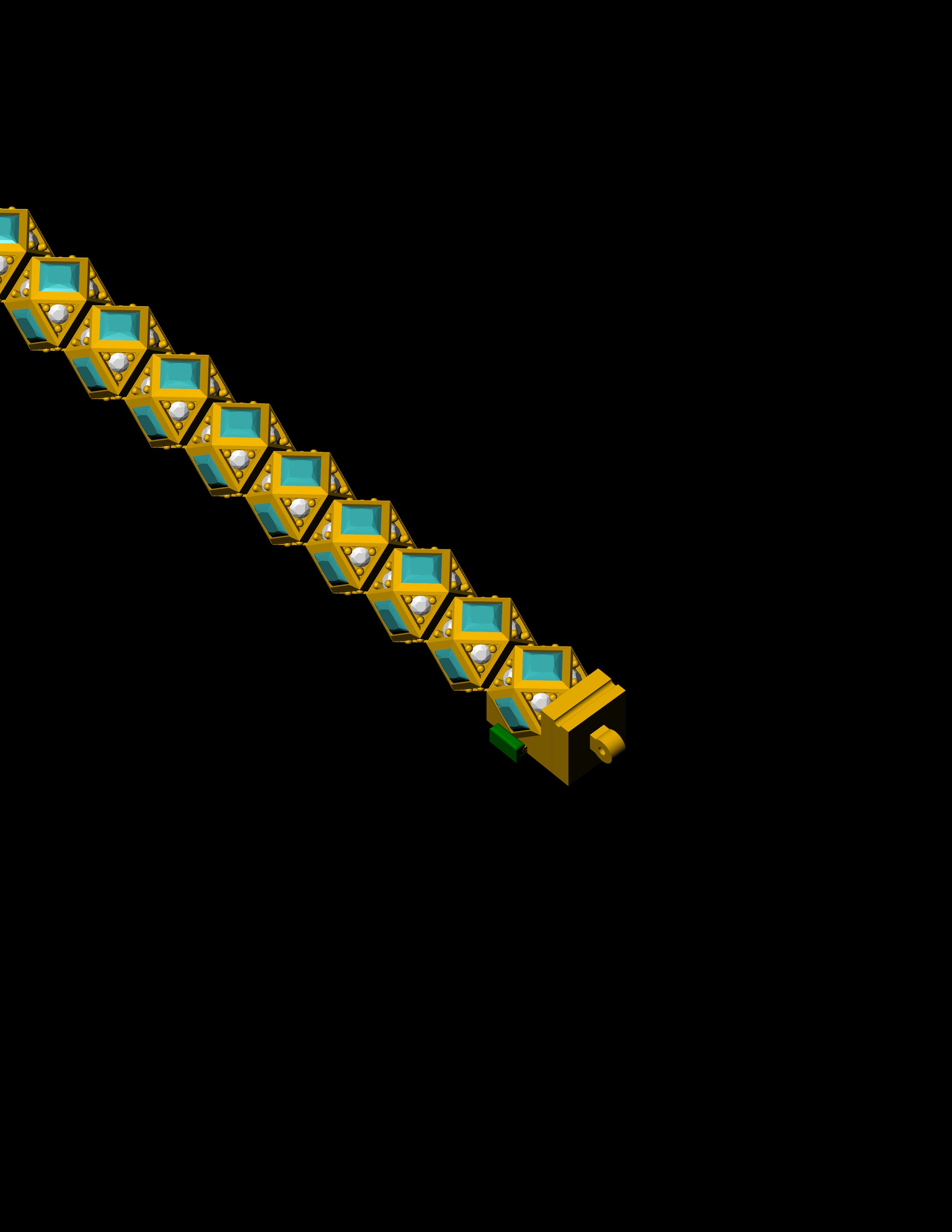

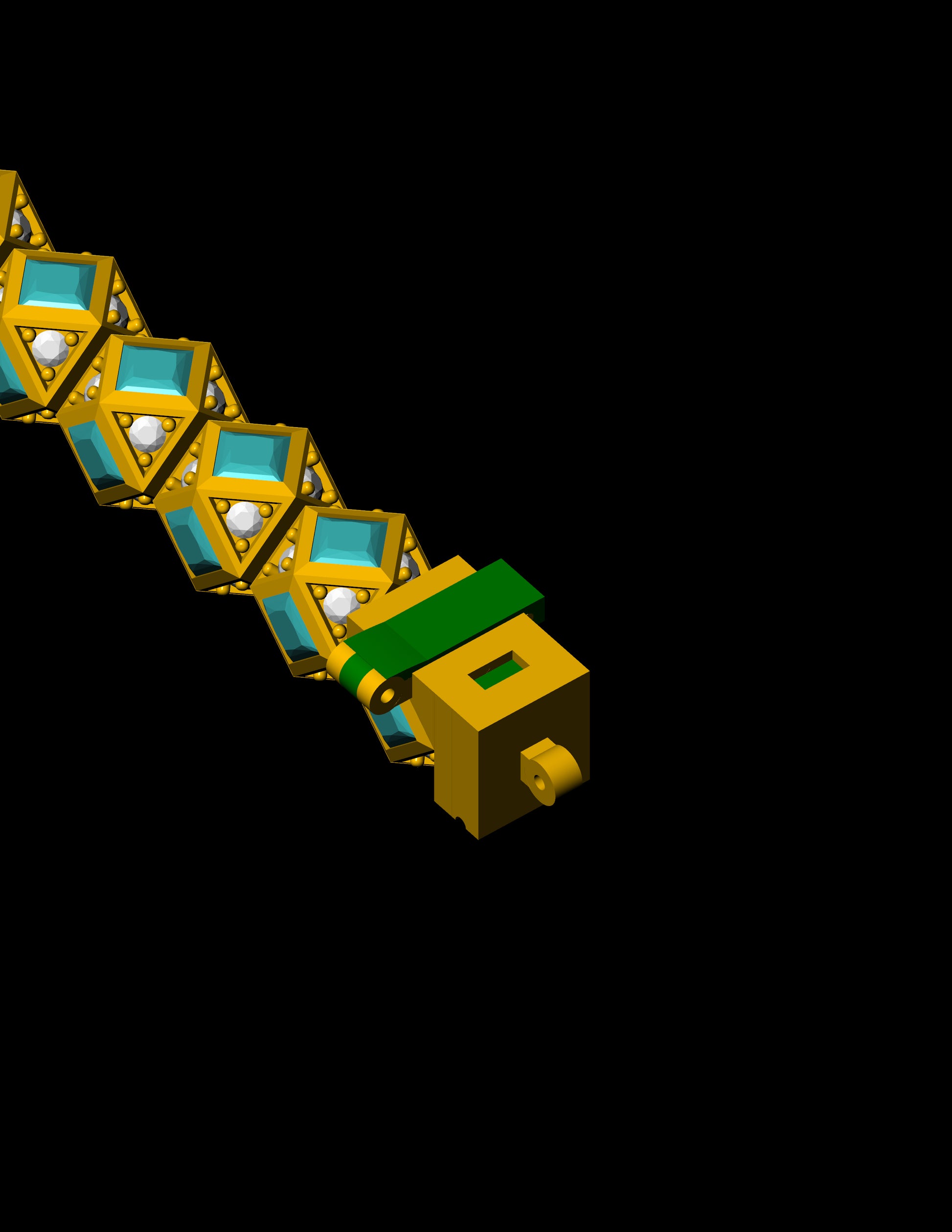

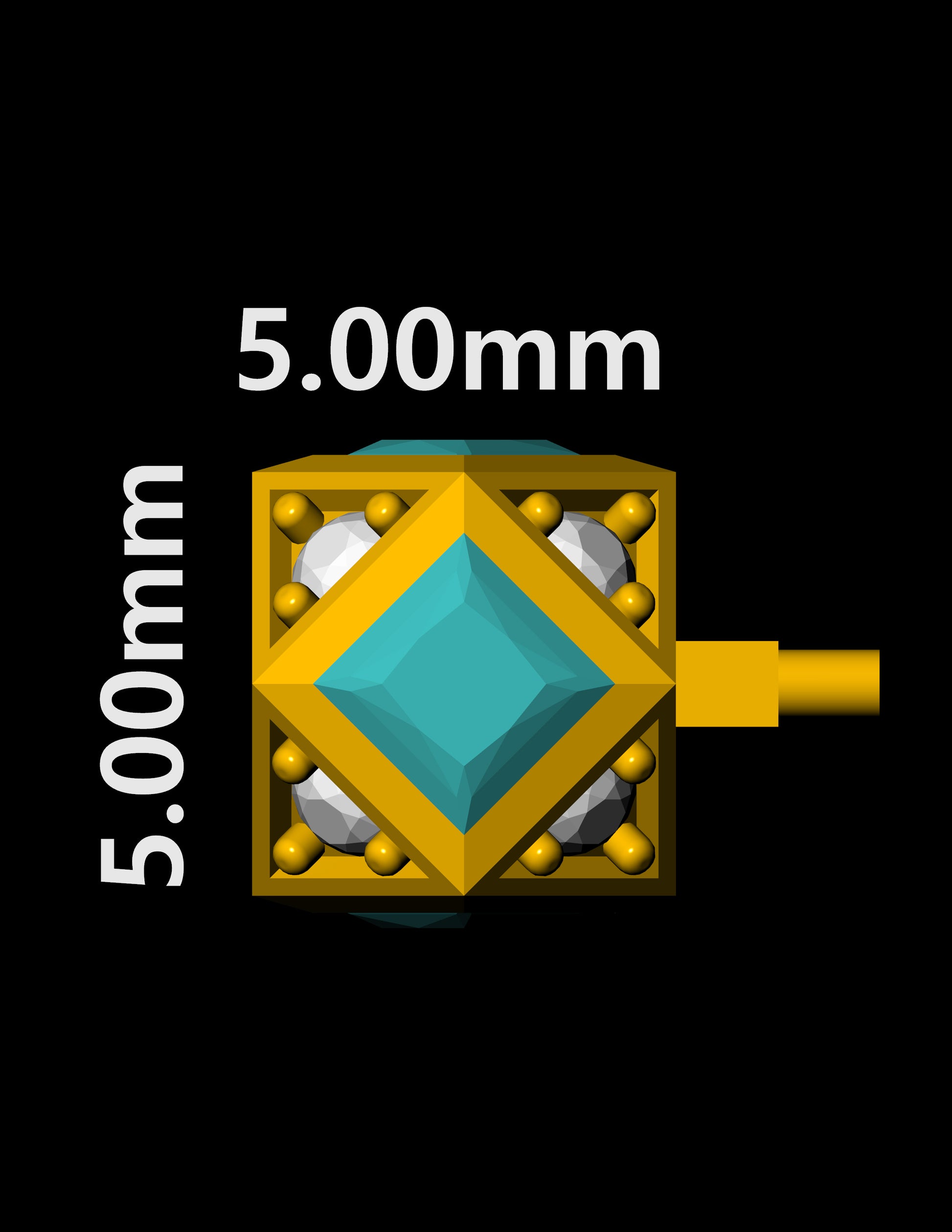

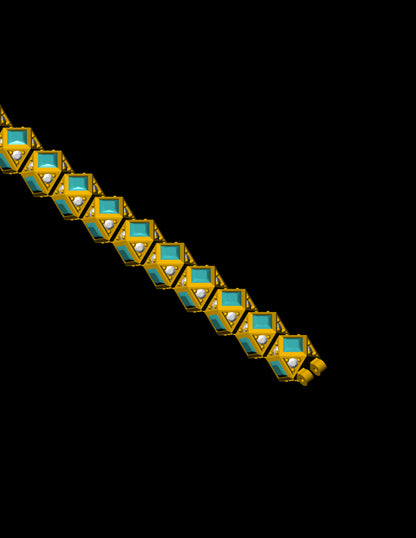

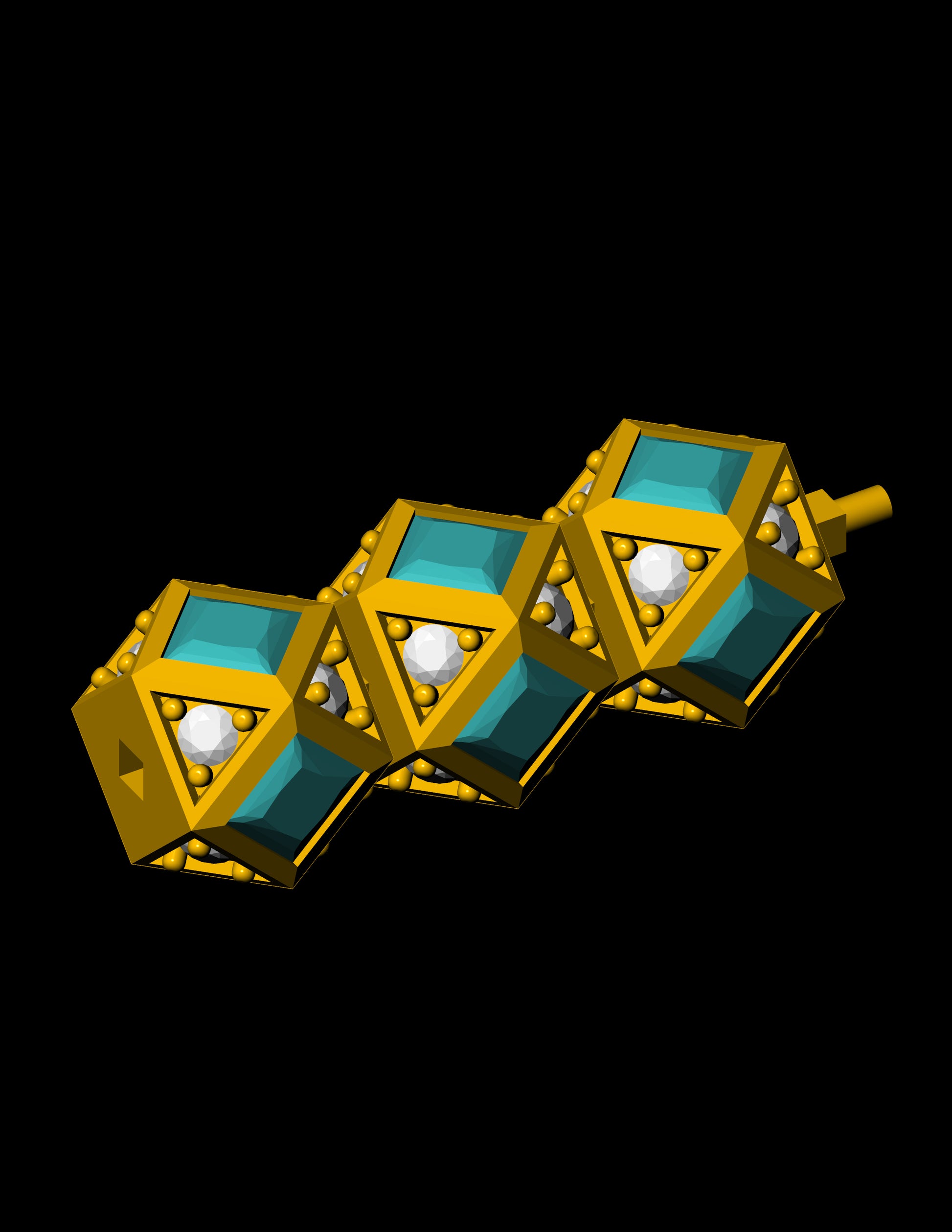

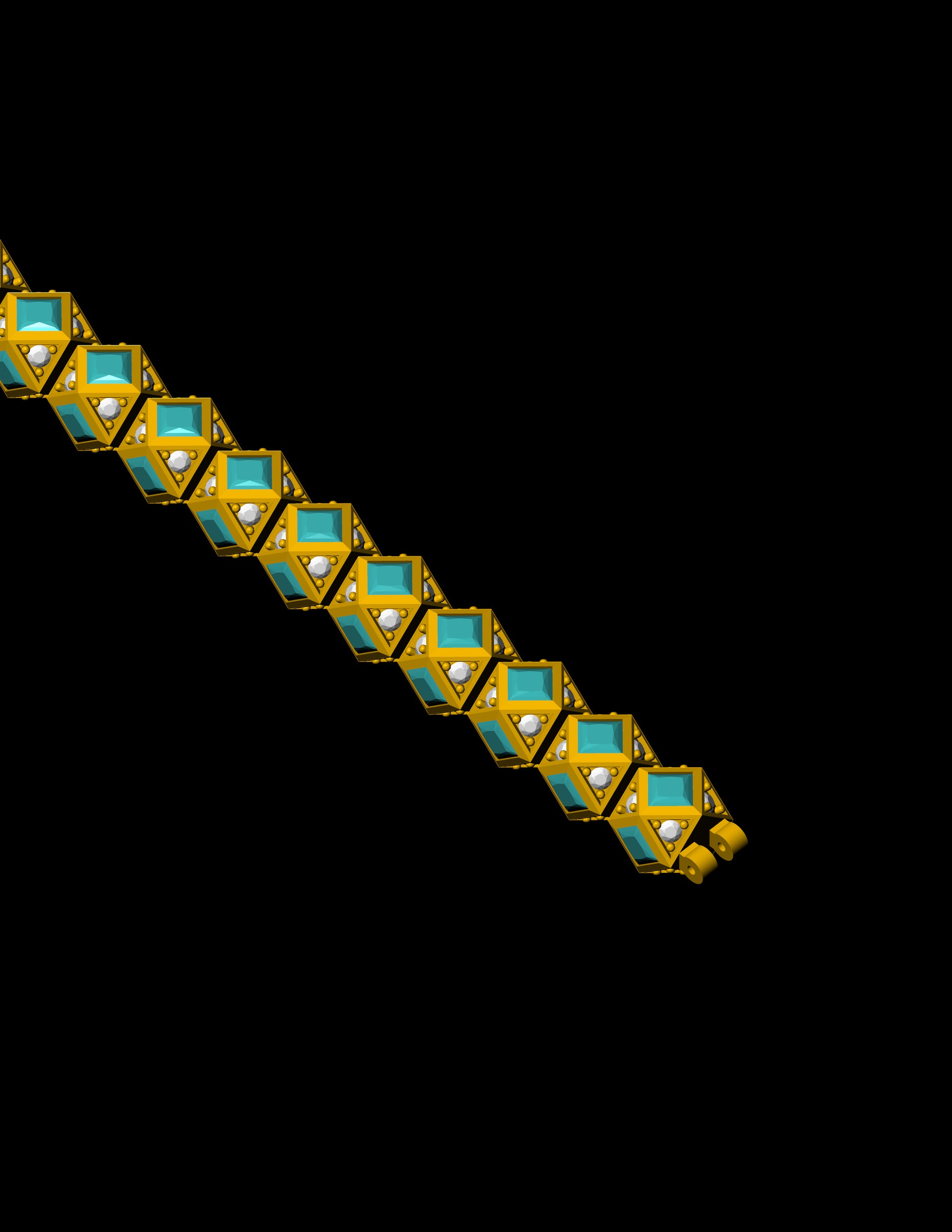

• Design Feature: Modular cube links with gem pavé and secure clasp

Notes

• This is a digital CAD file only.
• Prototype printing is advised before mass production.
• Buyer is responsible for final manufacturing adjustments.
