Lion Head lock Mechanism Bracelet CAD FILE

Product Description:

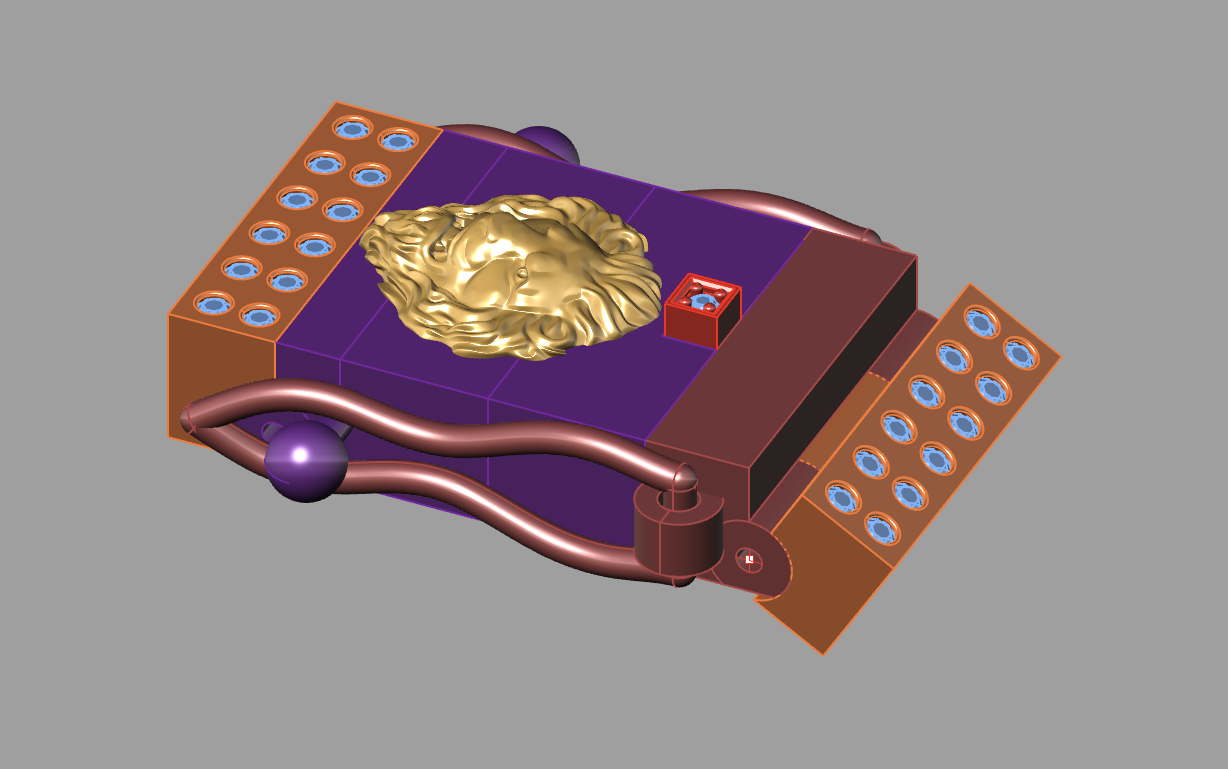

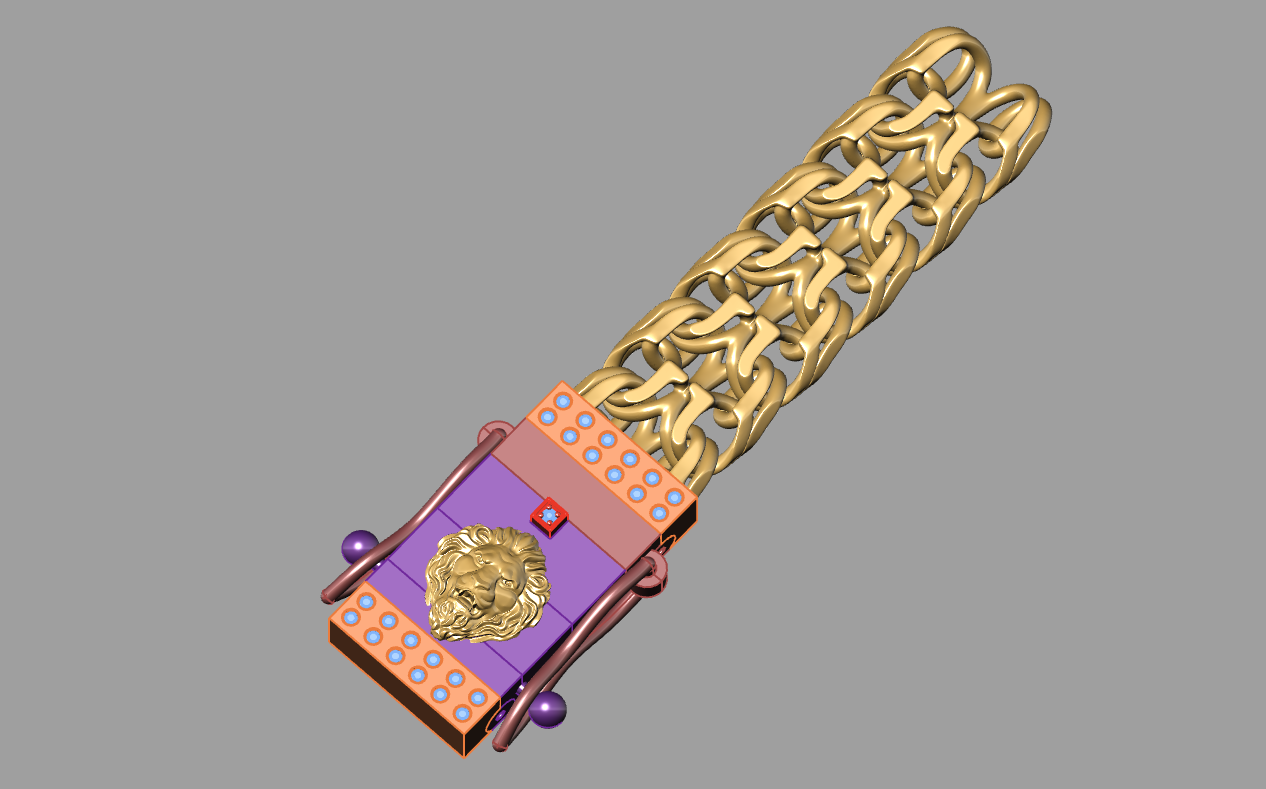

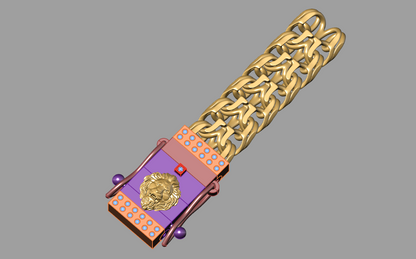

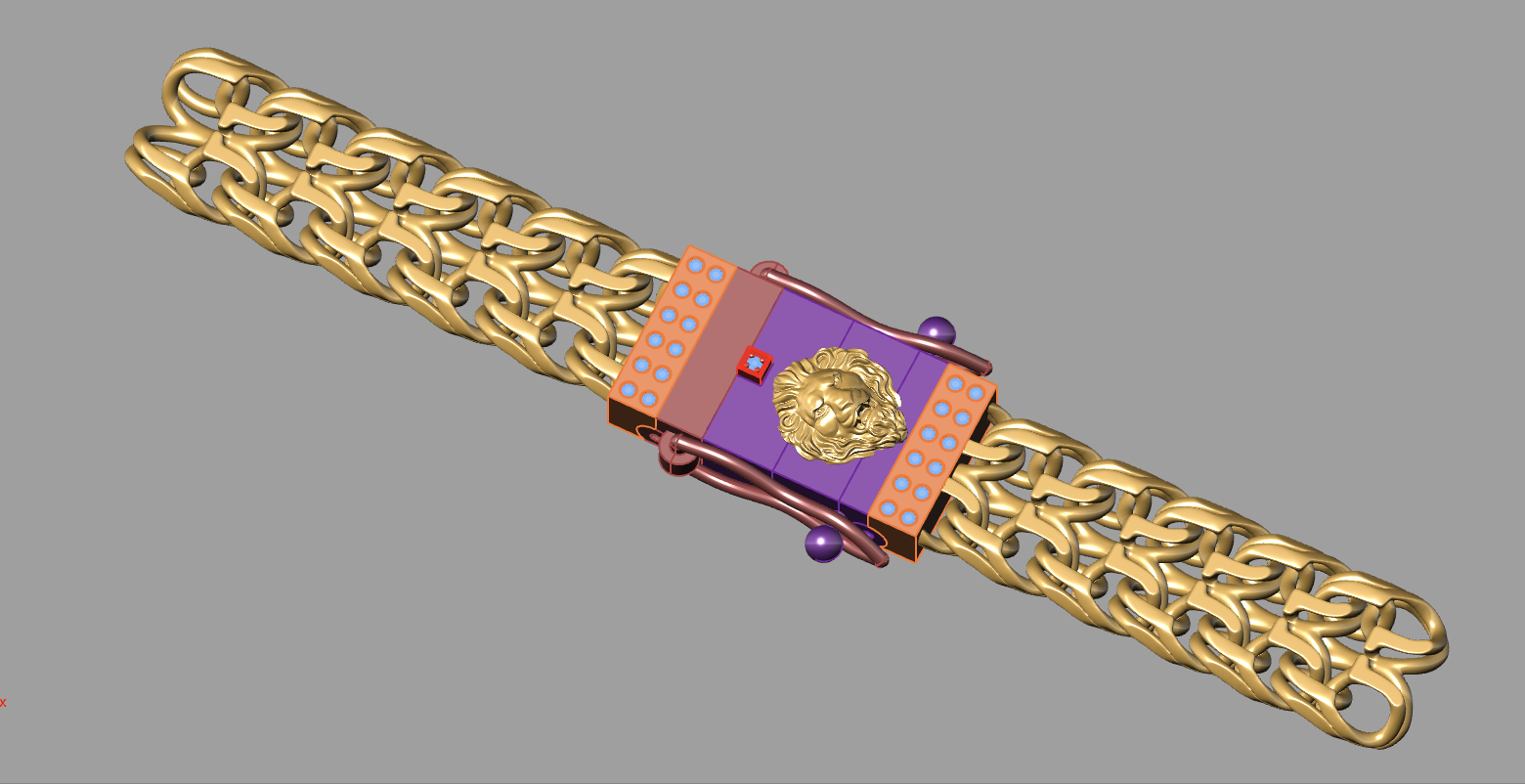

This is a premium lion head mechanism bracelet lock CAD design, featuring a bold and luxurious aesthetic. The centerpiece showcases a detailed 3D lion head motif, symbolizing strength and royalty. The design integrates a hidden locking mechanism with a dual curved arm structure, ensuring both security and smooth functionality.

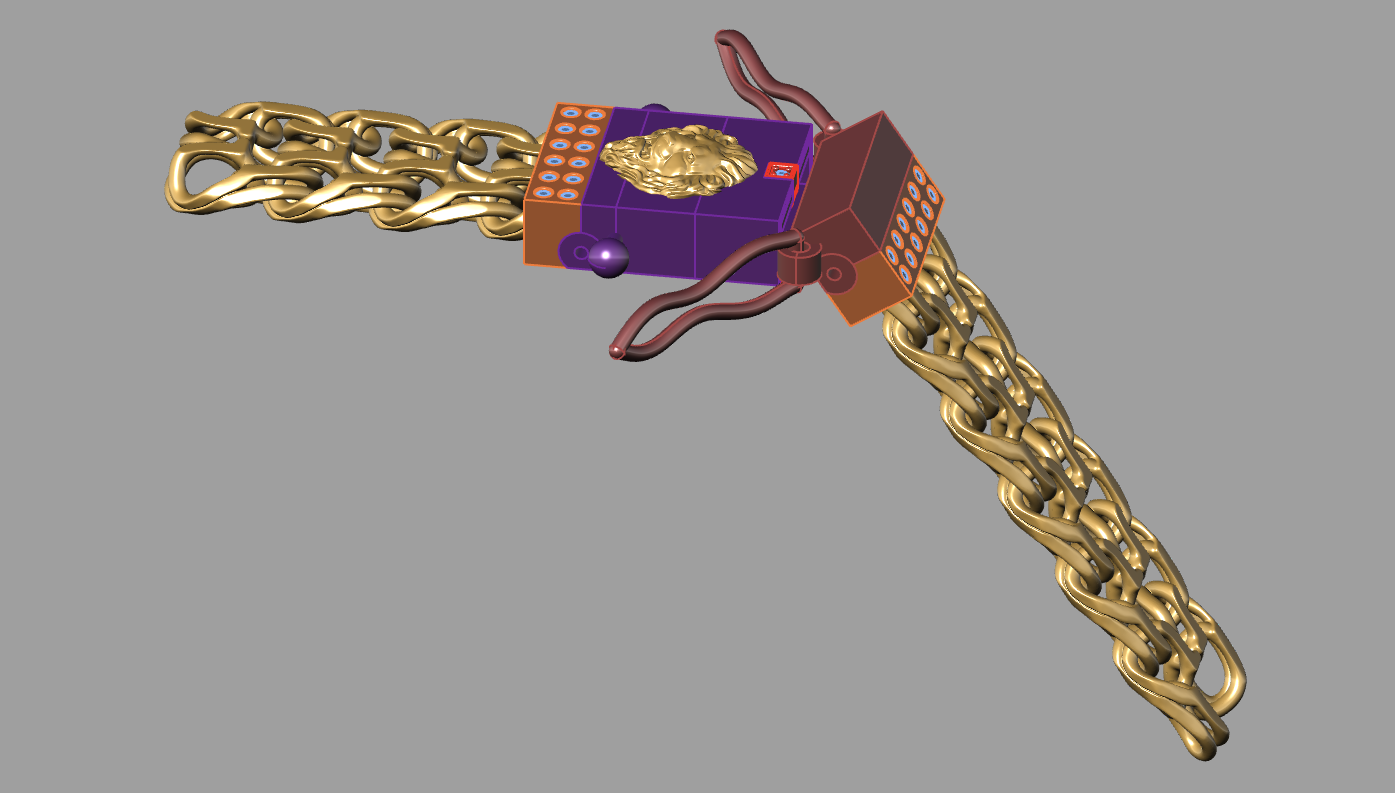

The lock operates through a press-and-release mechanism, where the internal ball locking system secures the clasp firmly while allowing easy opening. The side arms are ergonomically curved for precision fit and durability. Decorative micro-stone placements enhance the visual appeal, making it suitable for high-end jewelry collections.

This CAD design is ideal for bracelets, luxury chains, and statement jewelry pieces, combining mechanical innovation with artistic detailing.

Key Features:

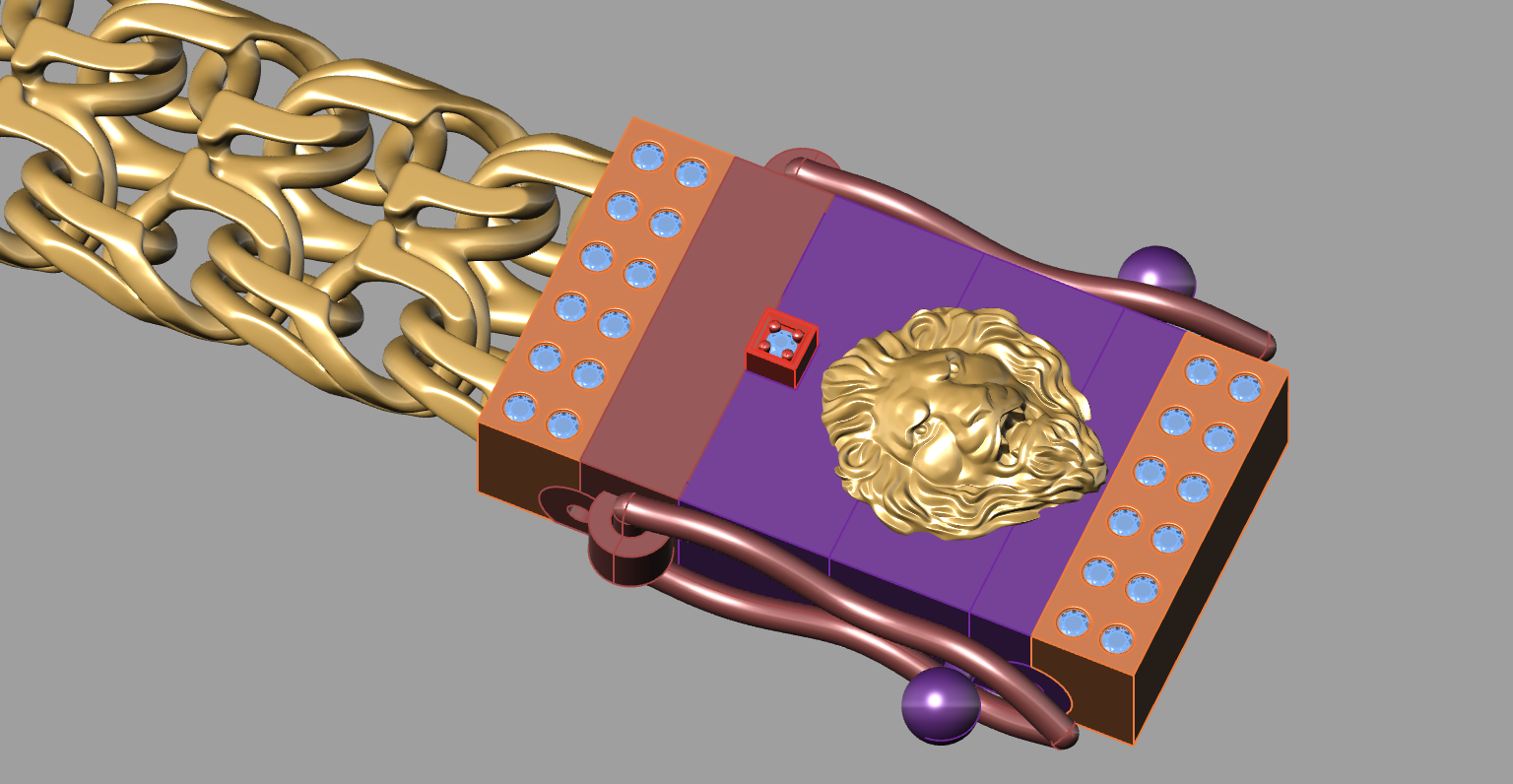

• Detailed 3D Lion Head Centerpiece

• Hidden Locking Mechanism

• Smooth Press/Release Functionality

• Dual Curved Arm Lock System

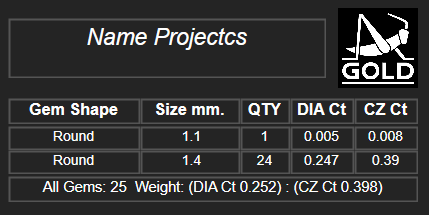

• Micro-stone Setting Design

• मजबूत और प्रीमियम लॉकिंग स्ट्रक्चर

• Suitable for casting and production

Measurements (Approx.):

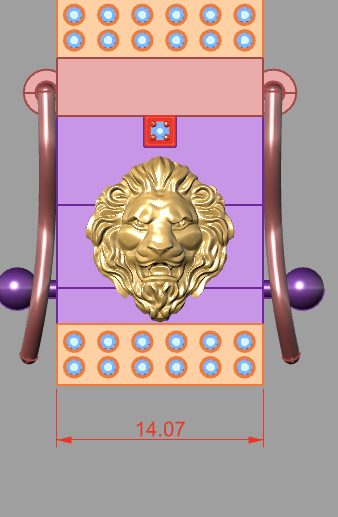

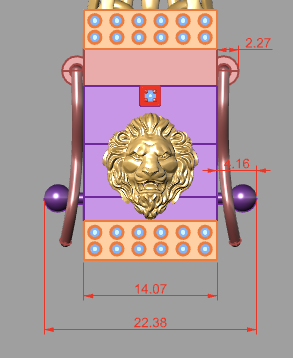

• Front Width: 14.07 mm

• Total Width (Outer): 22.38 mm

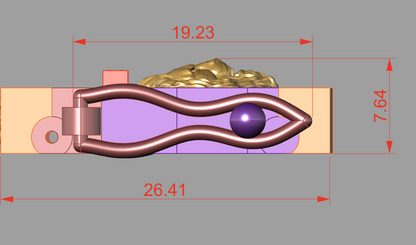

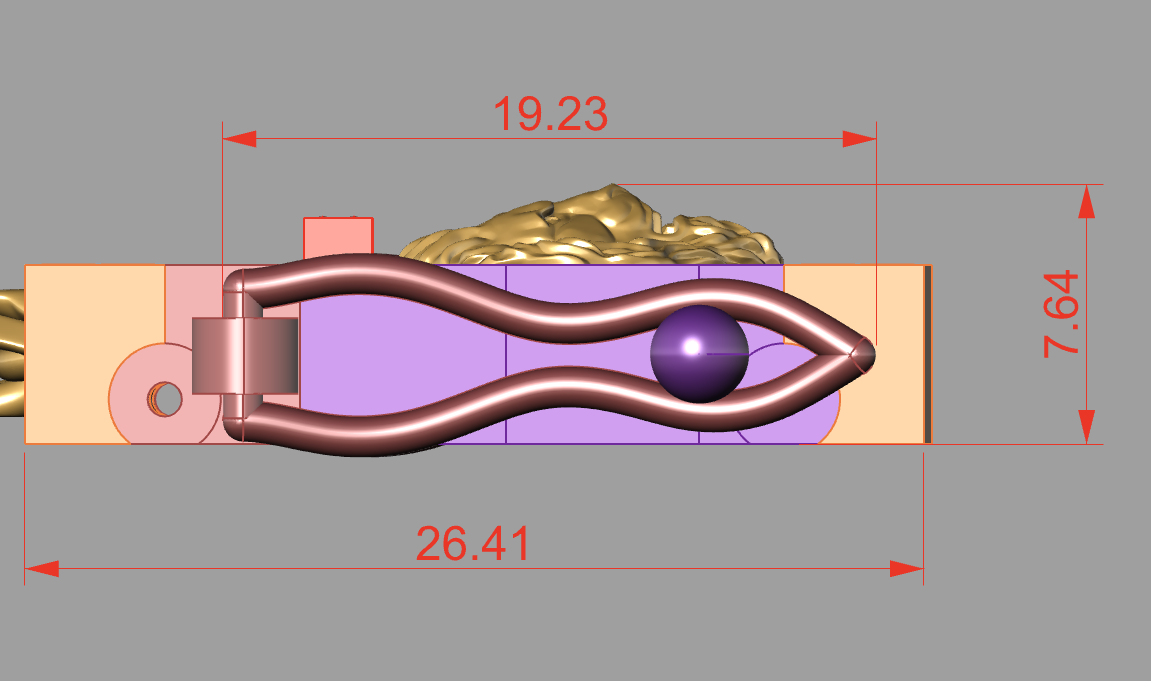

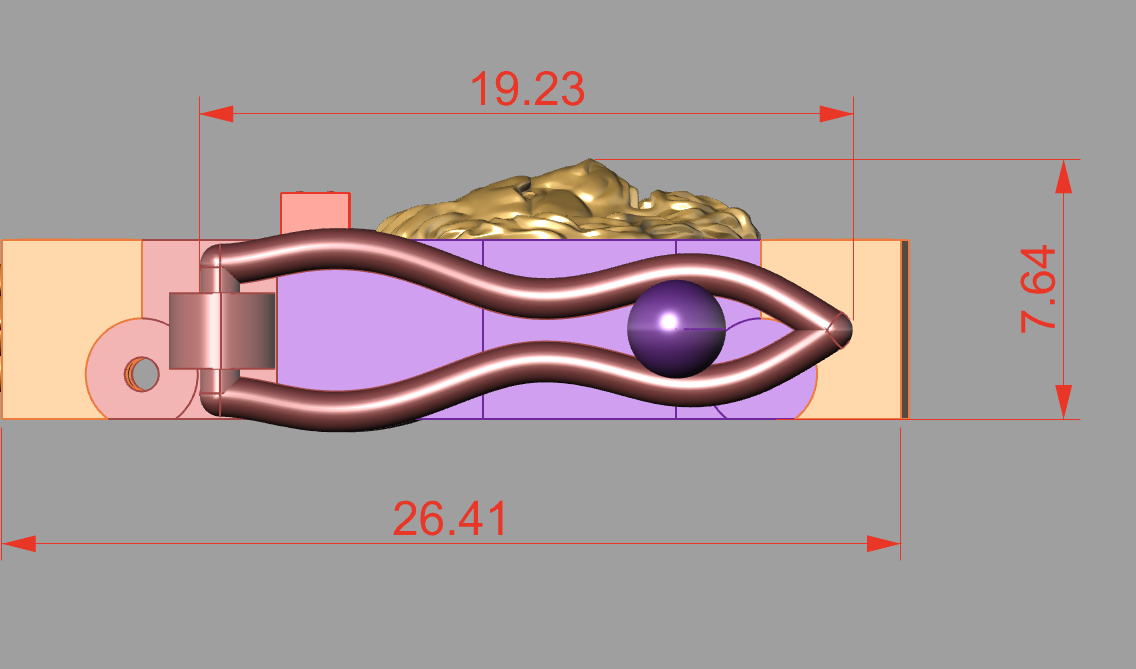

• Lock Length: 26.41 mm

• Inner Mechanism Length: 19.23 mm

• Lock Height: 7.64 mm

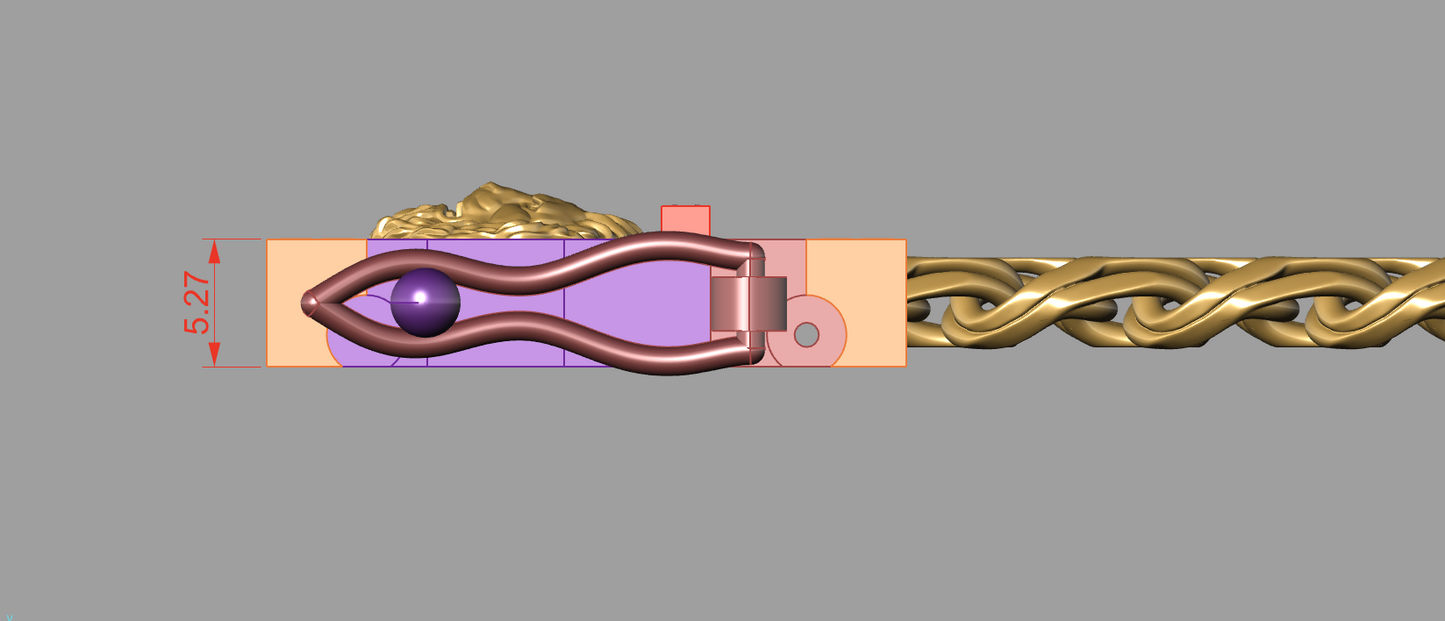

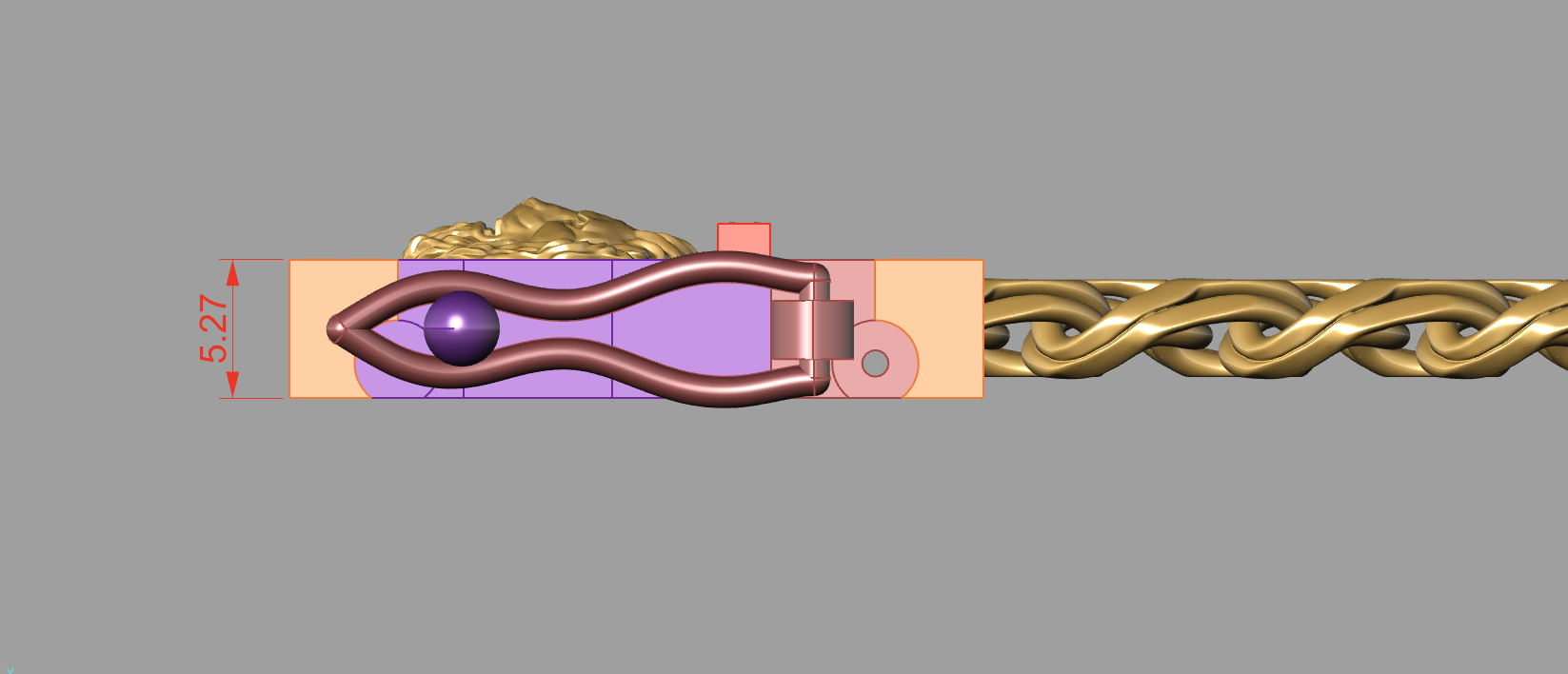

• Inner Height: 5.27 mm

• Side Thickness: 4.16 mm

• Top Section Thickness: 2.27 mm

Usage:

• Bracelet Lock

• Chain Lock Mechanism  18kt 69.GRAM 8inchi
