Multi Layer Floral Diamond Necklace CAD FILE

Product Description

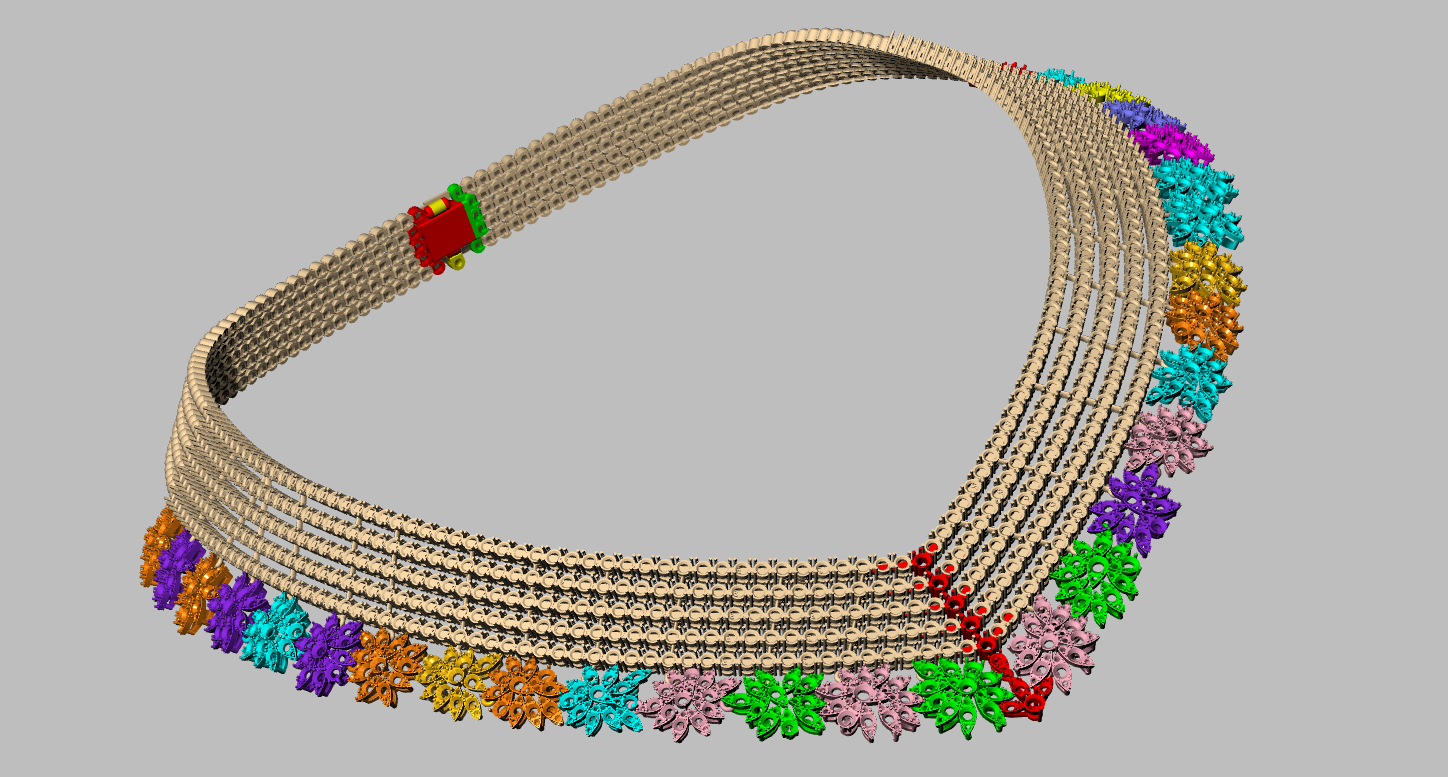

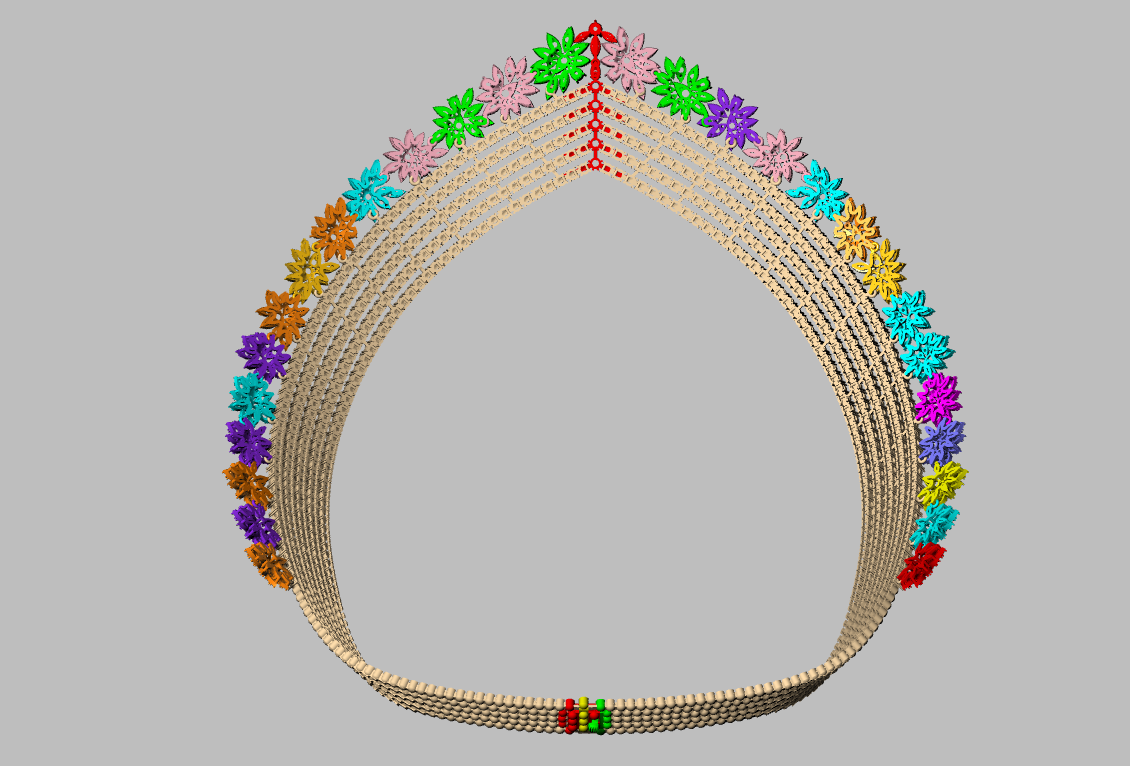

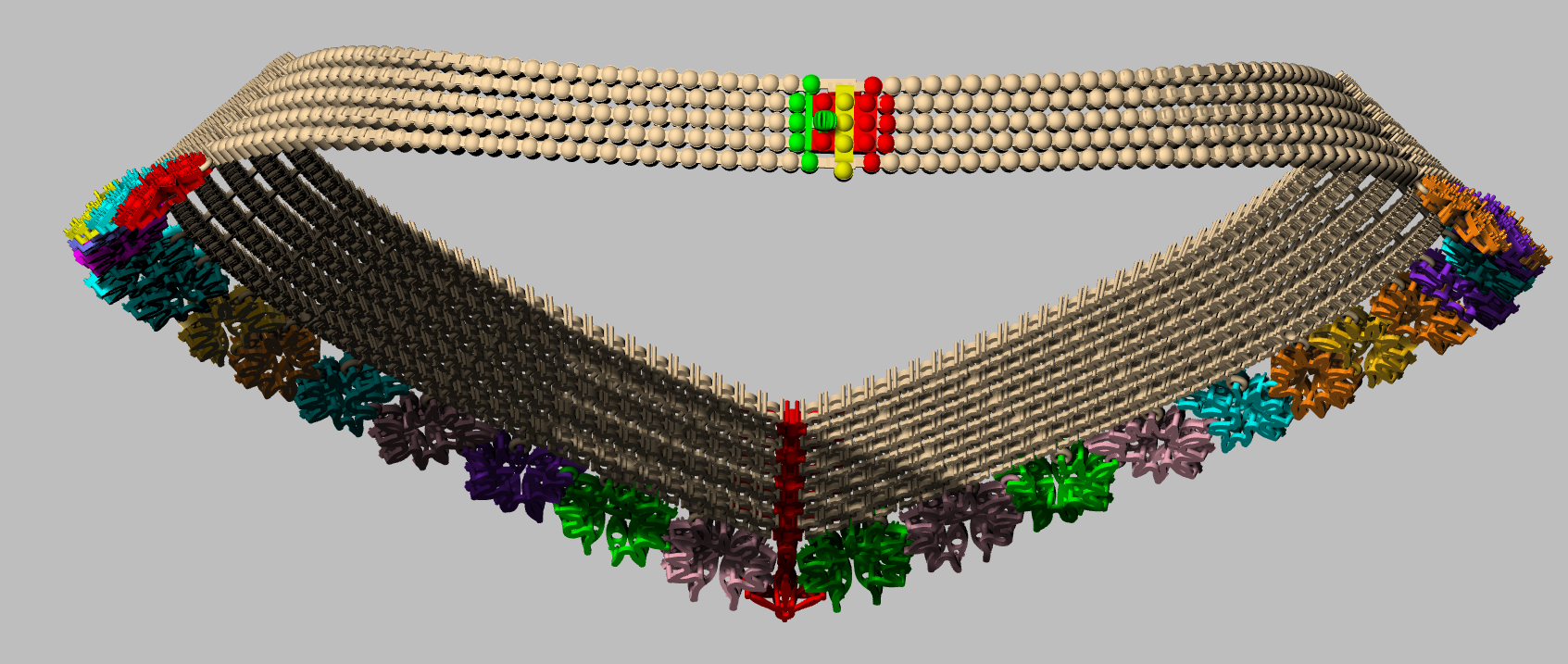

This elegant multi-layer necklace features a structured V-shape profile enhanced with intricate floral motifs along the lower curve. The design combines fine round diamonds arranged in graduated sizes, creating a rich layered texture and strong visual depth.

The necklace tapers smoothly toward the clasp, maintaining balanced proportions and a refined finish. The lower section is highlighted with clustered floral elements, providing brilliance and dimensional detailing. This design is ideal for bridal, festive, and high-end statement collections.

Crafted for premium manufacturing, the CAD model ensures precise stone setting, balanced weight distribution, and production-ready detailing.

---

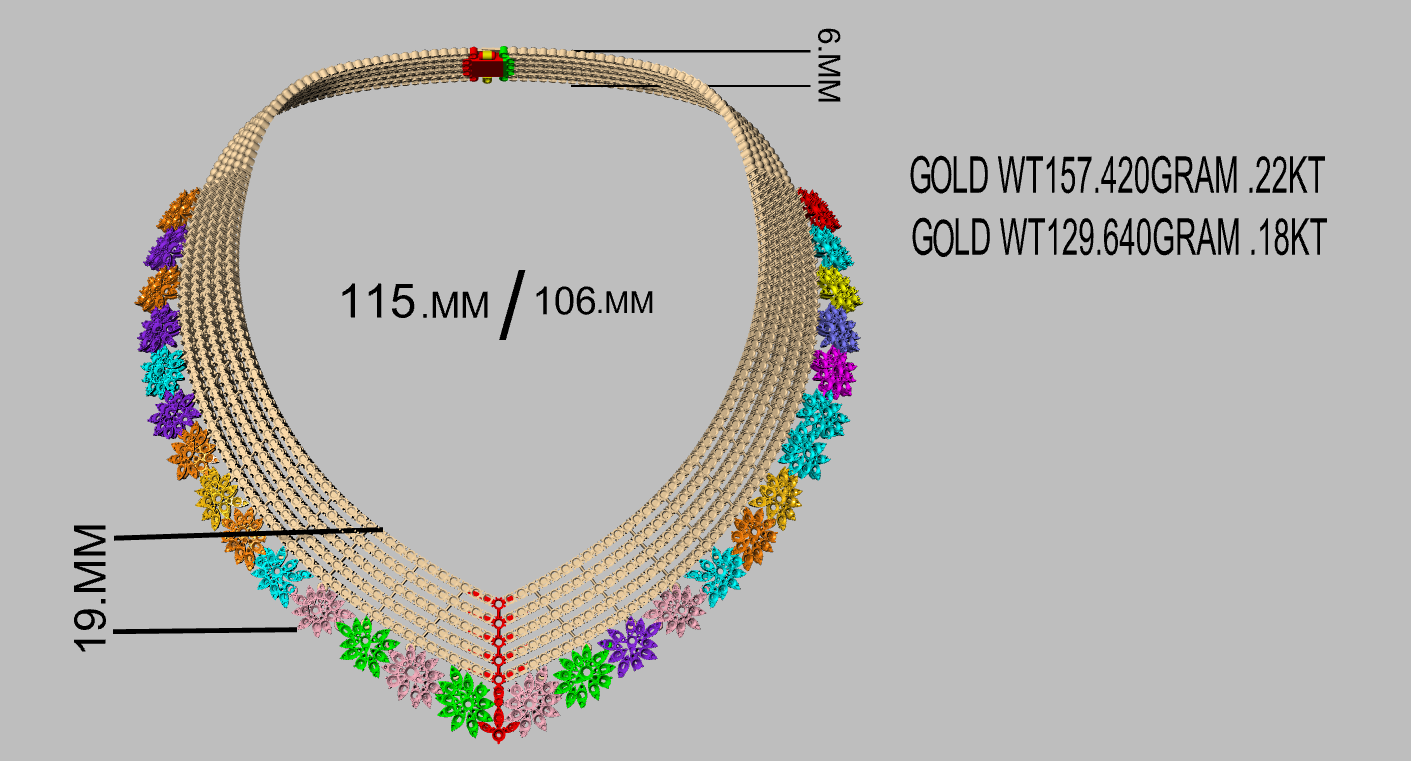

Dimensions

• Inner Length: 106 mm

• Outer Length: 115 mm

• Necklace Width (Top Band): 6 mm

• Maximum Drop Width (Bottom Section): 19 mm

---

Gold Weight

• 22KT Gold: 157.420 grams (approx.)

• 18KT Gold: 129.640 grams (approx.)

(Final weight may vary slightly after polishing and finishing.)

---

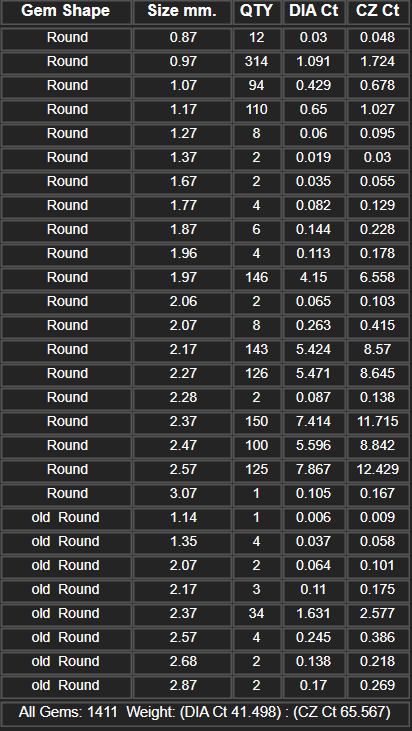

Diamond & CZ Details

• Total Gem Count: 1,411 stones

• Total Diamond Weight (DIA Ct): 41.498 ct

• Total CZ Weight (CZ Ct): 65.567 ct

Stone Specifications (Round Cut)

Sizes range from 0.87 mm to 3.07 mm, including:
0.87 mm, 0.97 mm, 1.07 mm, 1.17 mm, 1.27 mm, 1.37 mm, 1.67 mm, 1.77 mm, 1.87 mm, 1.96 mm, 1.97 mm, 2.06 mm, 2.07 mm, 2.17 mm, 2.27 mm, 2.28 mm, 2.37 mm, 2.47 mm, 2.57 mm, 3.07 mm

Additional old round stones used in select sections for detailing.

---

CAD File Details

• Production-ready design

• Accurate stone mapping

• Suitable for casting in 18KT / 22KT

• Ideal for high-end bridal jewelry manufacturing
