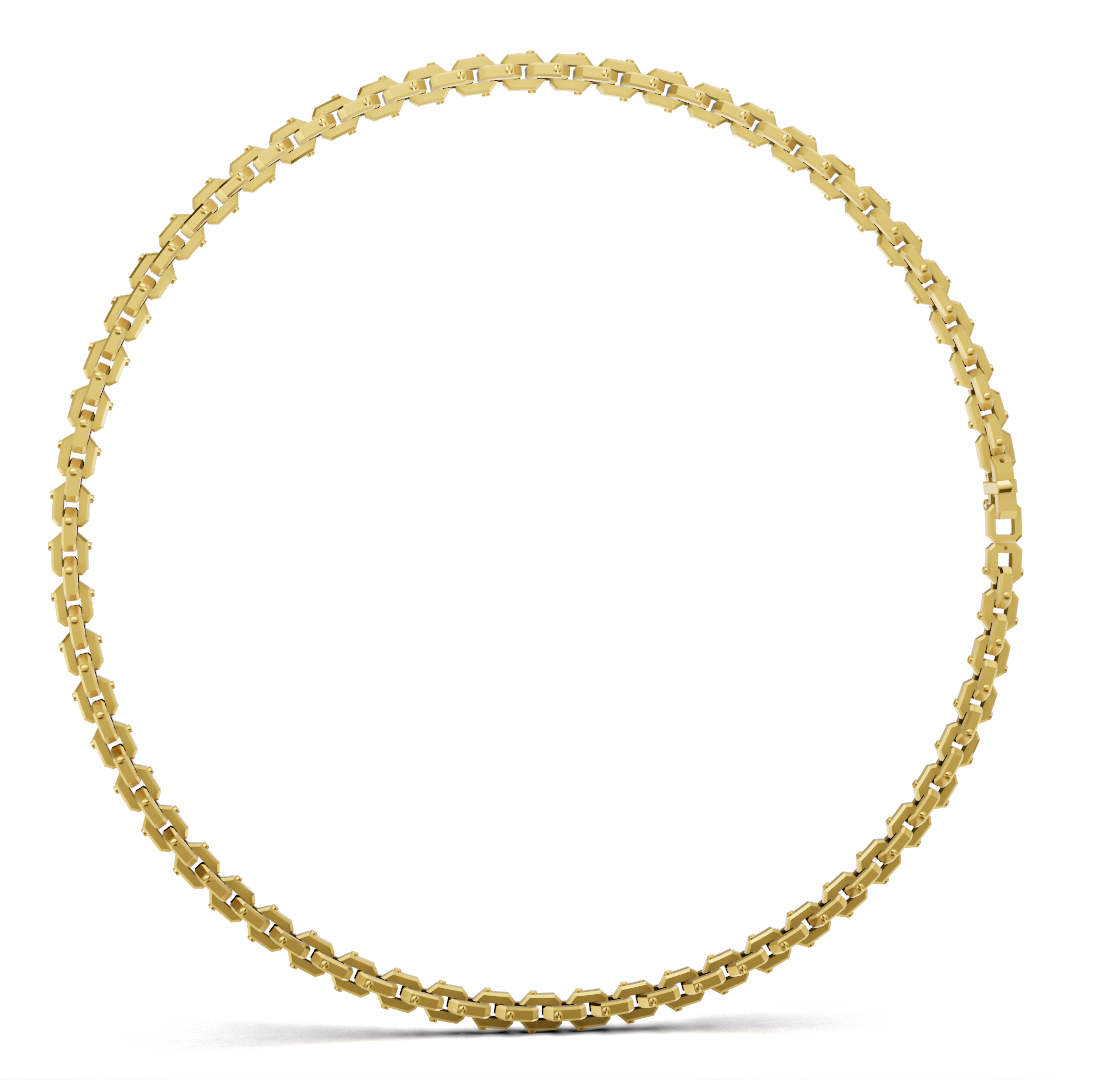

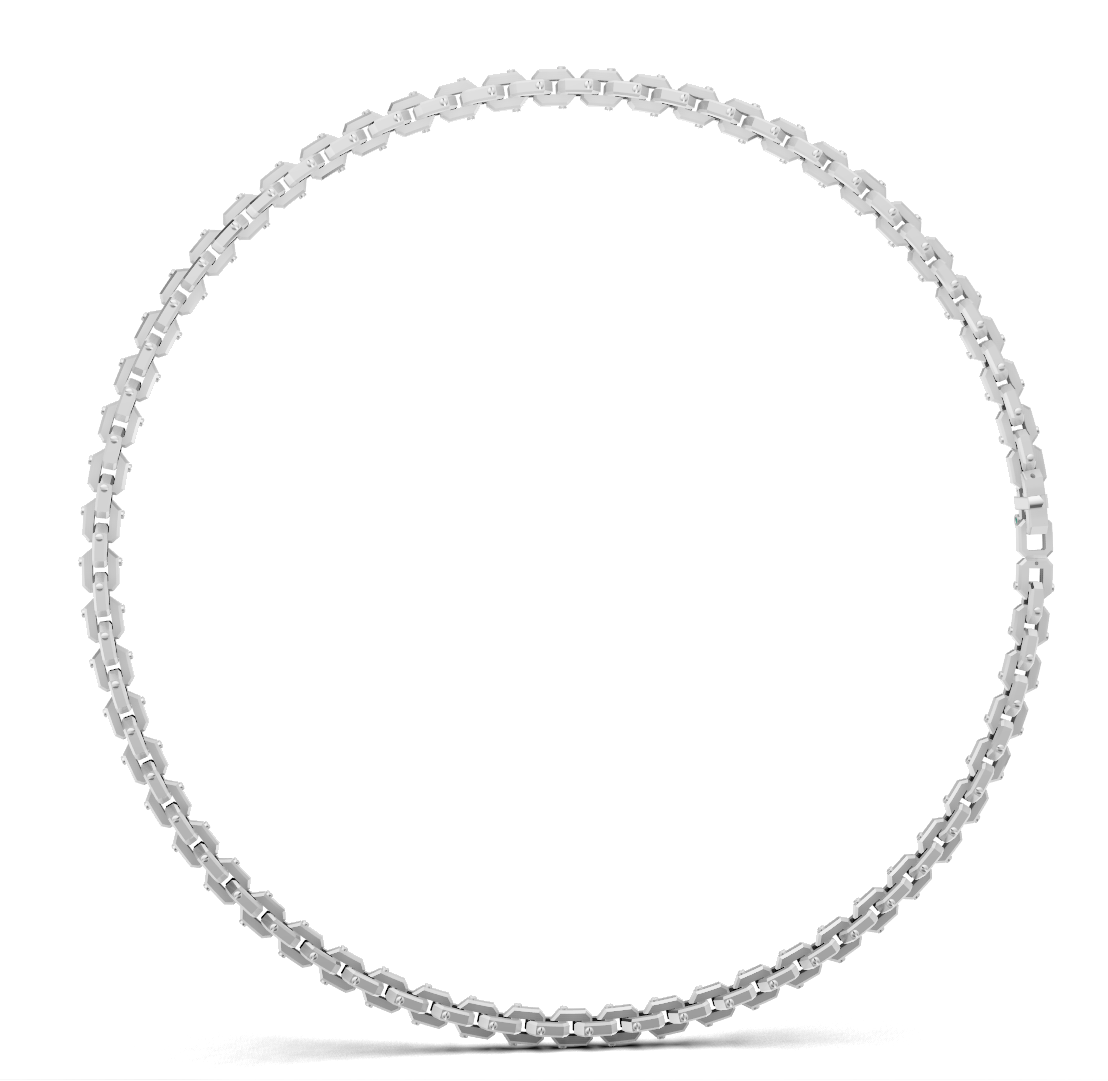

Rectangular Link Diamond Necklace CAD FILE

Design Description

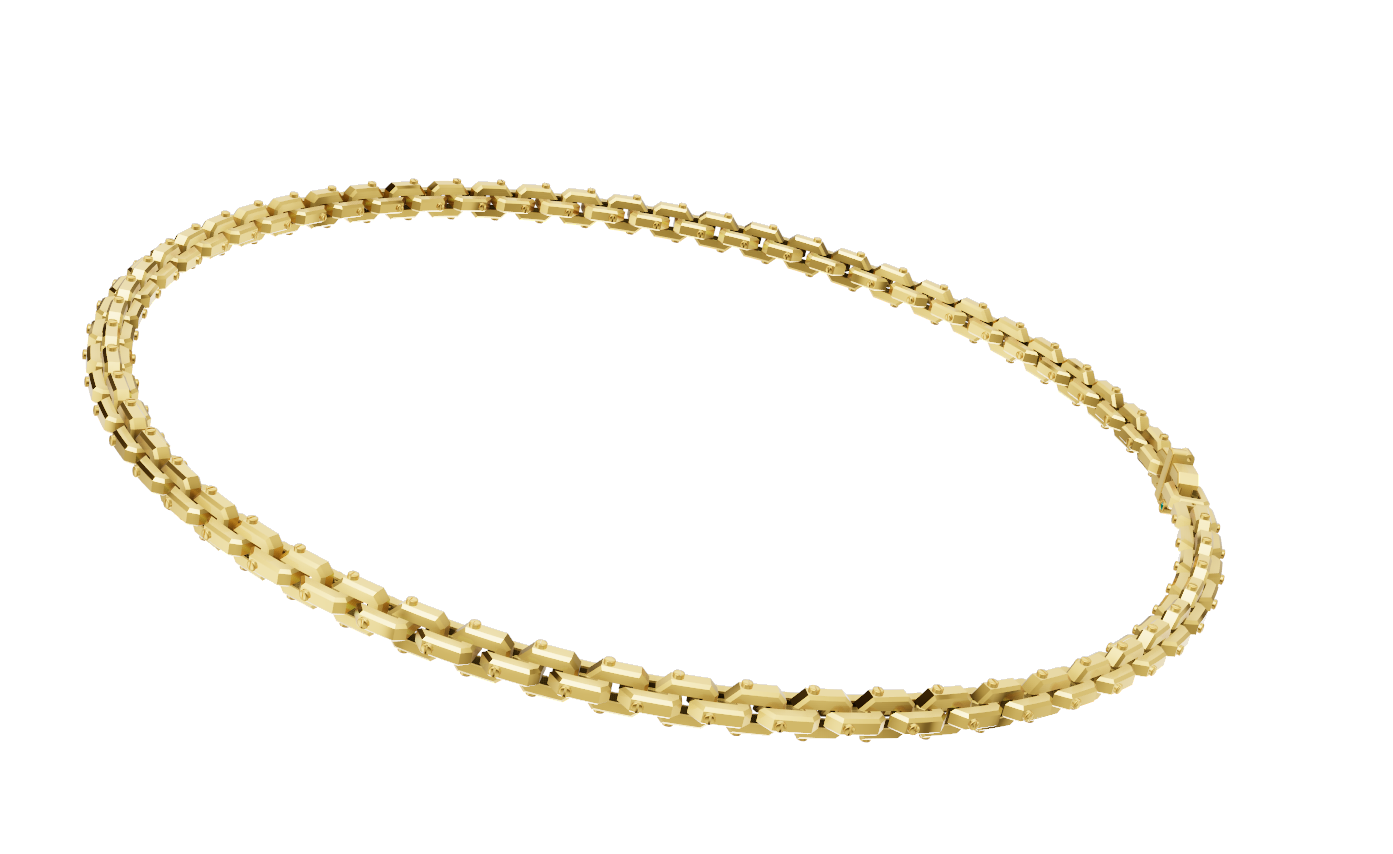

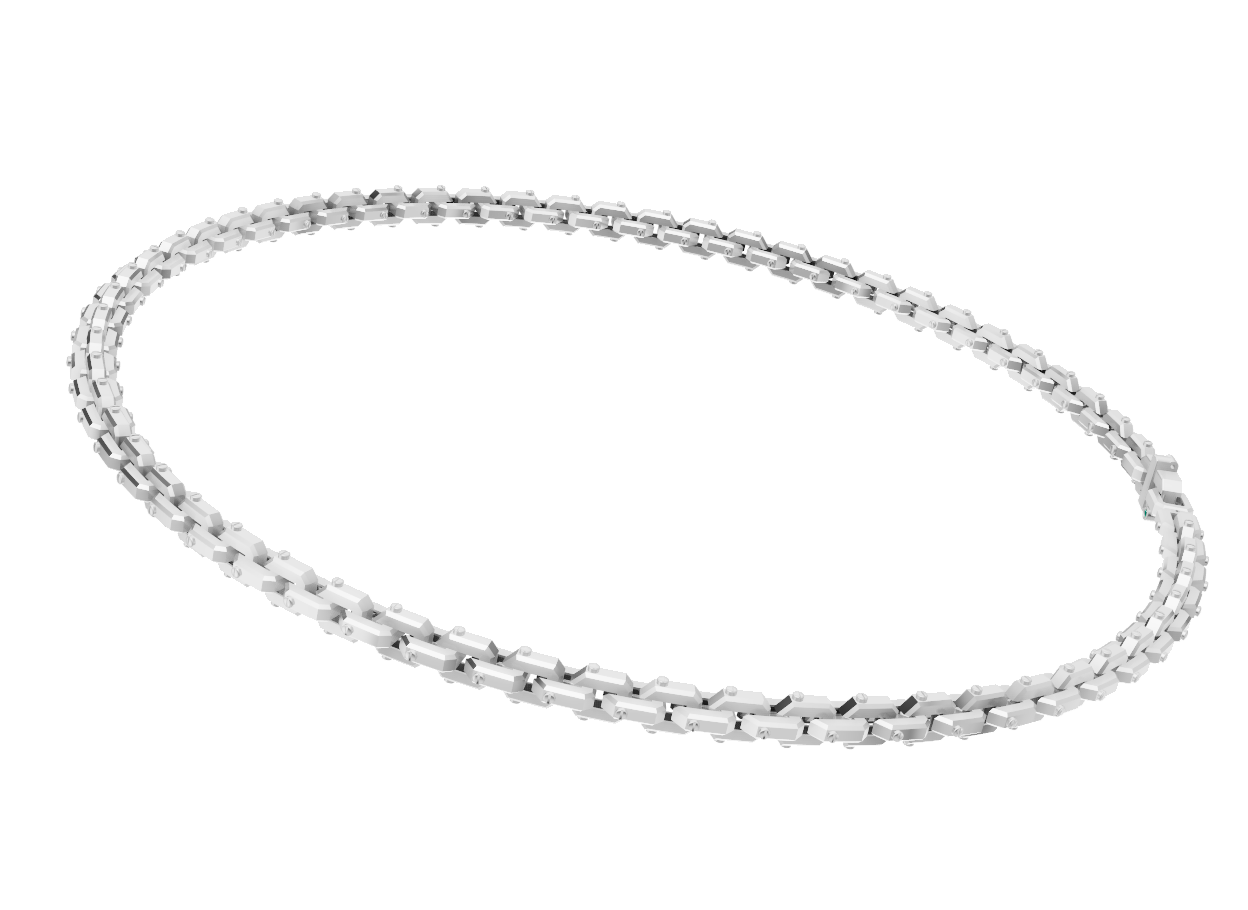

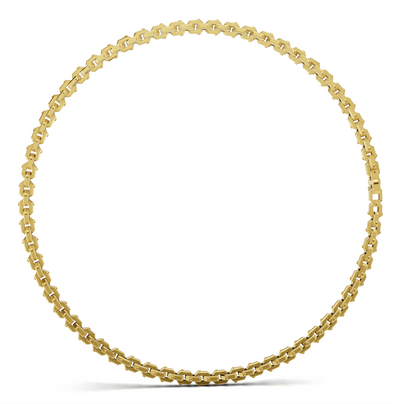

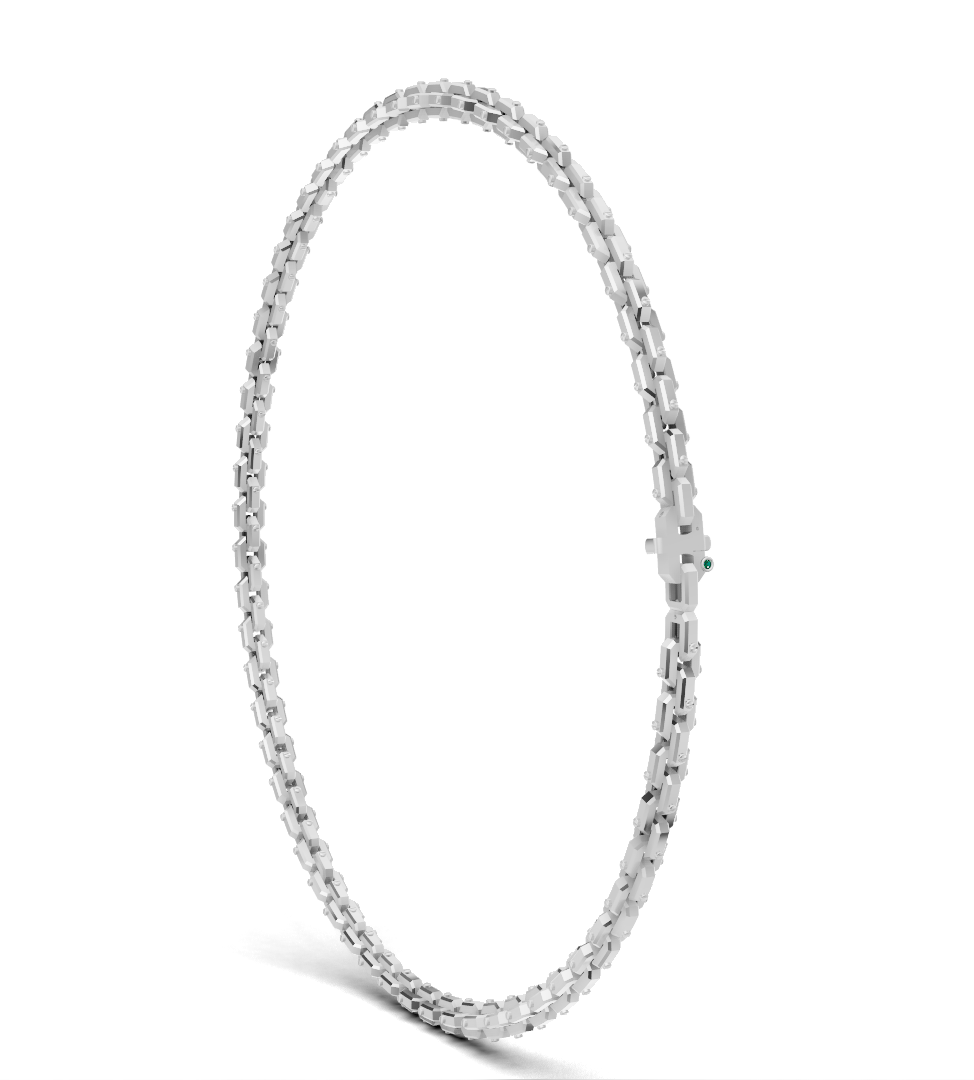

A premium handcrafted rectangular-link necklace featuring a continuous geometric chain pattern with bezel/prong-set round stones integrated throughout the design. The necklace offers a modern industrial-inspired luxury look while maintaining flexibility and comfort for daily wear or special occasions. The concealed box clasp ensures a seamless appearance and secure locking mechanism.

Specifications

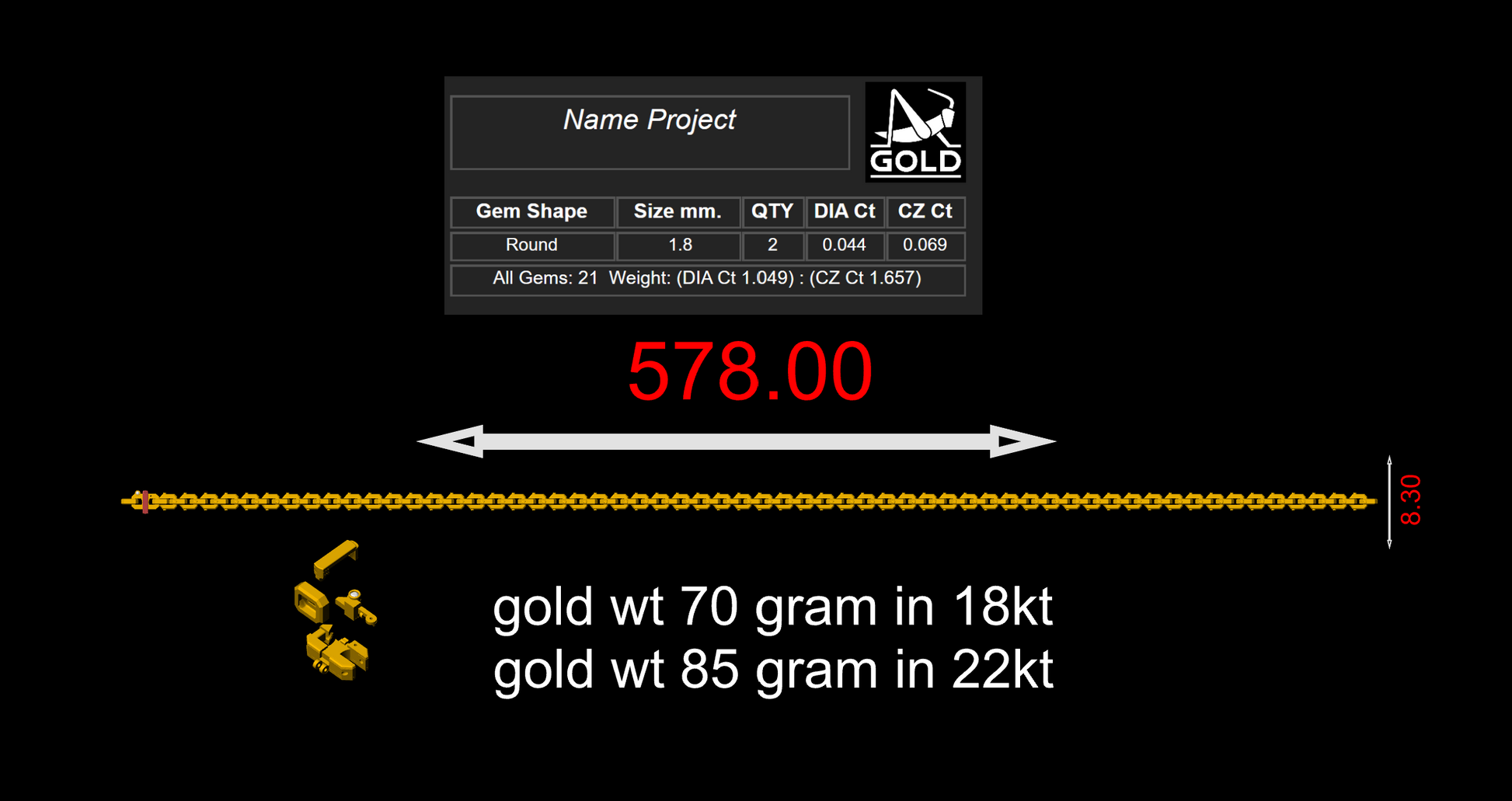

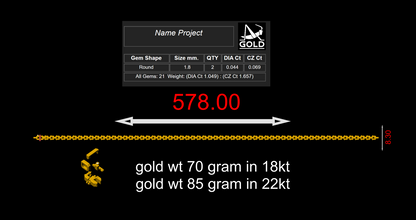

• Necklace Length: 578.00 mm

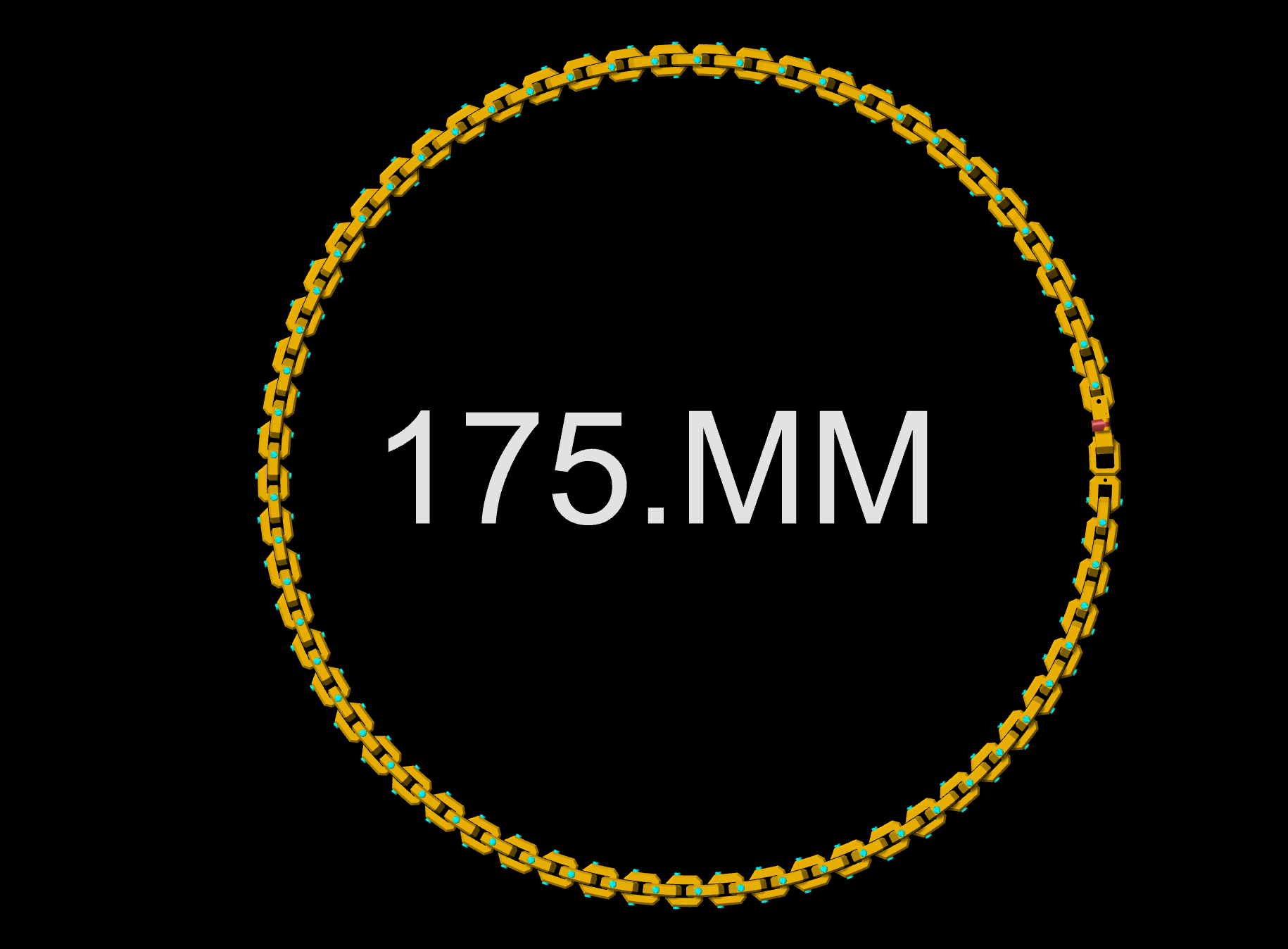

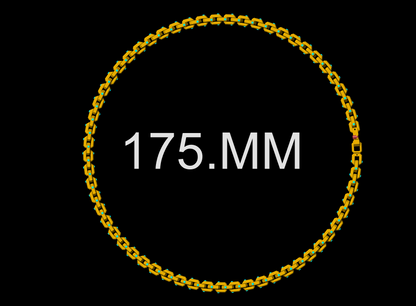

• Inside Diameter (Closed): 175.0 mm
• Width: 8.30 mm
• Style: Flexible Rectangular Link Chain Necklace

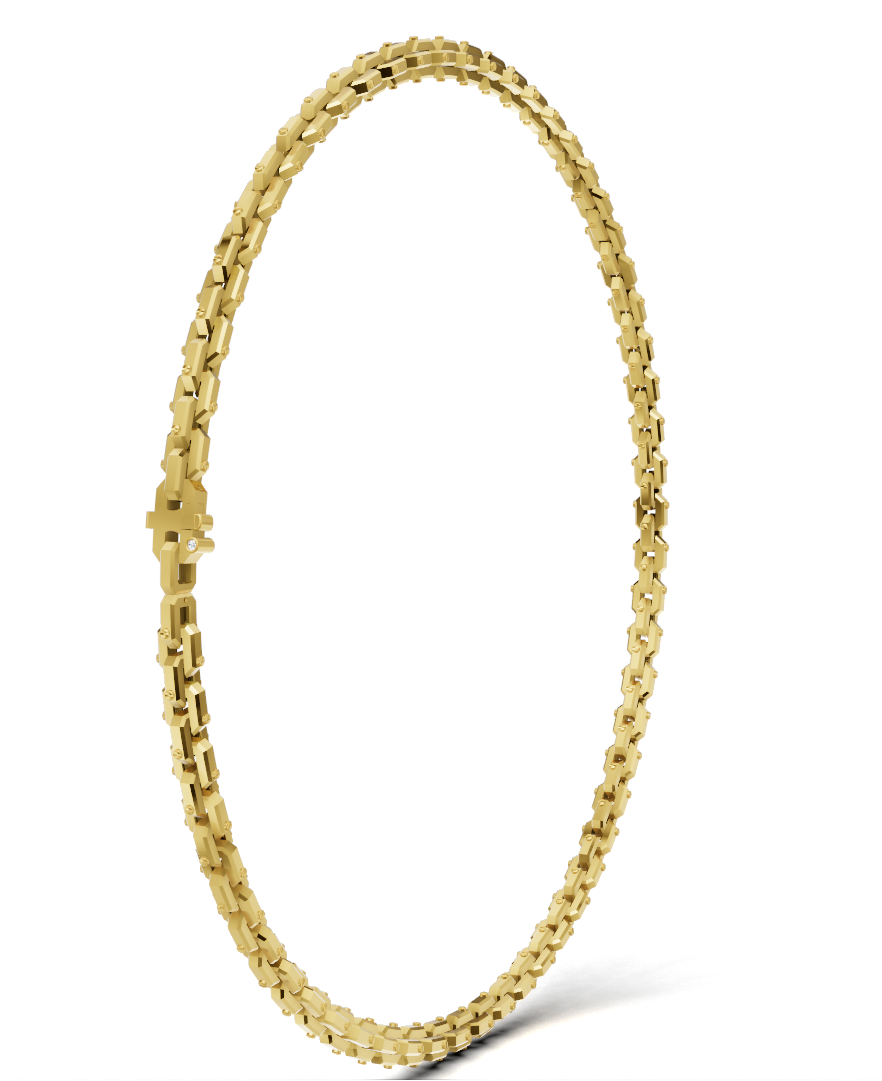

• Clasp Type: Hidden Box Clasp with Safety Lock
• Finish: High Polish Gold

Stone Details

• Stone Shape: Round
• Stone Size: 1.80 mm
• Total Stones: 21 pcs
• Total Diamond Weight: 1.049 ct
• Total CZ Weight: 1.657 ct

Metal Weight

• 18K Gold Weight: Approx. 70.00 g
• 22K Gold Weight: Approx. 85.00 g

CAD Manufacturing Notes

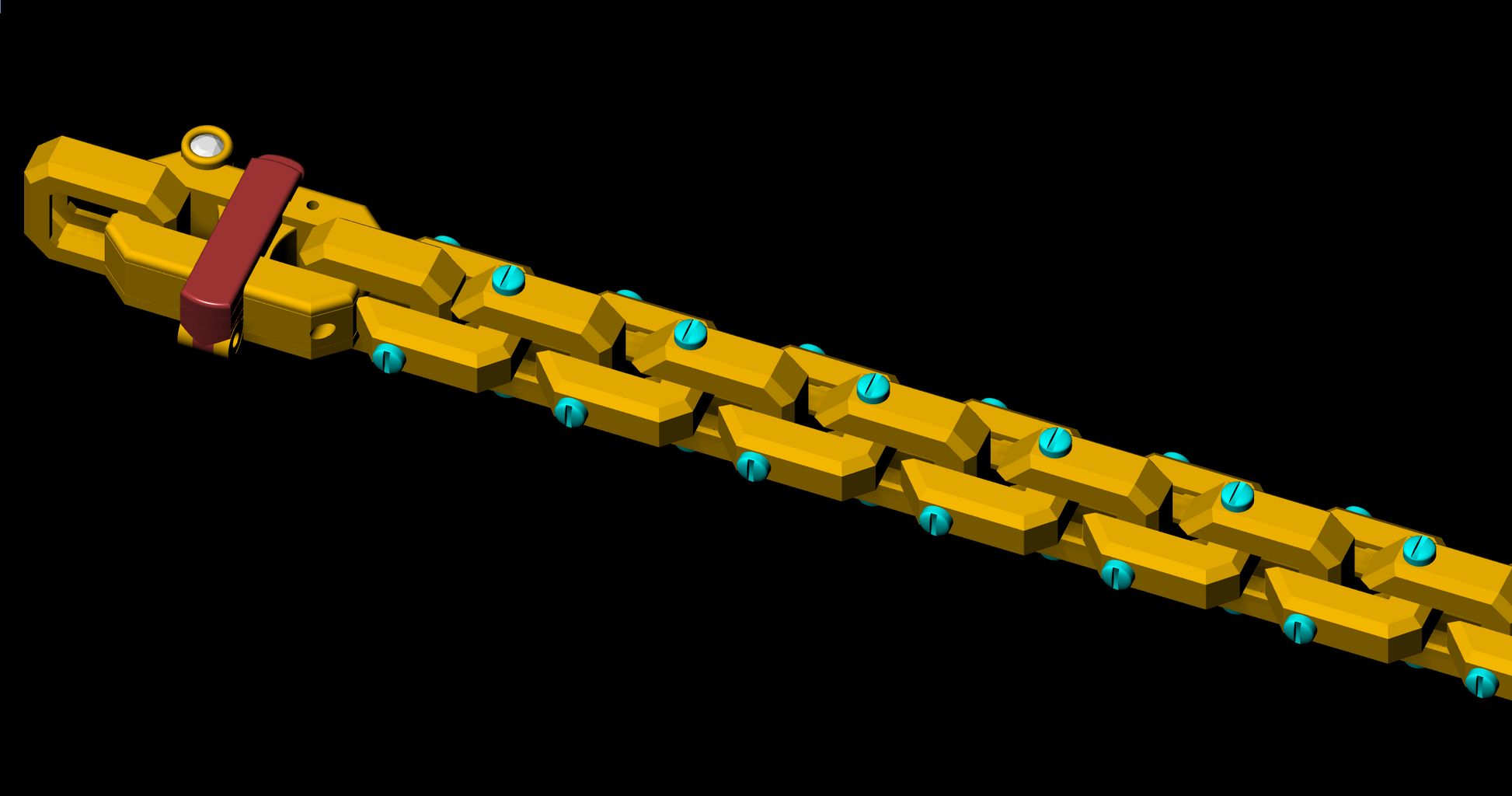

• Precision-engineered articulated links for smooth flexibility.
• Evenly distributed stones for balanced brilliance.
• Secure stone settings suitable for production casting.
• Comfortable profile with rounded edges for enhanced wearability.
• Suitable for high-end gold and diamond jewelry collections.
