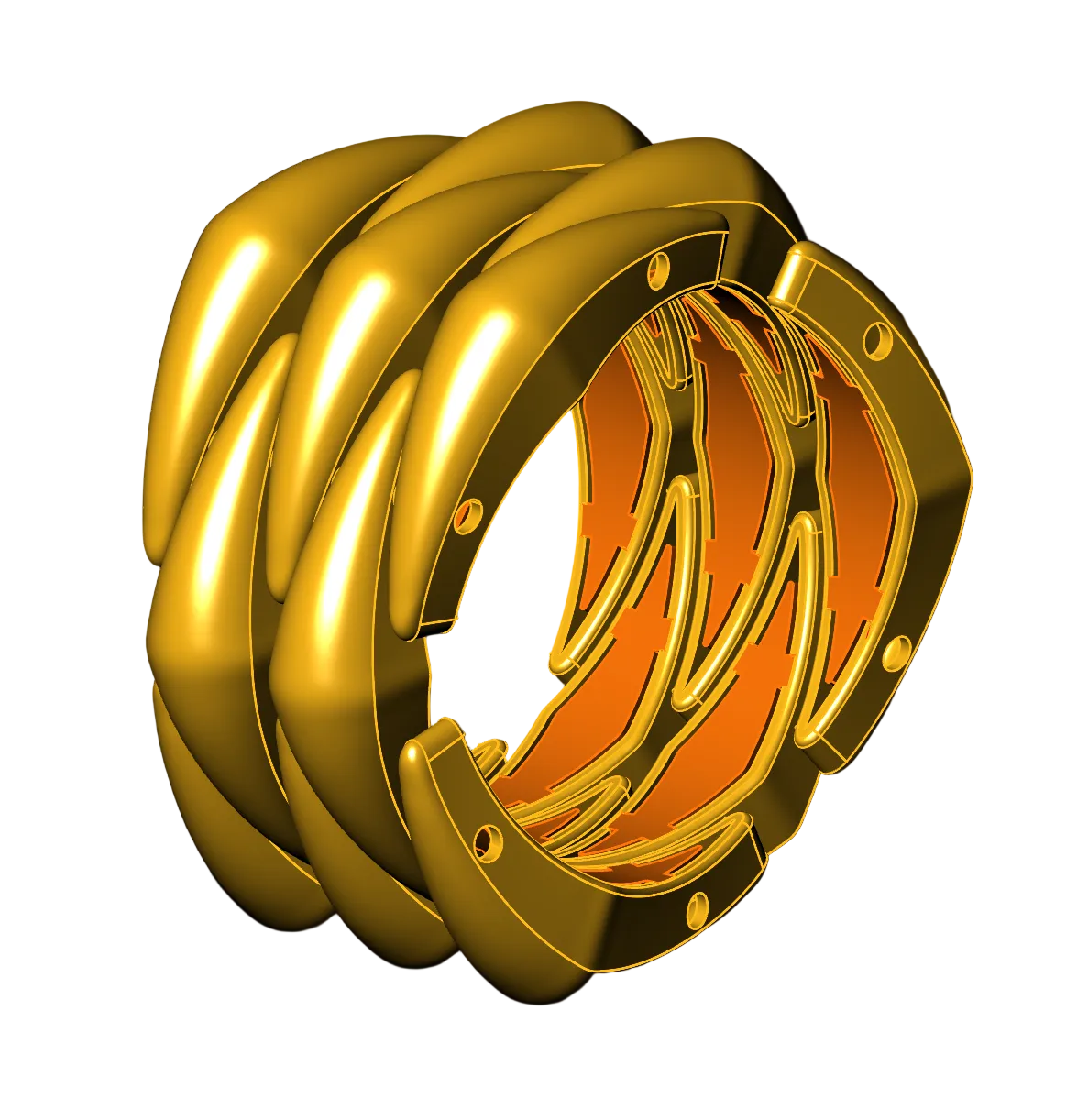

square link ring CAD FILE

Product Description:
Innovative expandable mechanical ring featuring a precision interlocking segment mechanism that allows smooth size adjustment and dynamic movement. Designed with a bold geometric outer profile and engineered inner track system, this statement ring combines modern luxury with functional craftsmanship. Ideal for high-end jewelry collections and custom CAD manufacturing.

Measurements:

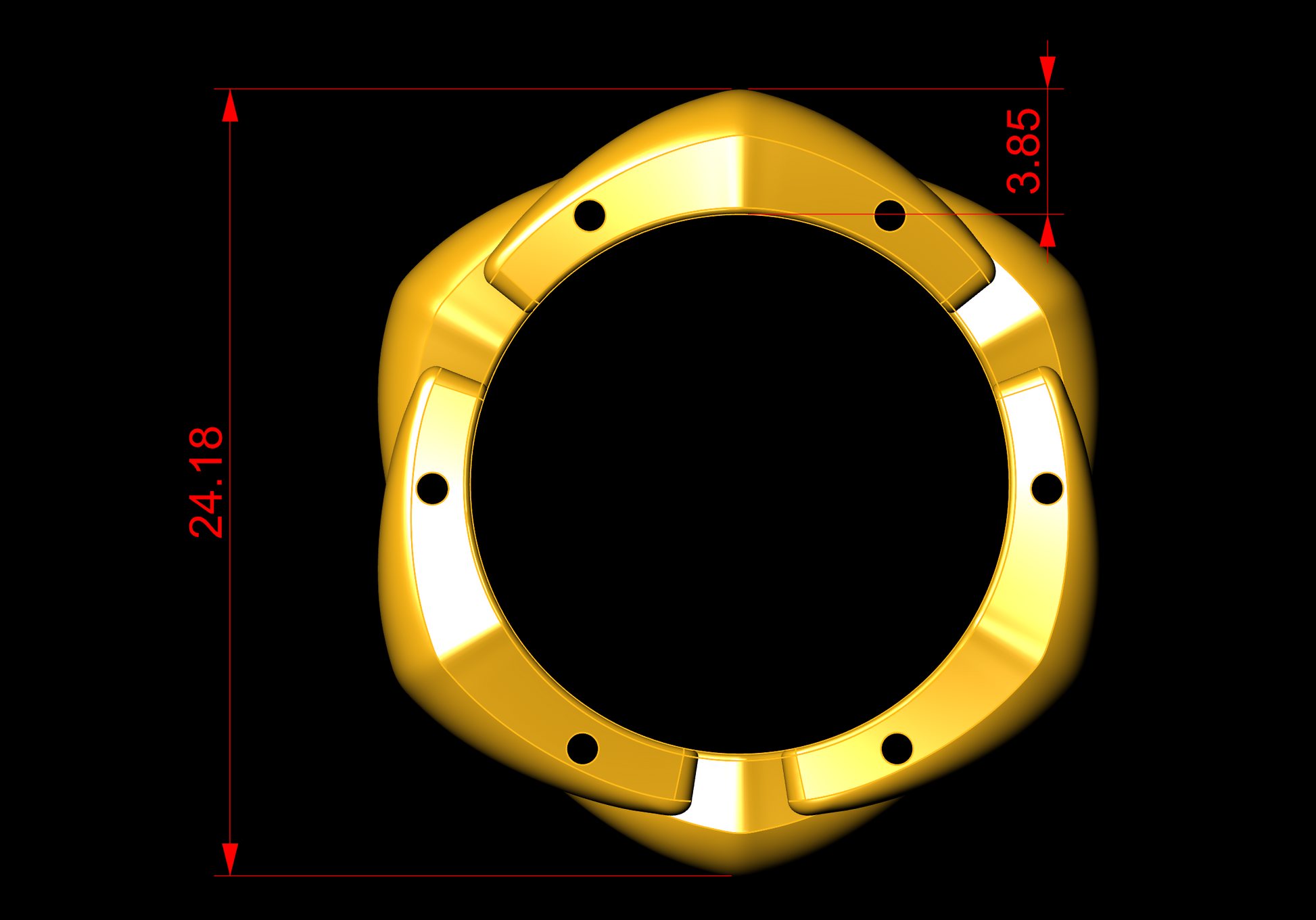

• Inner Diameter: 16.79 mm
• Outer Face Size: 24.18 mm
• Top Height: 3.85 mm

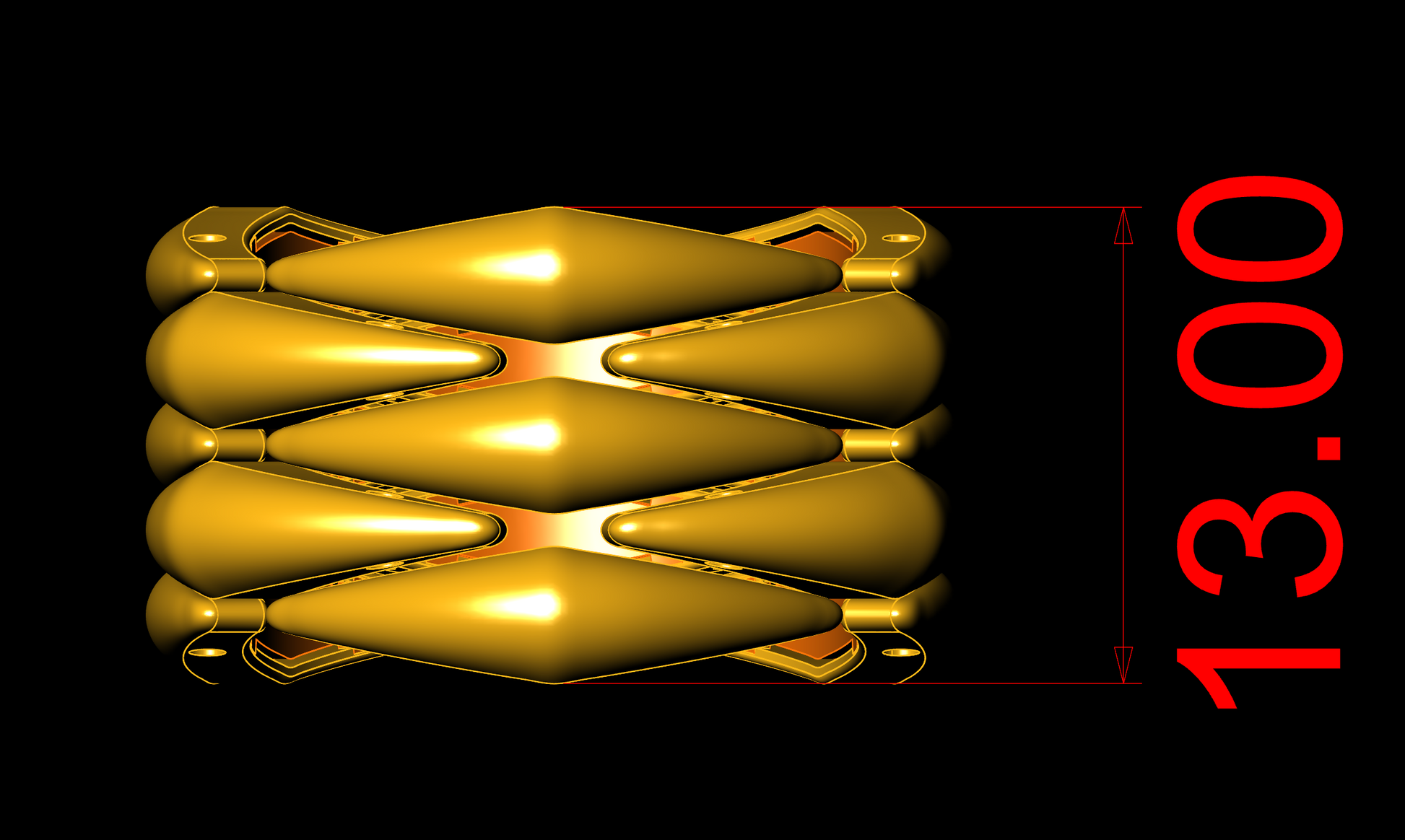

• Band Width: 13.00 mm
• Inner Mechanism Path Length: 108.89 mm
• Track Thickness / Clearance: 0.53 mm

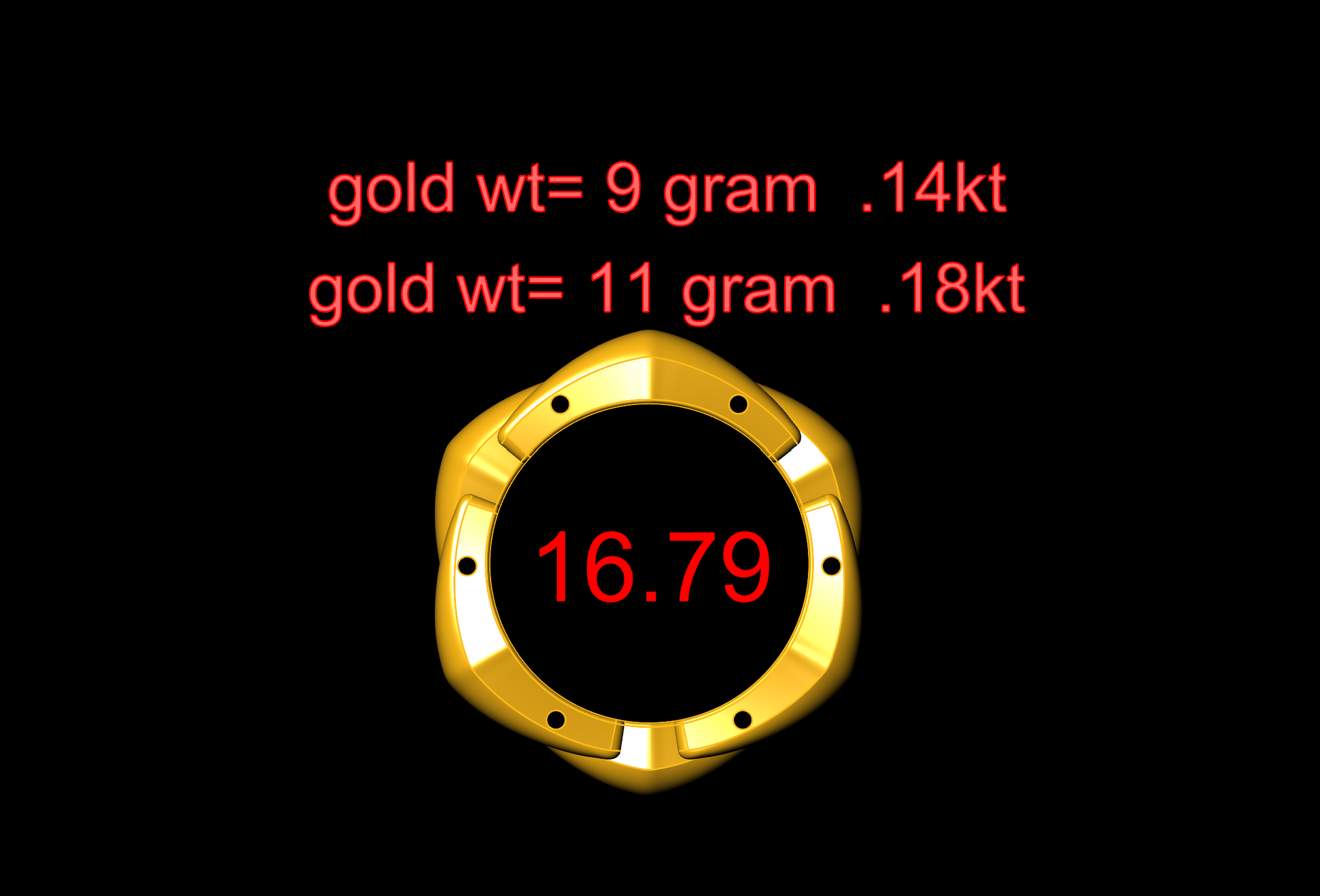

Estimated Gold Weight:

• 14KT Gold: Approx. 9 grams
• 18KT Gold: Approx. 11 grams
