pave Open Bangle CAD

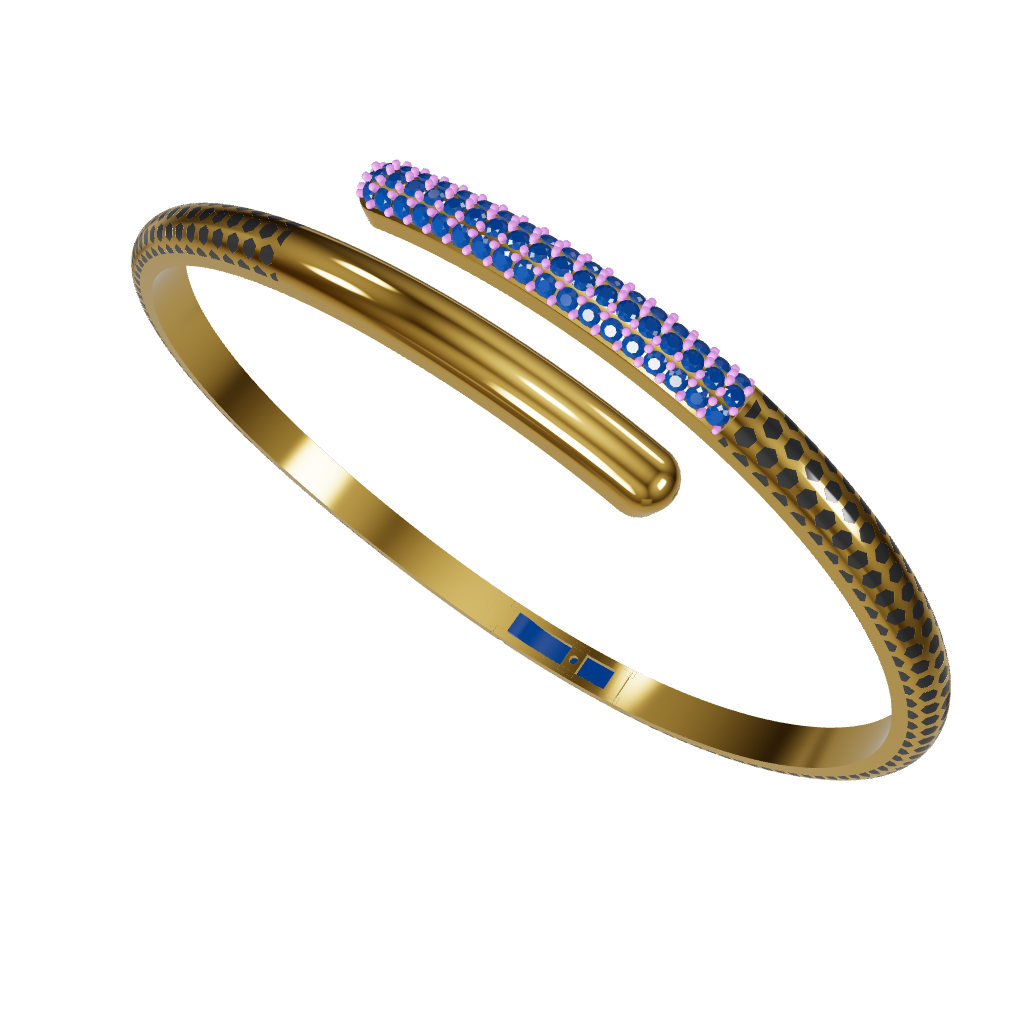

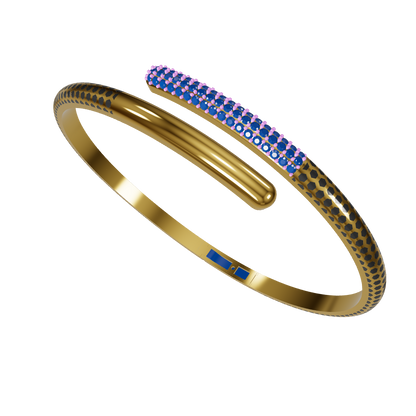

This CAD model represents an elegantly engineered open bangle bracelet, designed with a refined dual-tone pavé layout to enhance both brilliance and symmetry. The structure maintains optimal thickness for durability while offering a sleek, modern aesthetic ideal for fine jewelry manufacturing.

Design Specifications

• Type: Open Bangle Bracelet

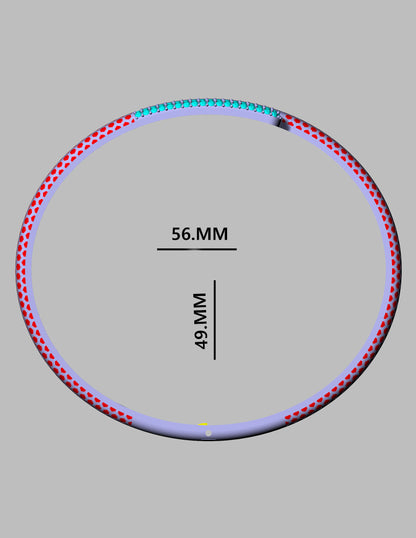

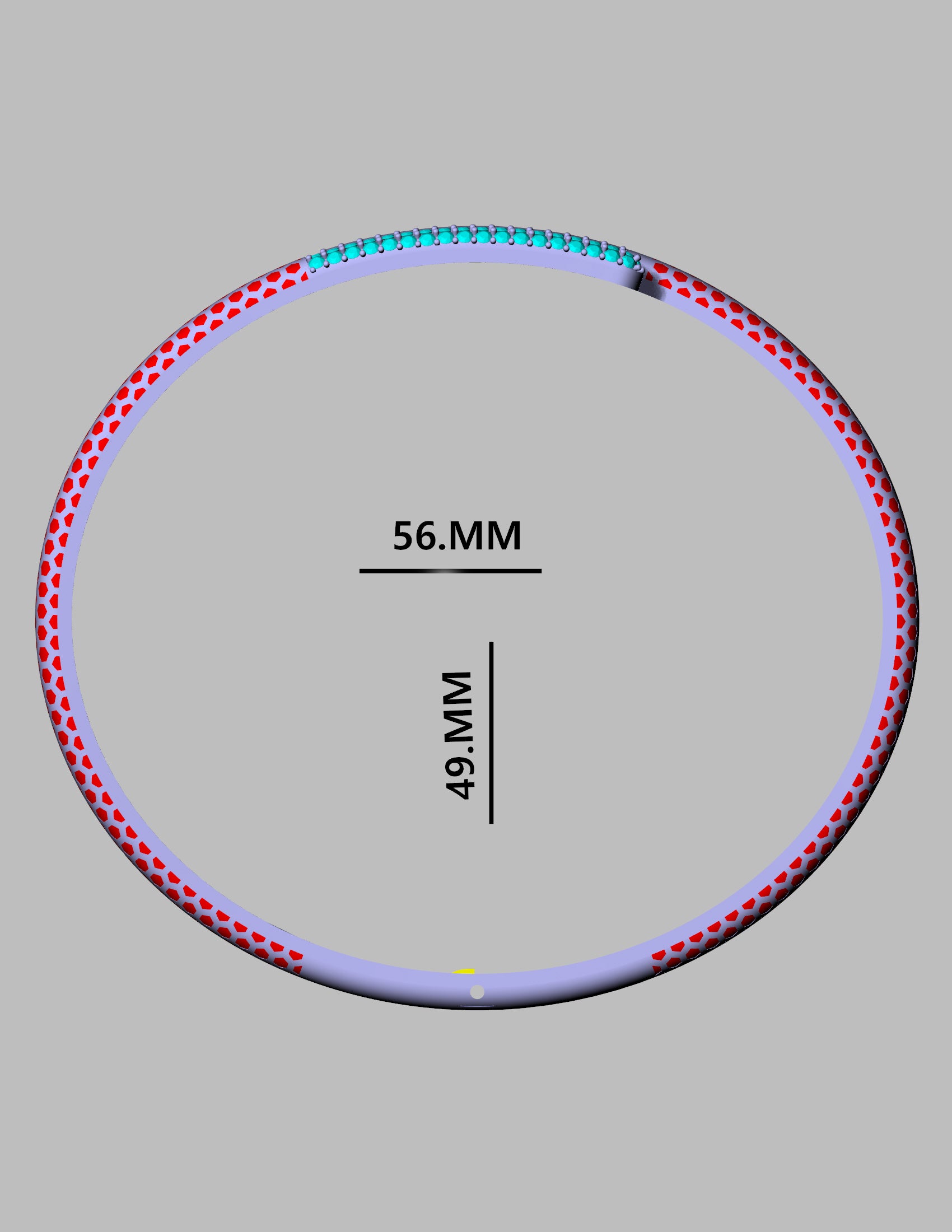

• Inner Diameter: 56.00 mm
• Inner Height: 49.00 mm
• Stone Layout: Precision pavé setting across the upper arc

• Type: Open Bangle Bracelet
• Inner Diameter: 56.00 mm
• Inner Height: 49.00 mm
• Stone Layout: Precision pavé setting across the upper arc

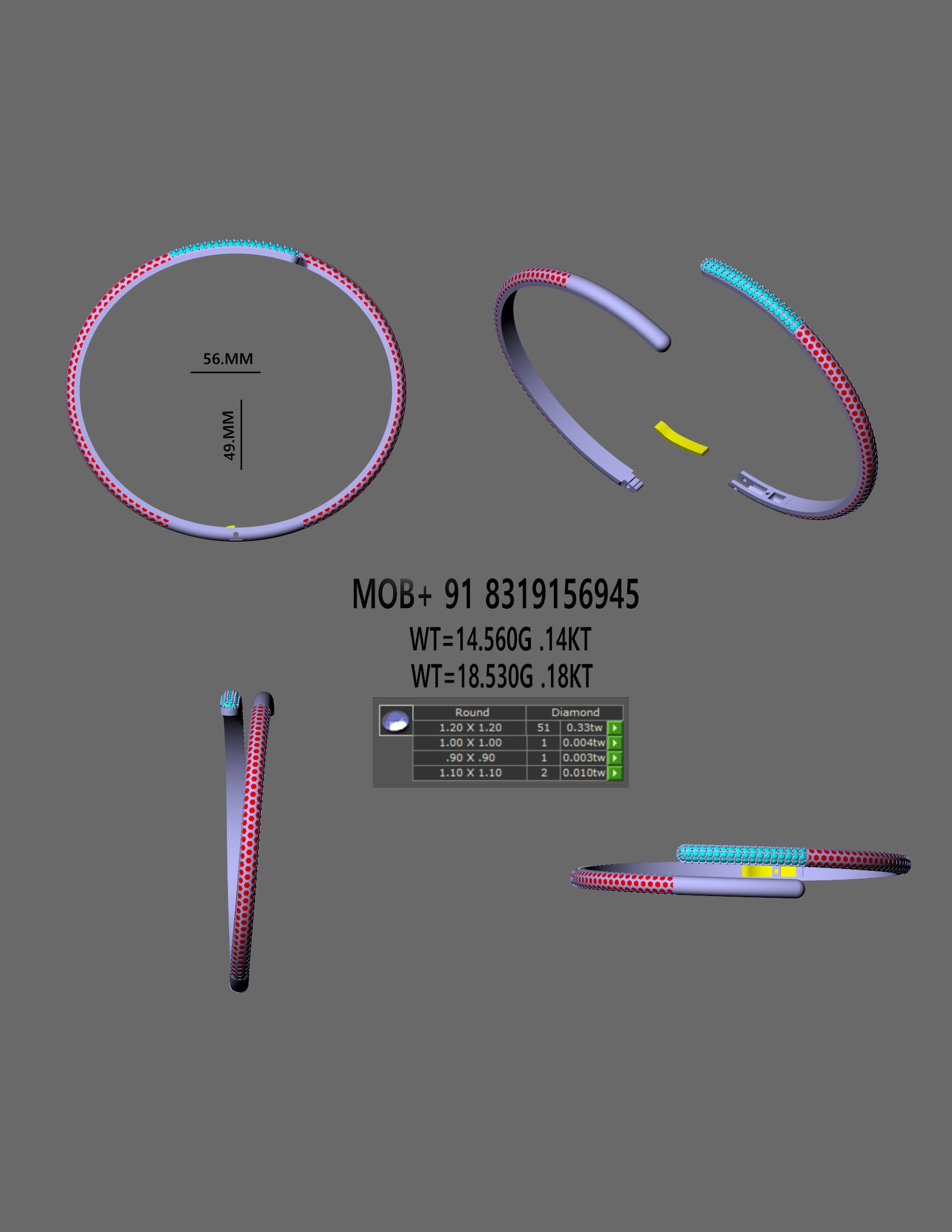

• Stone Size Details:

• Ø 1.20 mm × 51 pcs — approx. 0.33 ct total
• Ø 1.00 mm × 1 pc — approx. 0.004 ct
• Ø 0.90 mm × 1 pc — approx. 0.003 ct
• Ø 1.10 mm × 2 pcs — approx. 0.010 ct total

Metal Weights

• 14KT Gold Weight: 14.560 g
• 18KT Gold Weight: 18.530 g

Key Features Clean pavé setting layout for uniform brilliance

• Smooth ergonomic inner curvature for comfortable wear

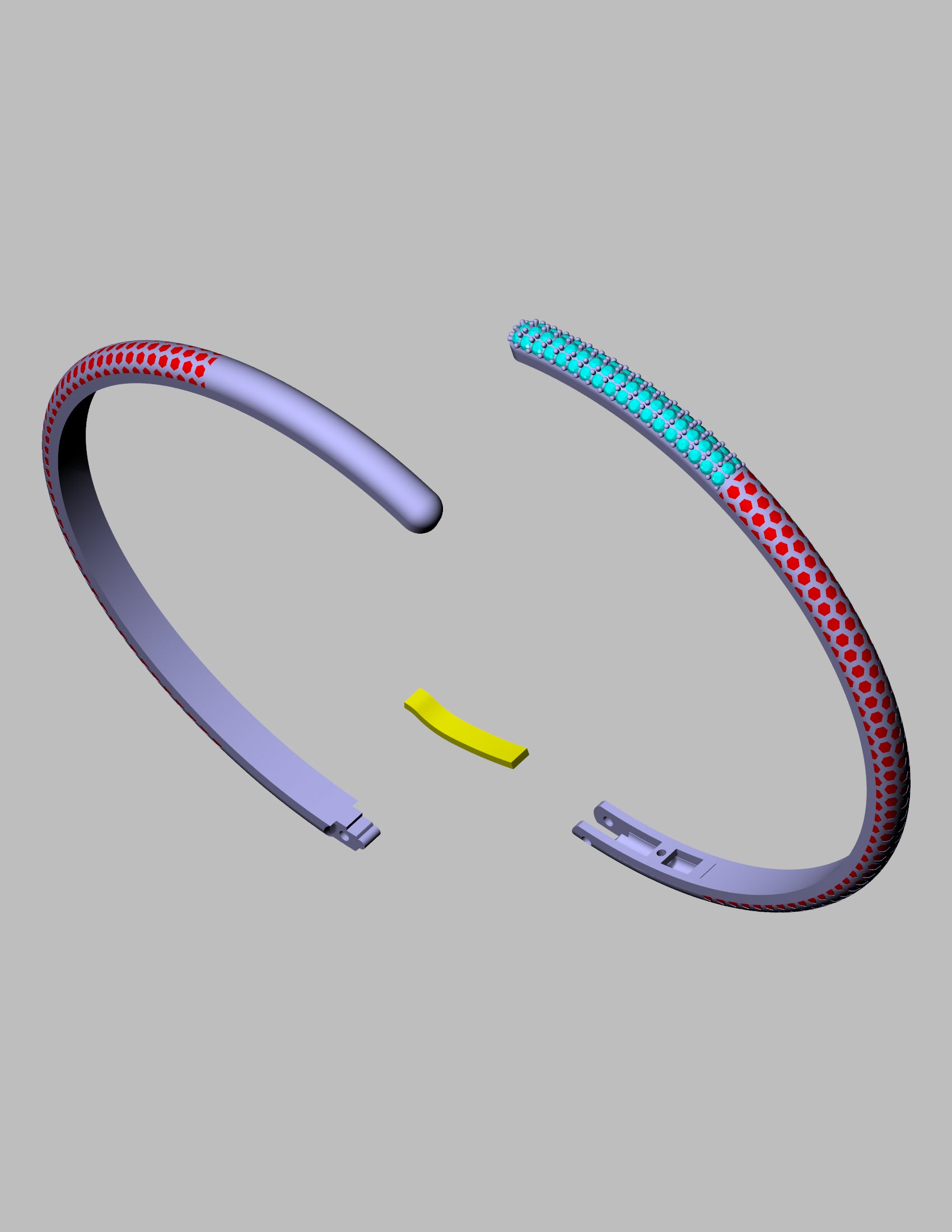

• Secure opening mechanism engineered for easy fabrication
• Fully production-ready CAD file suitable for 3D printing, casting, and stone-setting workflows
