Square Diamond lock bracelet CAD FILE

Product Description – Open Edge-Textured Bangle (CAD Design)

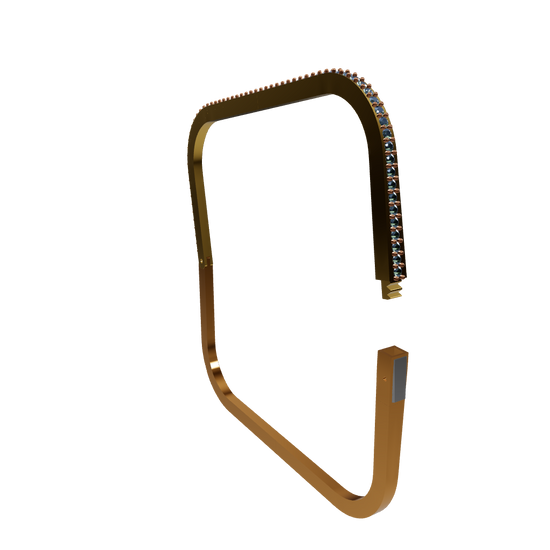

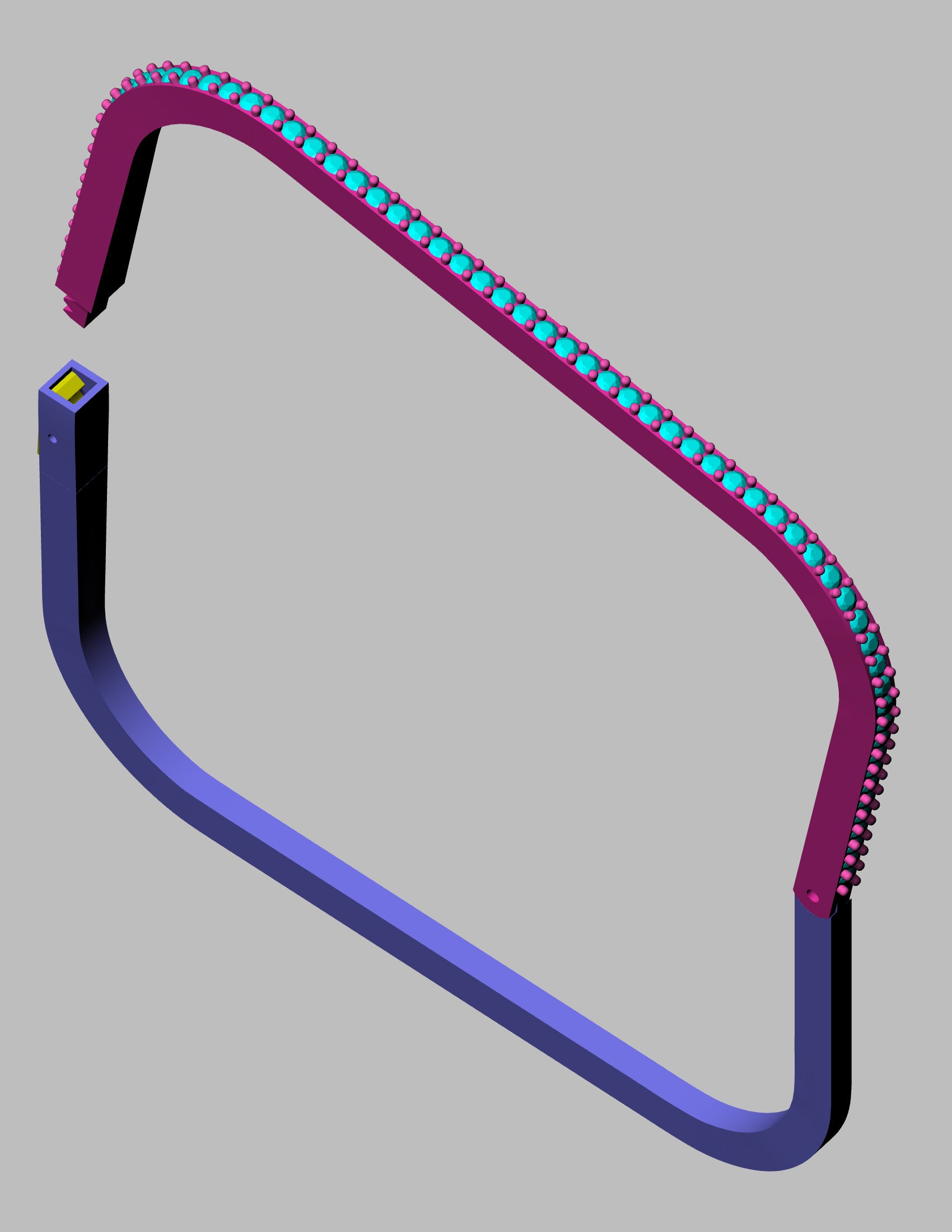

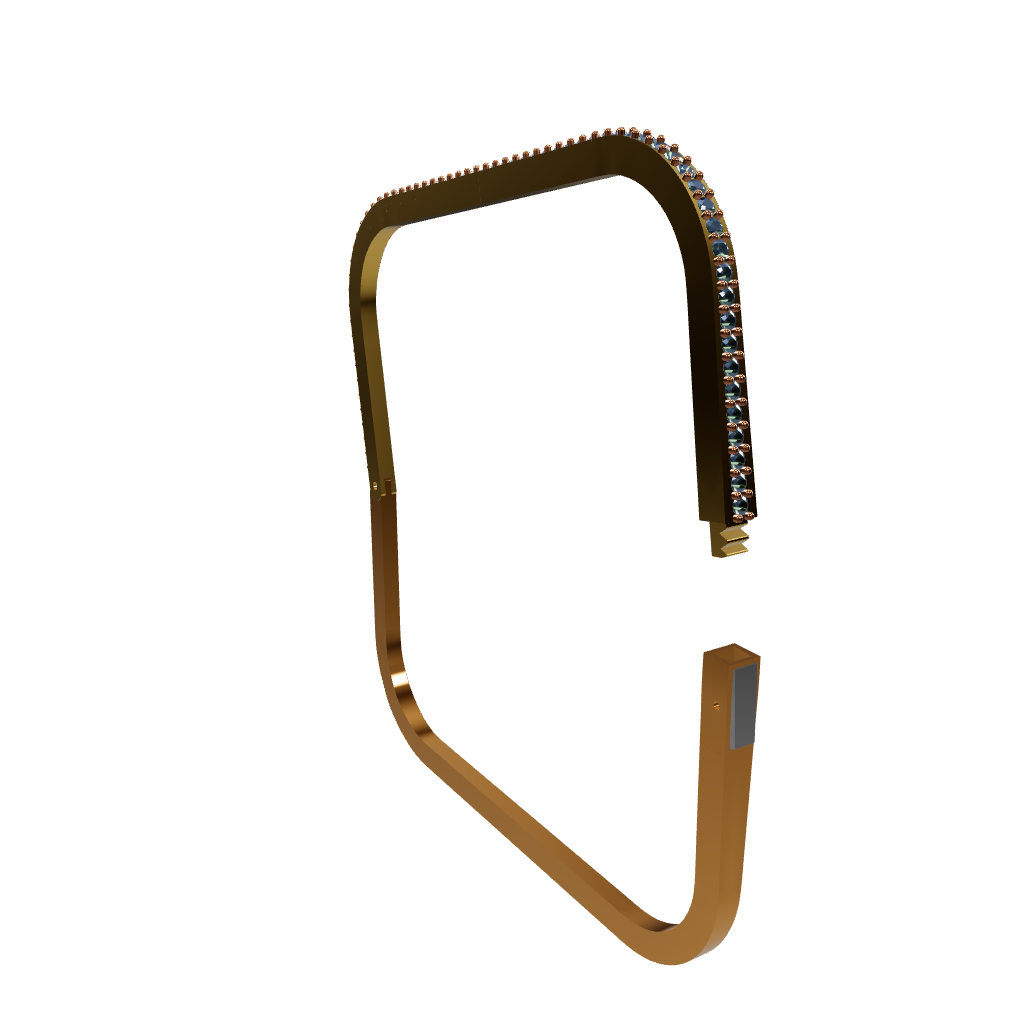

This open bangle CAD design features a contemporary squared profile with softly rounded corners, creating a balanced blend of modern geometry and refined elegance. The bangle is designed with an openable structure, allowing ease of wear while maintaining a solid and premium appearance.

One edge of the bangle is enhanced with a fine textured / serrated detailing, adding visual depth and a subtle design accent without overpowering the clean form. The smooth inner surface is engineered for comfortable daily wear, while the outer profile maintains consistent thickness for structural strength and casting reliability.

The CAD model is optimized for precise manufacturing, ensuring uniform curvature, co…

Shape & size:

• • Square/rounded-square bangle

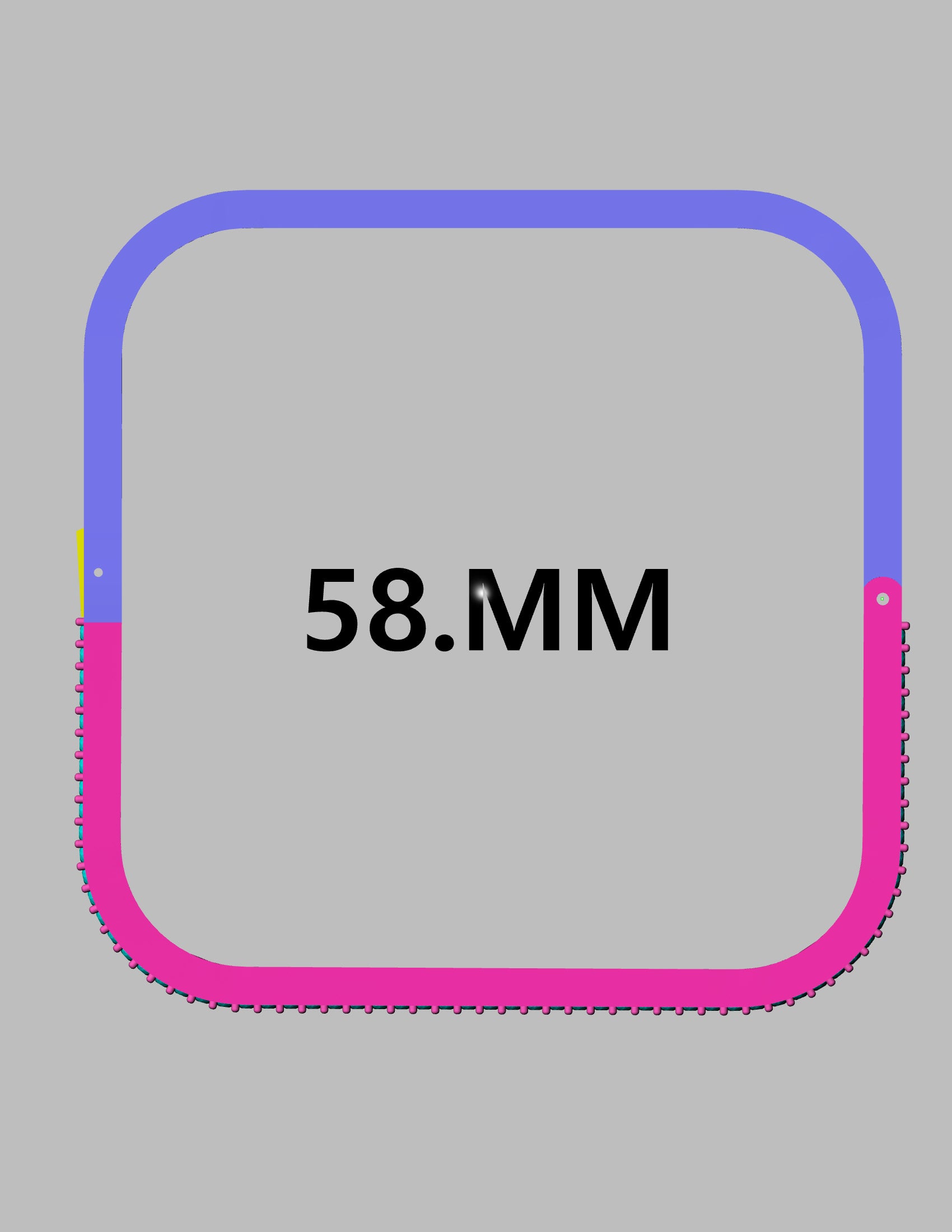

  • Inner size: 58 mm (clearly marked)

• Stone setting:

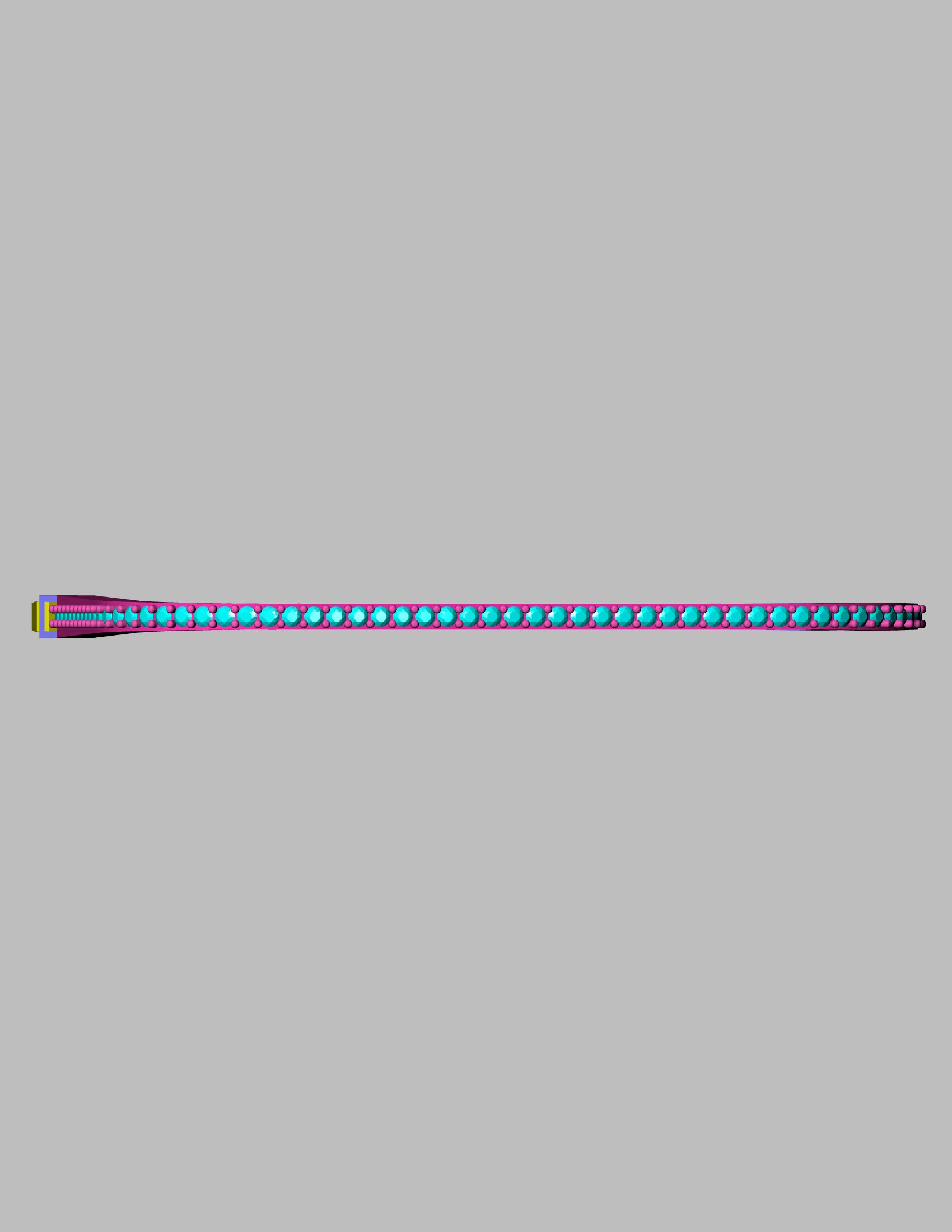

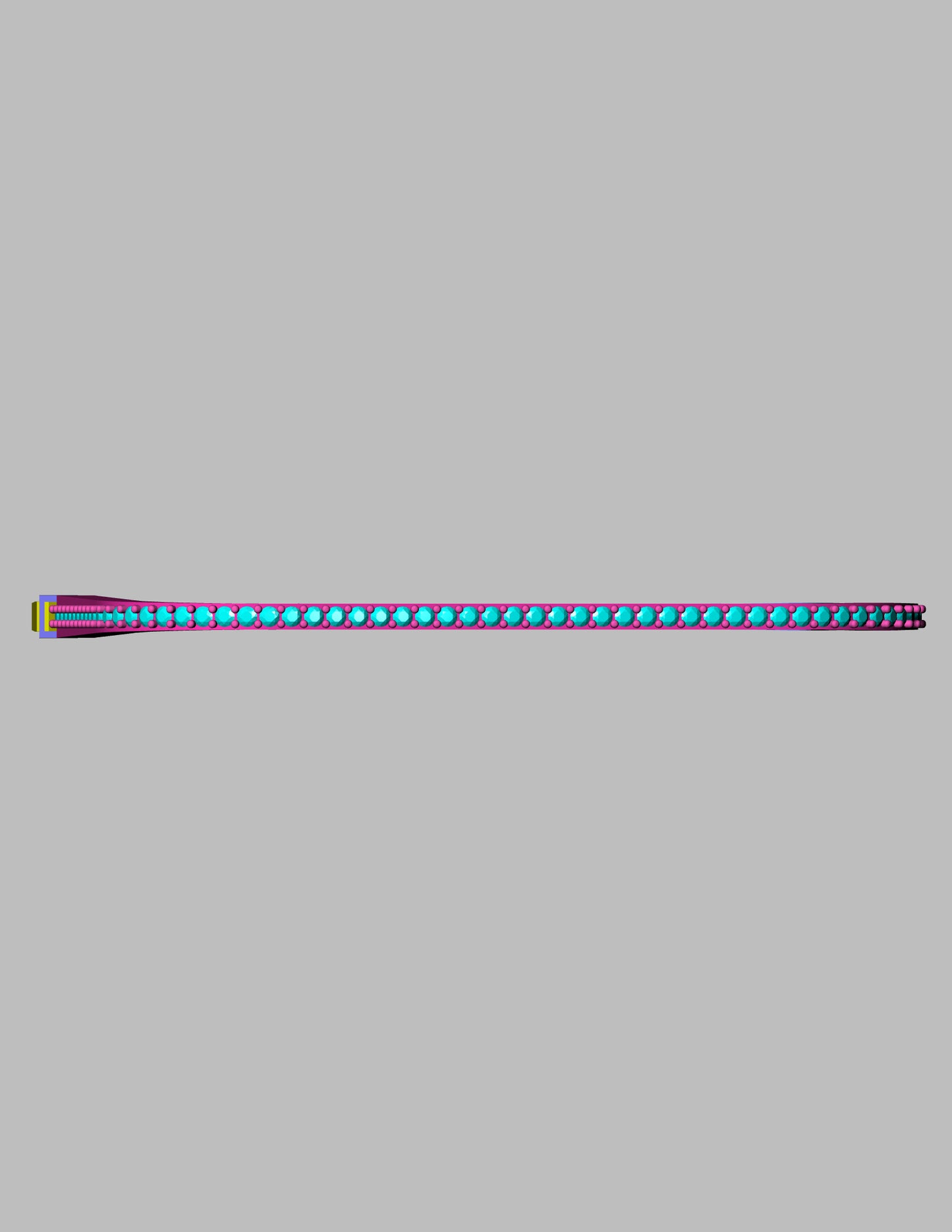

  • Full or near-full pavé diamond setting along the outer edge

  • Stones look round, uniform, closely set

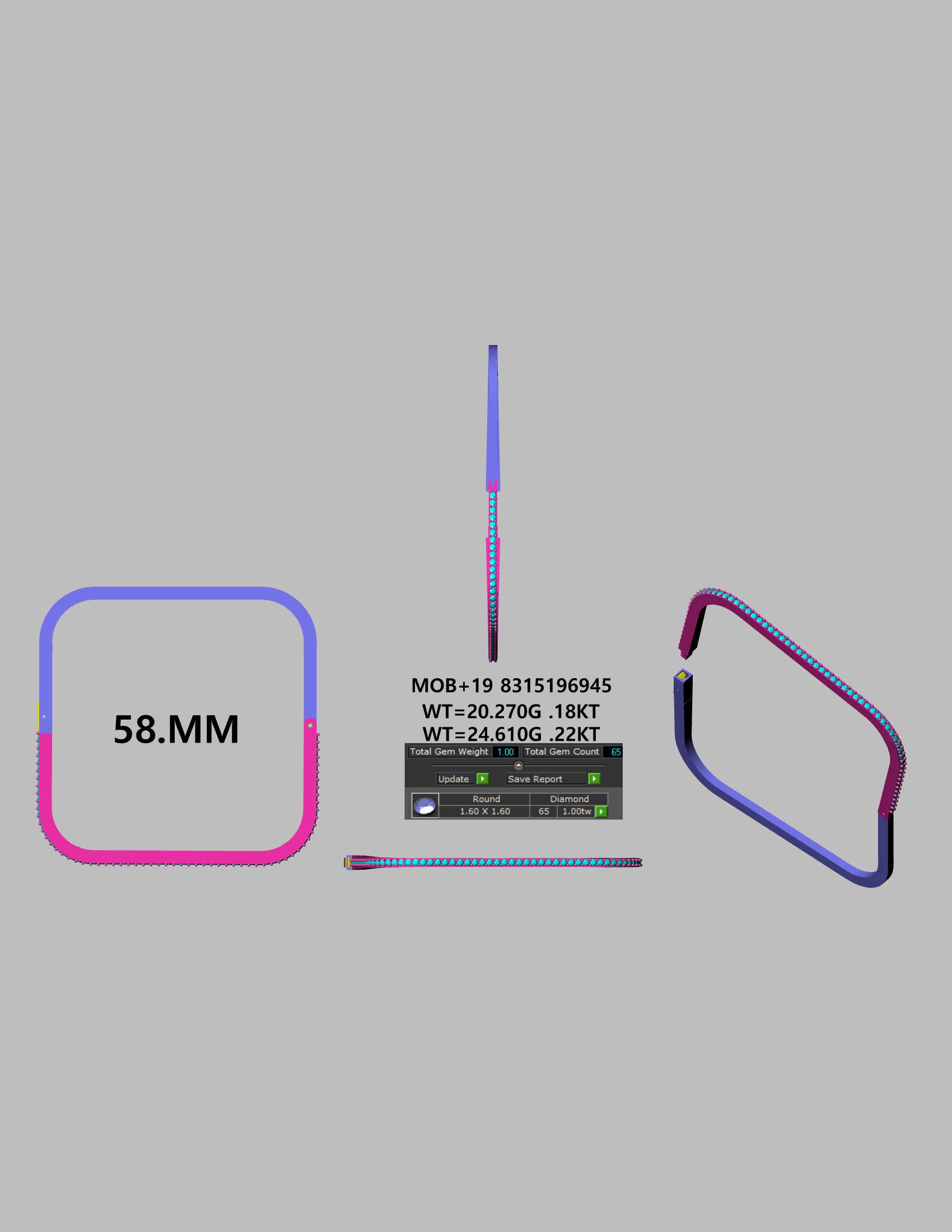

• Stone details (from the text in the image):

  • Total gem count: 65

  • Stone size: ~1.60 × 1.60 mm

  • Total diamond weight: ~1.00 ct

• Metal weight options:

  • 18KT: ~20.270 g

  • 22KT: ~24.610 g

    Diamond Studded Square Bangle – Technical Description

    Product Type: Diamond Bangle / Kada
    Design: Rounded square profile with pavé-set diamonds
    Finish: High polish with diamond-set outer surface

    Measurements & Size

    • Inner Diameter: 58.00 mm

    • Shape: Square with soft rounded corners

    • Profile Thickness: Uniform throughout (as per CAD)

    • Stone Size: 1.60 × 1.60 mm (Round)
