Watch Case & Strap CAD FILE

Product Measurement Details

Overall Dimensions

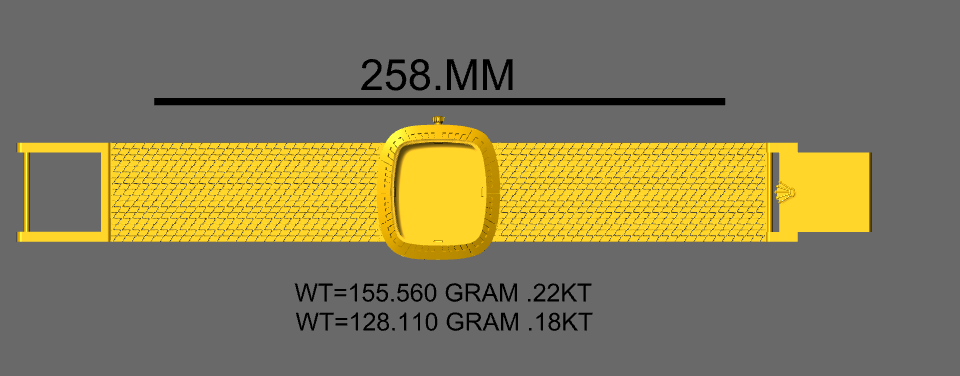

• Total Length: 258 mm

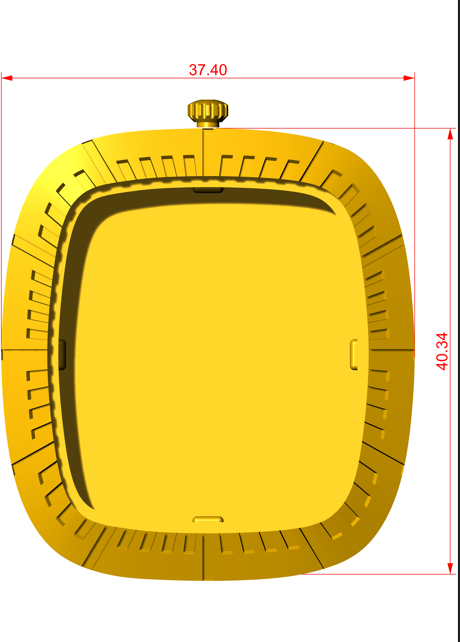

• Case Width: 37.40 mm

• Case Height: 40.34 mm

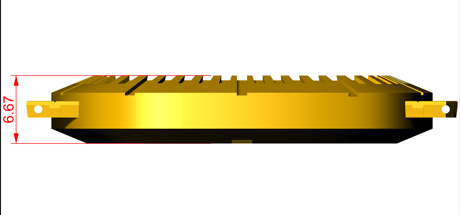

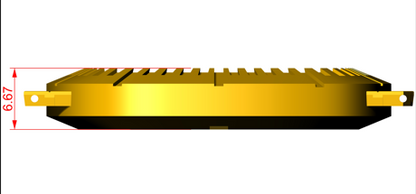

• Case Thickness: 6.67 mm

Strap & Clasp Measurements

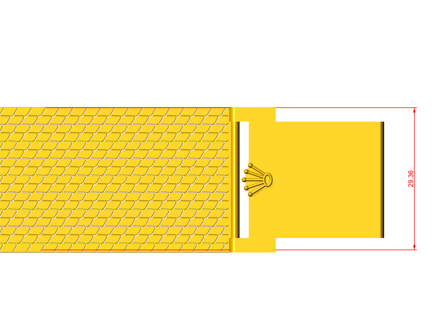

• Strap Width at Buckle: 29.36 mm

• Strap Style: Textured mesh-pattern solid strap

• Closure Type: Fold-over locking clasp with safety structure

Metal Weight

• 22KT Gold: 155.560 g

• 18KT Gold: 128.110 g

Measurement Description

This timepiece CAD design is built with a broad rectangular case featuring softly rounded edges, providing a balanced and modern wrist presence. The 37.40 mm × 40.34 mm case proportion ensures clear dial framing while maintaining comfortable wearability. A slim 6.67 mm thickness enhances elegance and allows the watch to sit smoothly against the wrist.

The integrated solid strap extends to a full 258 mm length, offering generous wrist accommodation and secure fitting. Its 29.36 mm buckle width and reinforced fold-over clasp deliver durability, stability, and refined finishing suitable for high-grade gold manufacturing.

With substantial 22KT and 18KT metal weights, this model is engineered for premium luxury production, combining structural strength, precise geometry, and sophisticated visual balance—ideal for high-end jewellery watch fabrication and professional CAD manufacturing workflows.
