Branded watch collection bulk STL & 3DM CAD FILE

Branded watch collection bulk STL & 3DM CAD FILE

Rs. 89,999.00
Rs. 150,000.00 Rs. 89,999.00
Sale Sold out
Shipping calculated at checkout.

JewelryCrafto

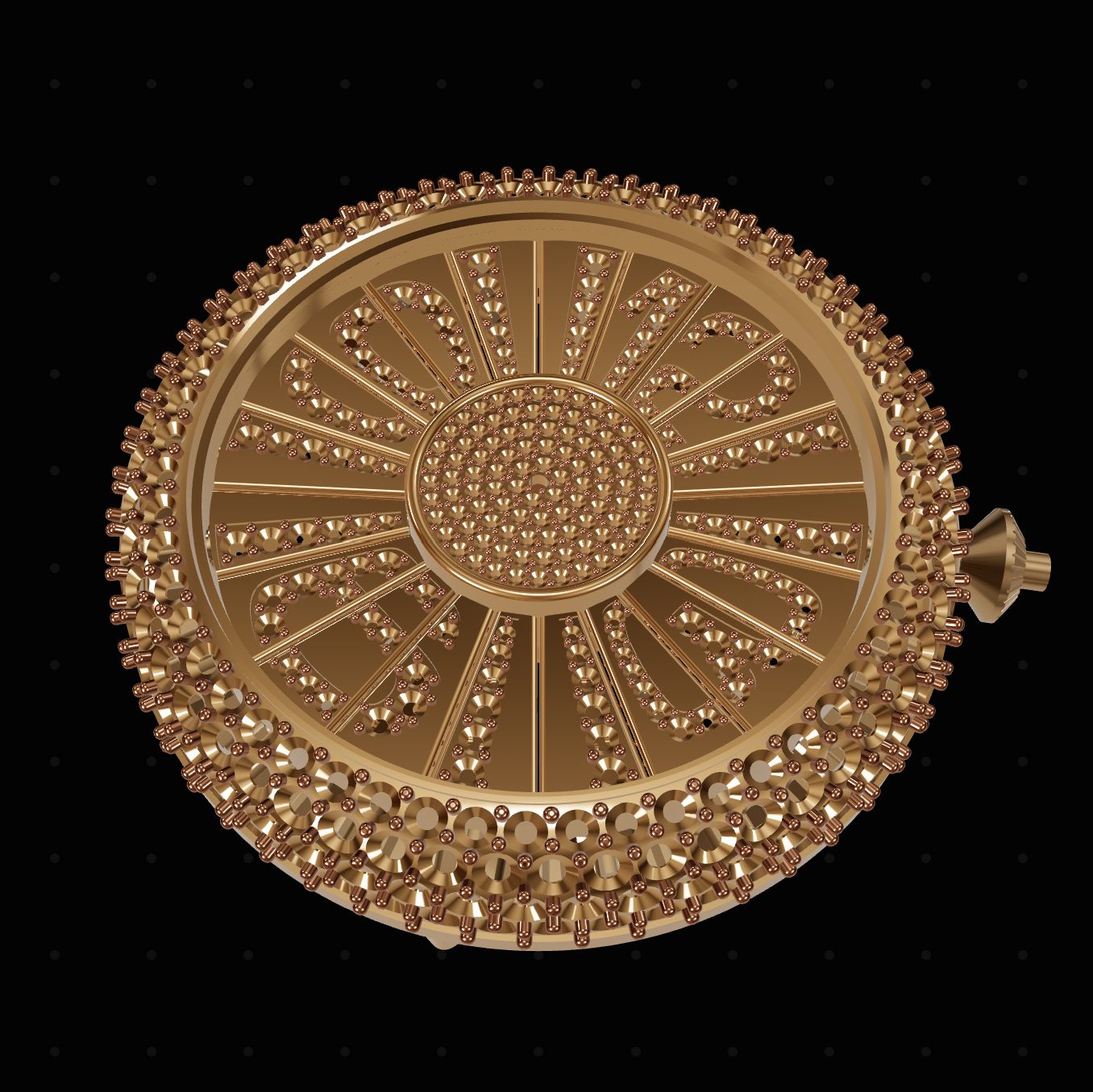

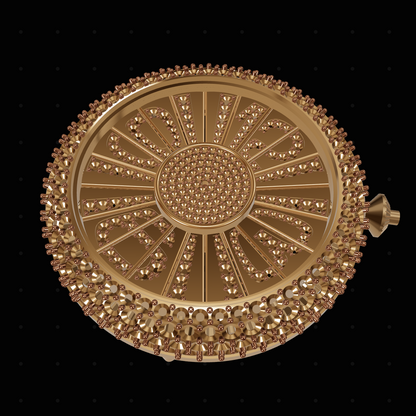

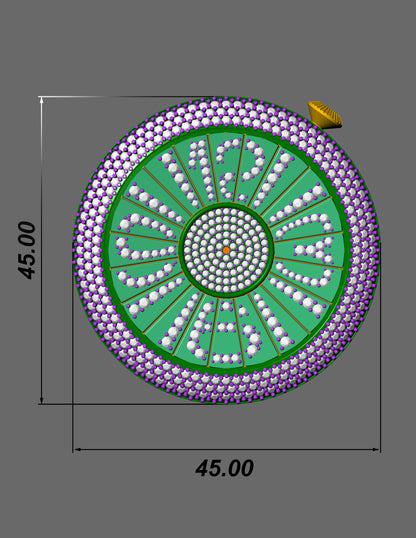

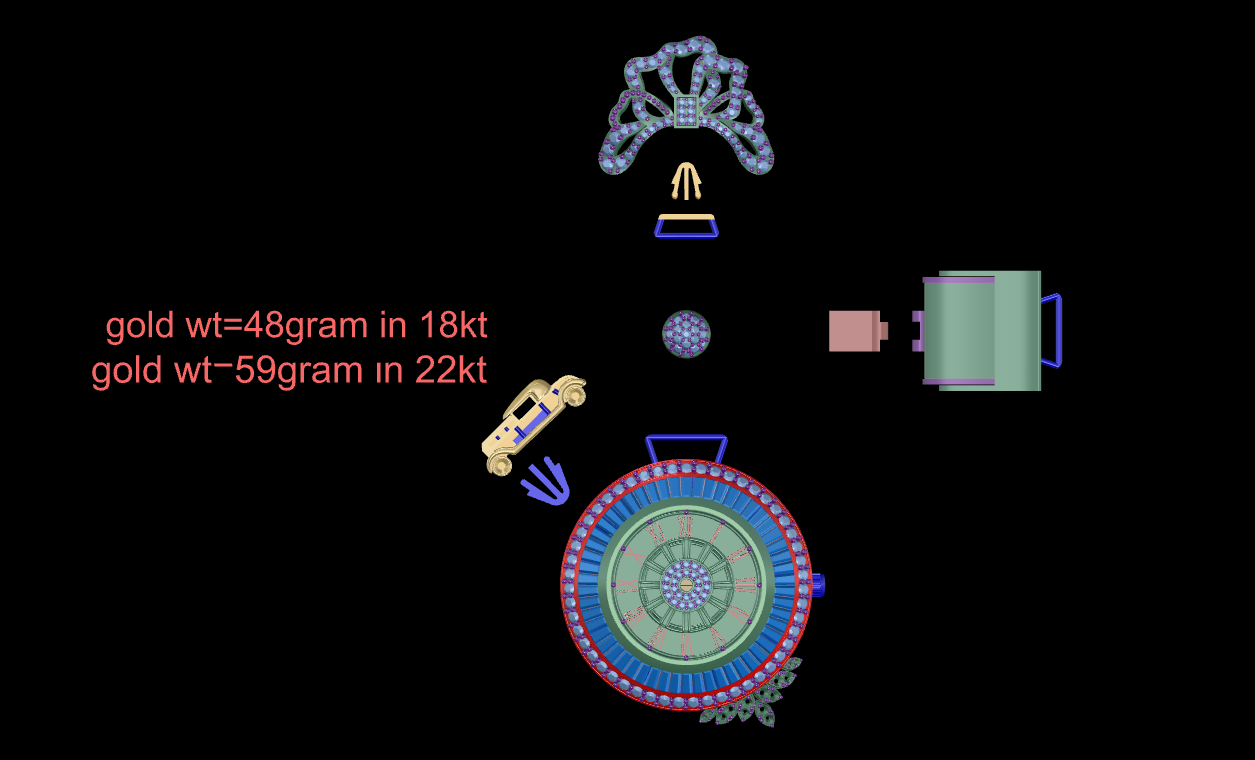

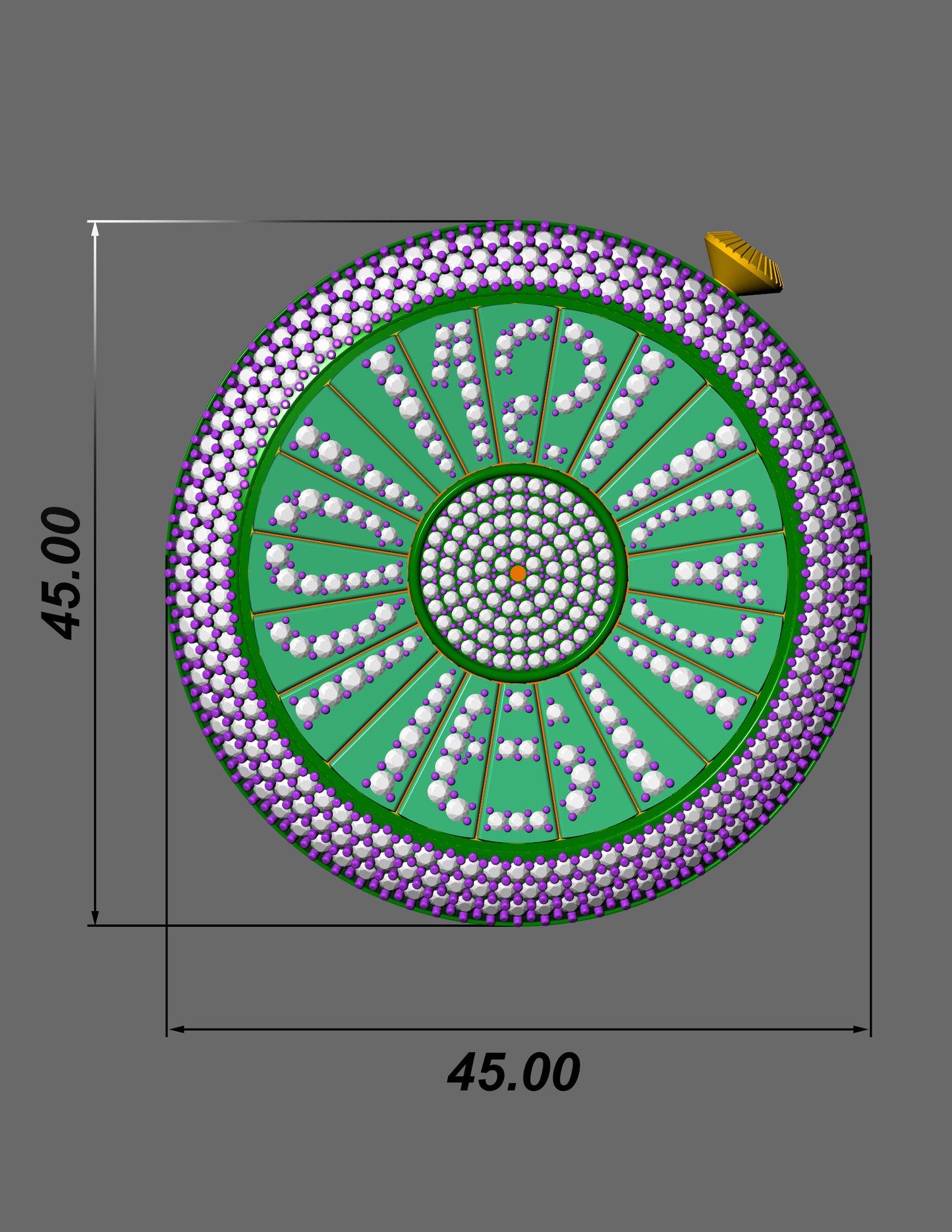

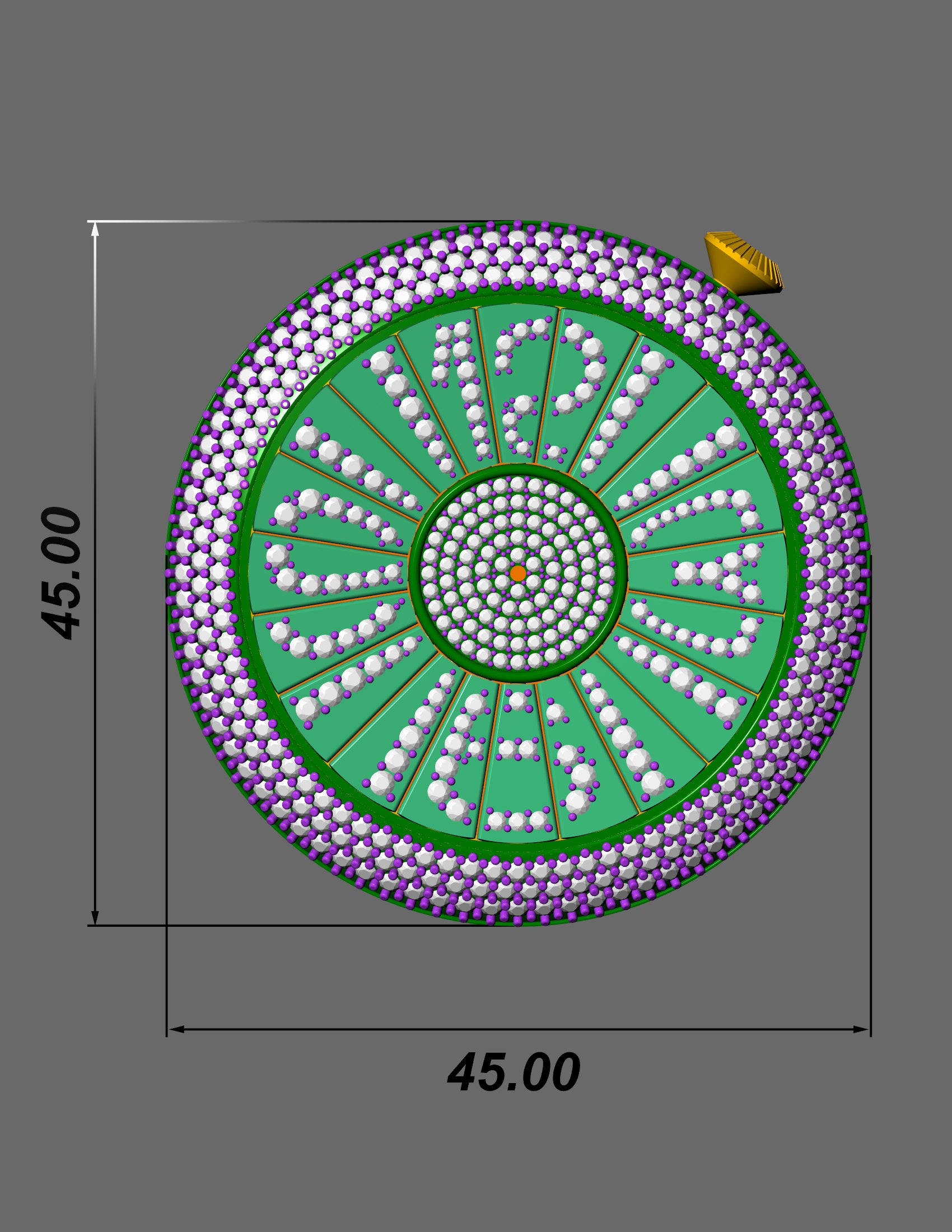

NO1:= Luxury Round Diamond Gear Mechanism Watch Pendant CAD File (3DM/STL)

A premium round gear mechanism watch pendant CAD design created for professional jewelry manufacturing. This intricate circular pendant features a luxury pavé diamond outer halo, radial spoke pattern, fully stone-set center, and a functional bail. The design is optimized for high-end casting, stone setting, and CNC production.

Product Specifications

Specification Details
Product Type Gear Mechanism Watch Pendant
Design Style Luxury Diamond Pavé
Shape Round

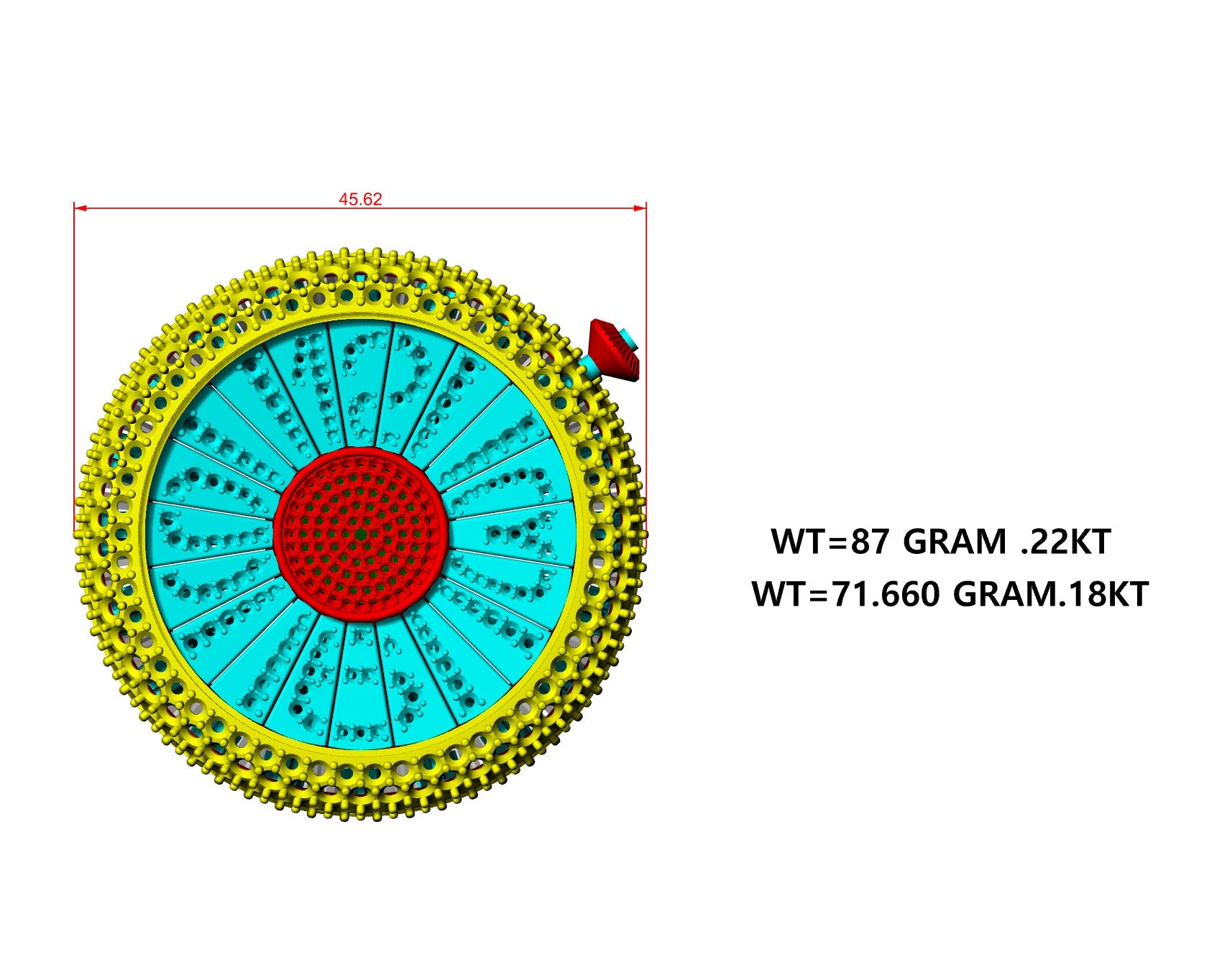

Diameter 45.62 mm
CAD Diameter 45.00 mm
Overall Height 13.22 mm
Top Stone Height 8.92 mm

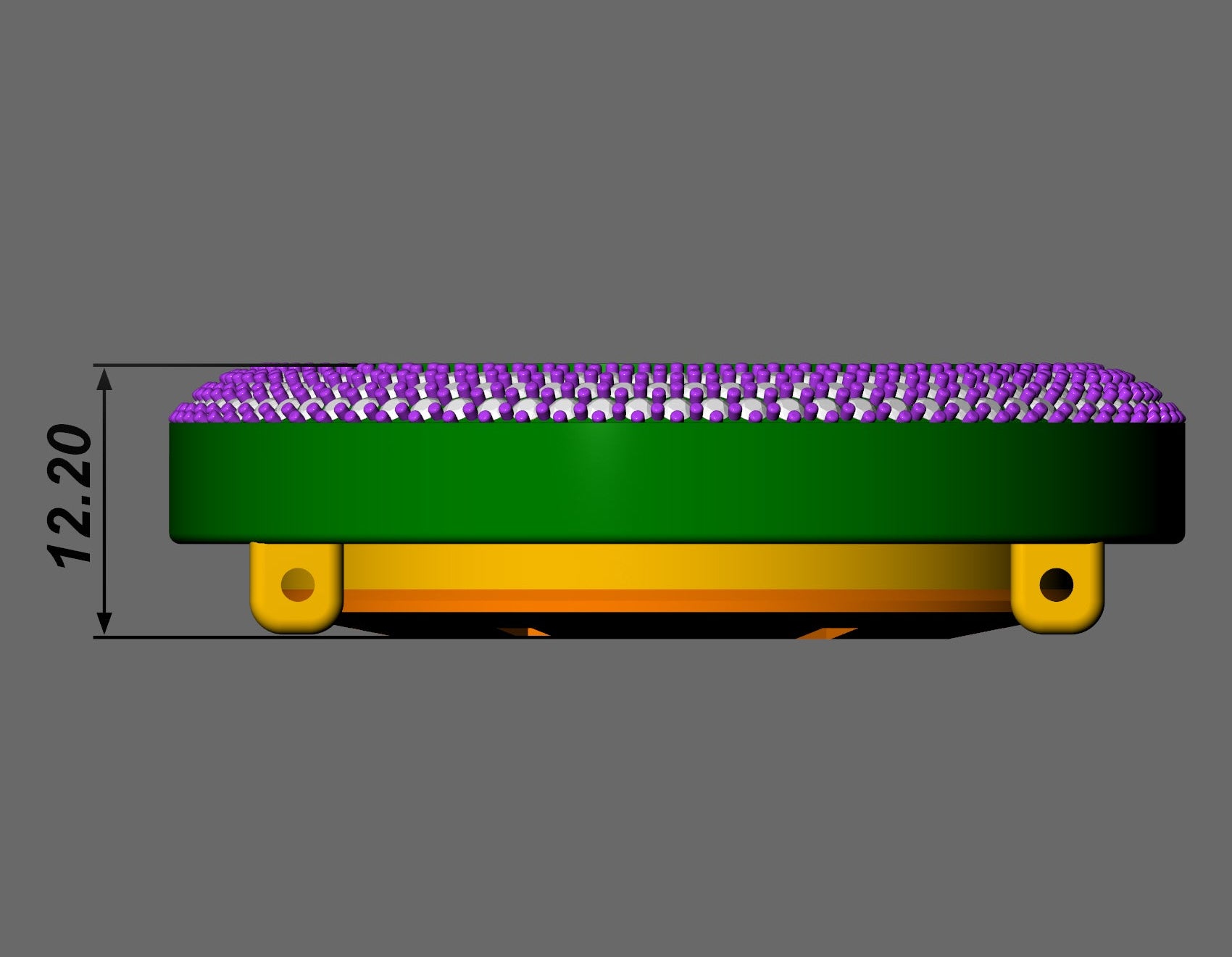

Total Thickness 12.20 mm
Bail Included Yes
File Format 3DM, STL
Manufacturing Casting Ready
Stone Setting Micro Pavé & Prong Setting

Metal Weight

Metal Weight
22K Gold 87.00 g
18K Gold 71.660 g

Diamond / CZ Stone Details

Stone Size Quantity Diamond Weight (Ct) CZ Weight (Ct)
Round 0.90 mm 208 0.577 0.912
Round 1.00 mm 311 1.175 1.857
Round 1.10 mm 295 1.477 2.334
Round 1.20 mm 26 0.168 0.266
Round 1.30 mm 13 0.107 0.169
Round 1.40 mm 18 0.184 0.291
Round 1.50 mm 8 0.101 0.159
Round 1.60 mm 28 0.427 0.675
Round 2.00 mm 54 1.606 2.538
Round 2.30 mm 54 2.441 3.856
Round 2.40 mm 105 5.391 8.518

Total Stone Summary

  • Total Stones: 1,120 pcs
  • Total Diamond Weight: 13.655 ct
  • Total CZ Weight: 21.575 ct

Design Features

  • Premium round luxury watch pendant design.
  • Triple-row pavé diamond halo.
  • Radial spoke pattern with precision stone setting.
  • Fully pavé-set center.
  • Heavy luxury construction suitable for high-end jewelry.
  • Casting-ready CAD model.
  • Optimized for CNC machining and 3D printing.
  • Professional prong layout for secure stone setting.
  • Ideal for custom diamond watch pendants and statement jewelry.

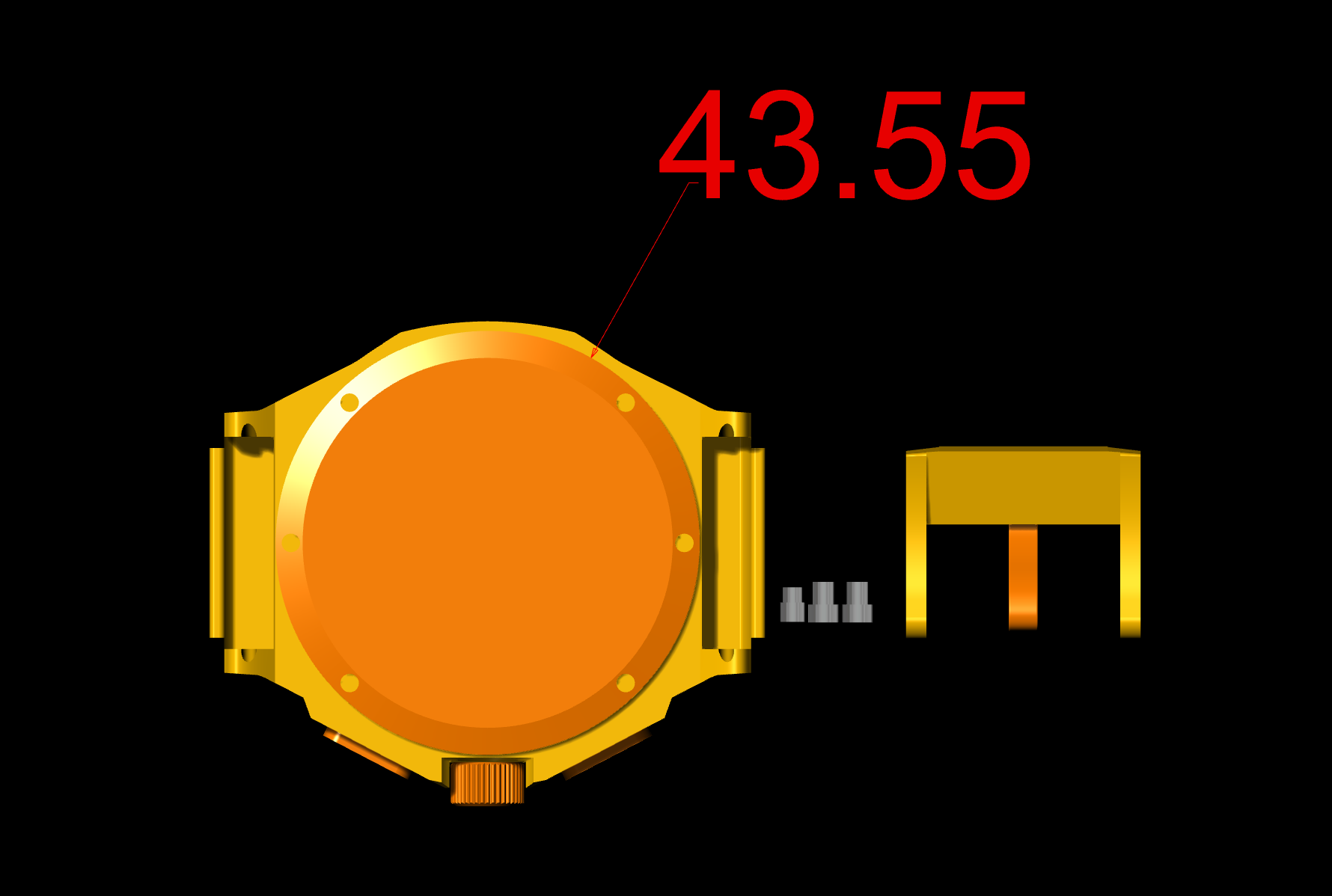

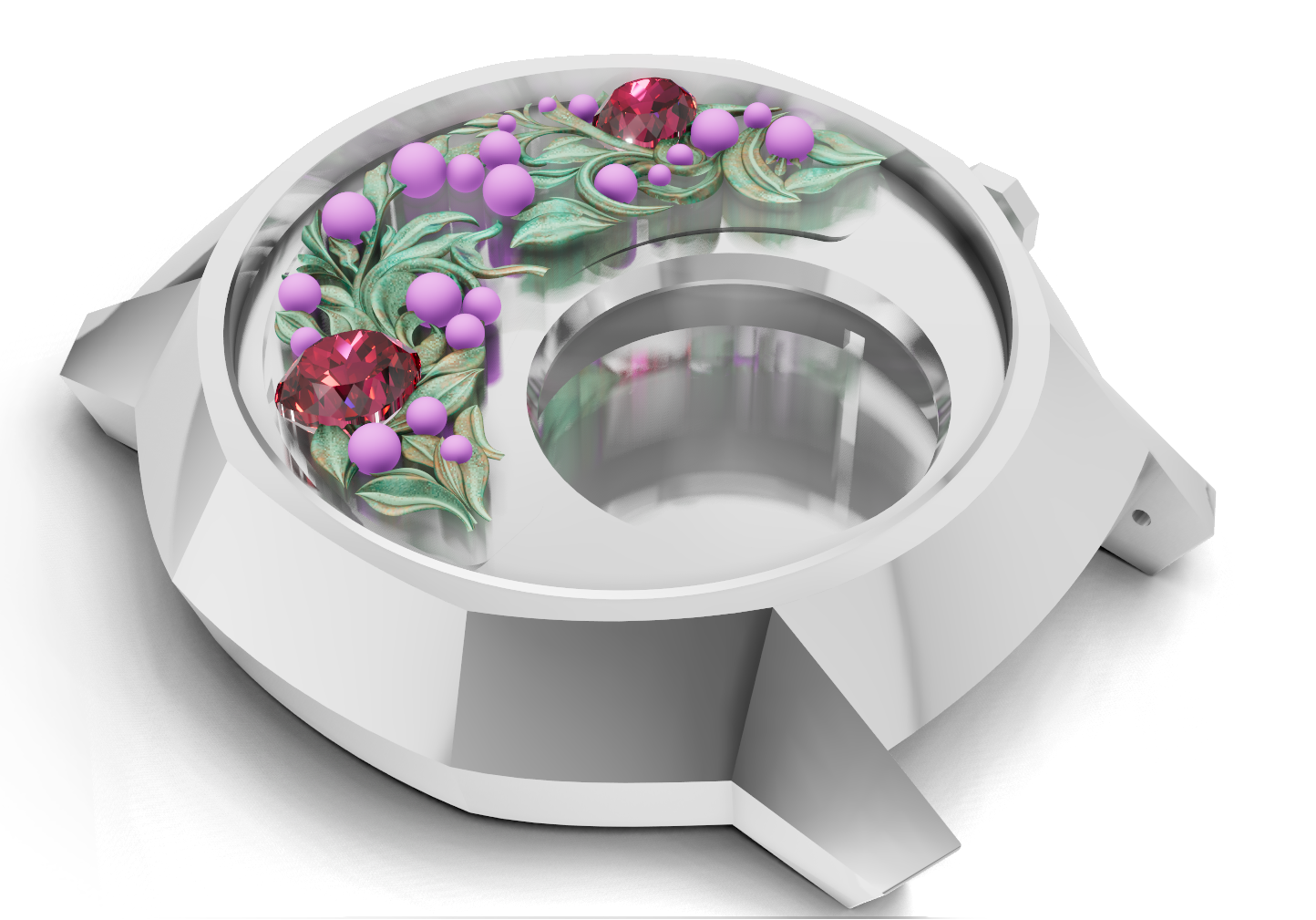

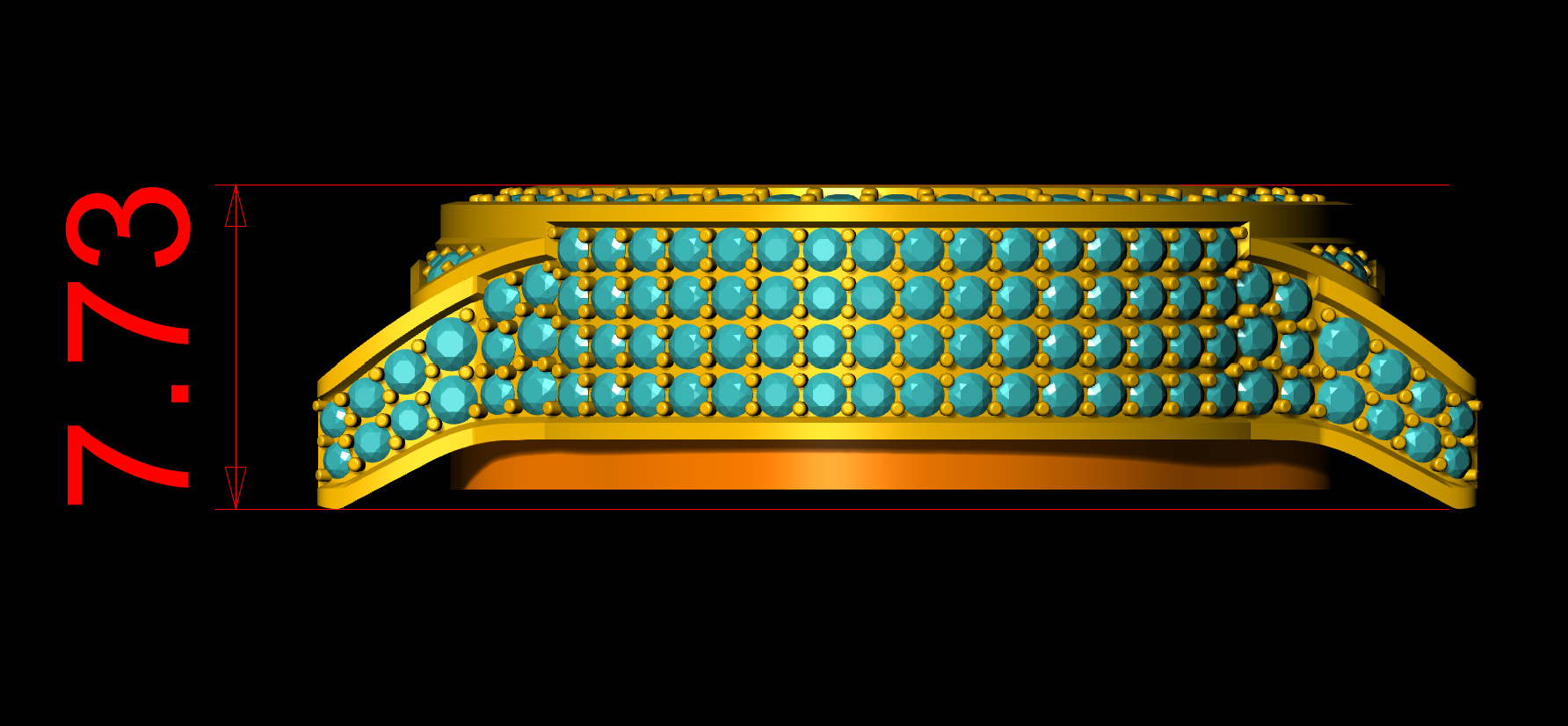

    No 2:= Luxury Diamond Watch Case CAD File – Product Description

    Product Title

    Luxury Diamond Watch Case CAD Design | Round Pave Watch Case | 608 Stone Setting | 3DM STL Jewelry CAD Model

    Product Description

    Create a premium luxury watch case with this professionally designed Jewelry CAD model. The design features a fully pavé-set round watch case with precision stone placement, making it ideal for custom diamond watch manufacturing. The CAD model includes detailed stone seats, crown housing, screw-back case design, and accurate production-ready dimensions.

    Suitable for jewelry manufacturers, watch customizers, CAD designers, and casting production.

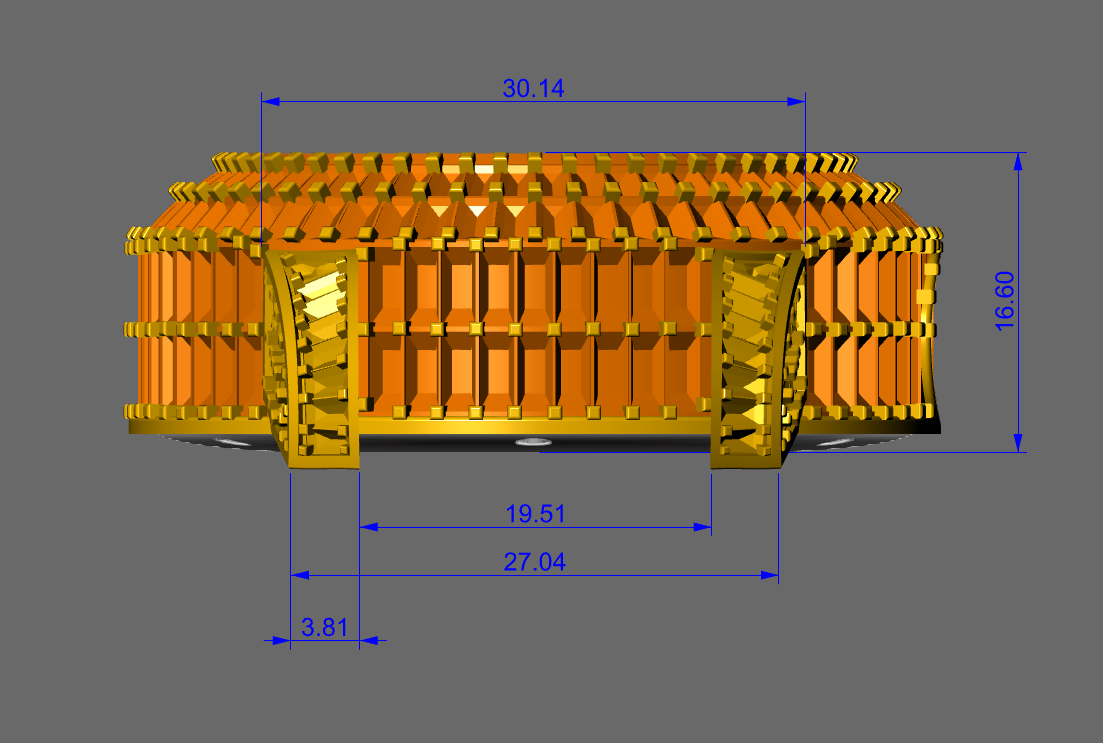

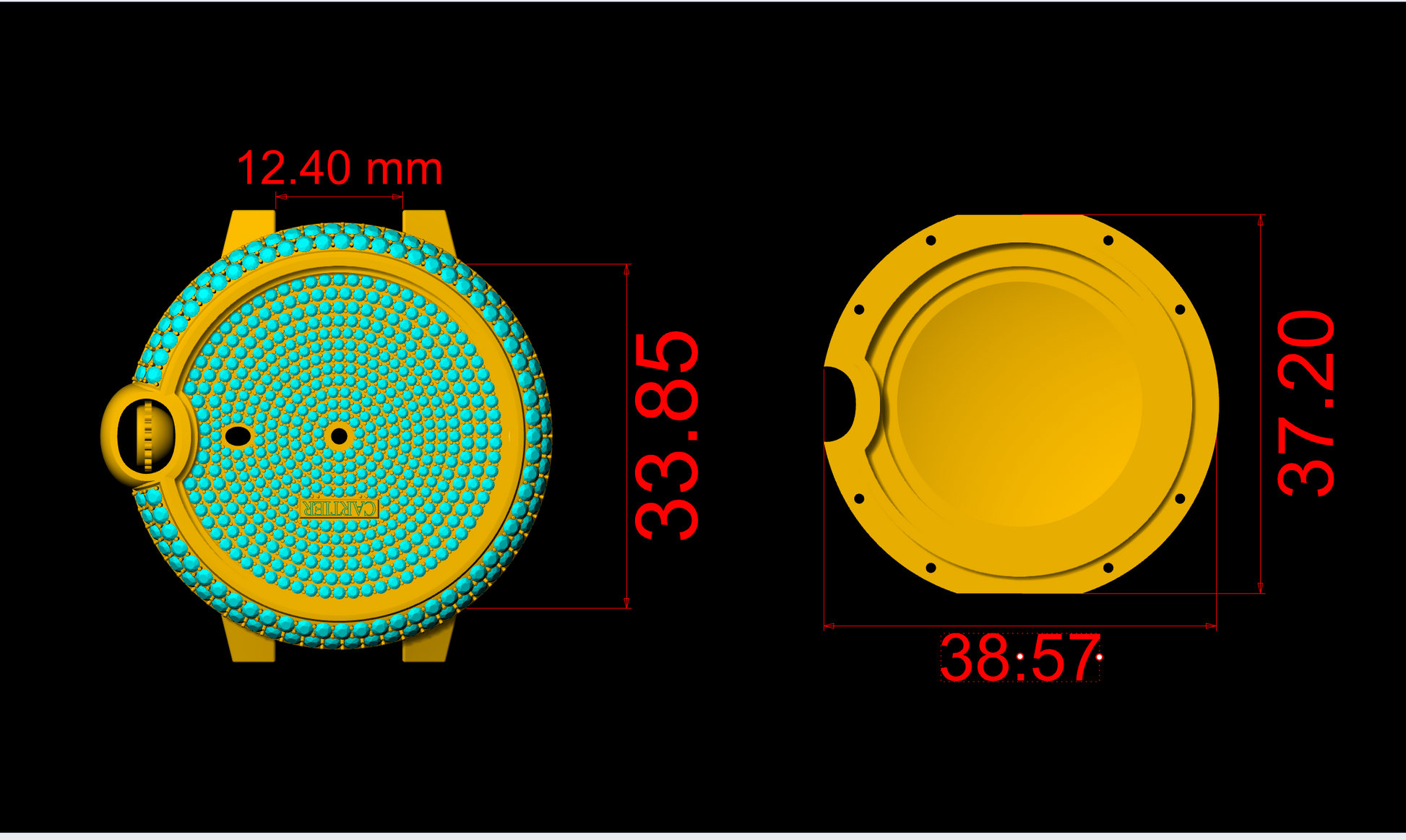

    Full Measurements

    Overall Dimensions

    Measurement Size
    Overall Height (Lug to Lug) 44.45 mm
    Overall Width (Including Crown) 44.51 mm

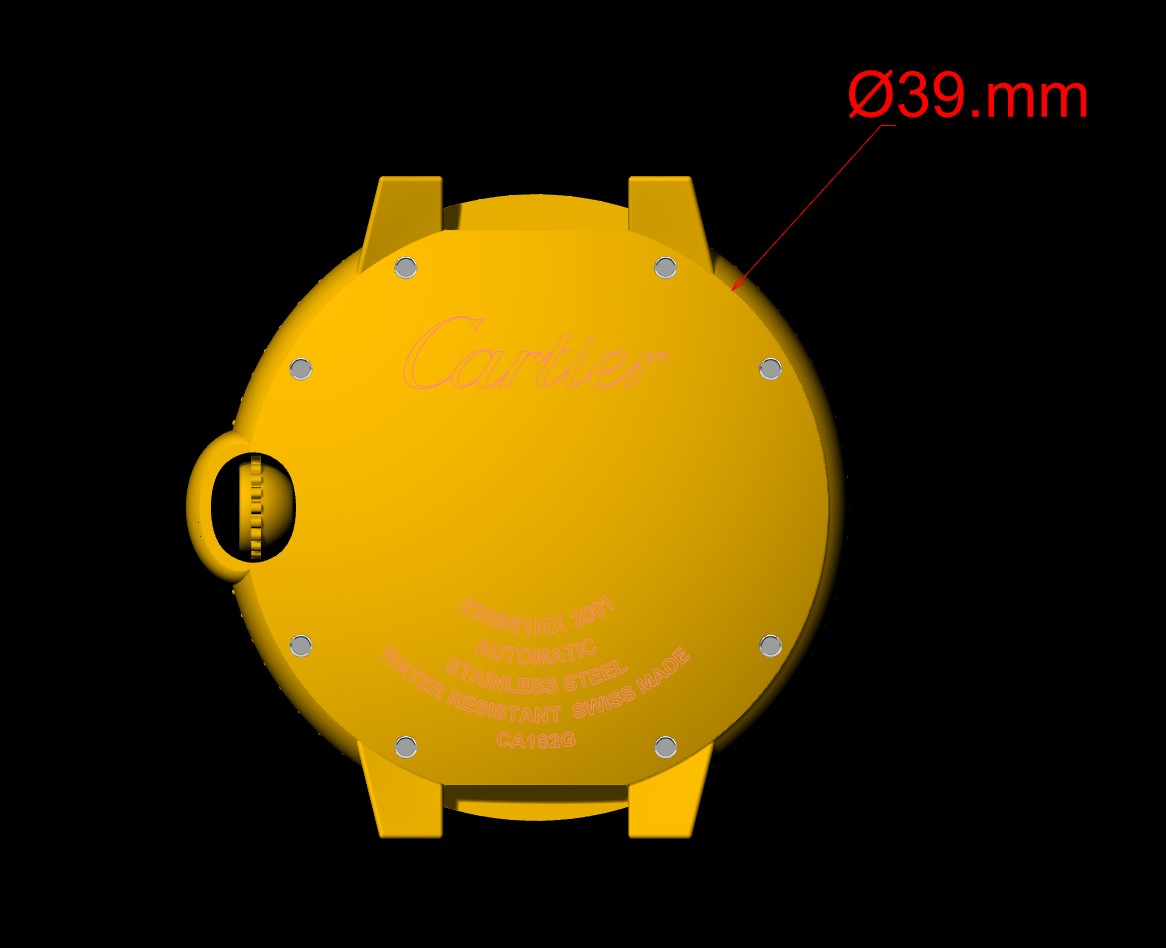

    Watch Case Diameter Ø39.00 mm
    Front Case Diameter 38.57 mm
    Back Case Diameter 37.20 mm
    Inner Front Opening 33.85 mm
    Lug Width 12.40 mm

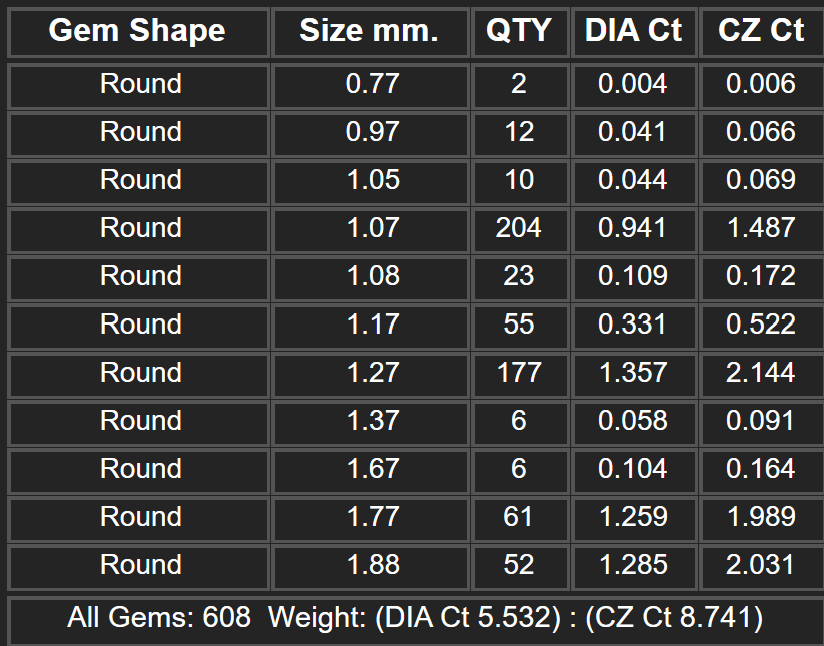

    Gemstone Details

    Stone Size Quantity
    Round 0.77 mm 2 pcs
    Round 0.97 mm 12 pcs
    Round 1.05 mm 10 pcs
    Round 1.07 mm 204 pcs
    Round 1.08 mm 23 pcs
    Round 1.17 mm 55 pcs
    Round 1.27 mm 177 pcs
    Round 1.37 mm 6 pcs
    Round 1.67 mm 6 pcs
    Round 1.77 mm 61 pcs
    Round 1.88 mm 52 pcs

    Total Stone Count

    608 Round Stones

    Diamond Weight

    Stone Type Total Weight
    Natural Diamond 5.532 Carats
    Cubic Zirconia (CZ) 8.741 Carats

    Design Features

    • Premium round luxury watch case
    • Full pavé diamond setting layout
    • Precision stone seats
    • Crown protection housing
    • Screw-down back case
    • Production-ready CAD model
    • High-detail manufacturing geometry
    • Suitable for casting and stone setting
    • Professional jewelry CAD construction
    • Optimized for luxury custom watch projects

    Recommended Materials

    • 10K Gold
    • 14K Gold
    • 18K Gold
    • Platinum
    • Silver

    File Format

    • 3DM
    • STL
    • Manufacturing-ready CAD Model

    Suitable For

    • Jewelry Manufacturers
    • Watch Case Manufacturers
    • Diamond Watch Customization
    • Custom Jewelry Workshops
    • Stone Setting Production
    • CAD Designers
    • Casting Production
    • Luxury Watch Projects

    Product Specifications

    • Product Type: Luxury Watch Case CAD Model
    • Design Style: Round Pavé Diamond Watch Case
    • Stone Shape: Round
    • Total Stones: 608
    • Diamond Weight: 5.532 Ct
    • CZ Weight: 8.741 Ct
    • Case Diameter: Ø39.00 mm
    • Overall Size: 44.51 × 44.45 mm
    • Lug Width: 12.40 mm
    • Manufacturing Ready: Yes
    • Casting Ready: Yes
    • Stone Setting Ready: Yes
    • Digital Product: Yes (CAD Files Only)

    Note: This listing is for a digital CAD model only. No physical watch or jewelry item is included. Dimensions and stone weights are based on the supplied CAD design and may vary slightly after manufacturing depending on production tolerances.

    No 3 := Luxury Diamond Watch Bracelet CAD File – Product Description

    Product Title

    Luxury Diamond Watch Bracelet CAD Design | Fully Iced Out Watch Band | 1282 Stone Setting | 3DM STL Jewelry CAD Model

    Product Description

    Upgrade your custom luxury watch project with this professionally designed fully pavé diamond watch bracelet CAD model. This production-ready design features a premium curved rectangular center case with an integrated articulated bracelet, precision stone settings, and a comfortable ergonomic profile.

    The model is engineered for jewelry manufacturers, watch customizers, CAD designers, and casting professionals, offering exceptional detailing and accurate dimensions for high-end watch production.

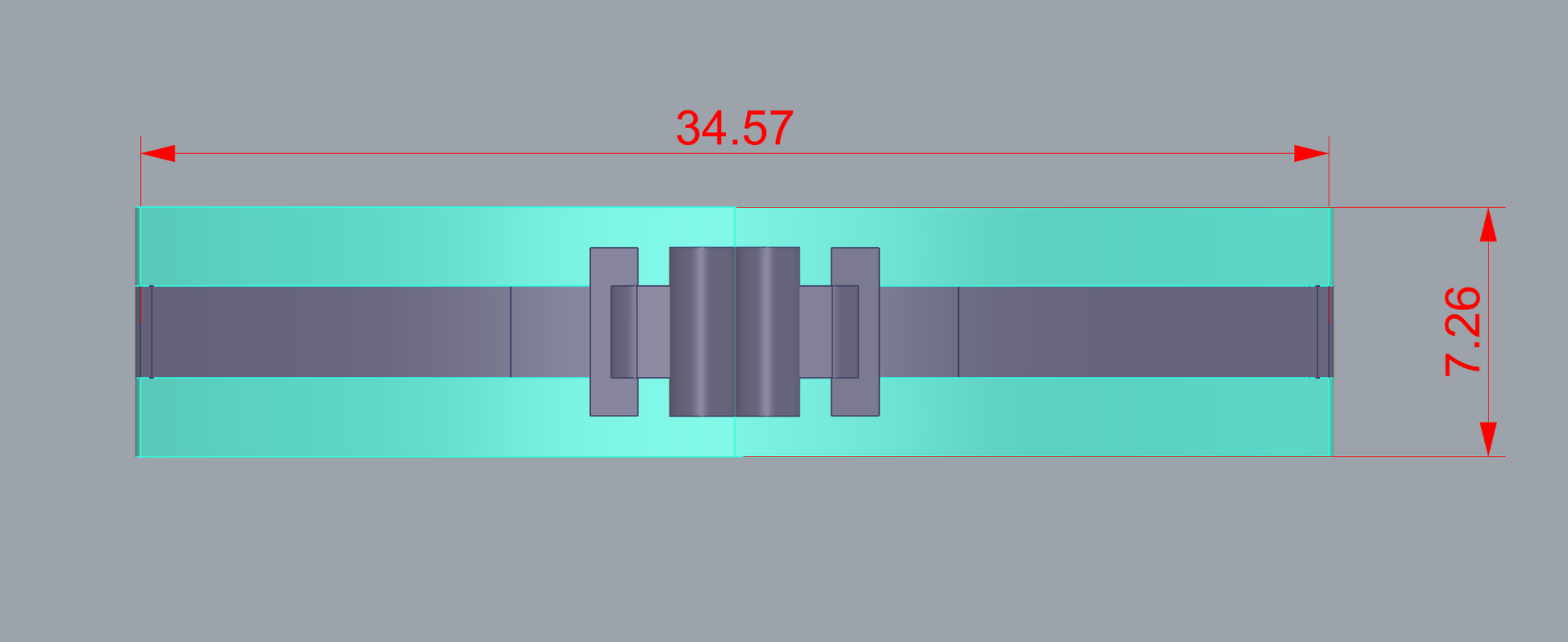

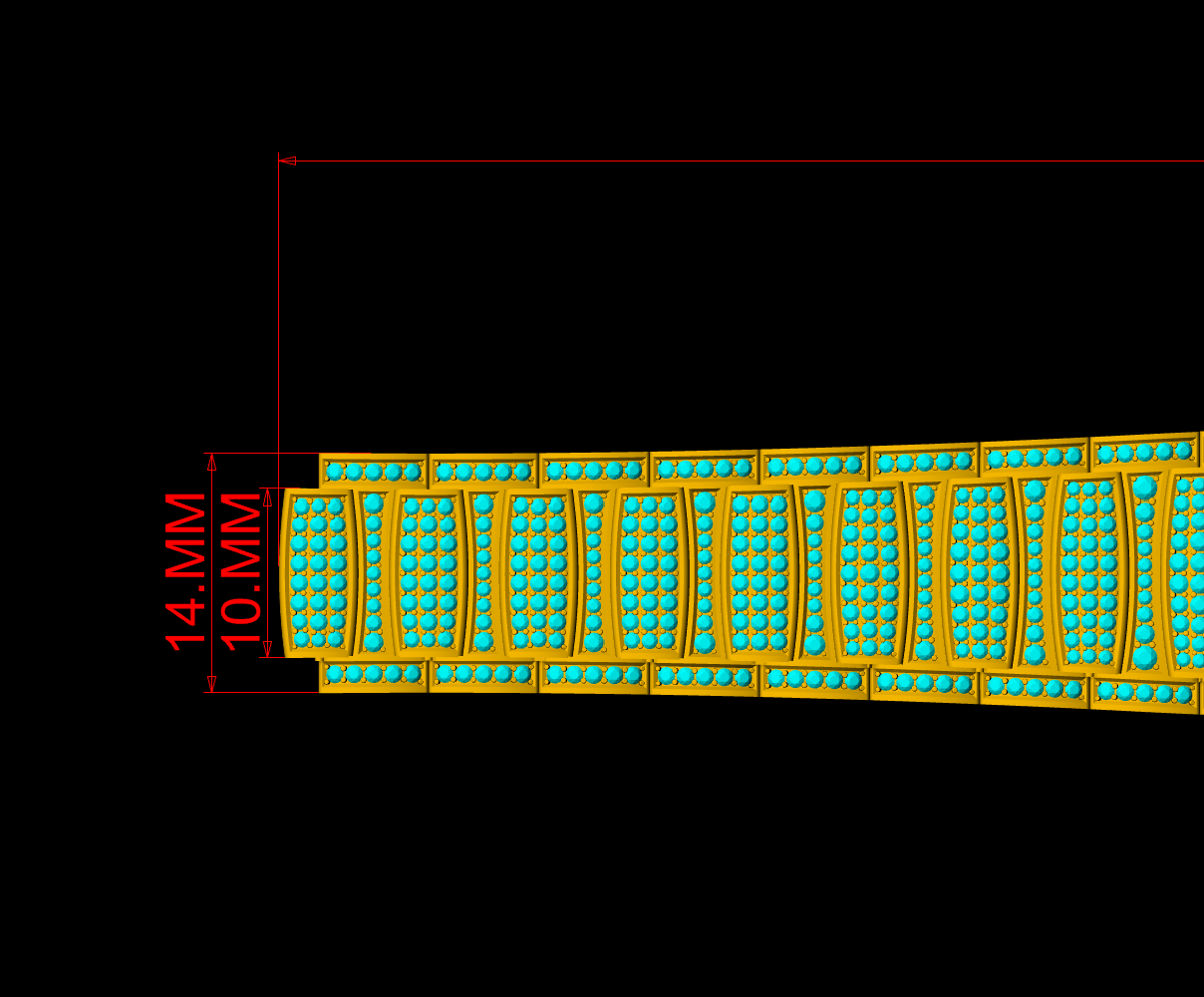

    Full Measurements

    Overall Dimensions

    Measurement Size

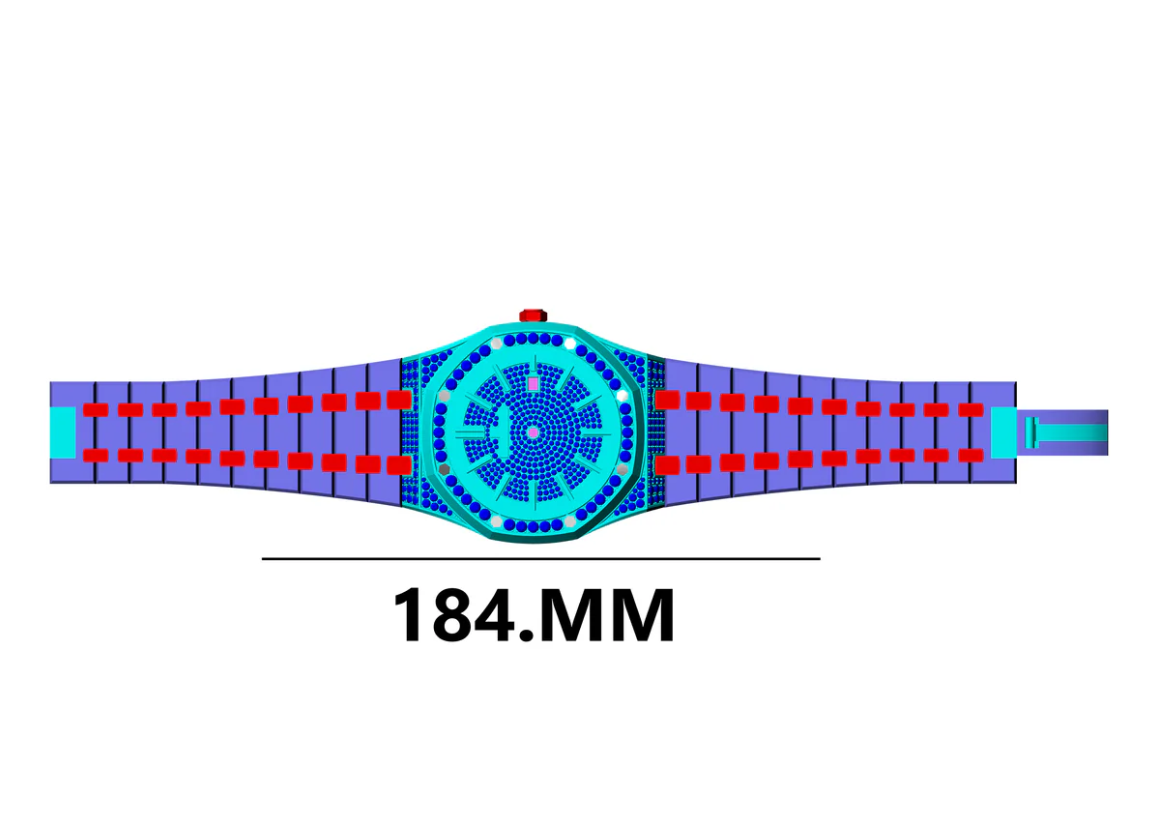

    Total Bracelet Length 184.00 mm
    Center Case Width 38.50 mm
    Center Case Height 27.40 mm
    Bracelet Width (Maximum) 14.00 mm
    Bracelet Width (Minimum) 10.00 mm

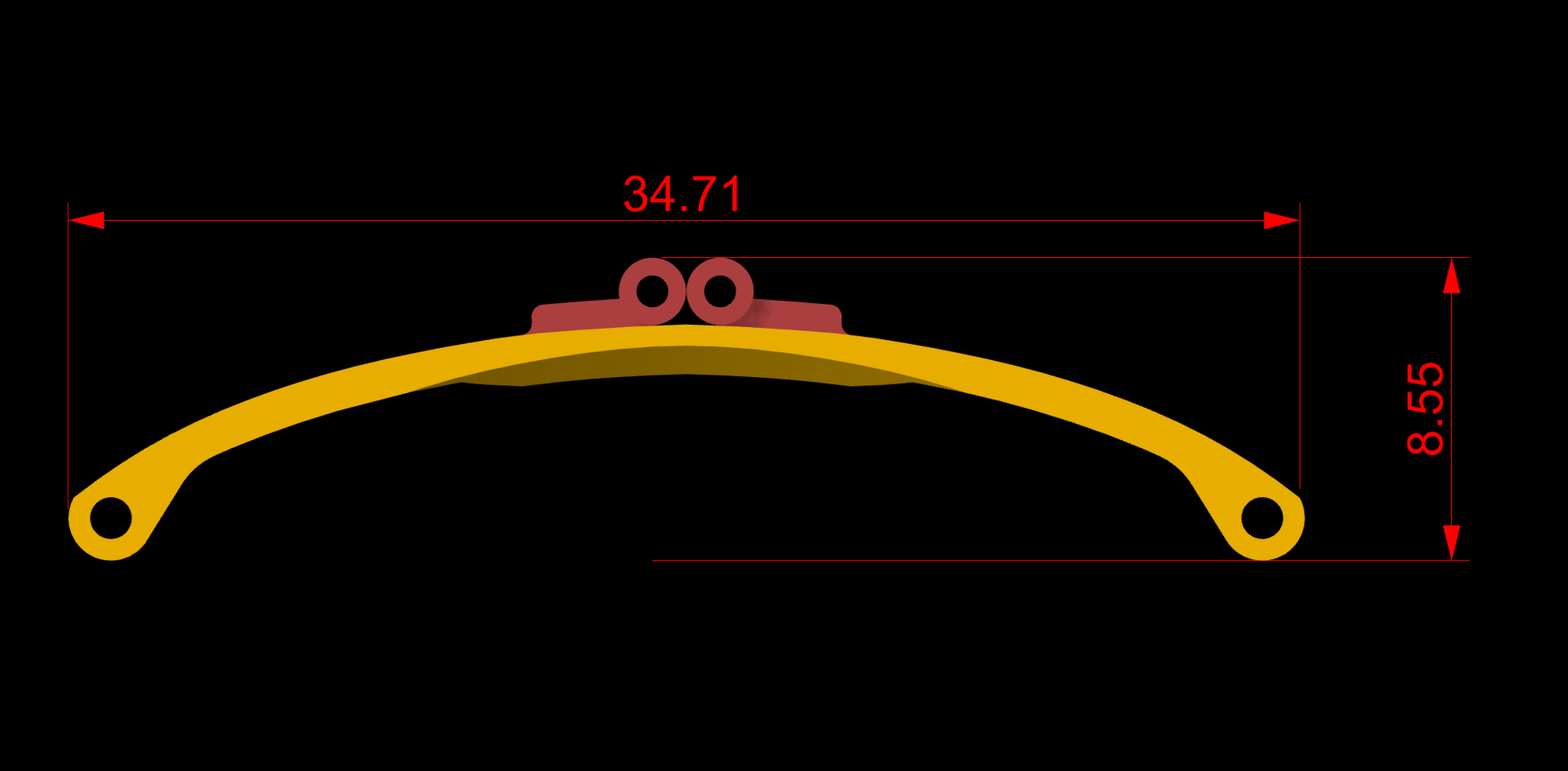

    Center Section Length 34.71 mm
    Overall Bracelet Height (Center) 8.55 mm

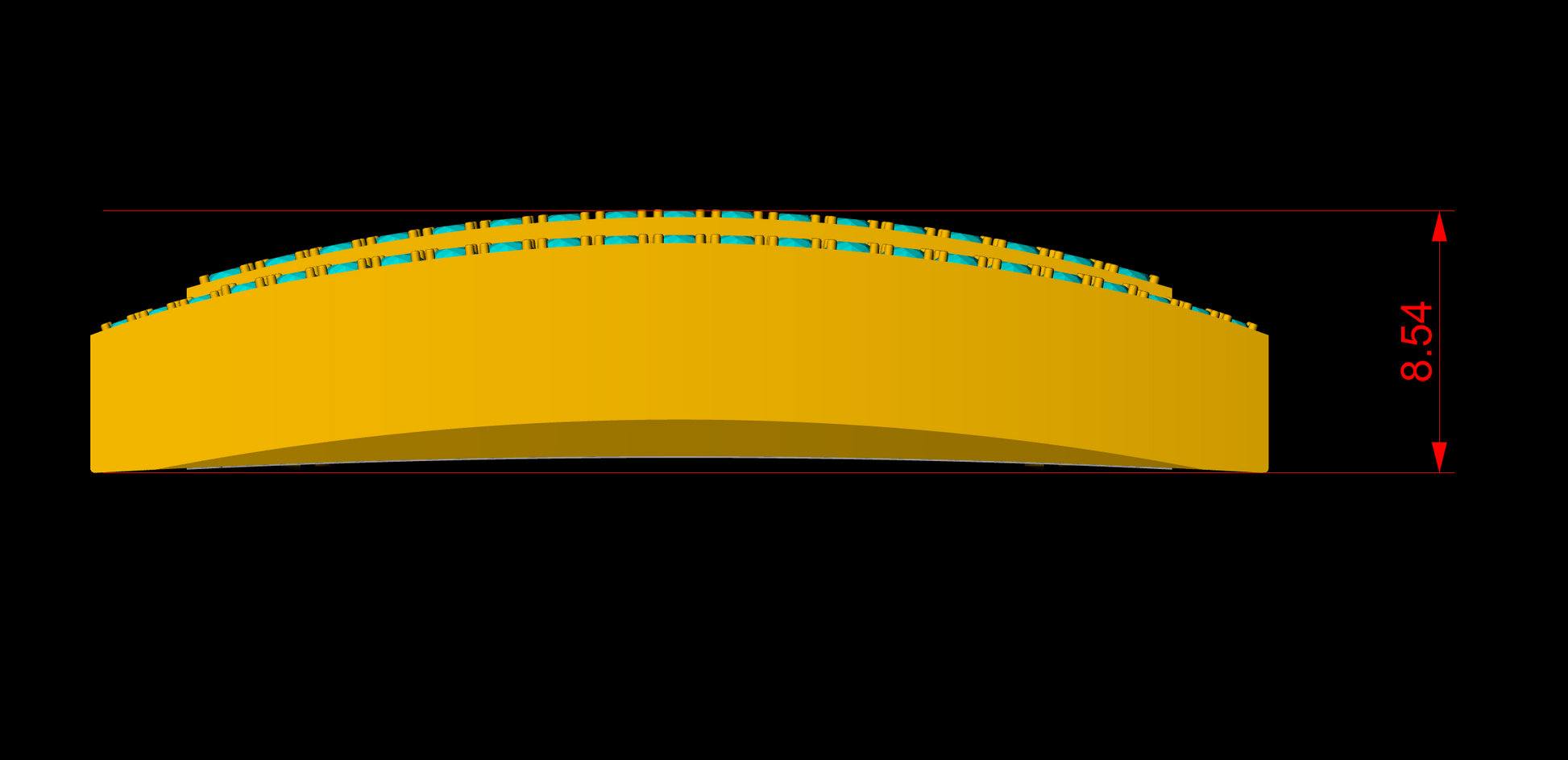

    Dome Height 8.54 mm

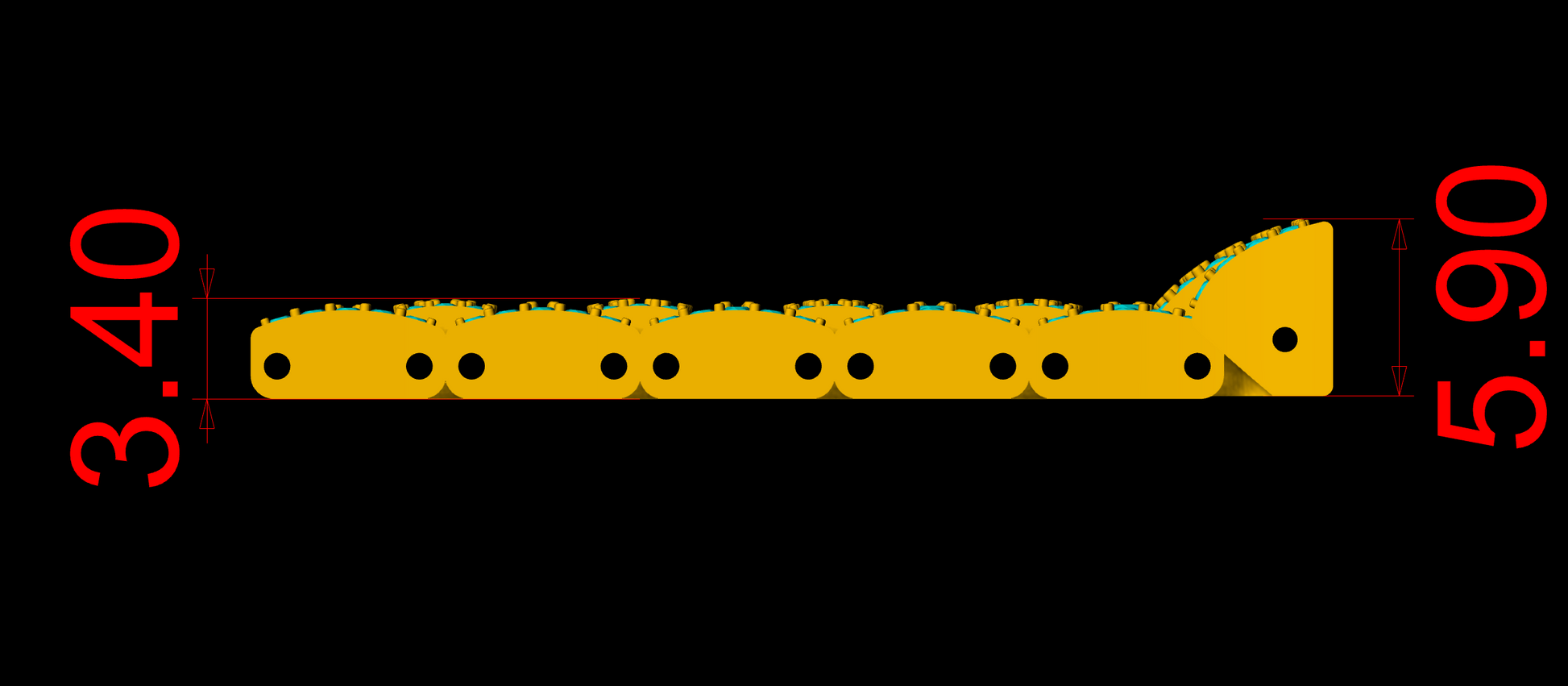

    Bracelet Link Thickness 3.40 mm
    Center Case Thickness 5.90 mm

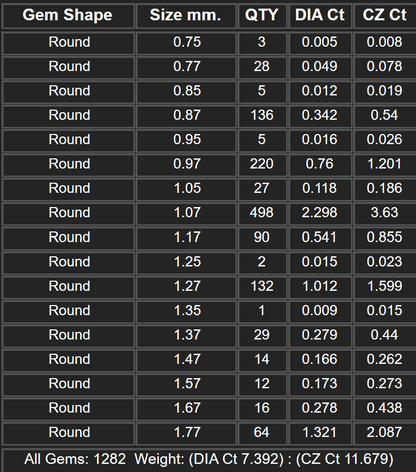

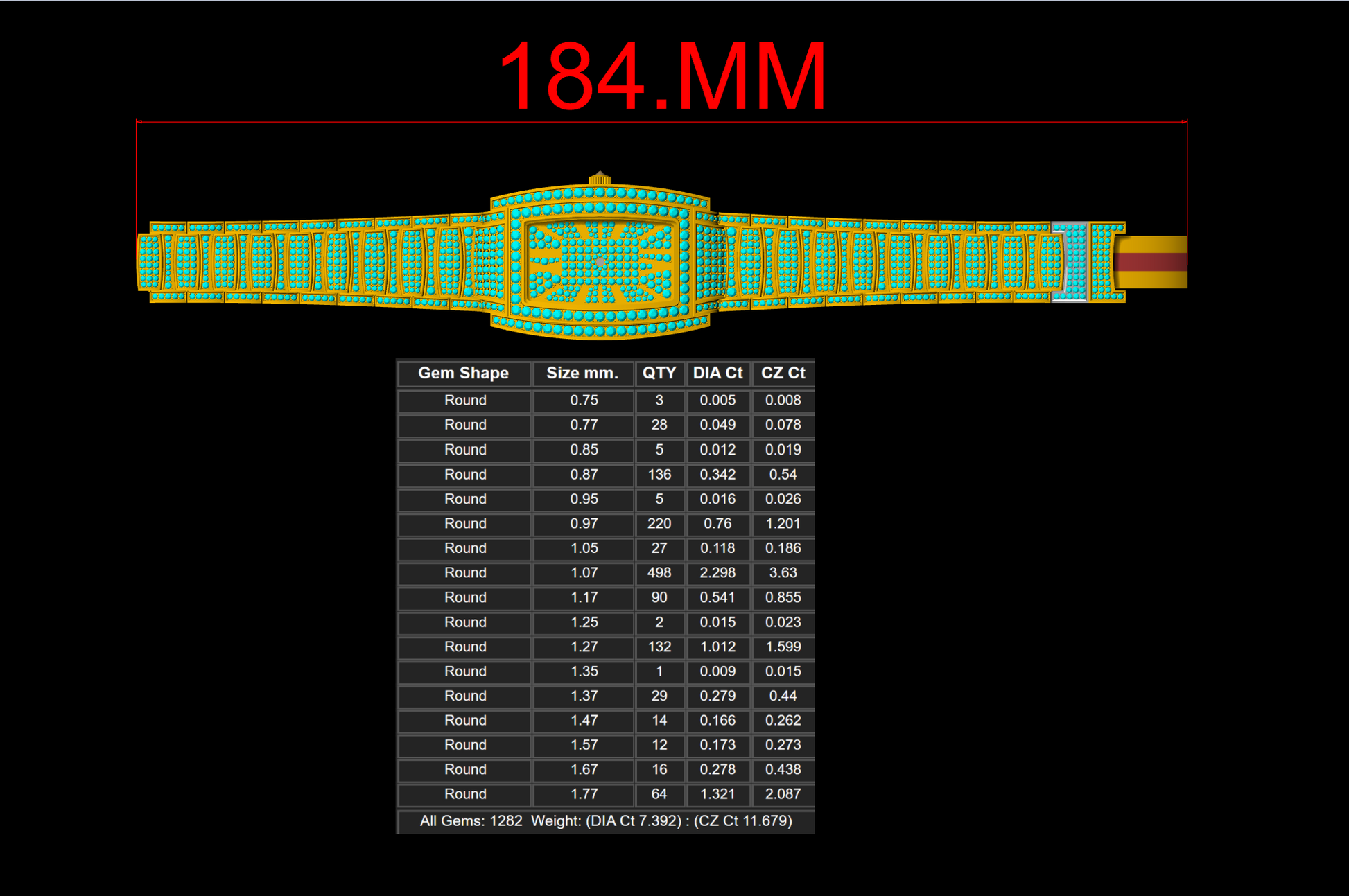

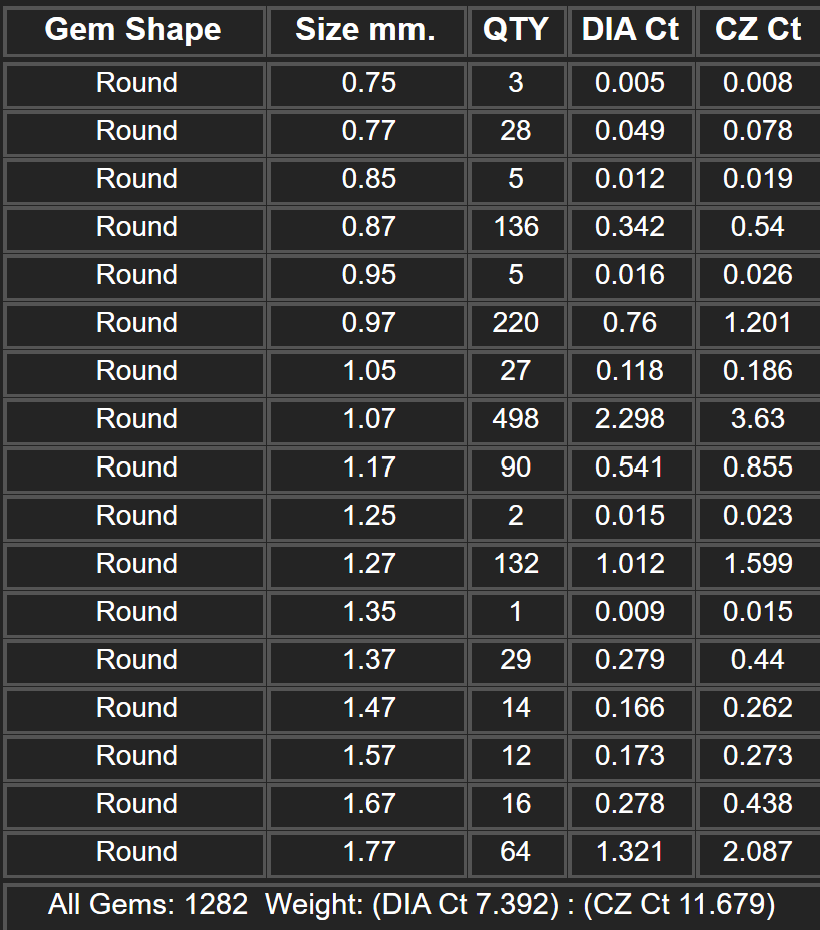

    Gemstone Details

    Stone Shape Stone Size Quantity
    Round 0.75 mm 3 pcs
    Round 0.77 mm 28 pcs
    Round 0.85 mm 5 pcs
    Round 0.87 mm 136 pcs
    Round 0.95 mm 5 pcs
    Round 0.97 mm 220 pcs
    Round 1.05 mm 27 pcs
    Round 1.07 mm 498 pcs
    Round 1.17 mm 90 pcs
    Round 1.25 mm 2 pcs
    Round 1.27 mm 132 pcs
    Round 1.35 mm 1 pc
    Round 1.37 mm 29 pcs
    Round 1.47 mm 14 pcs
    Round 1.57 mm 12 pcs
    Round 1.67 mm 16 pcs
    Round 1.77 mm 64 pcs

    Stone Summary

    • Stone Shape: Round
    • Total Stones: 1,282 pcs
    • Natural Diamond Weight: 7.392 Ct
    • CZ Weight: 11.679 Ct

    Design Features

    • Fully iced-out luxury watch bracelet
    • Rectangular curved center case
    • Precision pavé stone layout
    • Articulated bracelet links
    • Smooth ergonomic wrist curvature
    • Production-ready stone seats
    • High-detail CAD construction
    • Luxury custom watch style
    • Casting-ready model
    • Professional jewelry manufacturing quality

    Recommended Materials

    • 10K Gold
    • 14K Gold
    • 18K Gold
    • Platinum
    • Sterling Silver

    File Format

    • 3DM
    • STL
    • Manufacturing-Ready CAD Files

    Suitable For

    • Jewelry Manufacturers
    • Luxury Watch Customization
    • Diamond Watch Projects
    • CAD Designers
    • Stone Setting Workshops
    • Casting Production
    • Custom Jewelry Brands
    • High-End Watch Bracelet Manufacturing

    Product Specifications

    Specification Details
    Product Type Luxury Watch Bracelet CAD Model
    Design Style Fully Pavé Diamond Watch Bracelet
    Bracelet Length 184.00 mm
    Center Case Size 38.50 × 27.40 mm
    Bracelet Width 10.00–14.00 mm
    Center Section Length 34.71 mm
    Total Stones 1,282
    Diamond Weight 7.392 Ct
    CZ Weight 11.679 Ct
    File Formats 3DM, STL
    Casting Ready Yes
    Stone Setting Ready Yes
    Manufacturing Ready Yes
    Digital Product Yes (CAD Files Only)

    Package Includes

    • High-quality 3DM CAD file
    • STL file for prototyping and manufacturing
    • Complete pavé stone layout
    • Accurate production dimensions
    • Ready for casting and stone setting

    Note: This is a digital CAD file only. No physical watch, bracelet, gemstones, or precious metals are included. All dimensions and gemstone weights are based on the CAD model and may vary slightly during manufacturing.

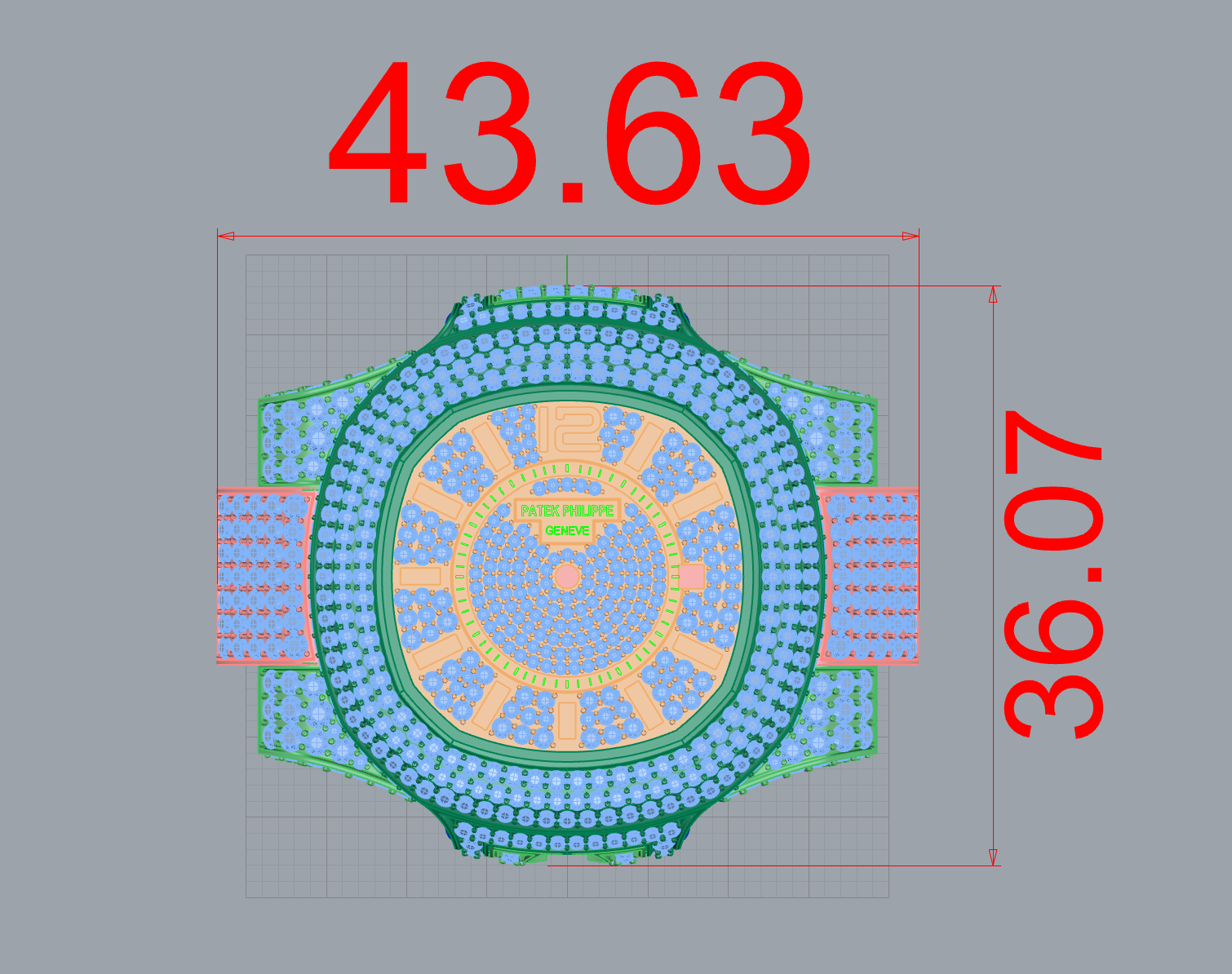

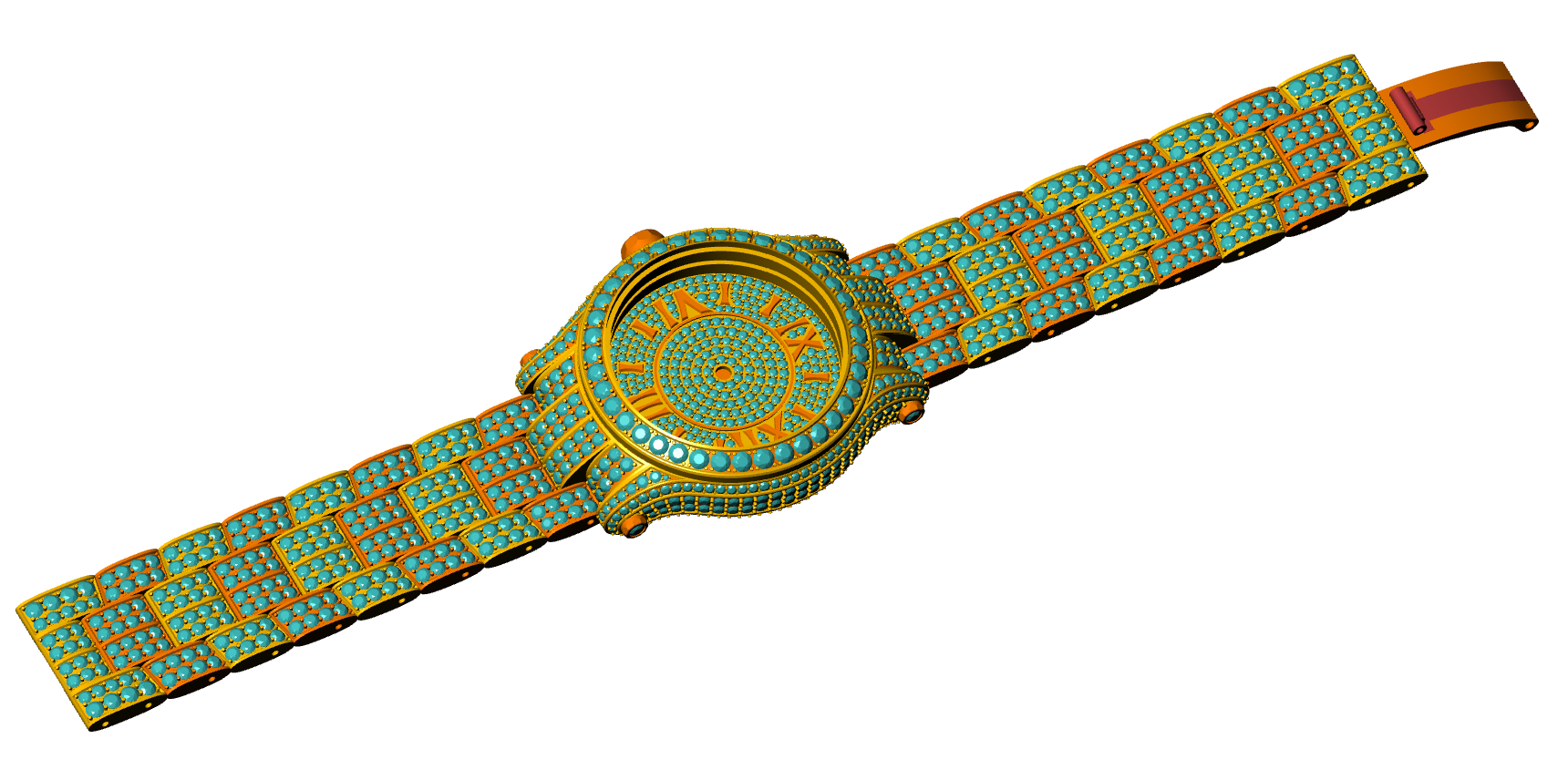

    Luxury Diamond Watch CAD File – Product Description

    Product Title

    Luxury Iced-Out Diamond Watch CAD Design | Complete Watch Case & Bracelet | 1881 Stone Setting | 3DM STL Jewelry CAD Model

    Product Description

    Create a premium custom luxury diamond watch with this professionally engineered complete watch CAD model. The design features a fully pavé-set round watch case integrated with a tapered bracelet, precision stone layouts, and production-ready engineering for casting and stone setting.

    This CAD model is ideal for jewelry manufacturers, luxury watch customizers, CAD designers, and high-end production workshops looking to manufacture an iced-out watch with exceptional craftsmanship and accurate dimensions.

    Full Measurements

    Overall Dimensions

    Measurement Size

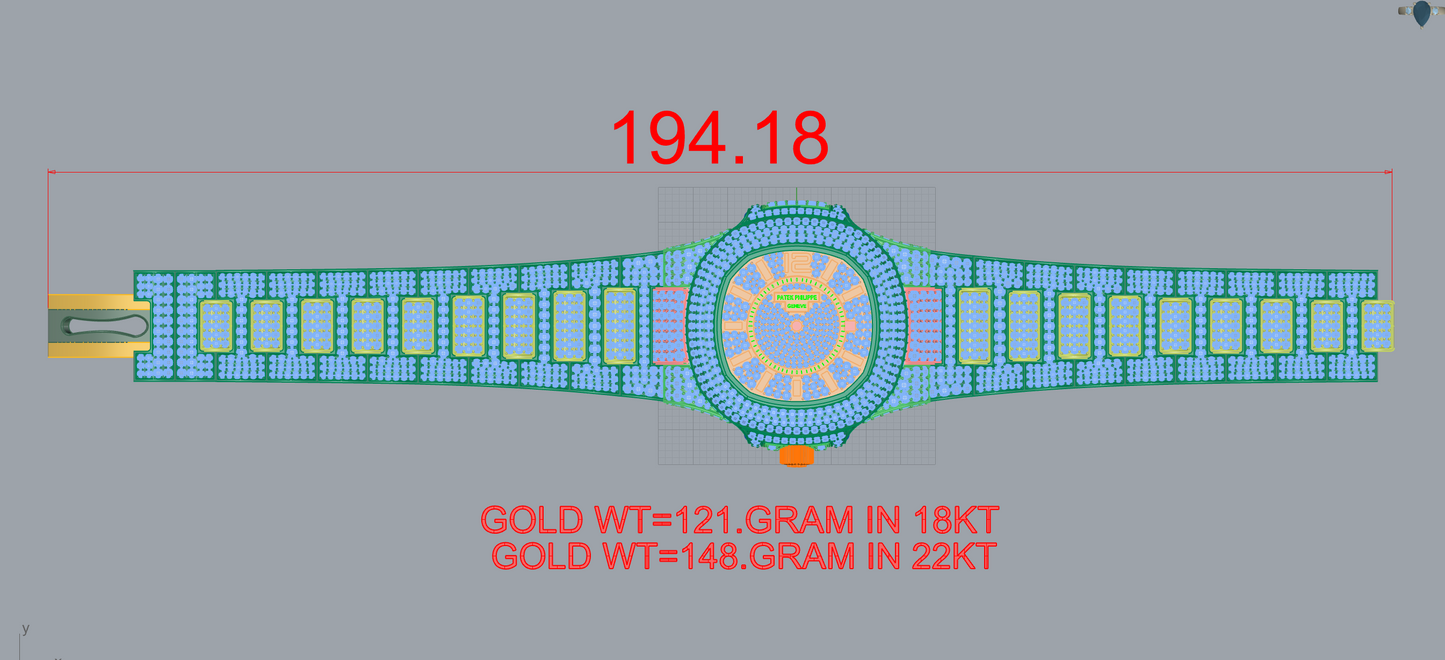

    Overall Watch Length 194.18 mm
    Watch Case Width 43.63 mm
    Watch Case Height 39.07 mm

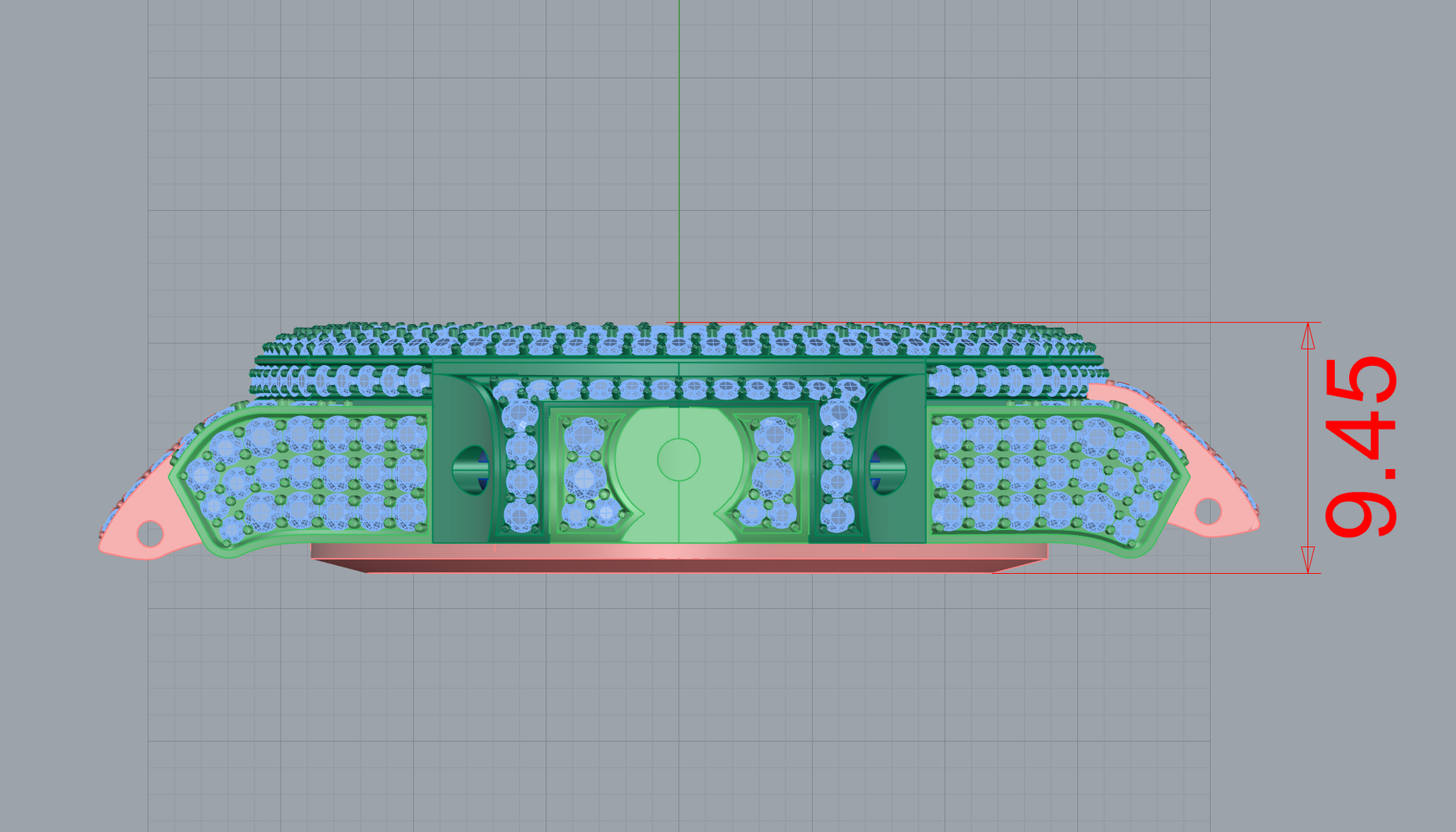

    Watch Case Thickness 9.45 mm

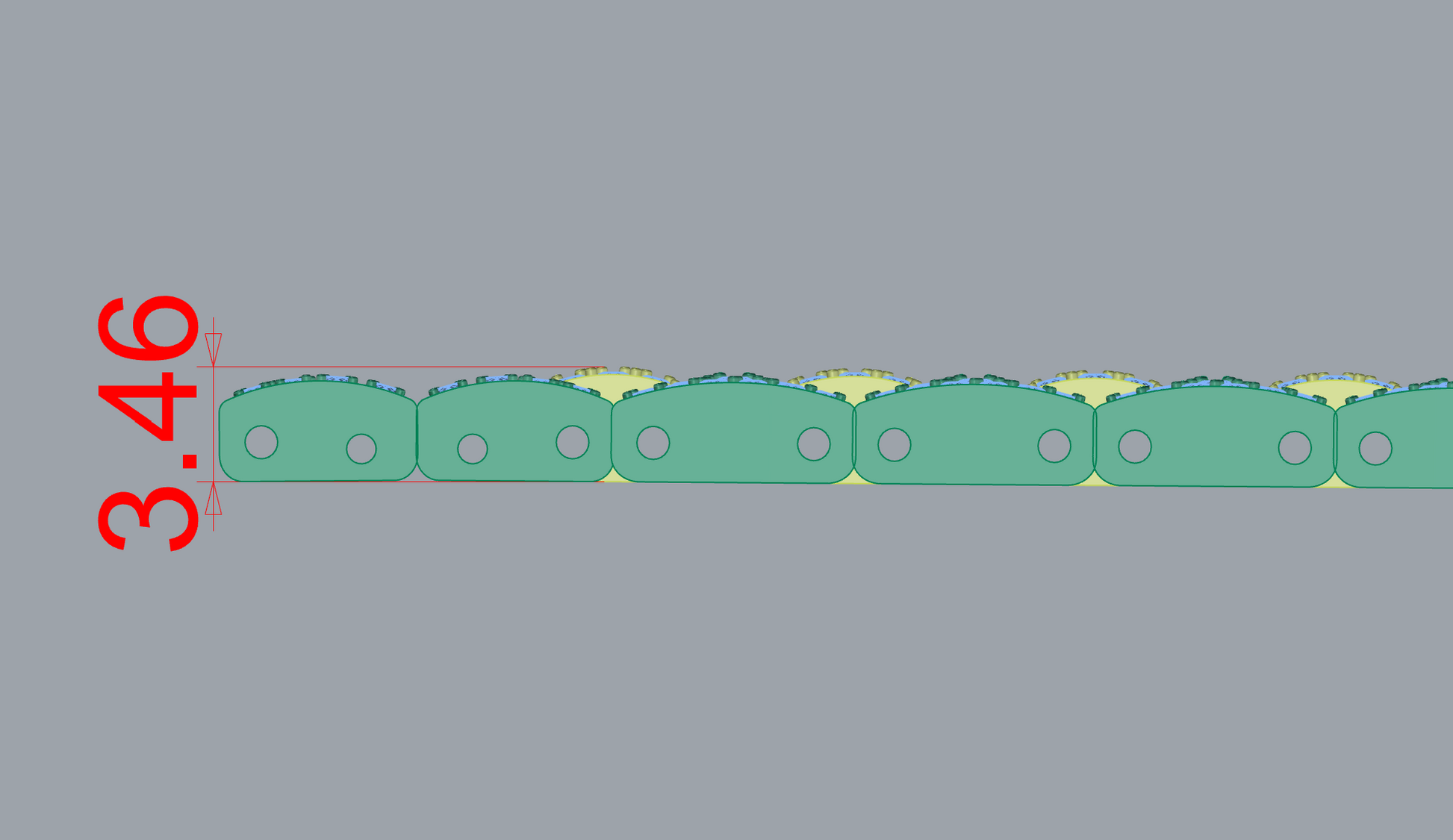

    Bracelet Thickness 3.46 mm

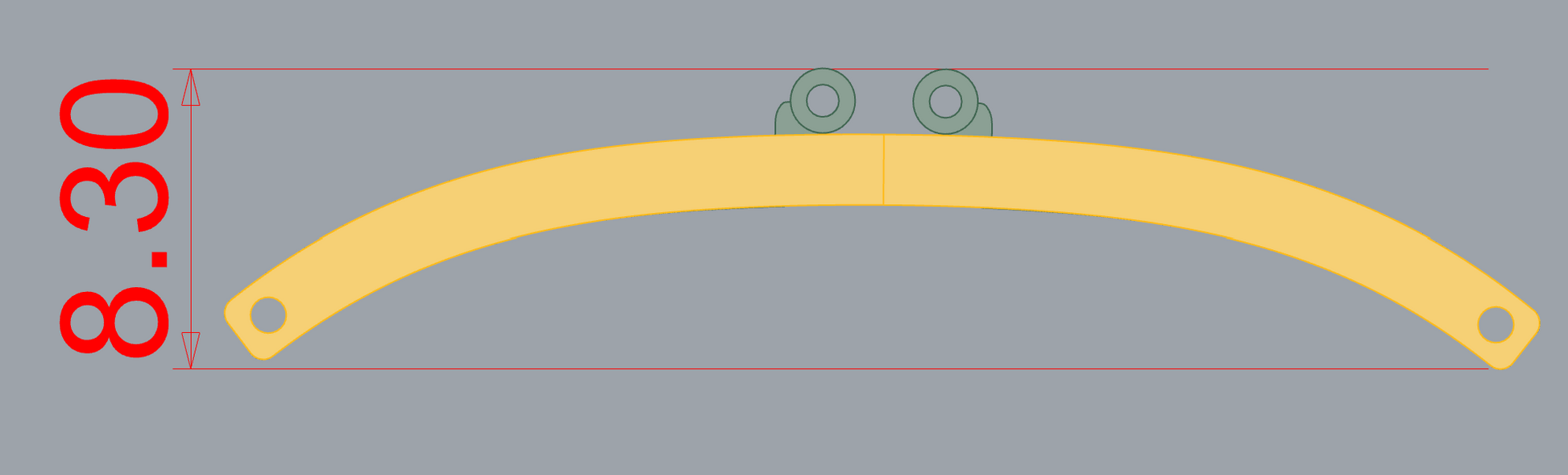

    Bracelet Curved Height 8.30 mm

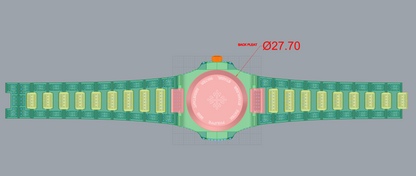

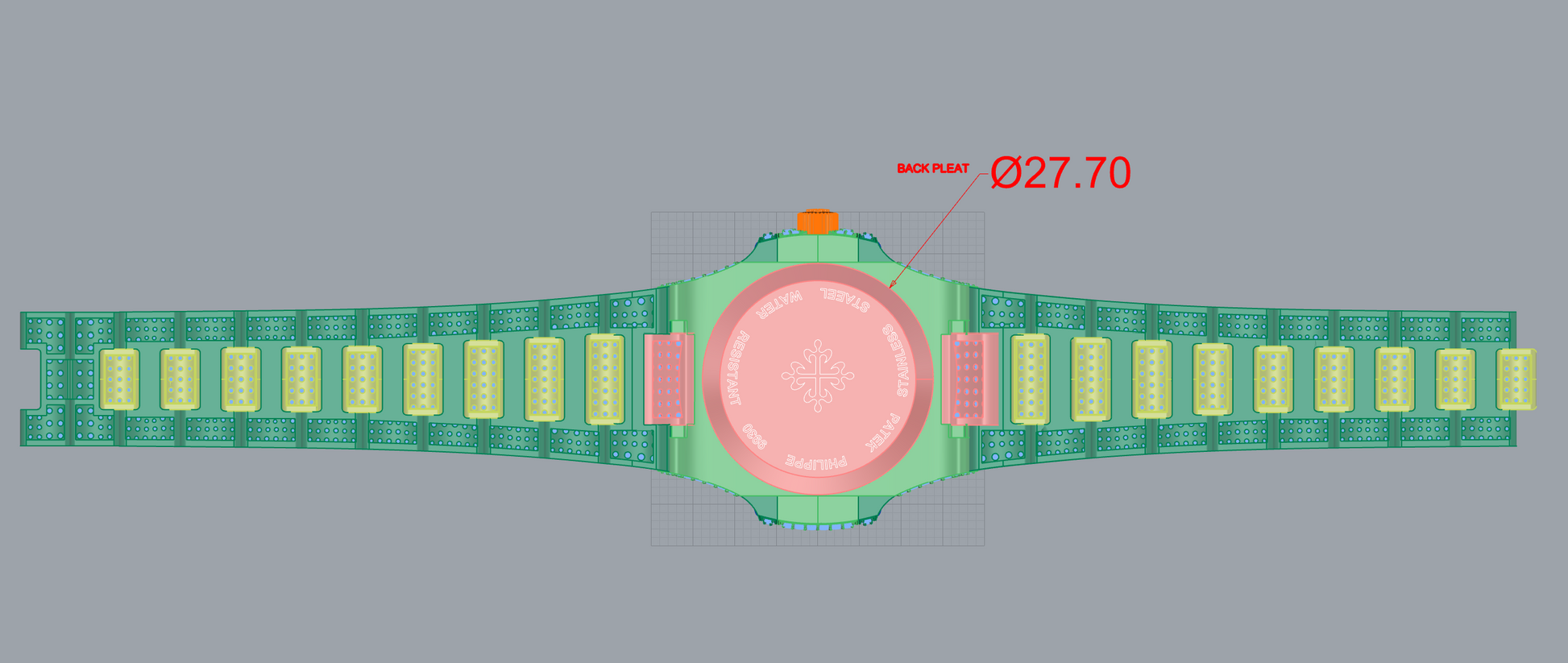

    Back Plate Diameter Ø27.70 mm

    Gold Weight

    Metal Weight
    18K Gold 121.00 grams
    22K Gold 148.00 grams

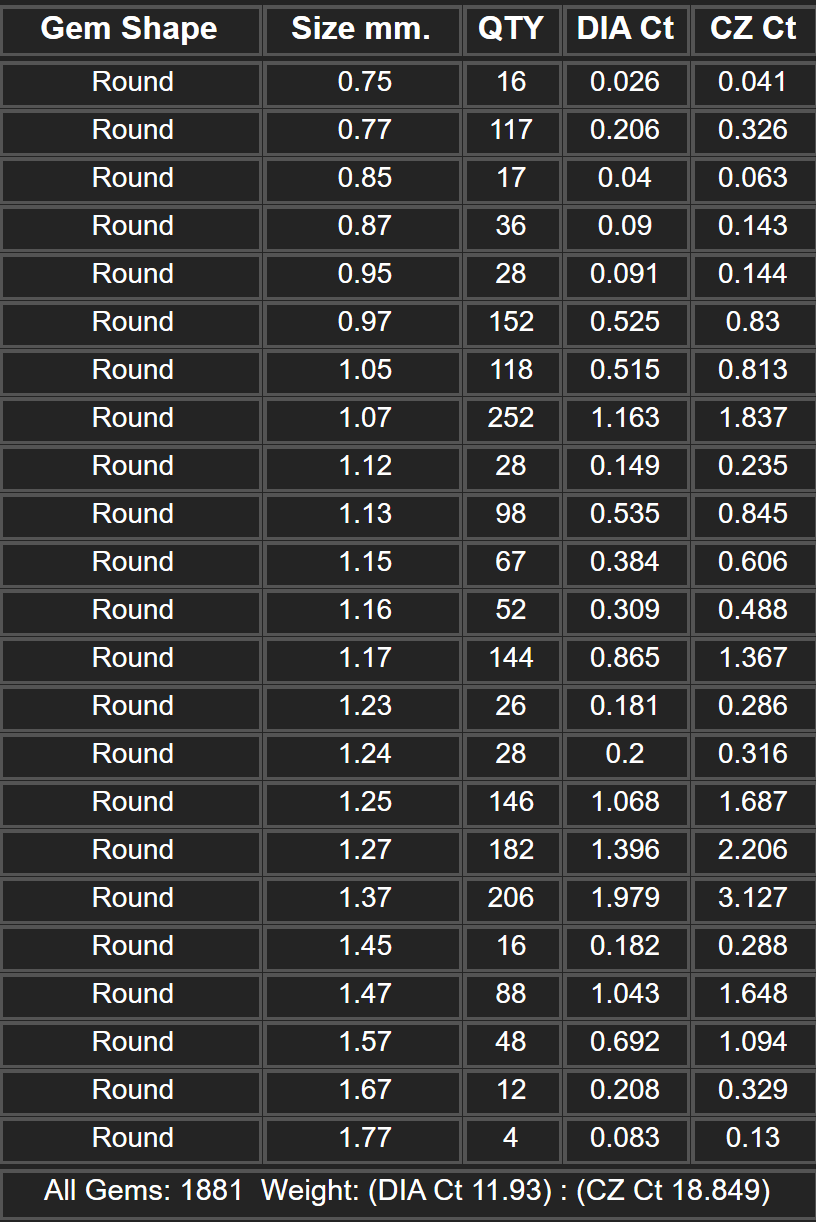

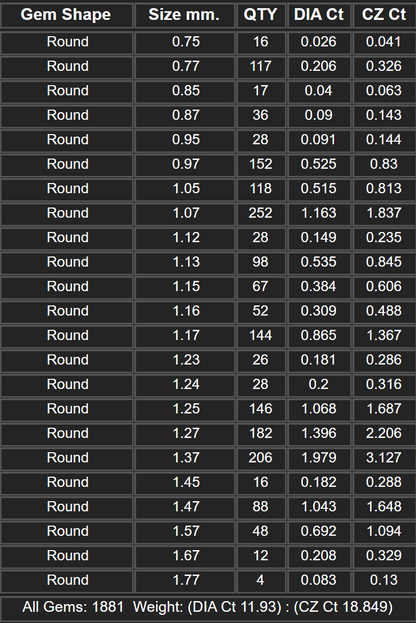

    Gemstone Details

    Stone Size Quantity
    Round 0.75 mm 16 pcs
    Round 0.77 mm 117 pcs
    Round 0.85 mm 17 pcs
    Round 0.87 mm 36 pcs
    Round 0.95 mm 28 pcs
    Round 0.97 mm 152 pcs
    Round 1.05 mm 118 pcs
    Round 1.07 mm 252 pcs
    Round 1.12 mm 28 pcs
    Round 1.13 mm 98 pcs
    Round 1.15 mm 67 pcs
    Round 1.16 mm 52 pcs
    Round 1.17 mm 144 pcs
    Round 1.23 mm 26 pcs
    Round 1.24 mm 28 pcs
    Round 1.25 mm 146 pcs
    Round 1.27 mm 182 pcs
    Round 1.37 mm 206 pcs
    Round 1.45 mm 16 pcs
    Round 1.47 mm 88 pcs
    Round 1.57 mm 48 pcs
    Round 1.67 mm 12 pcs
    Round 1.77 mm 4 pcs

    Stone Summary

    • Stone Shape: Round
    • Total Stones: 1,881 pcs
    • Natural Diamond Weight: 11.930 Ct
    • CZ Weight: 18.849 Ct

    Design Features

    • Fully iced-out luxury watch design
    • Complete watch case with integrated bracelet
    • Multi-row pavé diamond setting
    • Precision stone seats for secure setting
    • Ergonomic curved bracelet construction
    • Round luxury watch case
    • Detailed diamond dial layout
    • Casting-ready engineering
    • High-detail professional CAD model
    • Optimized for custom jewelry and luxury watch manufacturing

    Recommended Materials

    • 10K Gold
    • 14K Gold
    • 18K Gold
    • 22K Gold
    • Platinum
    • Sterling Silver

    File Format

    • 3DM
    • STL
    • Manufacturing-Ready CAD Files

    Suitable For

    • Jewelry Manufacturers
    • Luxury Watch Manufacturers
    • Custom Diamond Watch Projects
    • CAD Designers
    • Stone Setting Workshops
    • Casting Production
    • Jewelry Brands
    • High-End Watch Customization

    Product Specifications

    Specification Details
    Product Type Luxury Diamond Watch CAD Model
    Design Style Fully Pavé Iced-Out Watch
    Overall Length 194.18 mm
    Case Size 43.63 × 39.07 mm
    Case Thickness 9.45 mm
    Bracelet Thickness 3.46 mm
    Back Plate Diameter Ø27.70 mm
    Total Stones 1,881
    Diamond Weight 11.930 Ct
    CZ Weight 18.849 Ct
    18K Gold Weight 121.00 g
    22K Gold Weight 148.00 g
    File Formats 3DM, STL
    Casting Ready Yes
    Stone Setting Ready Yes
    Manufacturing Ready Yes
    Digital Product Yes (CAD Files Only)

    Package Includes

    • Professional 3DM CAD file
    • STL file for casting and prototyping
    • Complete watch case and bracelet CAD model
    • Full pavé stone layout
    • Production-ready geometry
    • Accurate manufacturing dimensions
