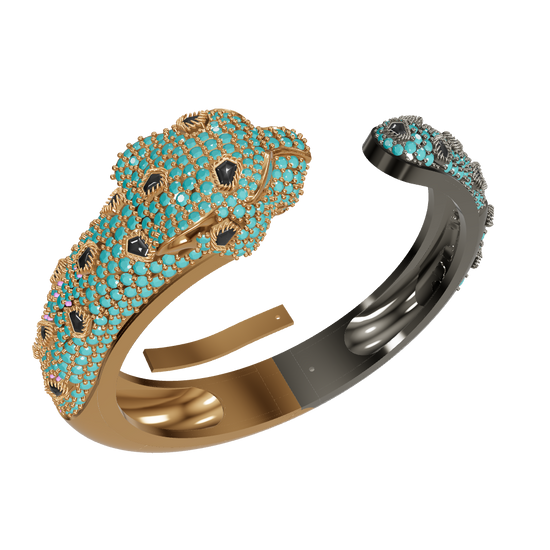

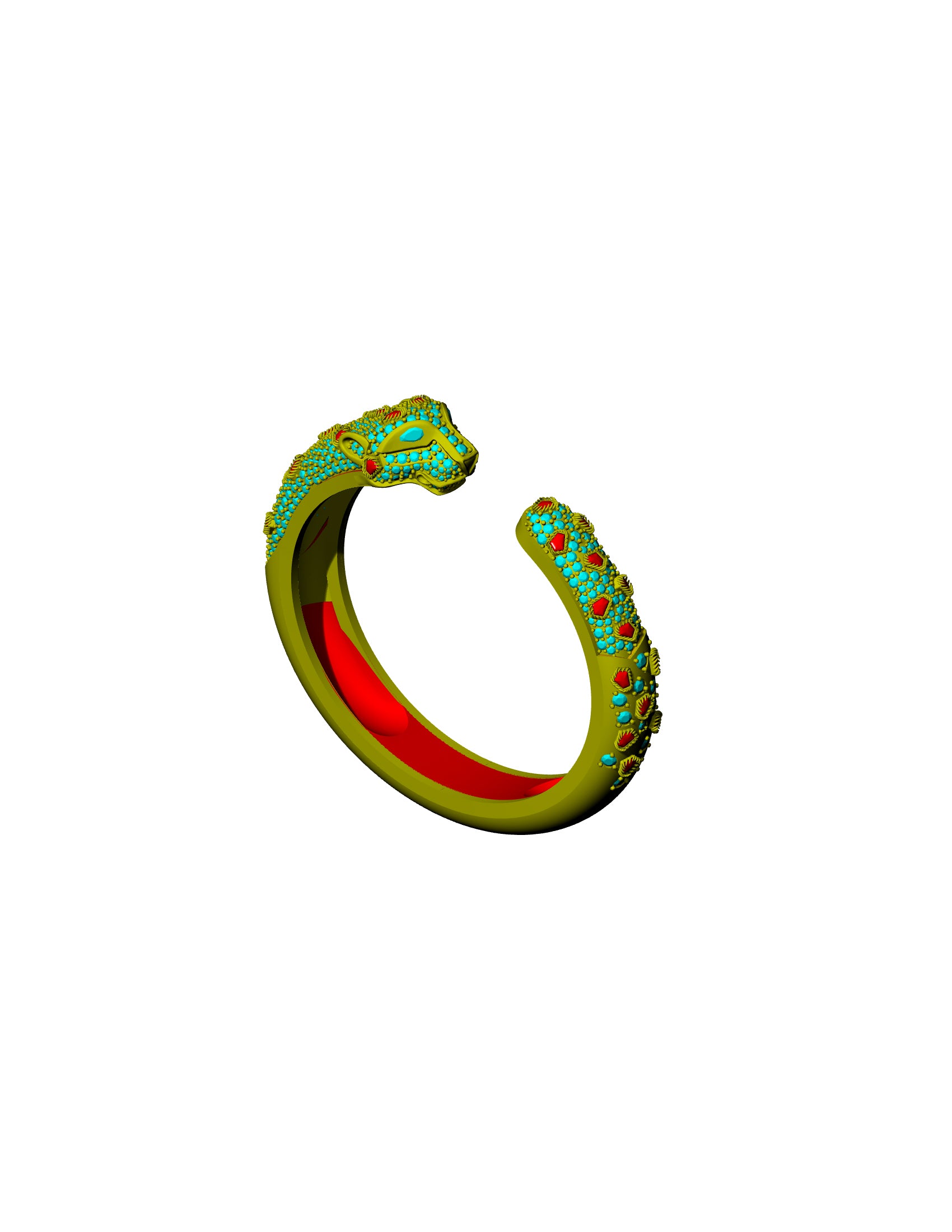

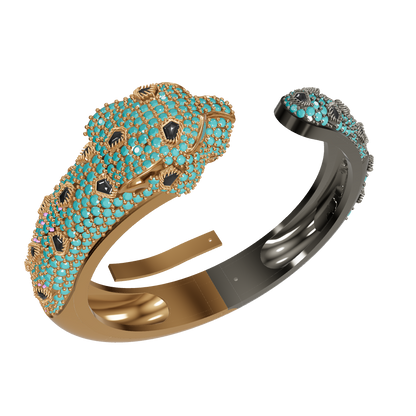

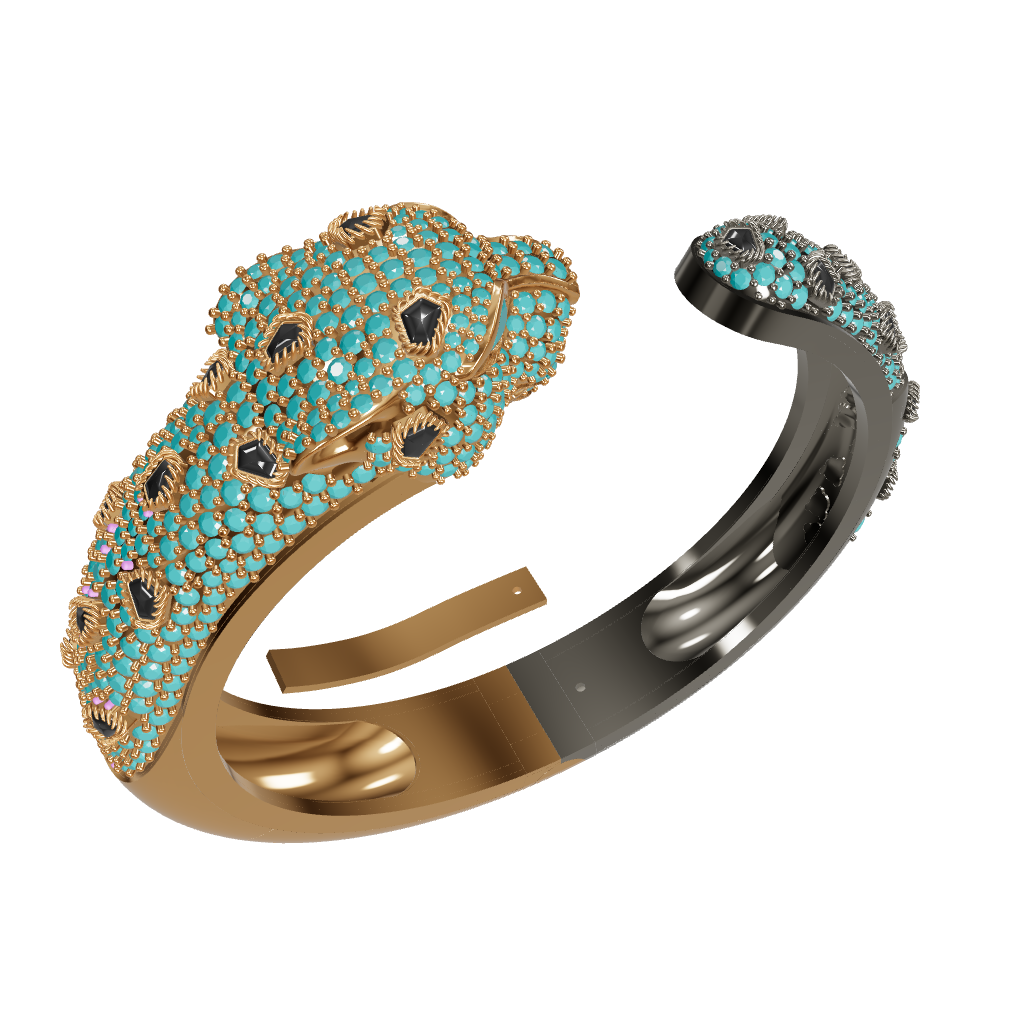

Panther Head Openable Diamond Bangle CAD FILE
Panther Head Openable Diamond Bangle CAD FILE
JewelryCrafto
Share
Couldn't load pickup availability
Basic Dimensions

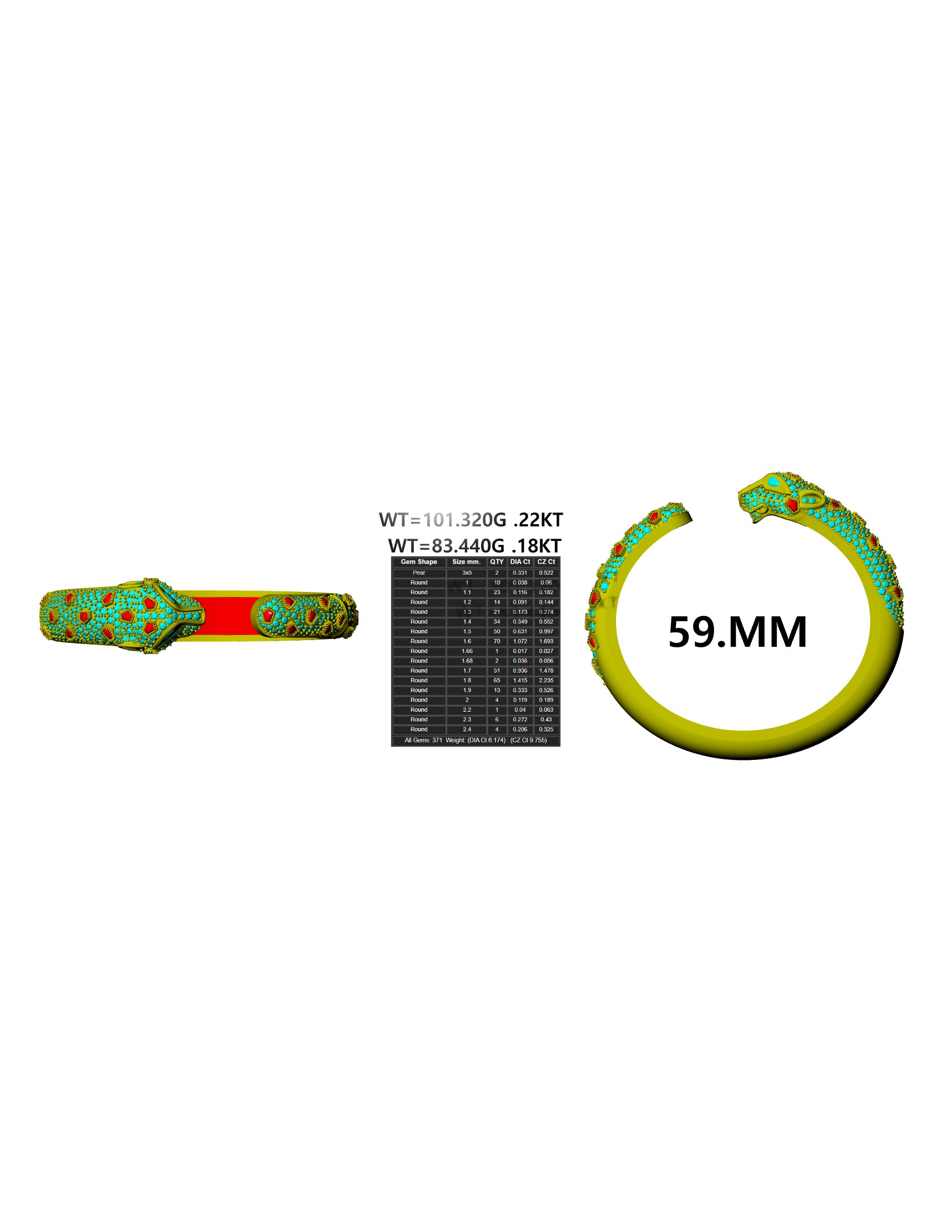

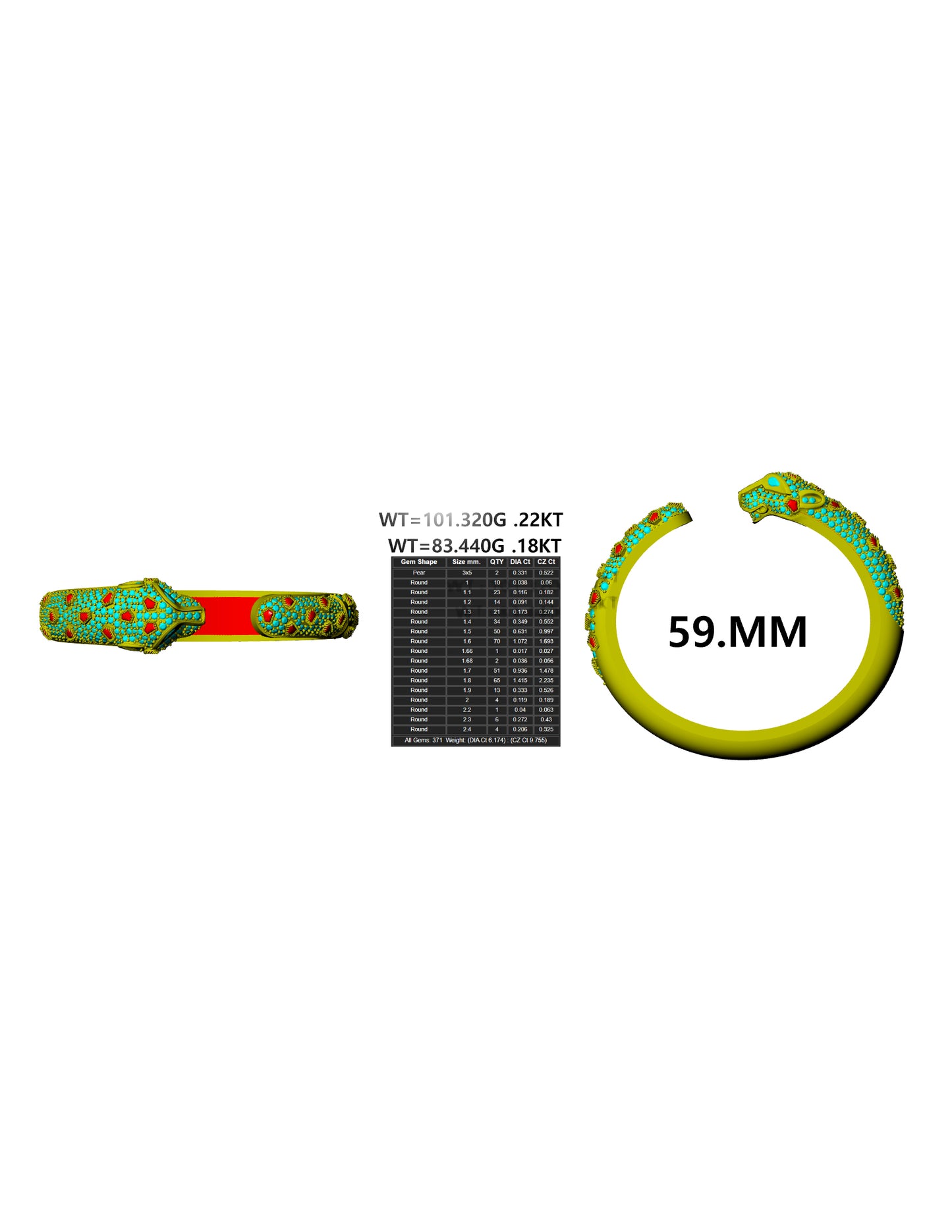

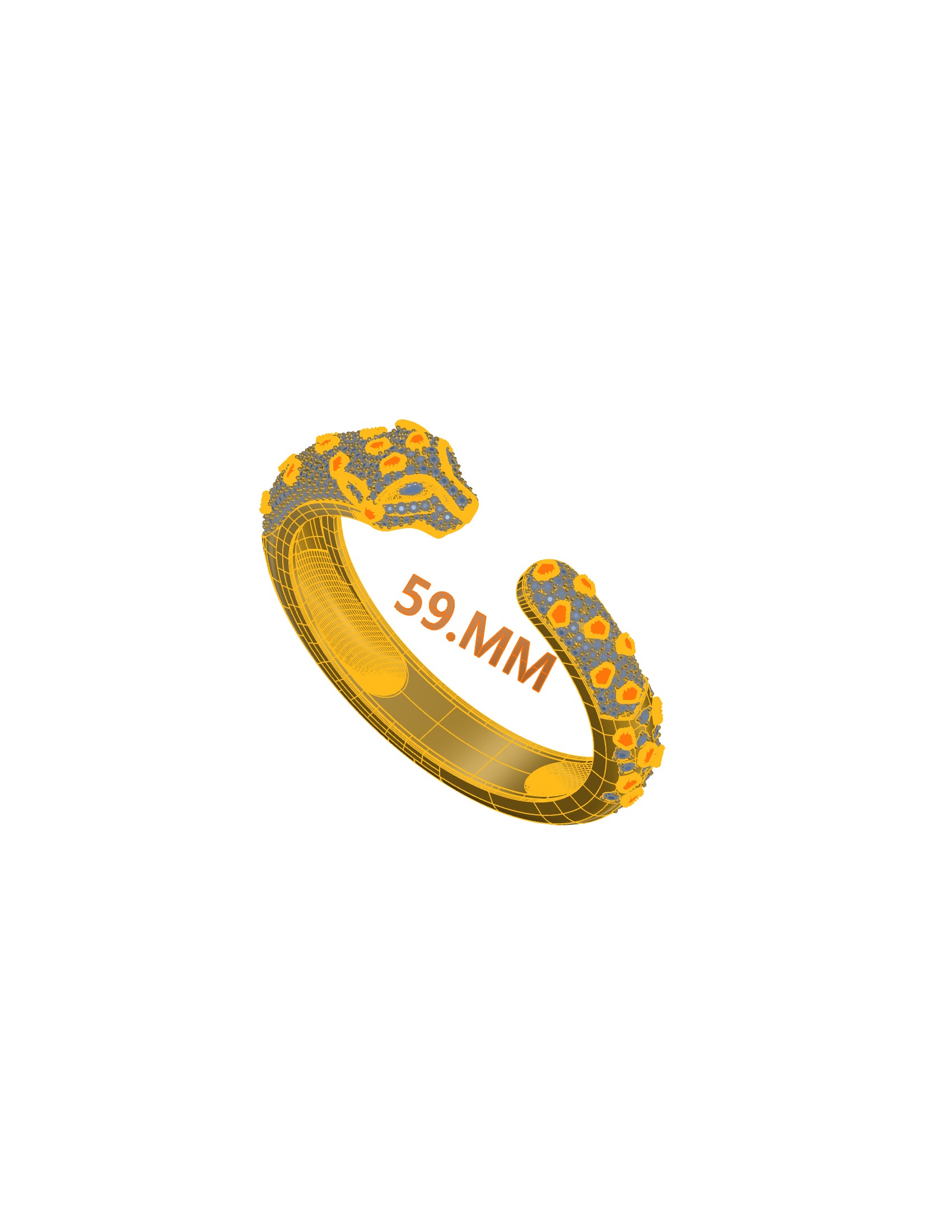

Inner Diameter: 59.00 mm
Bangle Type: Oval/round openable hinged bangle
Fit Category: Medium wrist size
Estimated Inner Circumference: ~185 mm
Metal Weight
-
22KT Gold: 101.320 grams
-
18KT Gold: 83.440 grams
(Weight variation due to alloy density difference.)
Stone Information
Total Stones: 371 pcs
Stone Shape: Round brilliant
Setting Style: Micro pavé + bezel accents
Stone Size Range
-
Minimum size: ~0.90 mm
-
Maximum size: ~2.40 mm
-
Mixed calibrated layout across head, shank, and tail lock
Total Carat Weight (Approx.)
-
Diamonds: ~6.174 ct
-
Color Stones: ~9.765 ct
Head Section Measurements (Panther Motif)
-
Head Length (nose to neck): ~22–25 mm
-
Head Width: ~12–15 mm
-
Head Height/Relief: ~8–10 mm
Features:
-
Pavé diamond surface across forehead and cheeks
-
Colored stones forming eye and pattern detailing
-
Sculpted 3D contours for realistic animal styling
Shank / Band Measurements
-
Band Width (near head): ~10–12 mm
-
Band Width (bottom plain section): ~6–7 mm
-
Band Thickness: ~4–6 mm average
Interior: Smooth comfort-fit curve for wrist movement.
Locking & Mechanism
Type: Hidden hinge with push-snap tail lock
-
Hinge Width: ~6–8 mm
-
Tail Lock Length: ~12–15 mm
-
Closure: Internal tongue-and-groove snap for heavy gold stability
