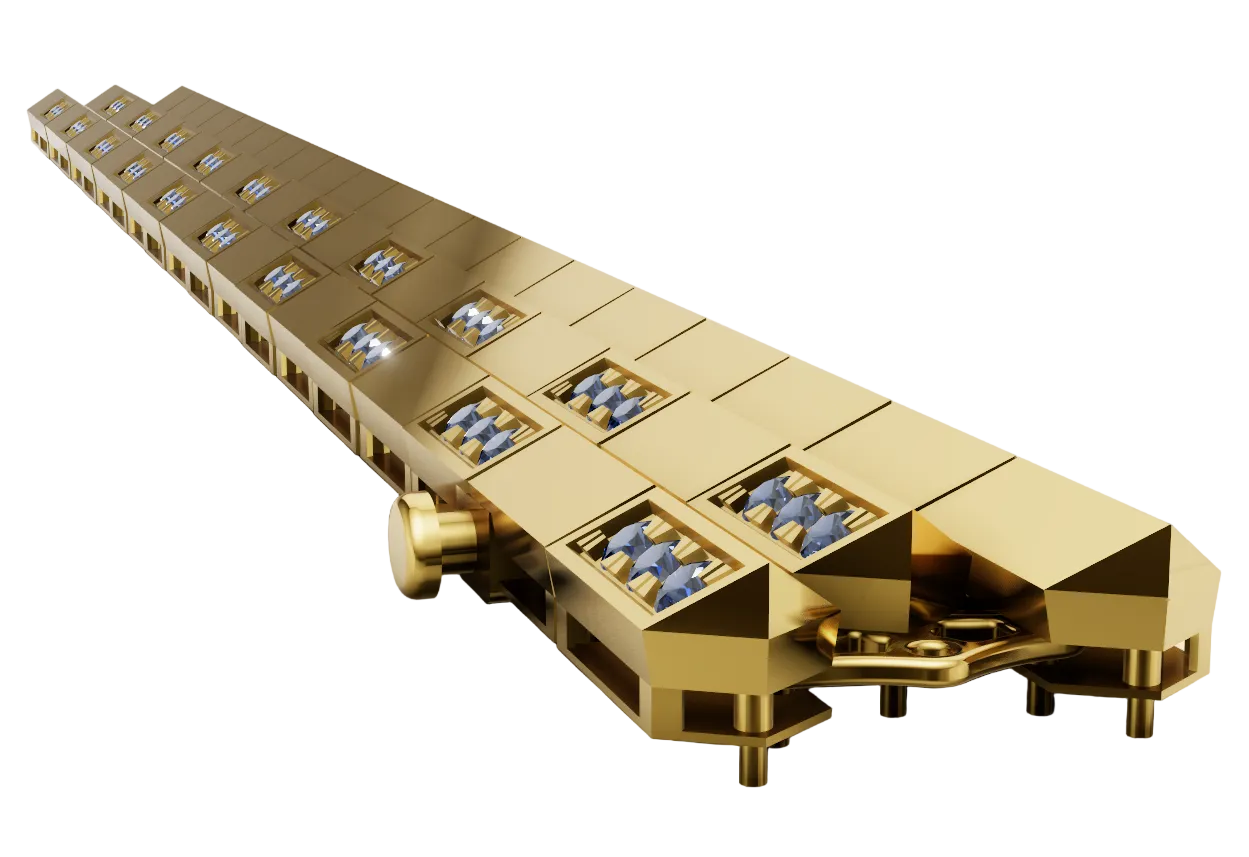

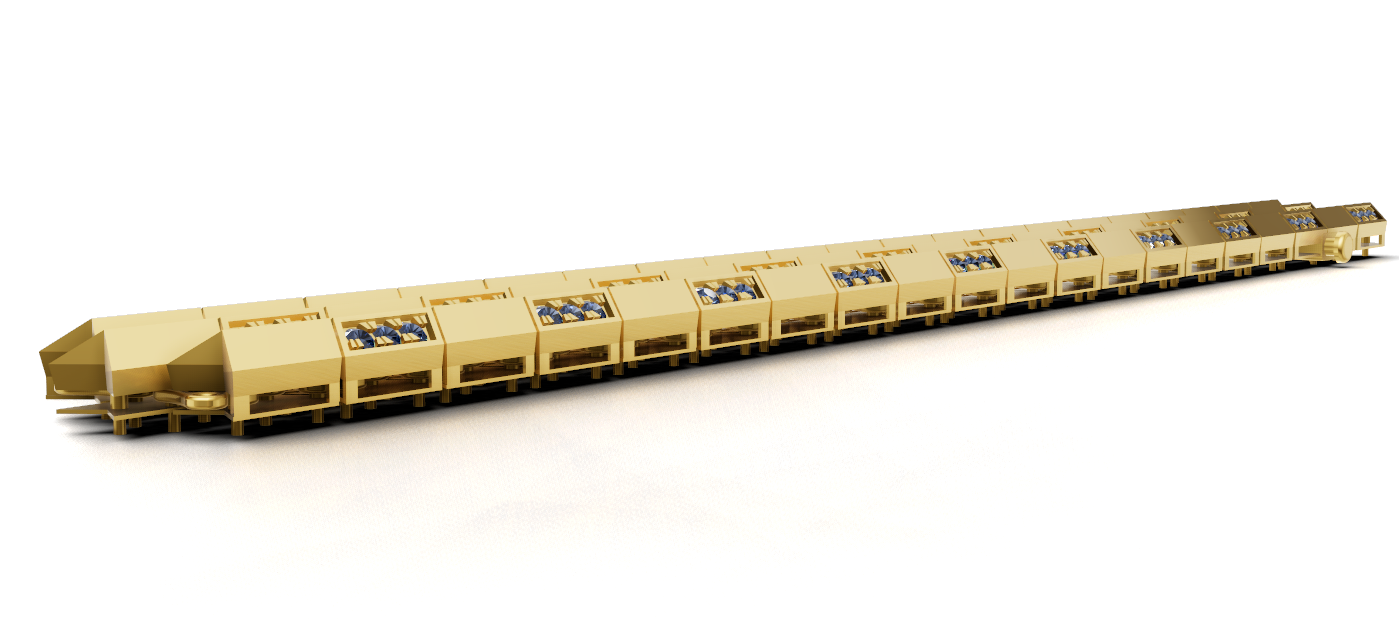

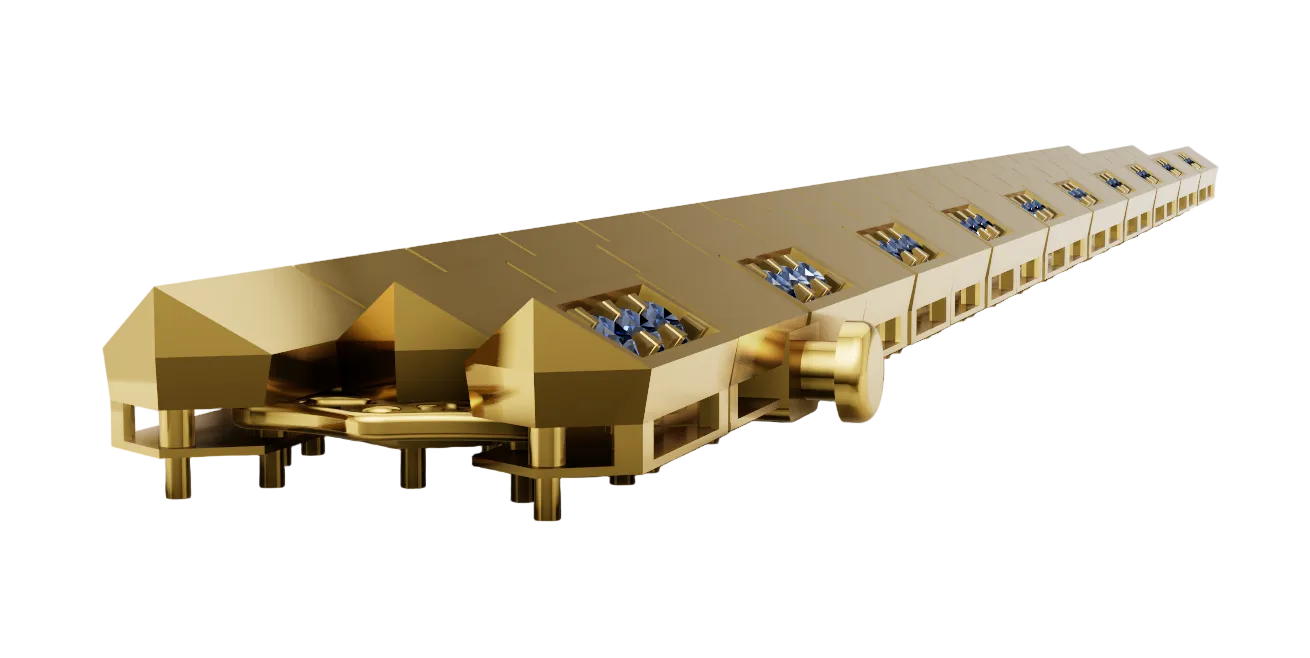

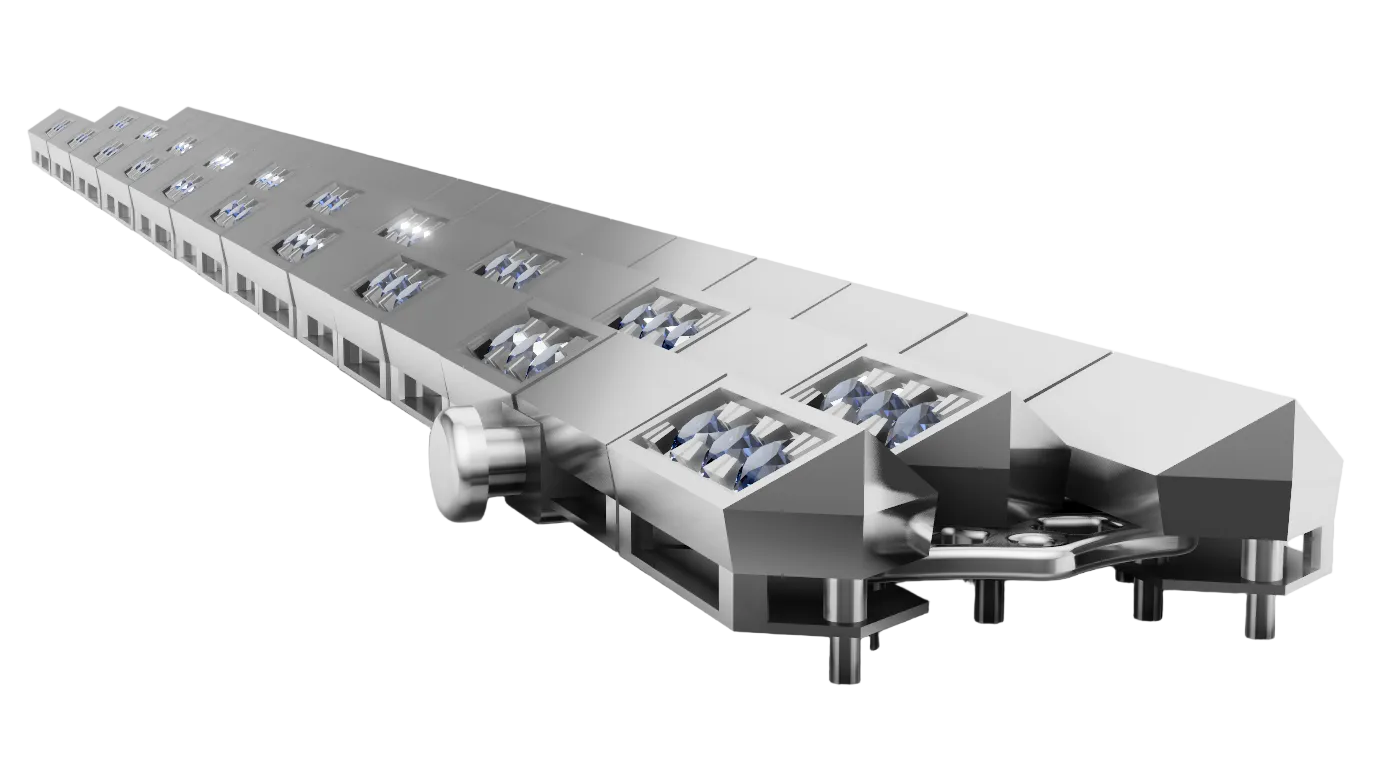

Daimond Set Dreem bracelet With Lock mechanism CAD FILE

Product Description with Measurements

This bracelet showcases a structured geometric design with a refined stone-setting layout, engineered for both durability and visual precision.

---

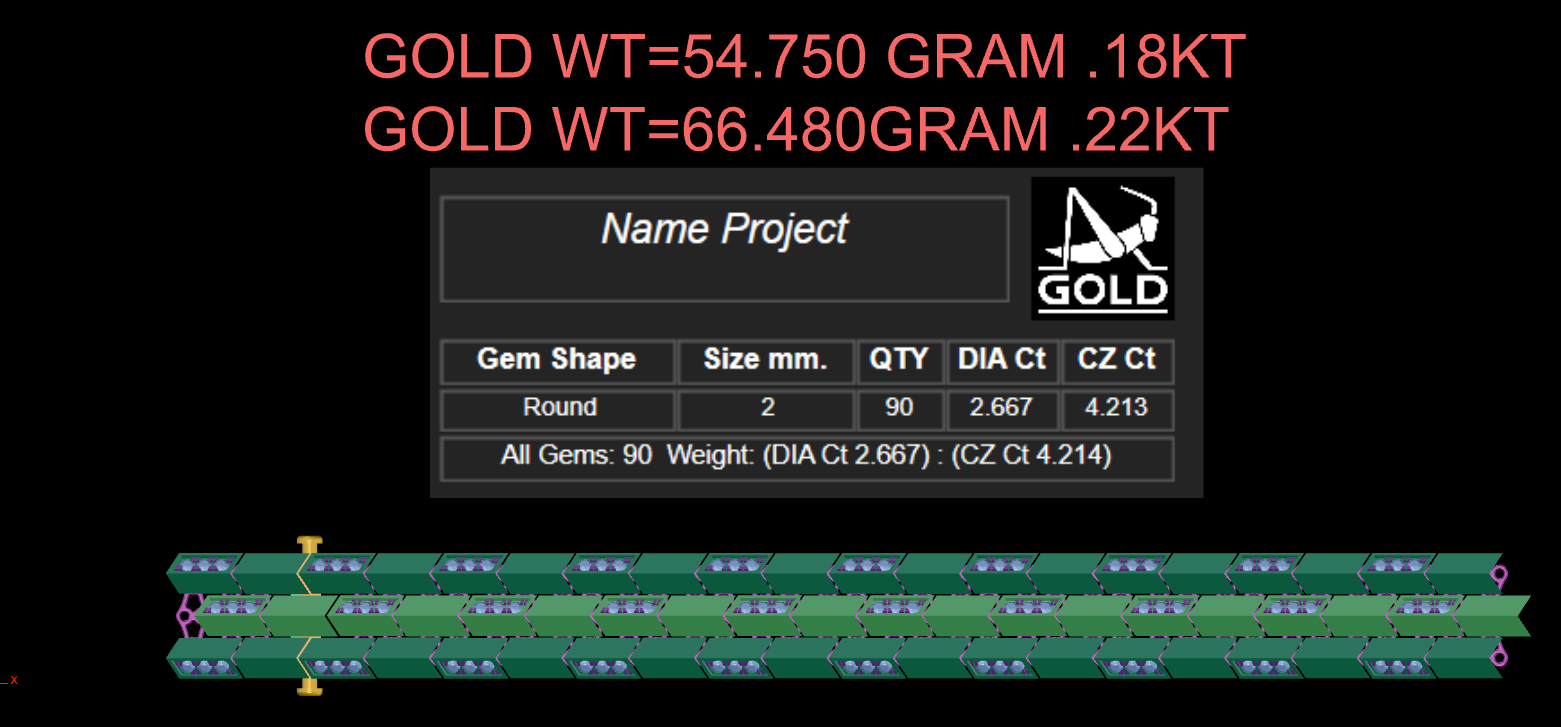

Metal Details

• Gold Weight (18KT): 54.750 grams
• Gold Weight (22KT): 66.480 grams

---

Gemstone Details

• Gem Shape: Round
• Stone Size: 2.00 mm
• Total Quantity: 90 stones
• Diamond Weight: 2.667 ct
• CZ Weight: 4.213 ct

---

Bracelet Dimensions

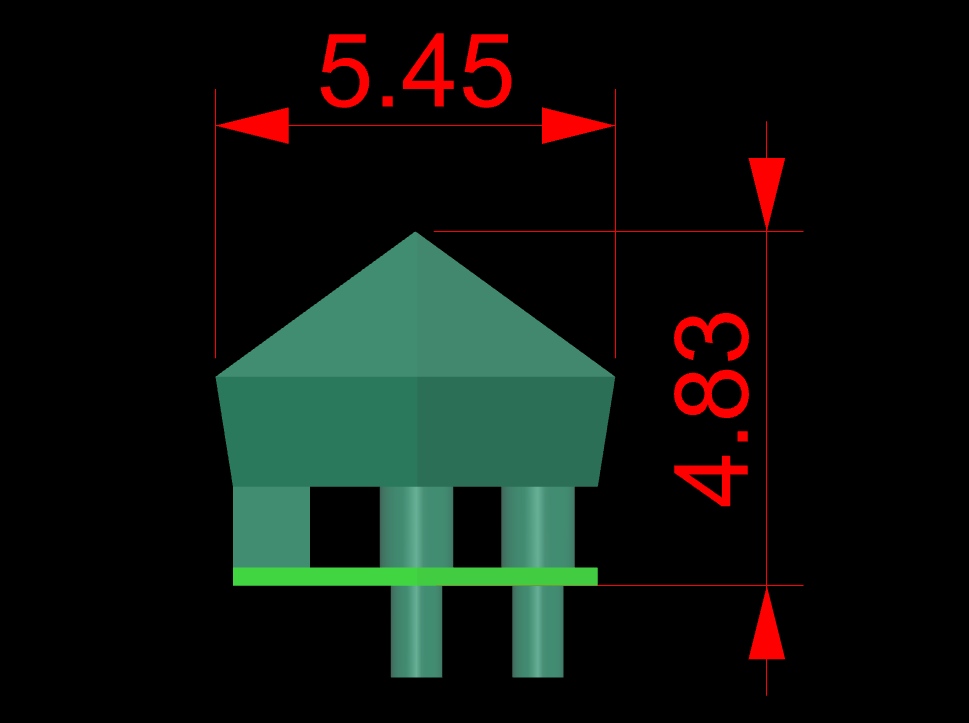

• Top Width: 5.45 mm

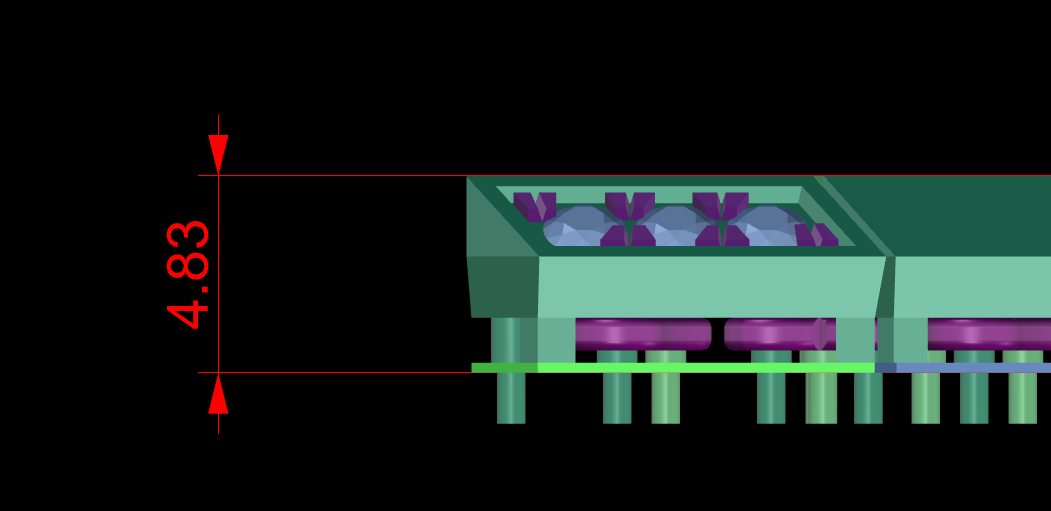

• Height (Top Profile): 4.83 mm

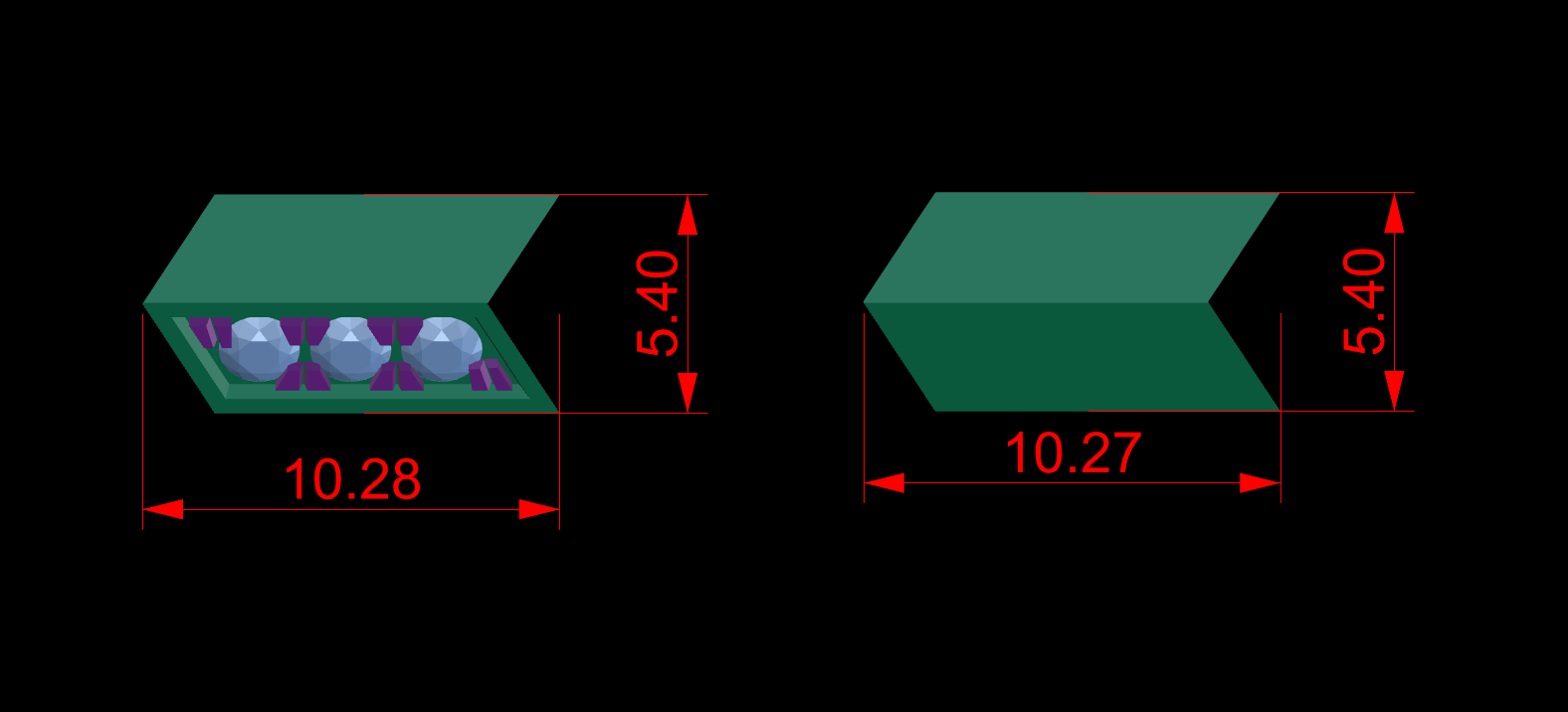

• Segment Length: 10.27 – 10.28 mm
• Segment Height: 5.40 mm

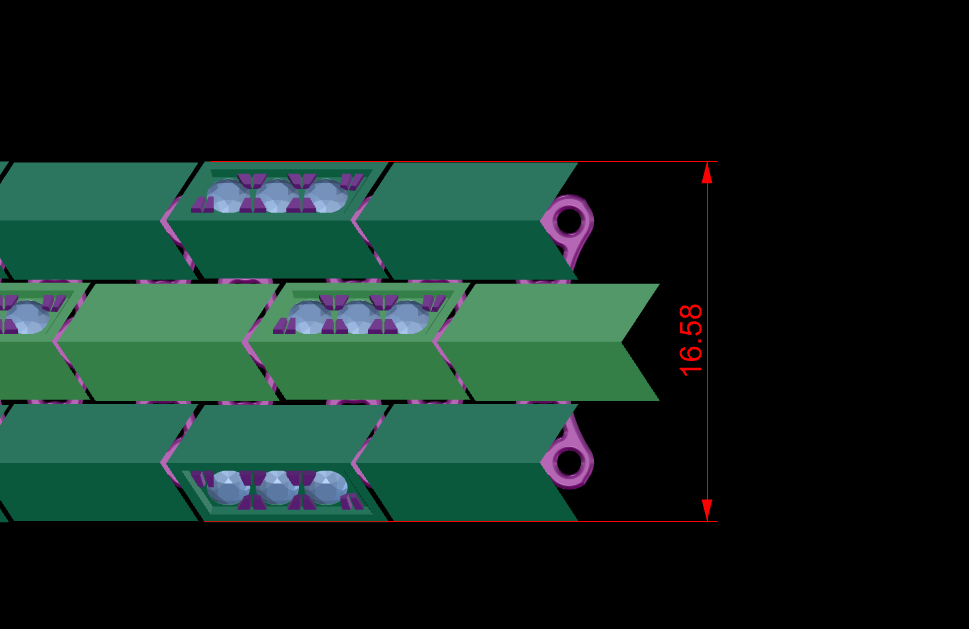

• Overall Width (3-row layout): 16.58 mm

---

Link & Setting Structure

• Multi-row zig-zag link formation for a bold and modern look
• Each segment features precision stone seating with secure prong support
• Elevated gallery allows proper light reflection and cleaning access

---

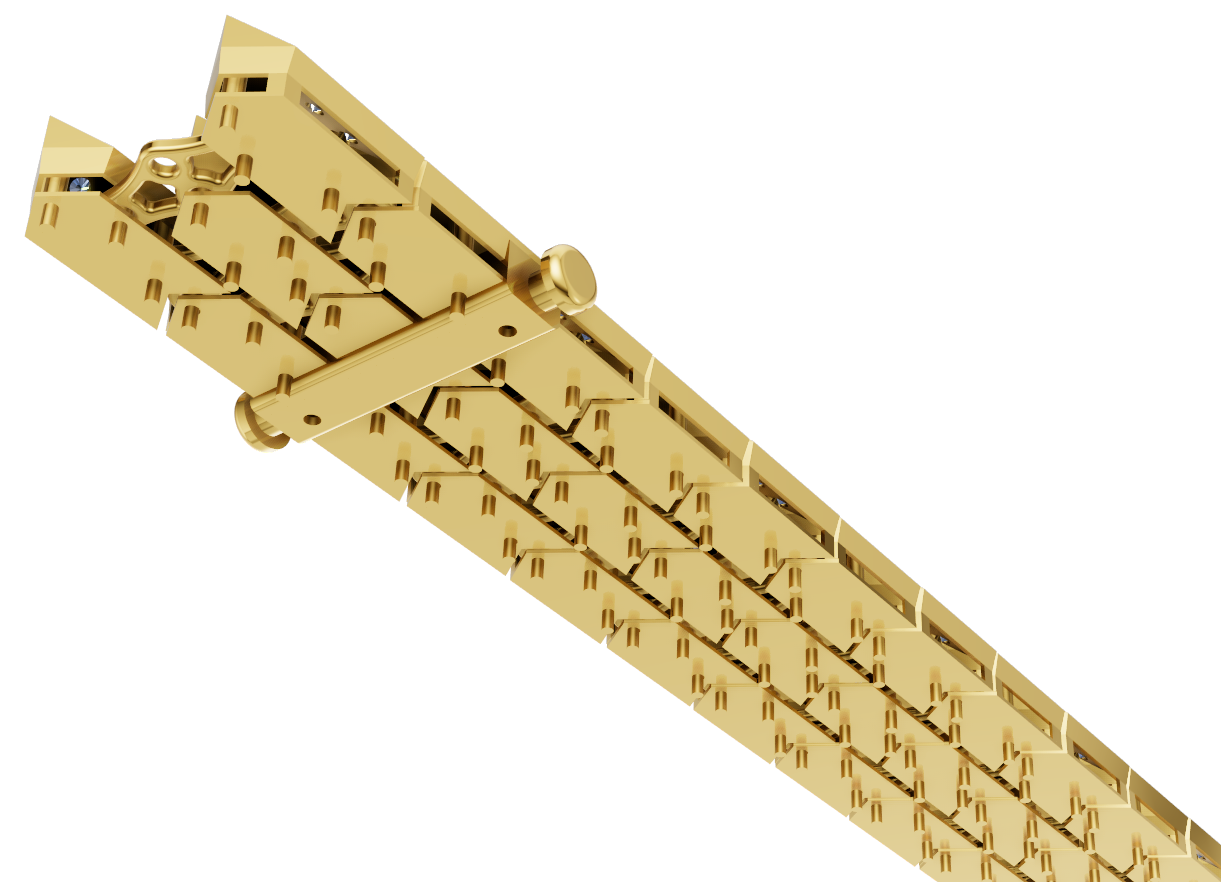

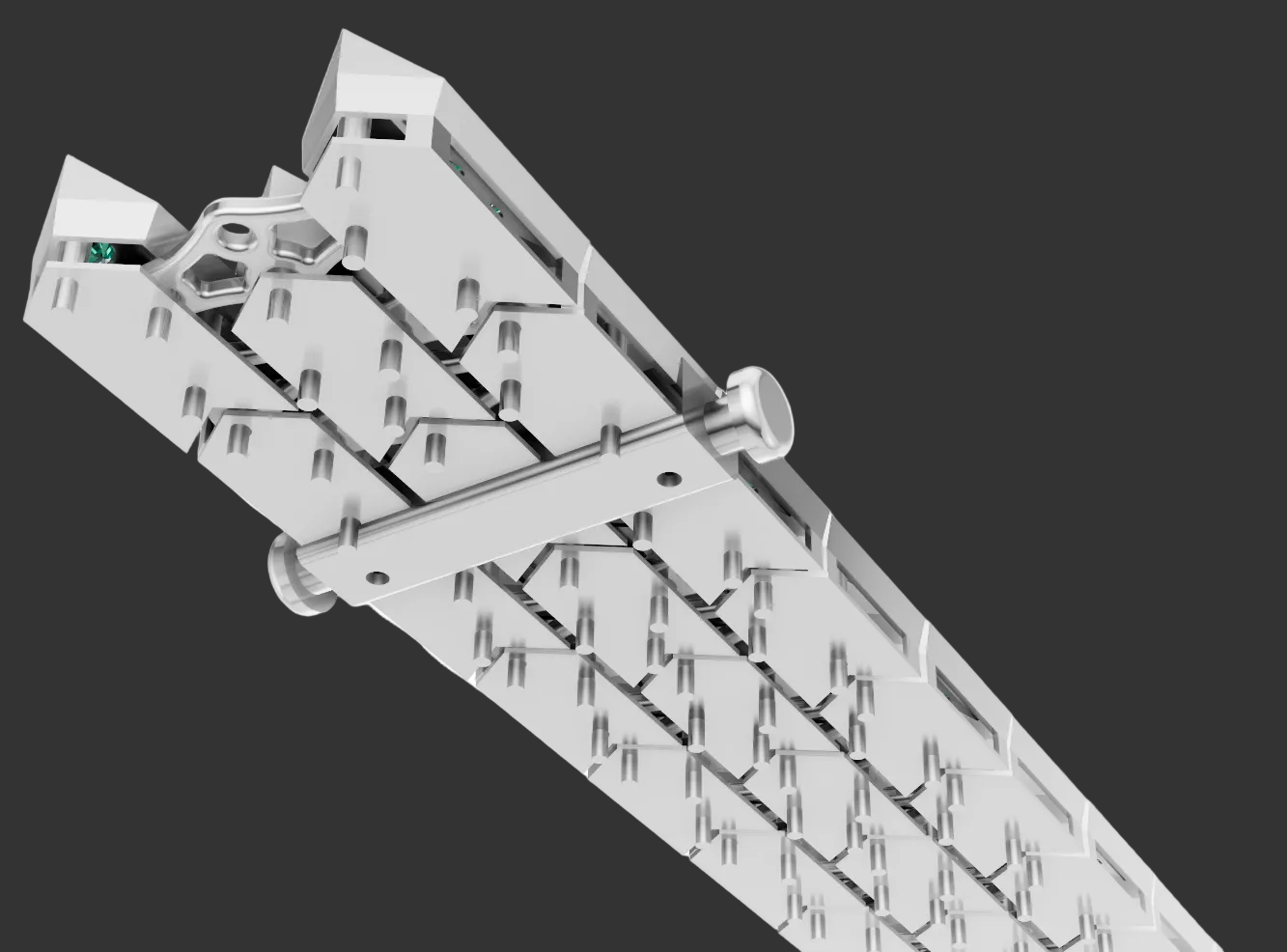

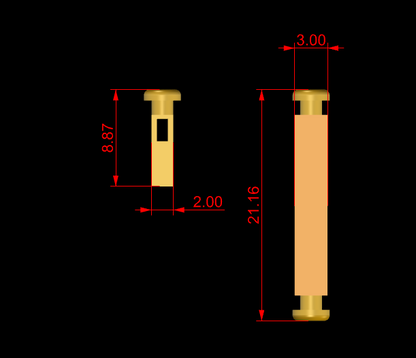

Locking Mechanism

• Pin Length: 21.16 mm
• Pin Head Width: 3.00 mm
• Pin Thickness: 2.00 mm
• Lock Height: 8.87 mm
• Secure push-lock system designed for strength and ease of use

---

Design Highlights

• Clean angular geometry with consistent spacing
• Balanced weight distribution for comfortable wear
• Suitable for both diamond and CZ production variants
