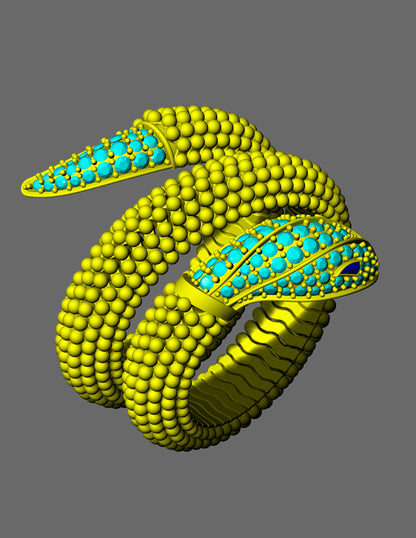

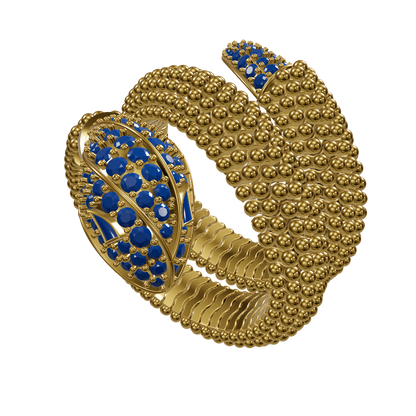

Diamond Pave Snake Wrap Ring CAD

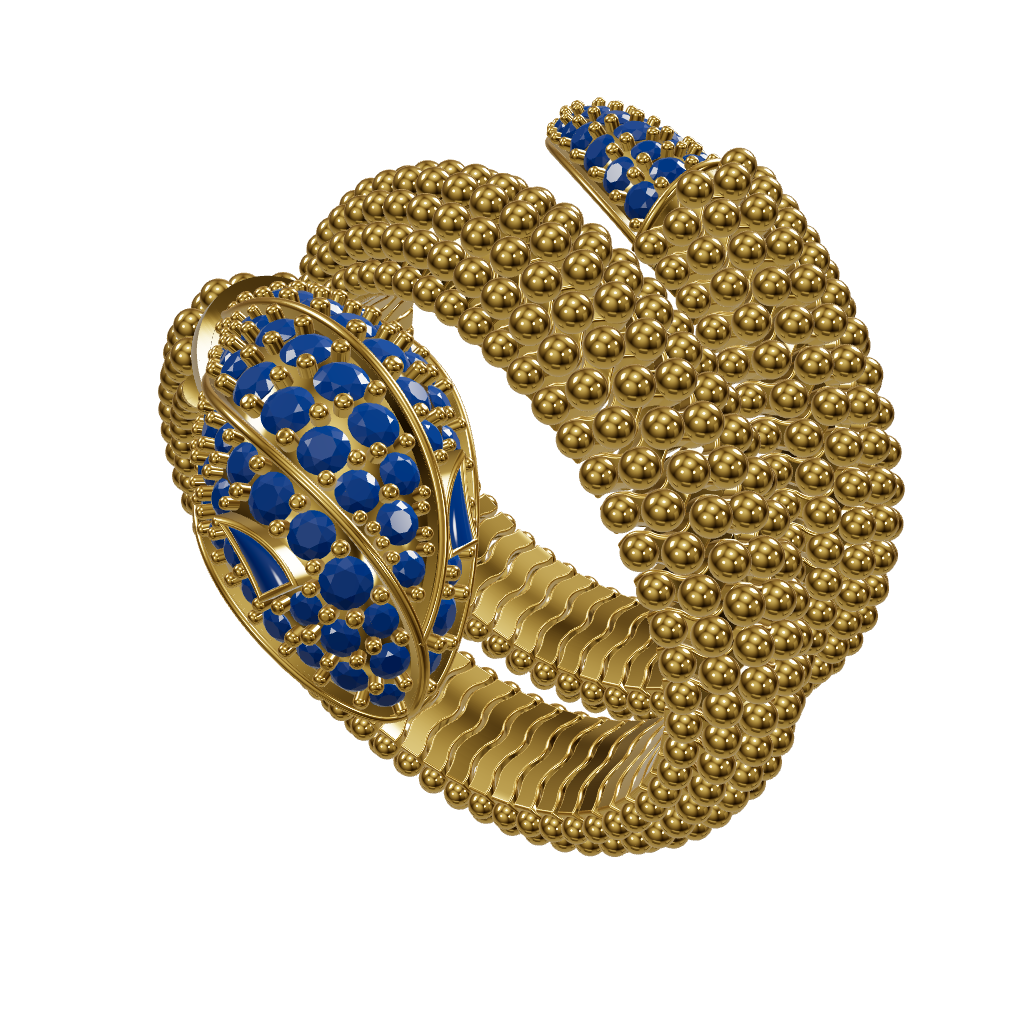

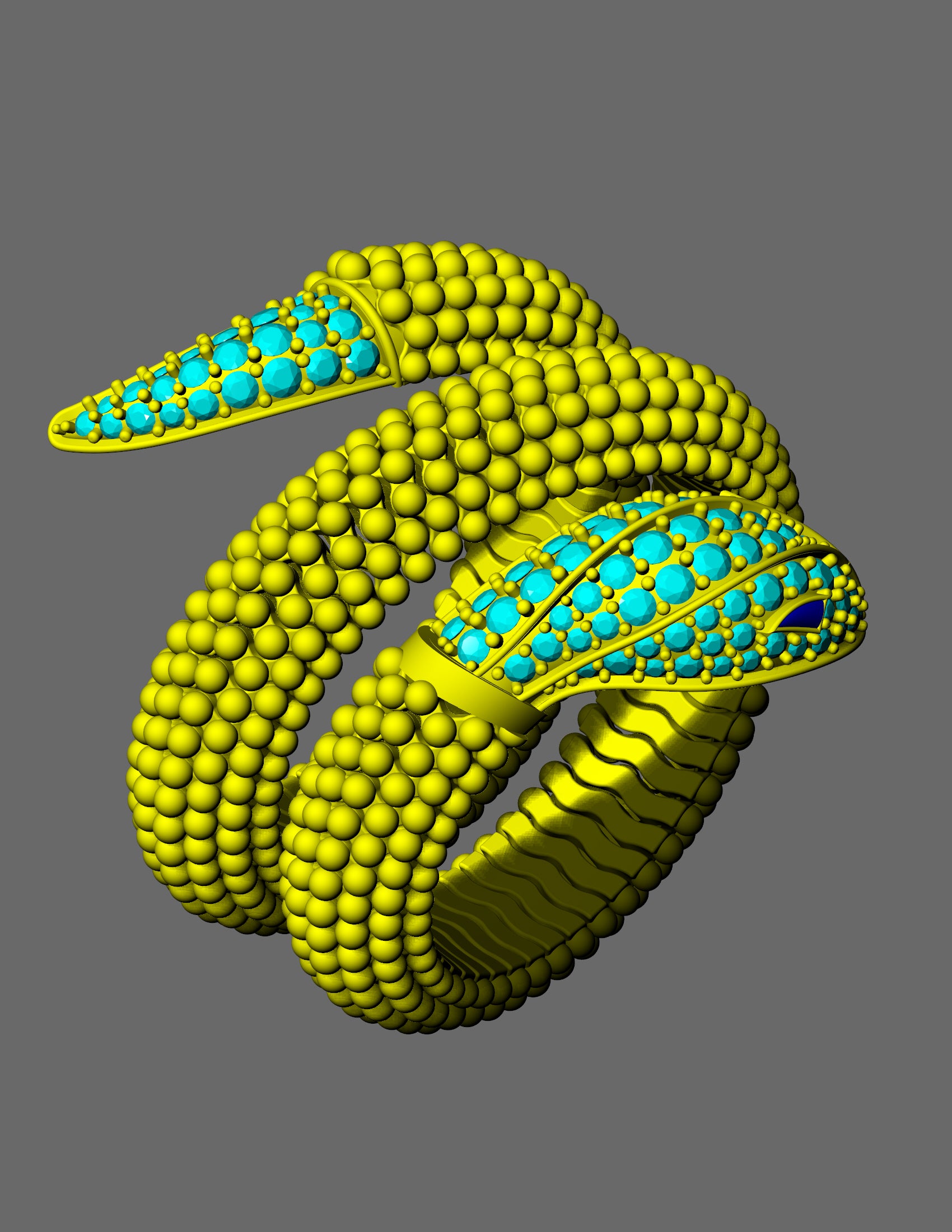

This CAD model features a striking snake-inspired wrap ring, designed with a full pavé texture that gives the piece exceptional brilliance and depth. The coiled body flows organically around the finger, highlighted by detailed head and tail sections set with a combination of round stones in graduated sizes. The sculpted form captures the elegance and power of a serpent motif, making it ideal for luxury fashion collections.

The model is engineered with clean geometry, precise stone seats, and optimized wall thickness for secure setting and smooth casting.

Stone Details

A total pavé layout using round stones:

• 0.90 × 0.90 mm – 25 pcs

• 1.00 × 1.00 mm – 33 pcs

• 1.20 × 1.20 mm – 15 pcs

• 1.30 × 1.30 mm – 15 pcs

• 1.40 × 1.40 mm – 14 pcs

• 1.50 × 1.50 mm – 10 pcs

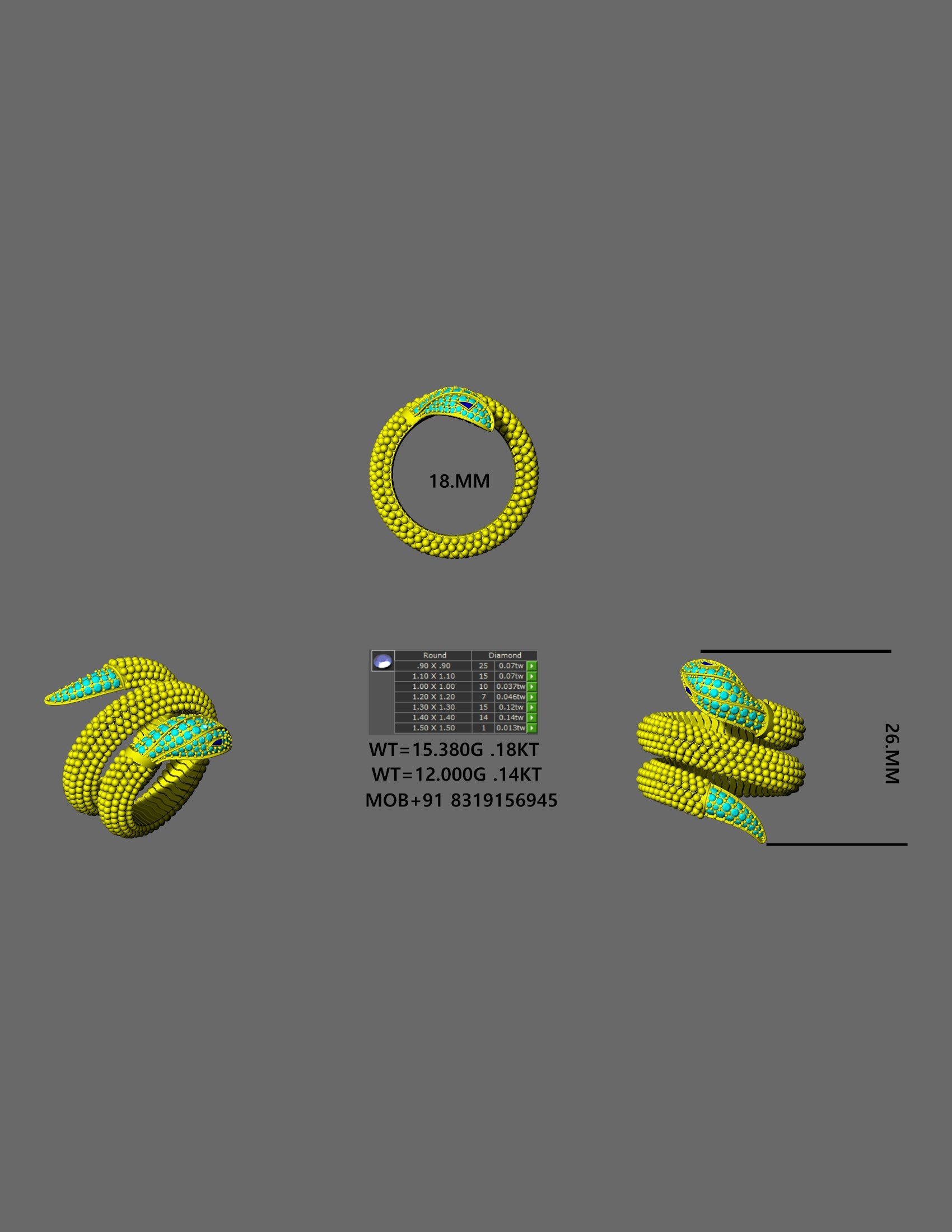

  (Approx. total weight displayed in the CAD screenshot)

Metal Weight (Estimated)

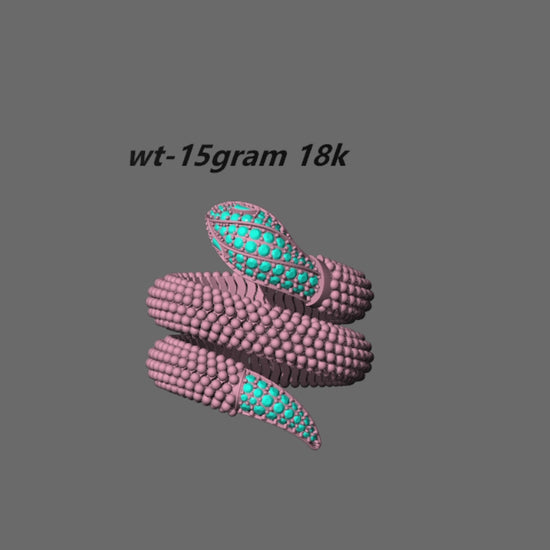

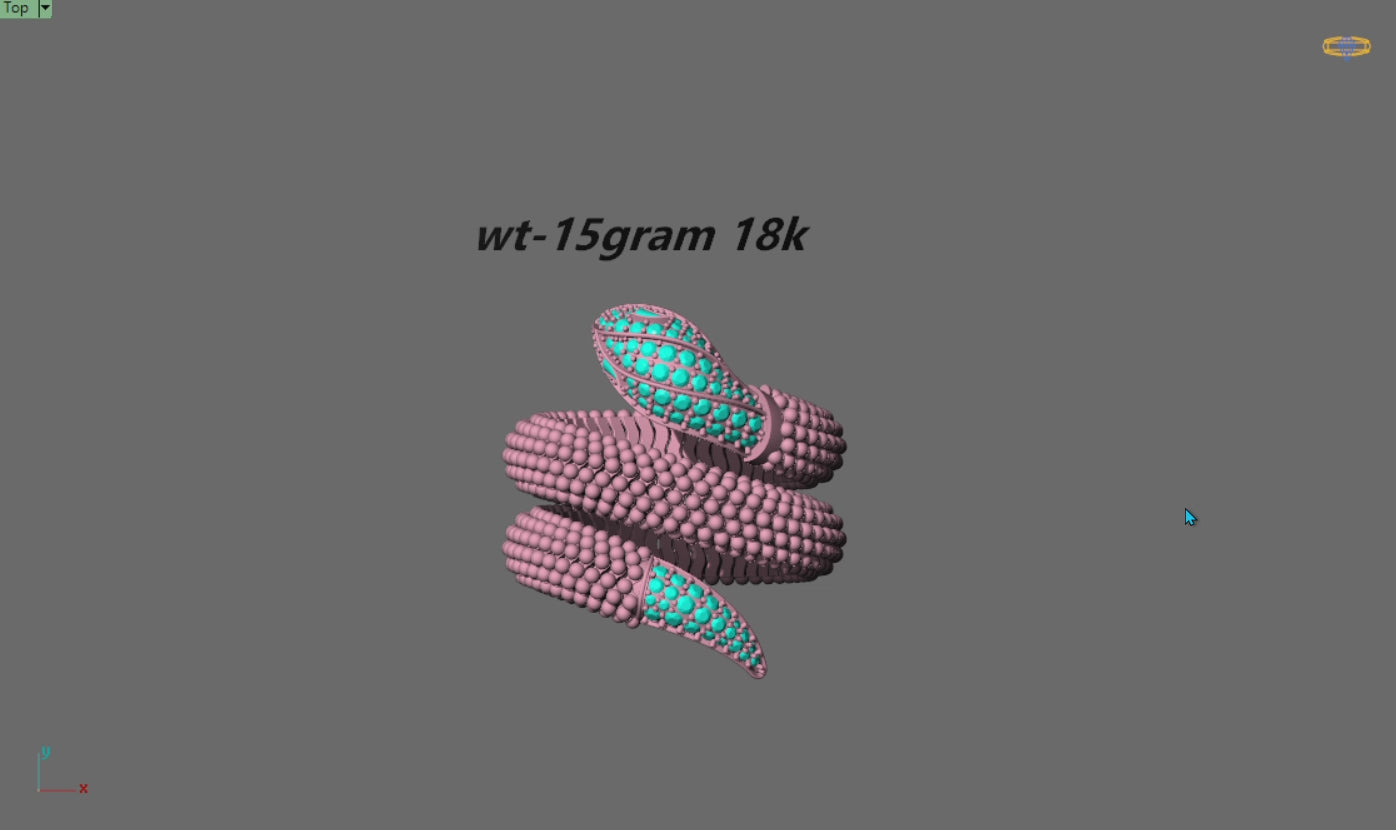

• 18KT Gold: ~15.380 g

• 14KT Gold: ~12.000 g

Dimensions

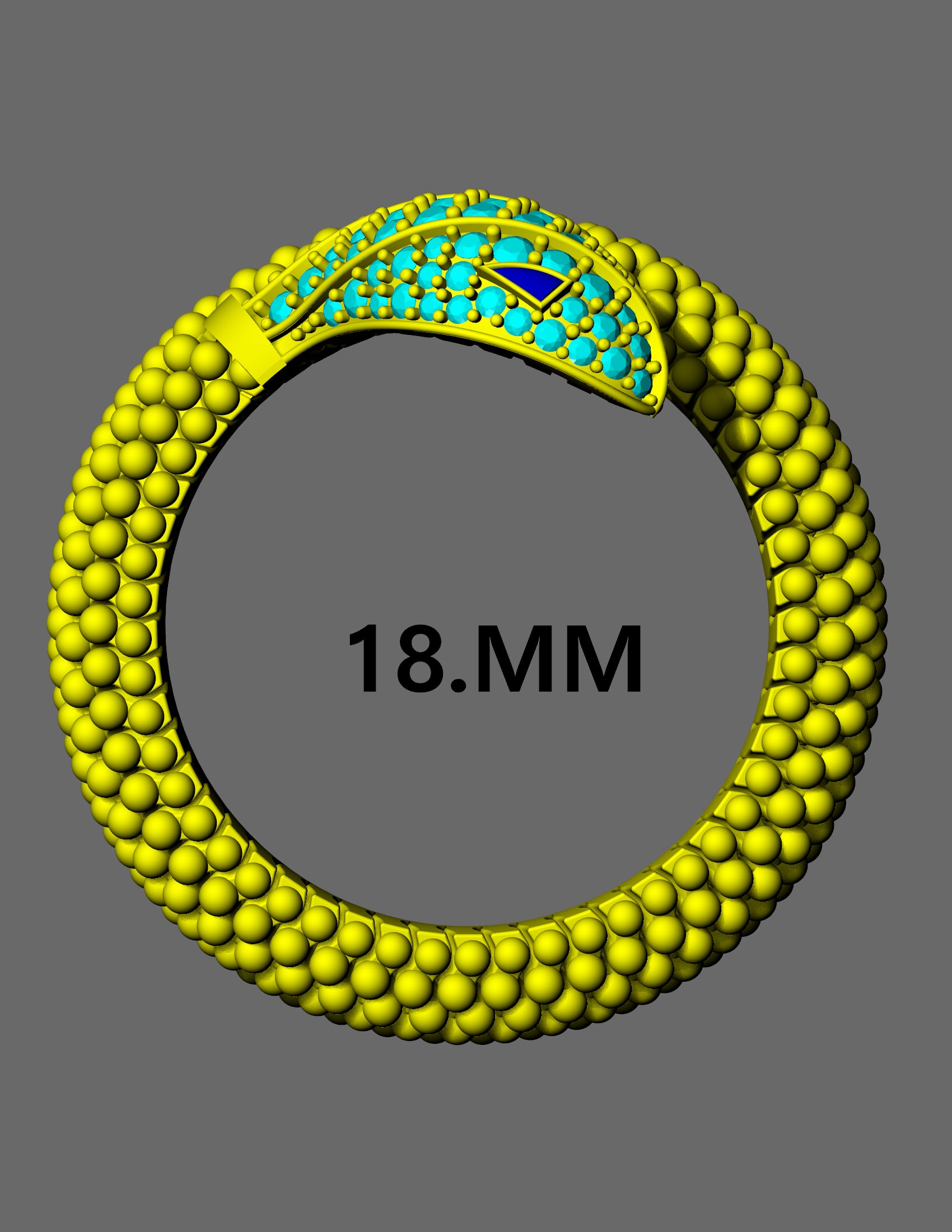

• Inside Diameter: ~18 mm

• Top Length: ~26 mm

Ideal For

• Luxury serpent-themed jewelry collections

• Fashion and statement rings

• Precision pavé work requiring detailed CAD structure
