Diamond Slot Mechanism Jackpot pendent 3DM & STL CAD FILE

Product Description

Product Name: Luxury Diamond Slot Machine Brooch CAD Design (777 Jackpot)
Category: Brooch / Statement Jewelry
File Type: Digital Jewelry CAD Model (3DM / STL)

Product Overview

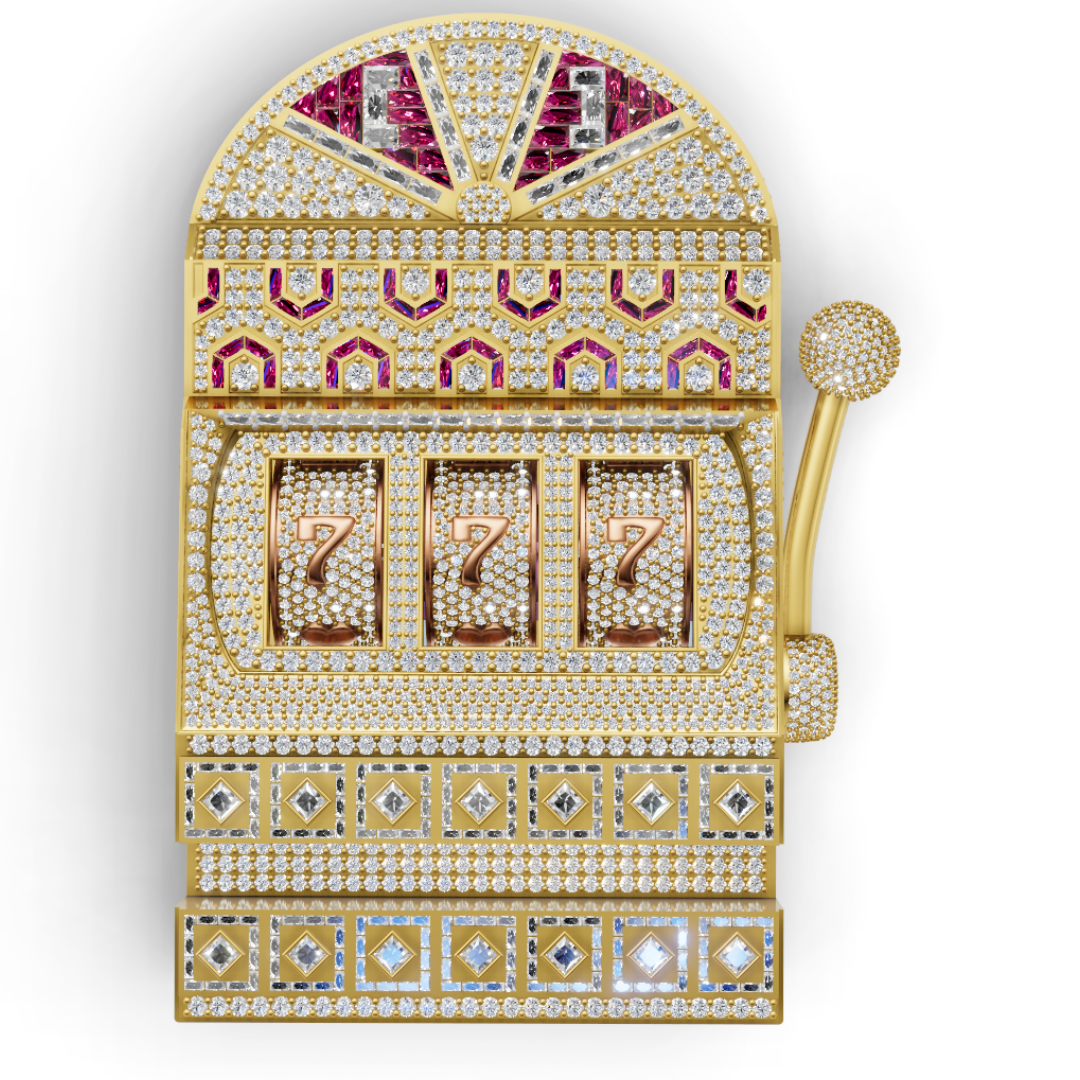

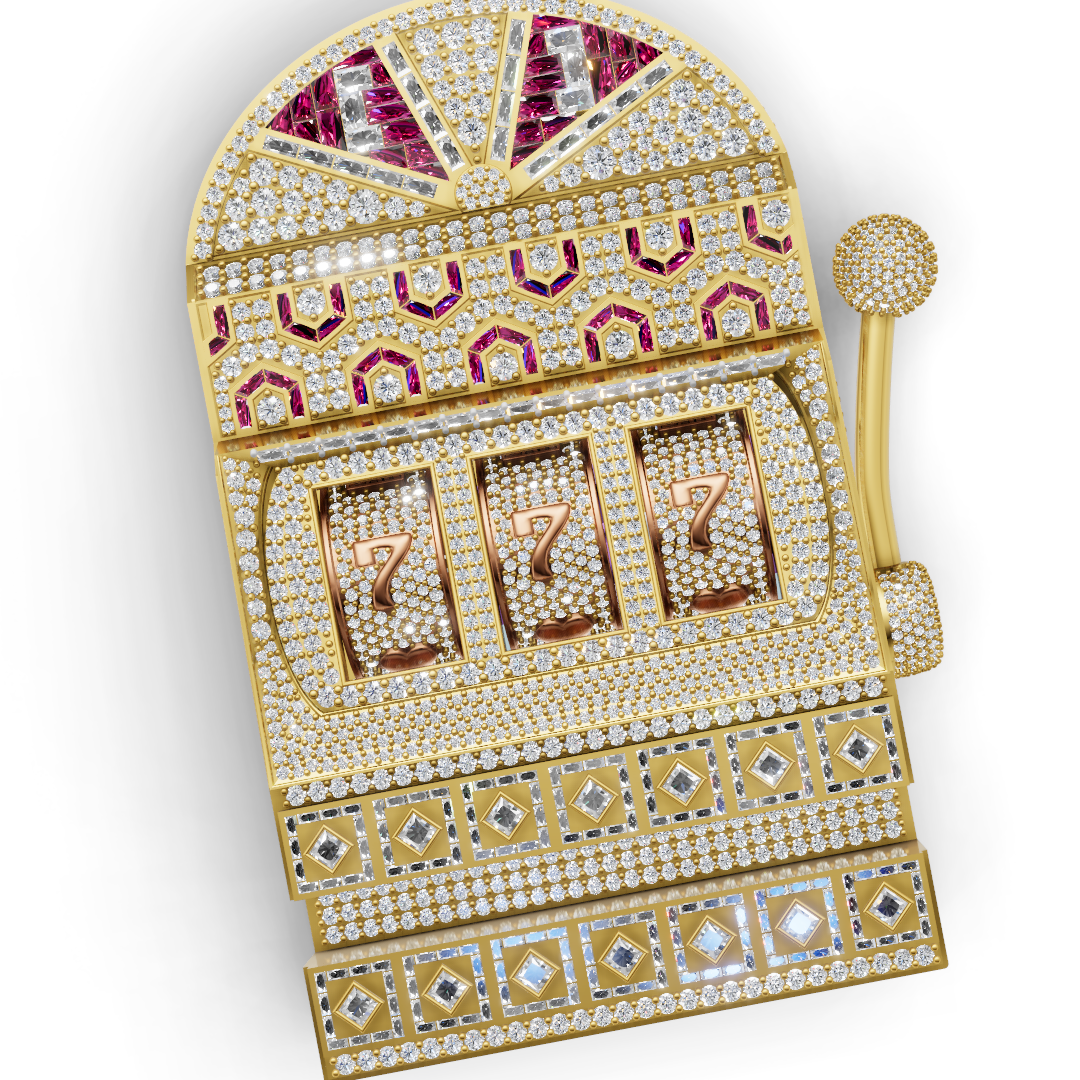

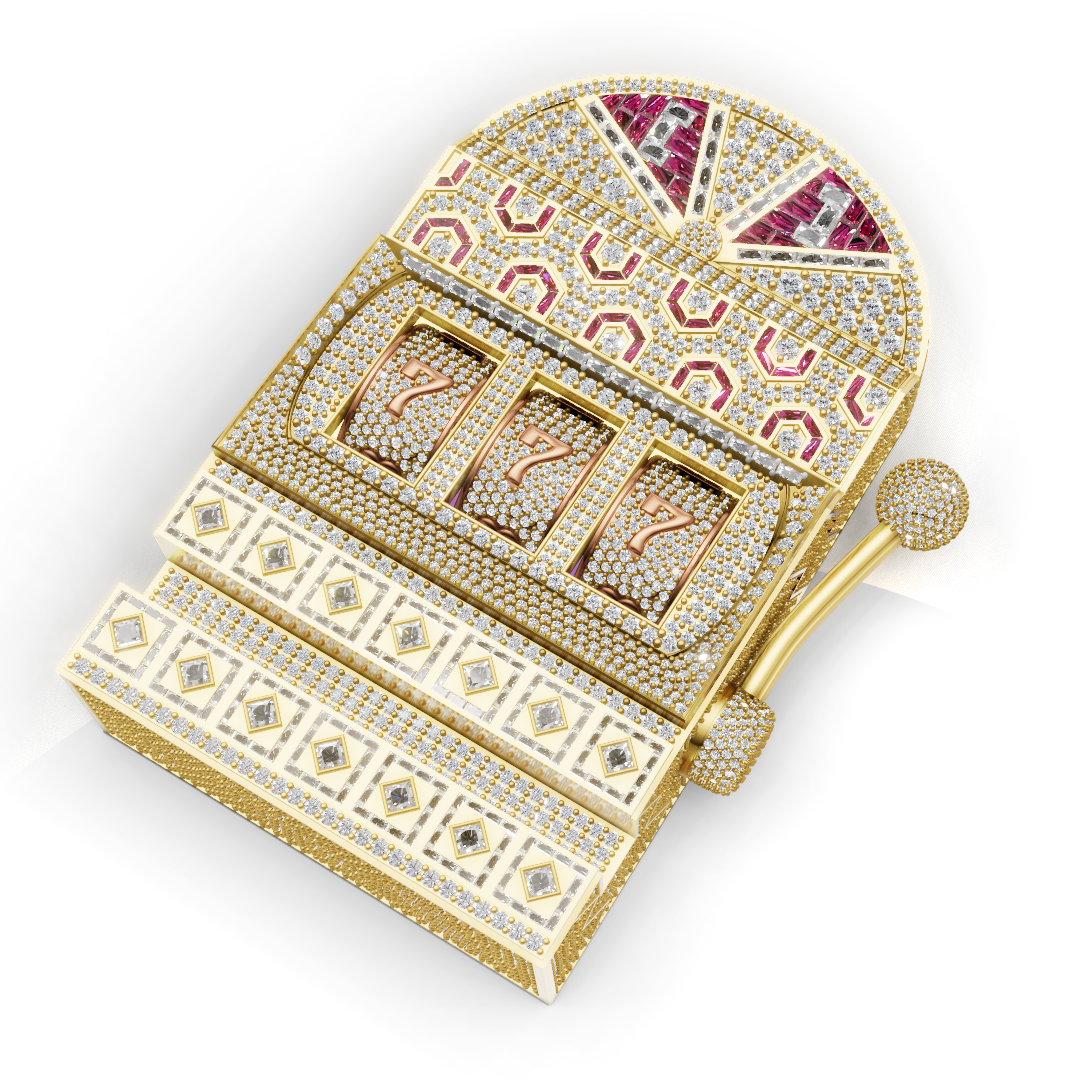

A premium casino-inspired 777 Slot Machine Brooch featuring an intricate micro-pavé diamond layout and functional rotating "777" reels. Designed as a high-end statement jewelry piece, this CAD model combines luxury styling with a unique mechanical concept suitable for custom manufacturing.

Product Specifications

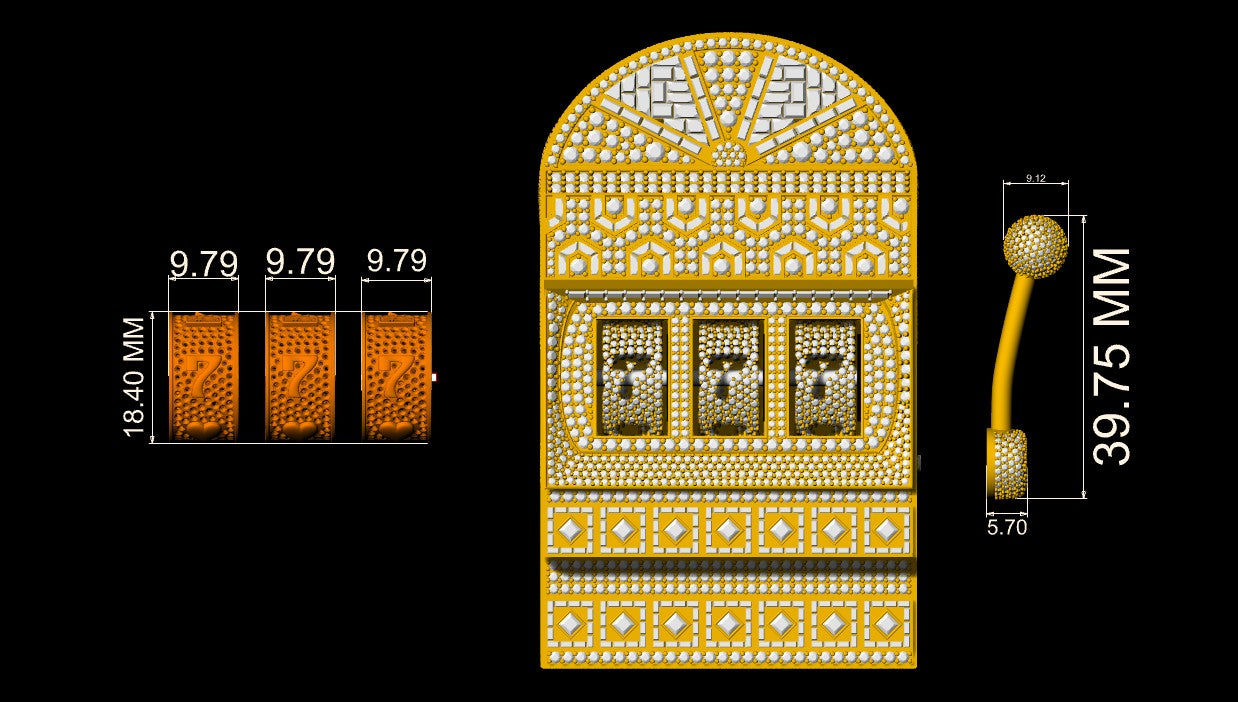

• Outer Diameter: 18.40 mm

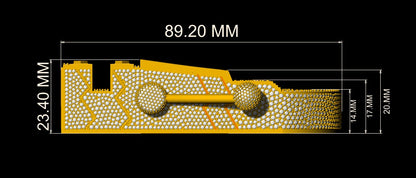

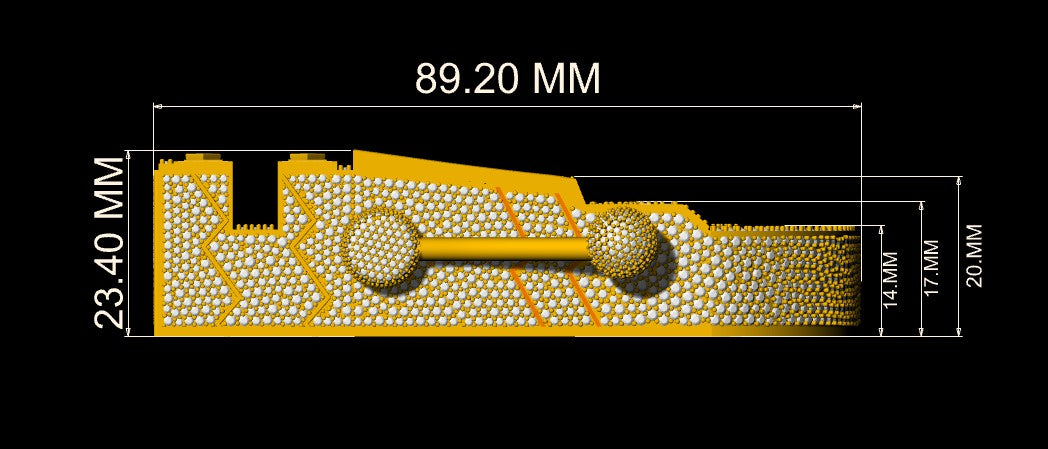

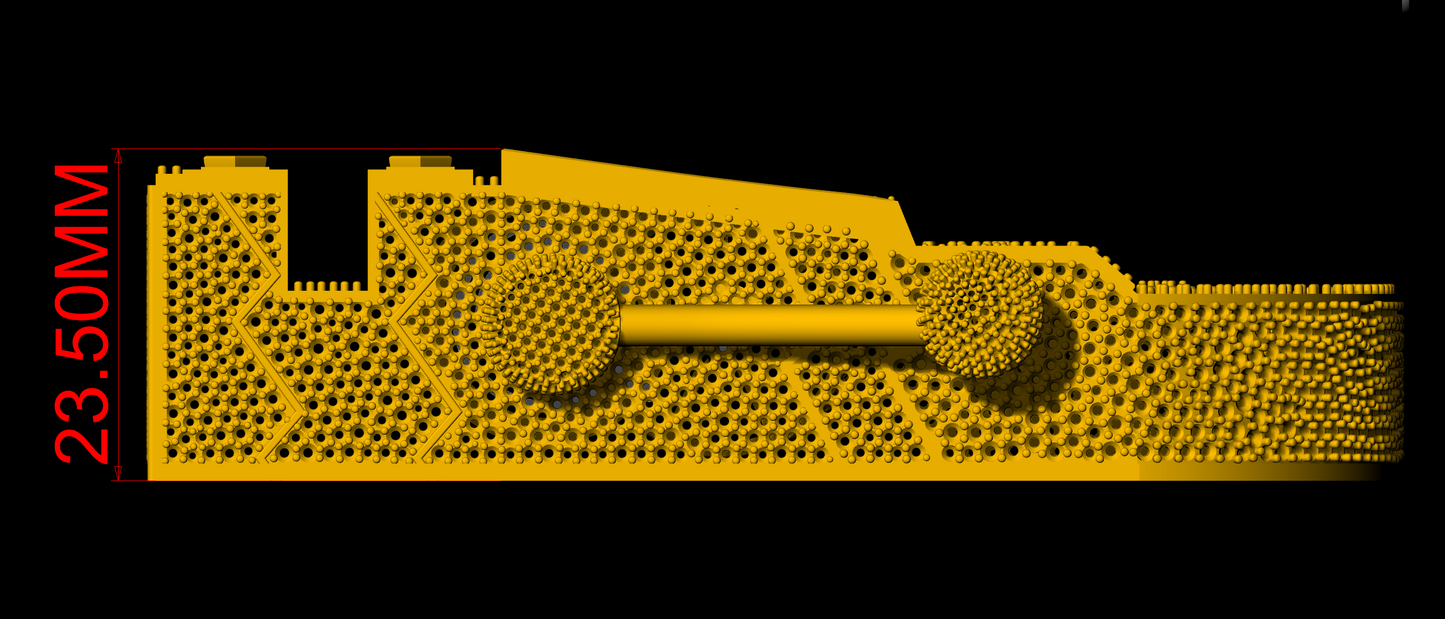

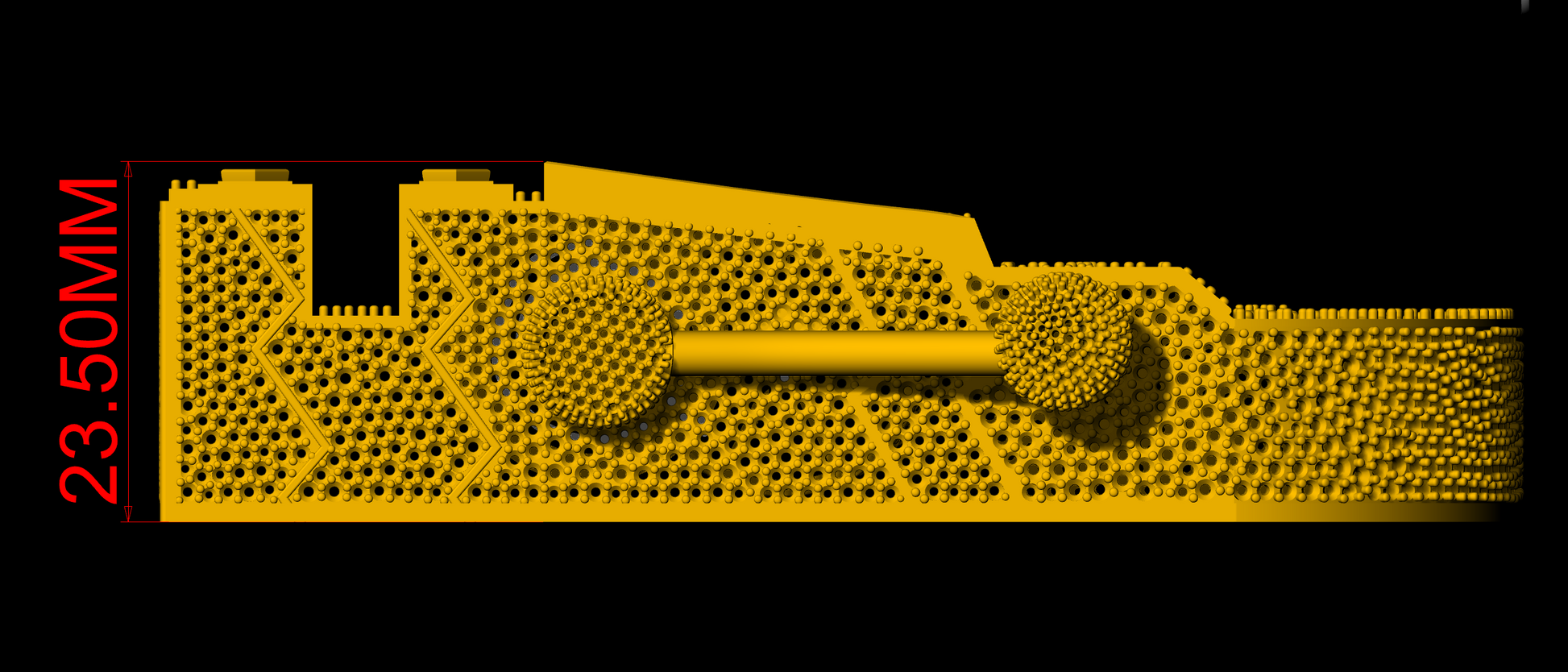

• Overall Size: 89.20 × 64.00 × 23.50 mm

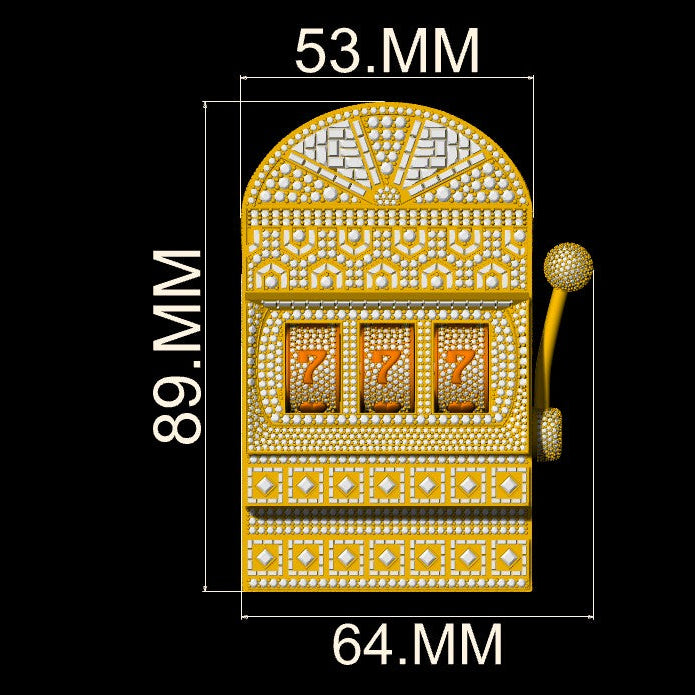

• Front Height: 89.20 mm
• Top Width: 53.00 mm
• Bottom Width: 64.00 mm
• Thickness: 20.00 mm (approx.)
• Side Lever Length: 39.75 mm
• Lever Ball Diameter: 9.12 mm
• Rotating Reels: 3 Functional "777" Windows
• Individual Reel Size: 9.79 × 18.40 mm

Stone Information

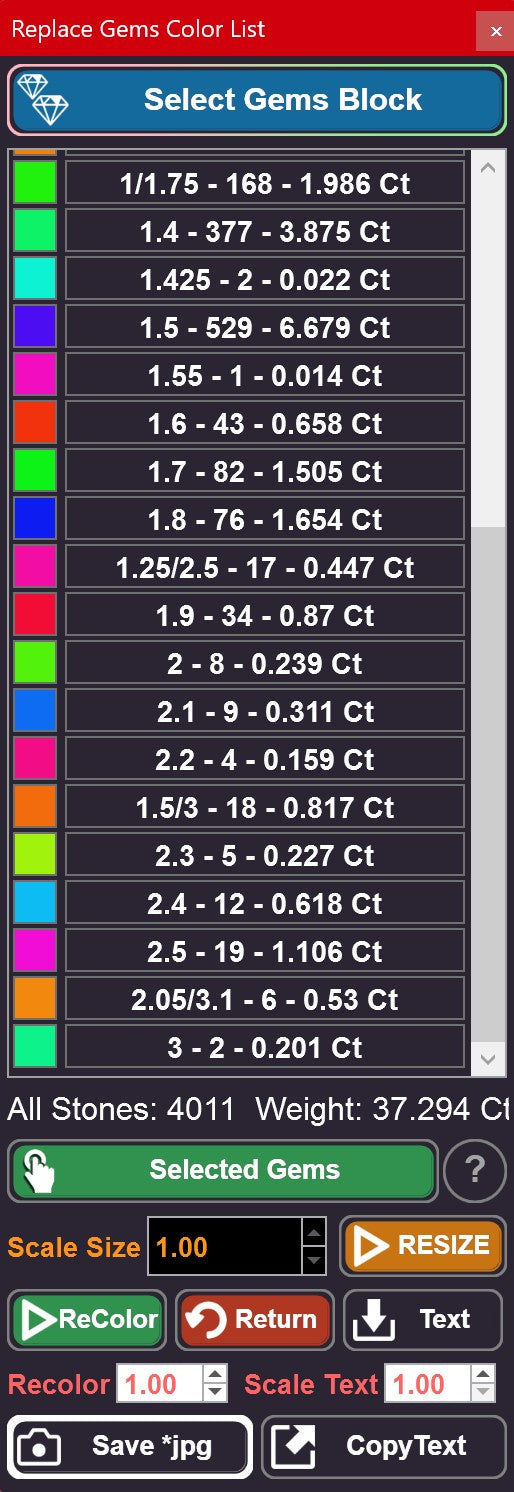

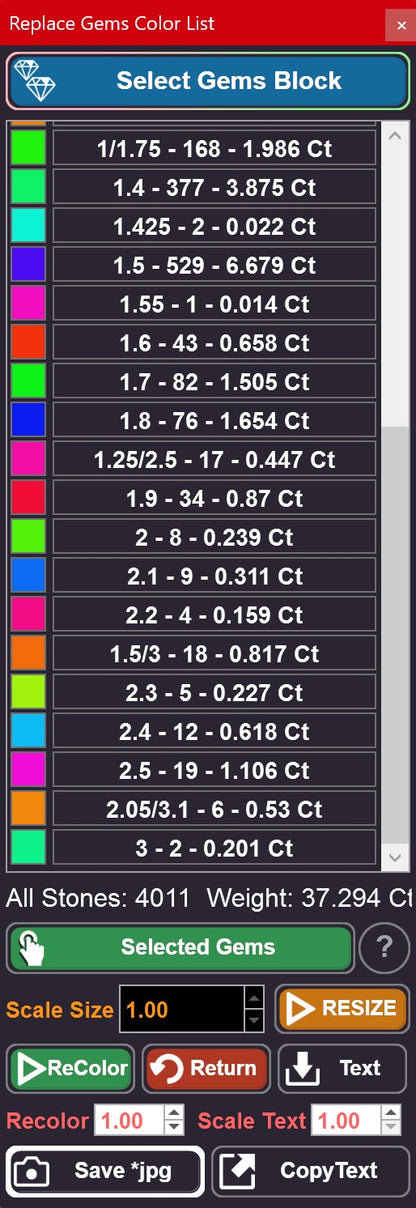

• Total Stones: 4,011 pcs
• Total Diamond Weight: 37.294 Ct
• Stone Sizes: 1.40 mm – 3.00 mm (multiple sizes)
• High-density micro pavé setting with precision stone layout.

Metal Weight

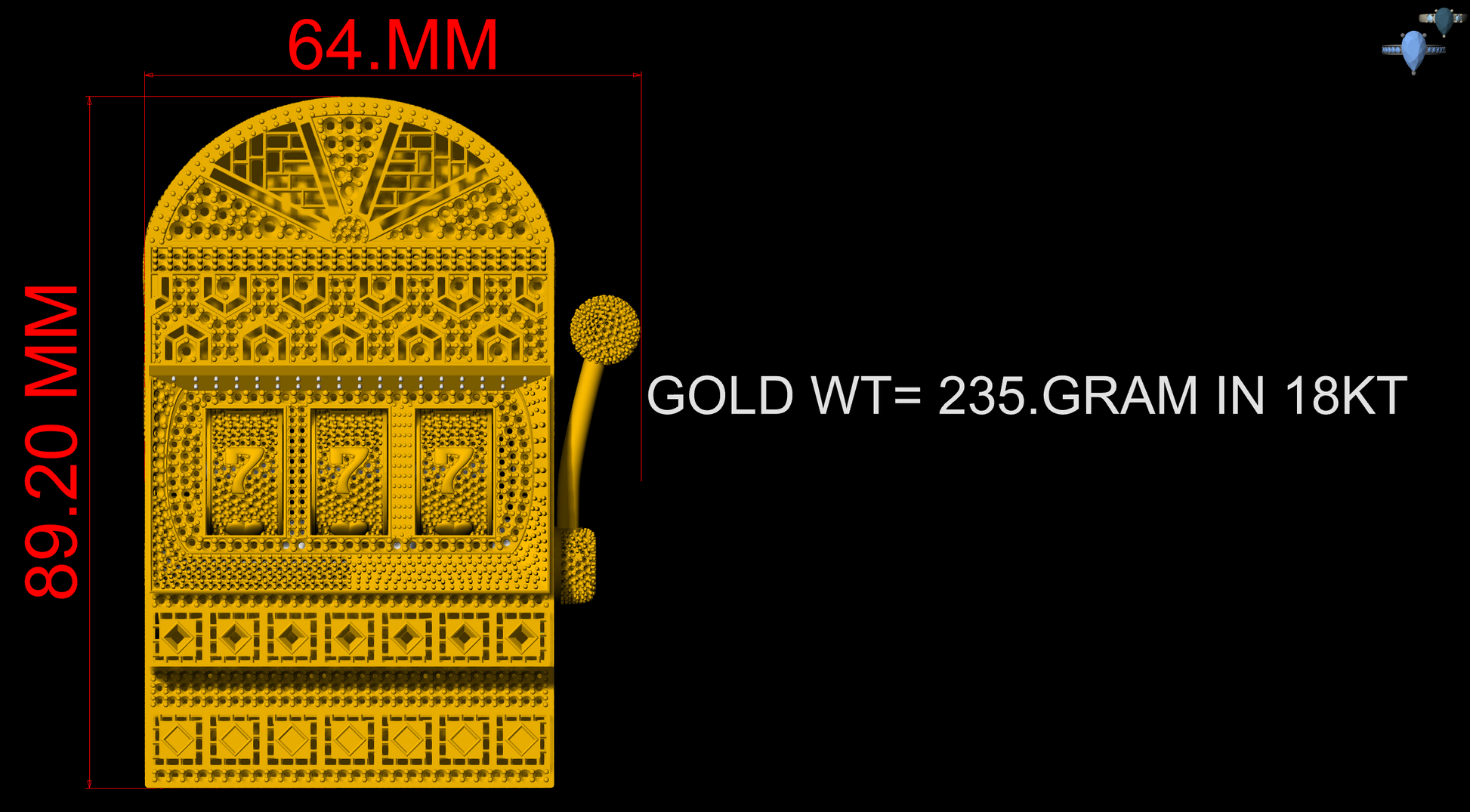

• Approx. Gold Weight (18K): 235 grams

Design Features

• Construction: Six-spoke lightweight wheel
• Functional 777 rotating reel mechanism
• Decorative side pull lever
• Premium micro-pavé diamond setting
• Detailed Art Deco inspired engraving
• Luxury statement brooch design
• Manufacturing-ready CAD geometry
• Suitable for casting and stone setting

Manufacturing

• Optimized for lost wax casting
• Accurate stone seat placement
• Clean production-ready surfaces
• Suitable for professional jewelry manufacturing

Deliverables

• 3DM CAD File
• STL File
• Ready for casting, polishing, and stone setting
