Diamond Tennis Spring BraceletCAD FILE

Product Description

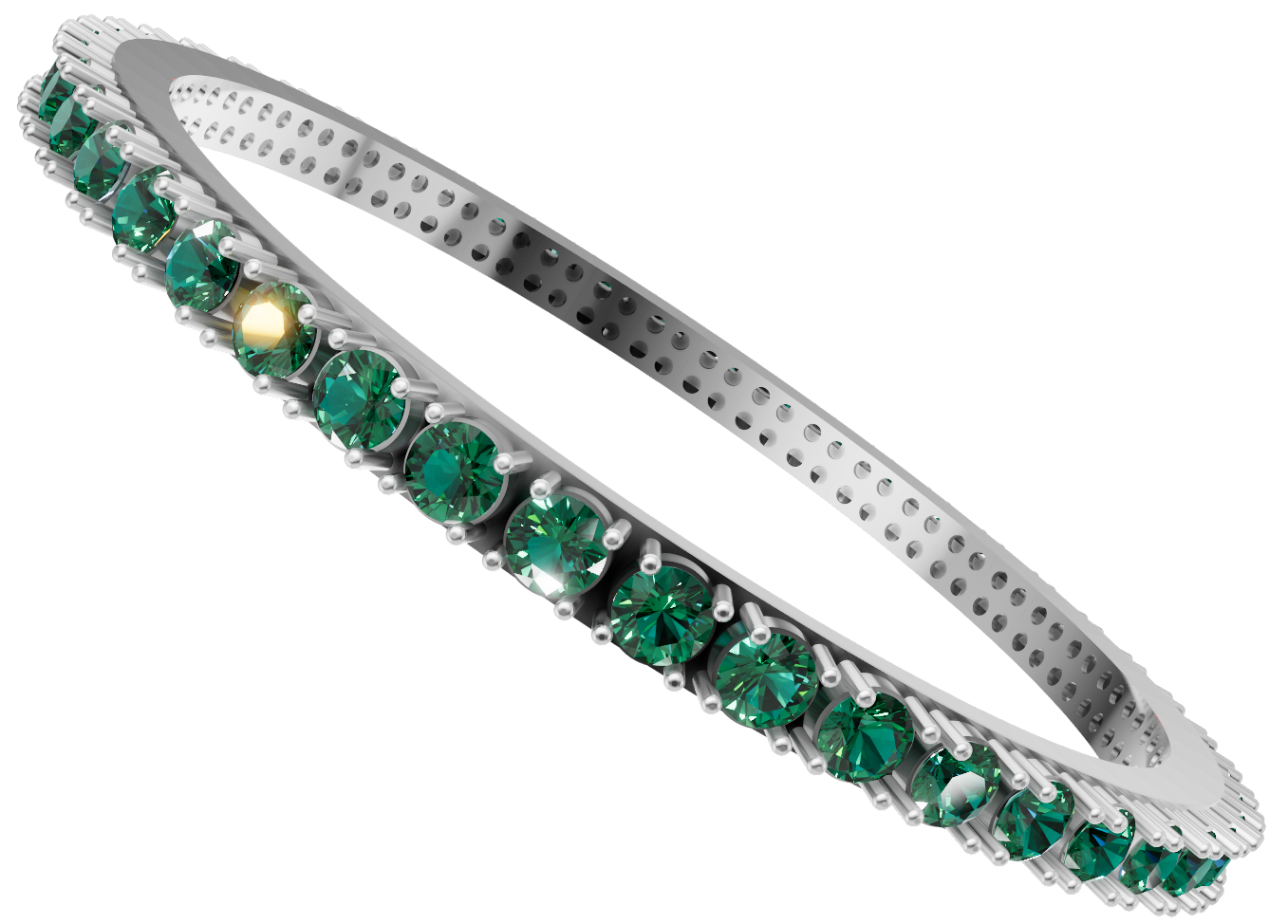

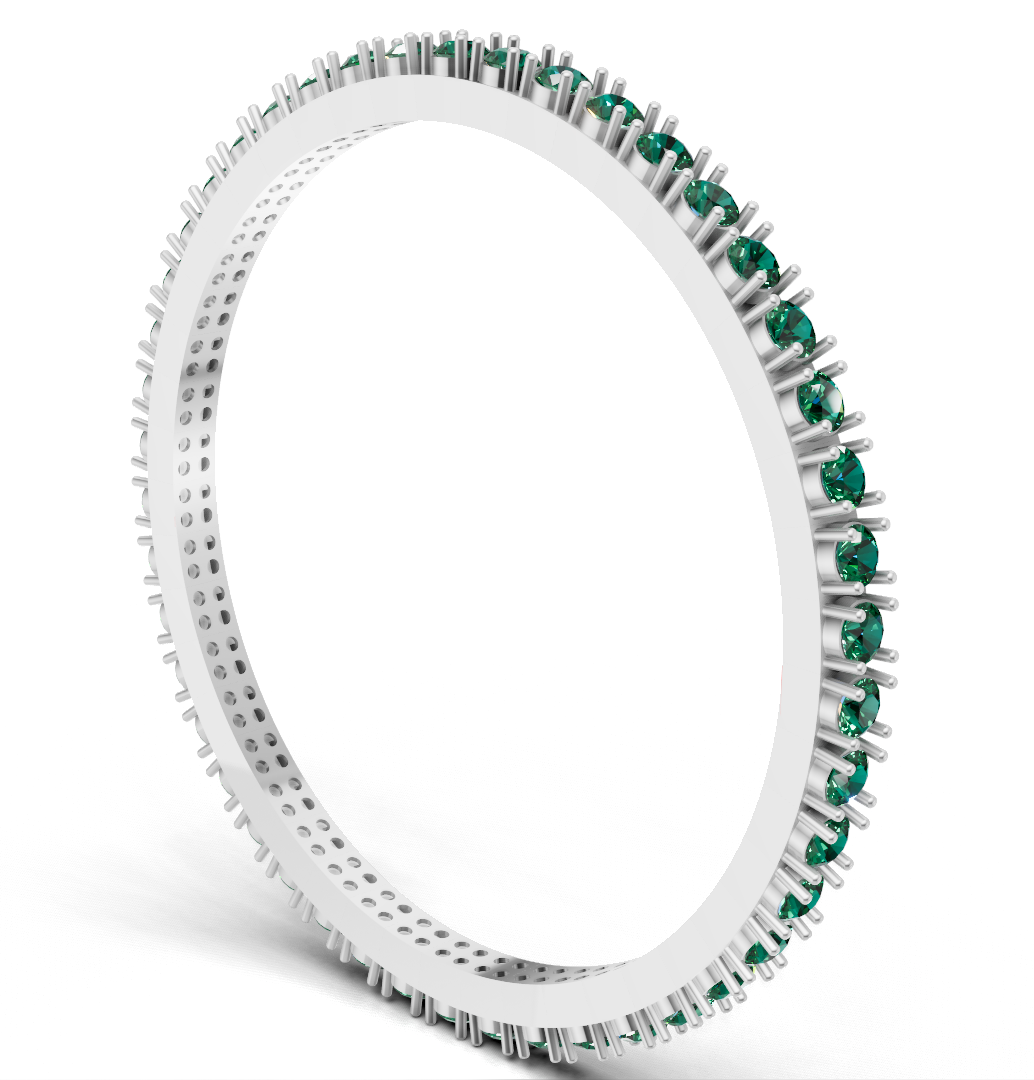

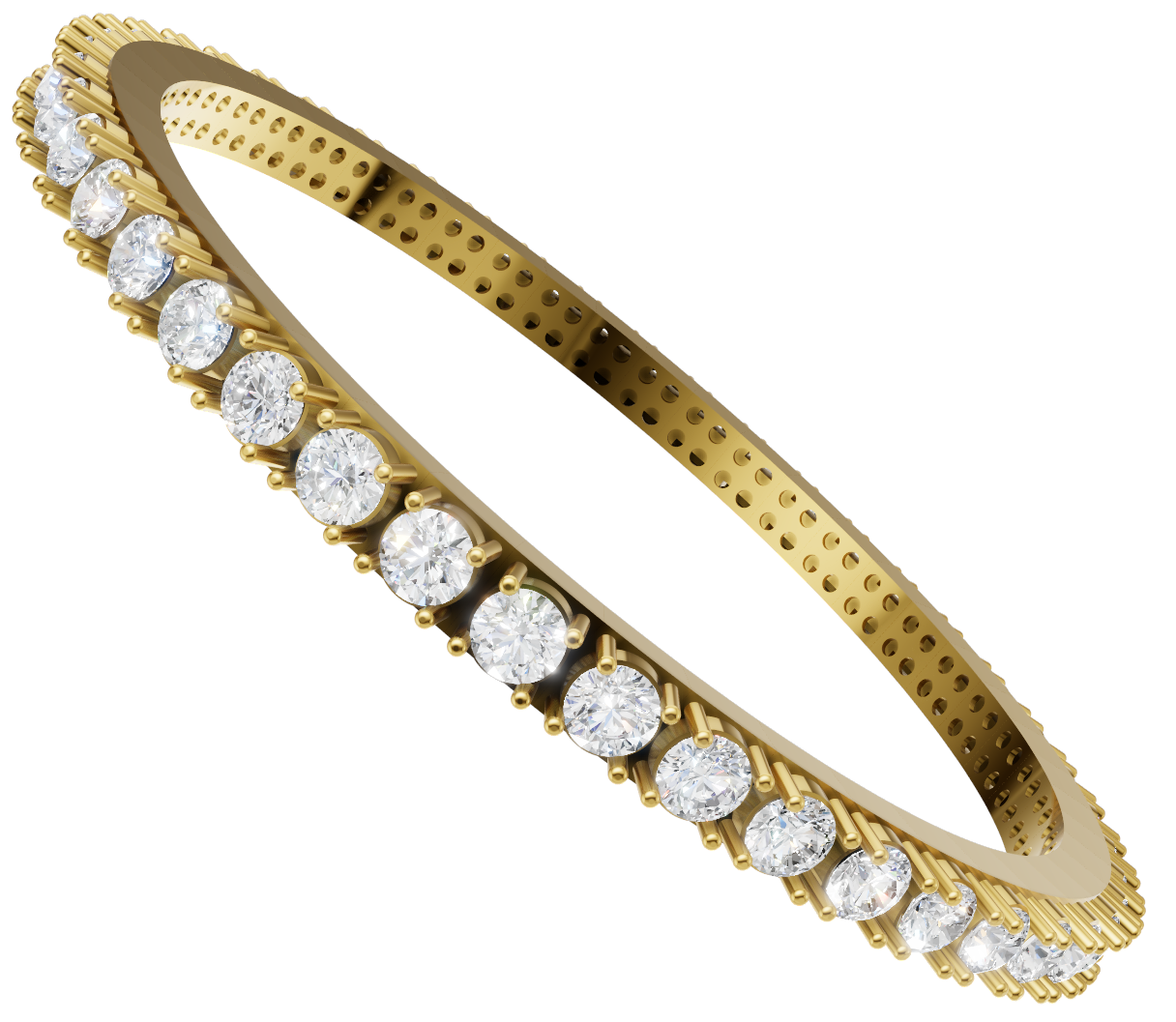

This refined tennis bracelet is engineered with precision and uniformity, showcasing a continuous row of round brilliant stones secured in a classic four-prong setting. The design emphasizes symmetry, durability, and optimal light exposure for maximum brilliance.

Key Specifications

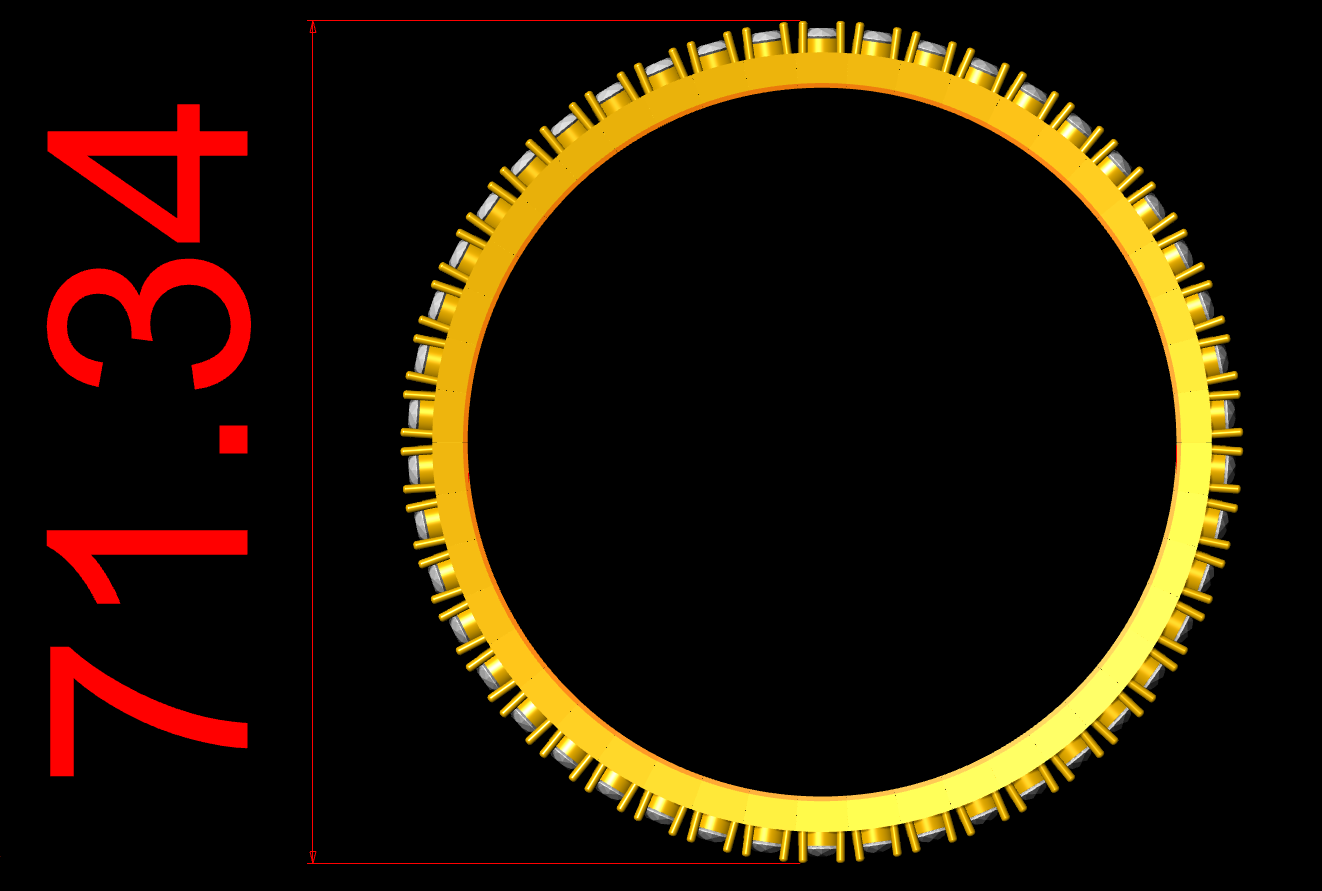

• Overall Bracelet Diameter (Outer): 71.34 mm

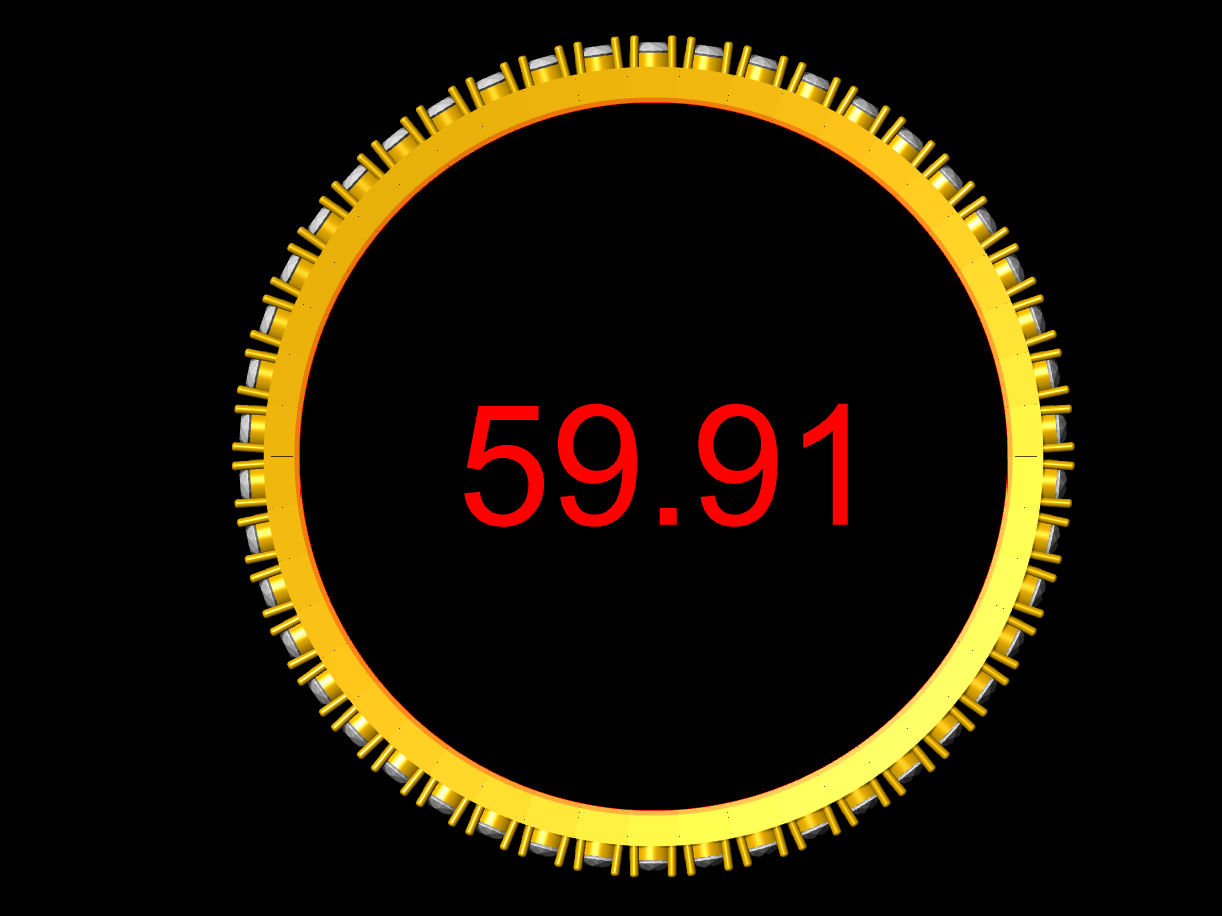

• Inner Diameter: 59.91 mm

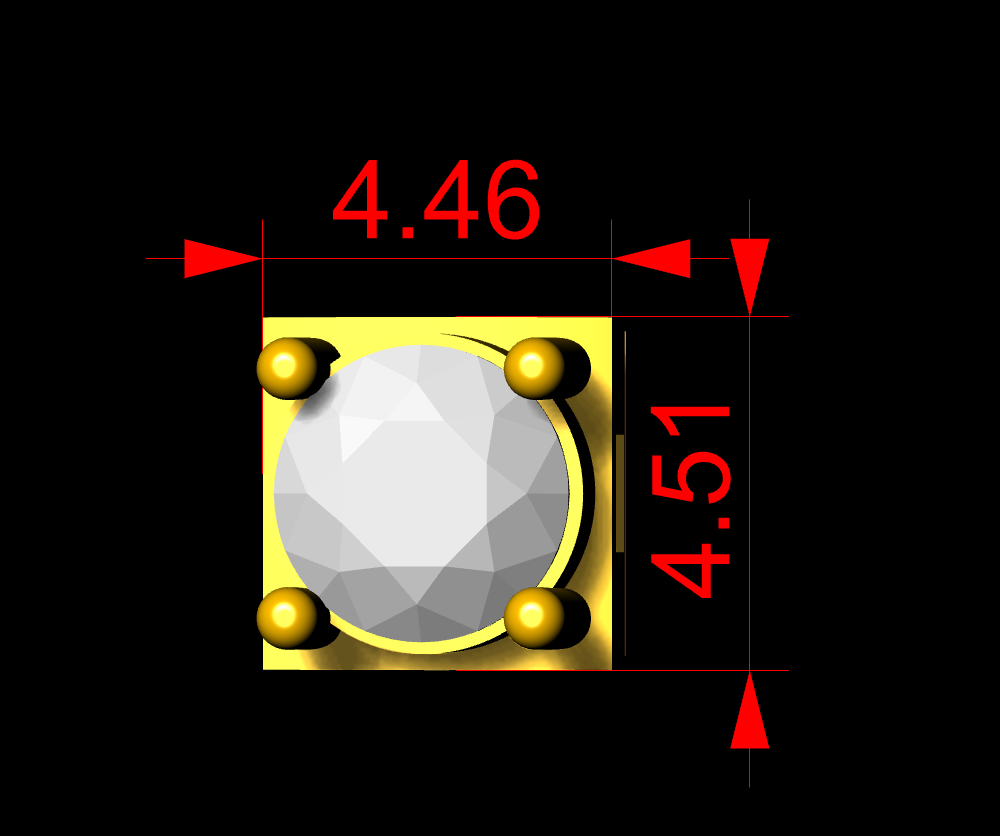

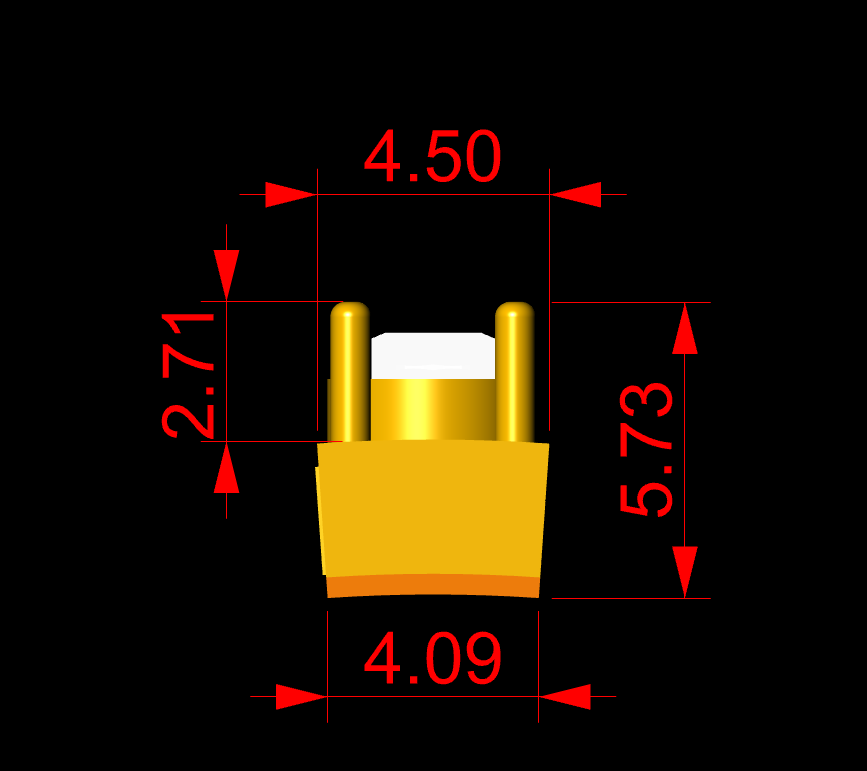

• Link Width (Top View): 4.46 mm
• Link Height (Side View): 5.73 mm
• Link Base Width: 4.09 mm
• Top Opening Width: 4.50 mm

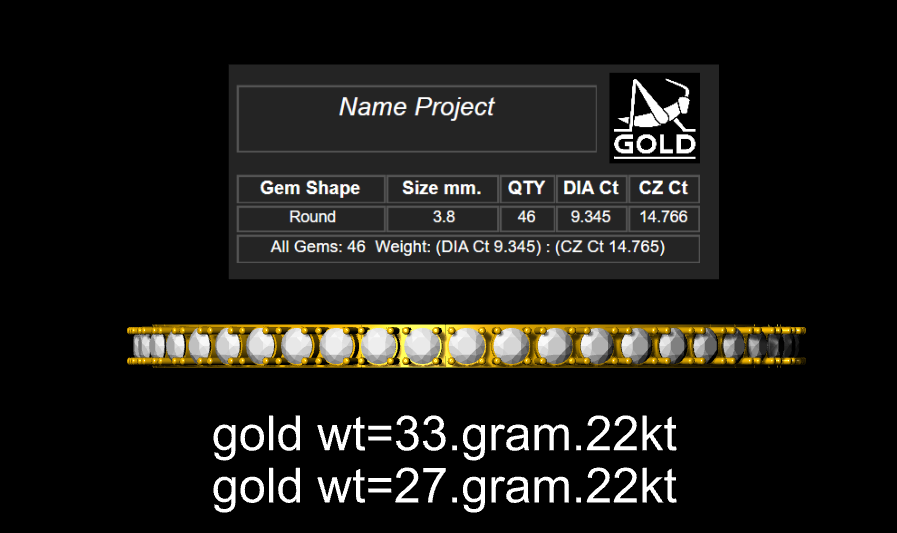

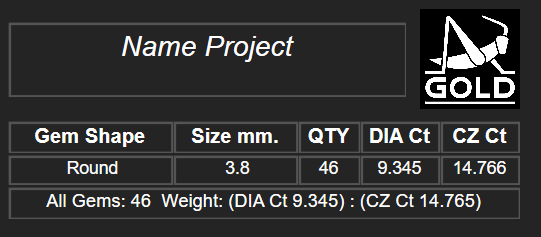

Stone Details

• Gem Shape: Round
• Stone Size: 3.80 mm
• Total Stones: 46 pcs
• Setting Type: 4-Prong Basket Setting
• Approx. Diamond Weight: 9.345 ct
• Approx. CZ Weight: 14.766 ct

Component (Link Unit) Details

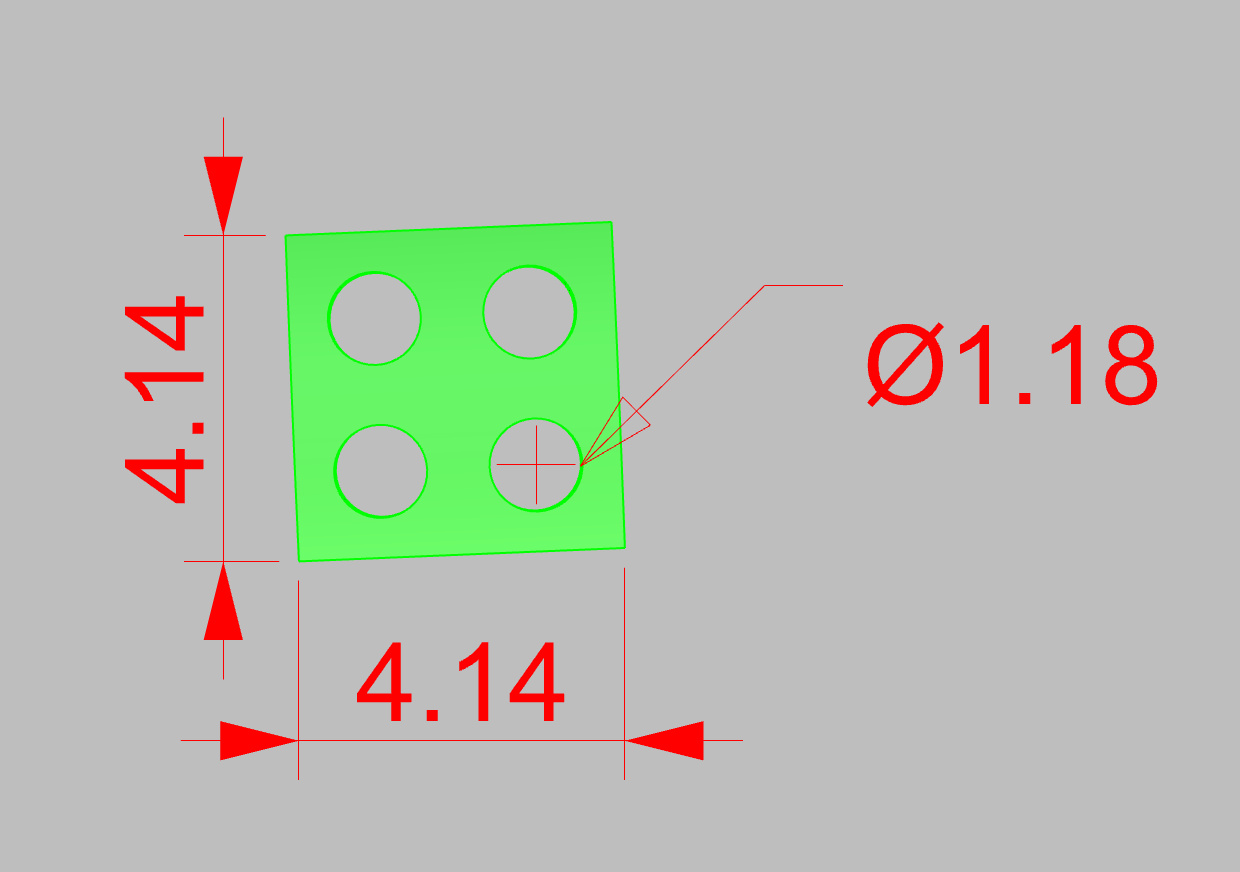

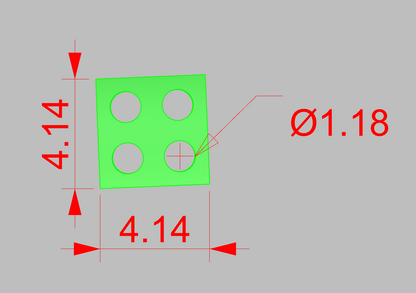

• Base Plate Size: 4.14 mm × 4.14 mm
• Hole Diameter: Ø 1.18 mm
• Precisely aligned perforations ensure accurate stone seating and structural consistency across all links.

Metal Details

• Gold Weight (22K):
  • Version 1: ~33 grams
  • Version 2: ~27 grams (optimized structure)

Design Highlights

• Clean, modular link construction for flexibility and comfort
• Even stone spacing for a seamless visual flow
• Strong prong architecture for secure stone holding
• Optimized proportions for both luxury appearance and wearability
