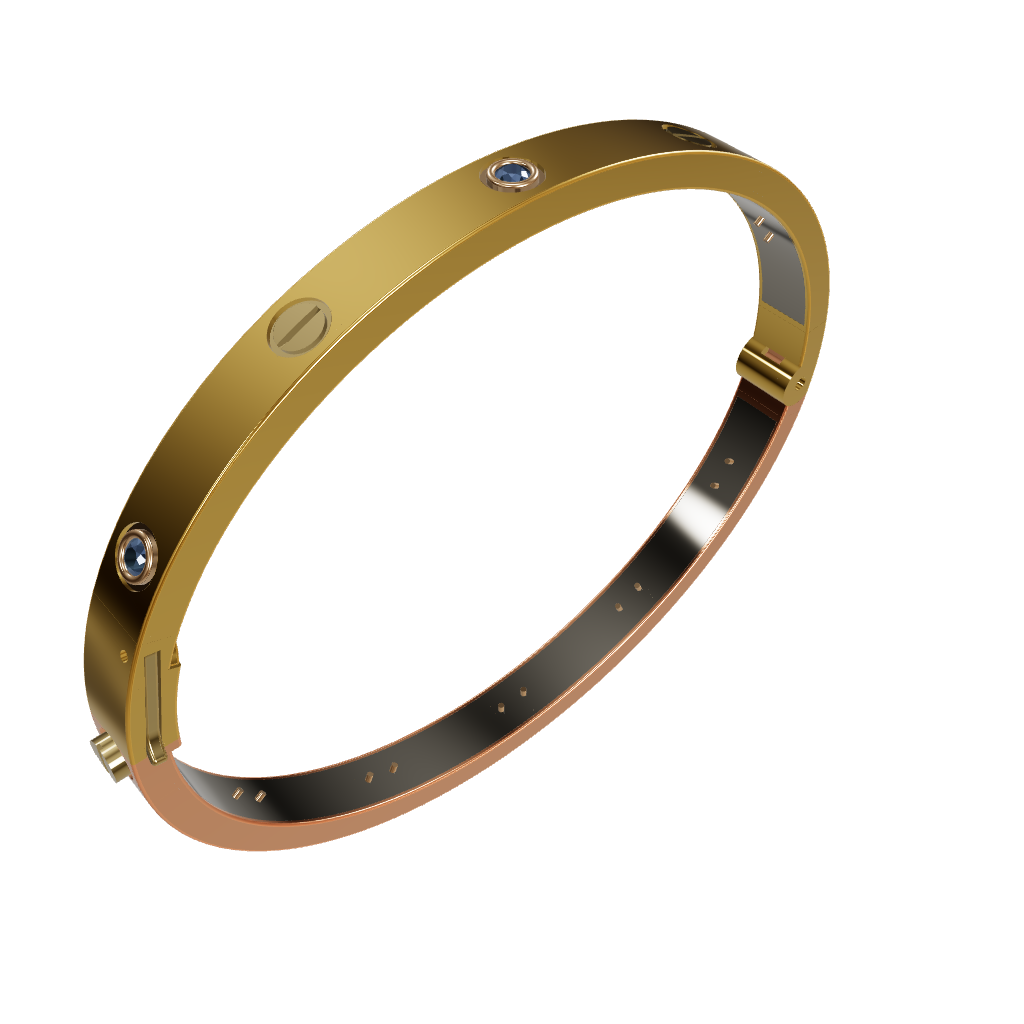

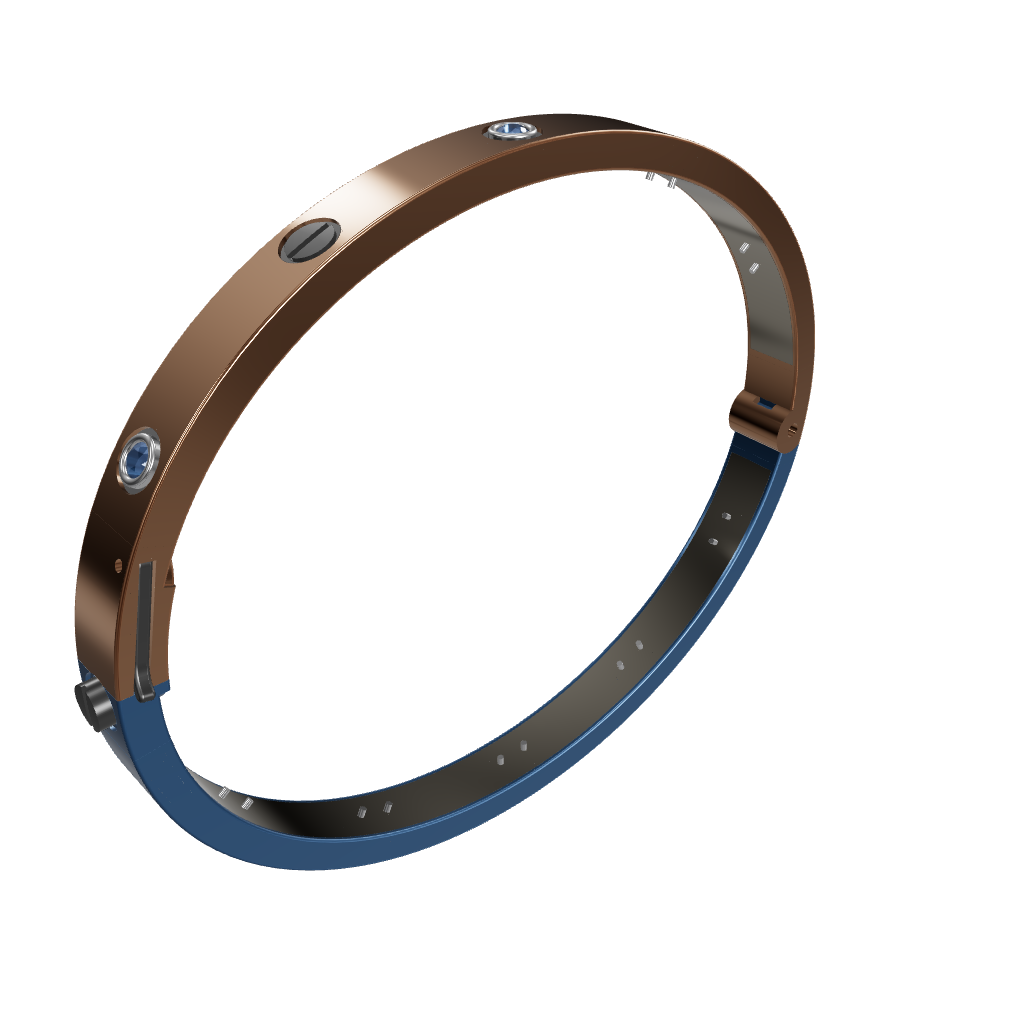

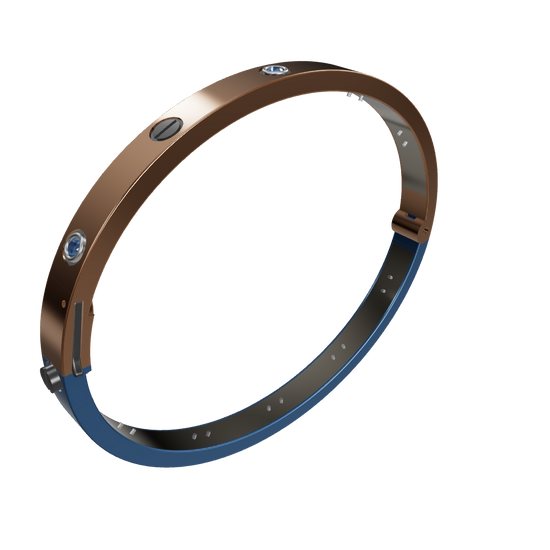

screw & mechanism daimond lock bracelet CAD FILE

screw & mechanism daimond lock bracelet CAD FILE

Rs. 2,999.00
Rs. 4,499.00 Rs. 2,999.00
Sale Sold out
Shipping calculated at checkout.

JewelryCrafto

Let’s focus on innovative, product-level disruption for your bangle with these clear, bold moves:Feature Measurement

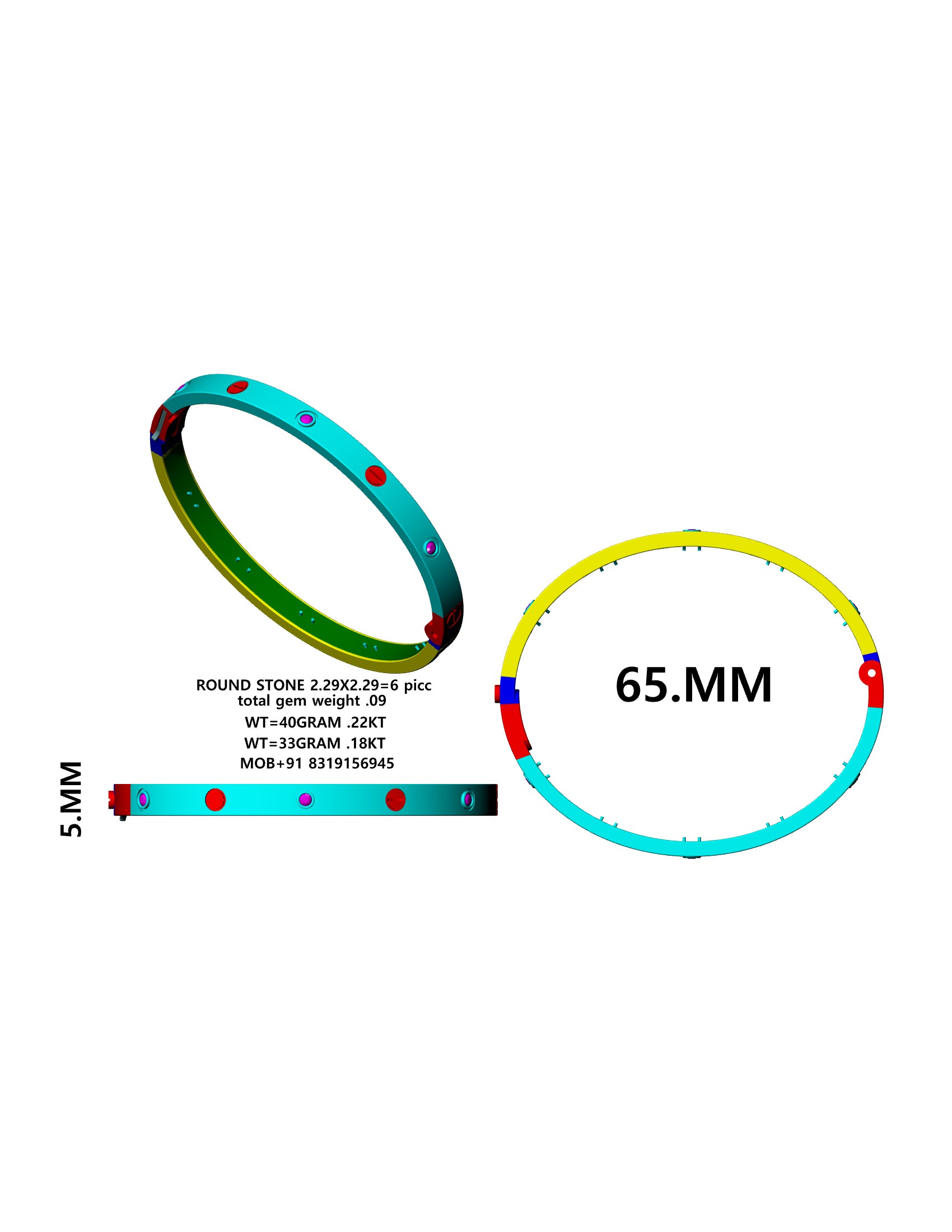

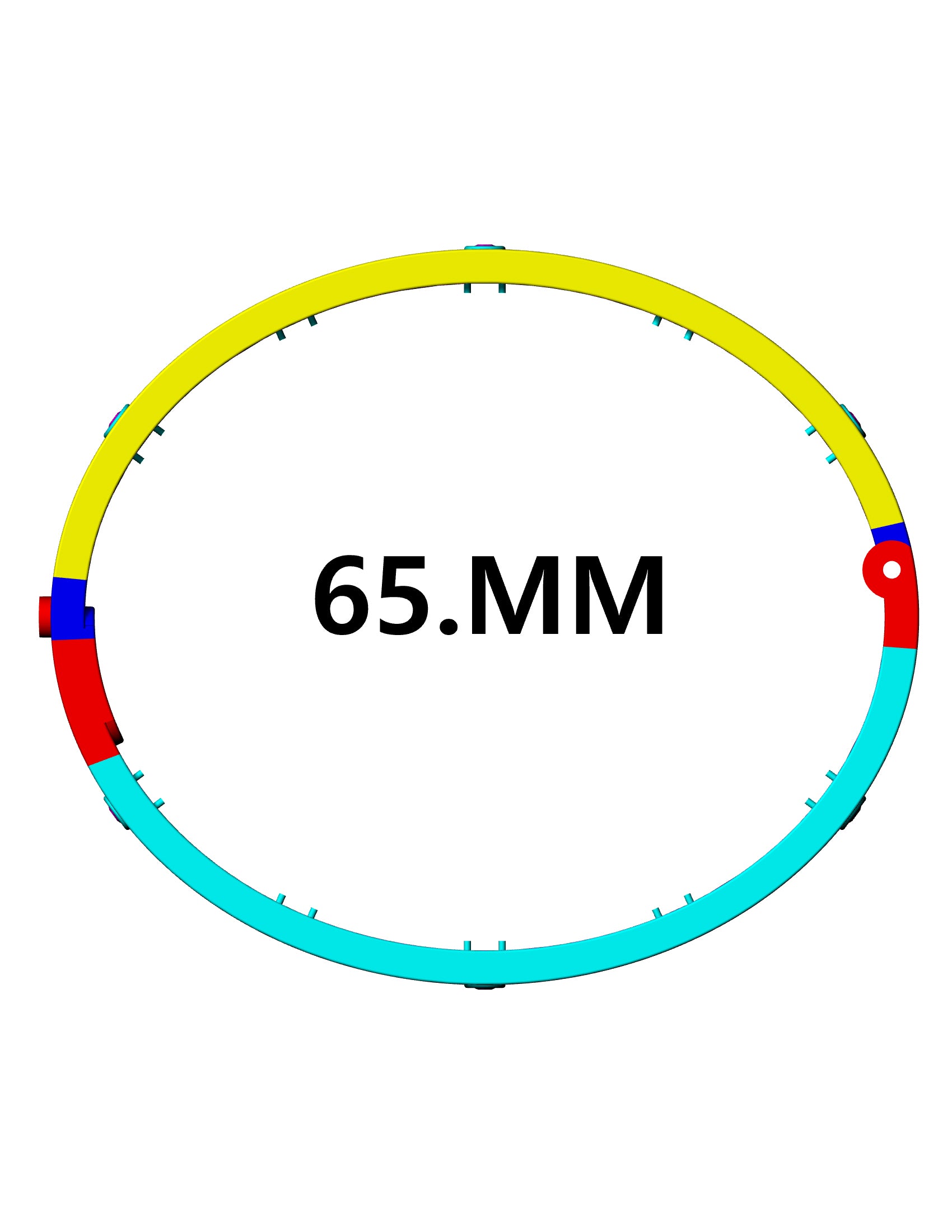

Inner Diameter 65 mm (expandable to 70)

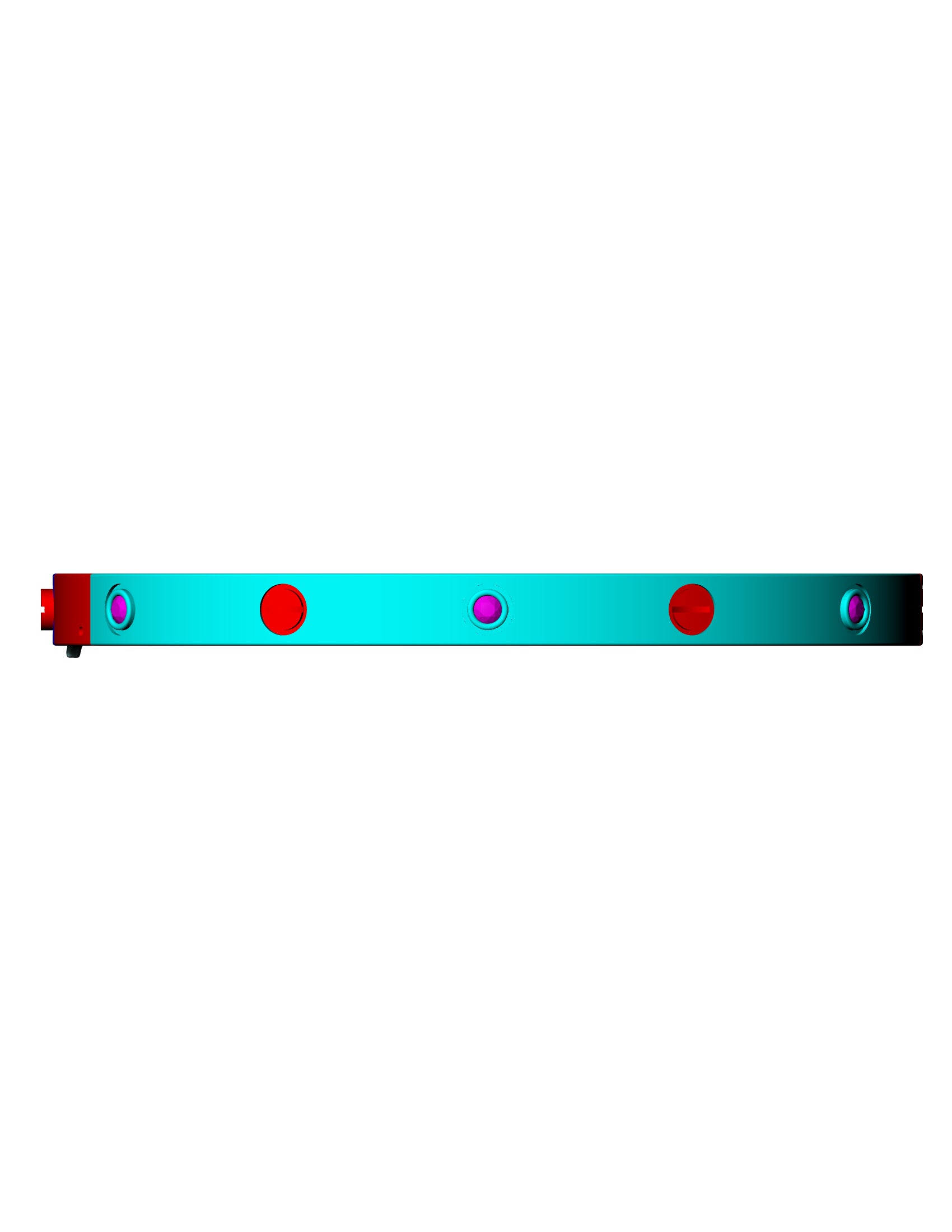

Width 5 mm
Thickness 2.3 mm (3-4 mm at hinge)
Stone Size Round 2.29 mm
Stone Count 6 stones (top arc)
Sliding Track Length 5 mm extension per side
NFC Chip Area 10 mm segment near clasp

Expandable Diameter Mechanism

  • Instead of fixed 65 mm diameter, introduce a hidden sliding hinge that allows the diameter to expand up to 70 mm and contract back to 65 mm.

  • Sliding track length: 5 mm extension on each side (so diameter varies 65-70 mm).

  • Thickness at hinge slightly increased to 3 mm to house mechanism.
