Gold Zipper Design CAD FILE

Product Description

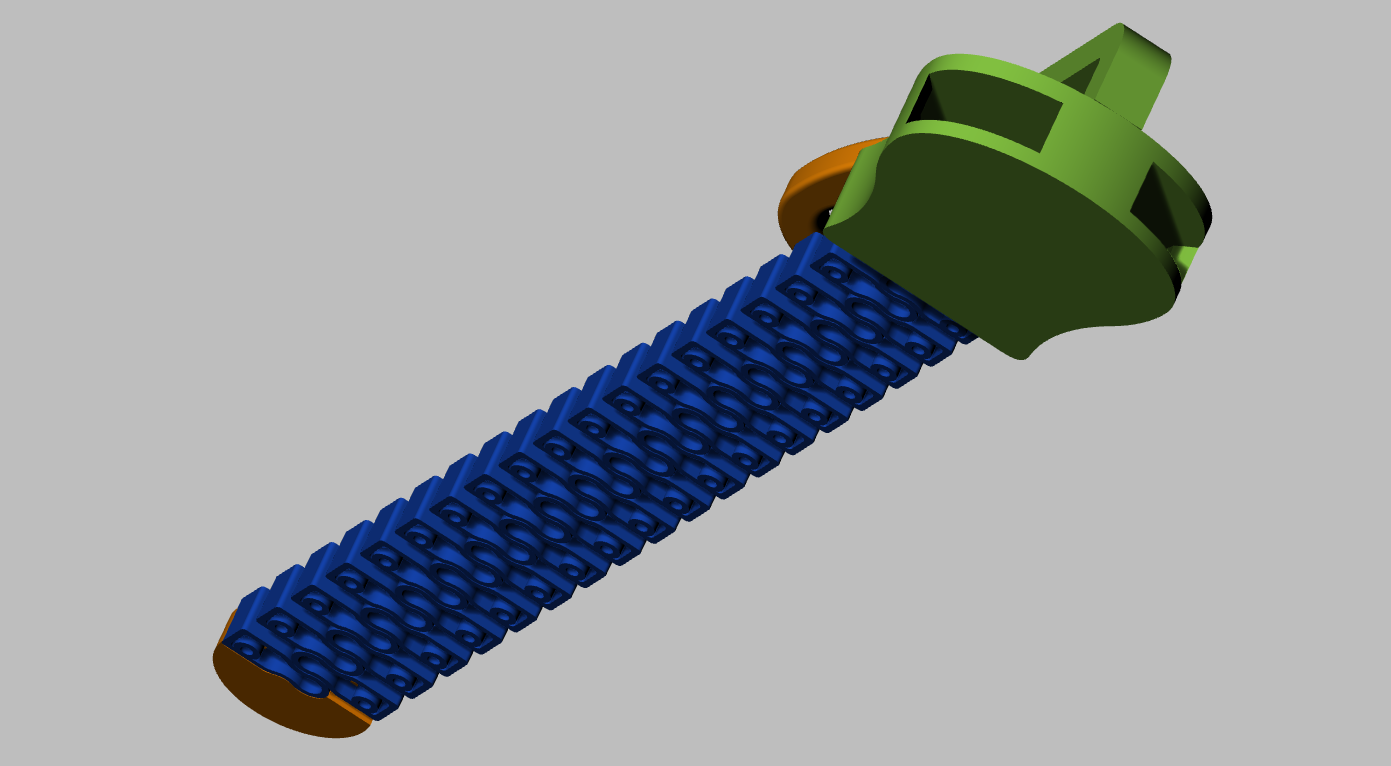

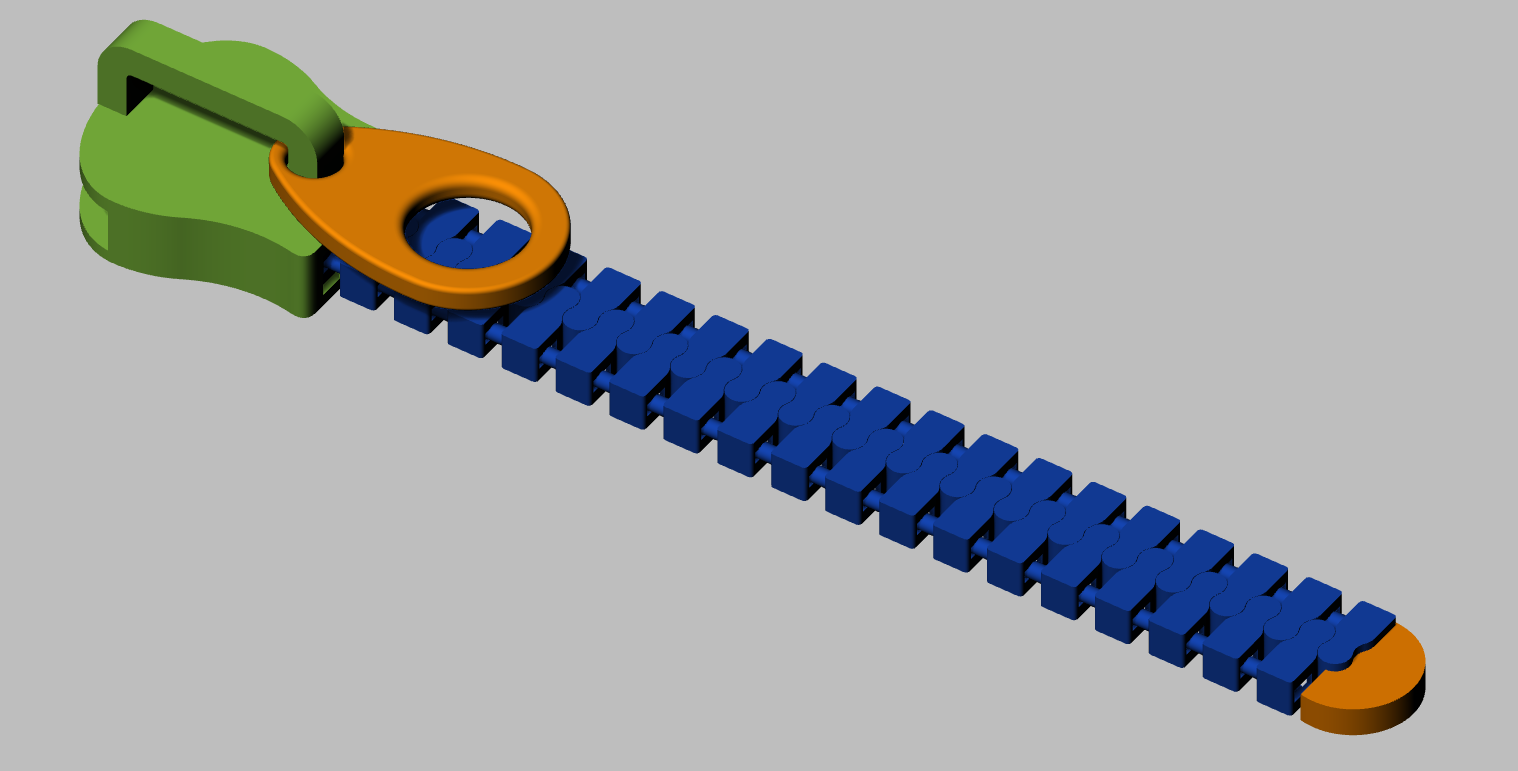

This is a bold and structured link bracelet featuring a solid interlocking pattern and a custom hook-lock mechanism. The design combines durability with a clean mechanical look, making it suitable for high-end gold manufacturing.

The bracelet showcases a balanced proportion between the central link body and the locking system. The oval connector plate enhances security while maintaining a sleek finishing. The strong clasp structure ensures firm closure, ideal for premium 18KT and 22KT gold production.

This CAD model is production-ready and designed with accurate dimensions for precise casting and finishing.

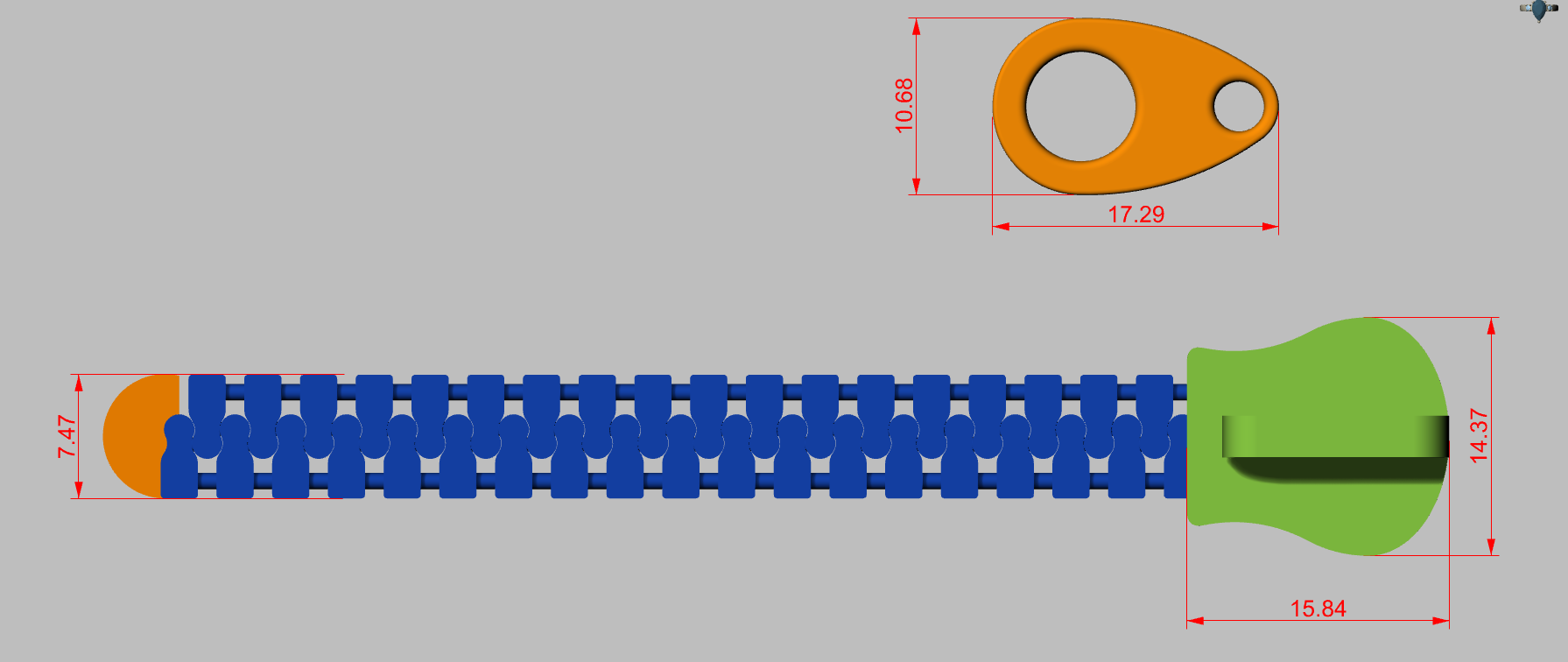

Full Measurements

Overall Bracelet

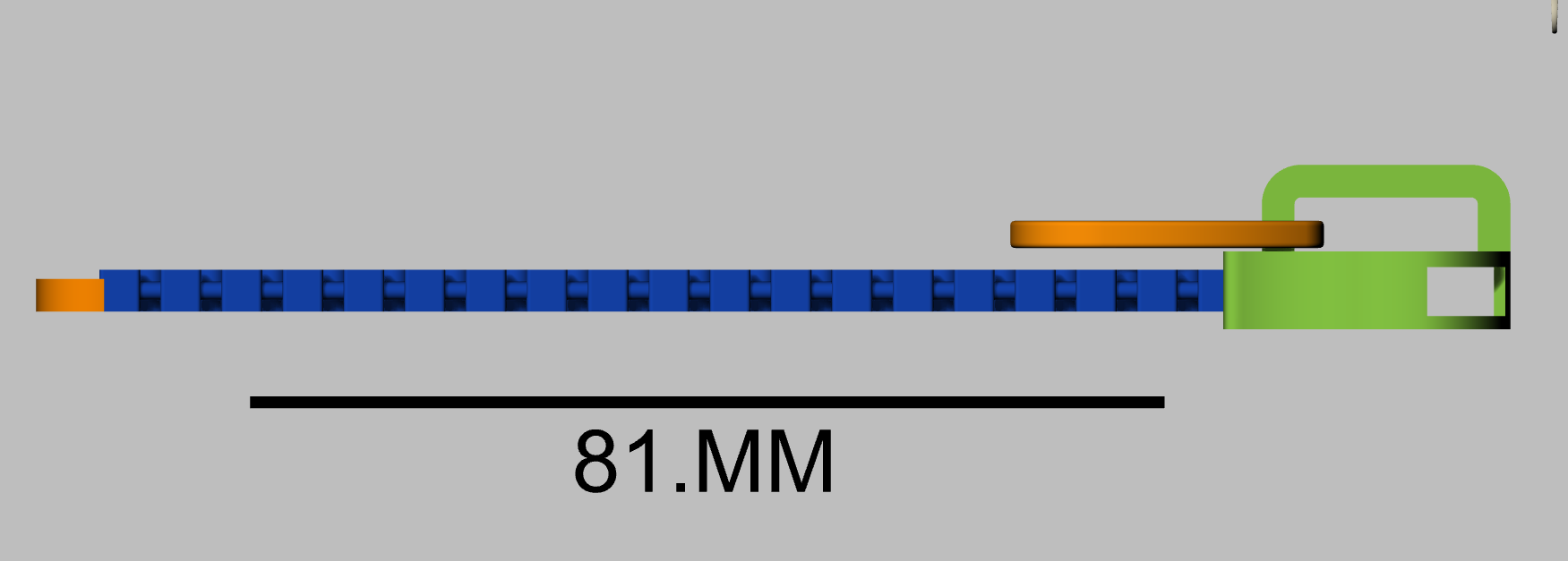

• Total Length: 81.00 MM

• Link Width: 7.47 MM

• Structure: Interlocking solid link pattern

• Design Type: Heavy mechanical link bracelet

Locking System (Clasp Section)

• Clasp Length: 15.84 MM

• Clasp Width: 14.37 MM

• Lock Type: Hook insert locking mechanism

Oval Connector Plate

• Plate Length: 17.29 MM

• Plate Width: 10.68 MM

• Small Hole: Connector loop for lock attachment

• Large Cut Area: Decorative and weight balance opening

  Full Measurements

  Overall Bracelet

  • Total Length: 81.00 MM

  • Link Width: 7.47 MM

  • Structure: Interlocking solid link pattern

  • Design Type: Heavy mechanical link bracelet

  ---

  Locking System (Clasp Section)

  • Clasp Length: 15.84 MM

  • Clasp Width: 14.37 MM

  • Lock Type: Hook insert locking mechanism

  ---

  Oval Connector Plate

  • Plate Length: 17.29 MM

  • Plate Width: 10.68 MM

  • Small Hole: Connector loop for lock attachment

  • Large Cut Area: Decorative and weight balance opening

  ---

  Metal Weight (Approximate)

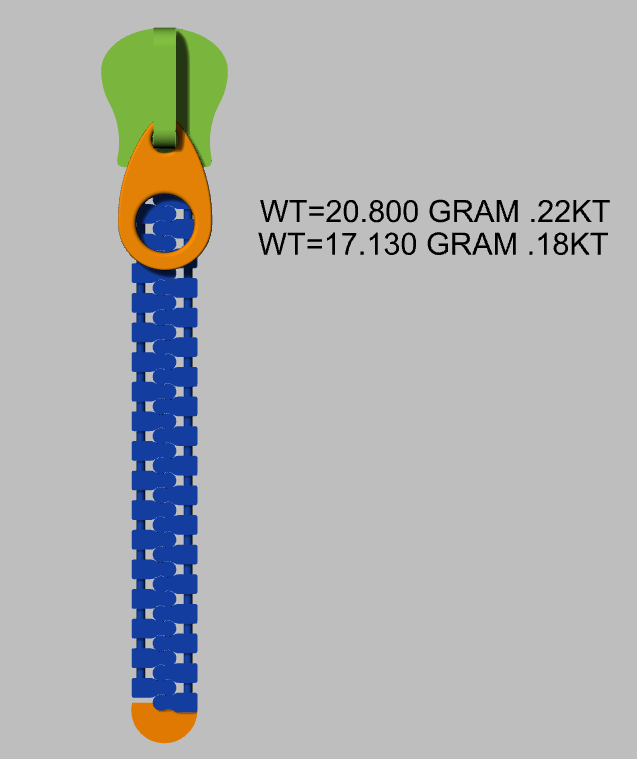

  • 22KT Gold: 20.800 Grams

  • 18KT Gold: 17.130 Grams
