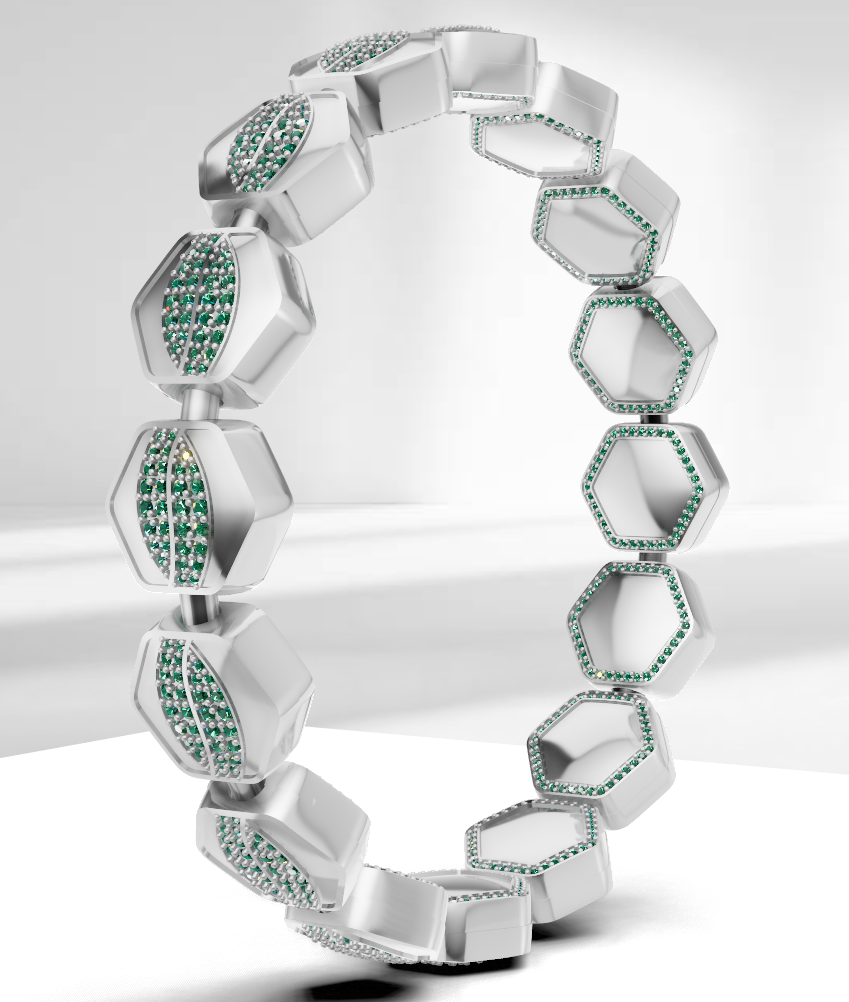

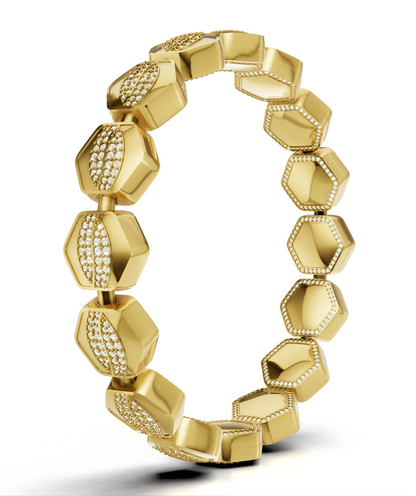

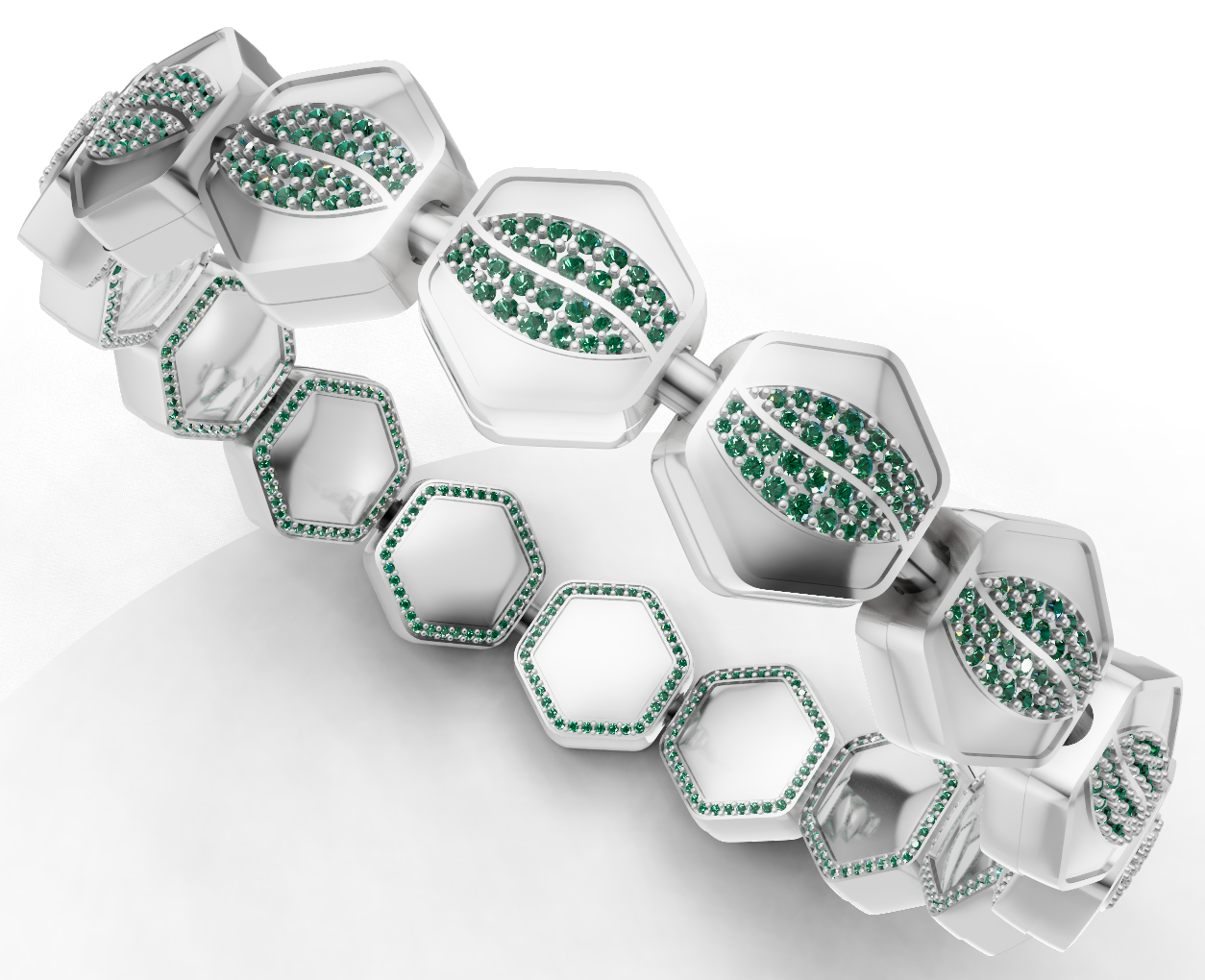

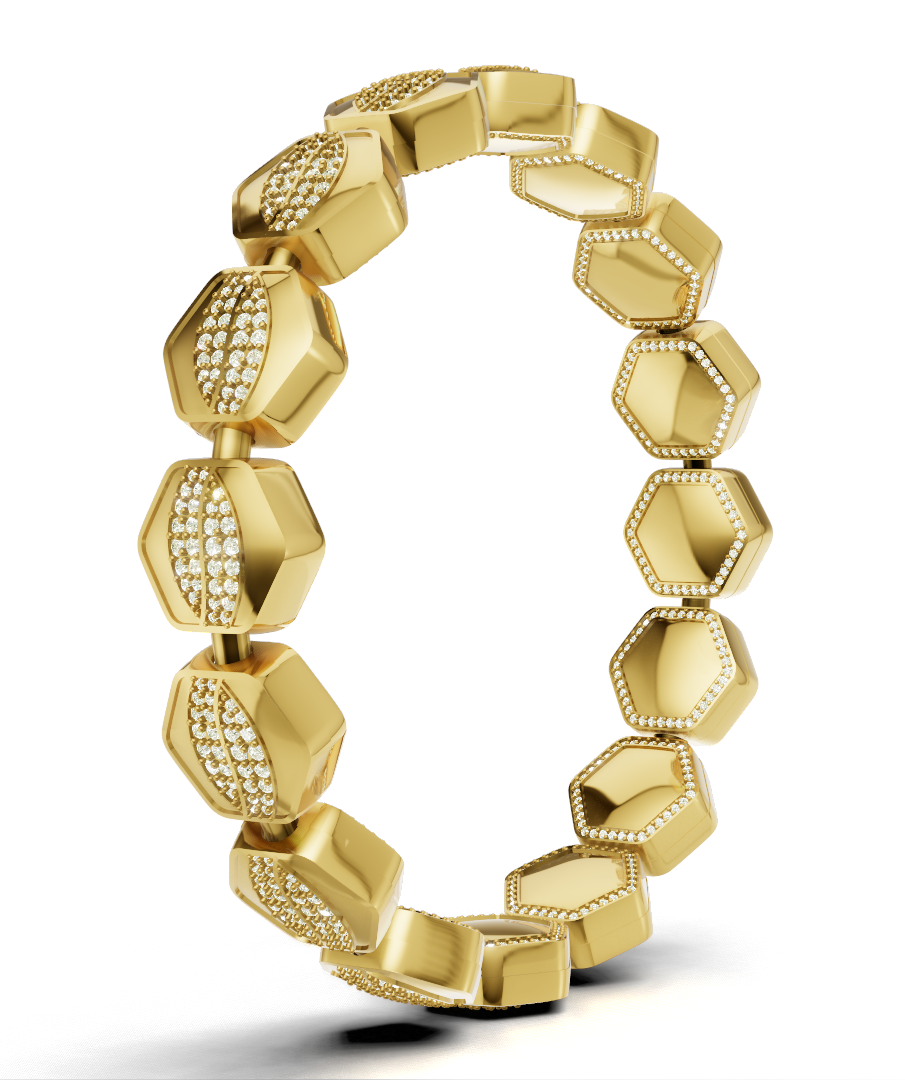

Product Description – Modular Hex Link Bracelet with Stone Top

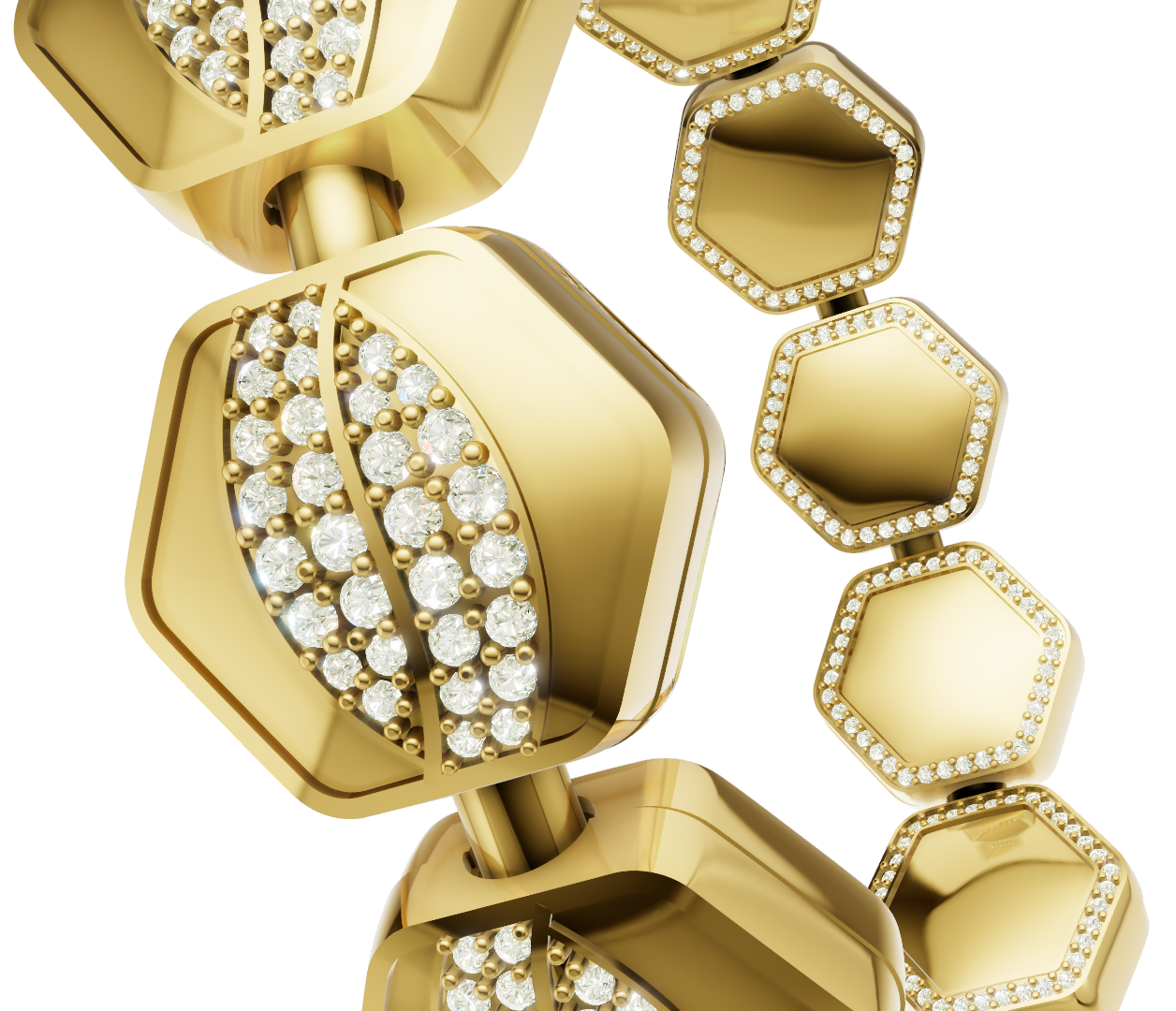

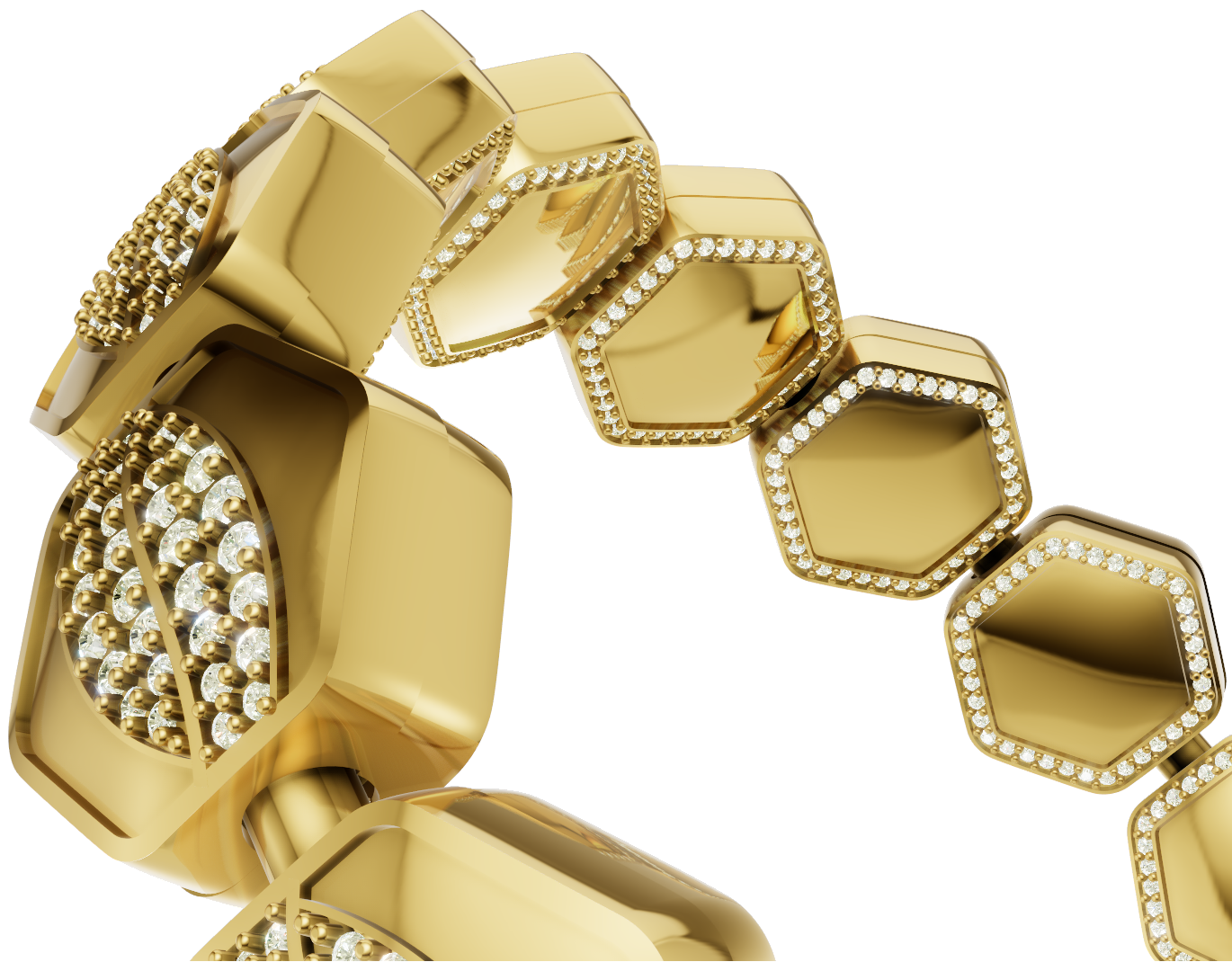

This bracelet features a structured modular design composed of hexagonal top links connected with precision pin joints, delivering both durability and refined aesthetics. The top surface showcases a micro-stone layout in an elegant eye-inspired pattern, enhancing brilliance while maintaining a clean geometric form.
Key Measurements (Approx.)

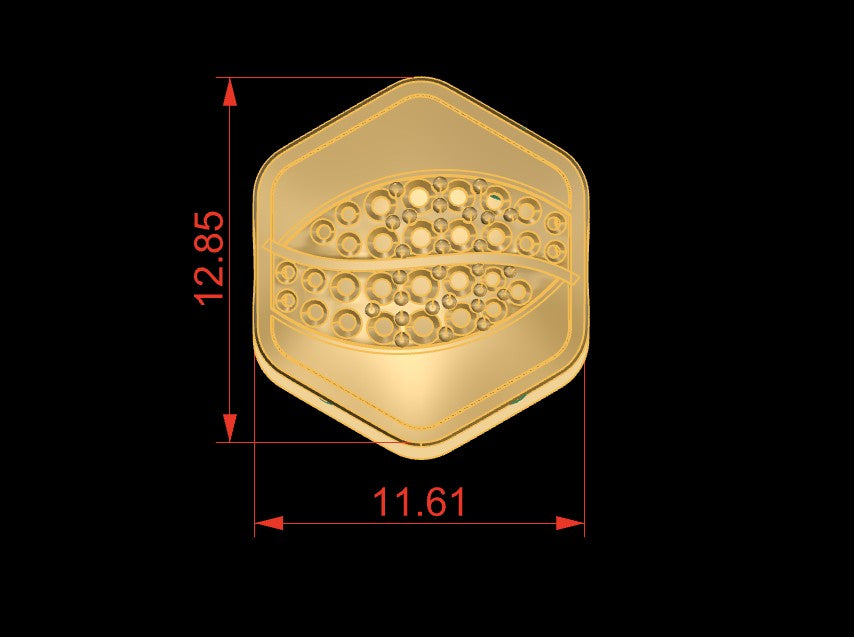

Top Link (Hex Element):
- Length: 11.61 mm
- Width: 12.85 mm
- Thickness: 6.35 mm

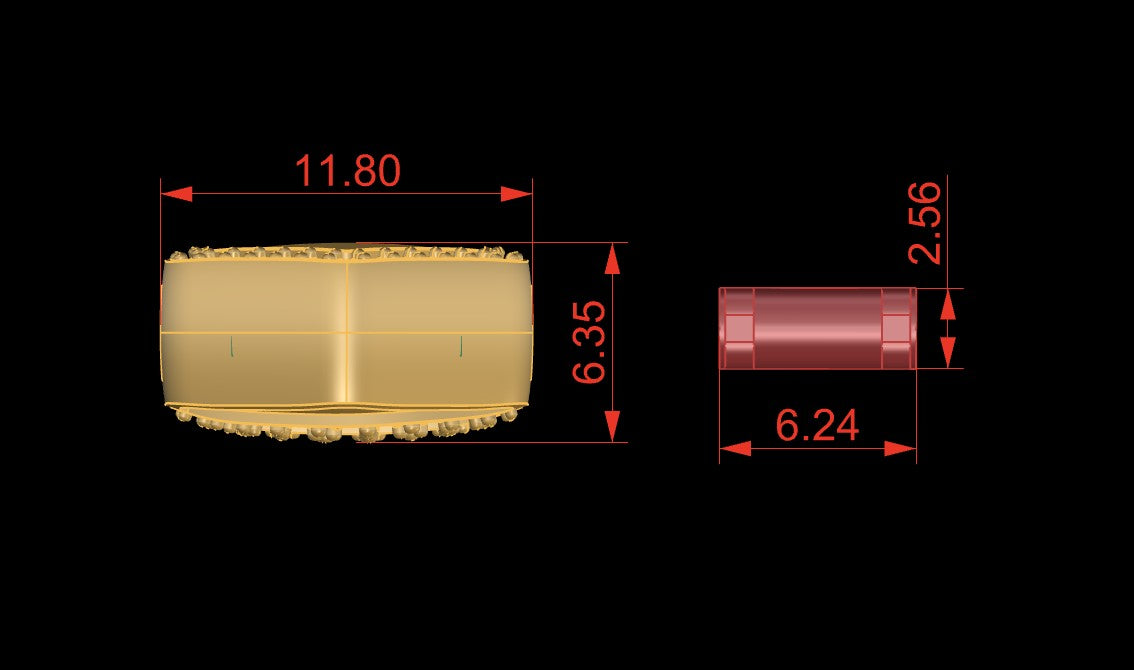

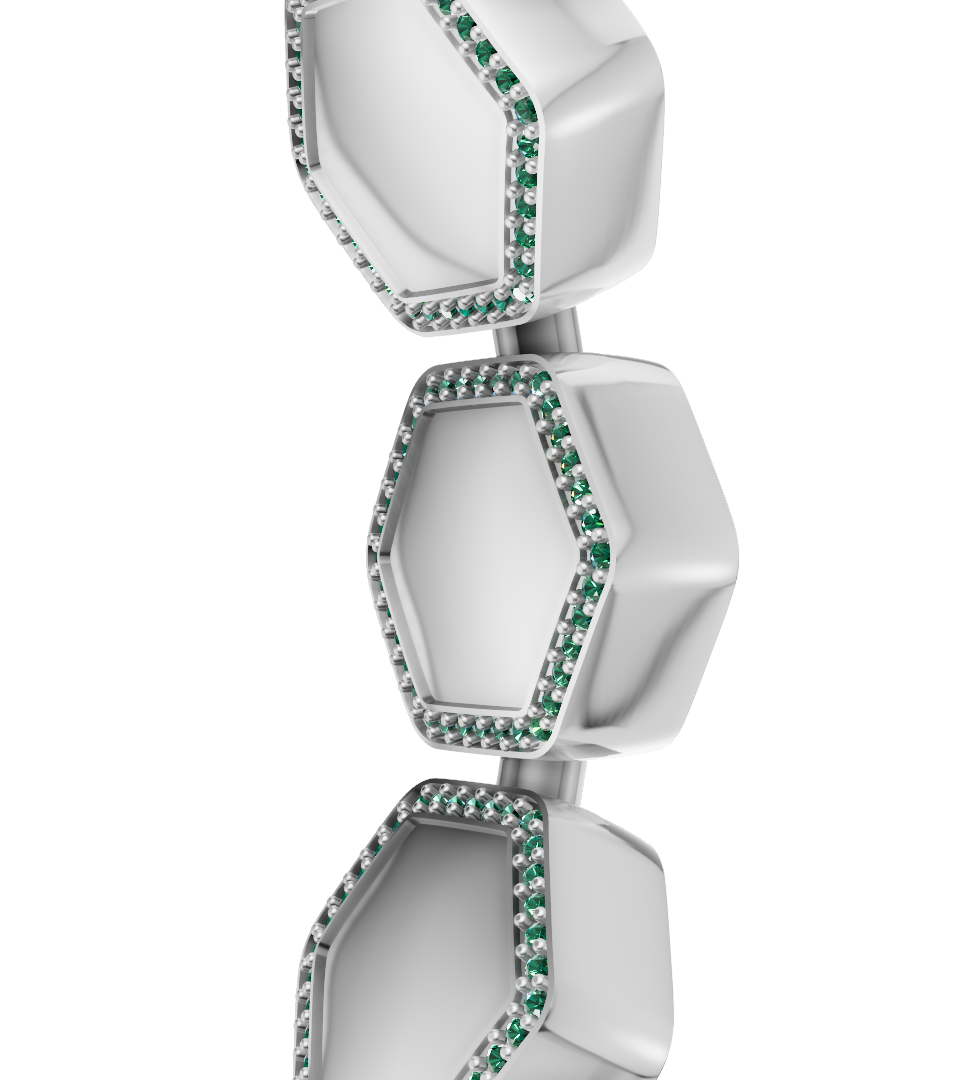

Side Link (Connector Section):
- Length: 11.80 mm
- Height: 6.35 mm

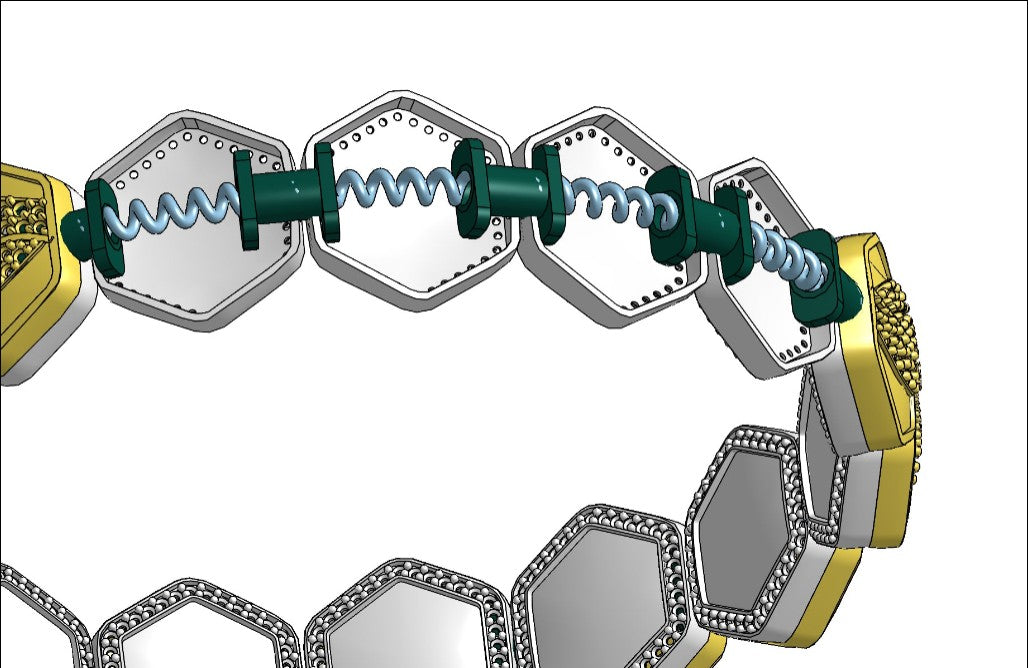

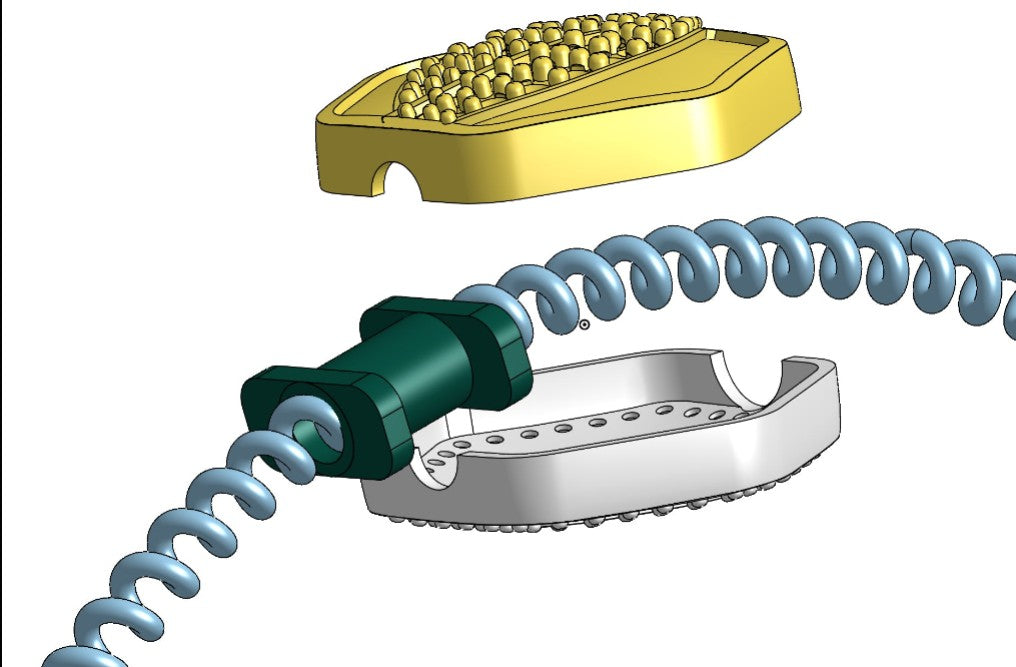

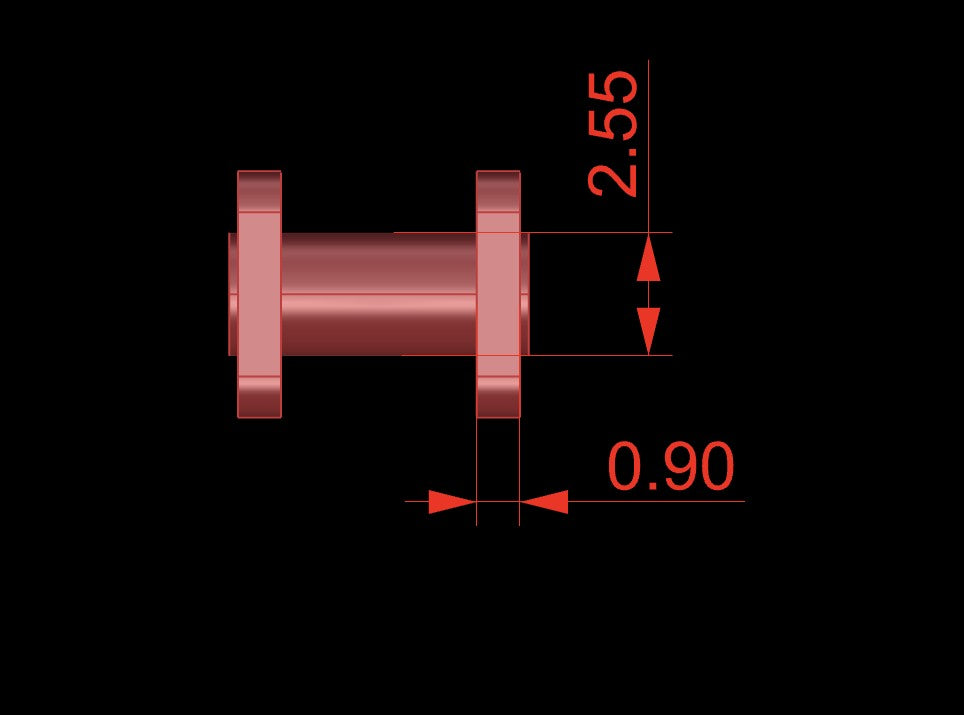

Pin / Joint Mechanism:
- Pin Length: 6.24 mm
- Pin Diameter: Ø2.56 mm
- Lock Gap / Inner Space: 0.90 mm

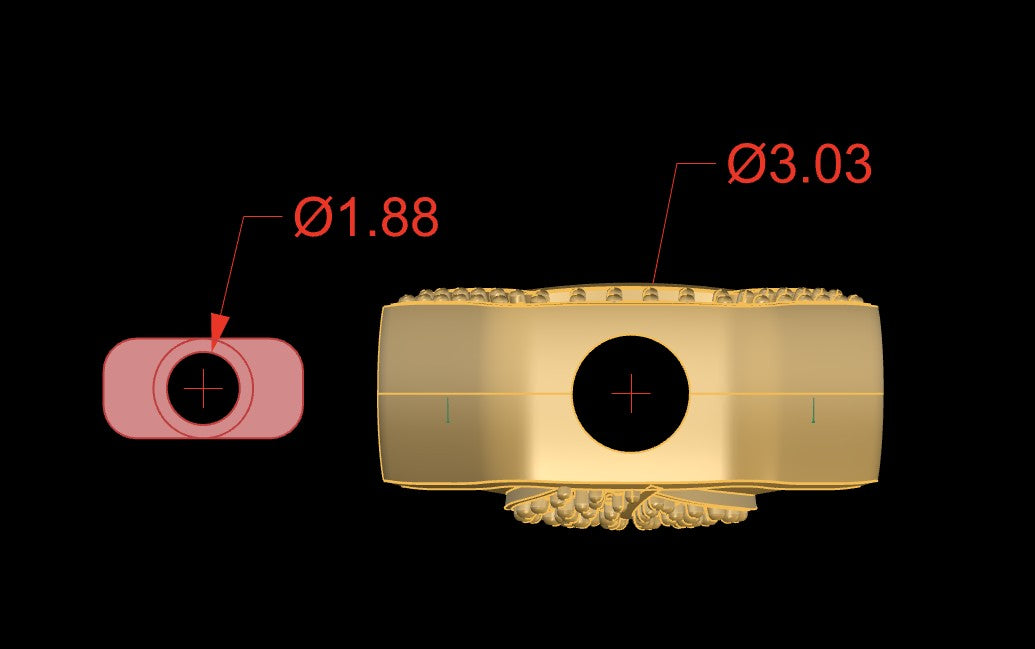

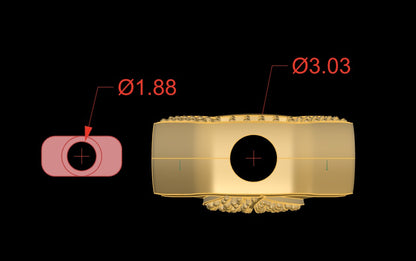

Drill / Hole Sizes:
- Inner Hole: Ø1.88 mm
- Outer Hole: Ø3.03 mm

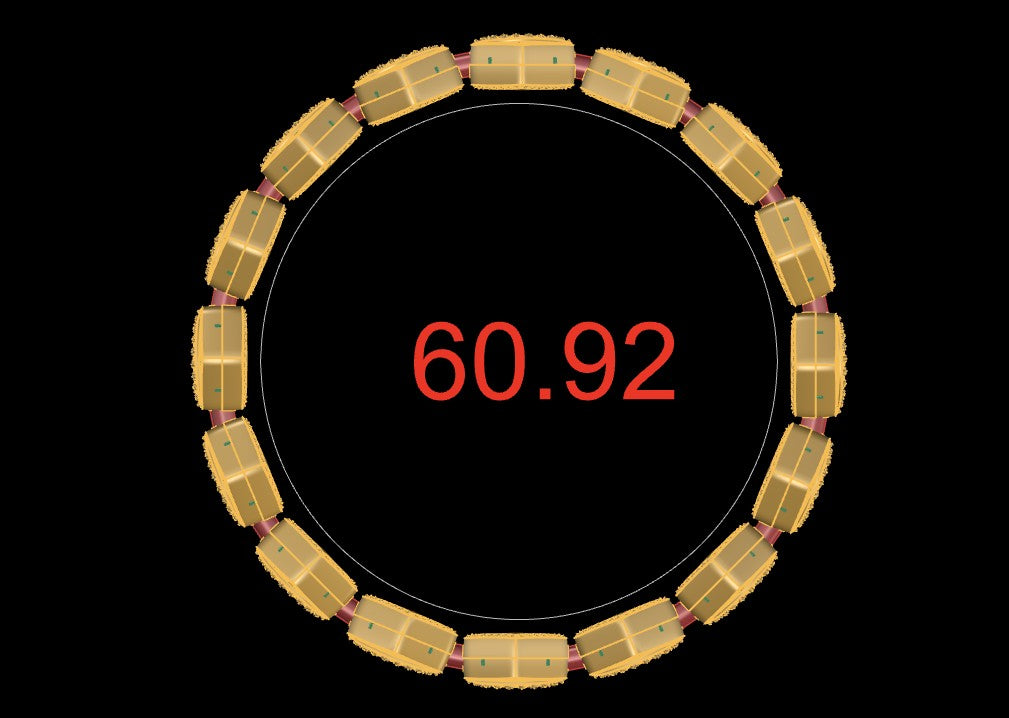

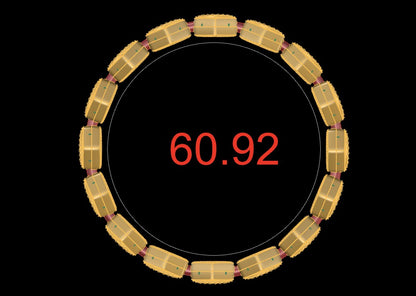

Bracelet Inner Diameter:
-
60.92 mm (standard size, adjustable based on link count)

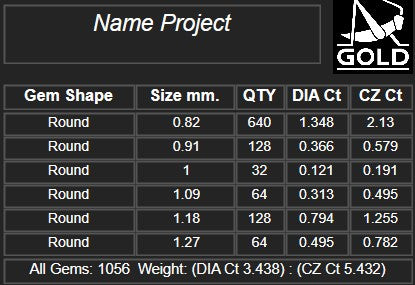

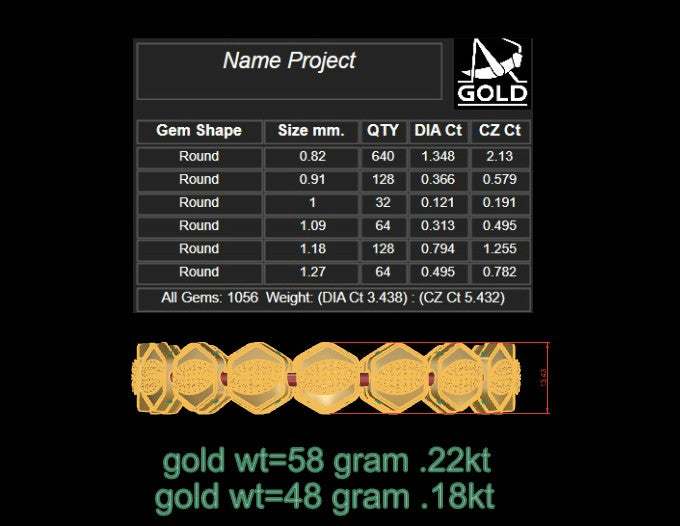

Gemstone Details
| Shape |
Size (mm) |
Quantity |
Diamond Ct |
CZ Ct |
| Round |
0.82 |
640 |
1.348 |
2.13 |
| Round |
0.91 |
128 |
0.366 |
0.579 |
| Round |
1.00 |
32 |
0.121 |
0.191 |
| Round |
1.09 |
64 |
0.313 |
0.495 |
| Round |
1.18 |
128 |
0.794 |
1.255 |
| Round |
1.27 |
64 |
0.495 |
0.782 |
Total Stones: 1056 pcs
-
Total Diamond Weight: 3.438 Ct
-
Total CZ Weight: 5.432 Ct
Metal Weight
-
22KT Gold: Approx. 58 grams
-
18KT Gold: Approx. 48 grams
Design Features
-
Hexagonal Modular Construction: Ensures a seamless, flexible bracelet structure
-
Precision Pin Assembly: Smooth articulation with secure fitting
-

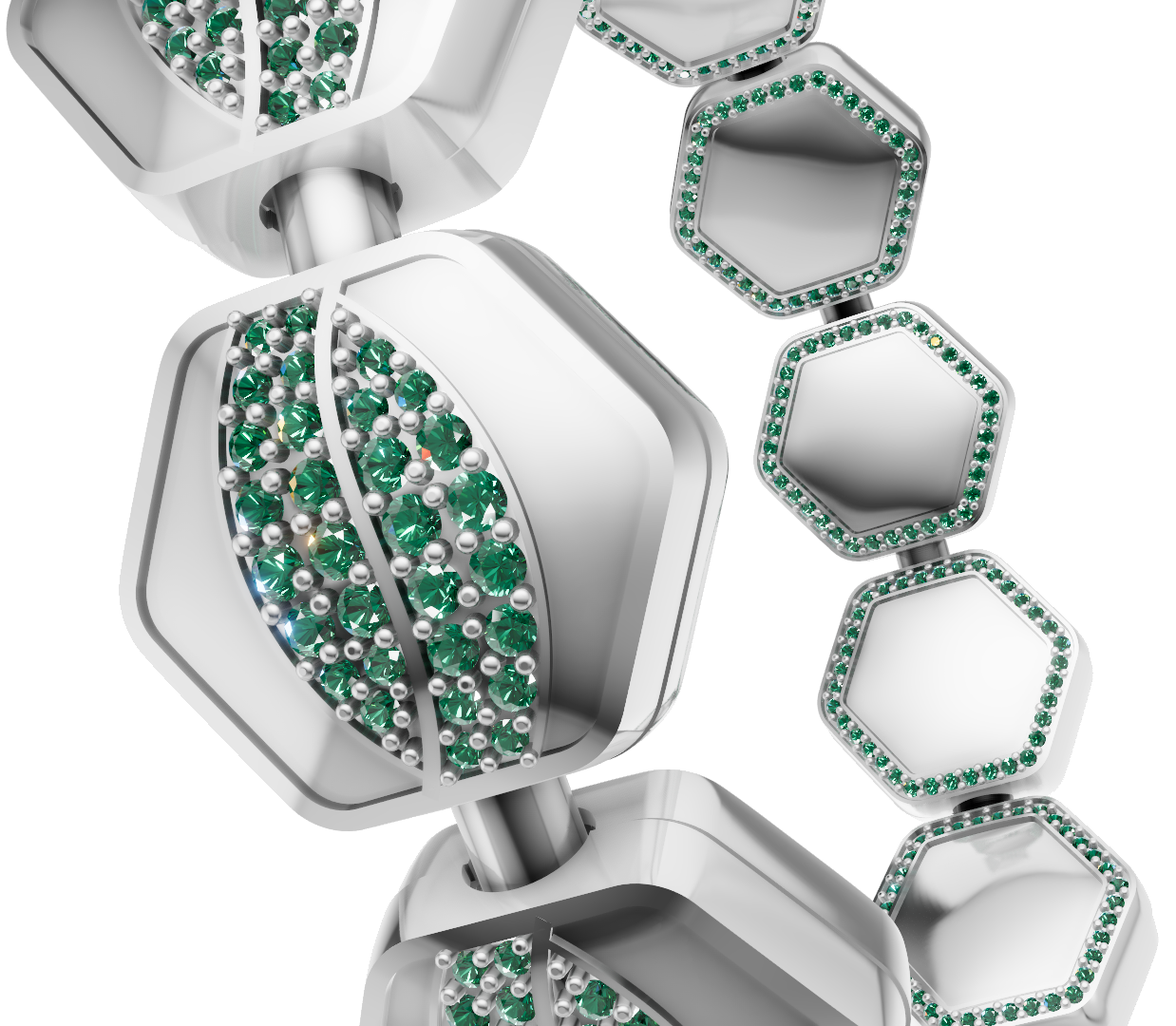

Micro-Stone Setting: Dense clustered pattern for enhanced surface brilliance
-
Balanced Proportions: Optimized thickness and width for comfort and durability
-
High Polish Finish: Clean surfaces suitable for gold casting and premium finishing
Manufacturing Notes
- Suitable for casting in gold, silver, or alloy metals
- Recommended tolerance adjustment for pin fitting: +0.02 to 0.05 mm
- Ensure proper cleaning of micro-setting areas before stone placement
- Ideal for CAD/CAM production and mass manufacturing
