Hiddent Lock Mechanisam Daimond Set pendent CAD FILE

Product Description:

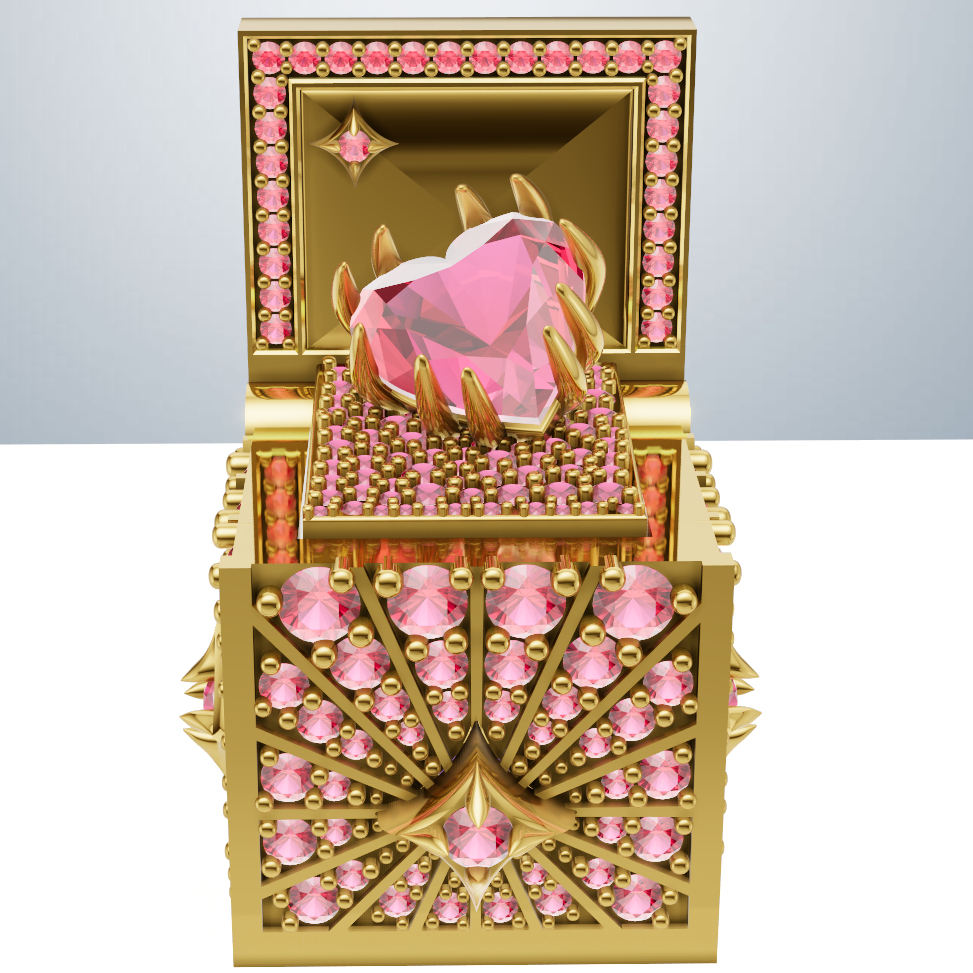

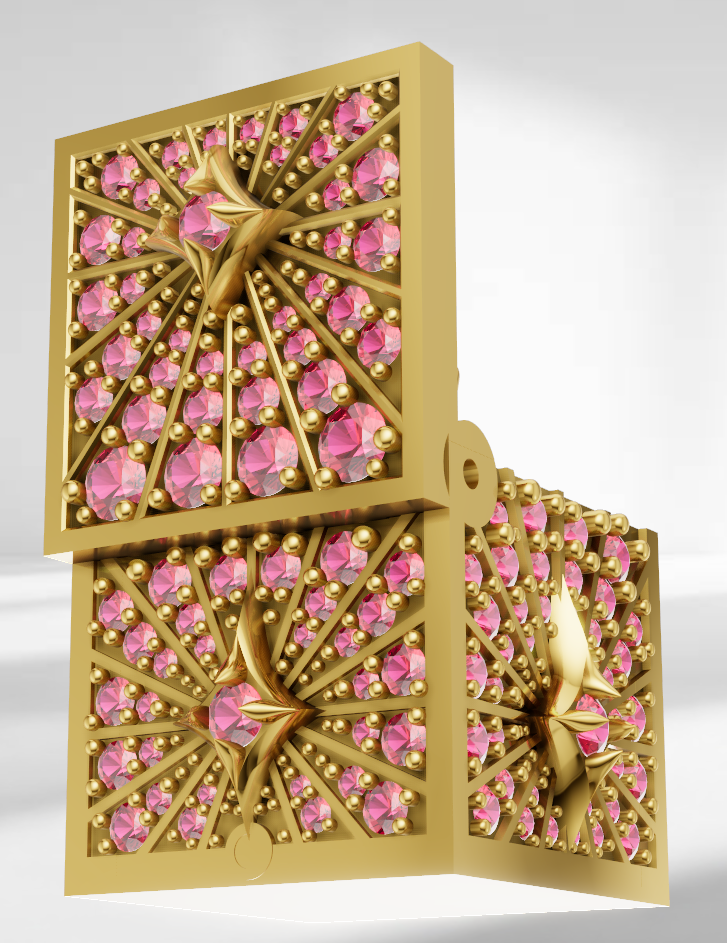

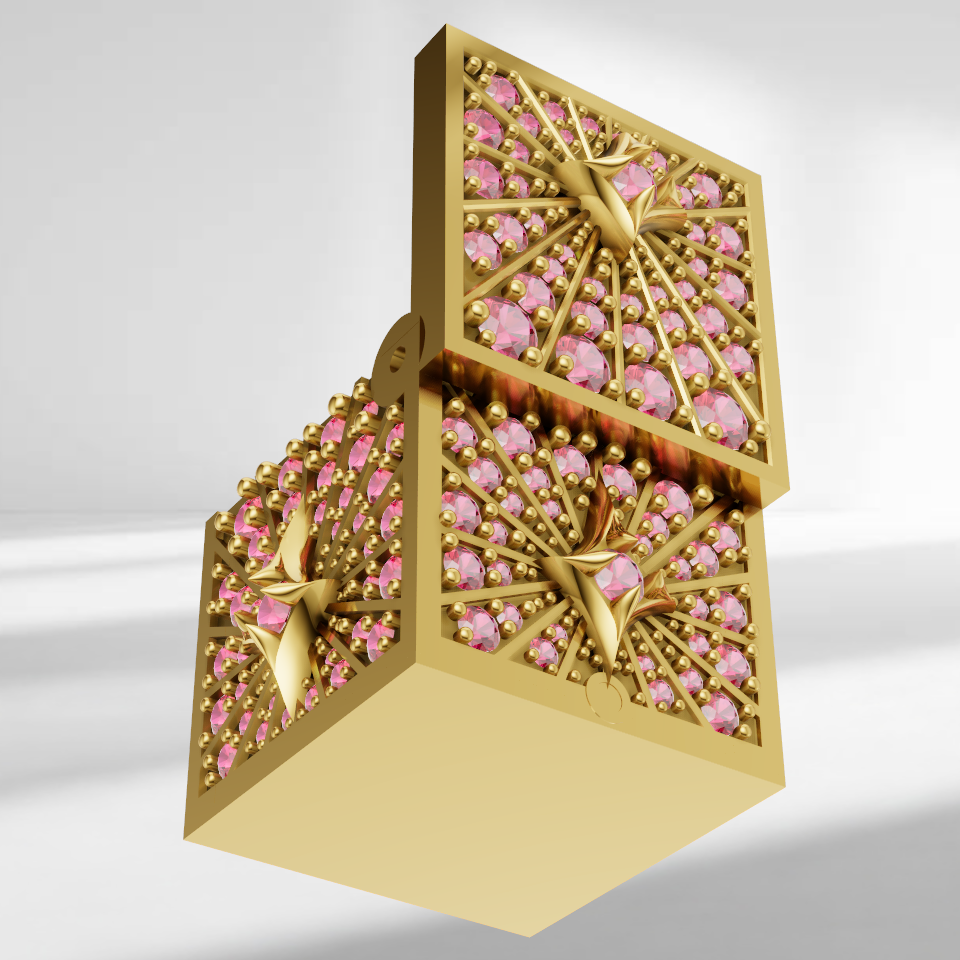

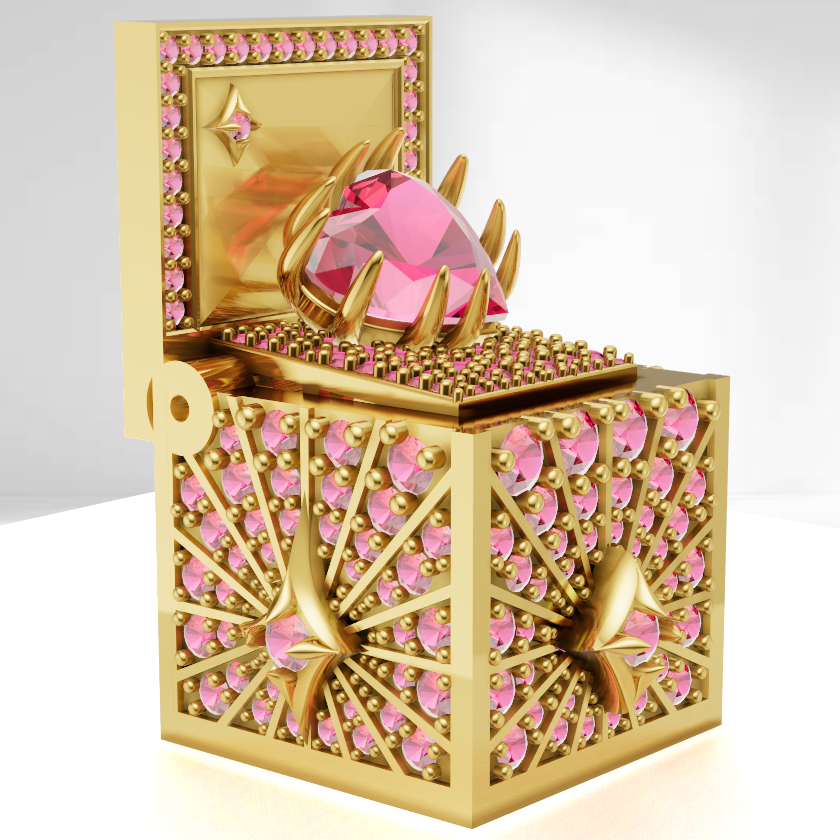

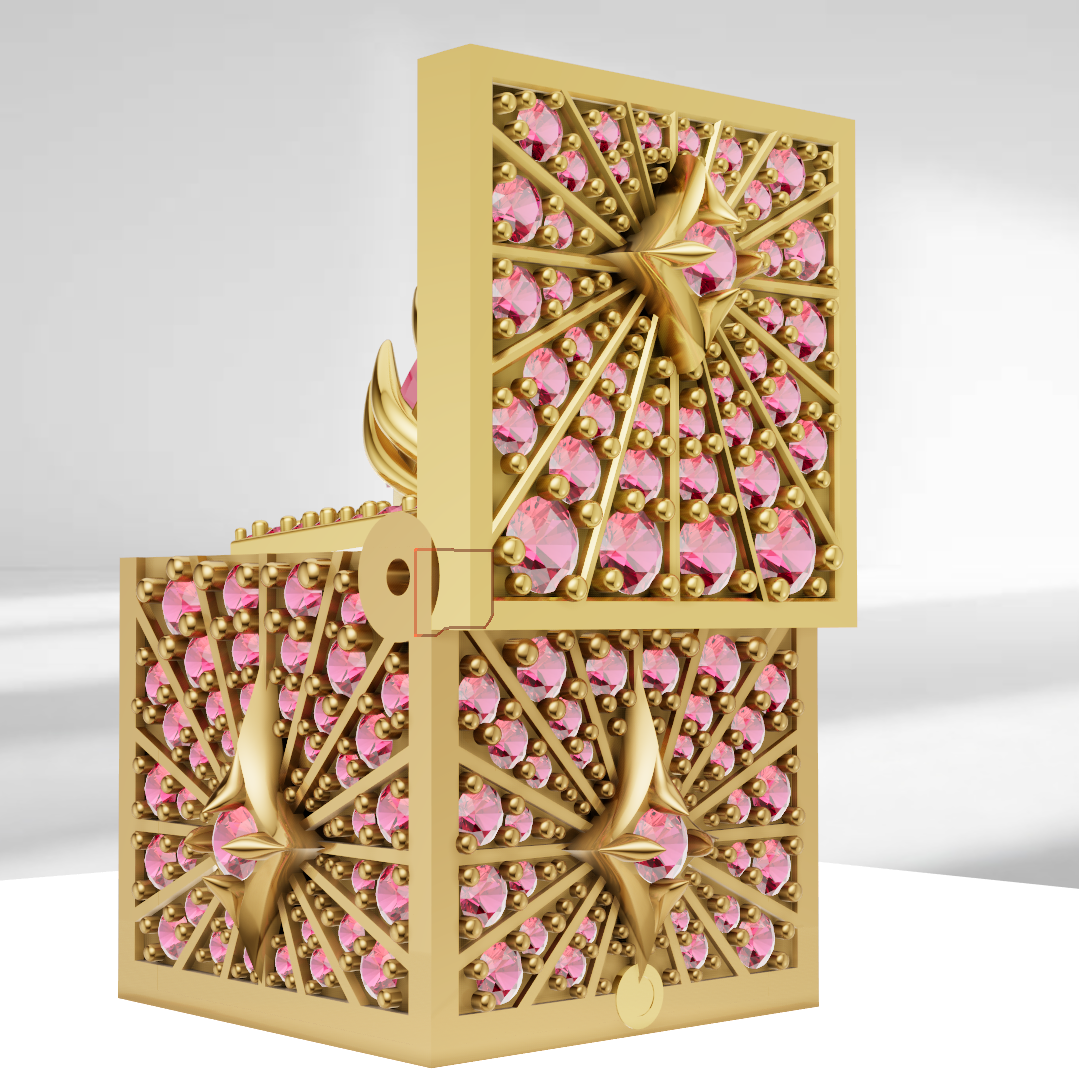

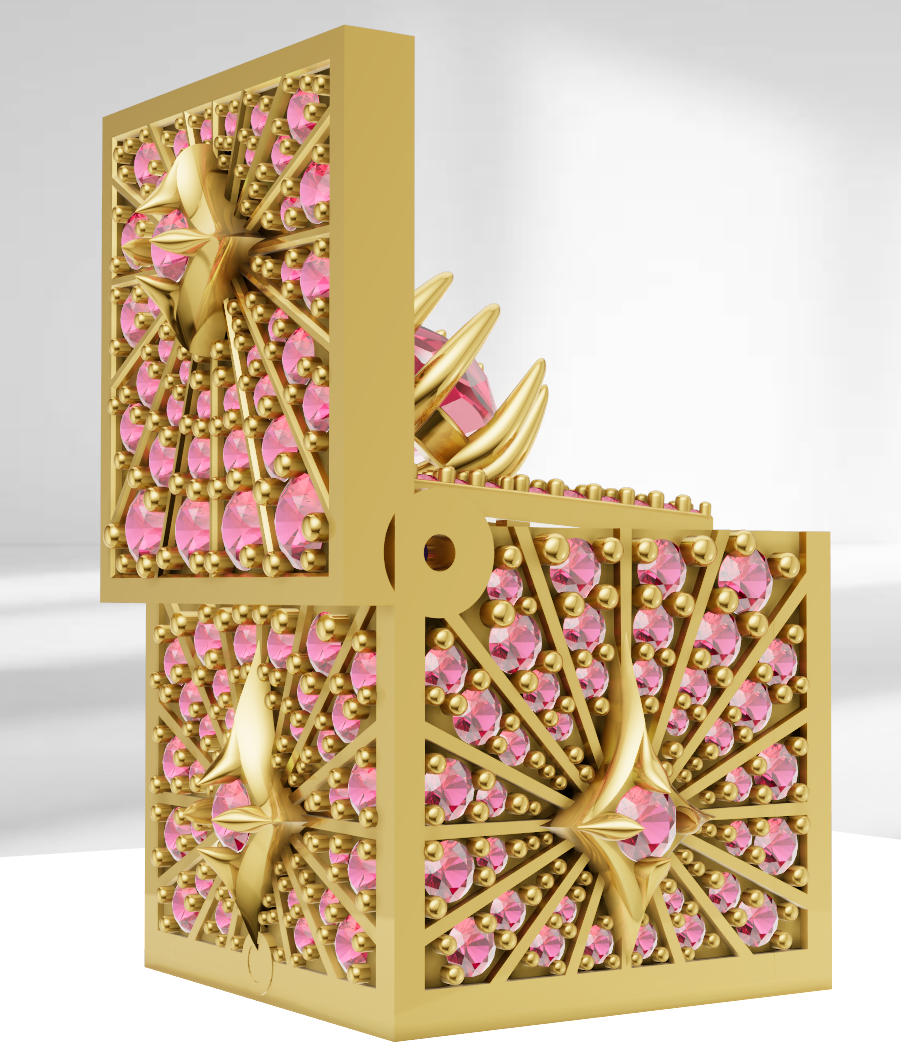

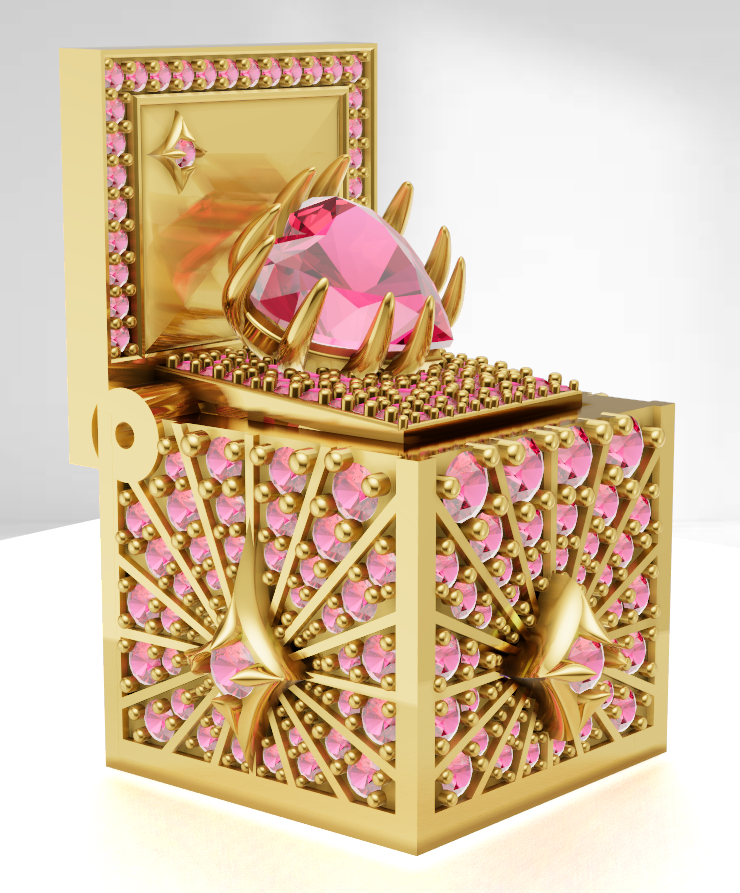

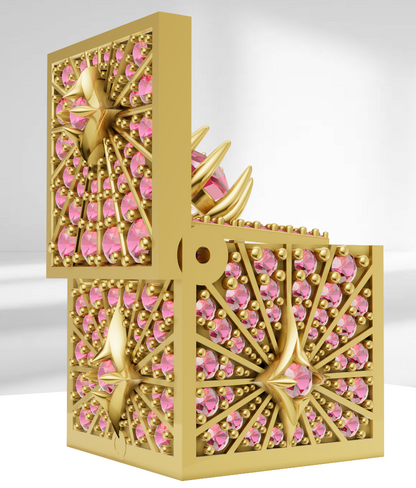

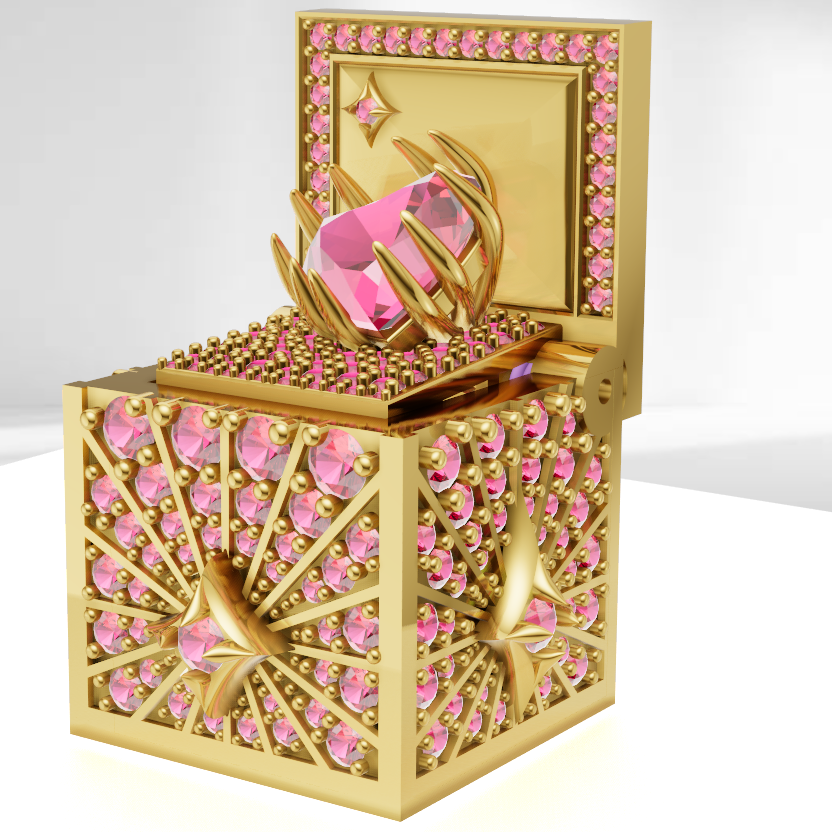

This premium CAD-designed hinged pendant features a bold square profile with intricate stone setting and a functional opening mechanism. The top surface showcases a detailed radial cluster pattern with precision-set round stones, centered around a geometric floral motif. Inside, a secure claw setting holds a prominent heart-shaped centerpiece, adding a unique hidden element to the design.

Crafted for both aesthetics and engineering precision, this piece combines luxury styling with mechanical functionality, making it suitable for high-end jewelry collections.

Measurements:

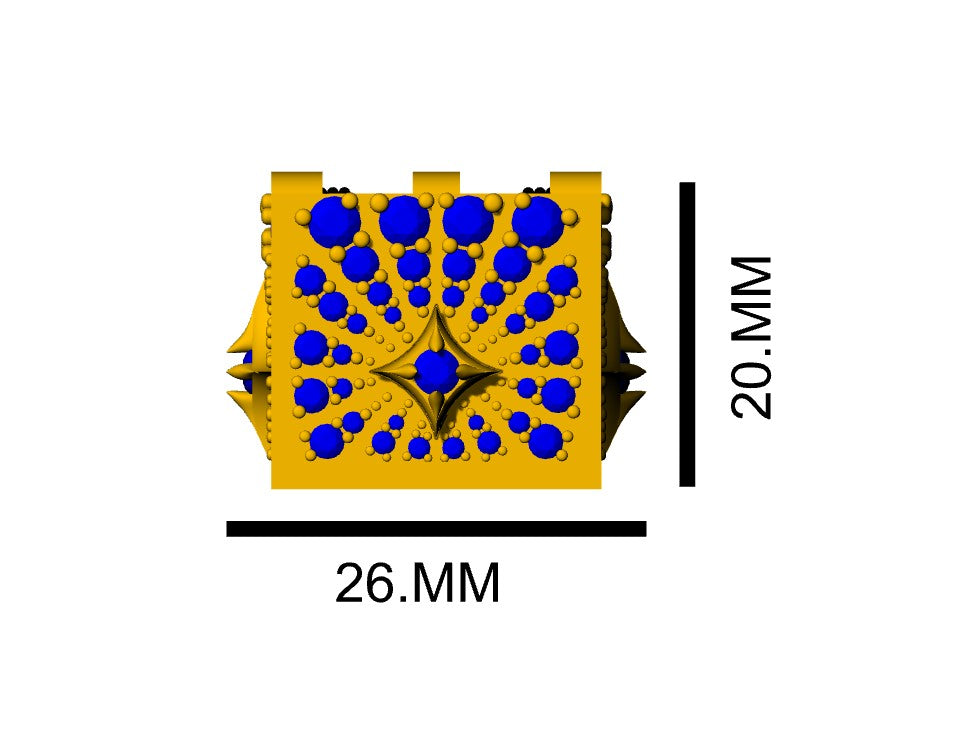

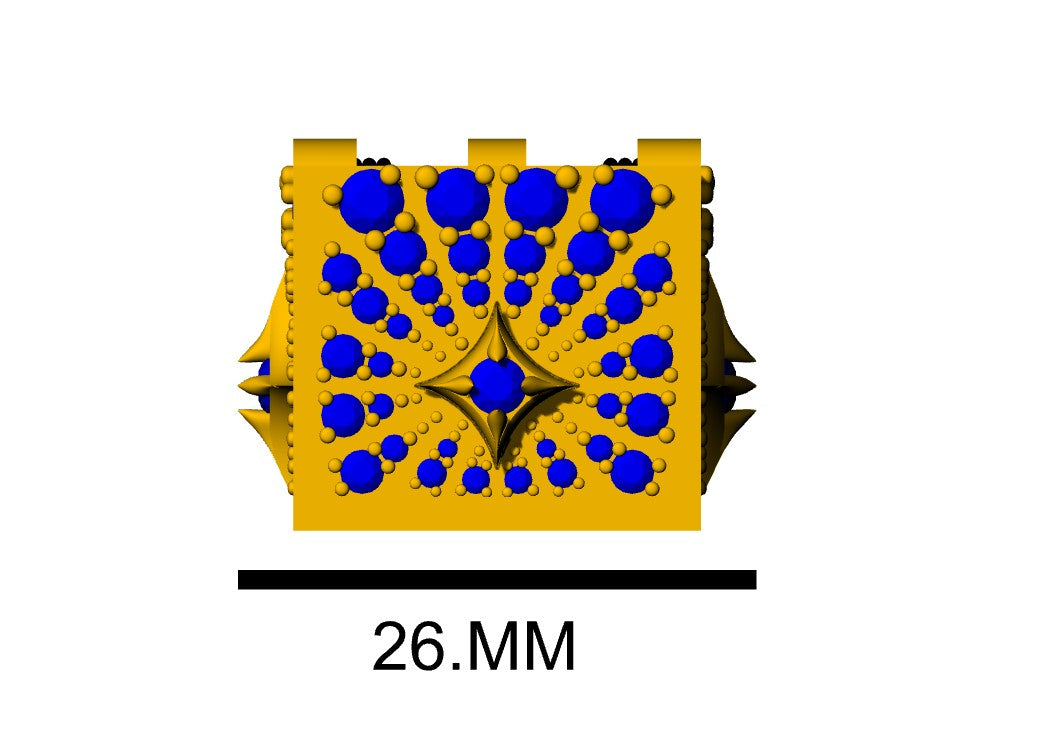

• Front Width: 26.00 mm
• Height (Closed): 20.00 mm

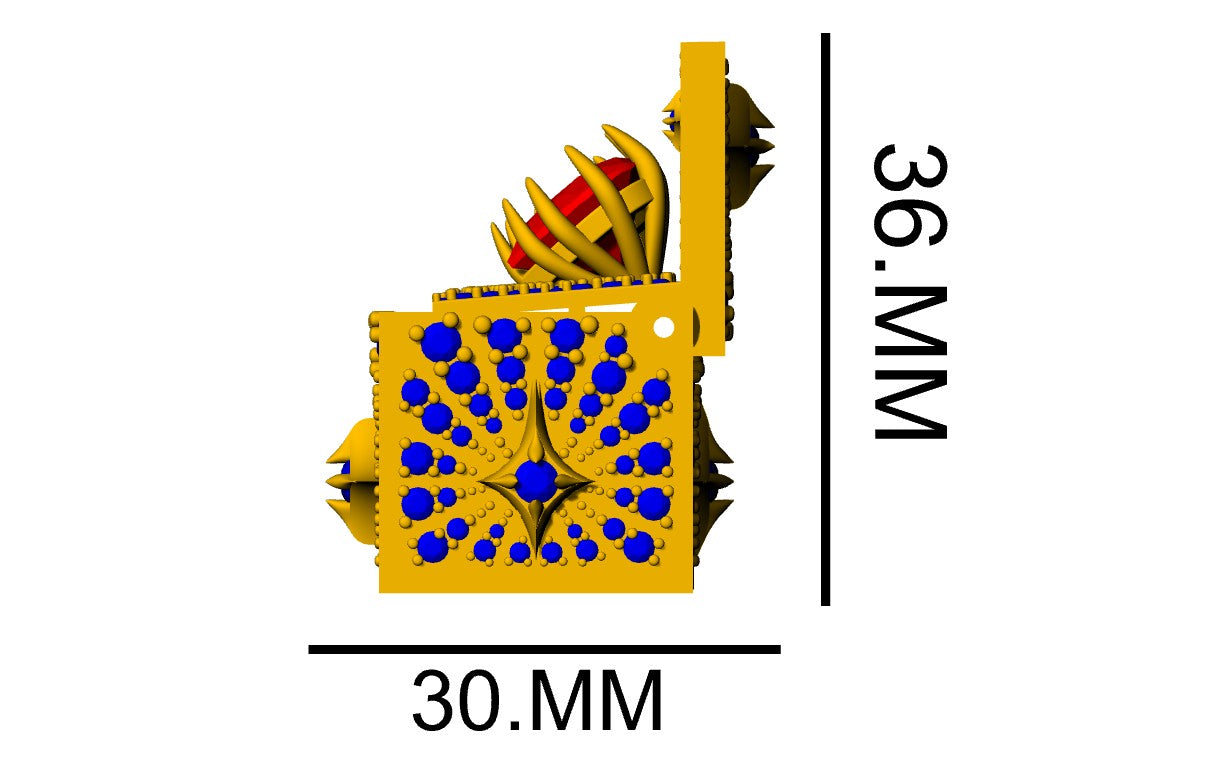

• Total Height (Open): 36.00 mm
• Total Length (Side View): 30.00 mm

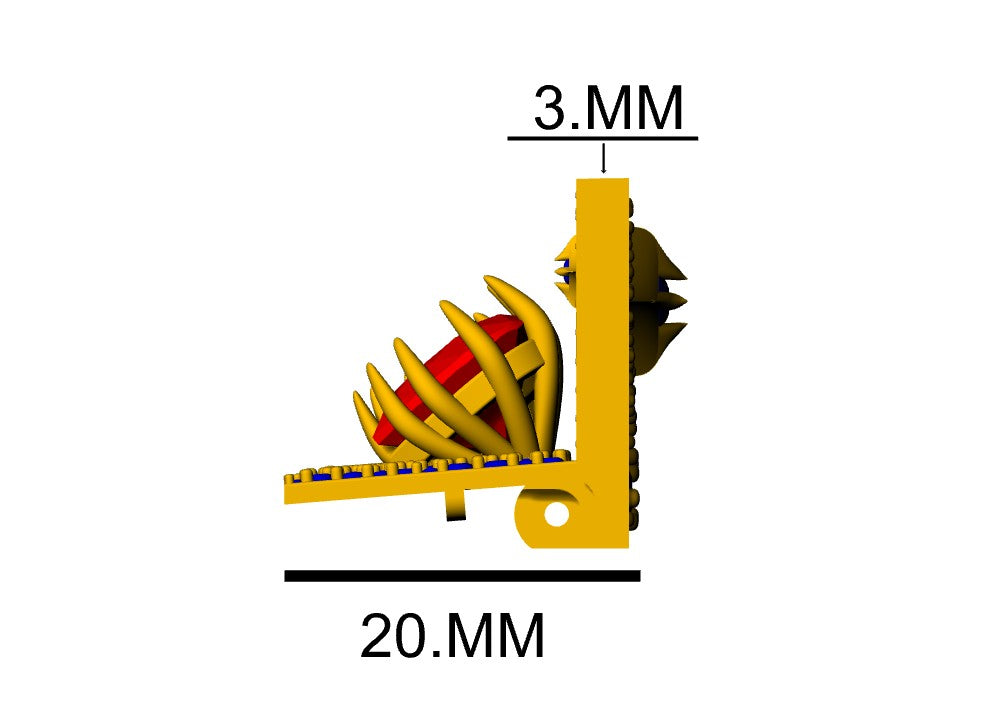

• Thickness: 3.00 mm

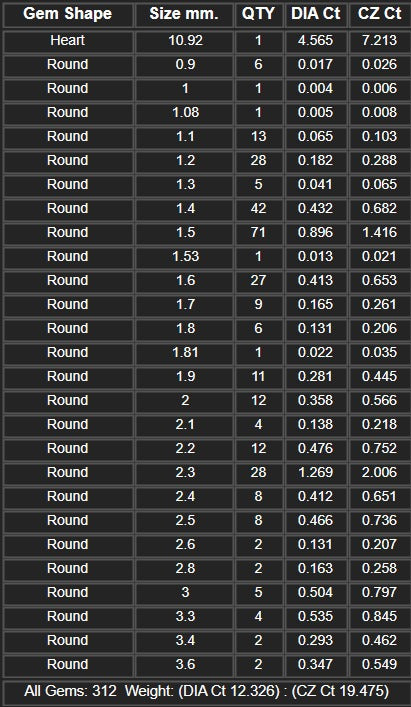

Stone Details:

• Total Stones: 312 pcs
• Center Stone:
  • Shape: Heart
  • Size: 10.92 mm
  • Qty: 1
  • Weight: 4.565 ct (Diamond) / 7.213 ct (CZ)
• Side Stones:
  • Shape: Round
  • Sizes Range: 0.9 mm – 3.6 mm
  • Multiple quantities for detailed cluster layout
• Total Stone Weight:
  • Diamond: 12.326 ct
  • CZ: 19.475 ct Gold wt =45 Gram .18

Key Features:

• Functional hinged opening mechanism
• High-density micro stone setting
• Symmetrical radial design layout
• Hidden center stone concept
• Suitable for diamond or CZ production
• Precision CAD ready for manufacturing
