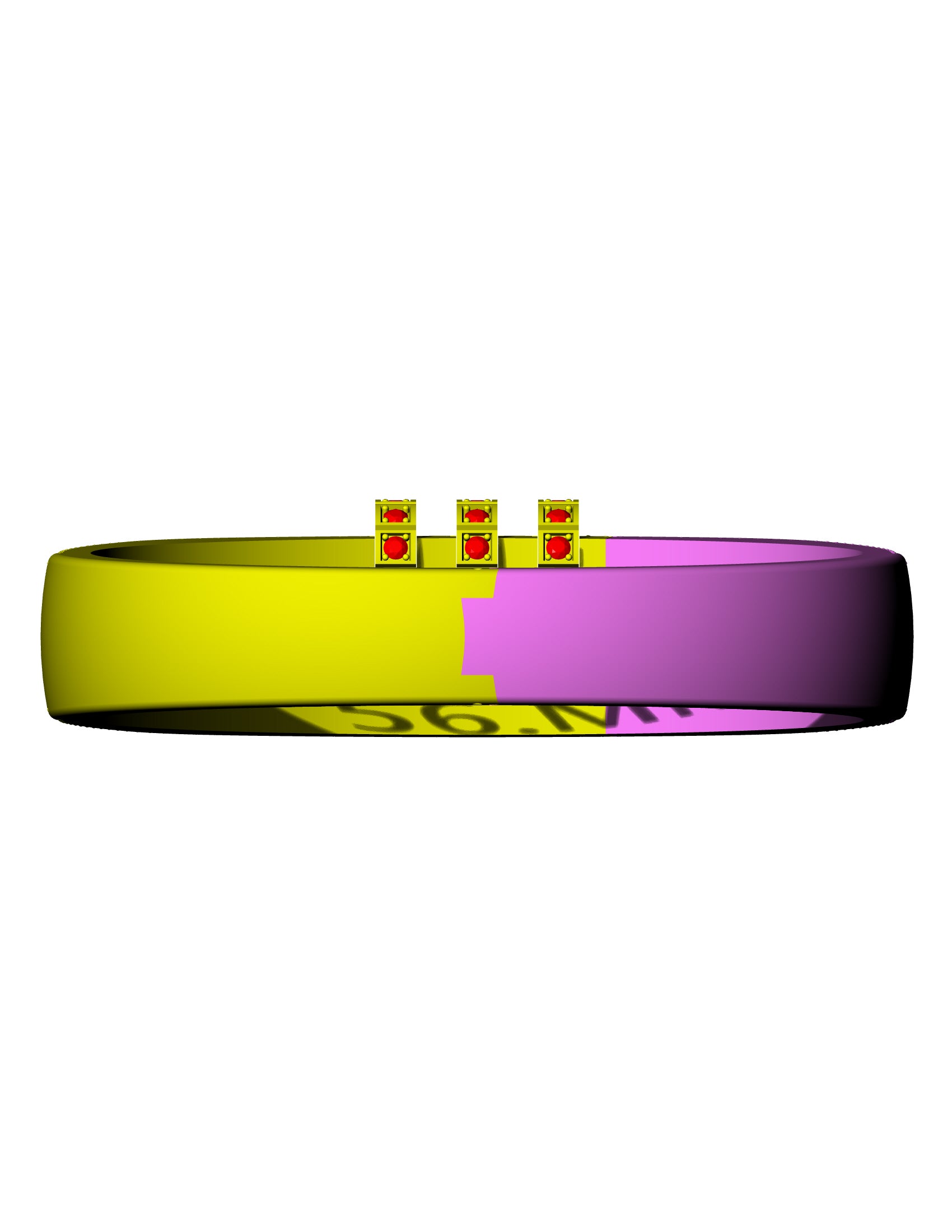

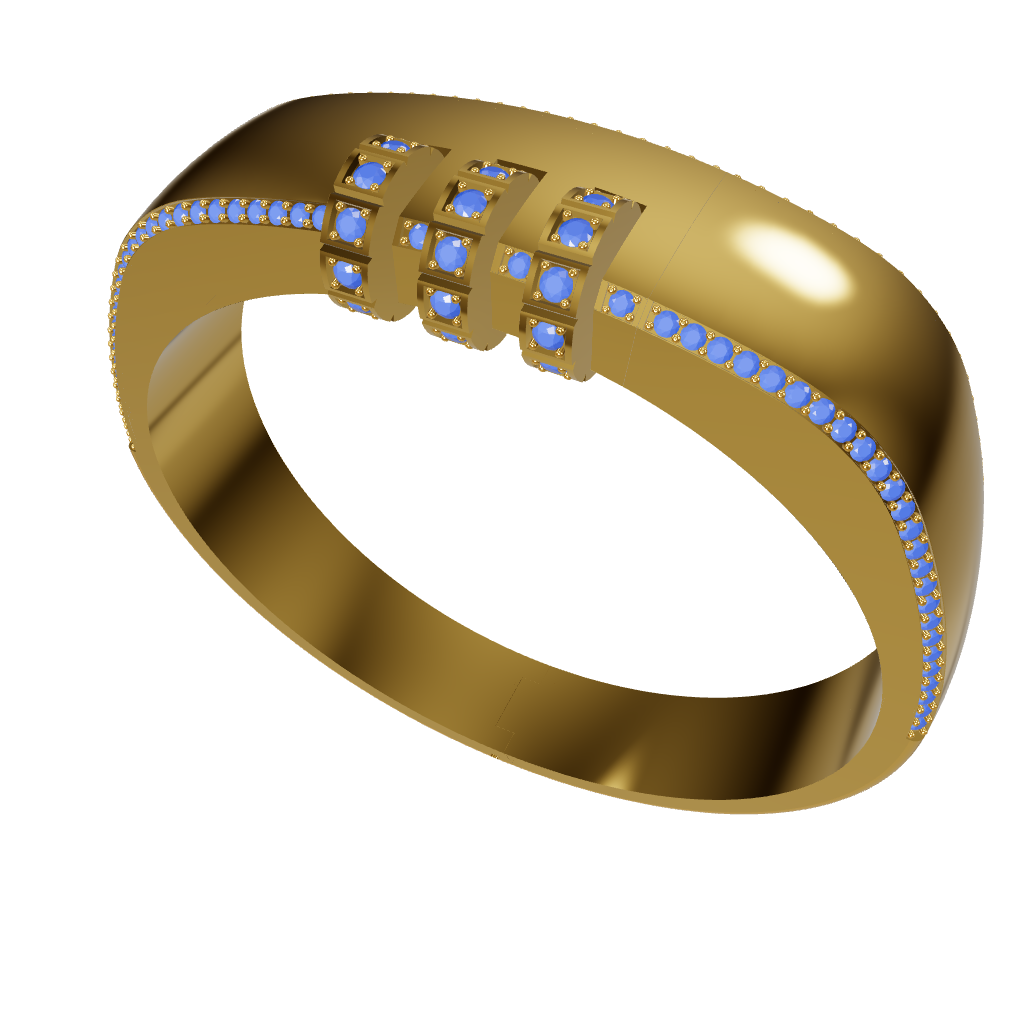

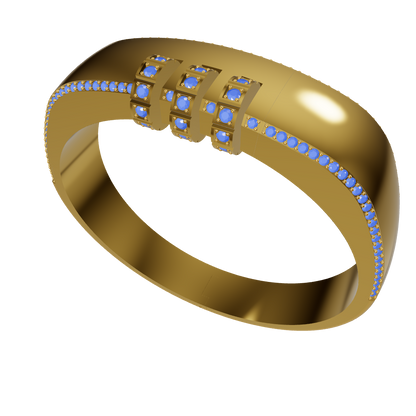

Number Lock Mechanism Diamond Bracelet CAD FILE

 Measurements

Bangle Size

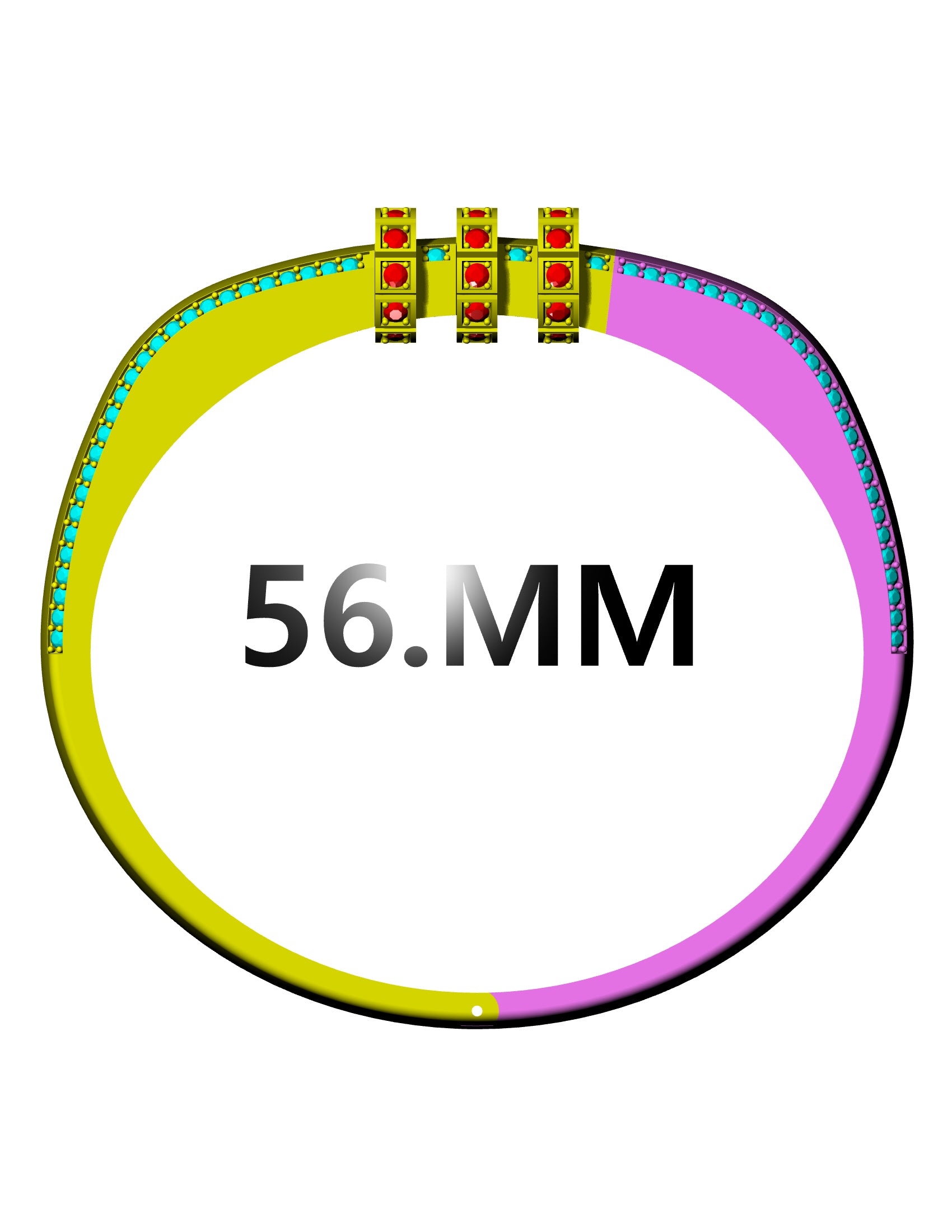

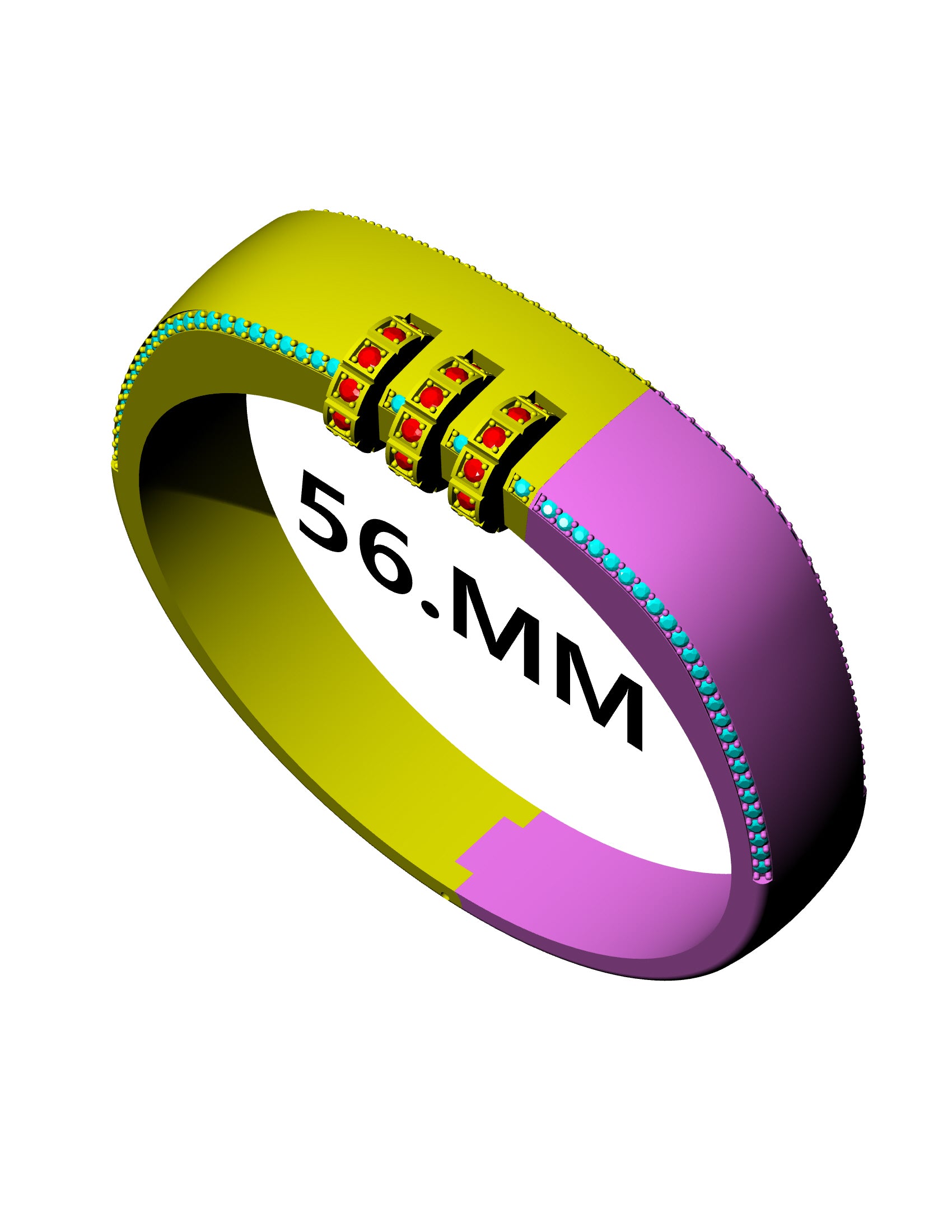

• Inner Diameter: 56.0 mm
• Type: Openable bangle with box-lock mechanism
• Fit: Standard wrist fit

Bangle Structure

• Profile Shape: Round
• Construction: Two-part openable bangle
• Lock Type: Triple box safety lock (center alignment)



  Top / Lock Area



  • Lock Width: Approx. 8.0–9.0 mm
  • Lock Length: Approx. 12.0–14.0 mm
  • Stone Setting on Lock: Prong / channel combination

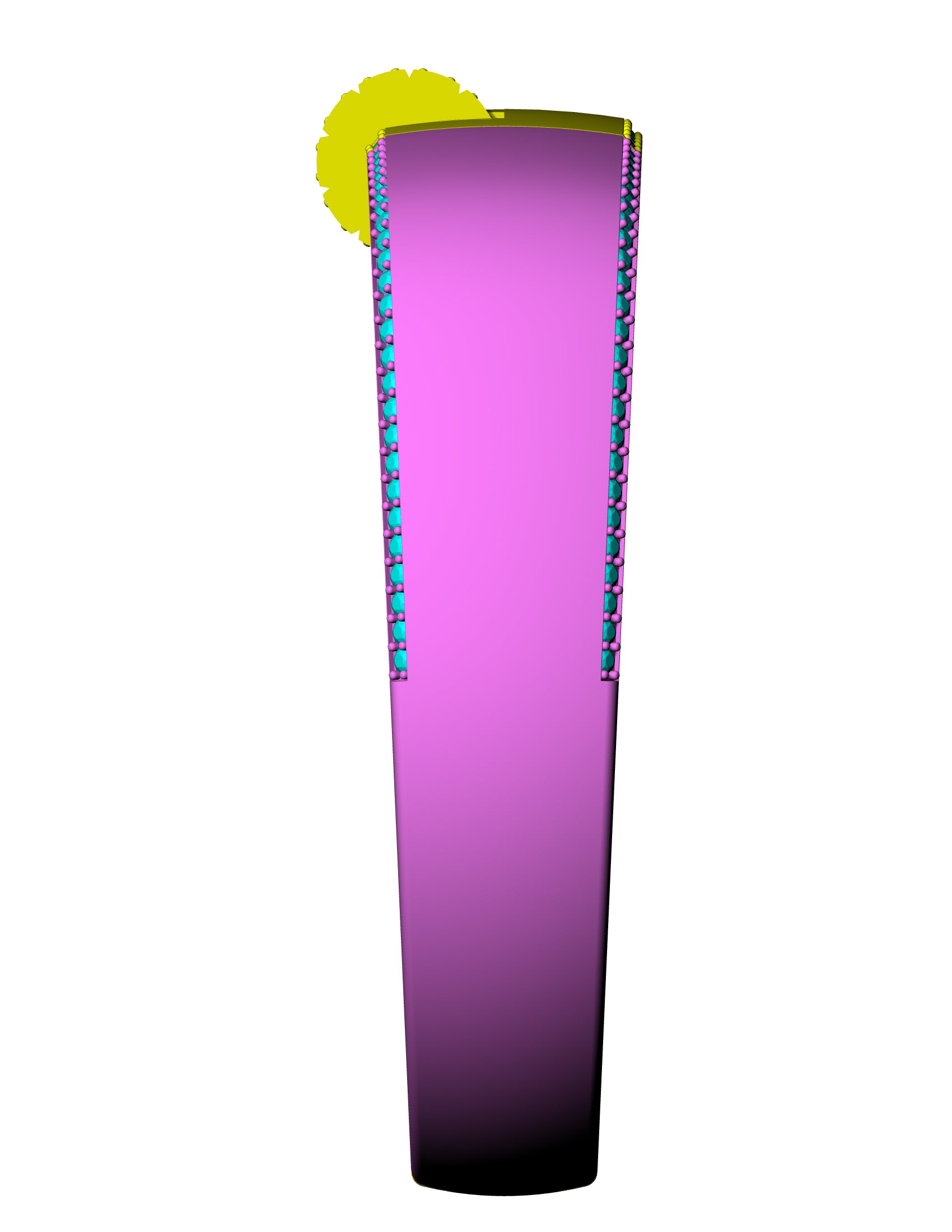

  Band Dimensions Average Band Width: Approx. 5.5–6.0 mm




  • Band Thickness: Approx. 2.8–3.0 mm
  • Inner Comfort: Smooth comfort-fit inner surface



    Gold Details





    • Gold Type: Yellow Gold (CAD color representation)
    • Available Purity: 18KT / 22KT (customizable)
    • Finish: High polish



    Manufacturing Notes






    • CAD model optimized for casting and stone setting
    • Suitable for daily wear openable bangle category
    • Design allows customization in size, gold purity, and stone quality



      Diamond Details (As per CAD Report)





      • Diamond Shape: Round
      • Total Diamond Count: 147 pcs
      • Total Diamond Weight: 1.86 ct







      Stone Breakup





      1. 1.40 × 1.40 mm

      • Quantity: 117 pcs
      • Total Weight: 1.20 ct
      3. 1.80 × 1.80 mm

      • Quantity: 30 pcs
      • Total Weight: 0.66 ct
