This premium Jewelry CAD File Collection features a curated range of luxury hardware-style, lock, T-bar, and knot-inspired jewelry designs, professionally engineered for real-world manufacturing. Each model is created with precise dimensions, accurate gold weight distribution, and detailed diamond layouts to ensure smooth casting, efficient stone setting, and high-quality finishing.
The collection includes bracelets, bangles, rings, necklaces, and pendants in both plain gold and diamond-set variations. All CAD files are production-ready and suitable for commercial jewelry manufacturing as well as private-label collections.
Design Highlights
Modern hardware-style aesthetics
Minimalist lock and T-bar structures

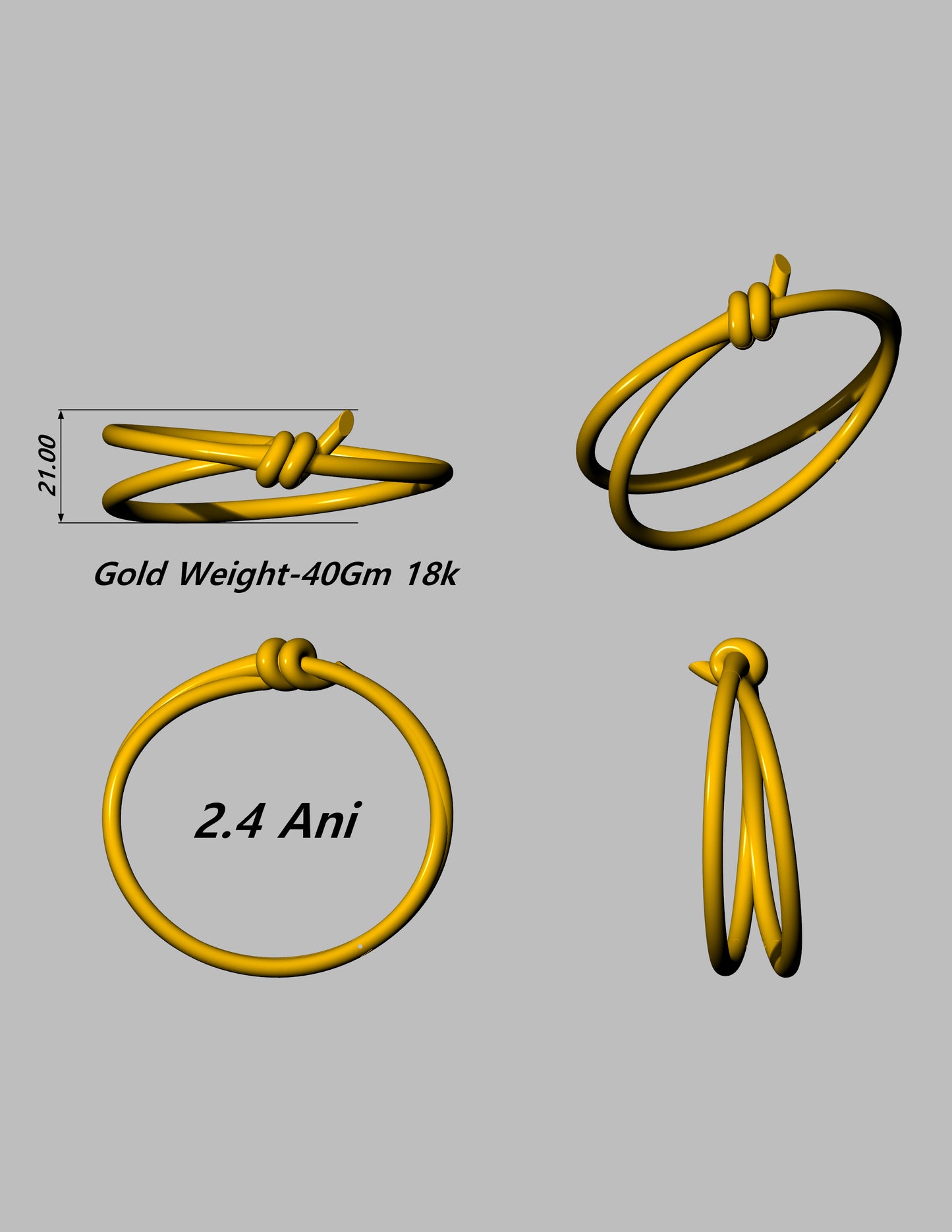

Elegant knot-inspired forms
Plain, one-side diamond, and full pavé options
Technical Details
File Format: 3DM
Software Compatibility: Rhino / Matrix
Manufacturing Status: Ready-to-cast
Gold Purity Support: 14K / 18K / 22K
Stone Type: Round diamonds
Setting Styles: Pavé, micro-pavé, channel
Wall Thickness: Casting-safe and polish-ready
Gold Weight & Size Information
Gold weights range from 6 gm to 65 gm, depending on design and size
Bangle sizes include 2.3 Ani, 2.4 Ani, 2.6 Ani, and 2.7 Ani
Ring size provided as standard 12 No (fully editable)
Necklace and chain lengths are adjustable
All weights and sizes can be modified according to production requirements.
What You Will Receive
Original CAD files exactly as shown in the images
Accurate diamond size and stone count
Clean geometry optimized for casting and setting
Files suitable for direct manufacturing
Customization (Optional)
Size adjustment (ring, bangle, bracelet)
Gold weight optimization
Diamond size or density modification
Metal color changes (yellow, white, rose gold)
Usage & License
These CAD files are licensed for jewelry manufacturing and production use only. Physical jewelry production is permitted. Resale, sharing, or redistribution of the CAD files is strictly prohibited.
