Mechanism Lock Pendant 3DM & STL CAD FILE
Mechanism Lock Pendant 3DM & STL CAD FILE
Regular price
Rs. 18,999.00
Regular price
Rs. 2,499.00
Sale price
Rs. 18,999.00
Shipping calculated at checkout.
JewelryCrafto
Couldn't load pickup availability
PRODUCT DESCRIPTION
Mechanism pendent :=

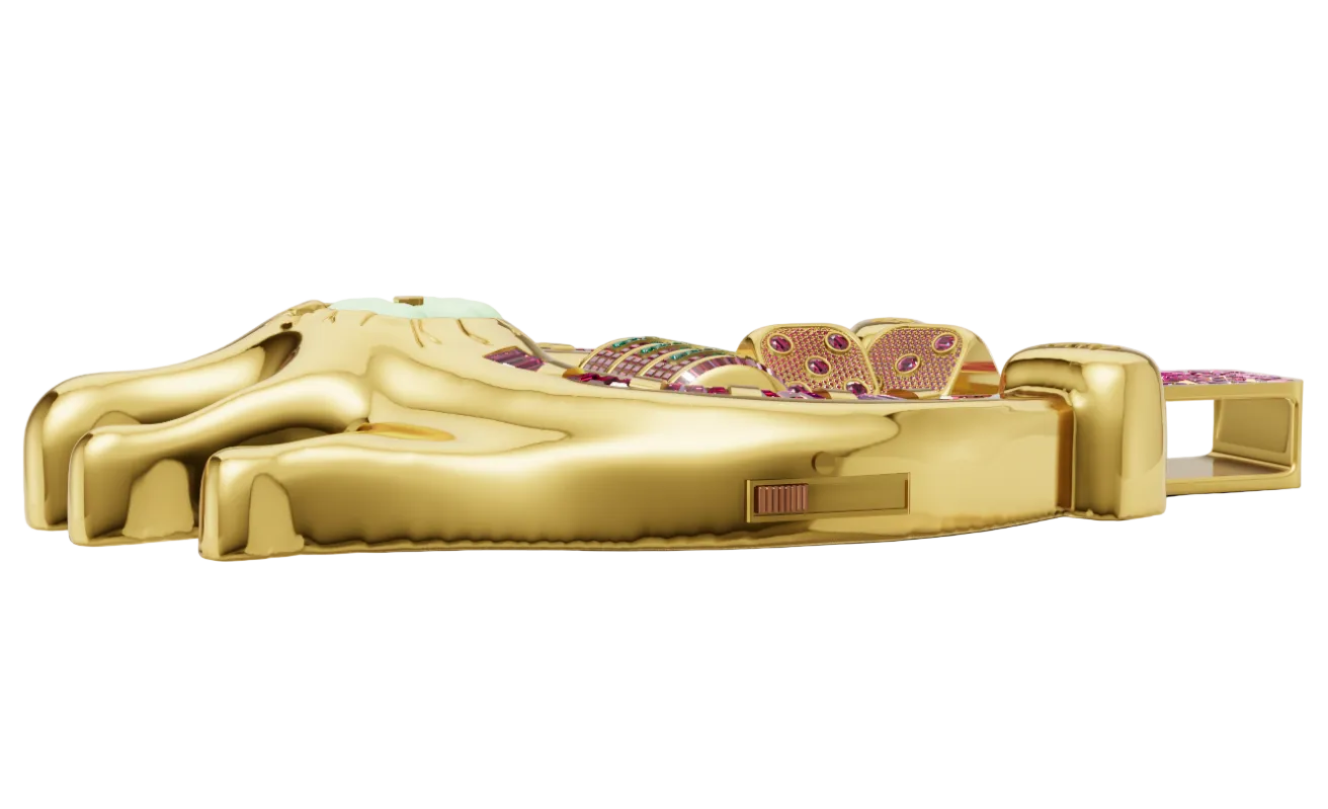

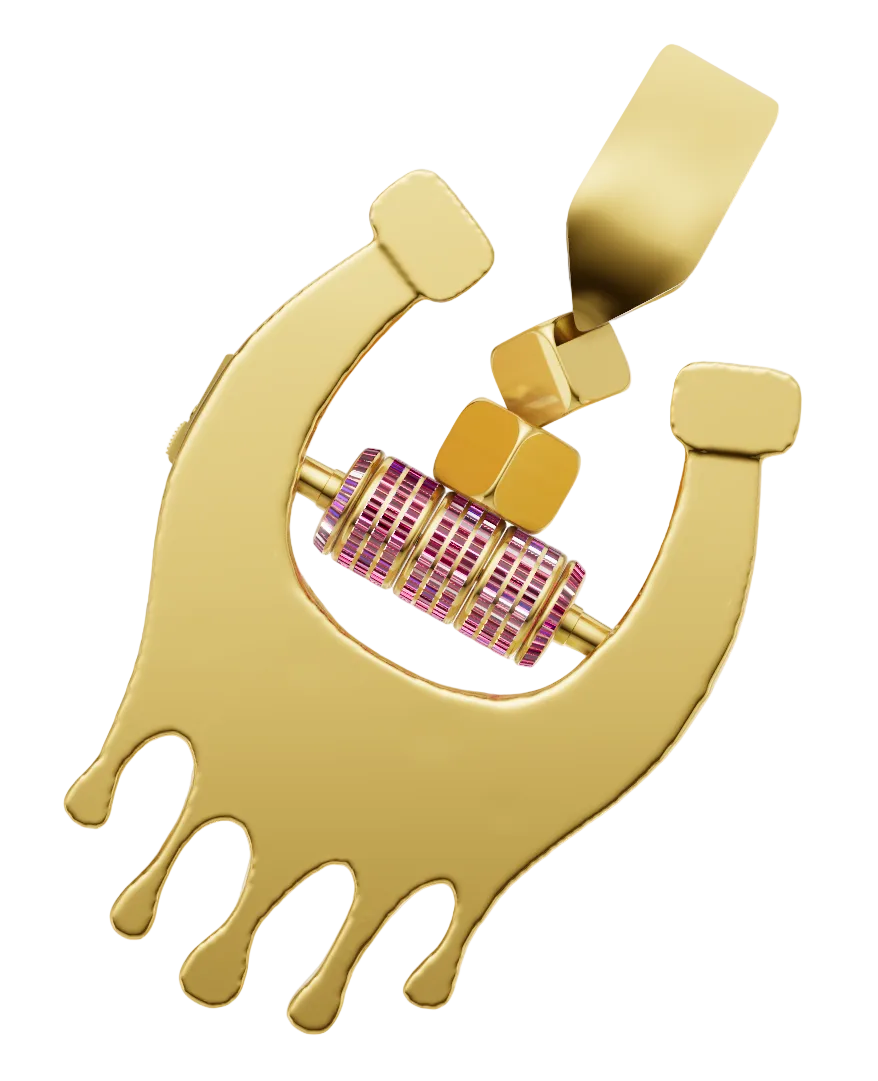

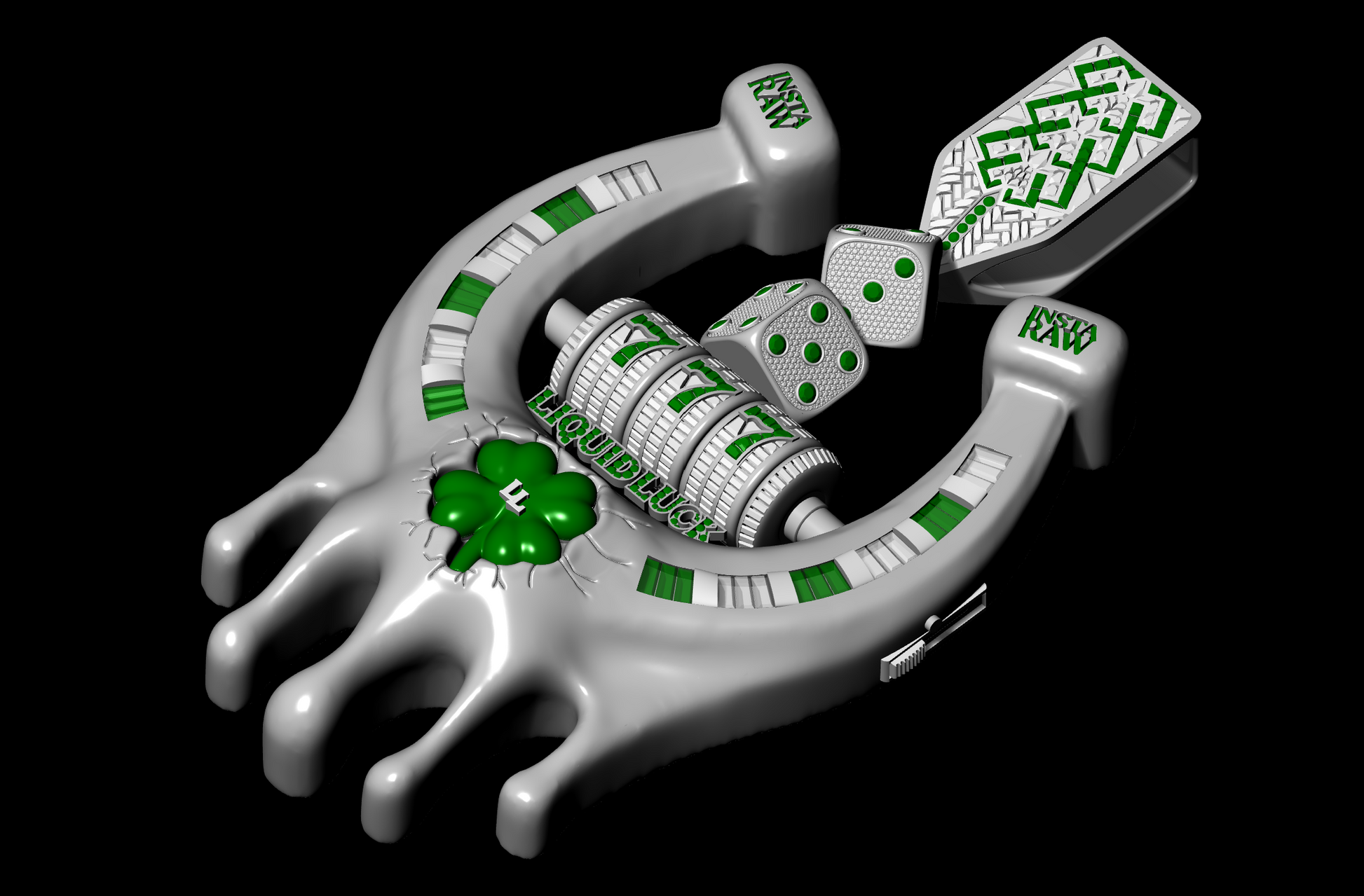

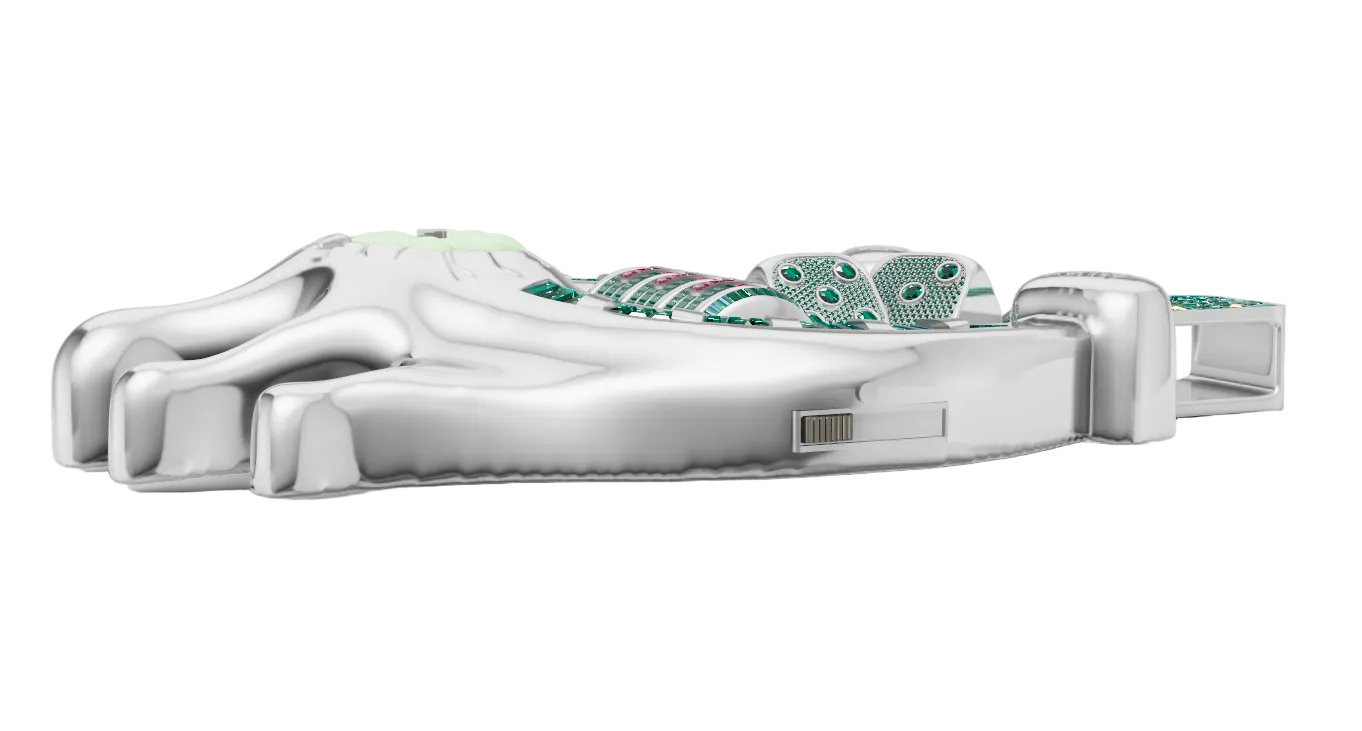

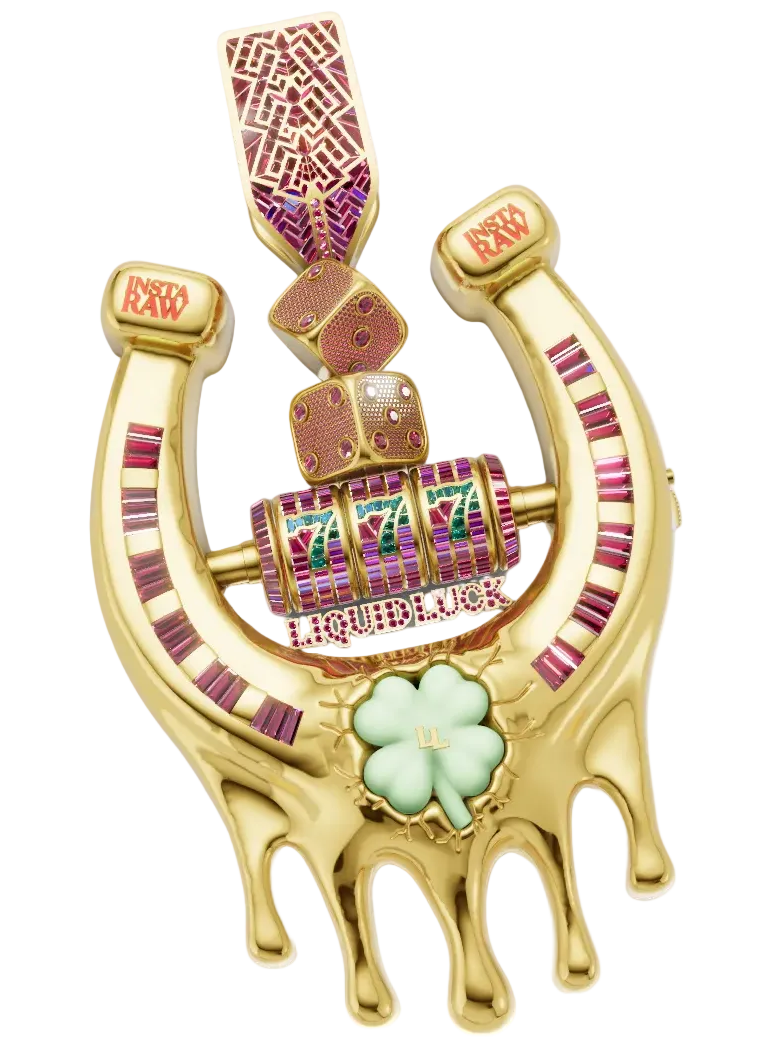

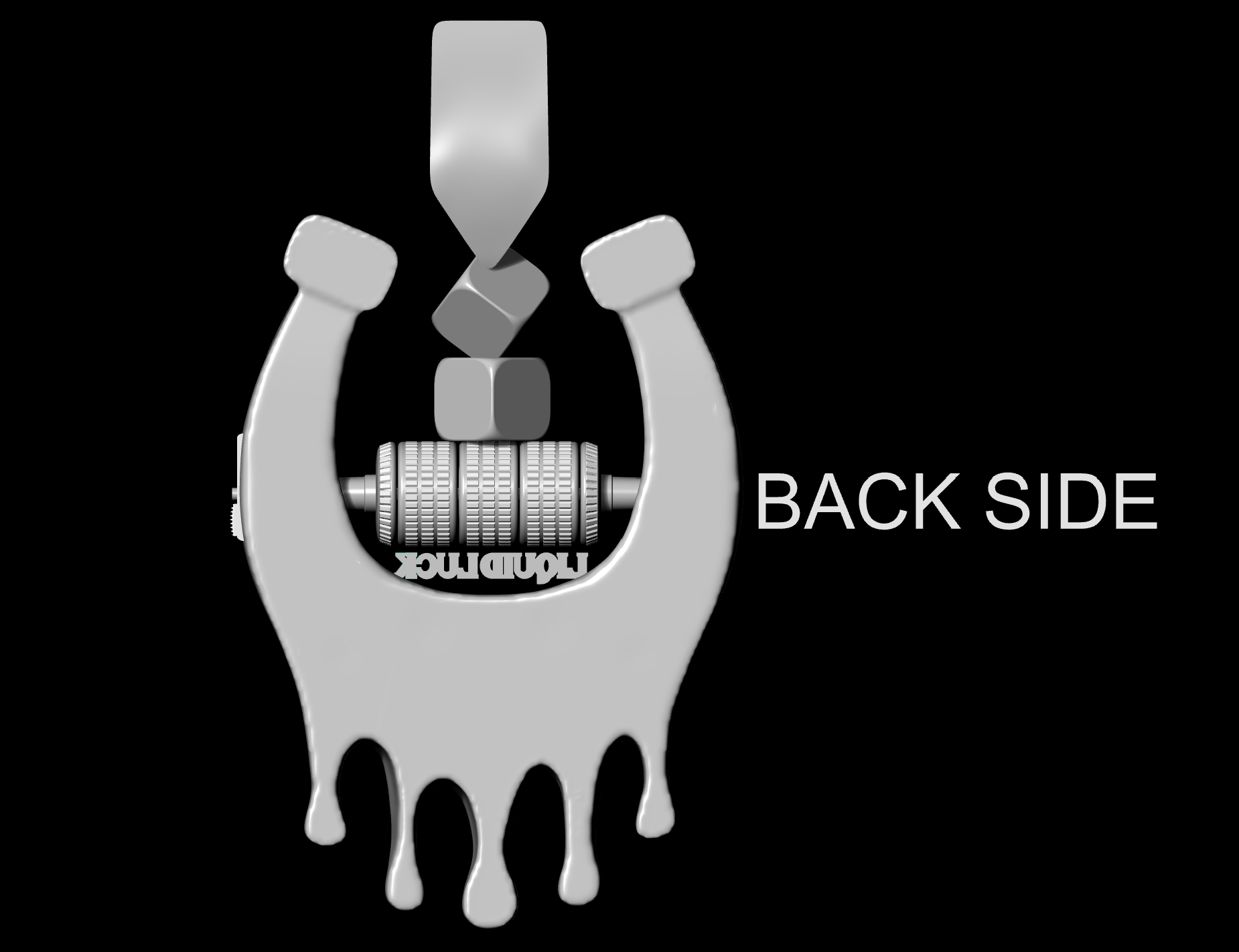

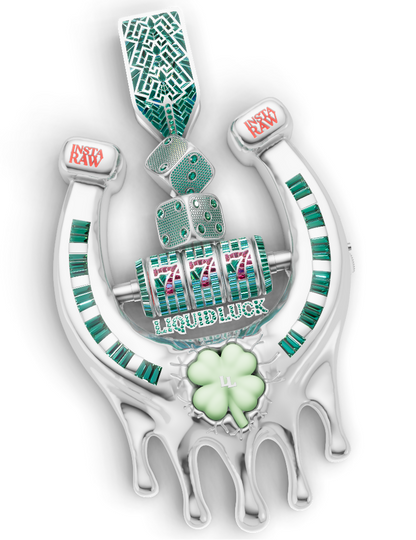

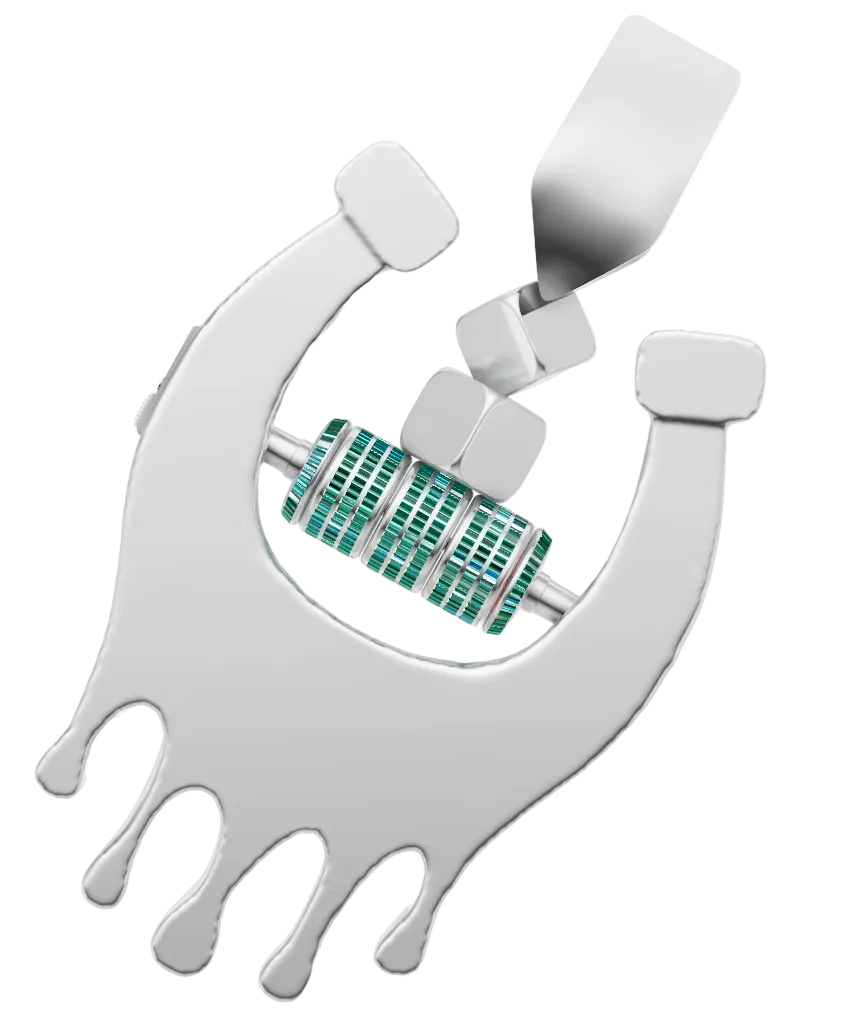

A highly detailed mechanical combination-lock pendant featuring a bold horseshoe-inspired frame, rotating combination mechanism, dice motifs, and a central lucky-clover element. The design combines luxury jewelry aesthetics with an interactive mechanical concept, making it suitable for a statement pendant or collectible jewelry piece.
Dimensions
| Component | Dimension |
|---|---|

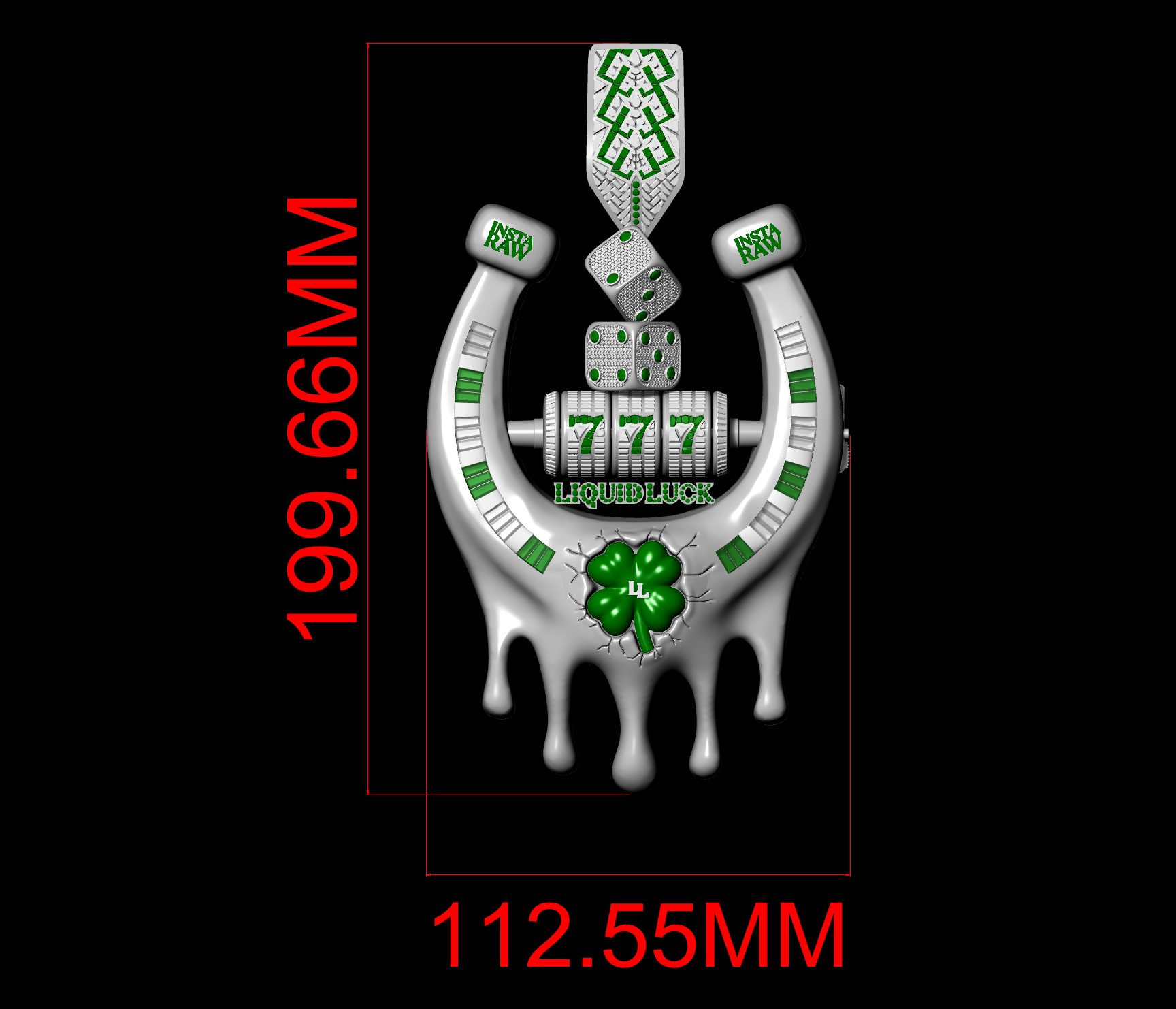

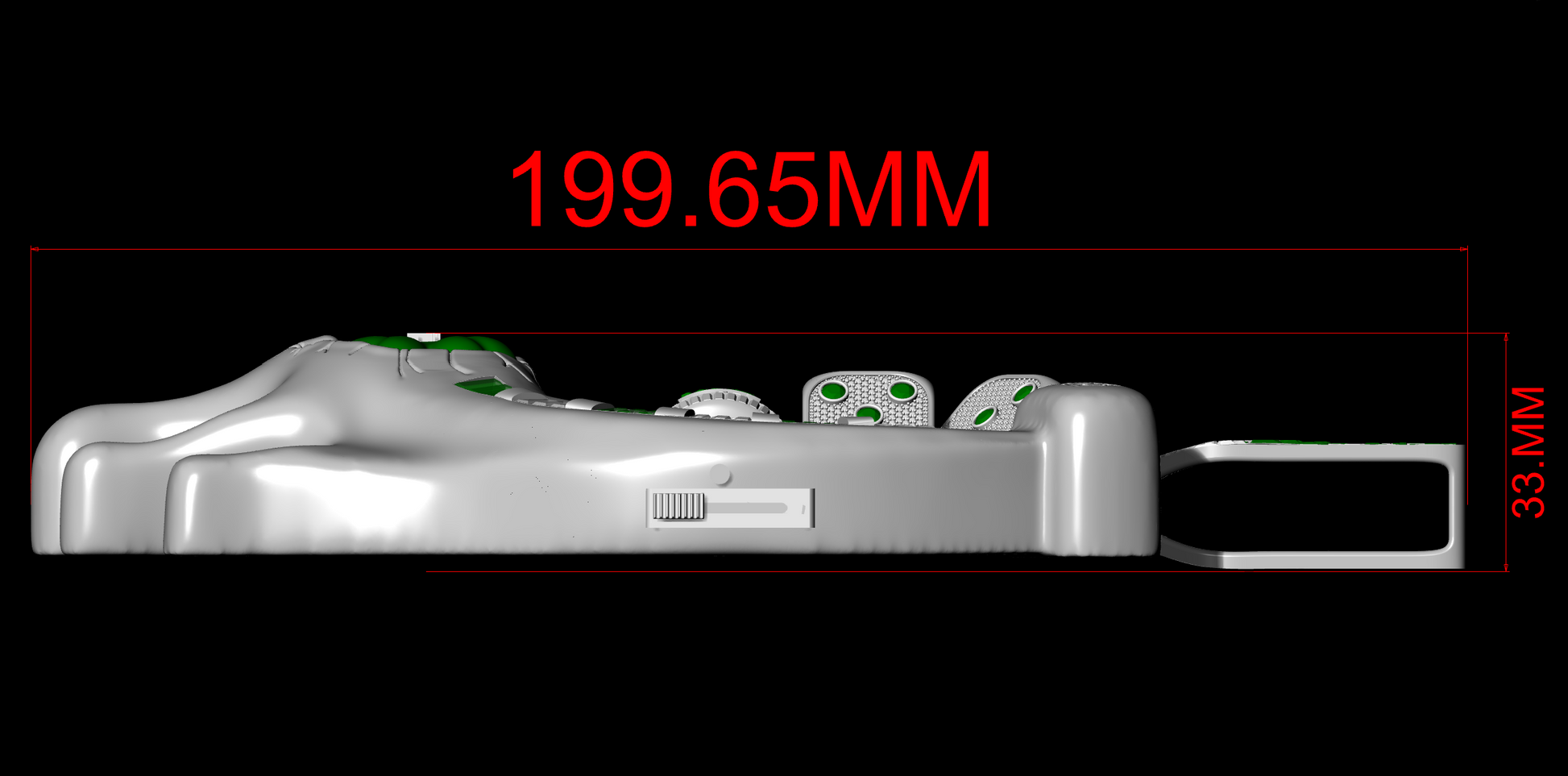

| Overall Pendant Height | 199.65 mm |
| Overall Pendant Width | 112.50 mm |

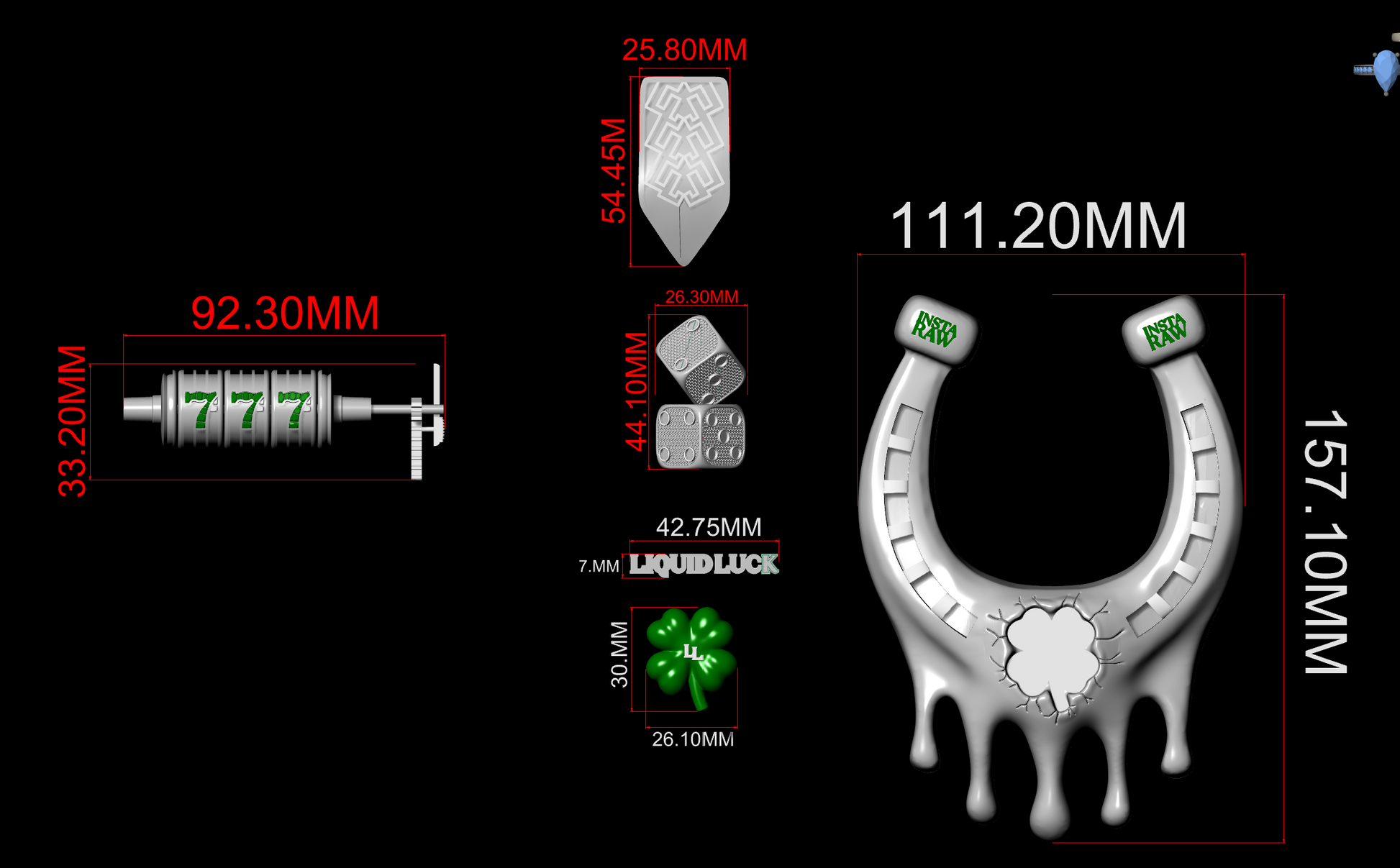

| Main Body Height | 157.10 mm |
| Main Body Width | 111.20 mm |
| Main Body Thickness | 33.00 mm |
| Top Bail | 25.80 × 54.45 mm |
| Combination Mechanism | 92.30 × 33.20 mm |
| Dice Assembly | 26.30 × 44.10 mm |
| “LIQUID LUCK” Detail | 42.75 × 7.00 mm |
| Clover Detail | 26.10 × 30.00 mm |
Stone Details
- Total Stones: 1,290 pcs
- Total Diamond Weight: 24.843 Ct
- Main Stone Shape: Baguette Straight & Round
- Baguette Sizes: Approximately 1.50–1.68 mm × 2.88–3.42 mm
- Round Stone Sizes: Approximately 0.50–1.52 mm
- Stone Setting: Channel / pavé-style arrangement

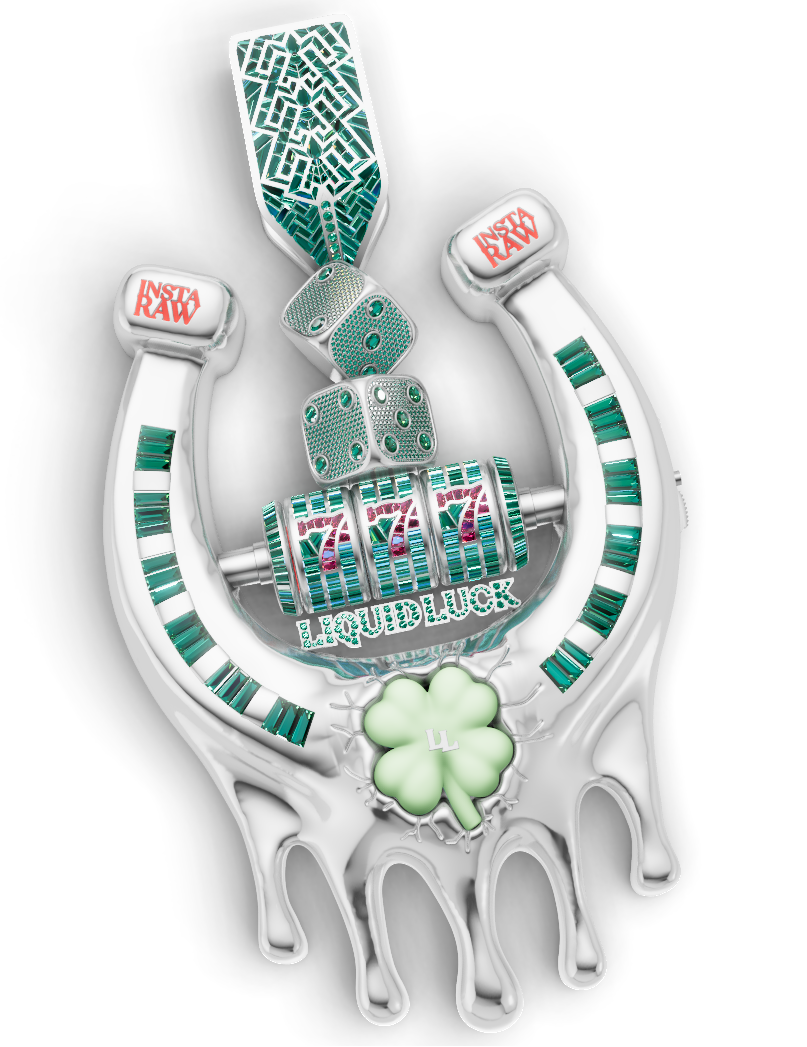

- Accent Stones: Green-colored stones shown in the CAD rendering
CAD File Details
- CAD Type: 3D Jewelry CAD Model
- Model: Fully detailed mechanical pendant assembly
- Suitable For: Jewelry manufacturing, prototyping, rendering and production development
- Recommended Files: 3DM / STL / STEP depending on production requirement
