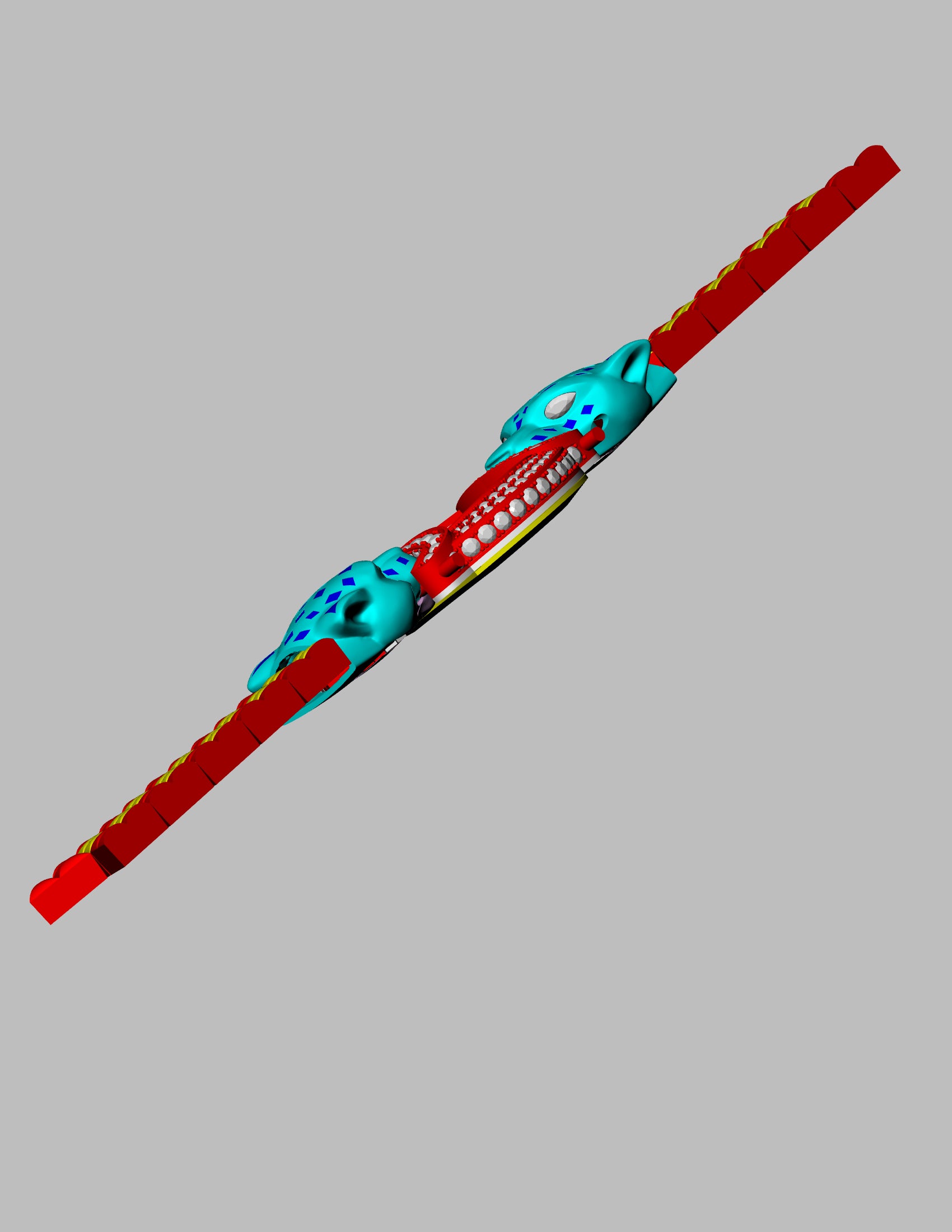

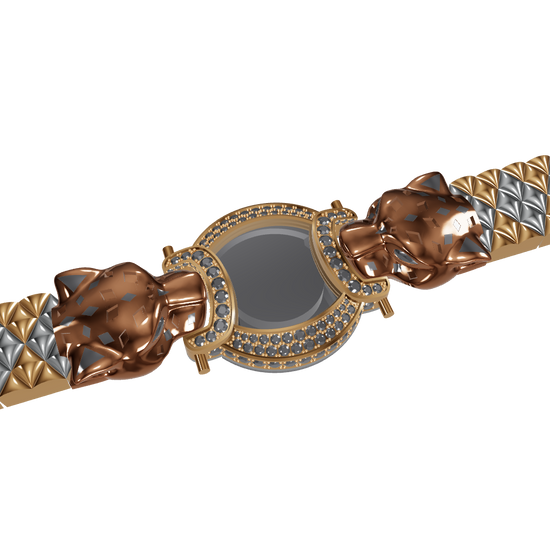

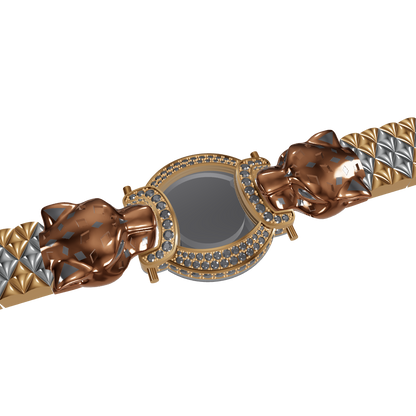

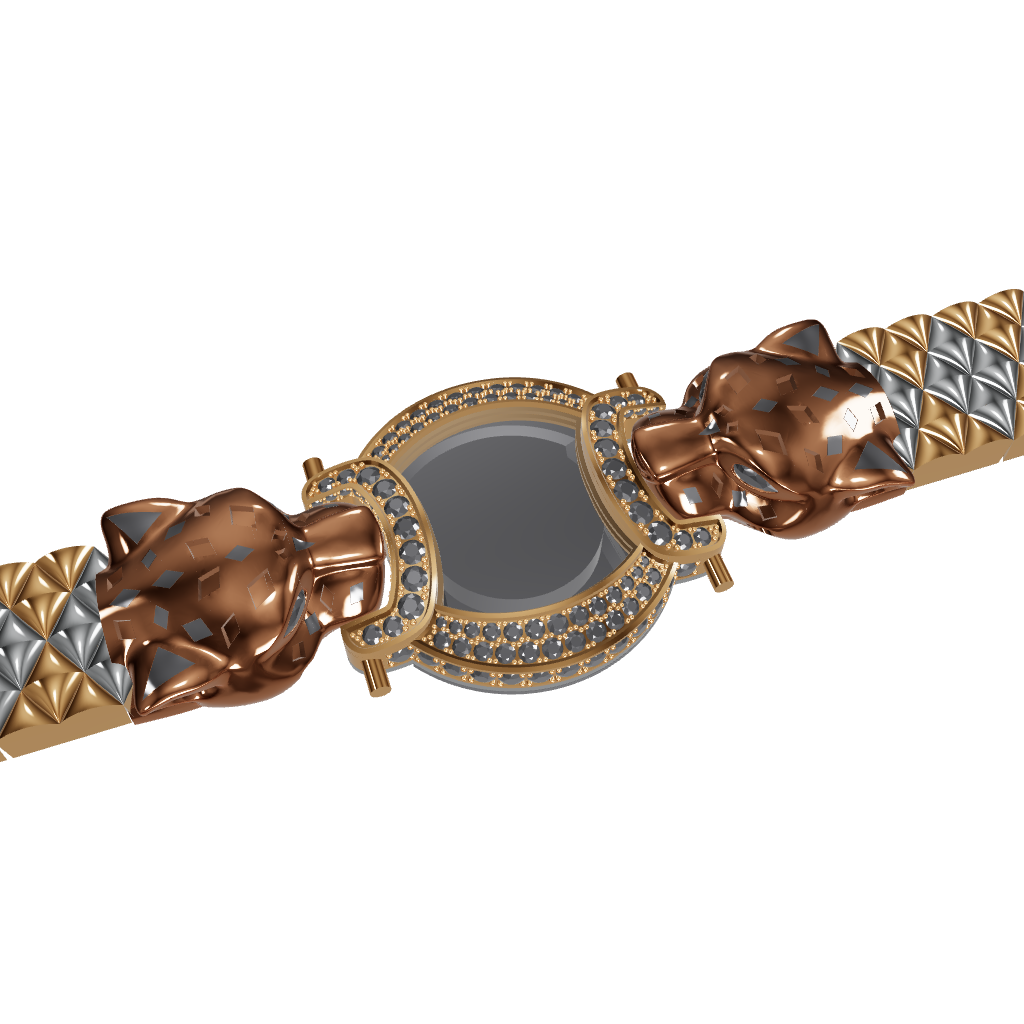

Double face tiger mechanism daimond watch CAD FILE

Full Product Measurement Details

Product Type: Diamond Studded Tiger Motif Pendant / Brooch

Overall Dimensions

• Total Length (Left to Right): 68.06 mm

• Total Height (Top to Bottom): 40.72 mm

• Maximum Thickness (Z-depth): Approx. 4.0 – 4.5 mm (CAD-based, excluding setting tolerance)

---

Metal Weight (CAD Approx.)

• 22KT Gold Weight: 29.540 grams

• 18KT Gold Weight: 24.330 grams

(Final weight may vary ±5–8% after casting and polishing.)

---

Diamond / Stone Details

• Total Diamond Count: 435 pcs

• Total Diamond Weight: 4.22 carats (approx.)

Diamond Size Distribution (as per CAD report)

Round Diamonds:

• 1.70 × 1.70 mm

• 1.60 × 1.60 mm

• 1.50 × 1.50 mm

• 1.45 × 1.45 mm

• 1.40 × 1.40 mm

• 1.30 × 1.30 mm

• 1.24 × 1.24 mm

• 1.20 × 1.20 mm

• 1.10 × 1.10 mm

• 1.00 × 1.00 mm

• 0.95 × 0.95 mm

• 0.90 × 0.90 mm

• 0.80 × 0.80 mm

Fancy Shape:

• Pear Shape: 2.50 × 1.50 mm

---
