Round Dome Pave Diamond Pendant CAD Design

Description:

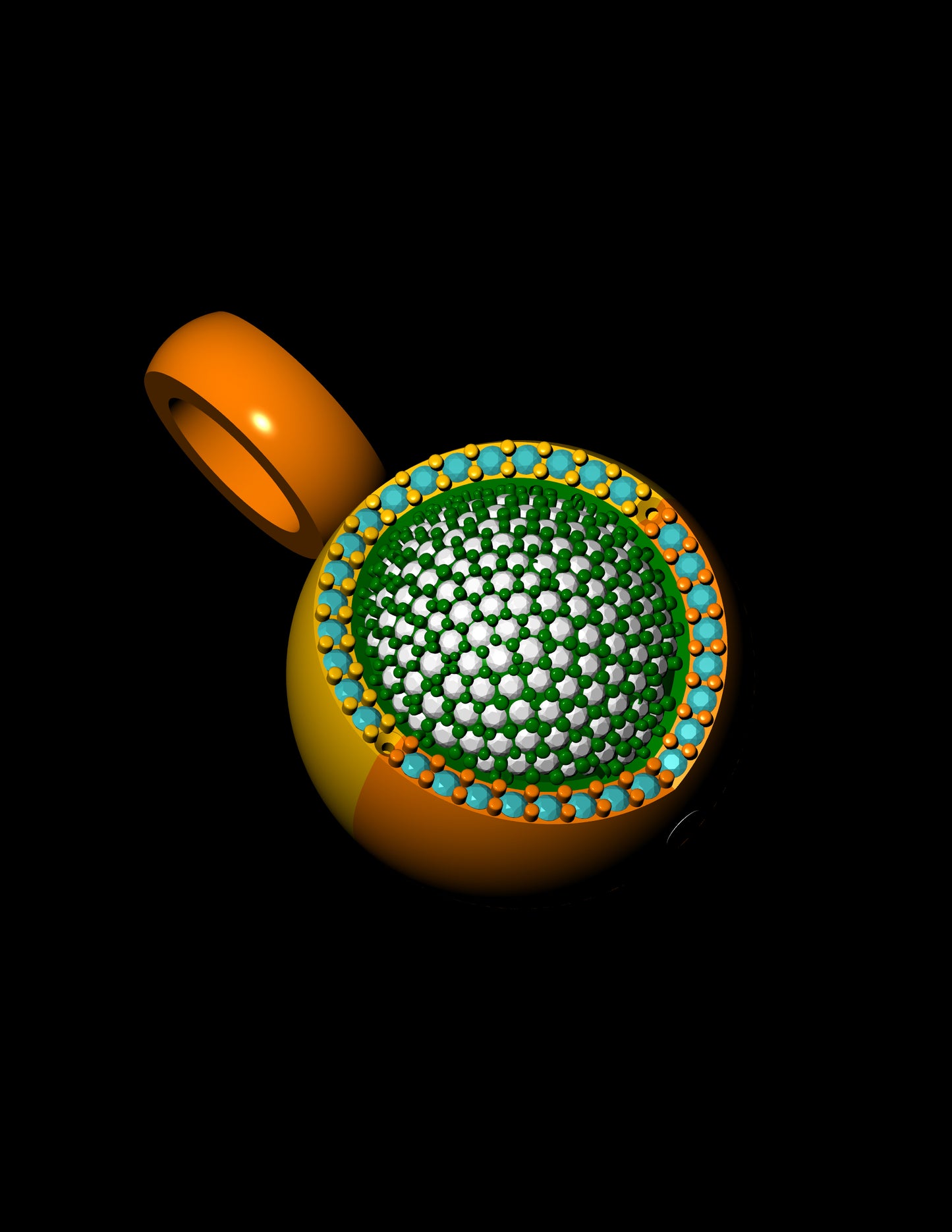

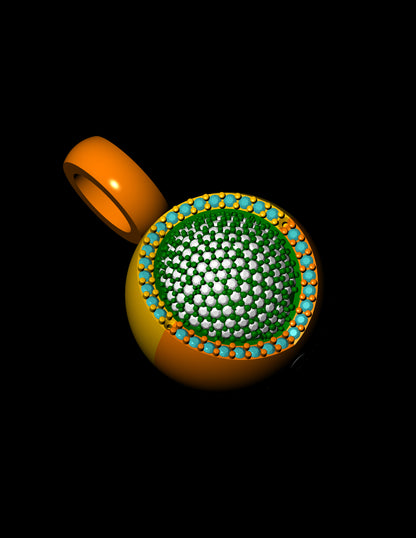

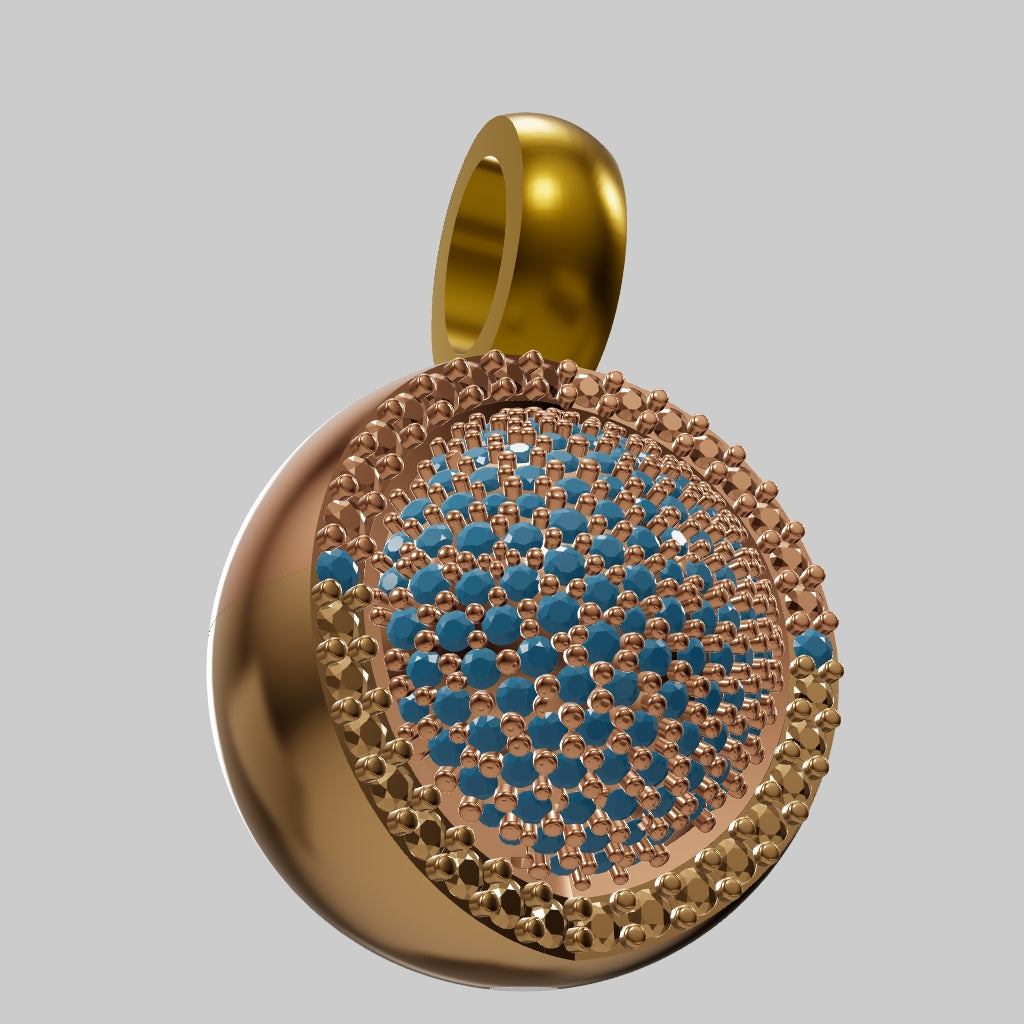

Presenting an elegant Round Dome Pavé Diamond Pendant CAD Design, crafted with precision and ideal for high-end fine jewelry creation. This pendant features a luxurious dome structure with multi-layer diamond settings, offering both brilliance and depth. Designed for manufacturing in 14k, 18k, or 22k gold, the model ensures perfect gemstone alignment and casting accuracy.

Design Specifications:

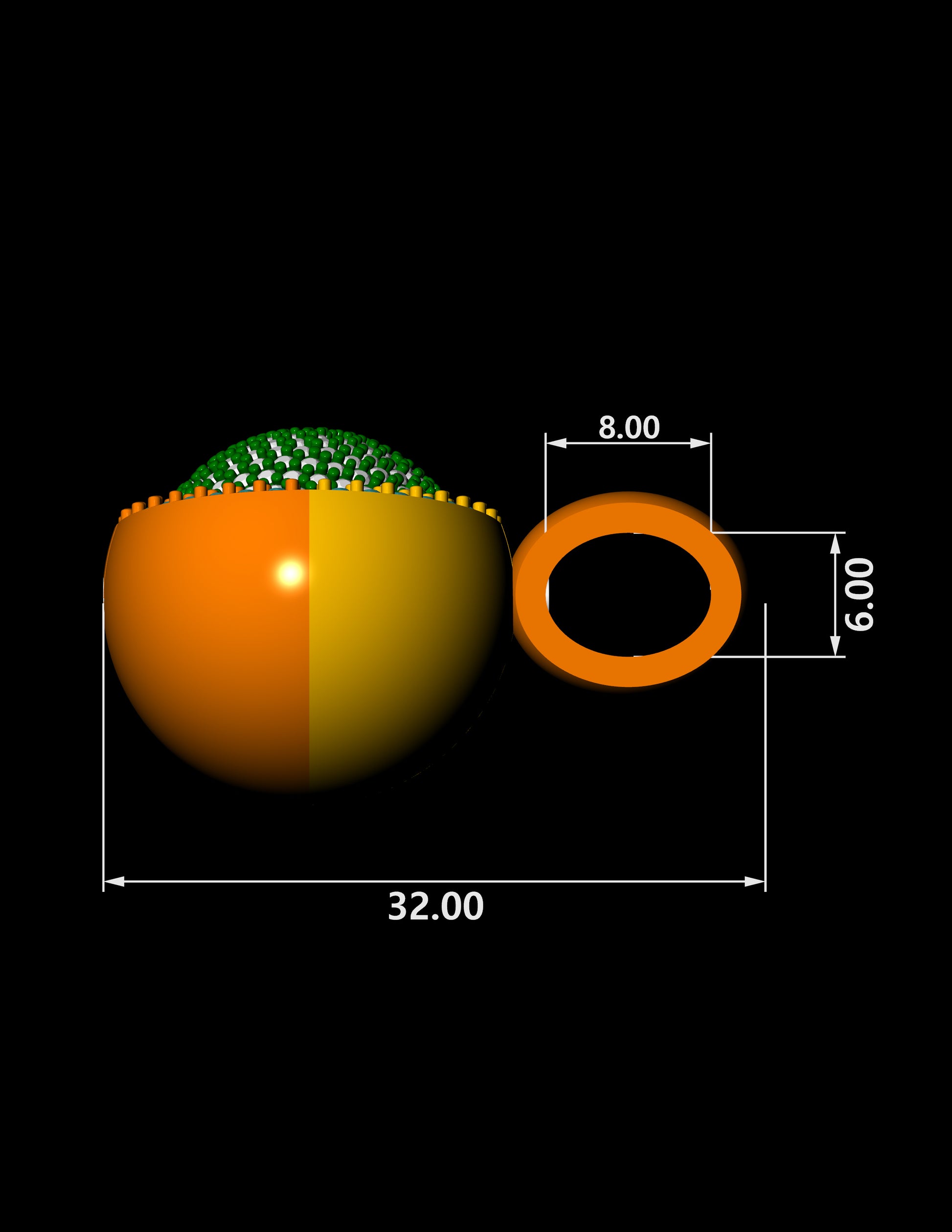

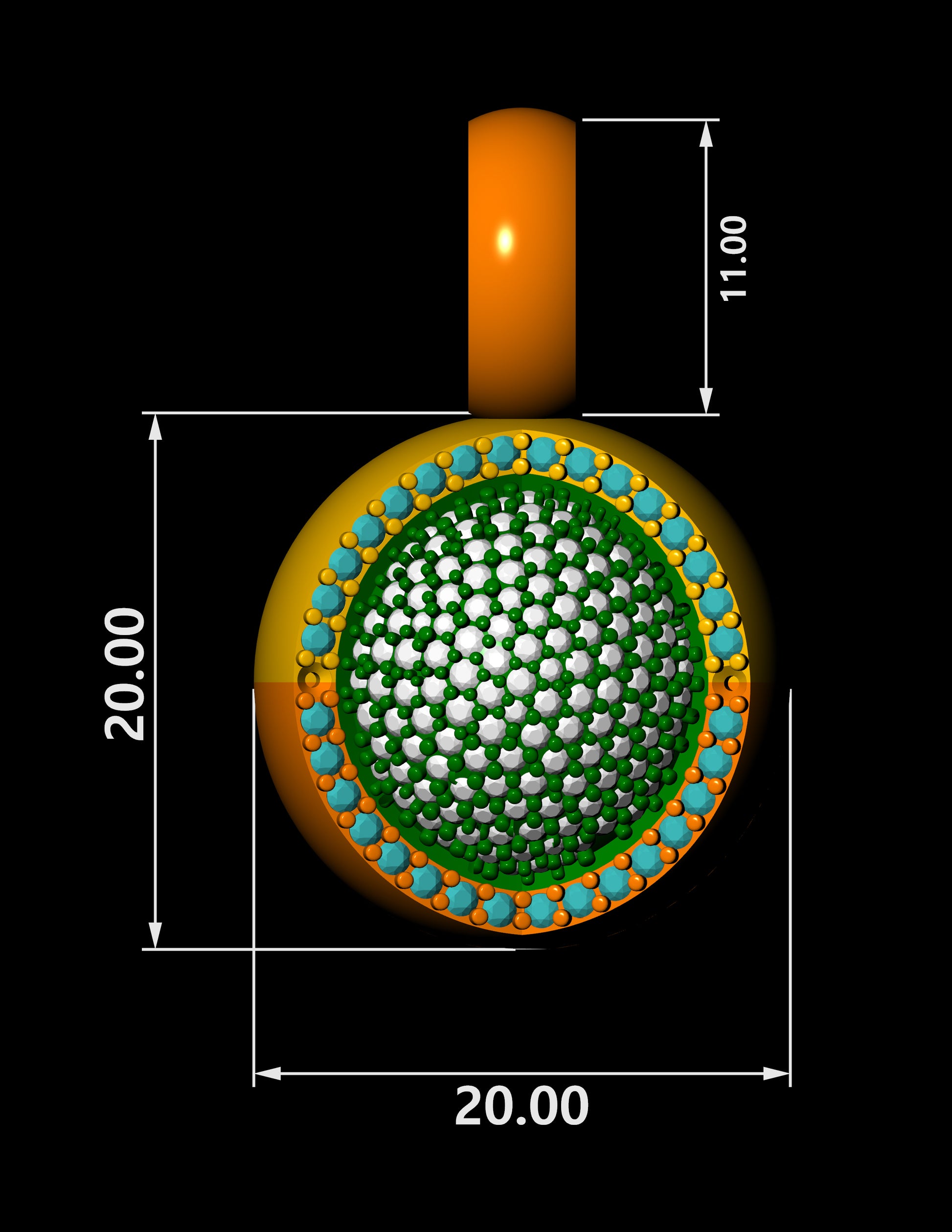

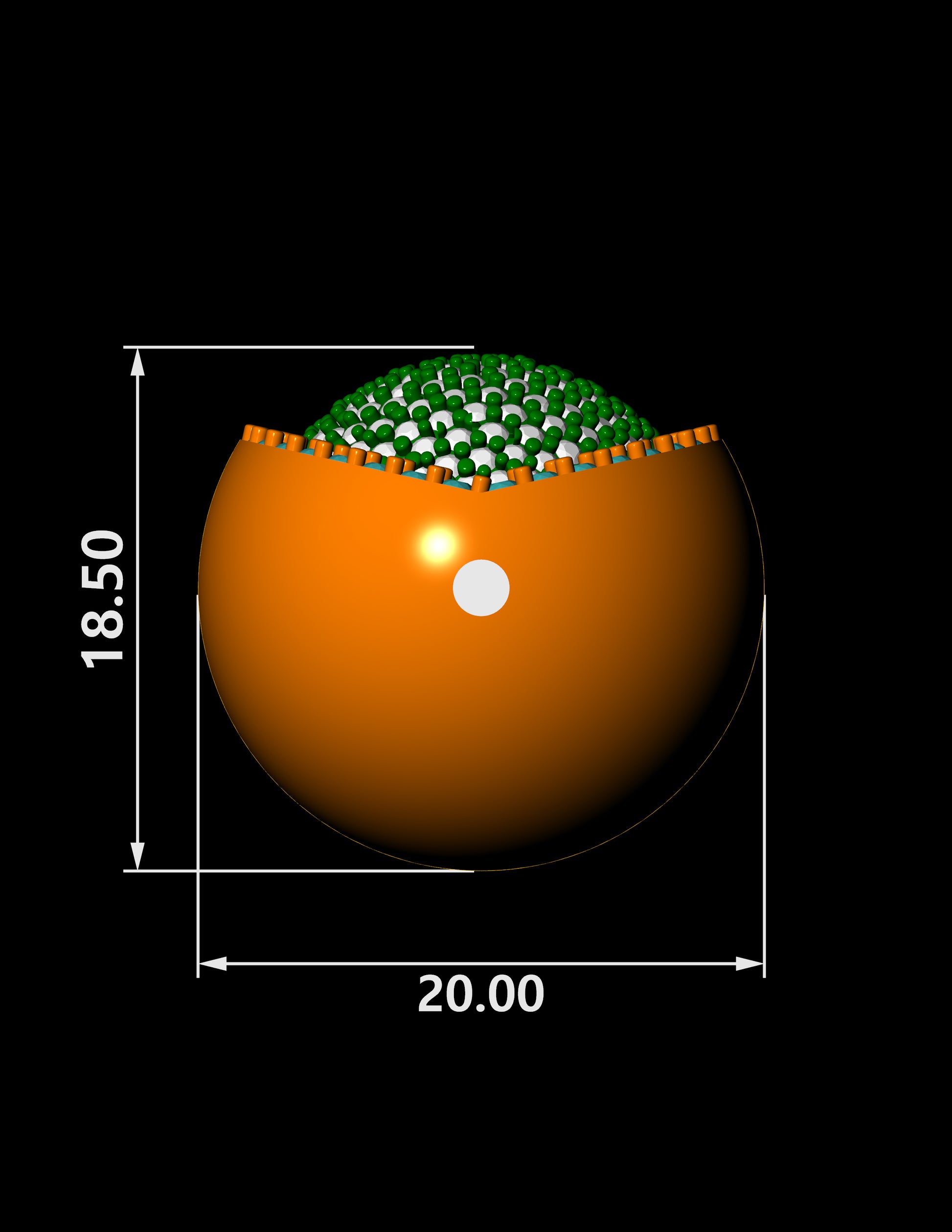

Dimensions: 20.00mm diameter (pendant head), 11.00mm bail height, 32.00mm total height

Stone Details:

• Total Diamonds: Multiple sizes ranging from 0.70mm to 1.30mm

• Total Diamond Weight: ≈ 0.88 carat (approx.)

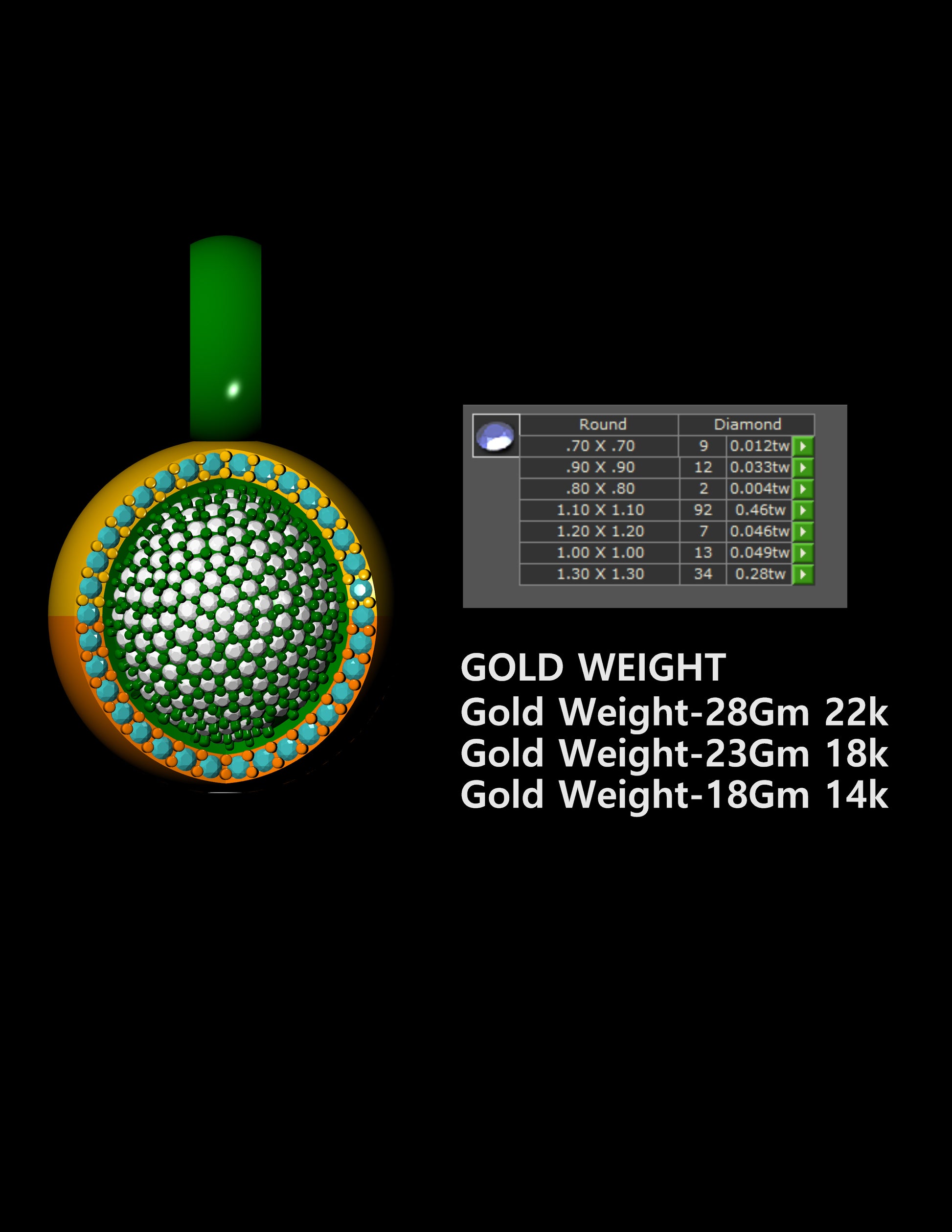

Gold Weight Estimate:

• 22K: 28 grams

• 18K: 23 grams

• 14K: 18 grams

Format: .3dm (Rhino/Matrix compatible)

Category: Pendant / Charm

Style: Pavé Dome / Round Cluster

Highlights:

Fully editable 3D CAD file for custom modifications

Optimized for 3D printing and casting

Perfect for diamond pavé jewelry collections

Professional layout with accurate stone and gold weight data

Note:

This listing is for a digital CAD file only. No physical item will be shipped. Designed exclusively for jewelry manufacturers and CAD professionals.
