Monogram Link Bracelet Lock Mechanism CAD FILE



Product Description

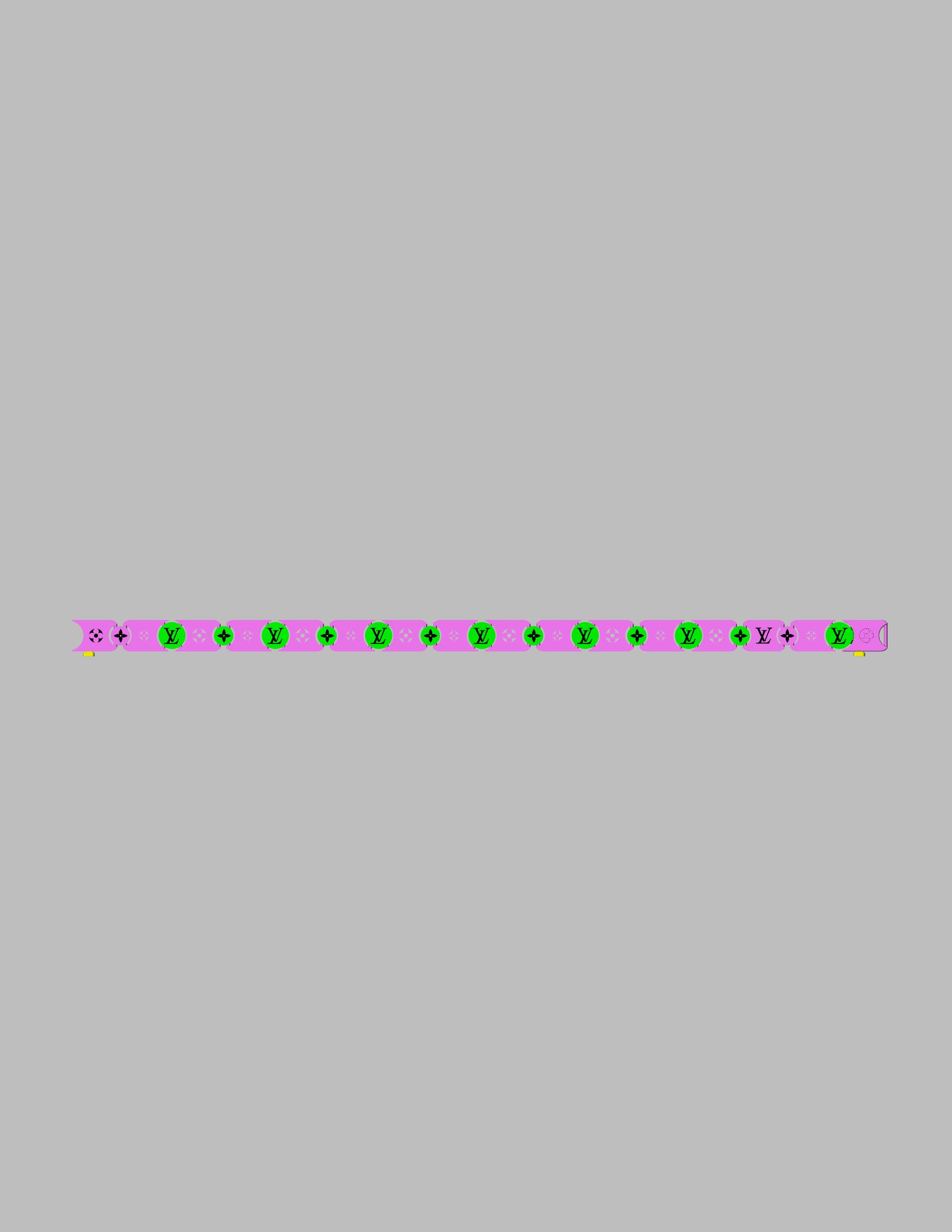

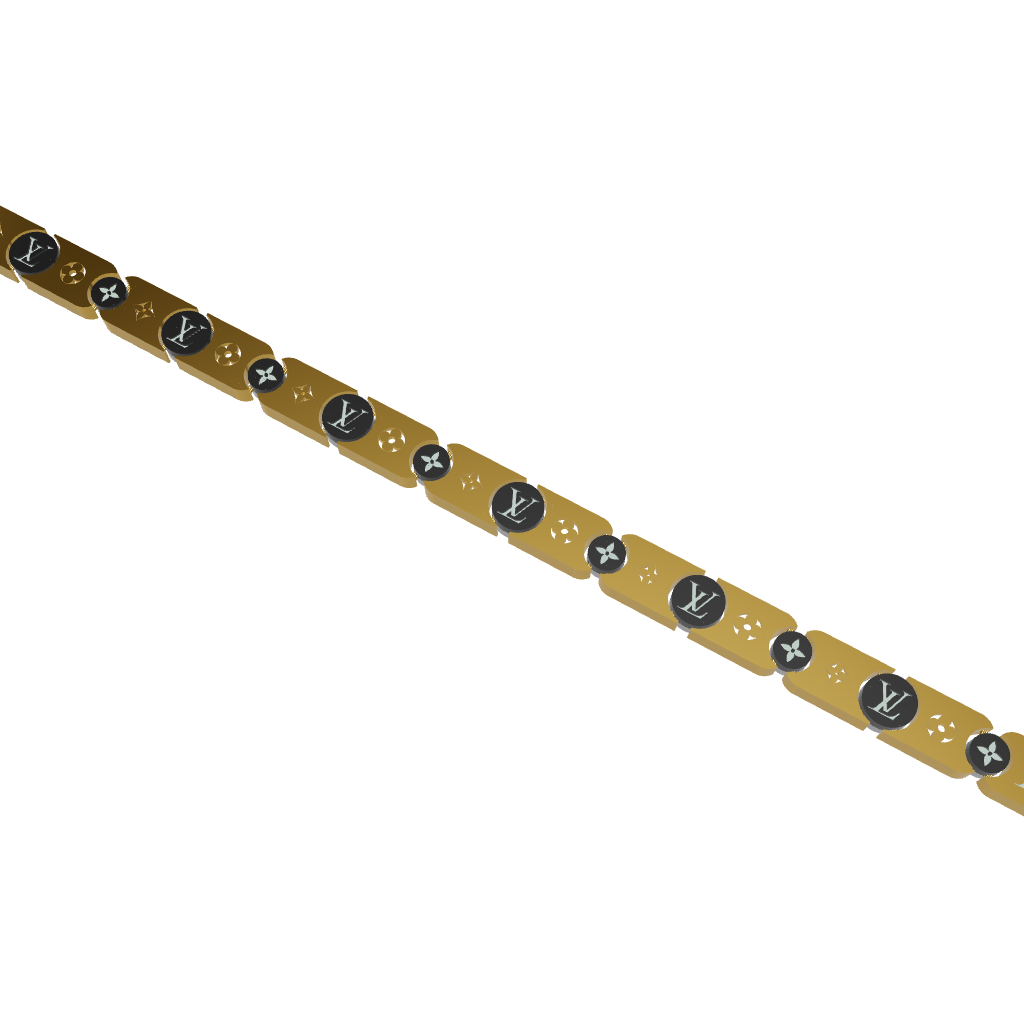

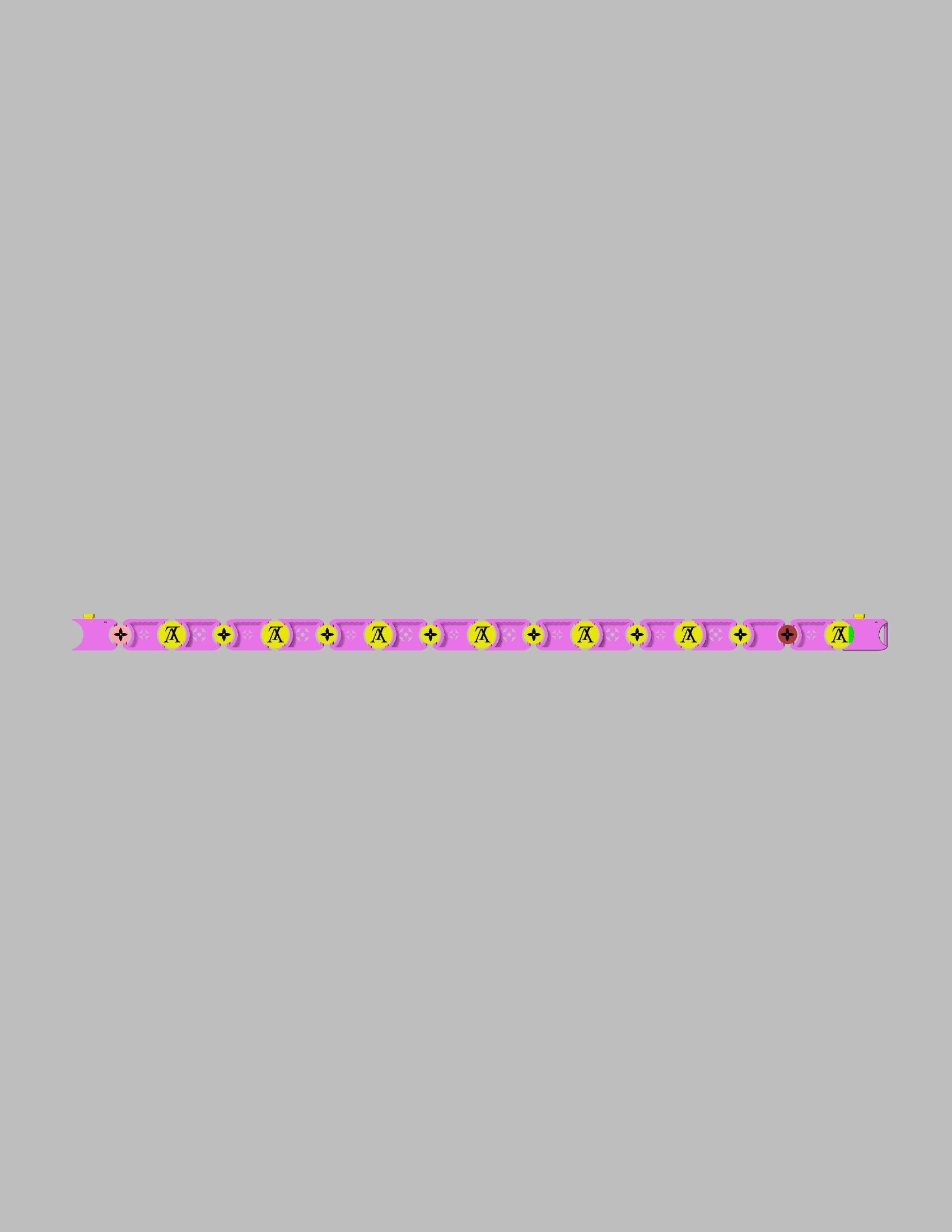

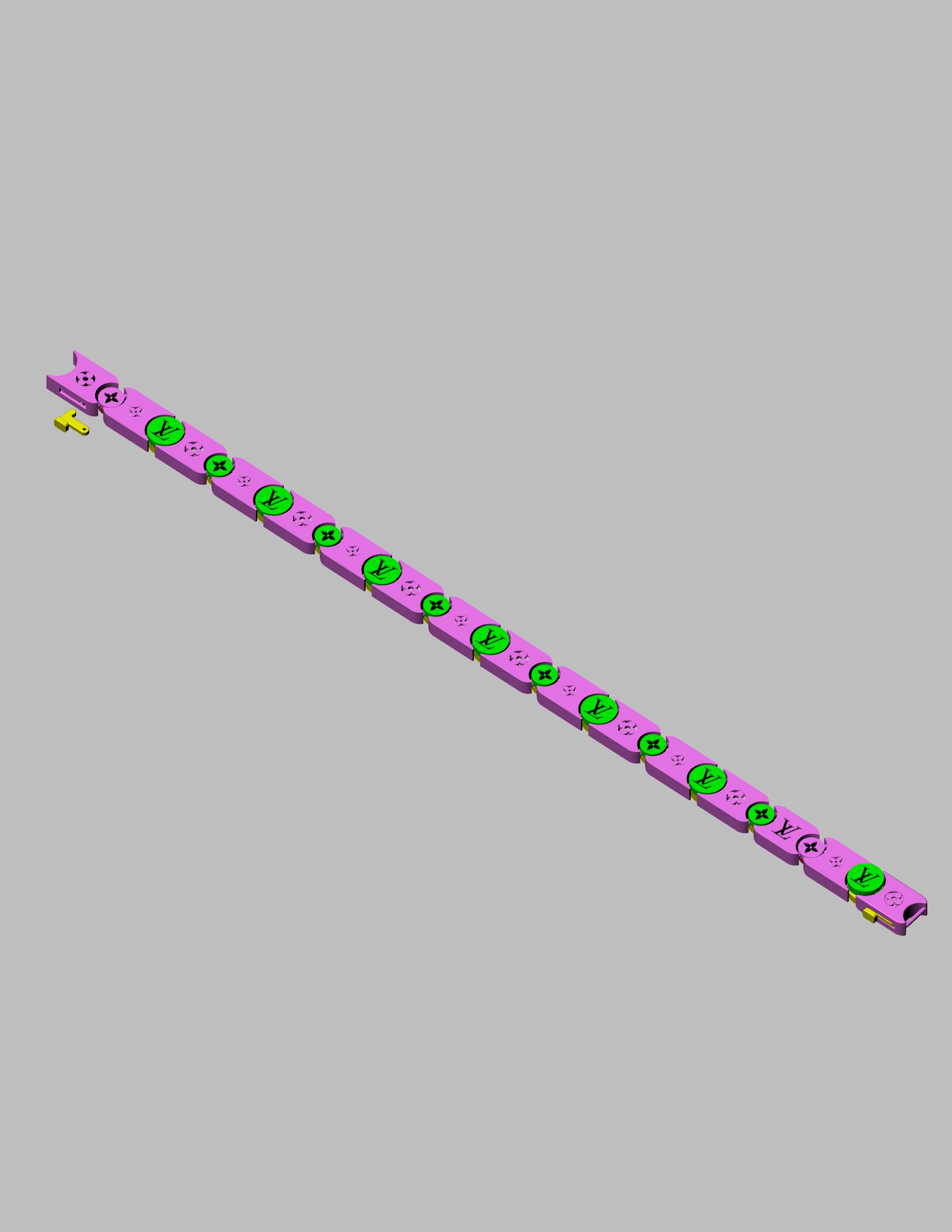

This premium bracelet is a high-precision CAD design featuring a series of rectangular modular links combined with round monogram elements. The design showcases a structured, contemporary aesthetic with evenly spaced decorative discs engraved with a luxury-inspired monogram pattern.



Overall Dimensions





• Total Length: approx. 193.56 mm
• Link Type: Rectangular modular links with round inset elements

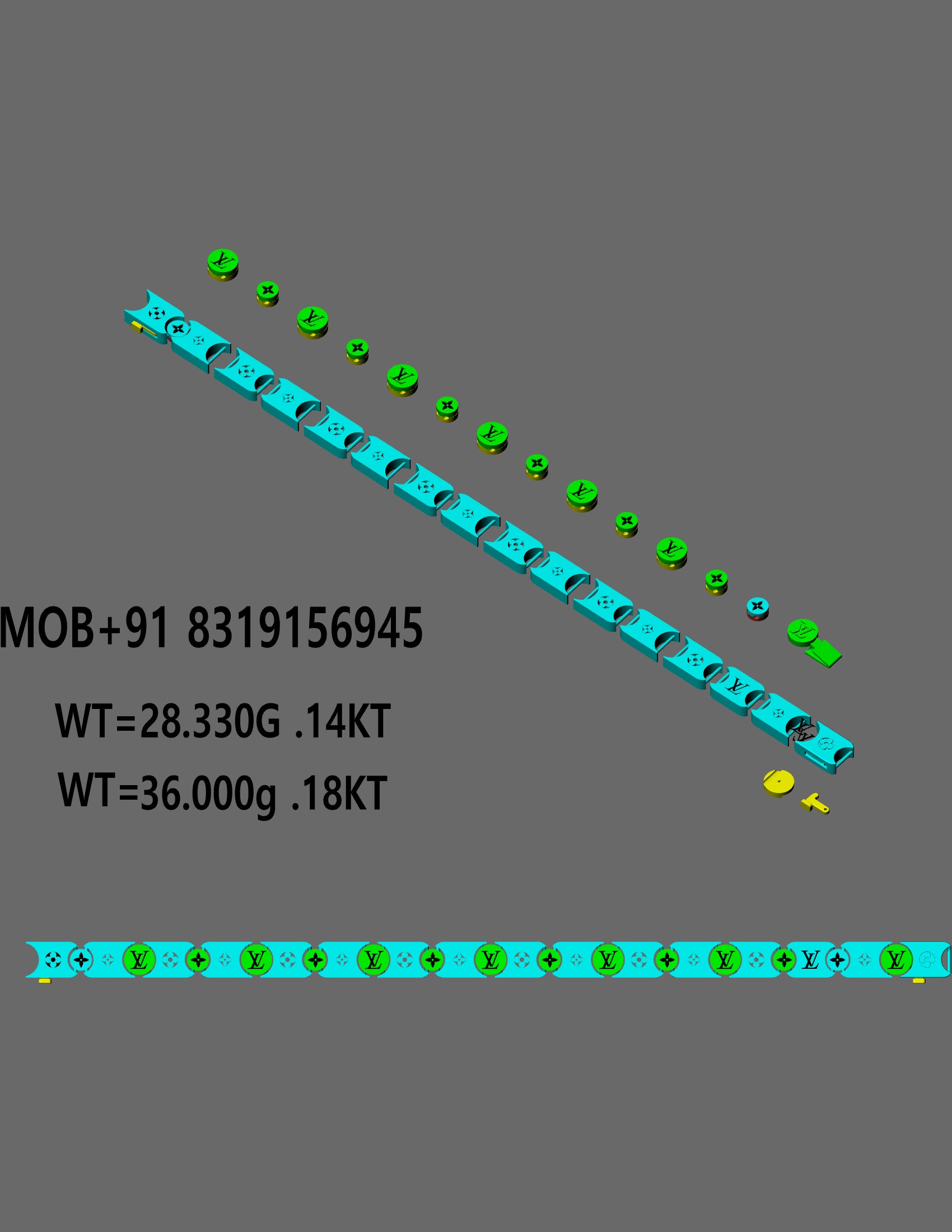

• Construction: Fully articulated, assembly-based CAD model

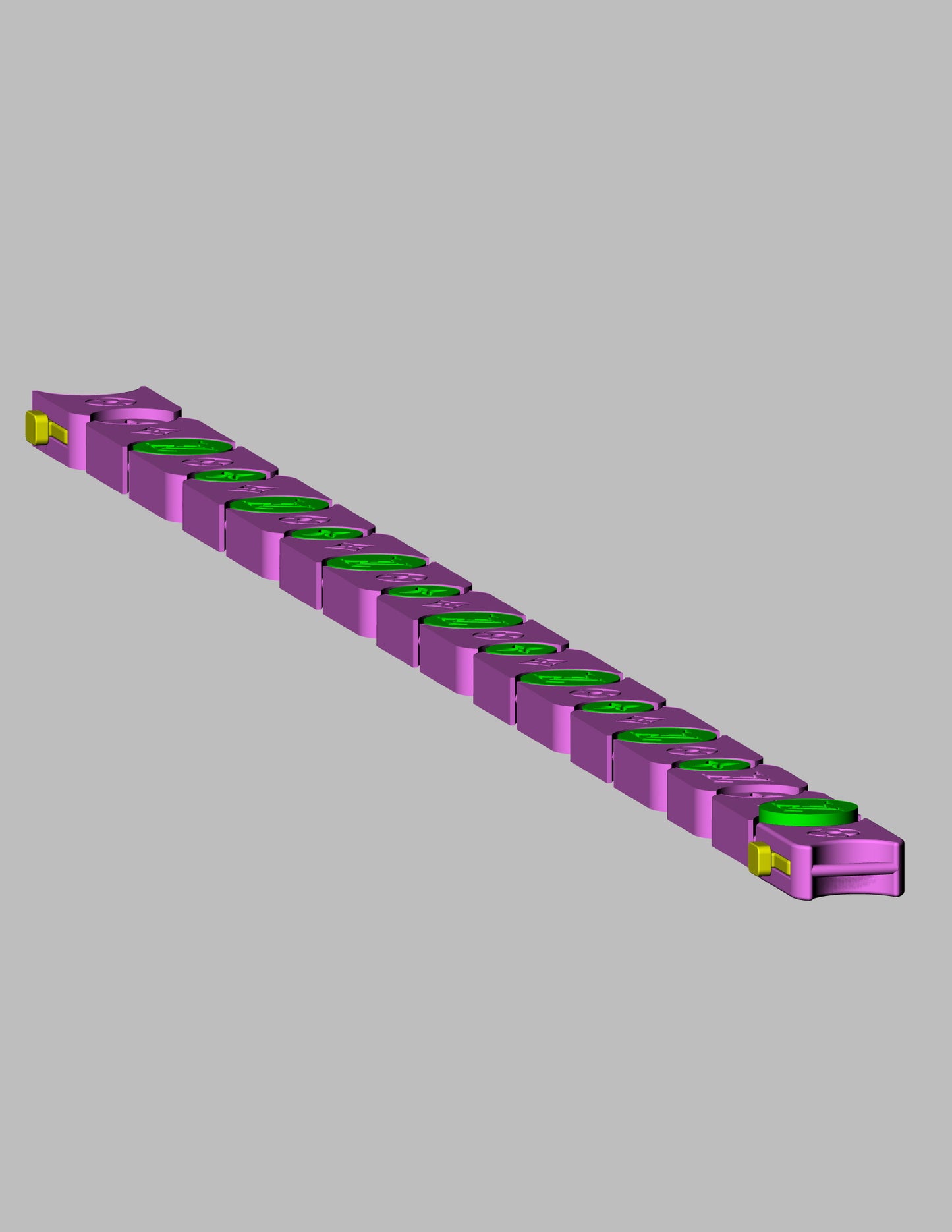

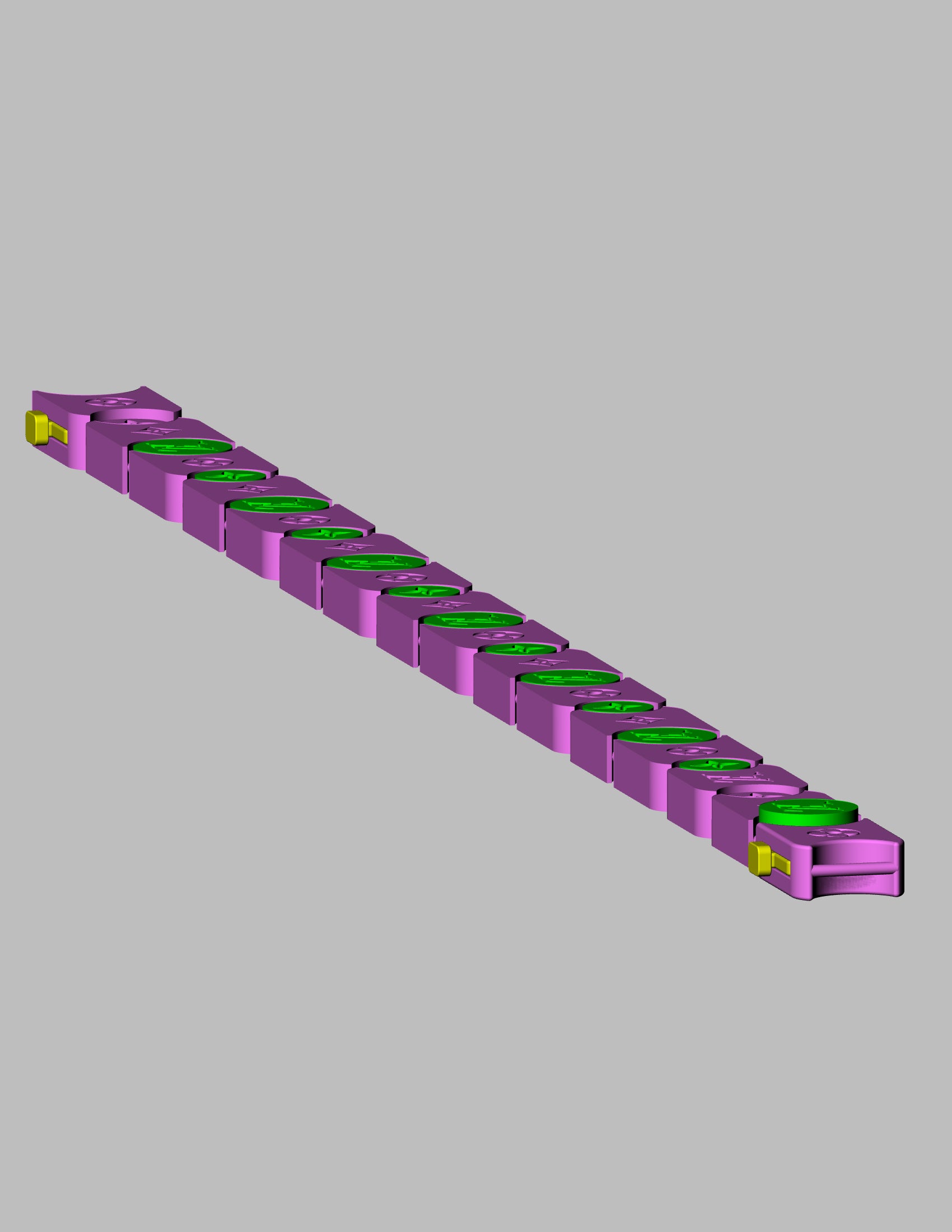

The bracelet incorporates a mechanical lock system, ensuring secure wear while maintaining a seamless visual flow. Each component is individually modeled for accurate assembly, smooth articulation, and reliable casting performance. This design is well-suited for high-end gold jewelry production and can be customized for branding, gemstone settings, or alternative finishes.



Metal Weight (CAD Approx.)





• 14KT Gold: ~28.330 grams
• 18KT Gold: ~36.000 grams
