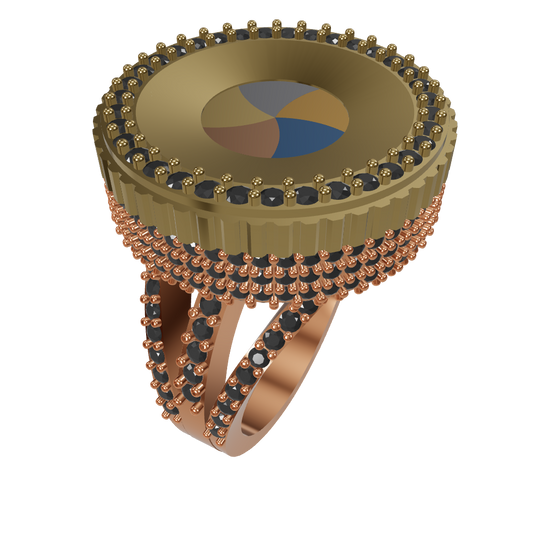

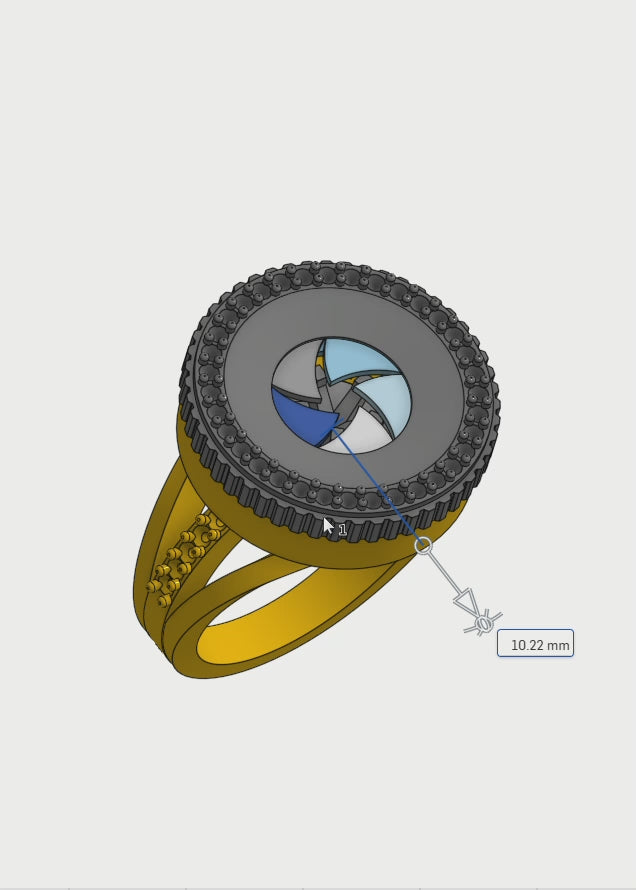

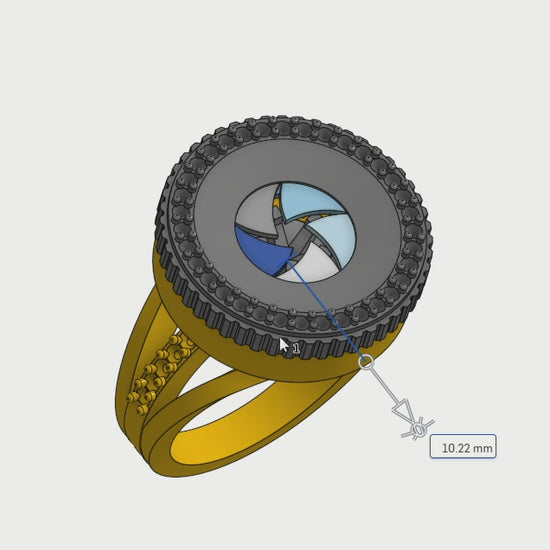

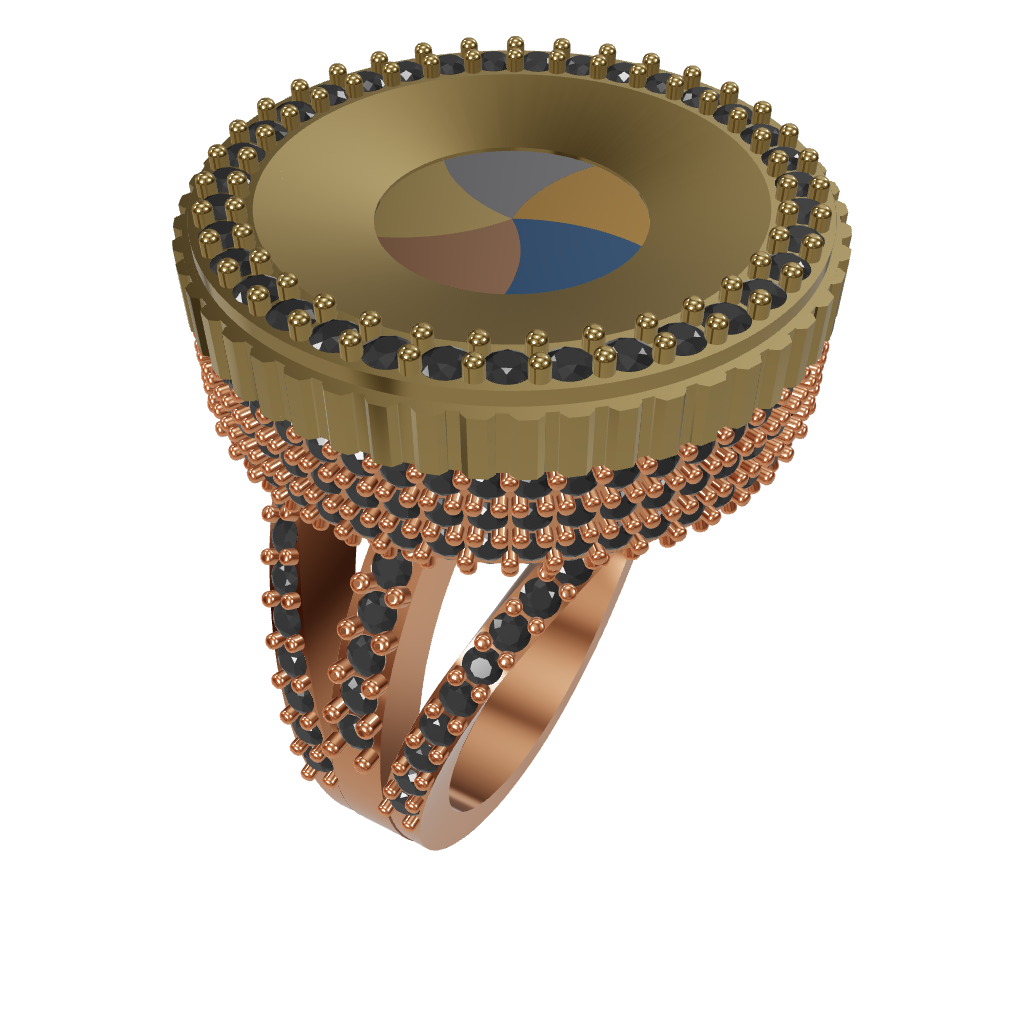

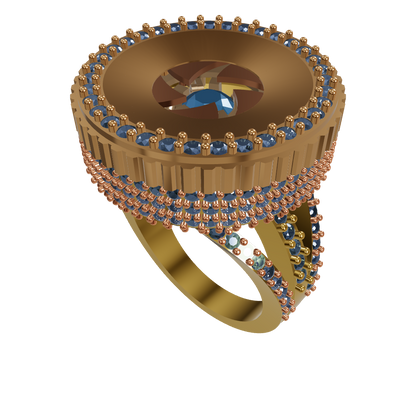

Camera shutter mechanism Ring CAD File

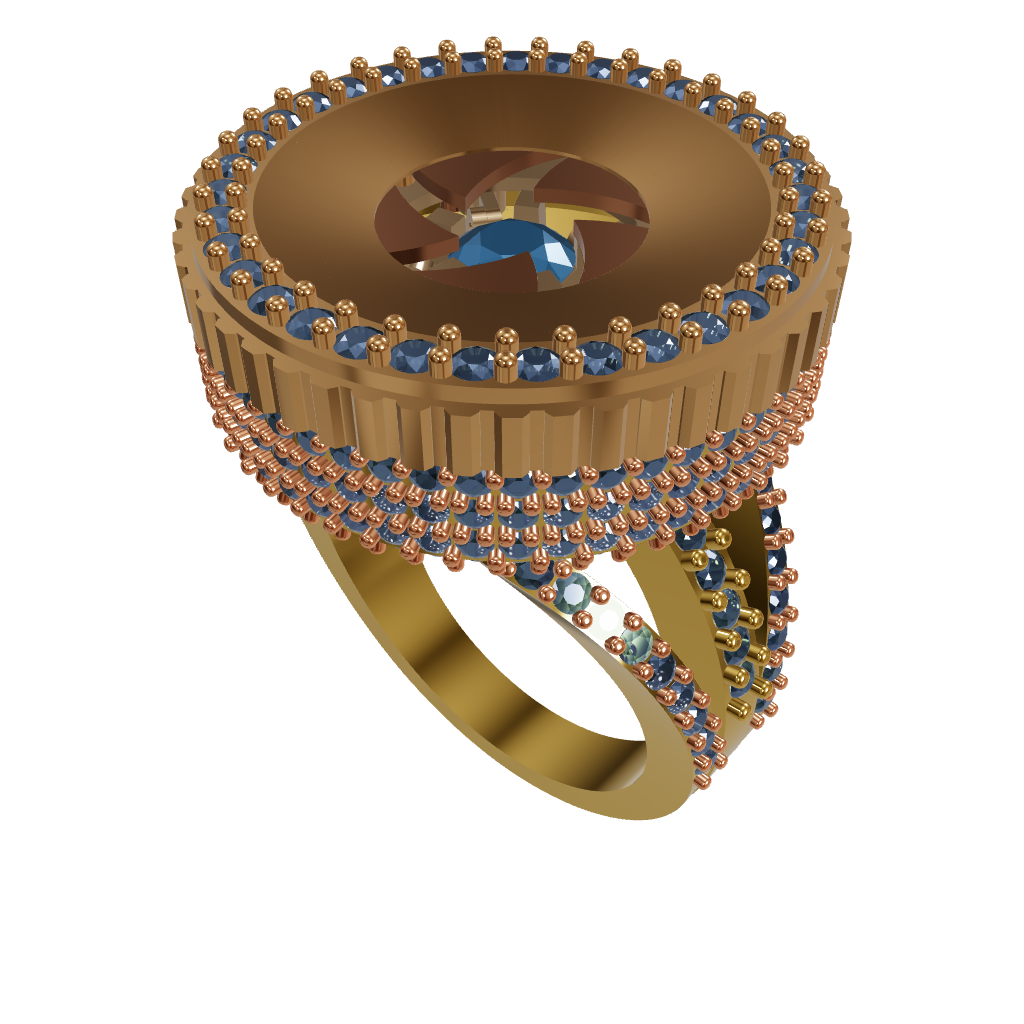

This ring is a high-detail CAD design featuring a bold circular top with a multi-layer pavé gemstone arrangement. The head is composed of concentric stone-set rows surrounding a central round setting, creating depth and strong visual presence. The upper surface is supported by a structured gallery with cascading pavé elements that extend down the shoulders, enhancing brilliance from all viewing angles.



The shank is engineered for comfort and durability, while the elevated head allows maximum light exposure to the gemstones. This design is suitable for luxury statement rings and can be customized for gemstone type, color layout, and metal finish.

Ring Size

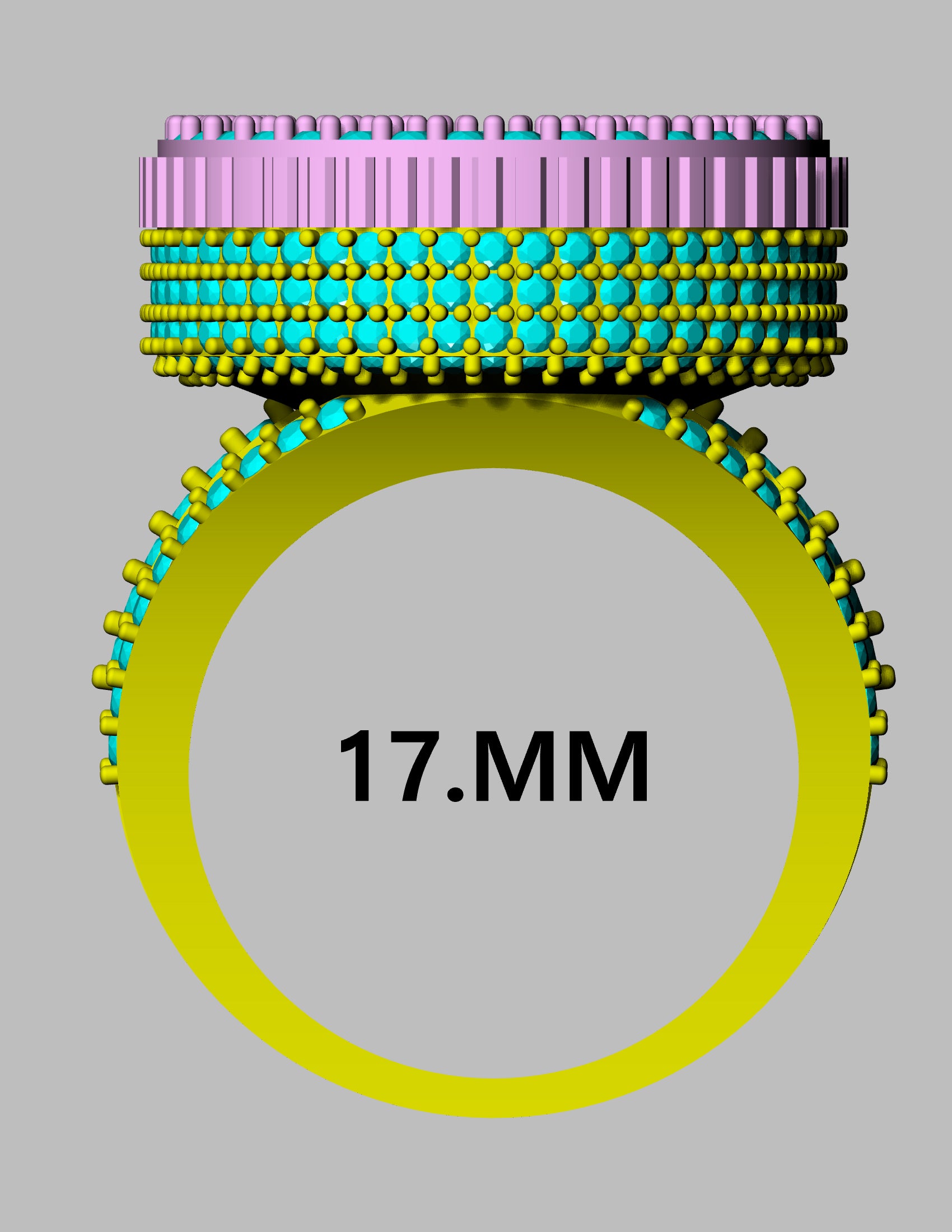

Inner Diameter: 17.00 mm

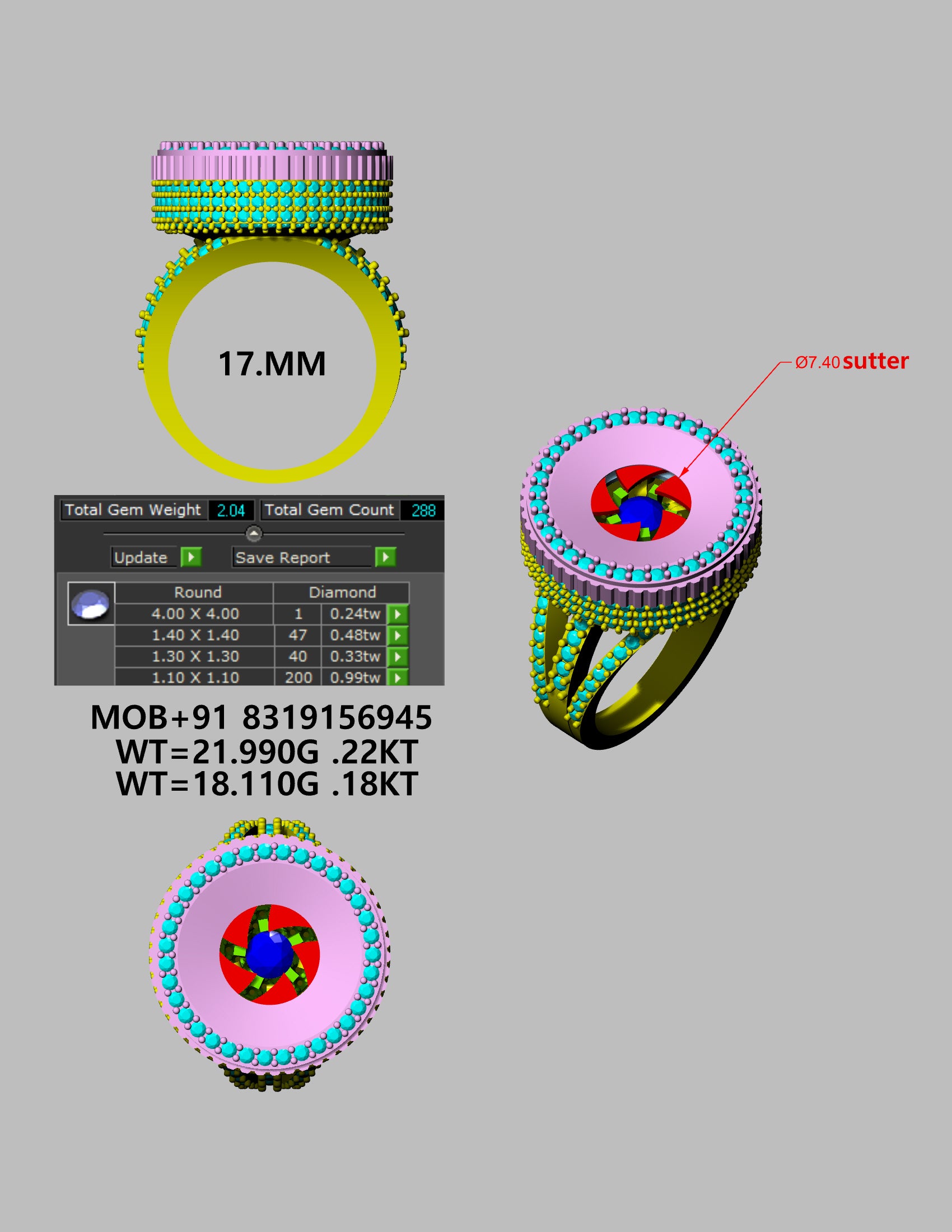

Gemstone Details (CAD Report)   Total Gem Count: 288 pcs

• Total Gem Weight: approx. 2.04 ct

Stone Breakdown (Round):

4.00 × 4.00 mm – 1 pc – 0.24 ct

• 1.40 × 1.40 mm – 47 pcs – 0.48 ct
• 1.30 × 1.30 mm – 40 pcs – 0.33 ct
• 1.10 × 1.10 mm – 200 pcs – 0.99 ct

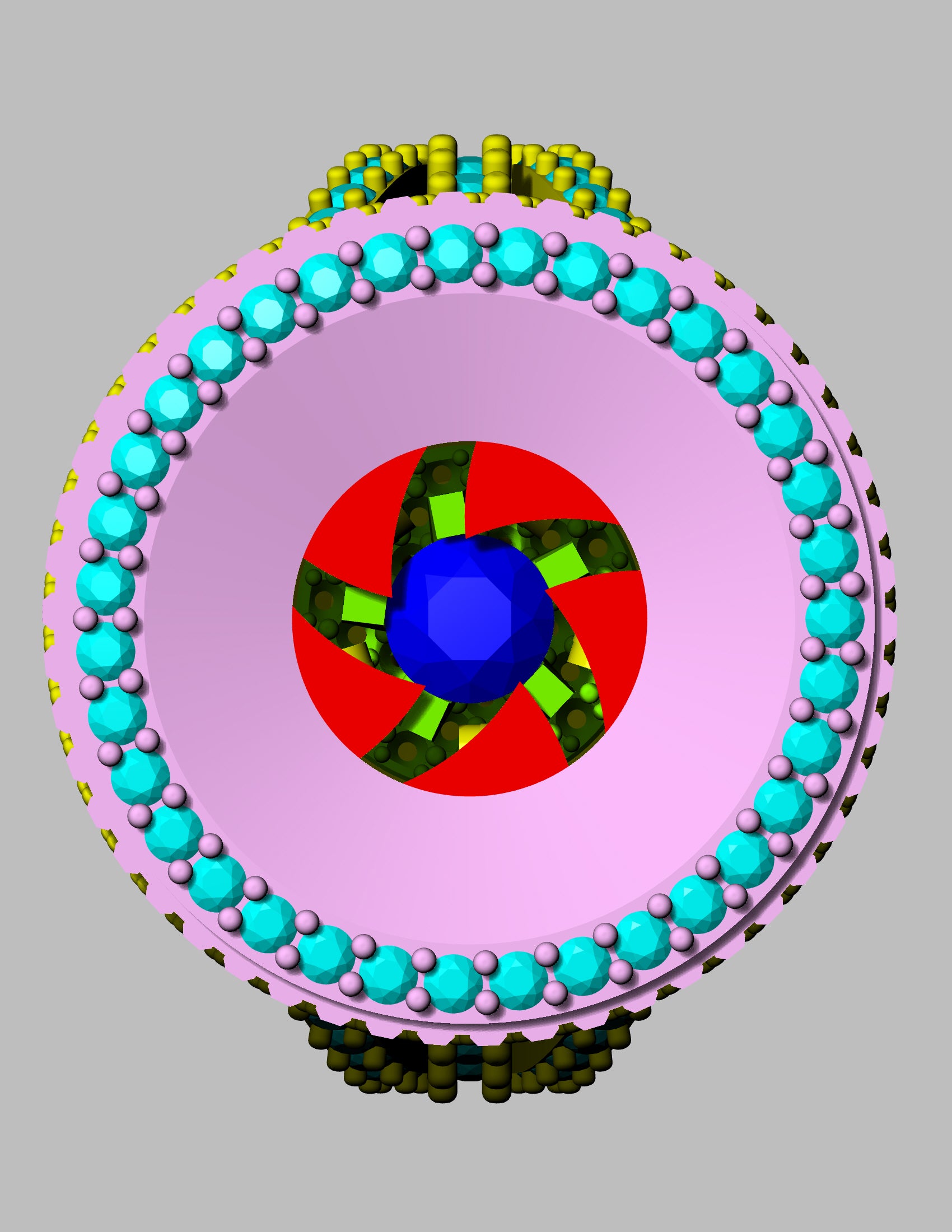

Center Setting

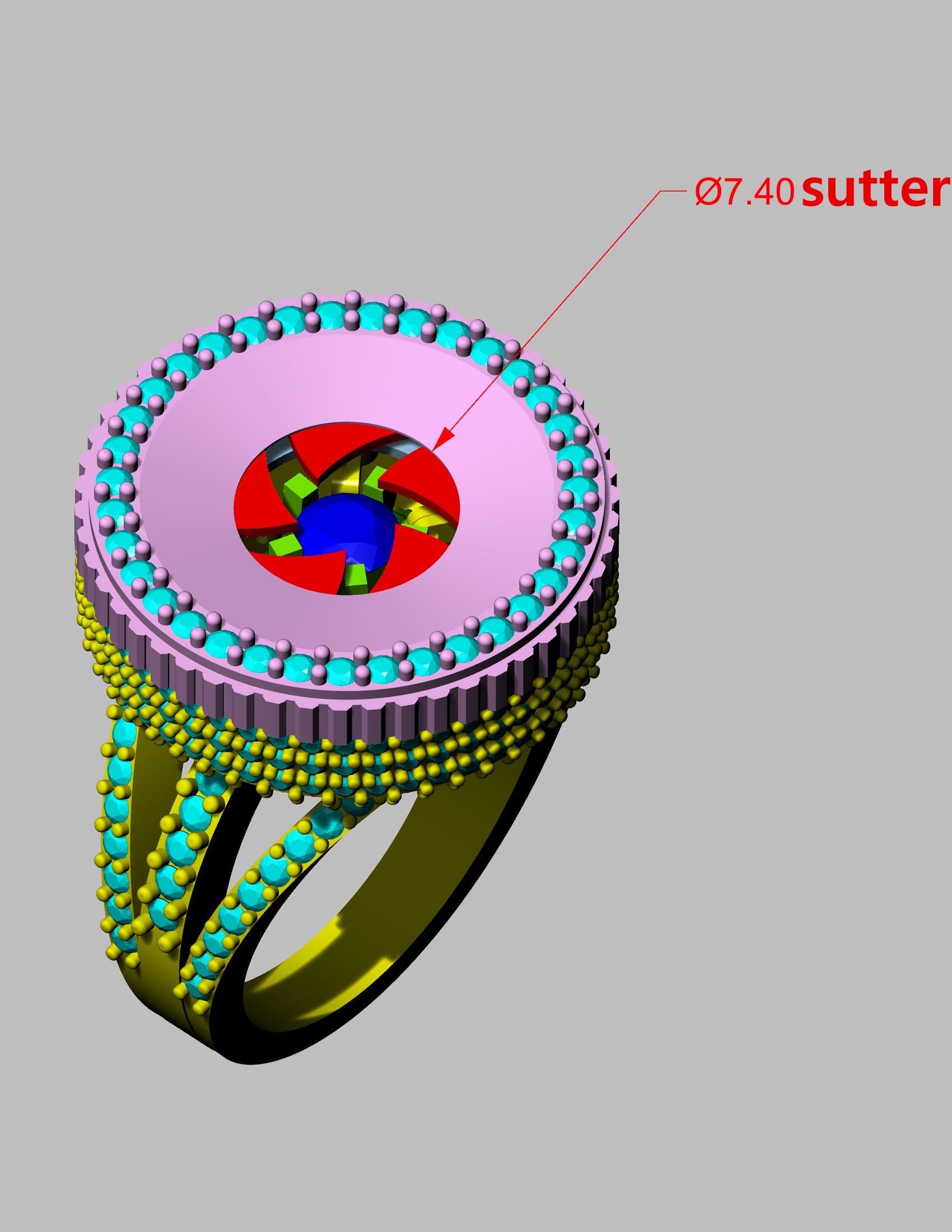

Seat Diameter: Ø 7.40 mm

• Designed for secure bezel or prong customization

Metal Weight (Approx.)

22KT Gold: ~21.990 g

18KT Gold: ~18.110 g
