Serpent Flexible Bracelet CAD FILE
Serpent Flexible Bracelet CAD FILE
JewelryCrafto
Couldn't load pickup availability
Bracelet CAD File – Product Description
Product Title
Luxury Snake Wrap Pavé Bracelet CAD Design | Flexible Beaded Bracelet | 3DM & STL Jewelry CAD File
Product Description

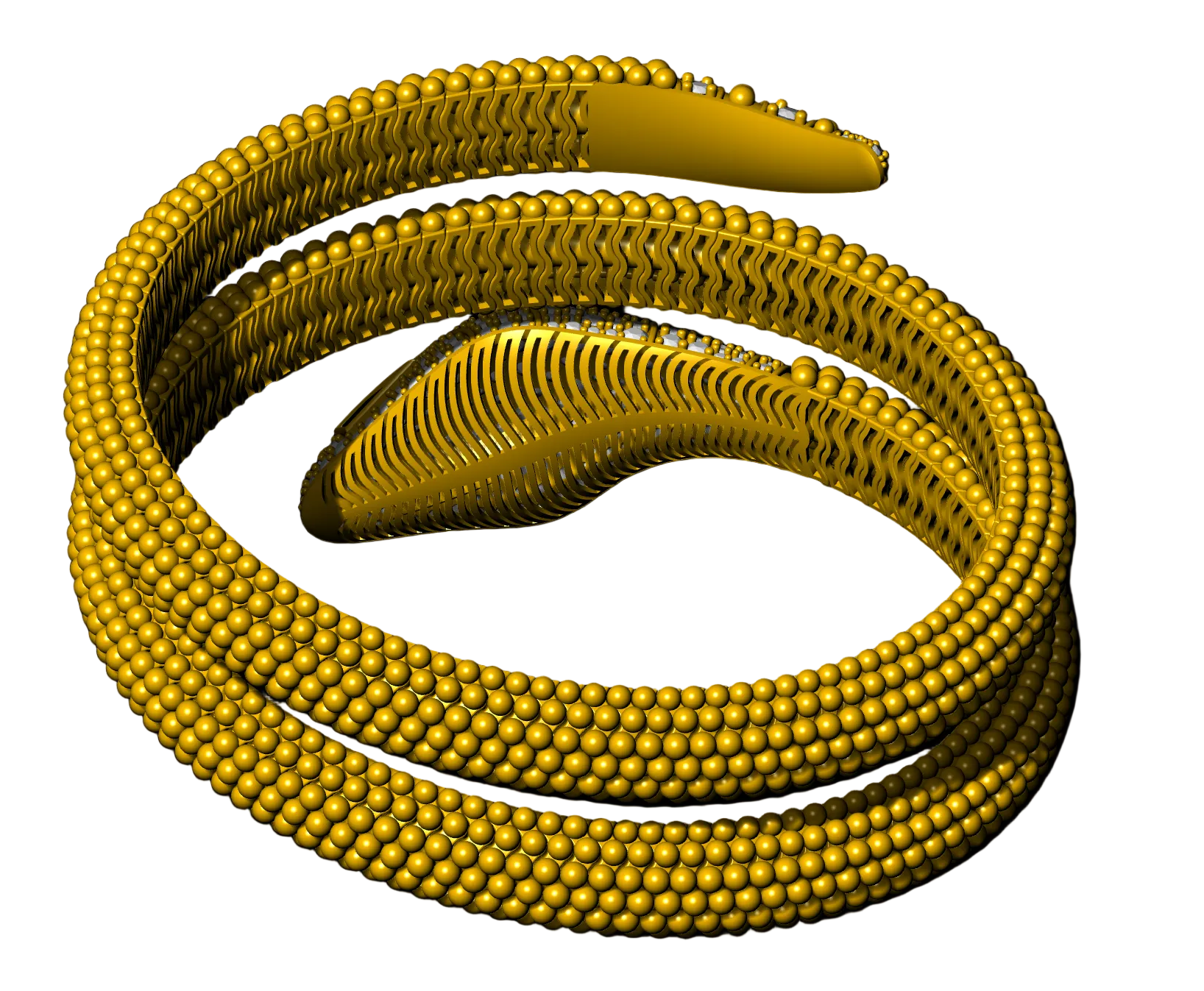

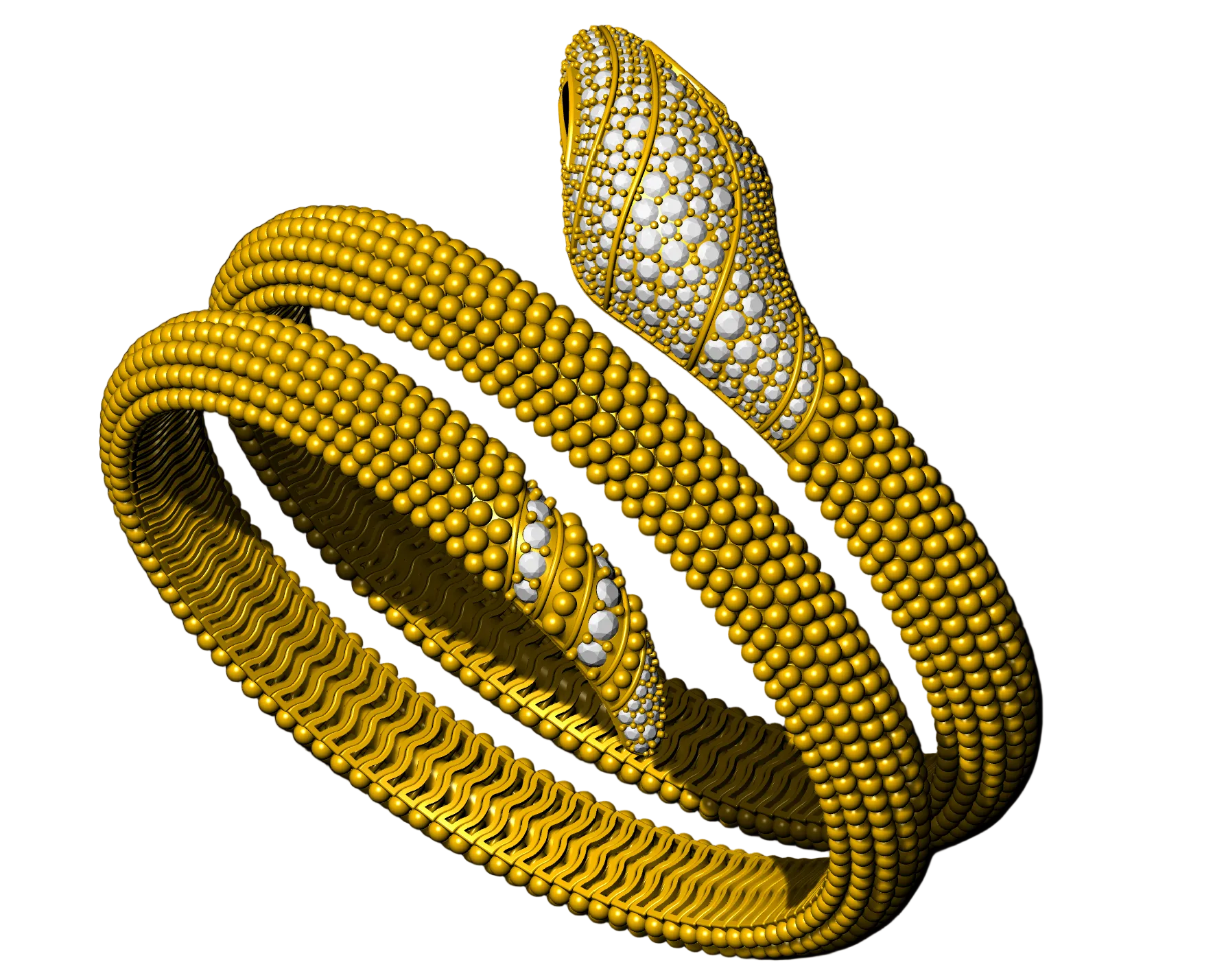

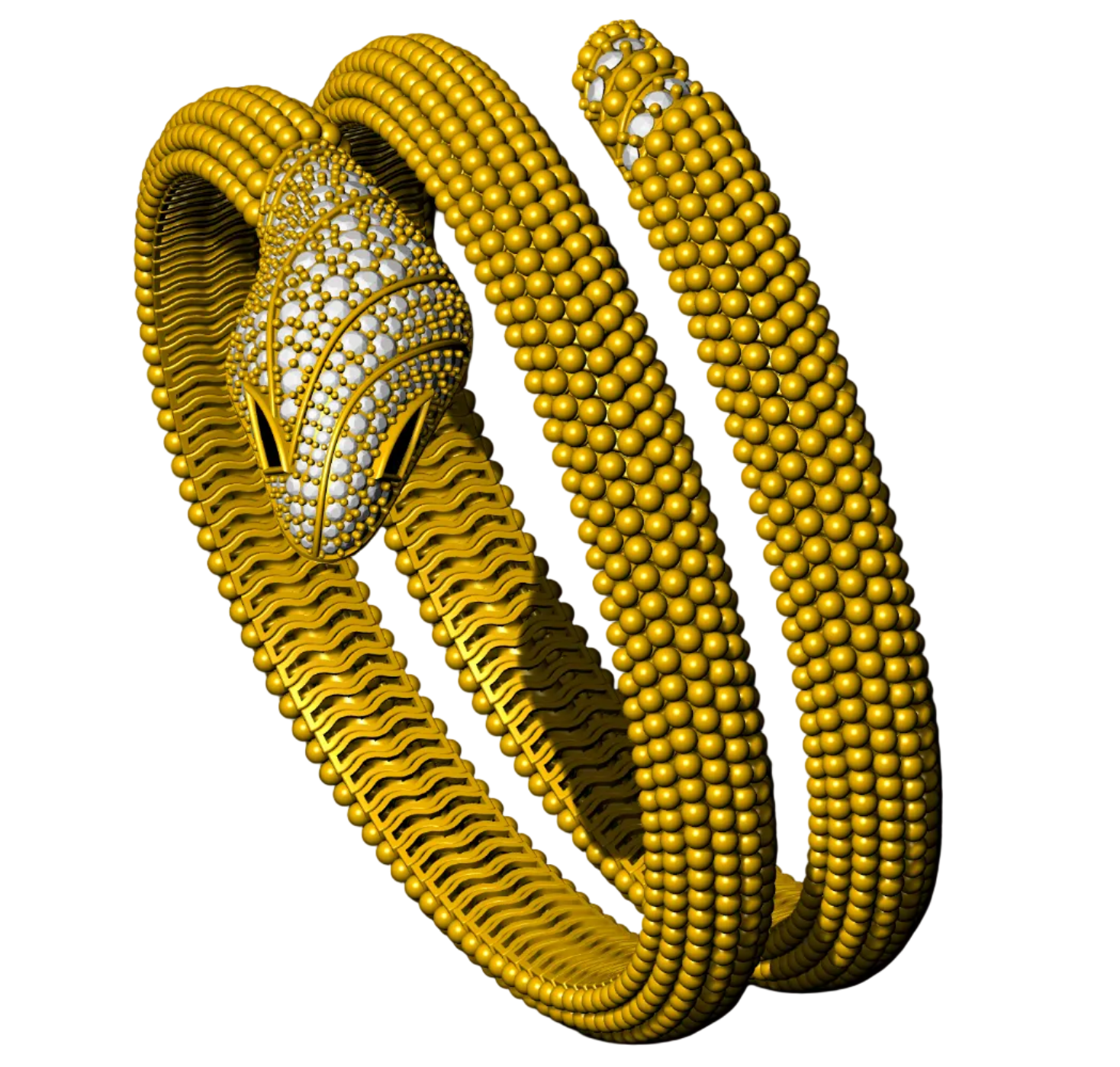

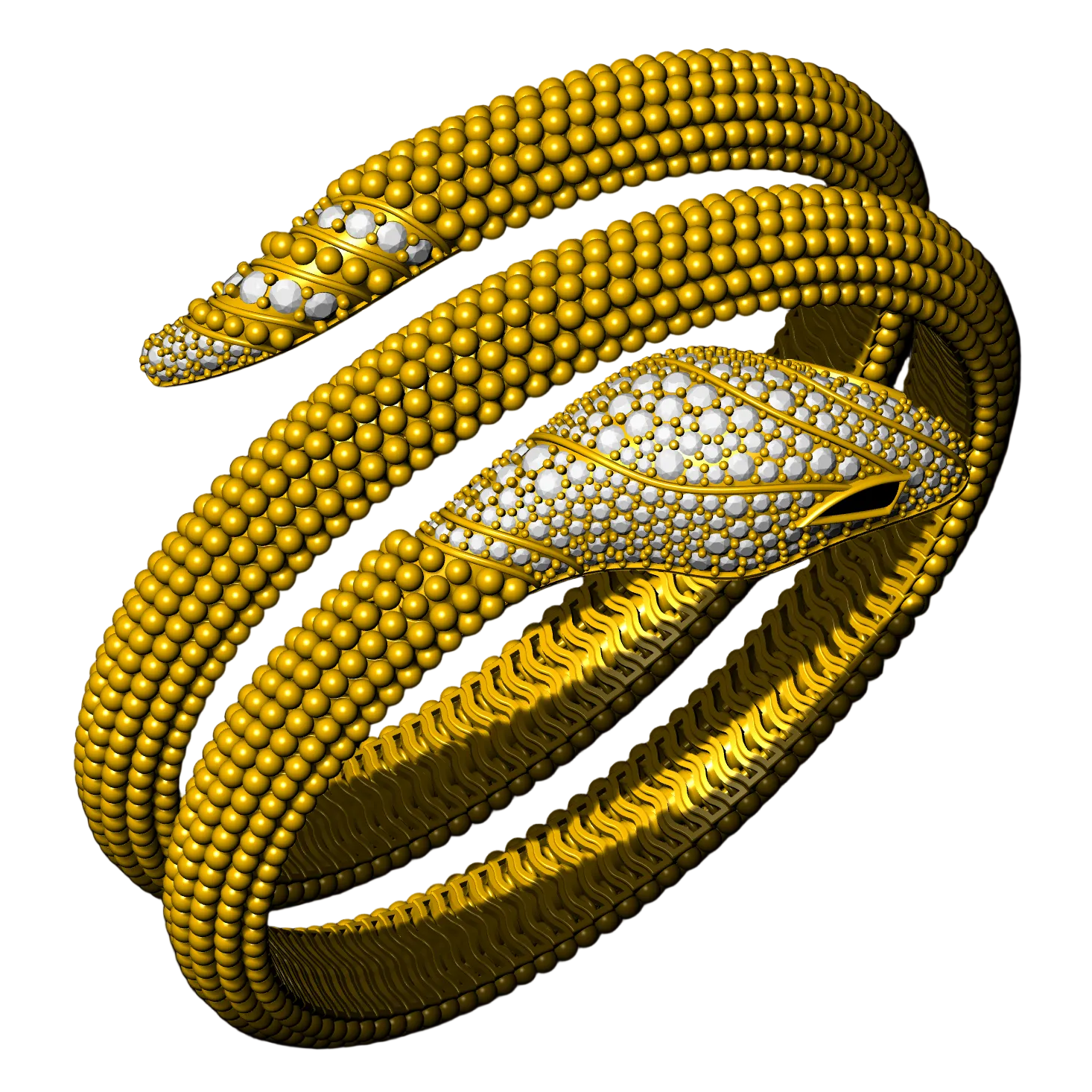

This premium snake-inspired wrap bracelet CAD model features a bold multi-coil silhouette with a detailed beaded texture and a fully pavé-set serpent head. Designed for high-end jewelry manufacturing, the bracelet combines elegant styling with production-ready engineering for casting and stone setting.
The flexible wrap design comfortably encircles the wrist while the raised snake head creates a luxurious focal point. The model includes accurate gemstone layouts, smooth surfaces, and optimized thickness suitable for 18K gold production.
Ideal for custom jewelry manufacturers, CAD designers, and luxury jewelry brands seeking a statement bracelet with exceptional craftsmanship. Snake-inspired wrap bracelets are a popular luxury jewelry style known for their bold aesthetic and symbolic elegance.
Specifications
- Product Type: Snake Wrap Bracelet
- Design Style: Luxury Serpent / Pavé
- CAD Format: 3DM, STL
- Inner Diameter: 57.15 mm

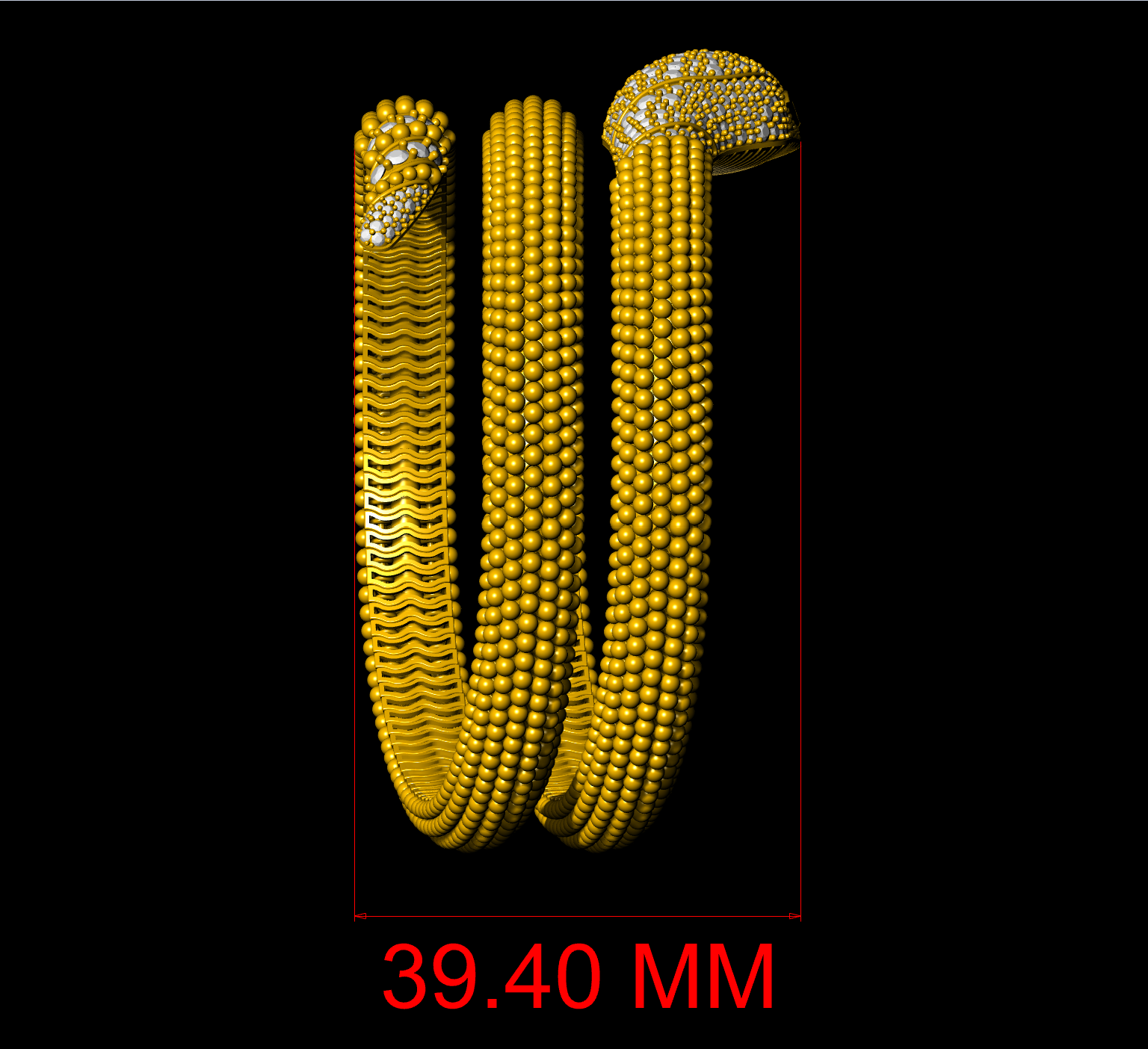

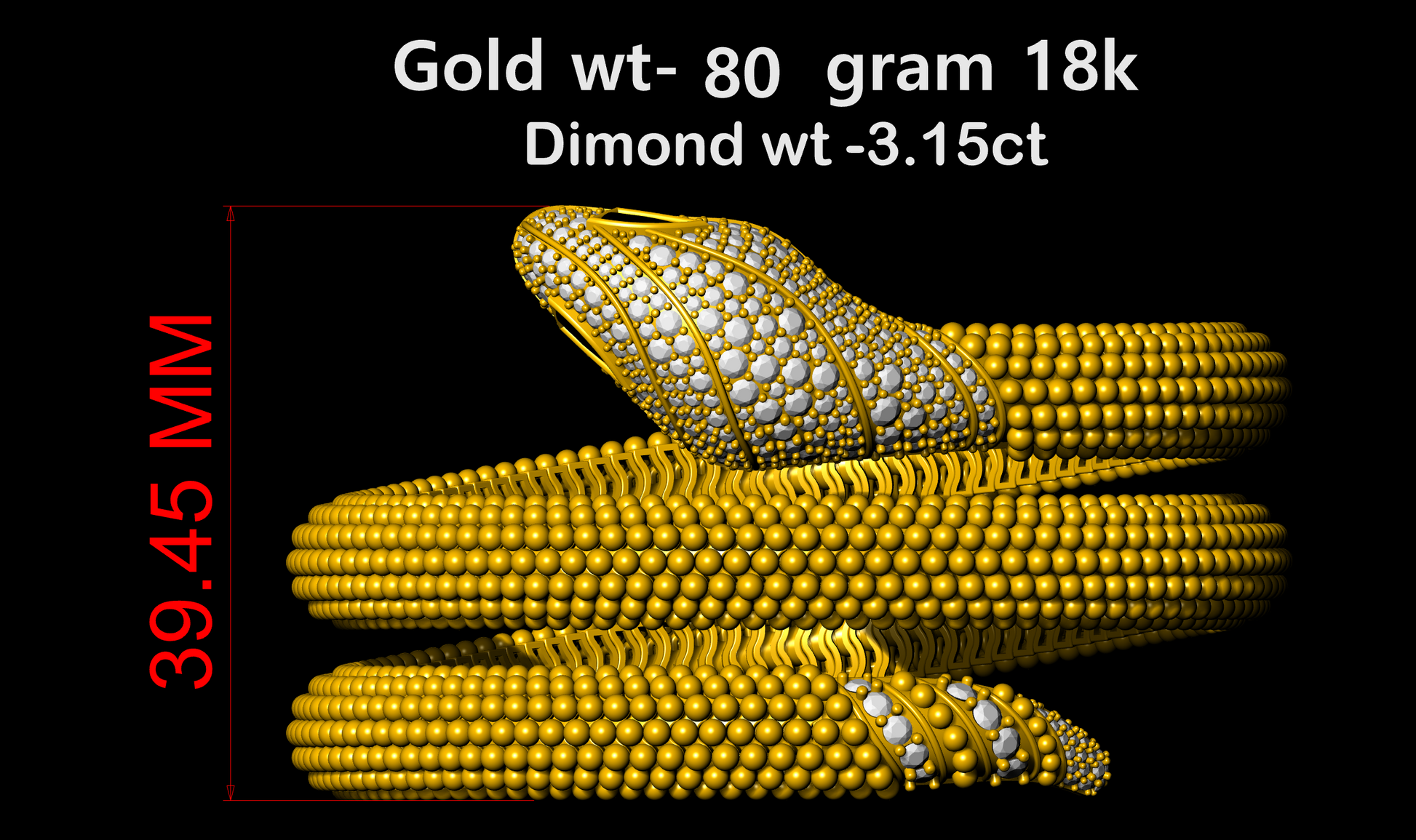

- Outer Width: 39.40 mm

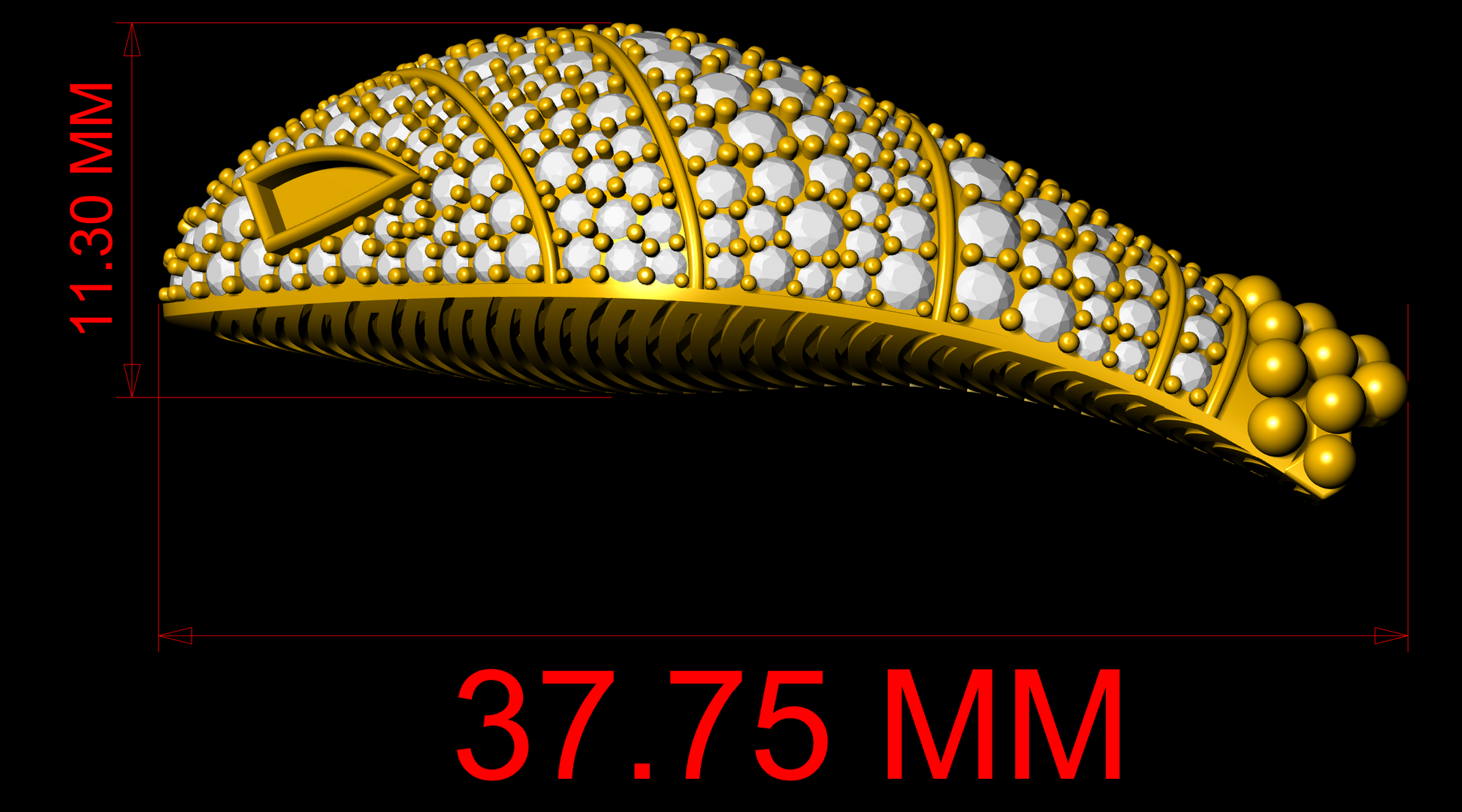

- Snake Head Length: 37.75 mm
- Snake Head Height: 11.30 mm

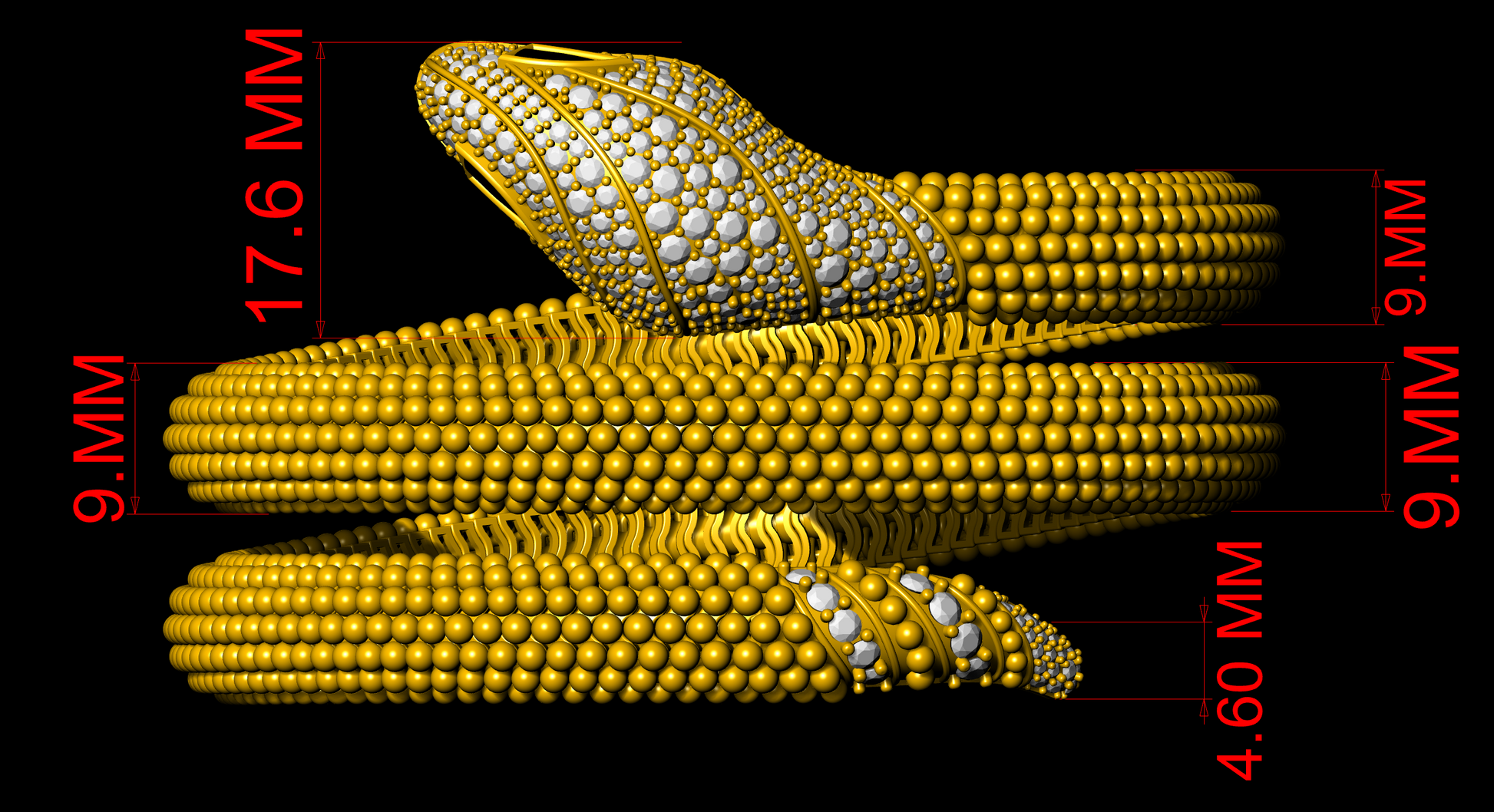

- Bracelet Width: 9.00 mm
- Bracelet Thickness: 6.00 mm
- Tail Thickness: 4.60 mm
- Metal Weight: Approx. 80 g (18K Gold)
- Total Diamond Weight: Approx. 3.15 ct

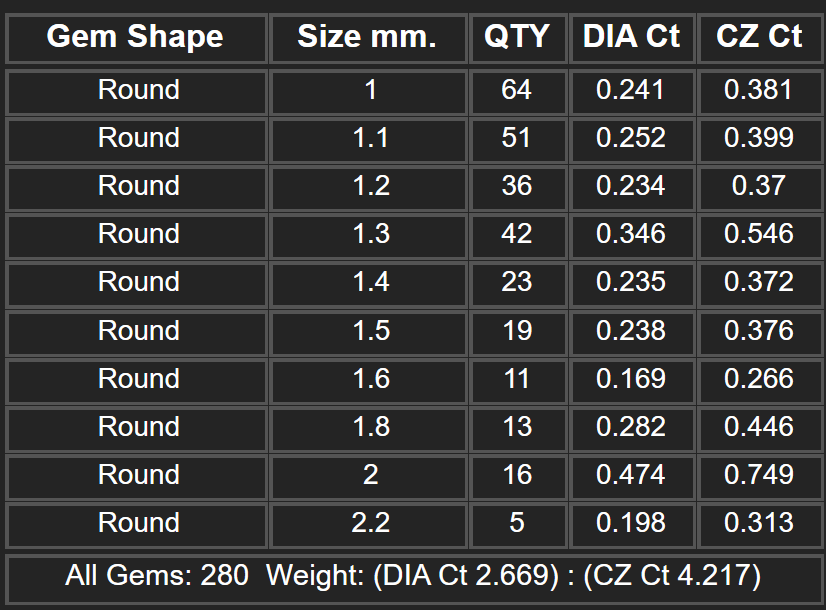

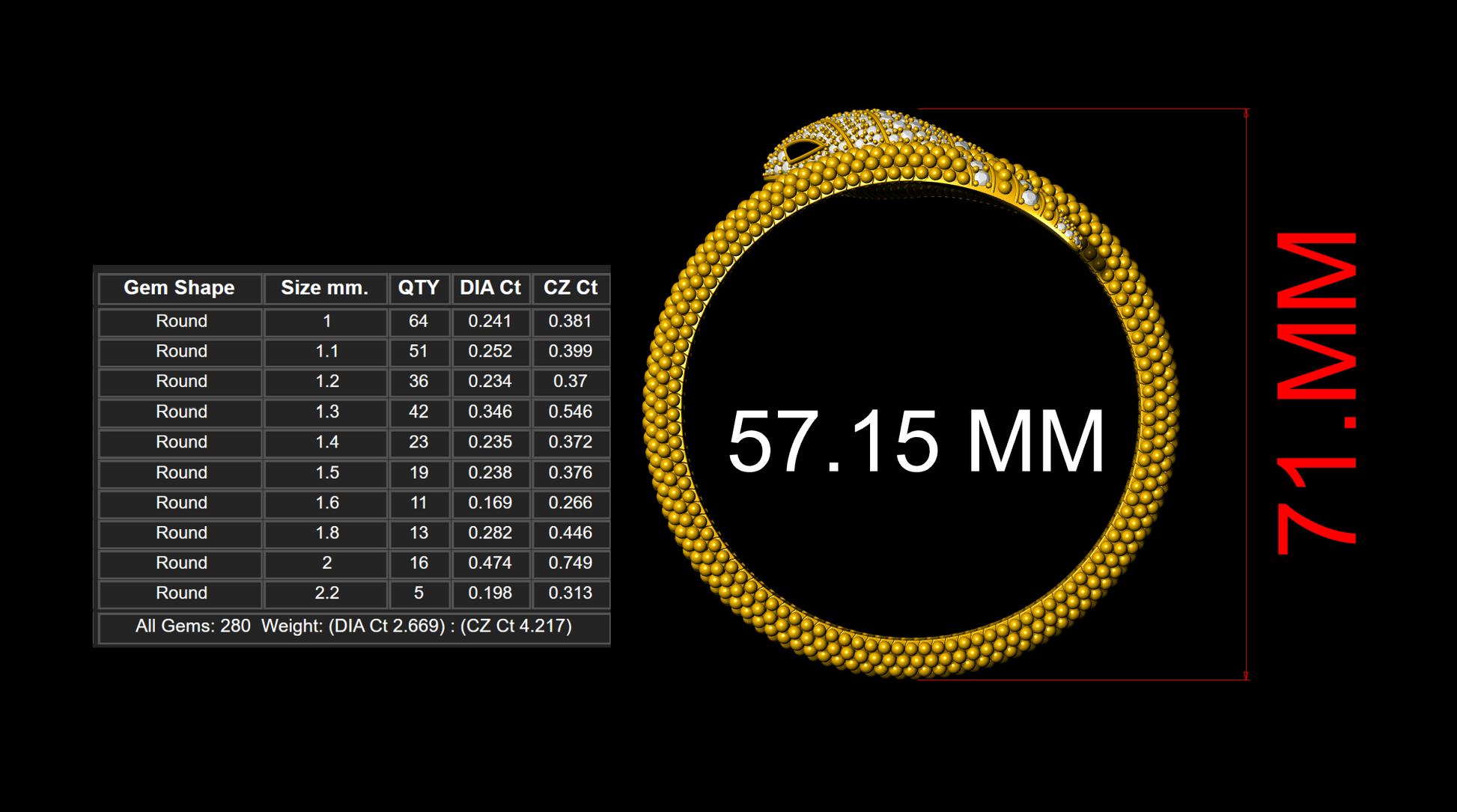

Stone Details
| Stone Size (mm) | Quantity |
|---|---|
| 1.00 | 64 |
| 1.10 | 51 |
| 1.20 | 36 |
| 1.30 | 42 |
| 1.40 | 23 |
| 1.50 | 19 |
| 1.60 | 11 |
| 1.80 | 13 |
| 2.00 | 16 |
| 2.20 | 5 |
- Total Stones: 280
- Diamond Weight: 2.669 ct
- CZ Weight: 4.217 ct
Features
- Production-ready CAD model
- Luxury pavé snake head
- Detailed beaded body texture
- High-quality gemstone layout
- Comfortable wrap-around fit
- Suitable for casting and stone setting
- Optimized for 18K gold manufacturing
- Professional jewelry CAD design
