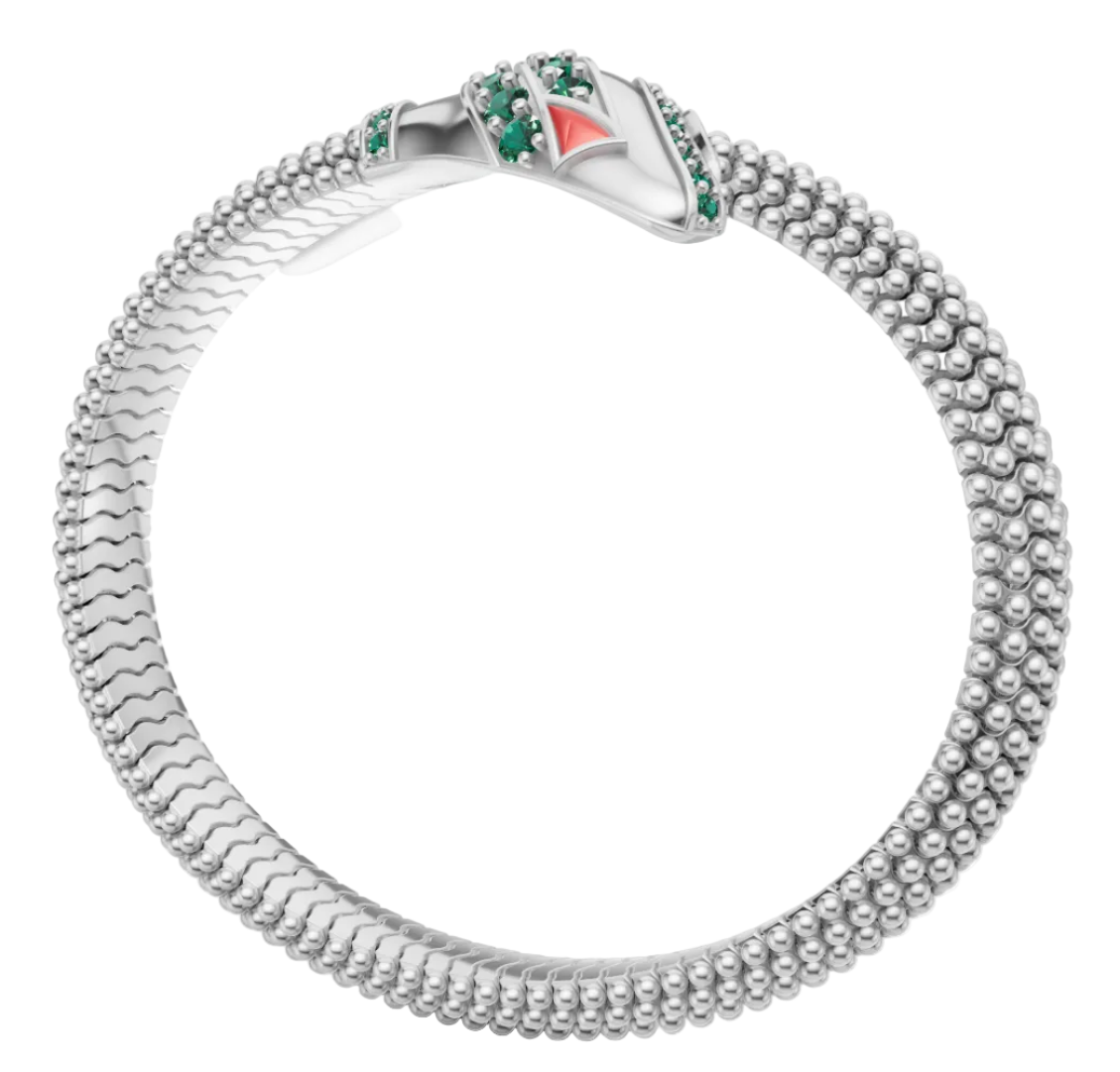

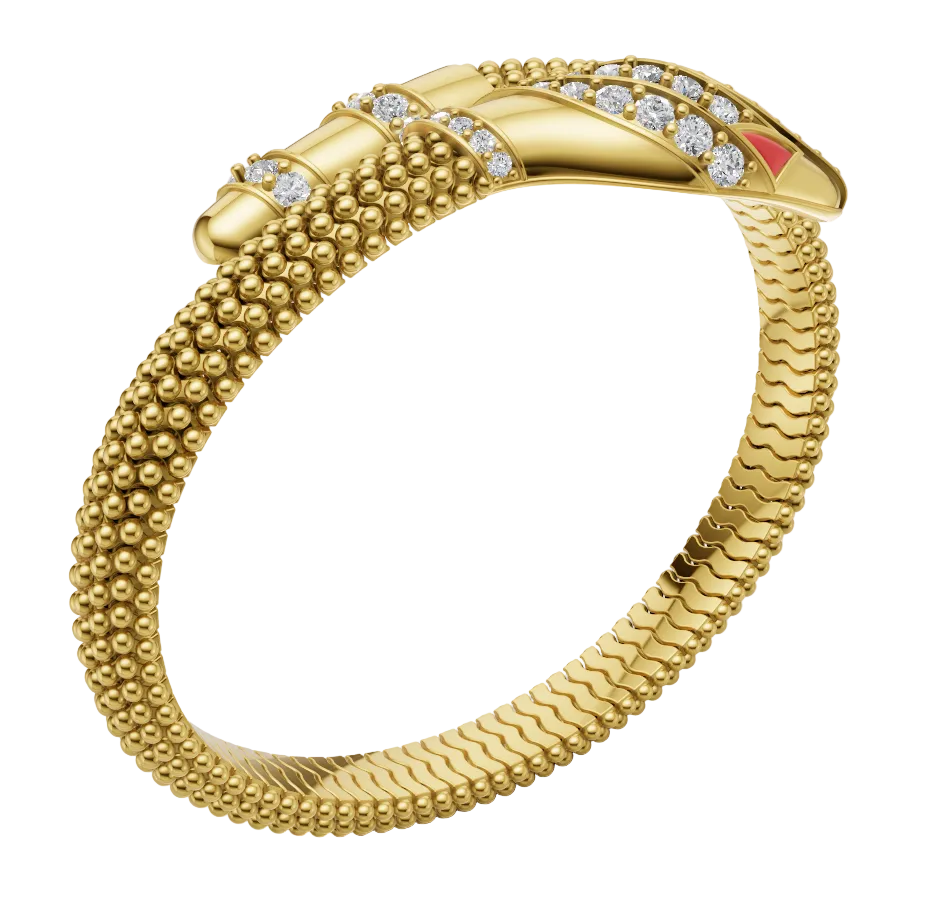

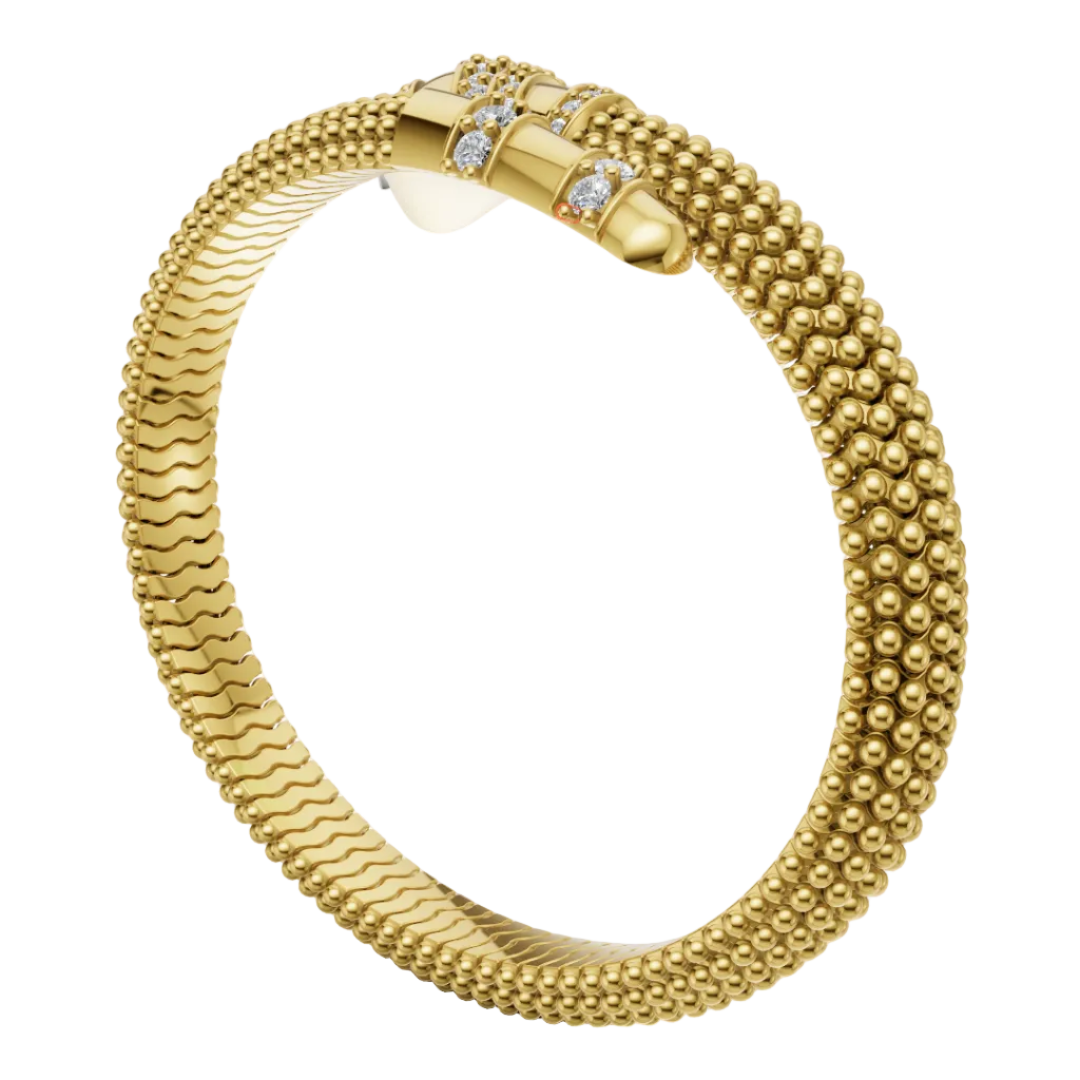

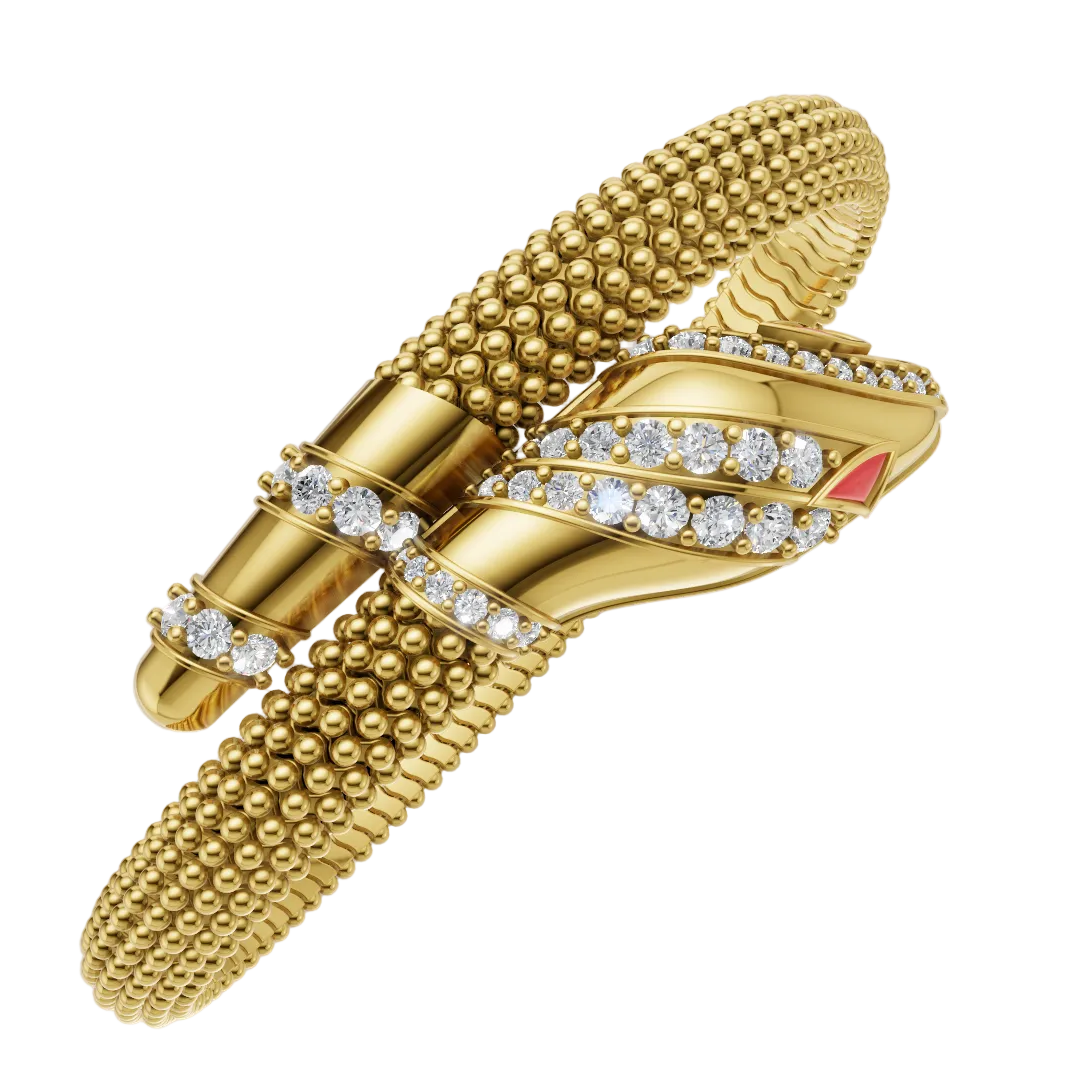

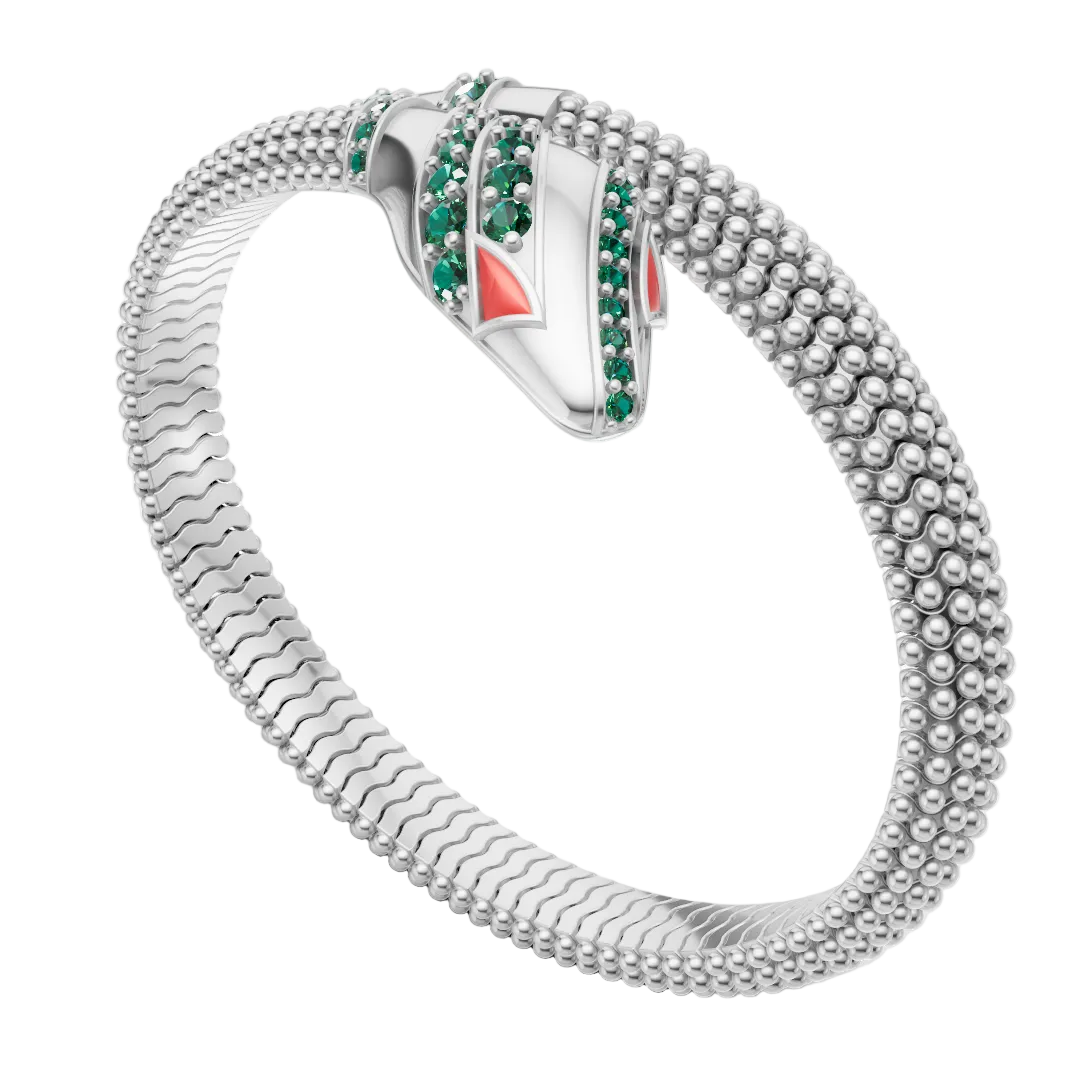

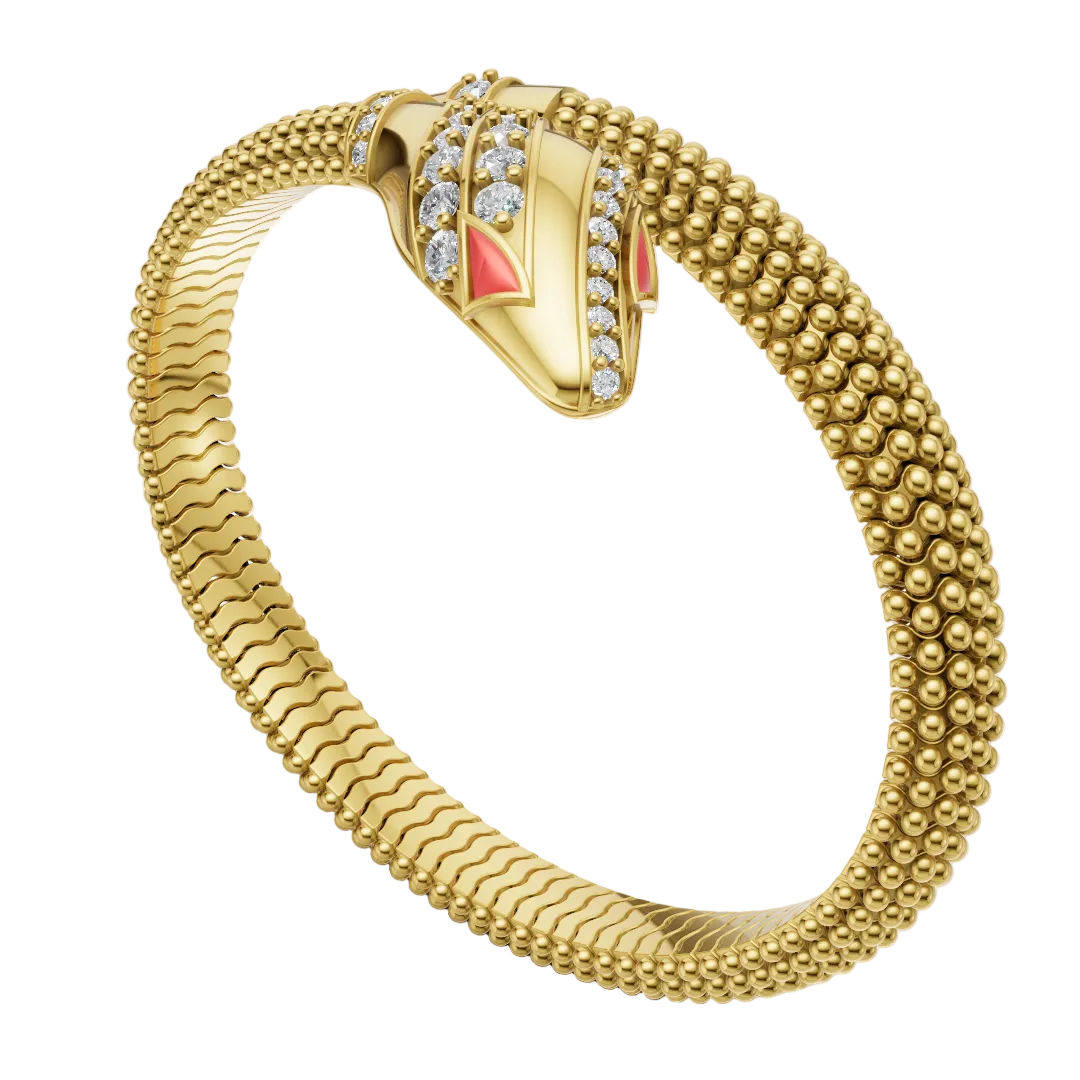

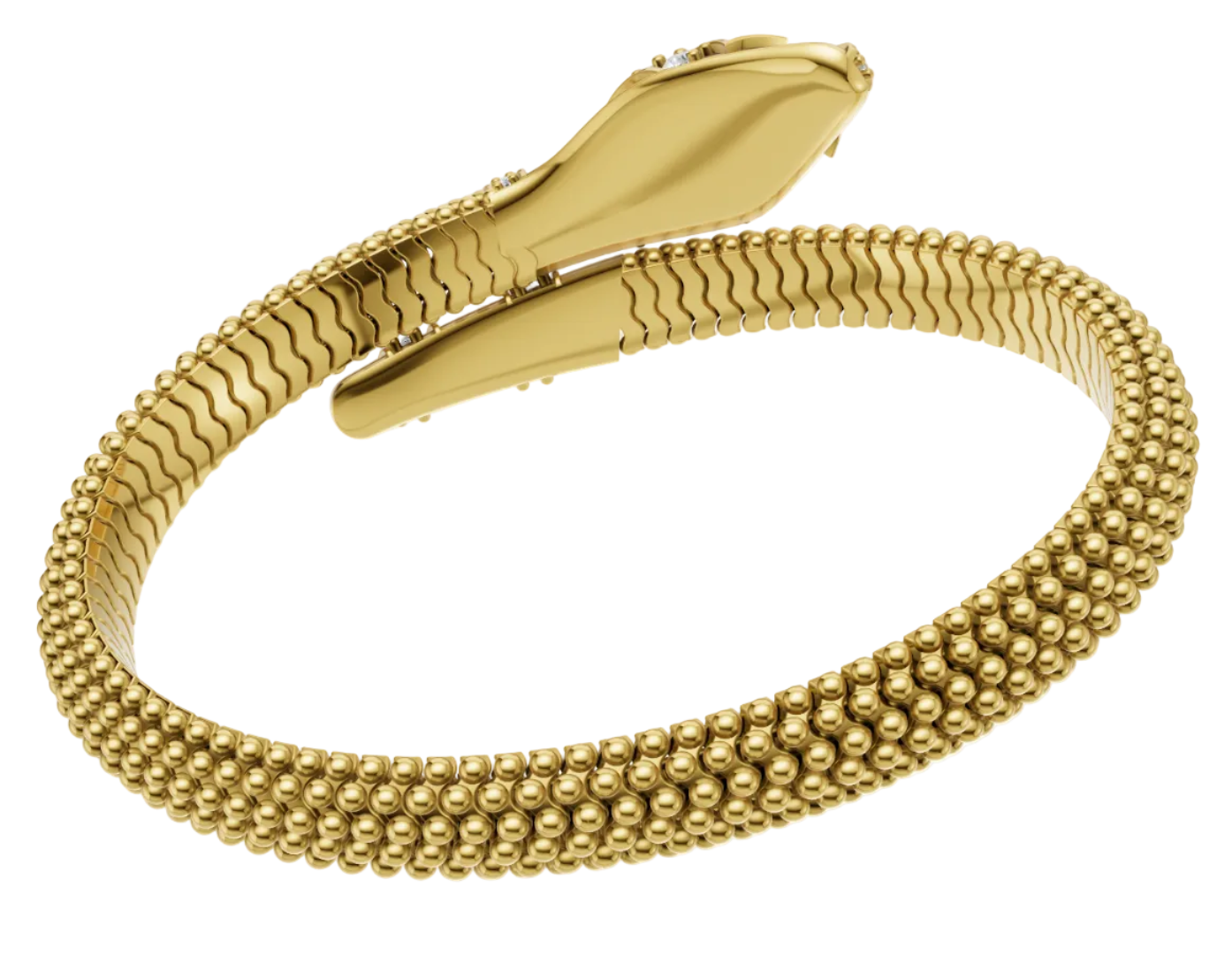

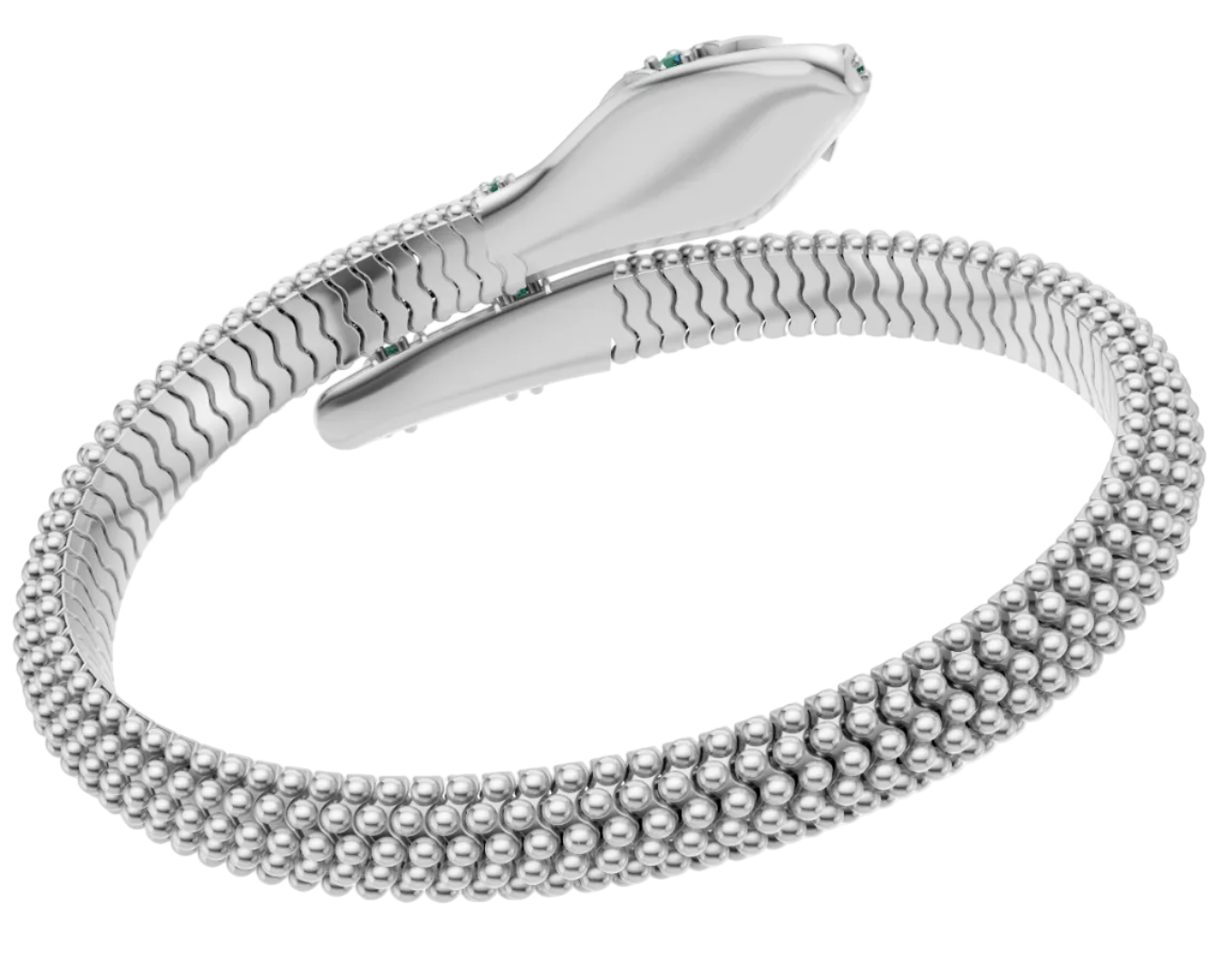

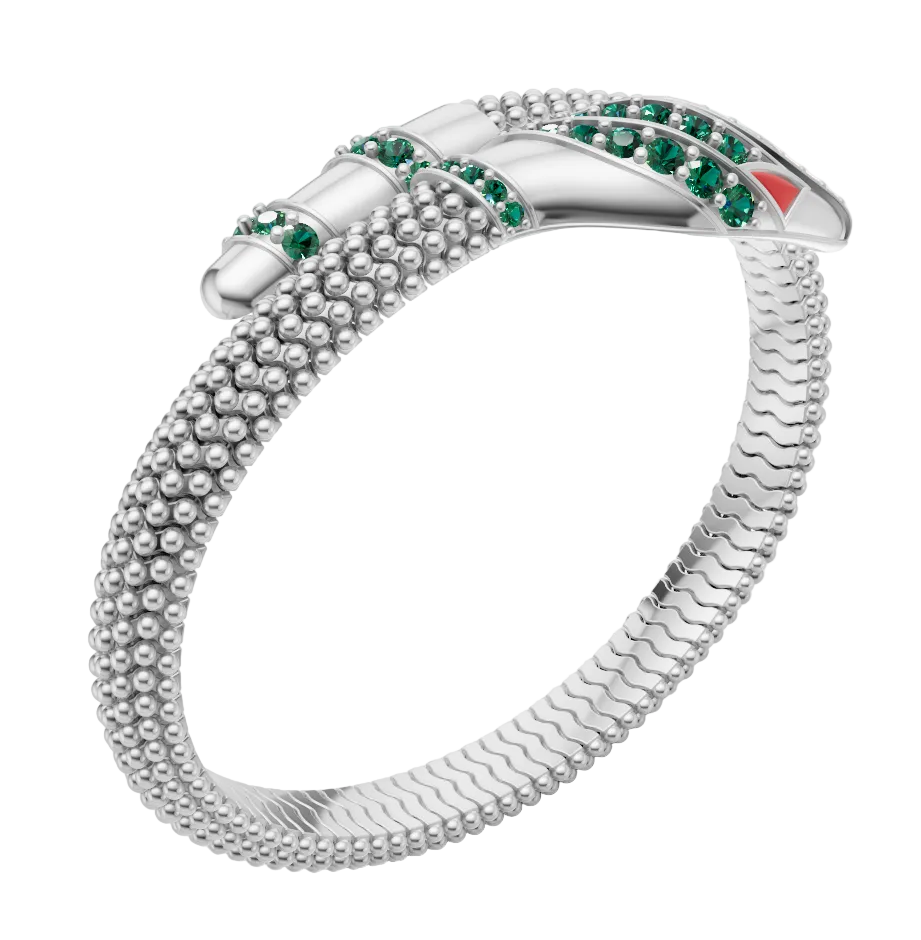

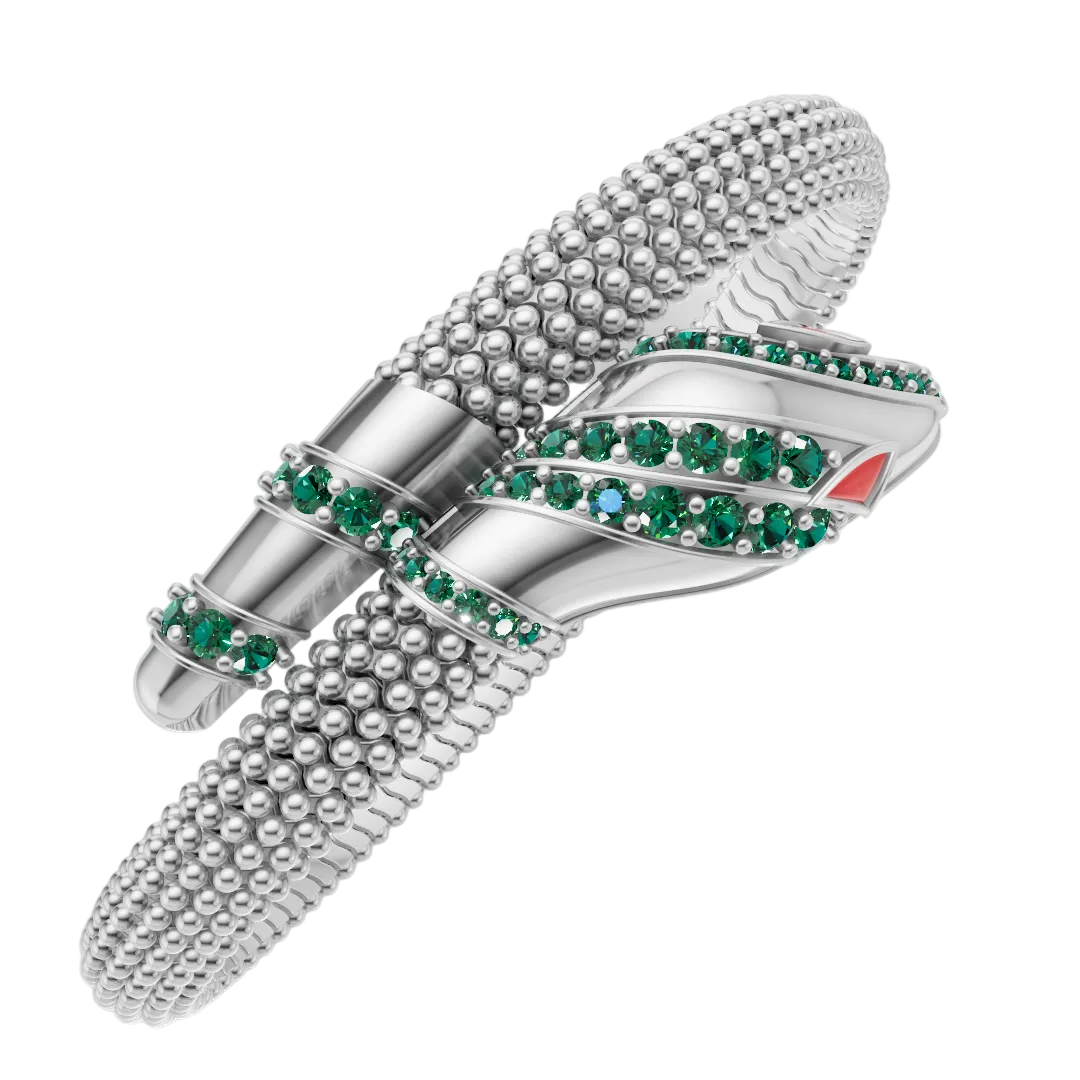

Serpent Flexible Bracelet CAD FILE

Product Type: Designer Bangle (Openable Style)
Design Concept: Modern luxury with micro-bead texture and stone-studded centerpiece

Dimensions:

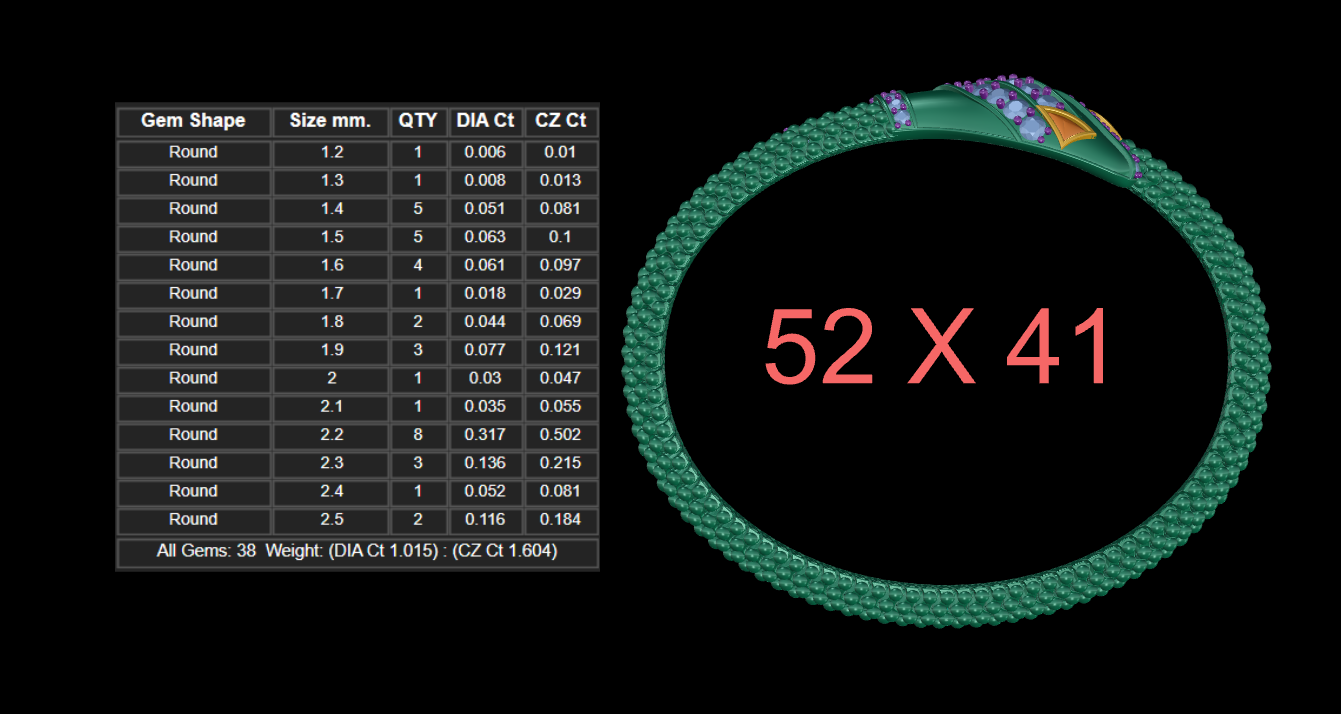

• Inner Size: 52 × 41 mm

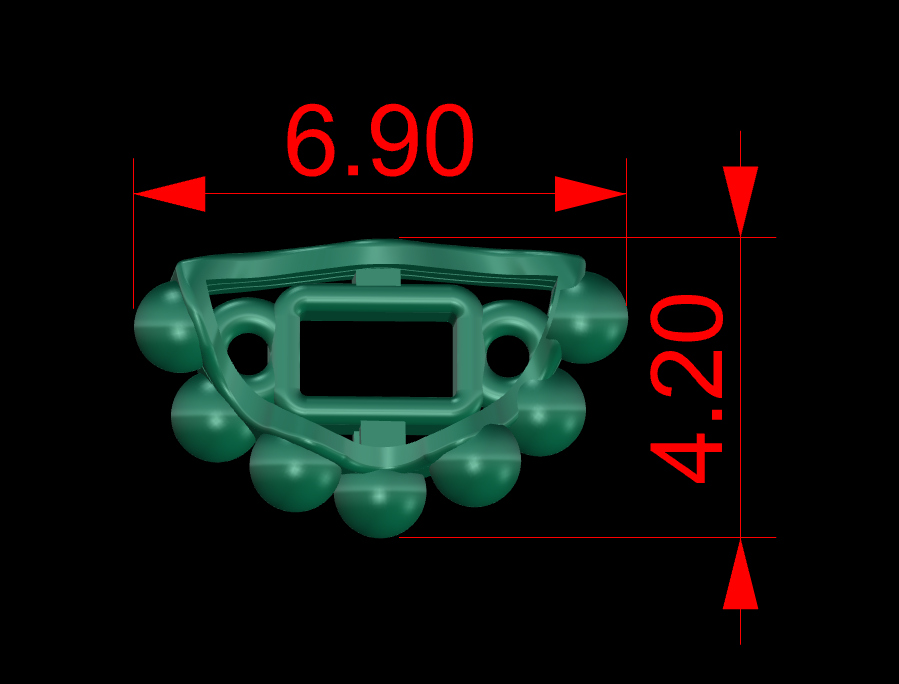

• Top Width: 6.90 mm
• Center Height: 4.20 mm

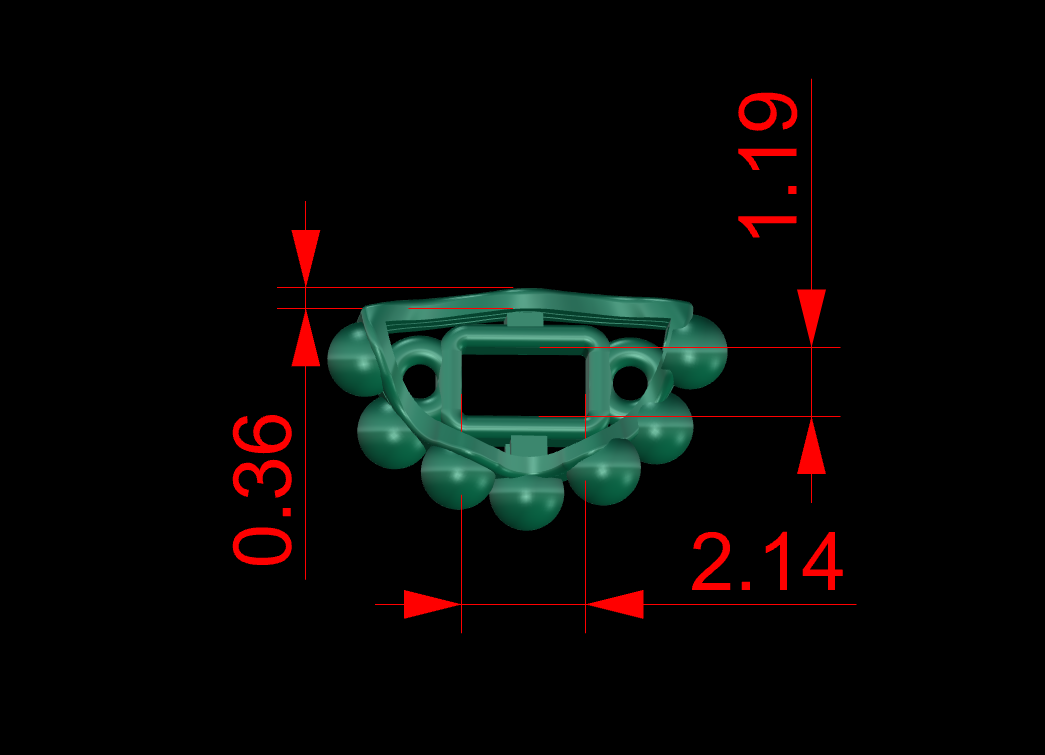

• Bottom Width: 2.14 mm

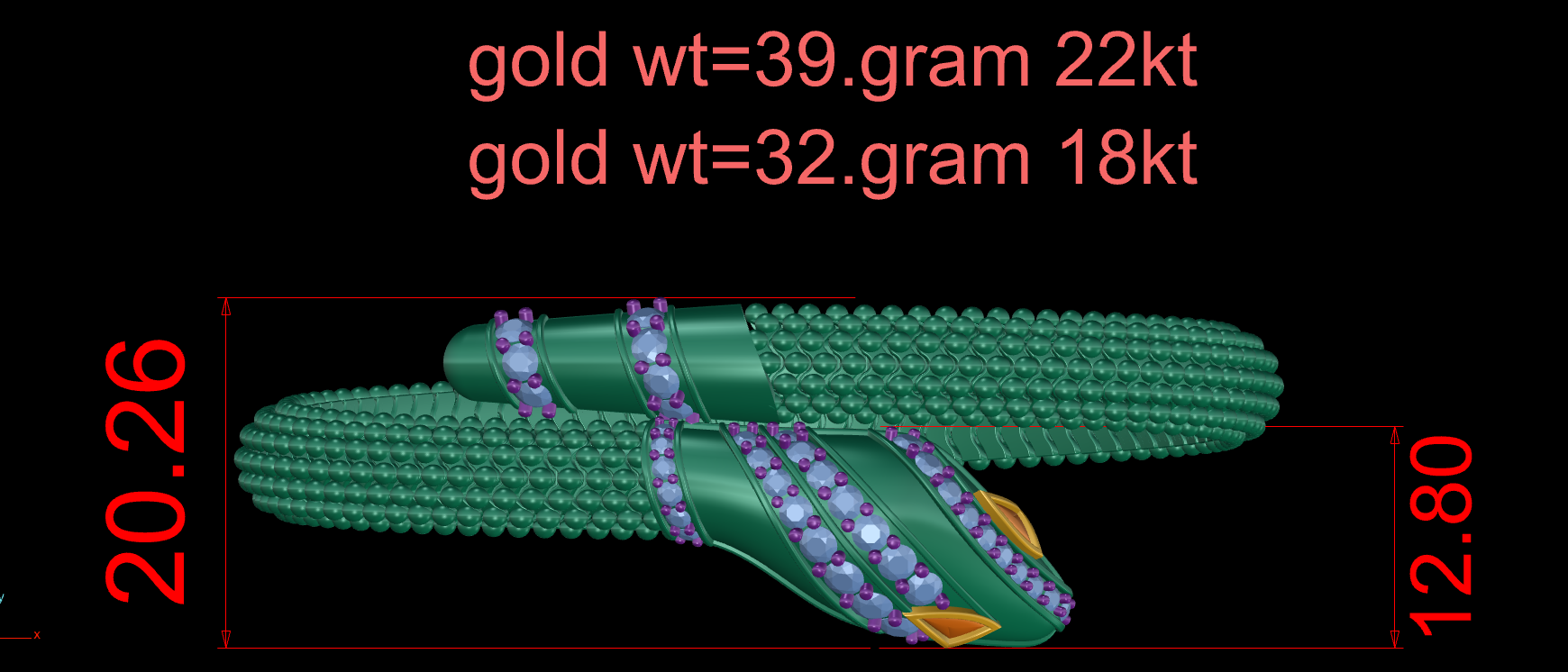

• Band Thickness Range: 2.80 mm – 20.26 mm (top variation)

---

Gold Weight:

• 22KT: Approx. 39 grams
• 18KT: Approx. 32 grams

(Weight may vary slightly based on polishing and finishing)

---

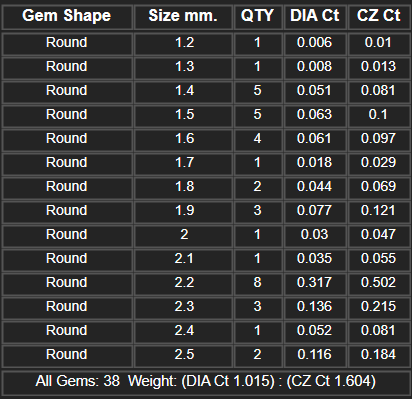

Stone Details:

• Total Stones: 38 pcs
• Shape: Round

Size Breakdown:

• 1.2 mm – 1 pc
• 1.3 mm – 1 pc
• 1.4 mm – 5 pcs
• 1.5 mm – 5 pcs
• 1.6 mm – 4 pcs
• 1.7 mm – 1 pc
• 1.8 mm – 2 pcs
• 1.9 mm – 3 pcs
• 2.0 mm – 1 pc
• 2.1 mm – 1 pc
• 2.2 mm – 8 pcs
• 2.3 mm – 3 pcs
• 2.4 mm – 1 pc
• 2.5 mm – 2 pcs

Total Diamond Weight (Approx.): 1.015 ct
Total CZ Weight (Approx.): 1.604 ct

---

Key Features:

• Premium micro-bead textured band
• Elegant stone setting with secure prongs
• Comfortable inner profile for daily wear
• High-end luxury finish suitable for bridal & premium collections

---
