SerpentI Diamond Necklace with Lock CAD FILE

Product Description:

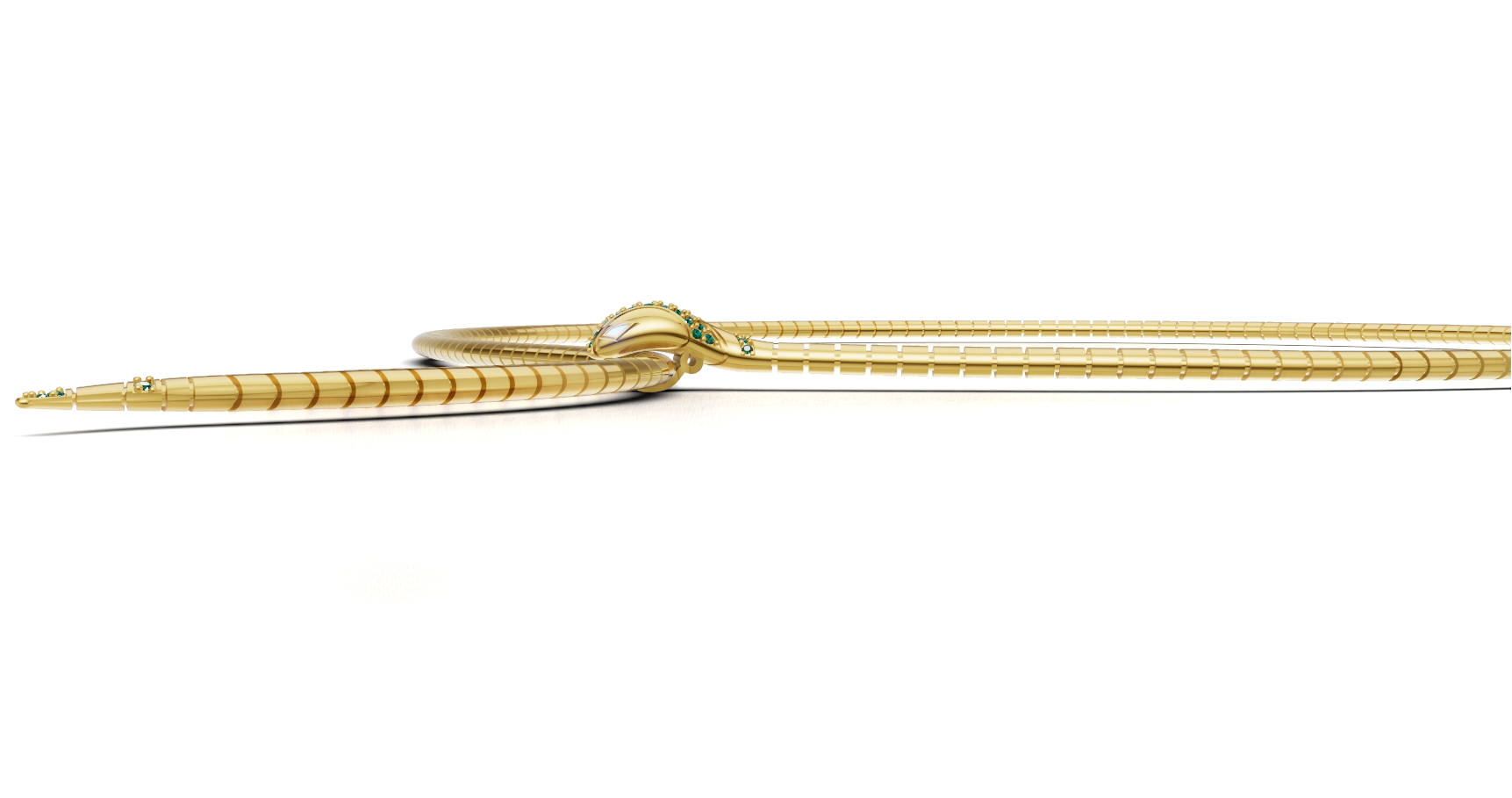

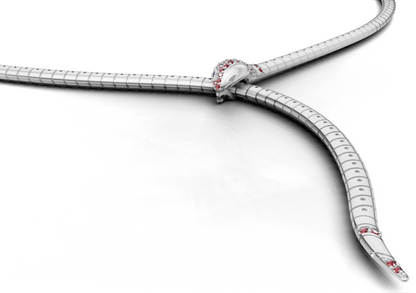

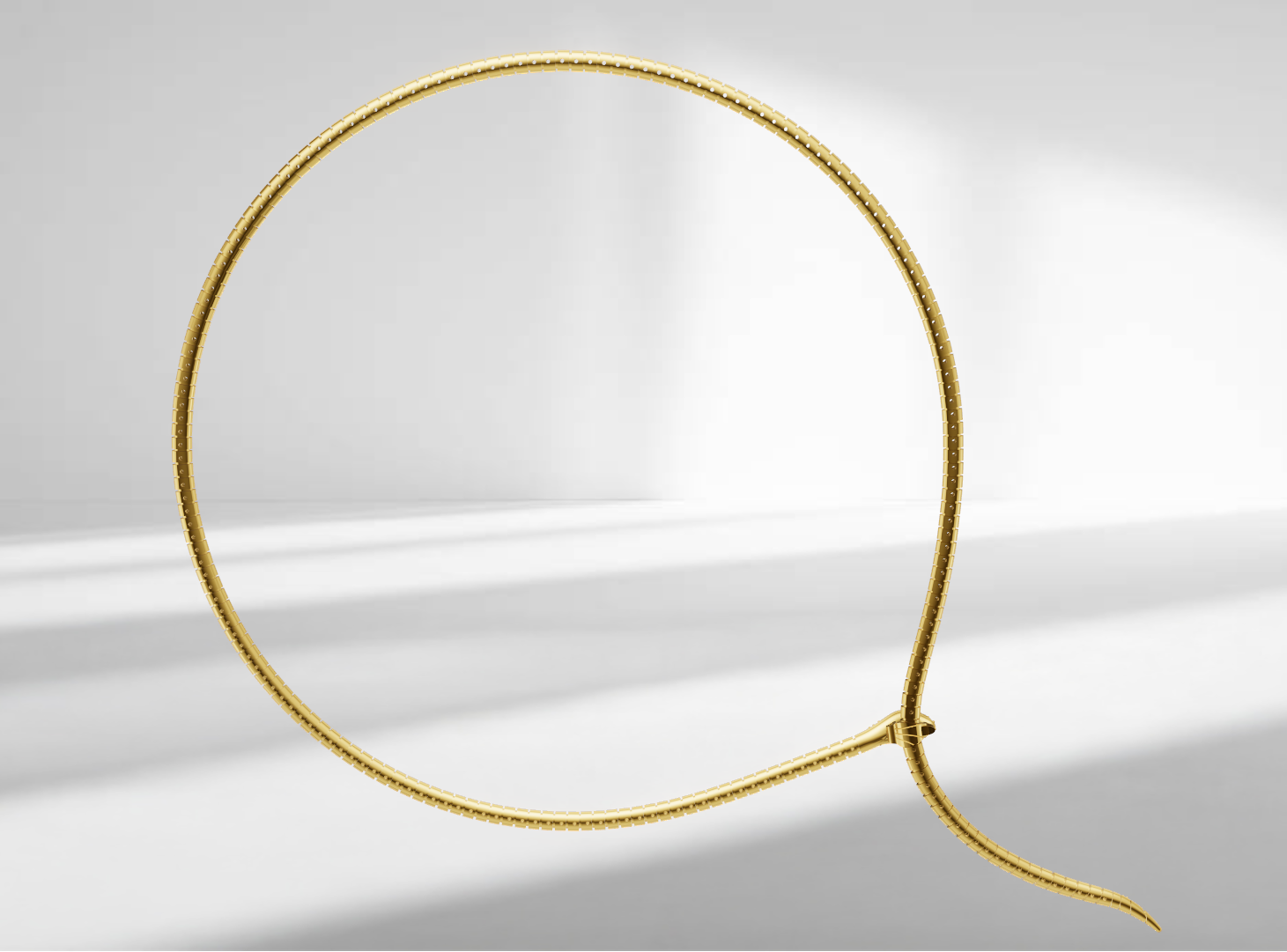

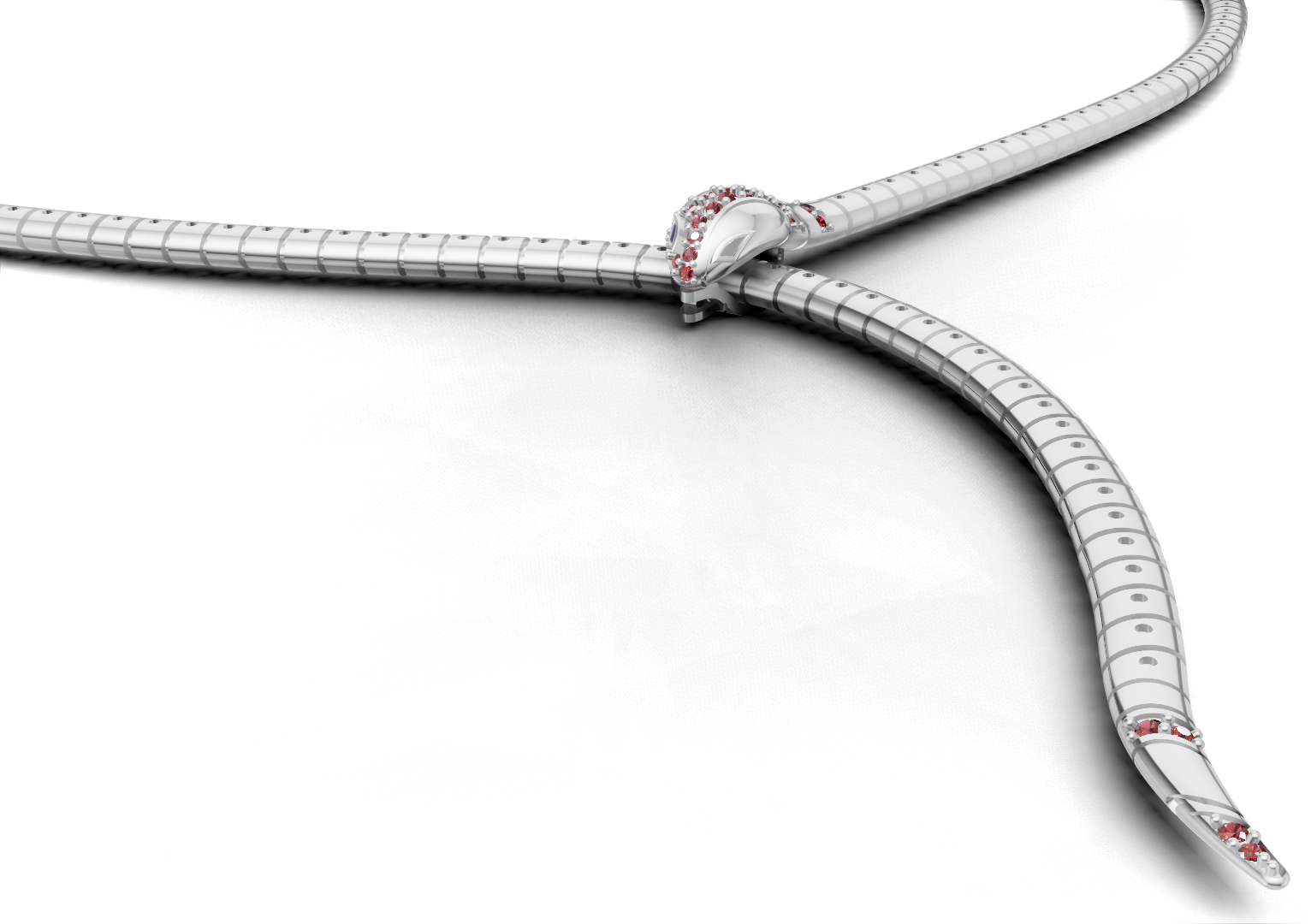

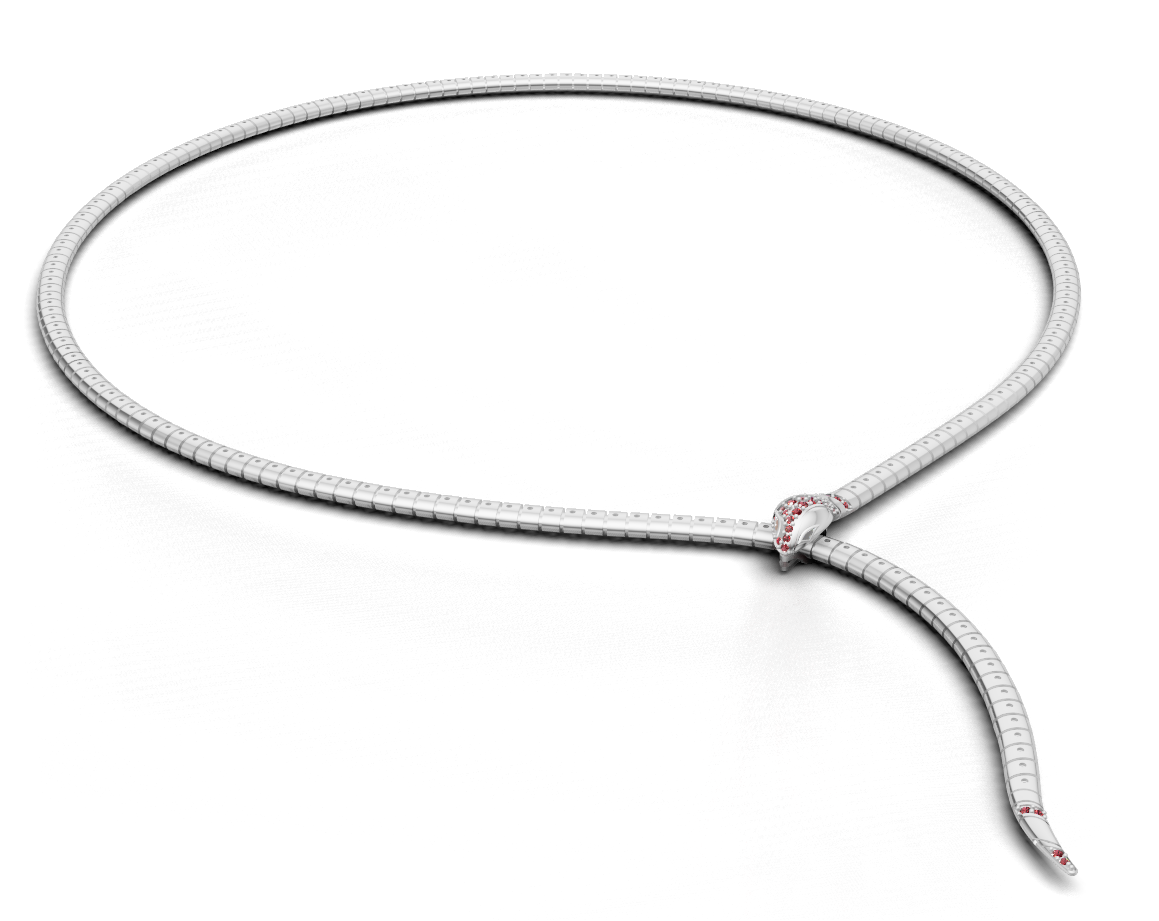

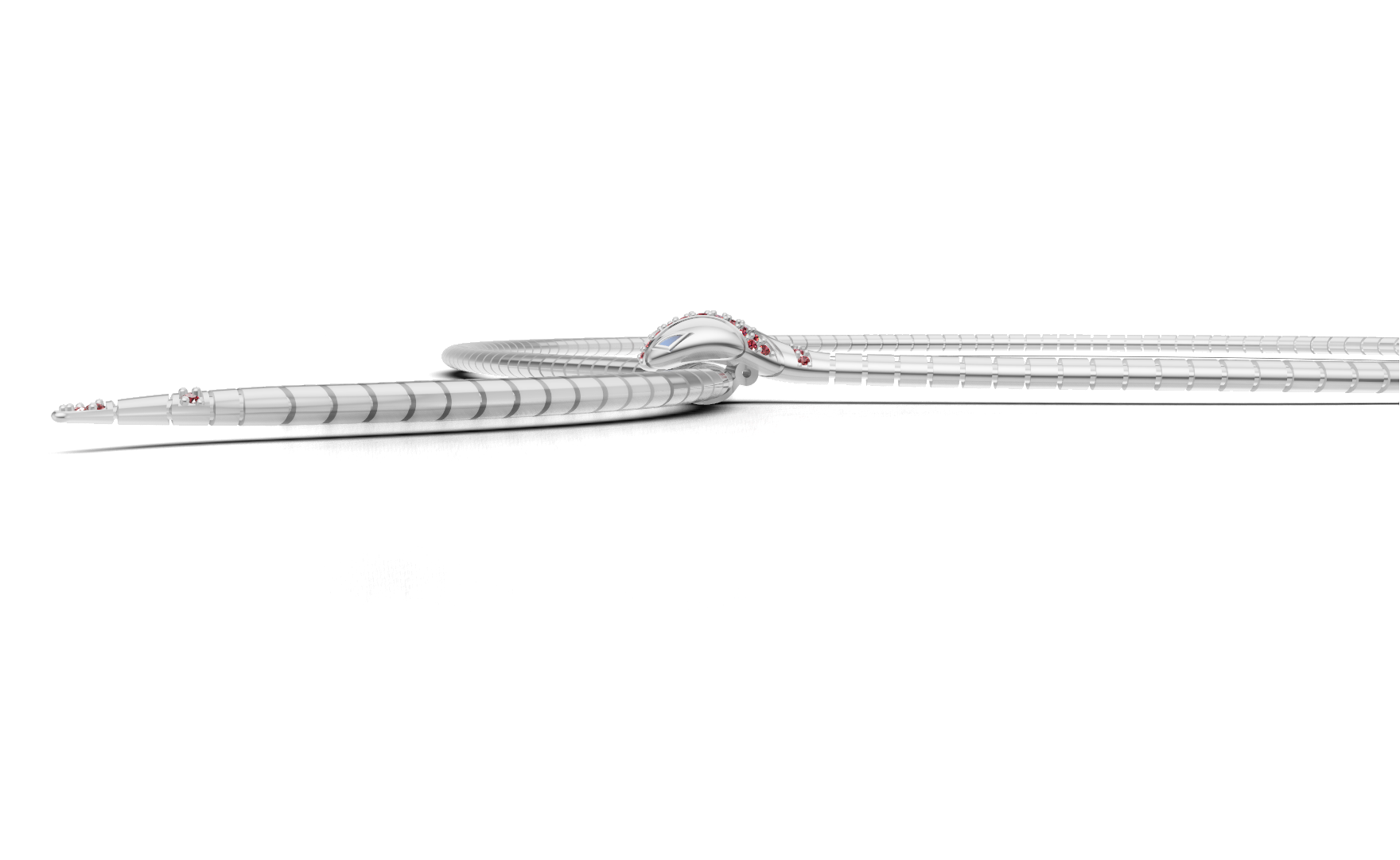

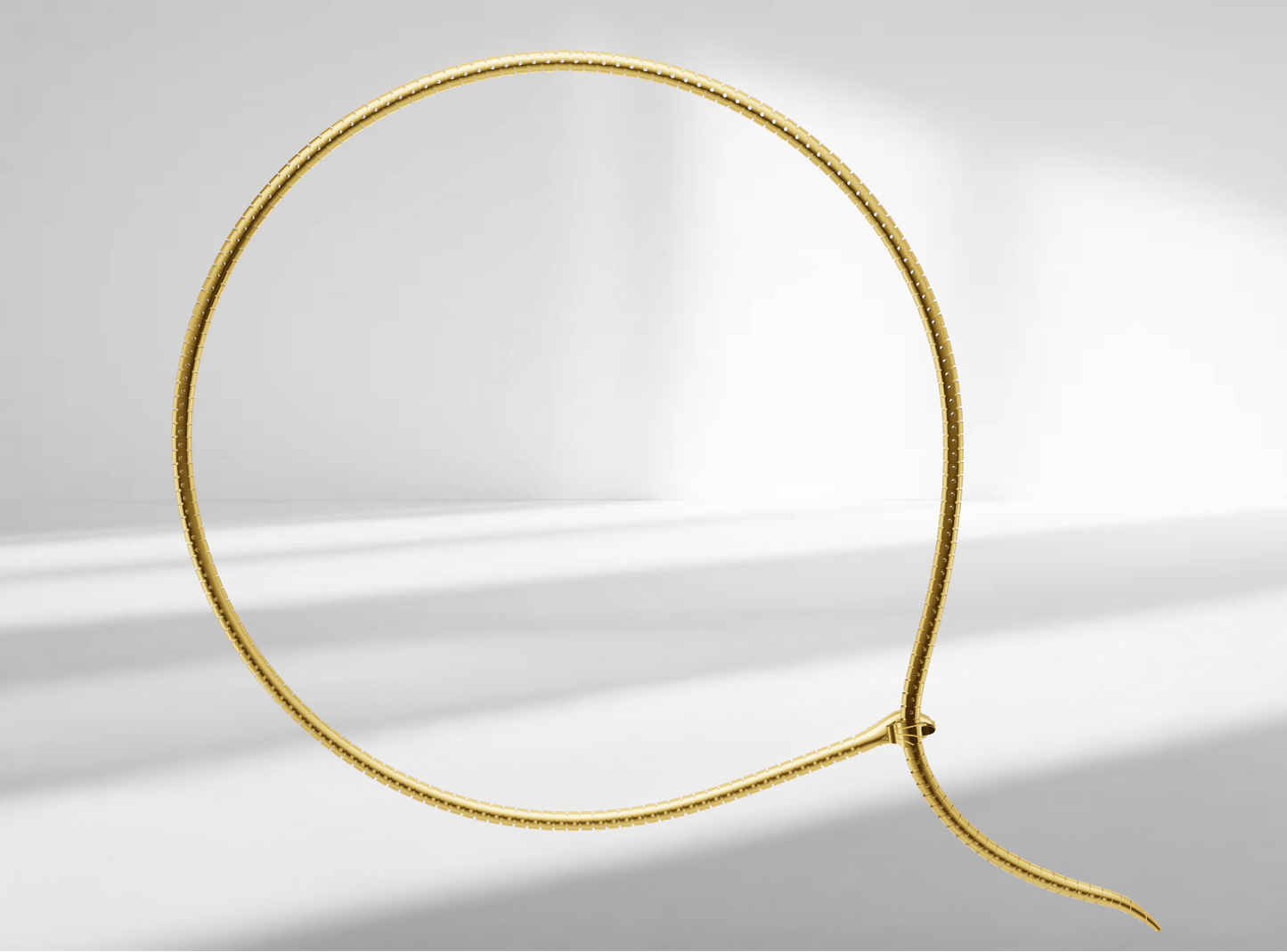

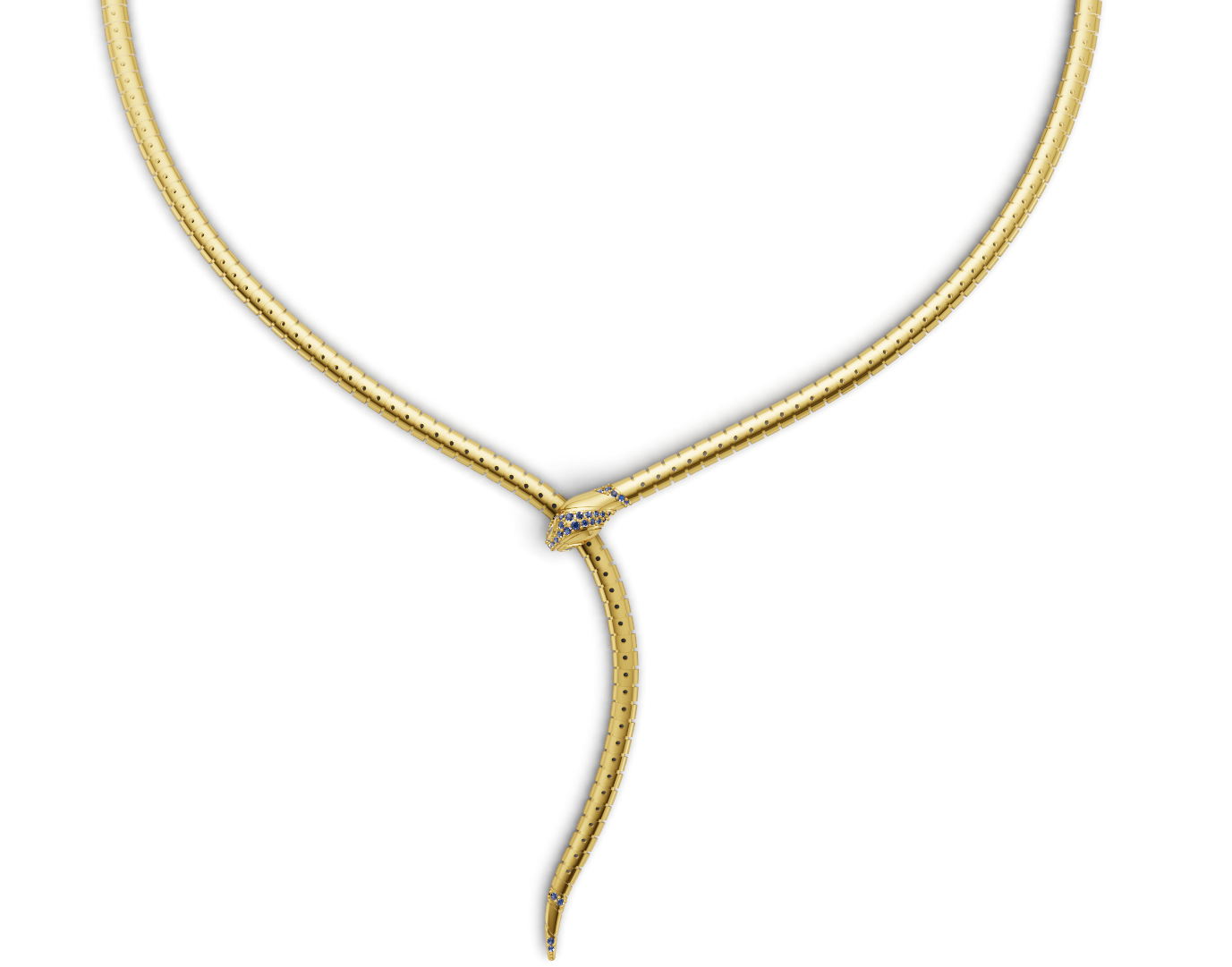

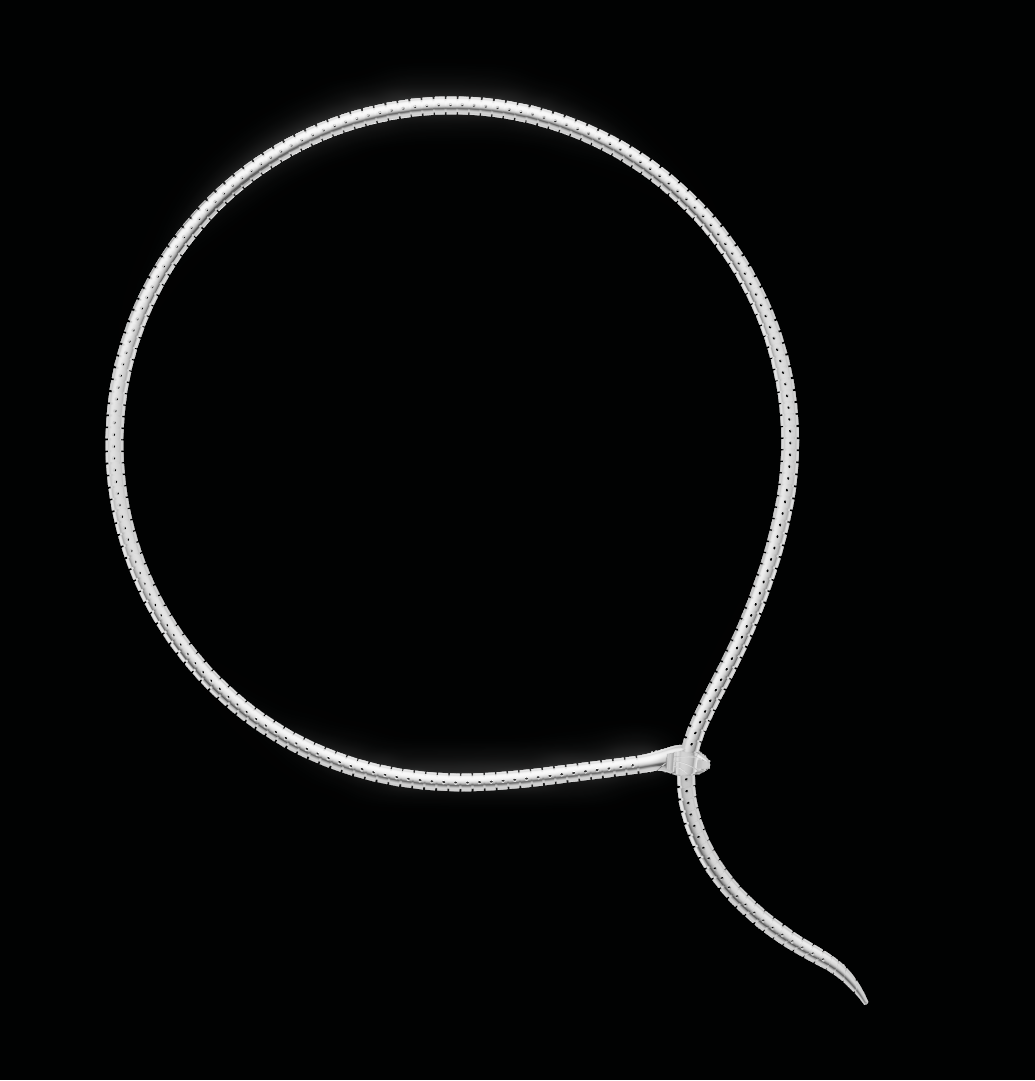

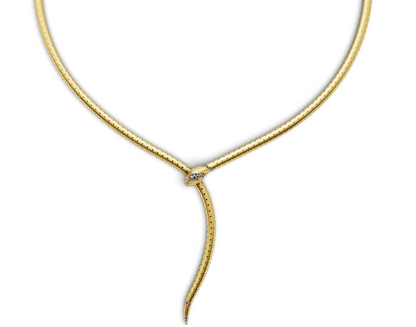

A refined and contemporary serpentine-style necklace featuring a sleek, flexible body with precision stone setting and an integrated clasp mechanism. The design combines fluid curvature with technical detailing, making it both visually striking and functional. The head section is accentuated with micro-set stones, adding brilliance while maintaining a smooth ergonomic form.

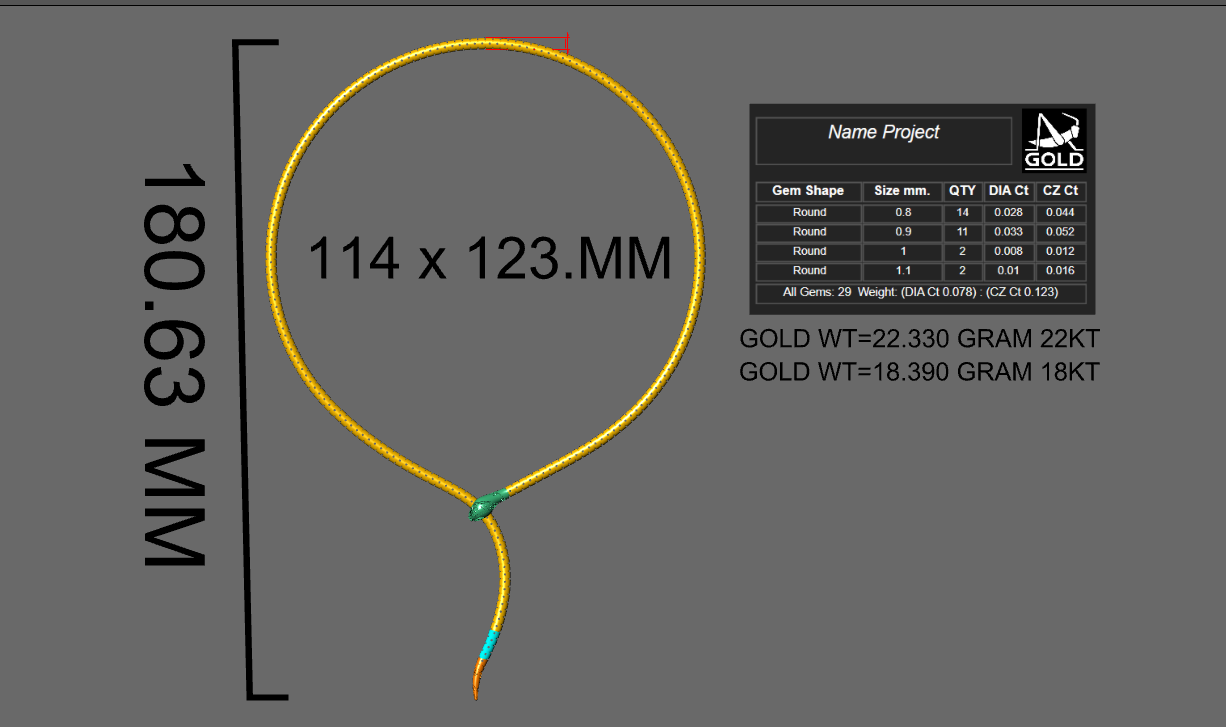

Measurements:

• Overall Size: 114 × 123 mm

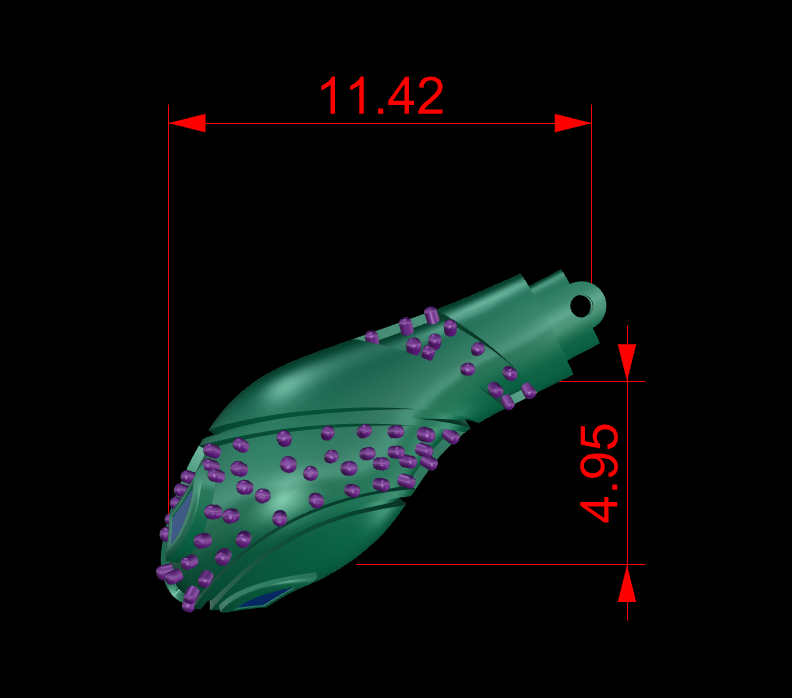

• Head Length: 11.42 mm
• Head Width: 4.95 mm

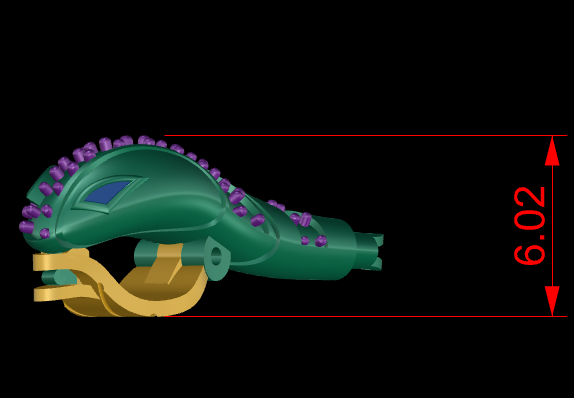

• Height (Top View): 6.02 mm

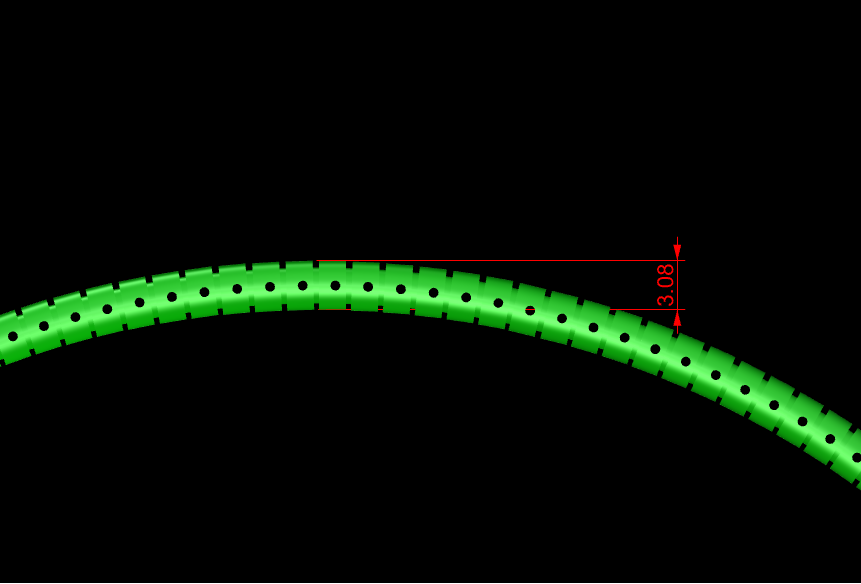

• Body Thickness: 3.08 mm

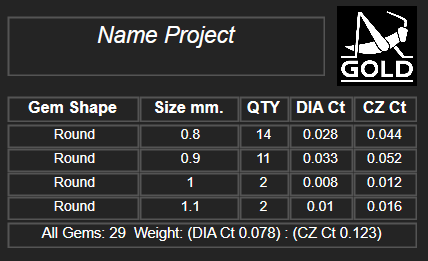

Gemstone Details:

• Shape: Round
• Sizes & Quantity:
  • 0.8 mm – 14 pcs
  • 0.9 mm – 11 pcs
  • 1.0 mm – 2 pcs
  • 1.1 mm – 2 pcs
• Total Stones: 29 pcs
• Total Weight:
  • Diamond: 0.078 ct
  • CZ: 0.123 ct

Metal Weight:

• 22KT Gold: 22.330 grams
• 18KT Gold: 18.390 grams

Design Features:

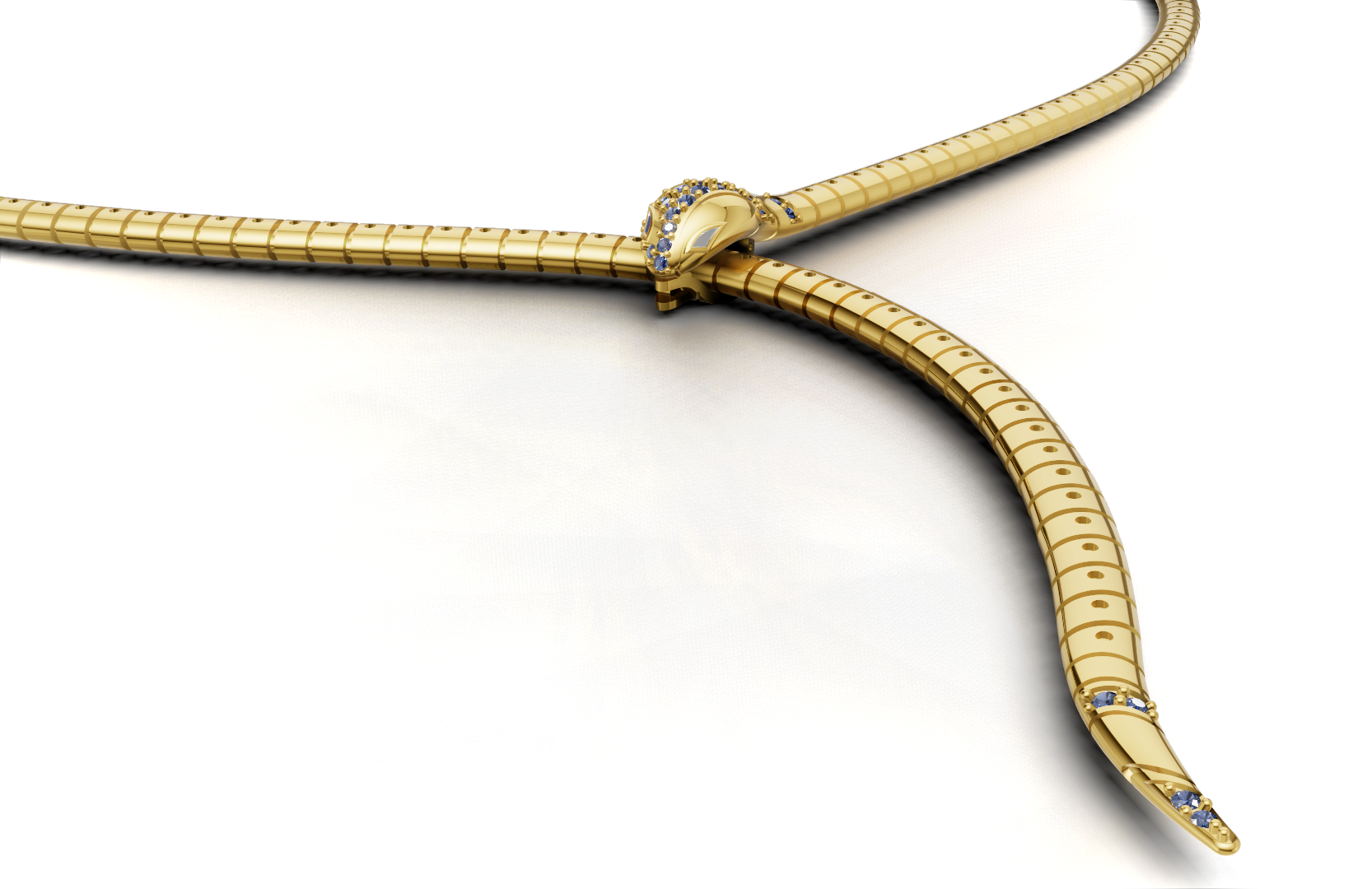

• Smooth flexible tubular body with precision perforation
• Micro pave stone setting for enhanced brilliance
• Integrated locking mechanism for seamless closure
• Ergonomic curvature for comfortable wear
