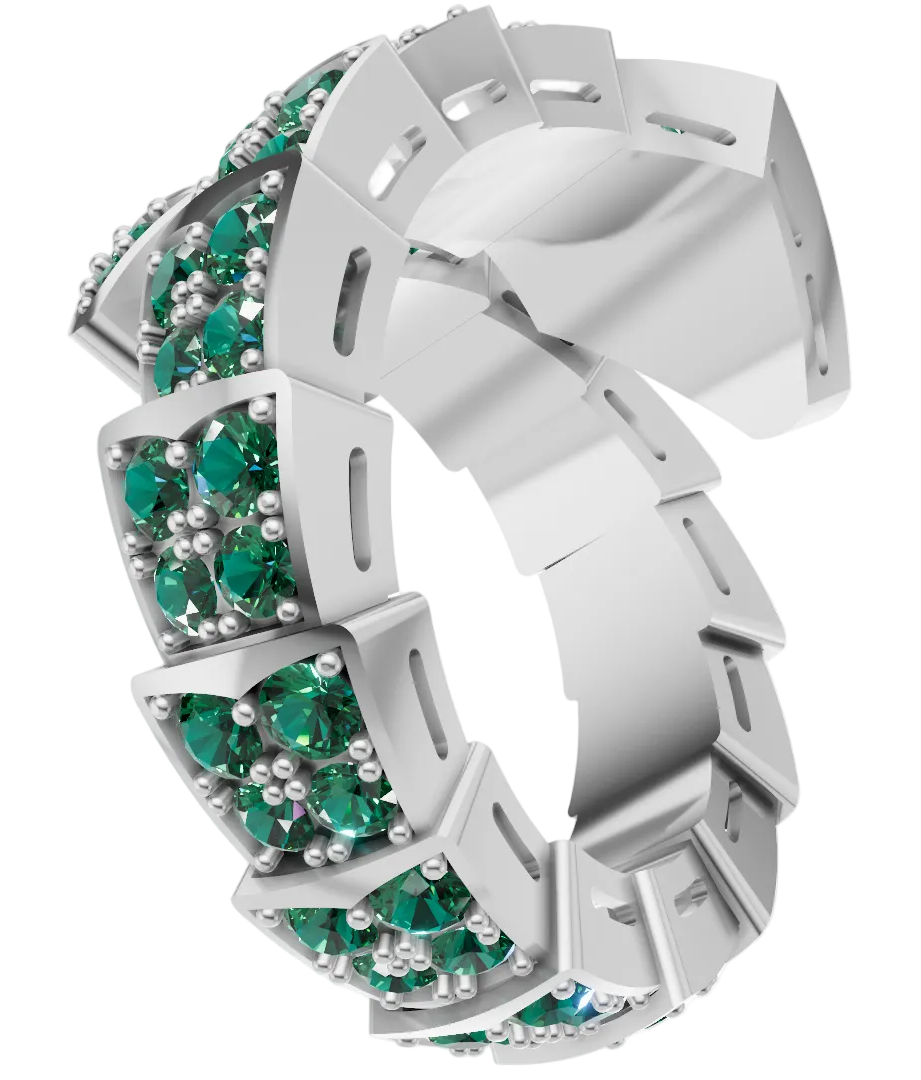

Snake Diamond Ring CAD FILE

Product Description

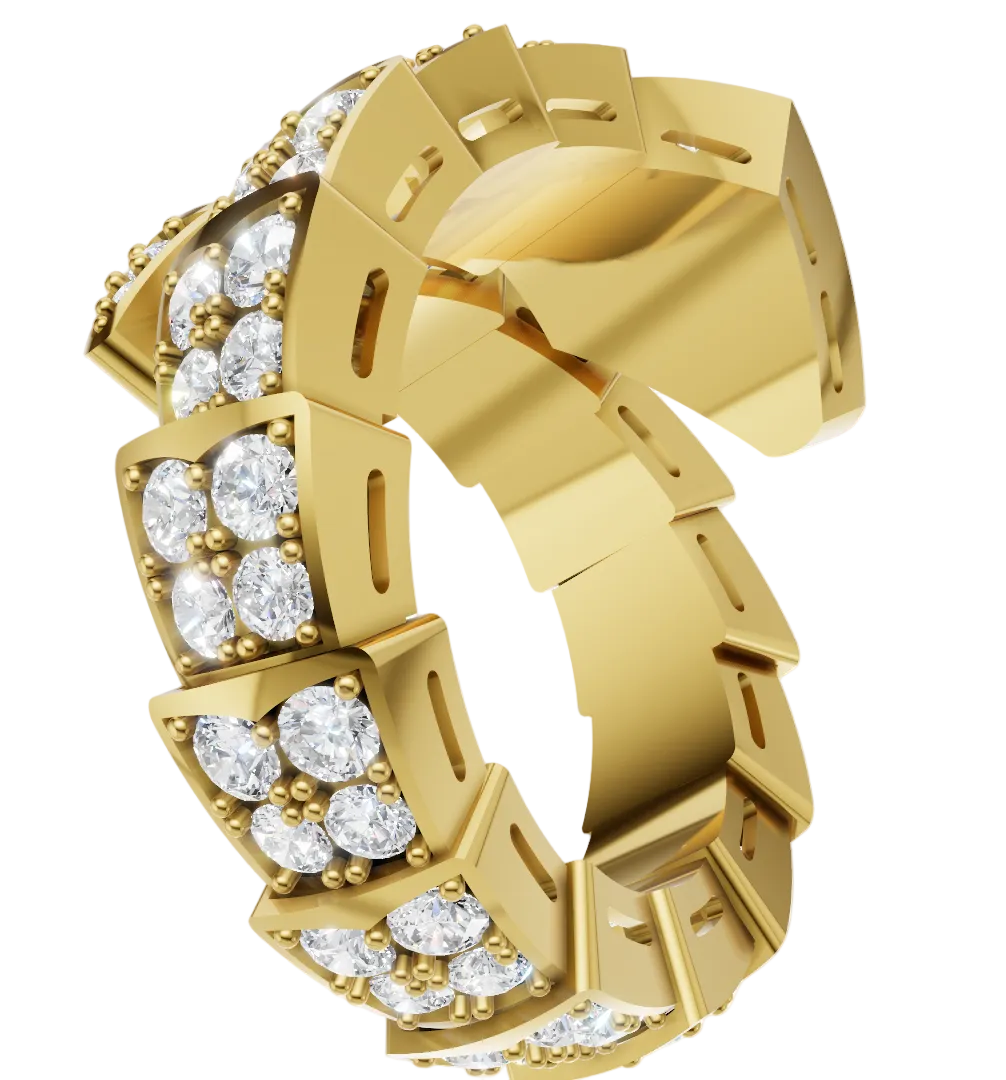

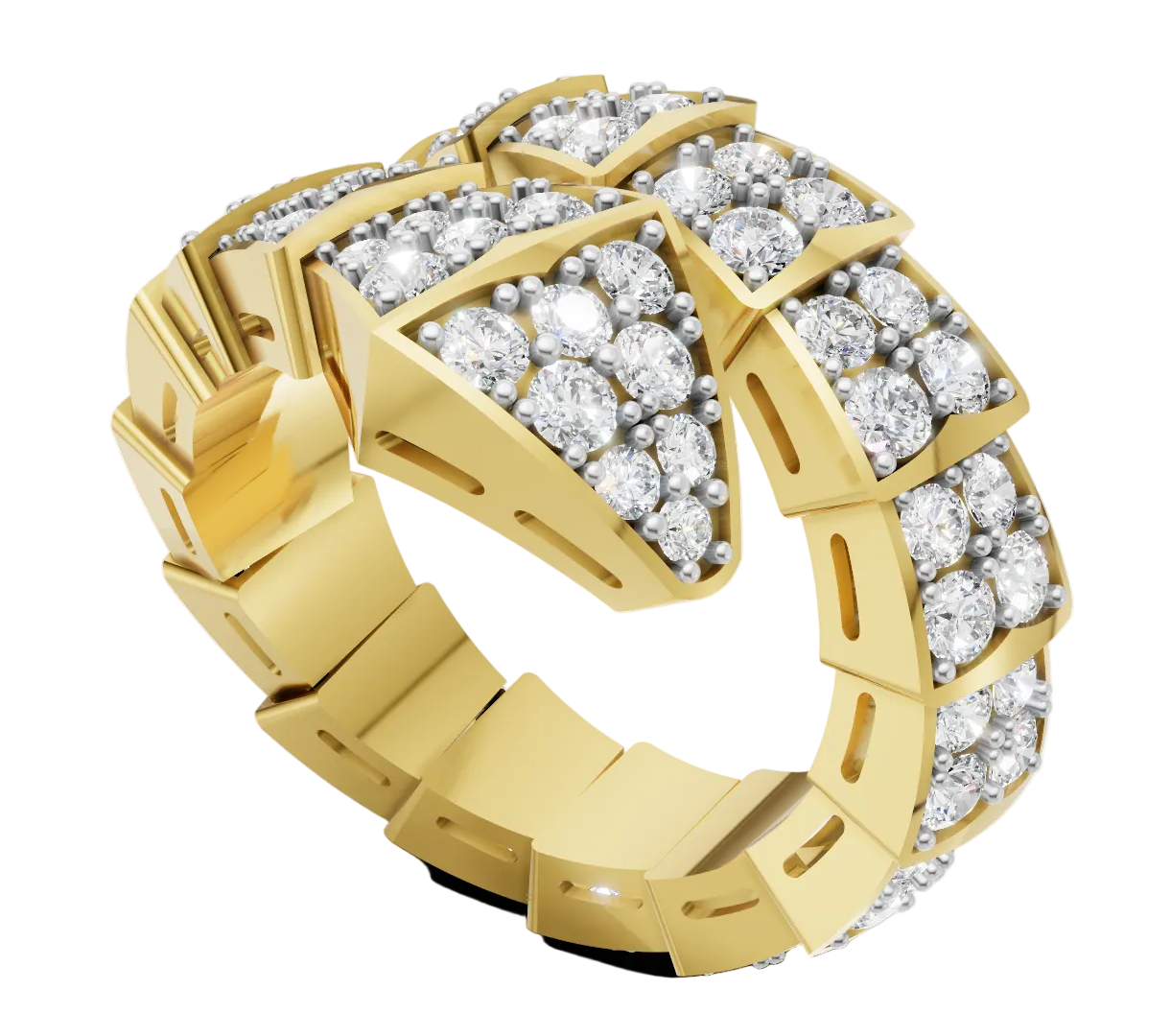

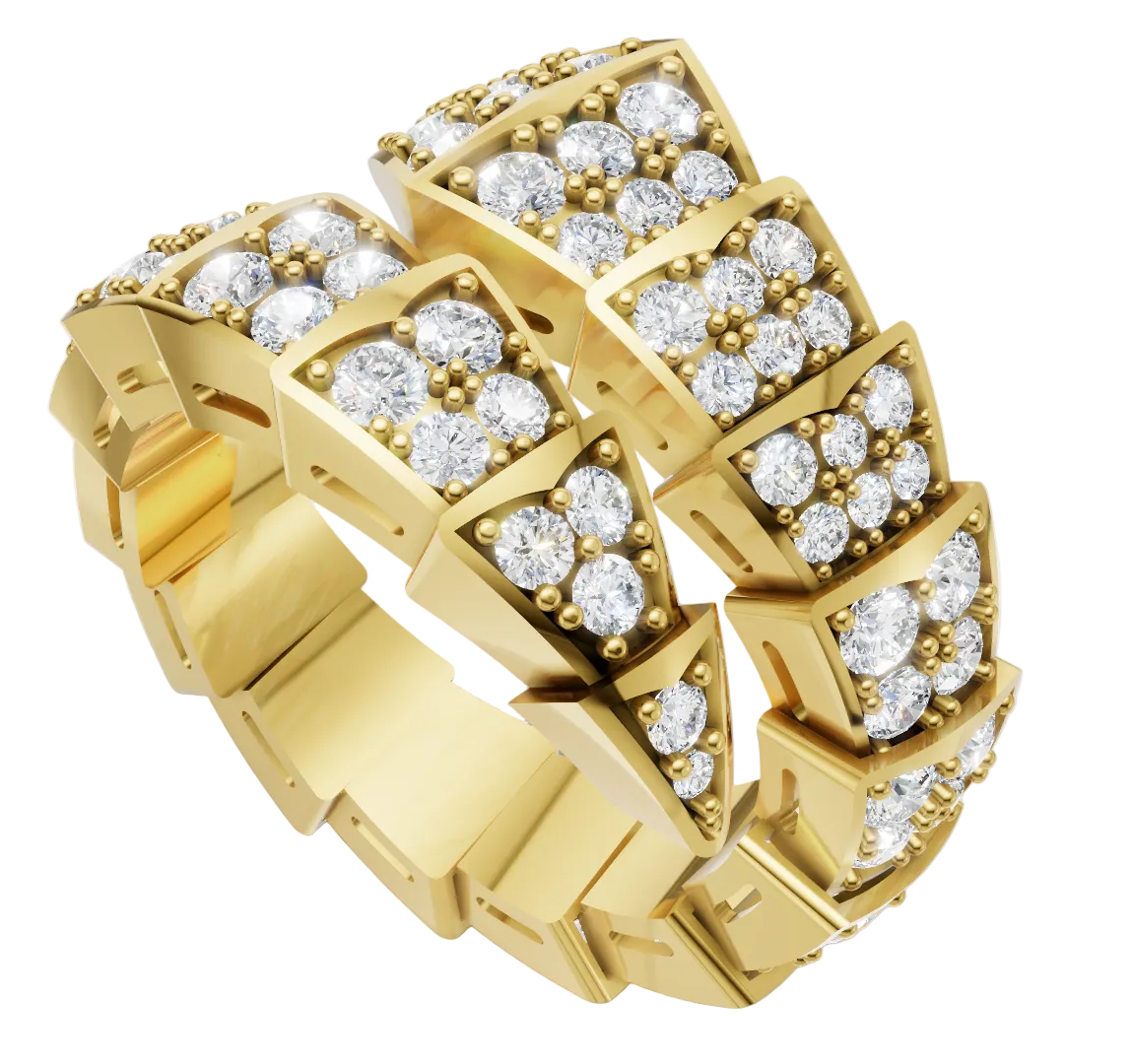

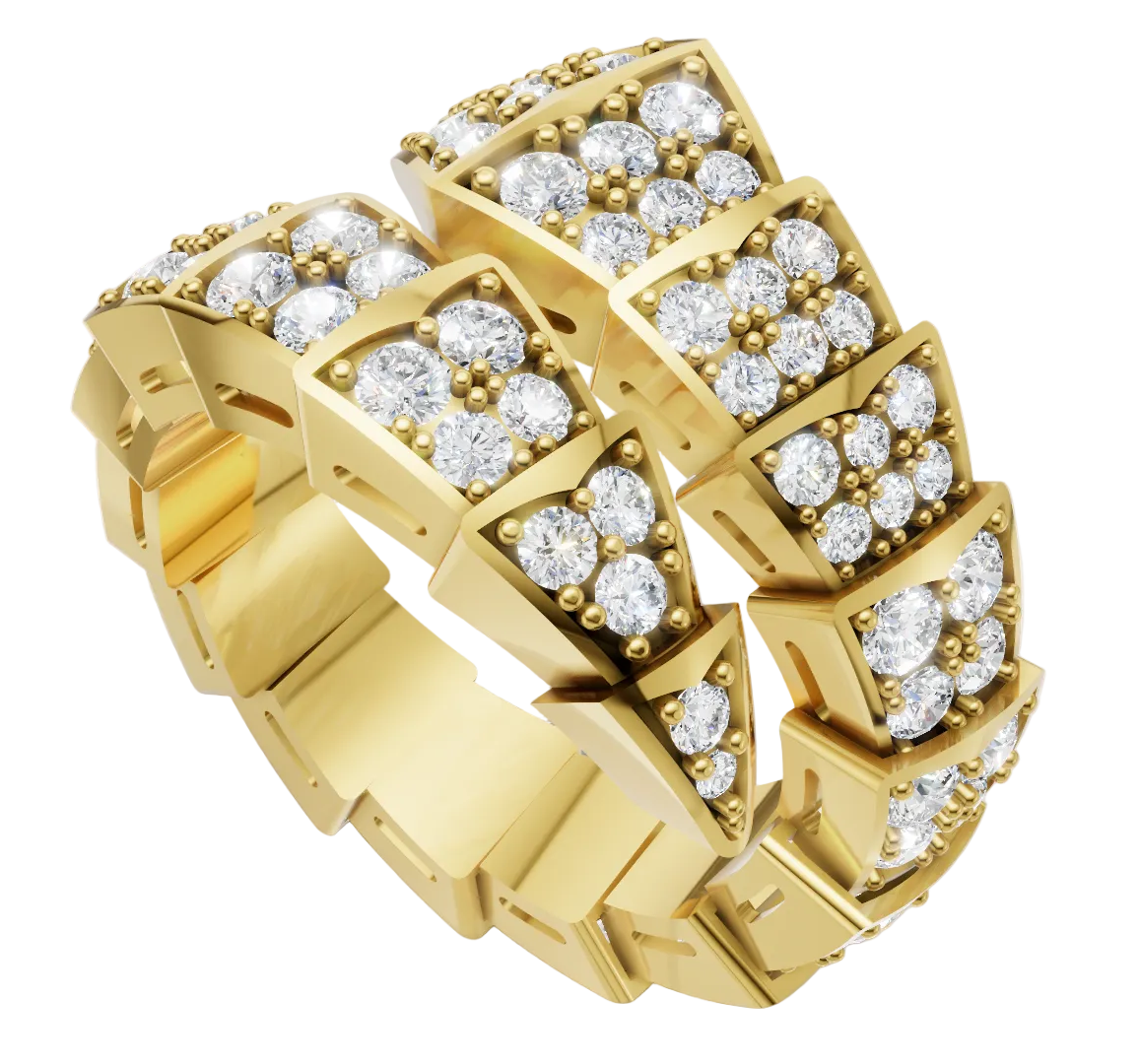

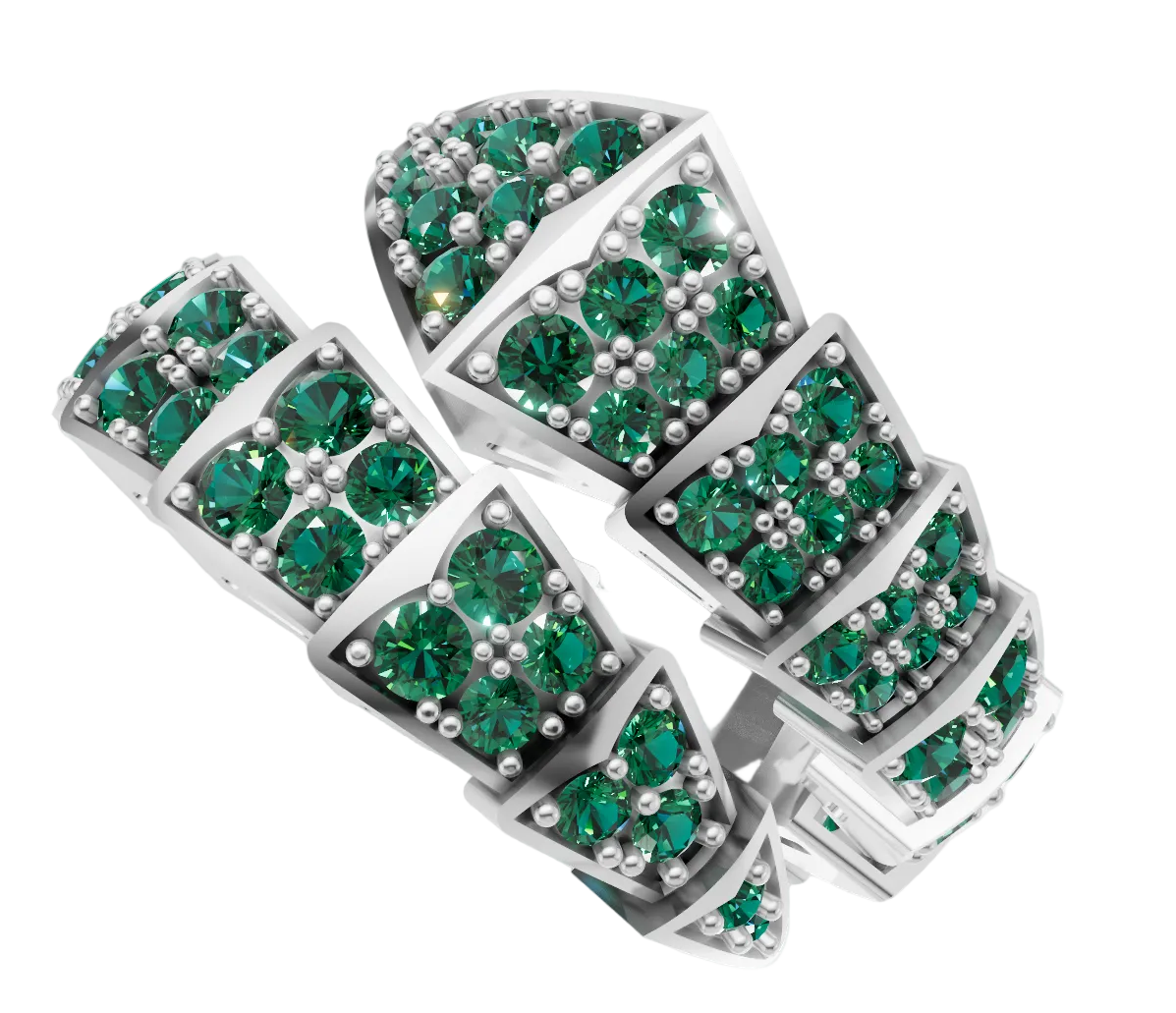

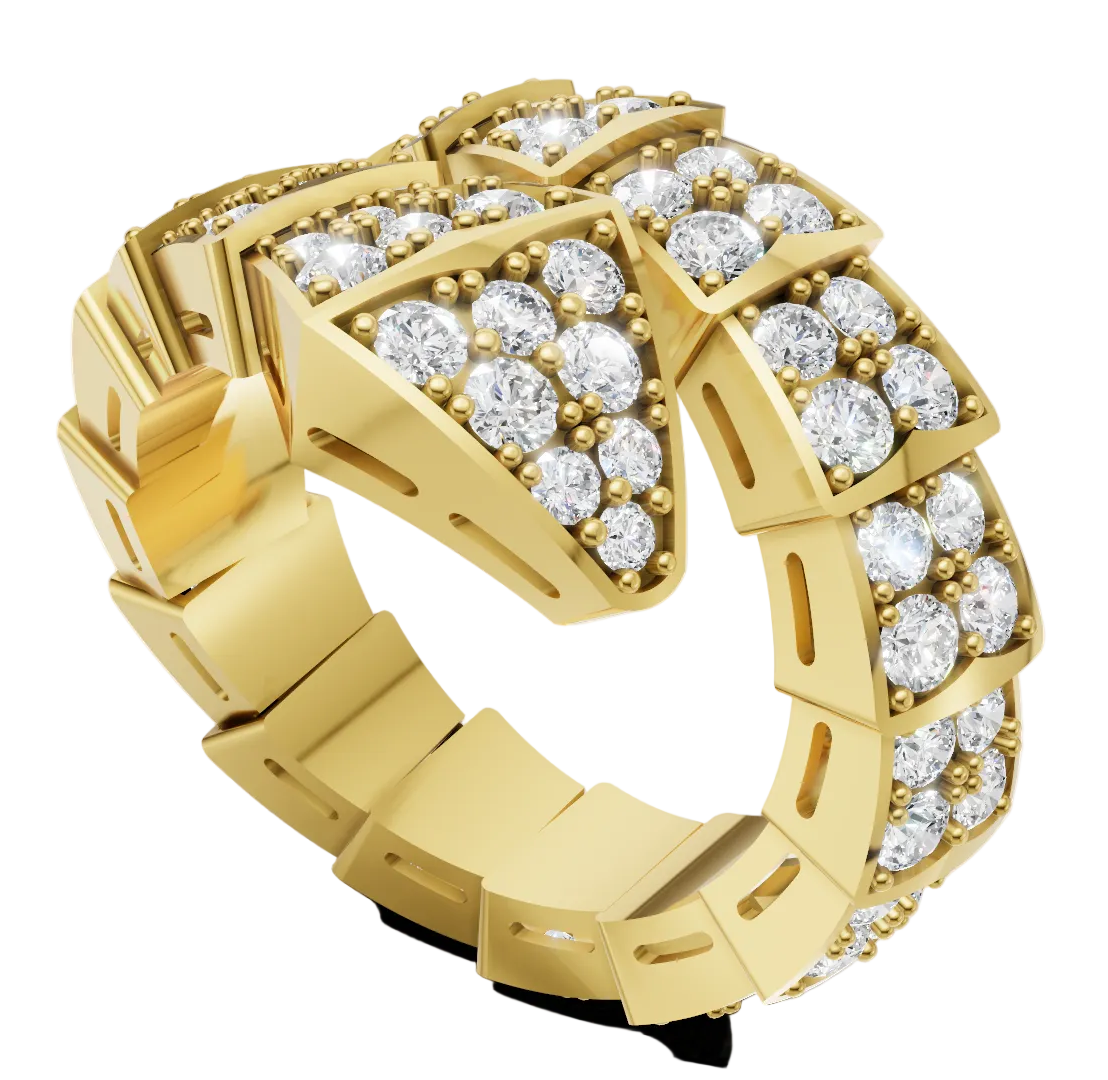

This exclusive geometric band ring features a bold segmented structure with alternating square and kite-shaped panels. Each segment is micro-set with round brilliant stones, creating a continuous sparkling surface across the entire circumference.

The design combines sharp architectural lines with soft pavé detailing, making it suitable for high-end fashion collections or statement bridal bands. The open inner gallery reduces weight while maintaining structural strength, ensuring comfortable wear without compromising durability.

Ideal for 18KT and 22KT gold production. The CAD model is optimized for casting and stone setting precision.

Measurements & Specifications

Overall Dimensions

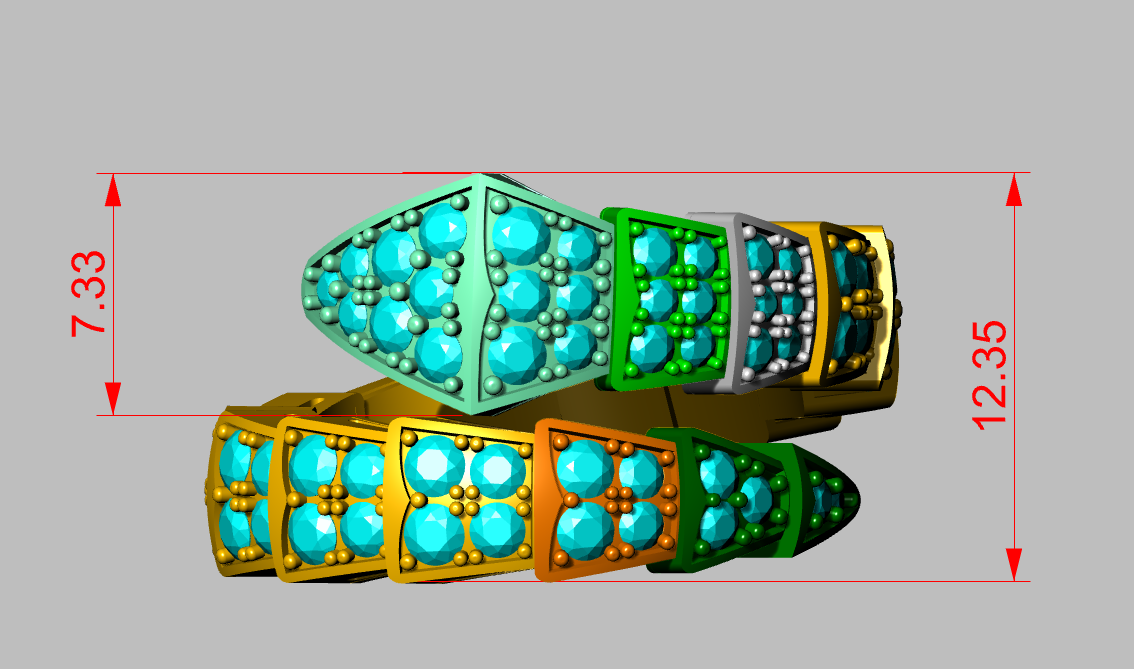

• Top Width (Front Panel): 7.33 mm

• Maximum Outer Width: 12.35 mm

• Inner Diameter: 14.44 mm

• Design Type: Full Eternity Band

• Structure: Segmented geometric panels

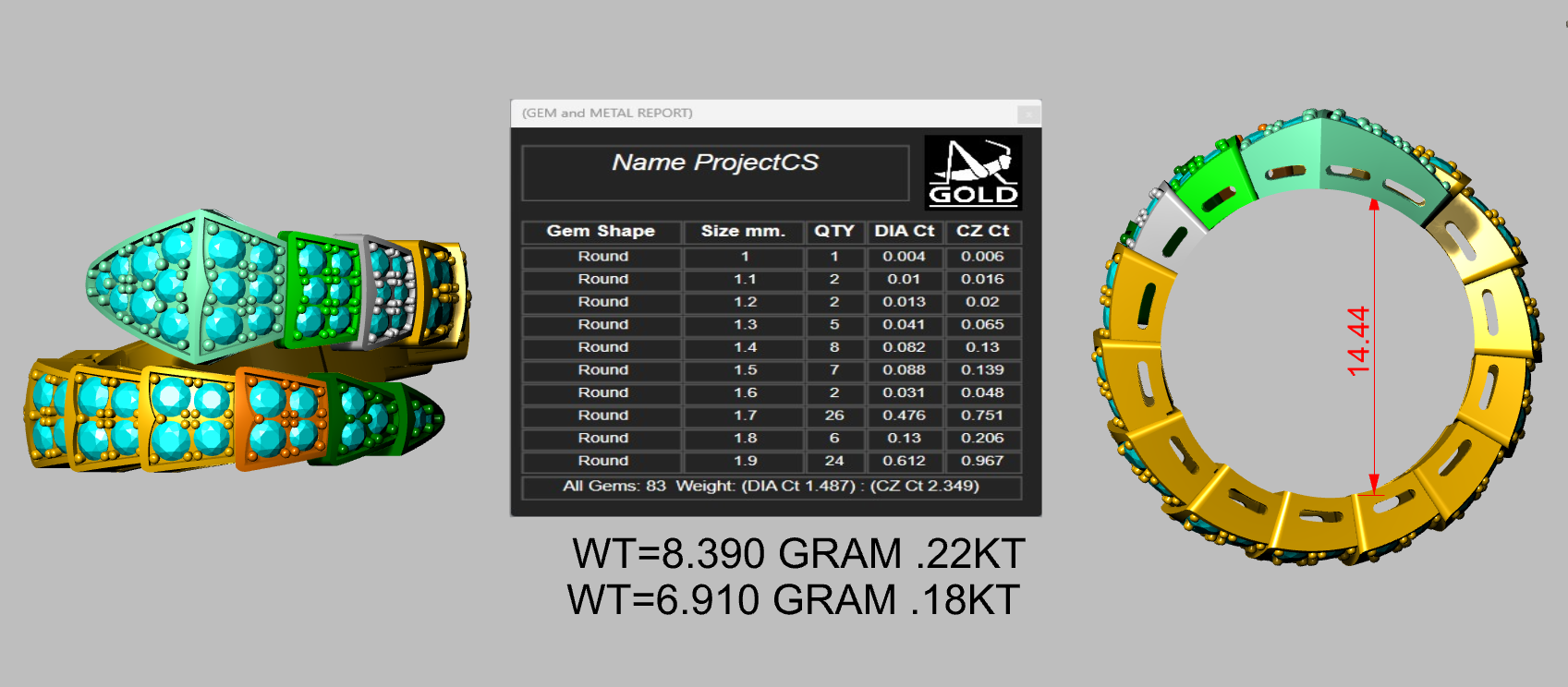

  Gemstone Details:

  • Shape: Round
  • Total Stones: 83 pcs

  Size & Quantity Breakdown:

  • 1.0 mm – 1 pc
  • 1.1 mm – 2 pcs
  • 1.2 mm – 2 pcs
  • 1.3 mm – 5 pcs
  • 1.4 mm – 8 pcs
  • 1.5 mm – 7 pcs
  • 1.6 mm – 2 pcs
  • 1.7 mm – 26 pcs
  • 1.8 mm – 6 pcs
  • 1.9 mm – 24 pcs

  Stone Weight:

  • Diamond (DIA): 1.487 Ct
  • Cubic Zirconia (CZ): 2.349 Ct
