Snake Wrap Flexible Bracelet CAD FILE

Product Description

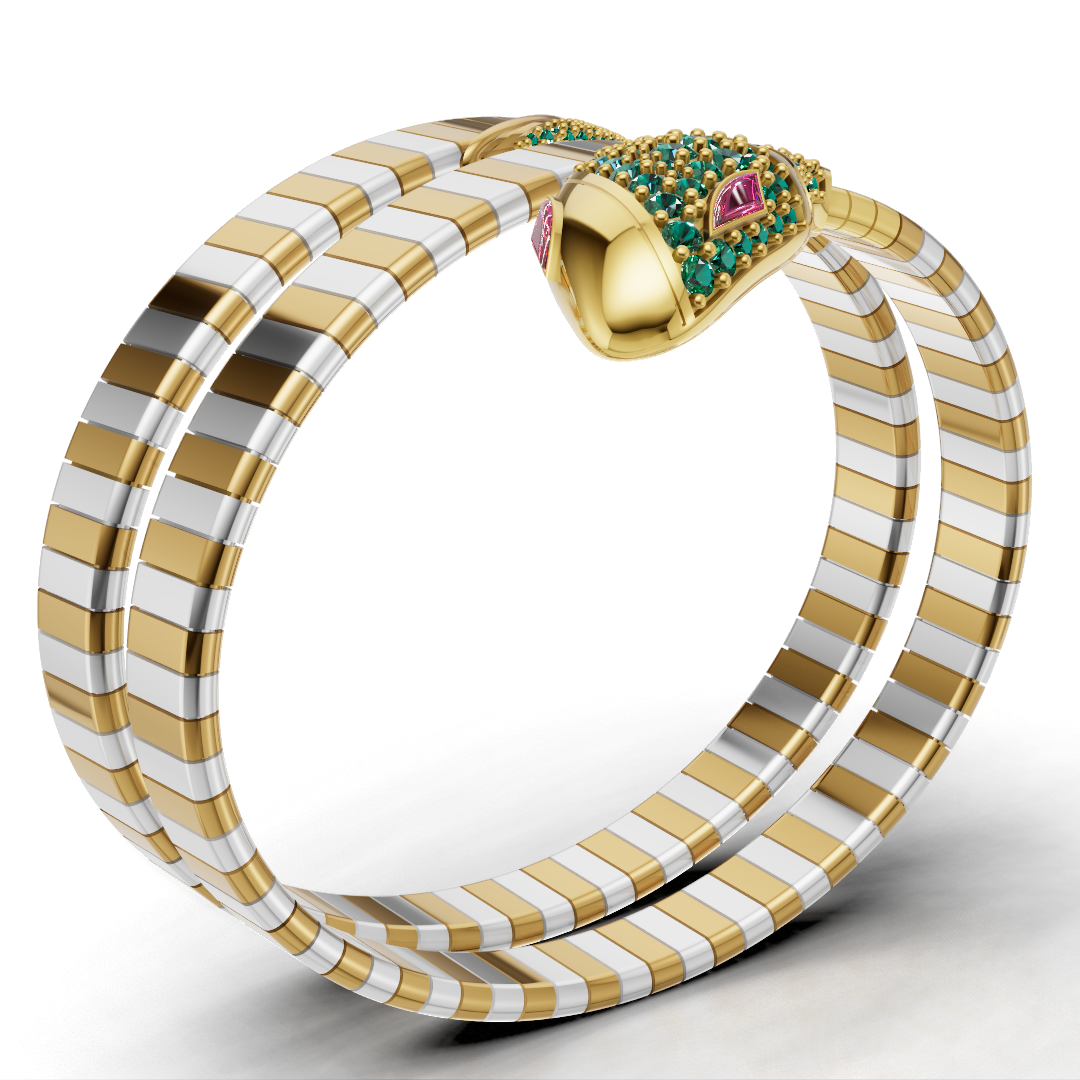

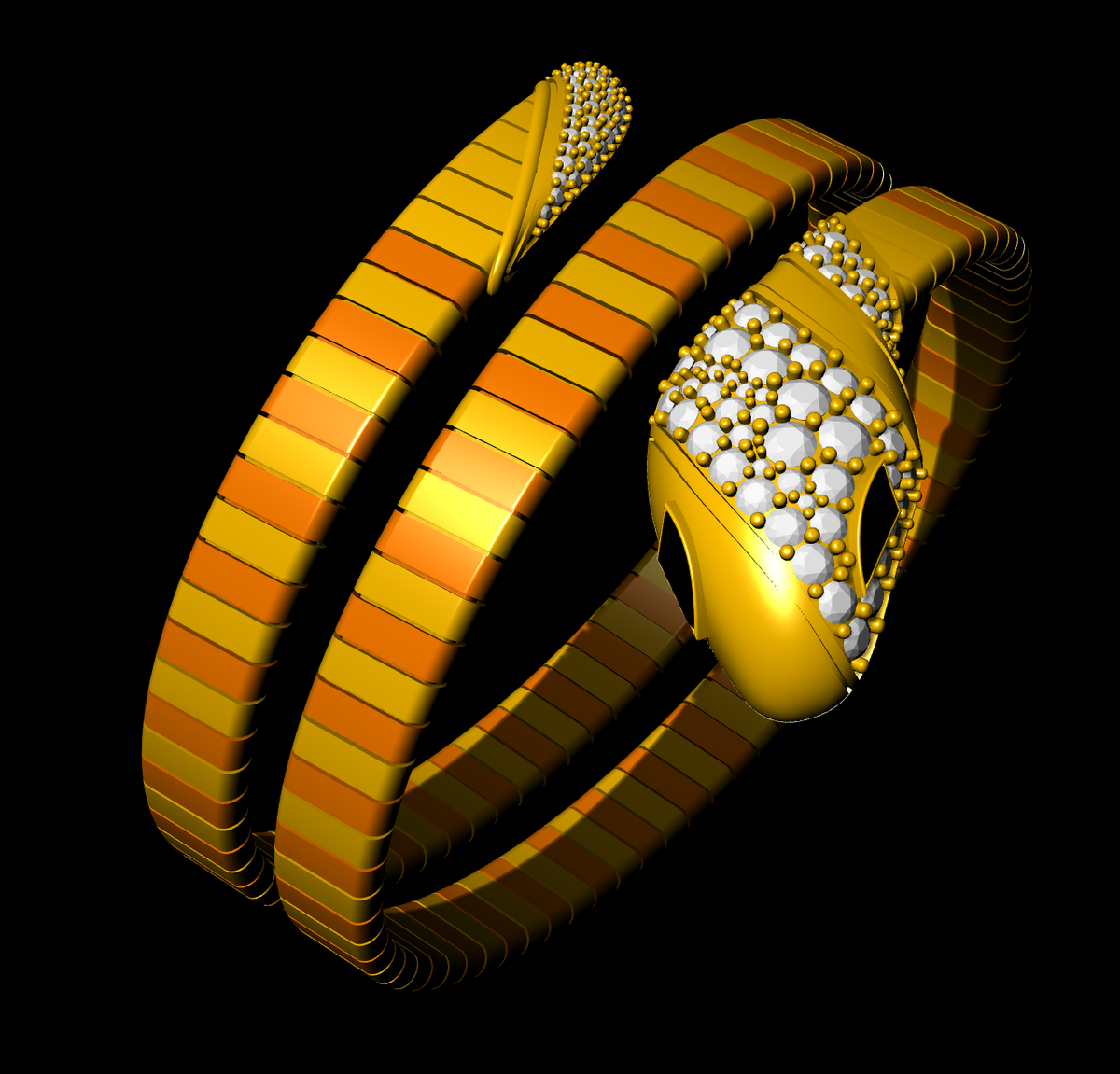

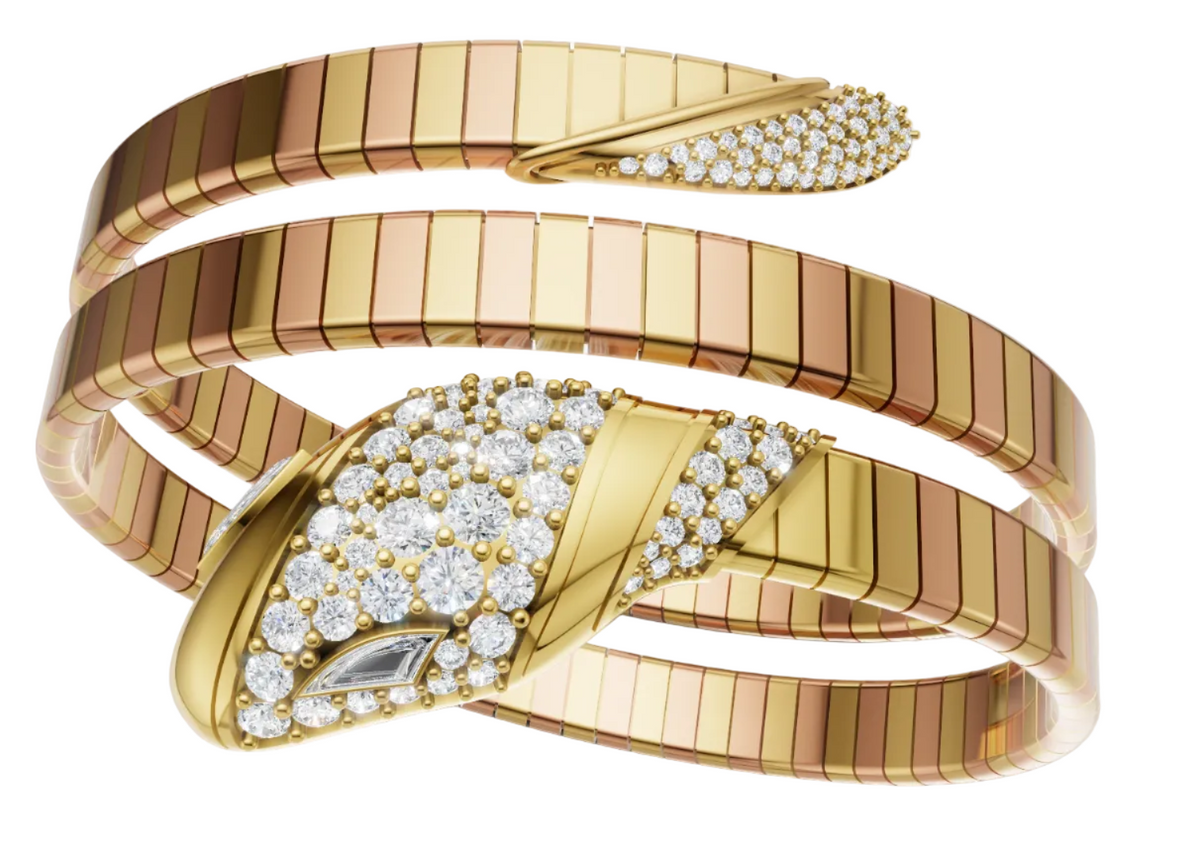

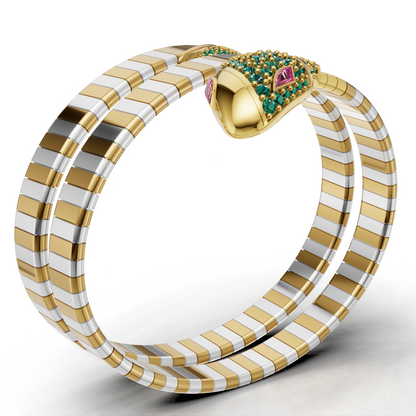

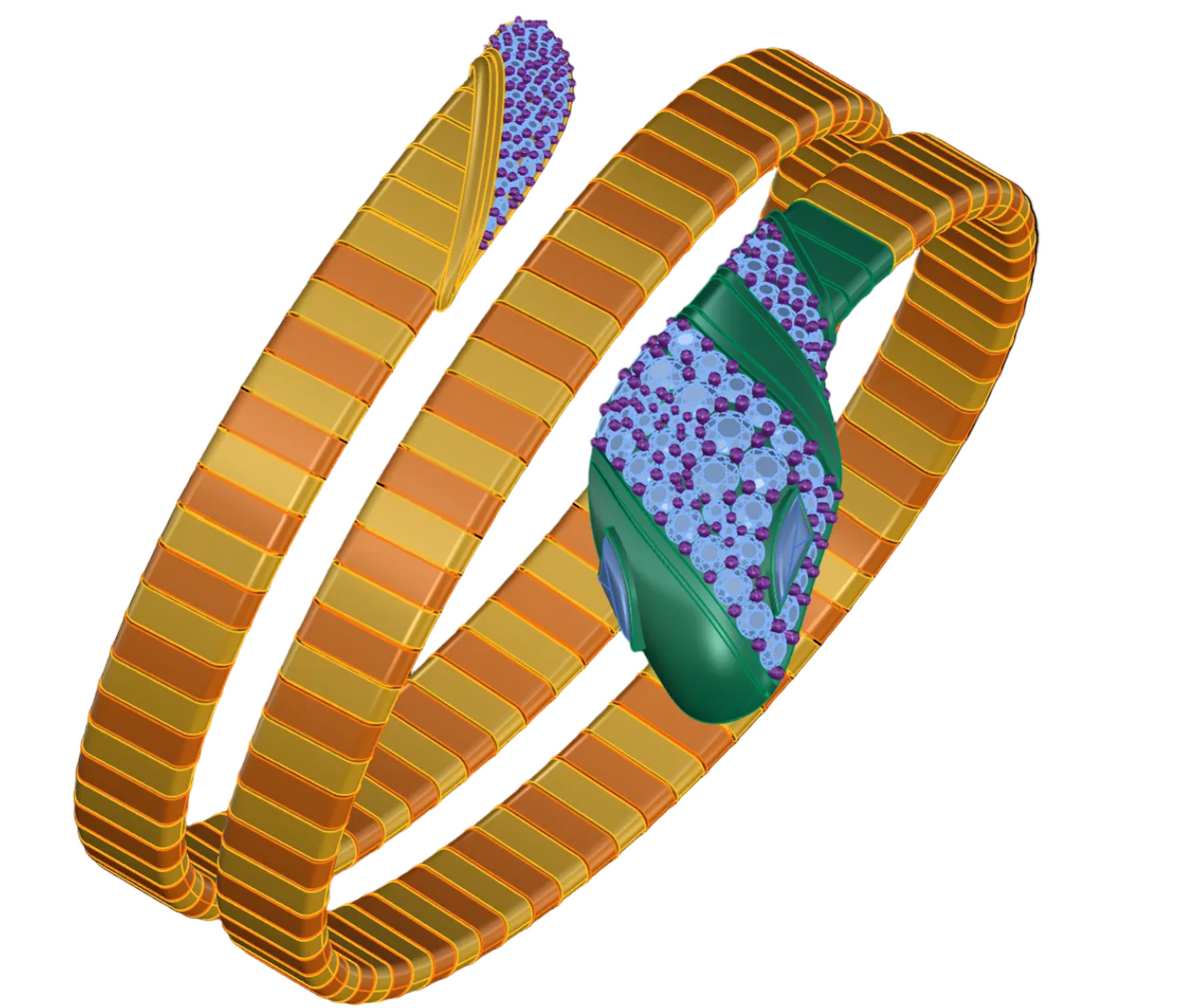

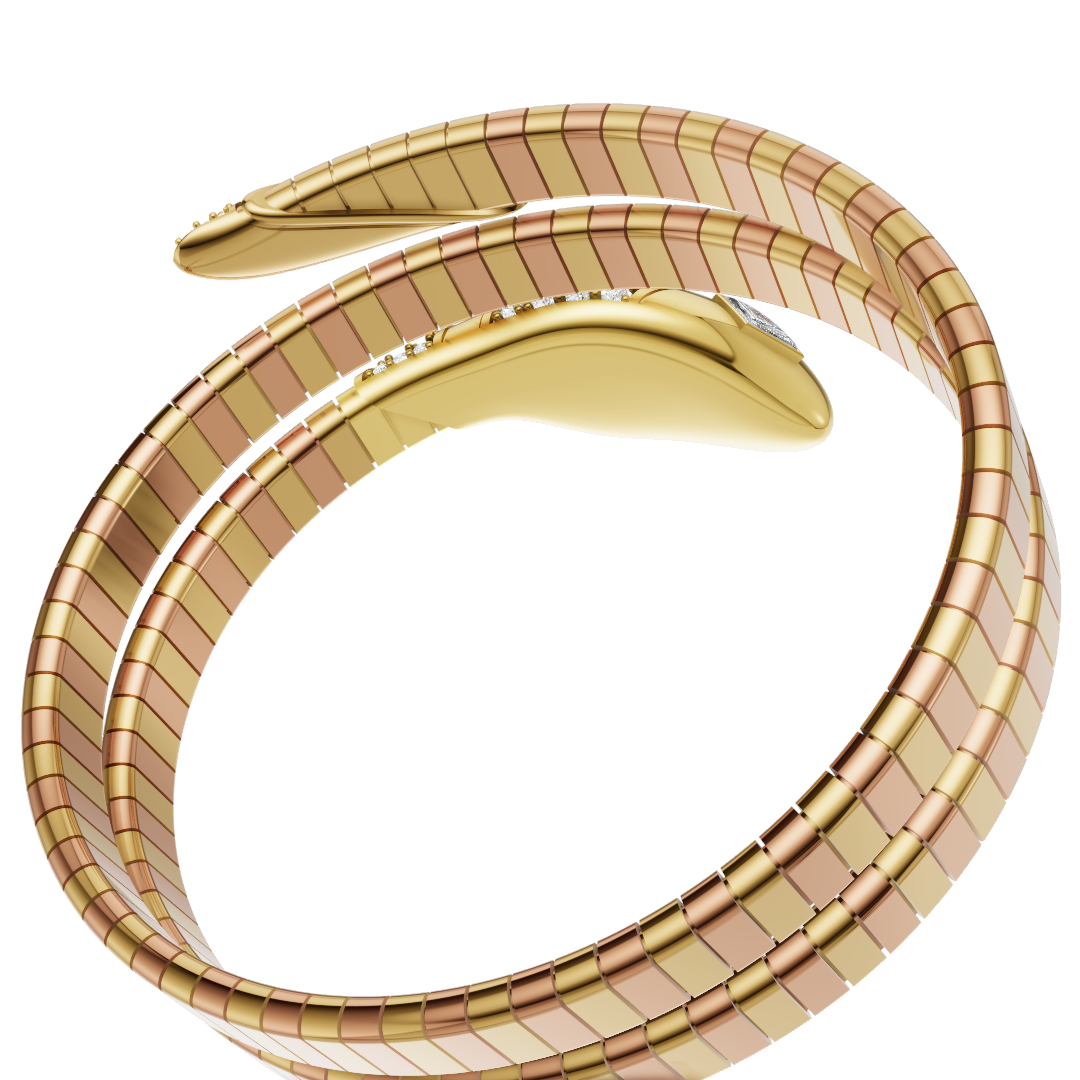

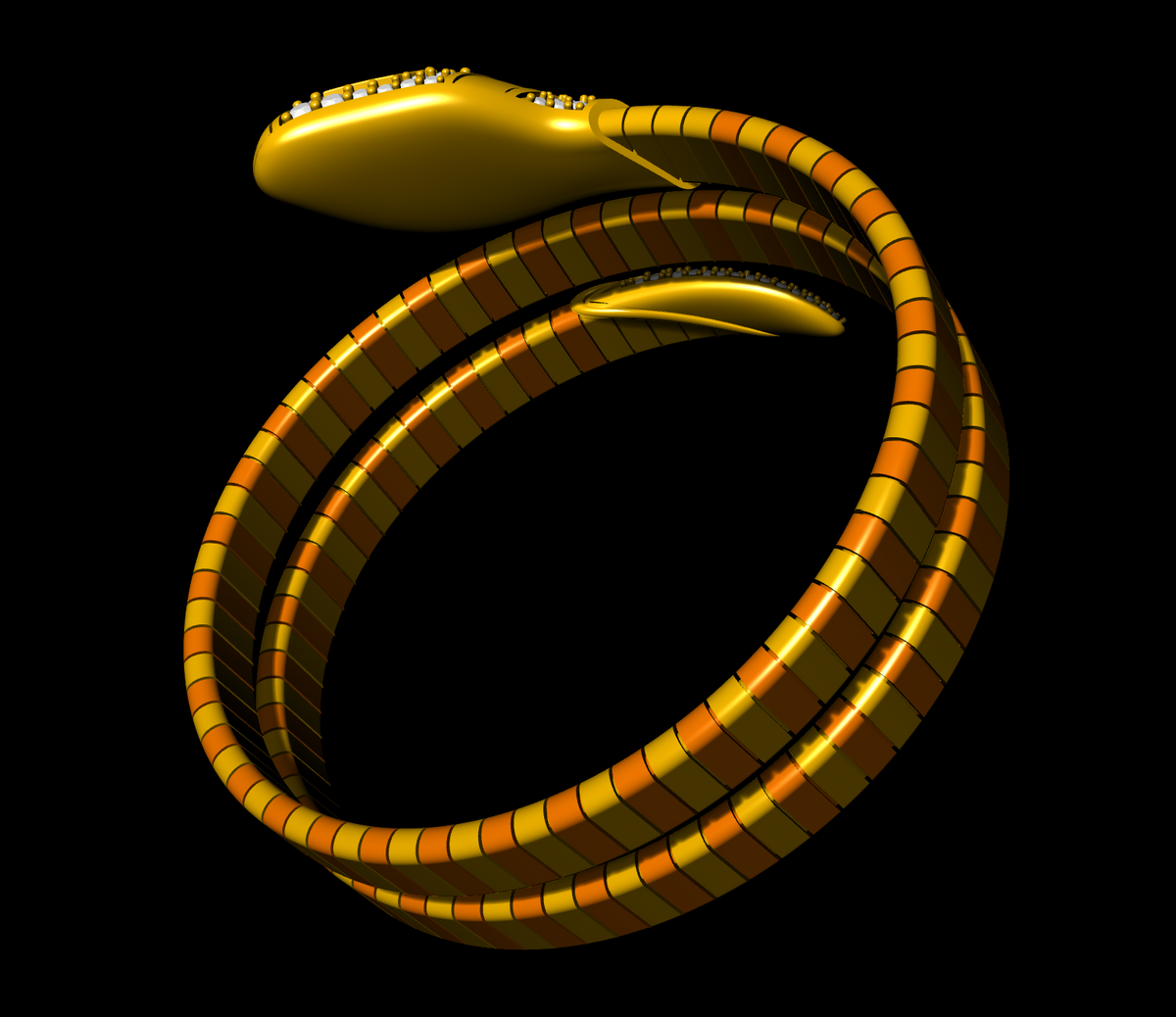

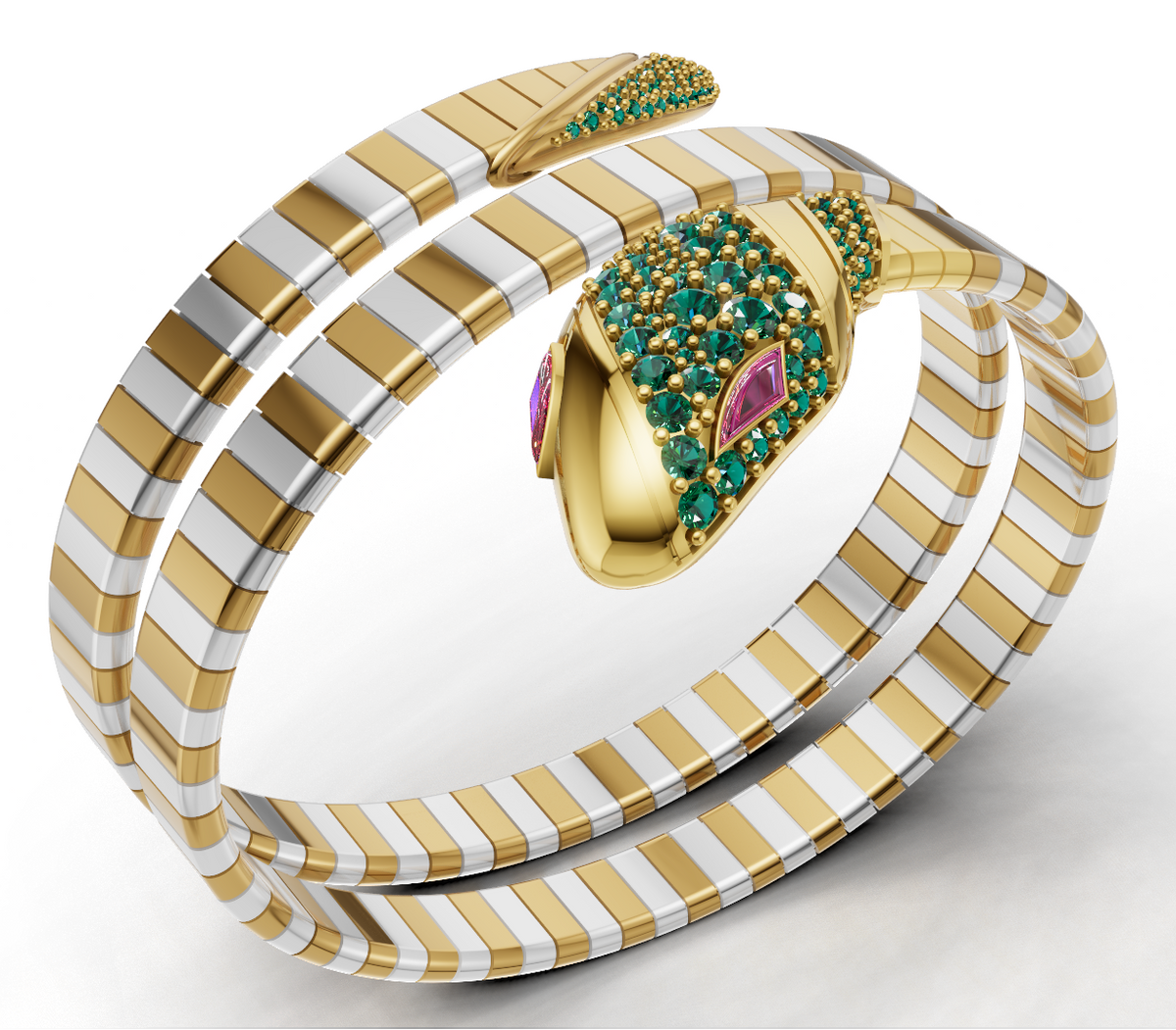

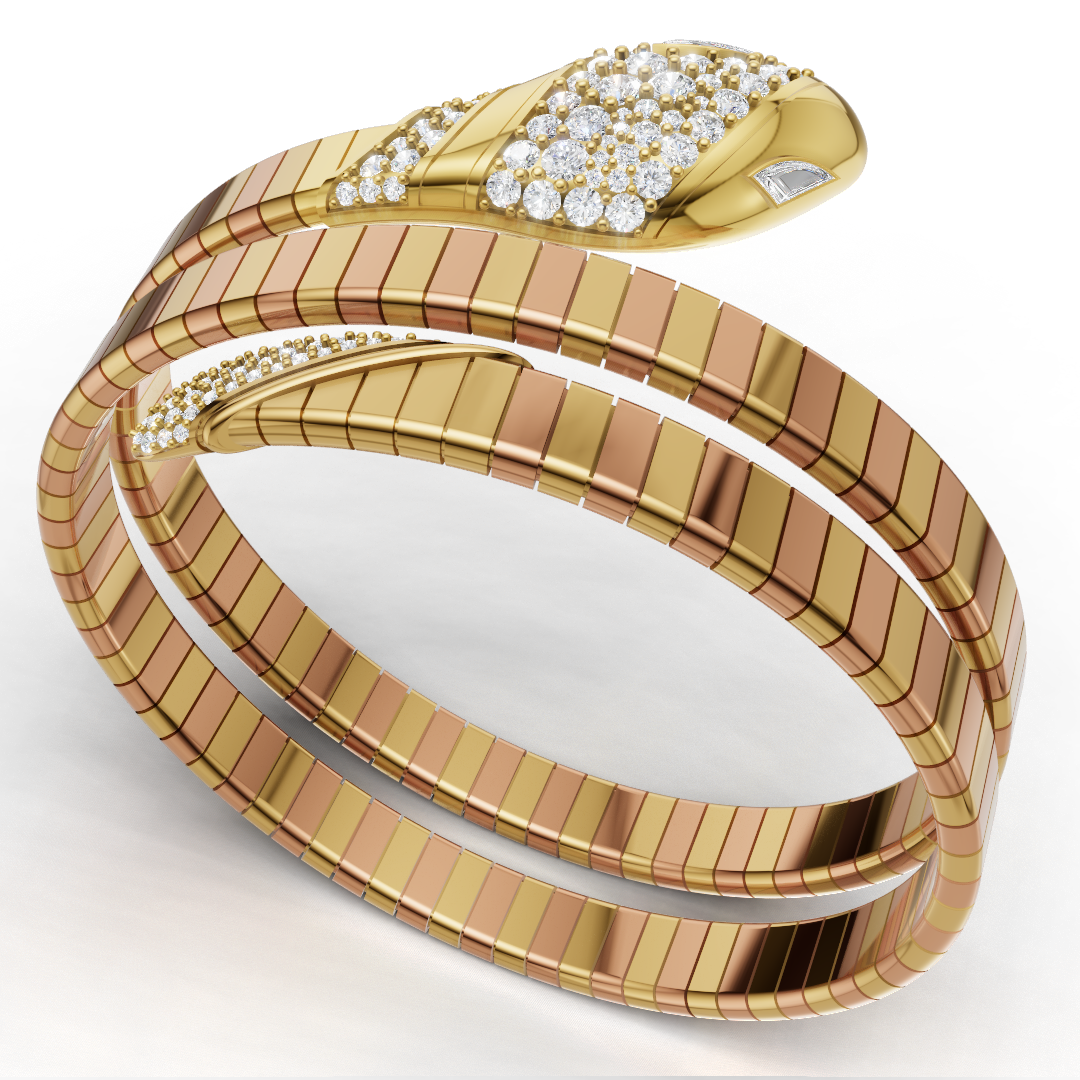

Presenting an elegant Snake Wrap Flexible Bracelet 3D CAD Design, featuring a luxurious triple-coil serpent-inspired structure with a beautifully sculpted snake head and sparkling round diamond settings.

This sophisticated jewelry design combines modern craftsmanship with an intricate flexible mechanism, creating a stunning bracelet that wraps gracefully around the wrist.

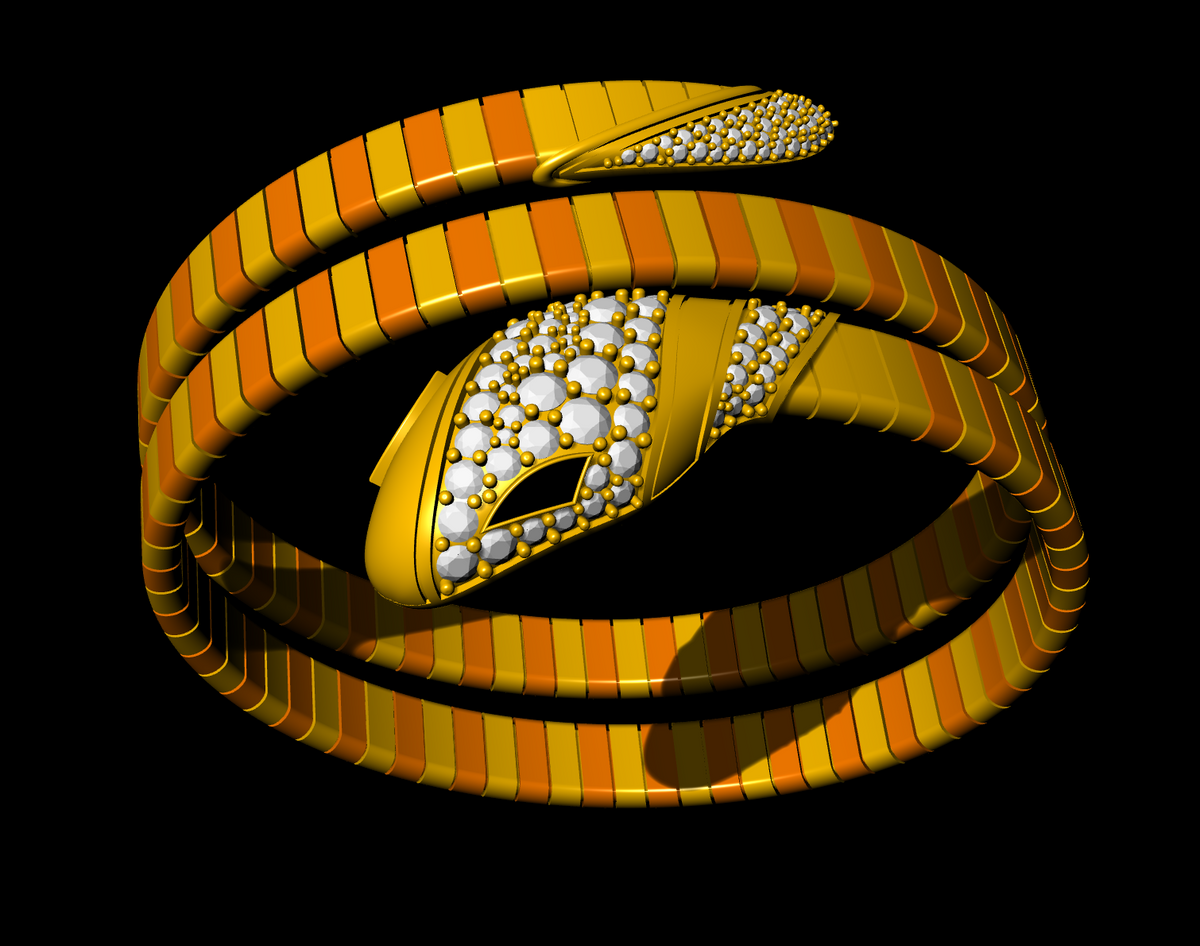

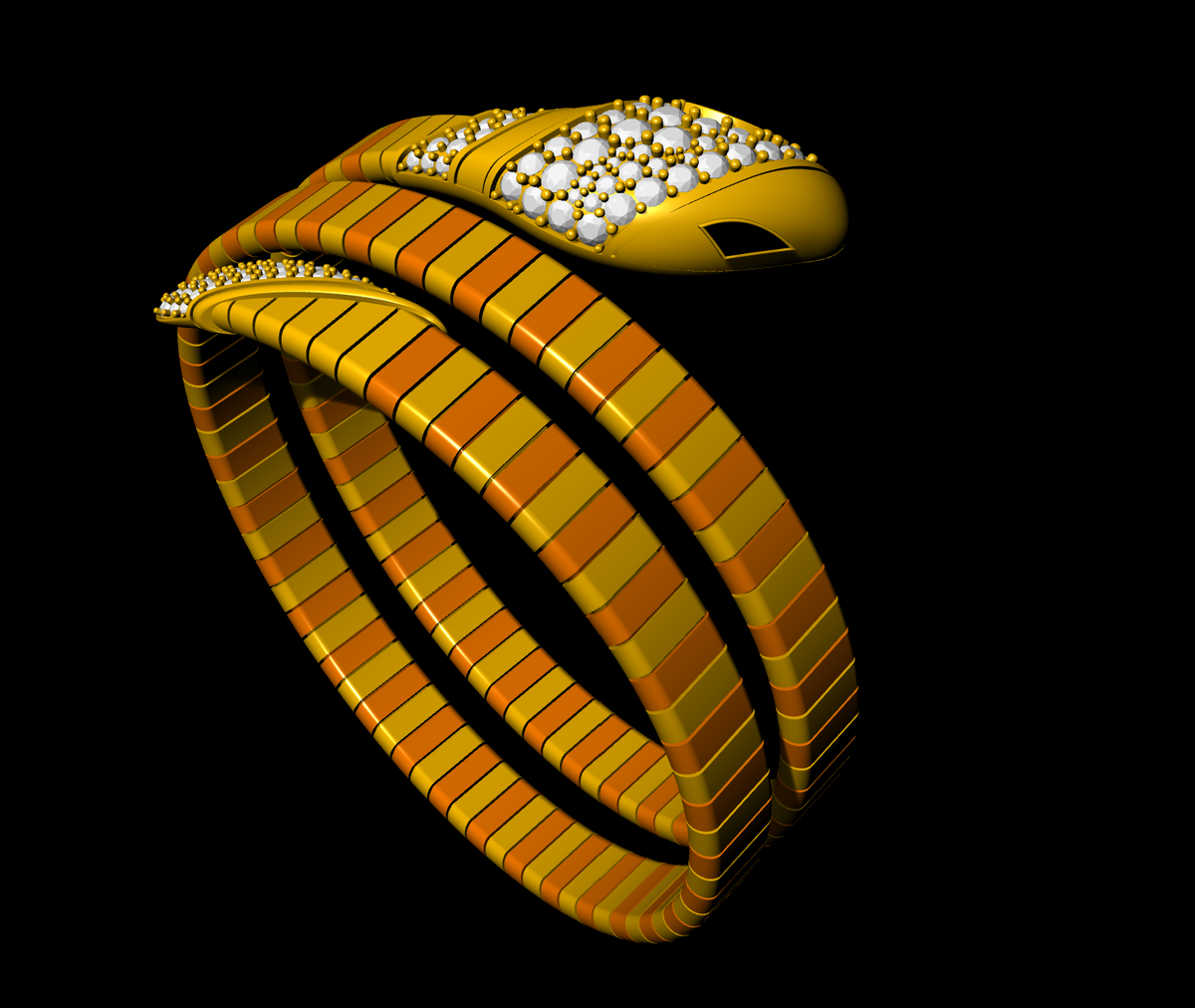

The snake head features detailed diamond pavé settings, polished gold surfaces, and an elegant eye-shaped detail. The bracelet body consists of individually segmented links, giving it a distinctive flexible and spring-like appearance.

Designed for professional jewelry manufacturers, CAD designers, and luxury jewelry production.

Design Features

• Design Type: Snake / Serpent Wrap Bracelet

• Style: Luxury Triple-Coil Flexible Bracelet

• Metal: Suitable for Gold, Silver, and Platinum

• Gold Finish: Yellow Gold (CAD Presentation)

• Stone Type: Round Brilliant Cut Diamonds

• Setting Style: Pavé Diamond Setting

• Mechanism: Segmented Flexible Wrap Structure

• Head Design: Sculpted Snake Head with Diamond Detailing

• CAD Application: Professional Jewelry Manufacturing

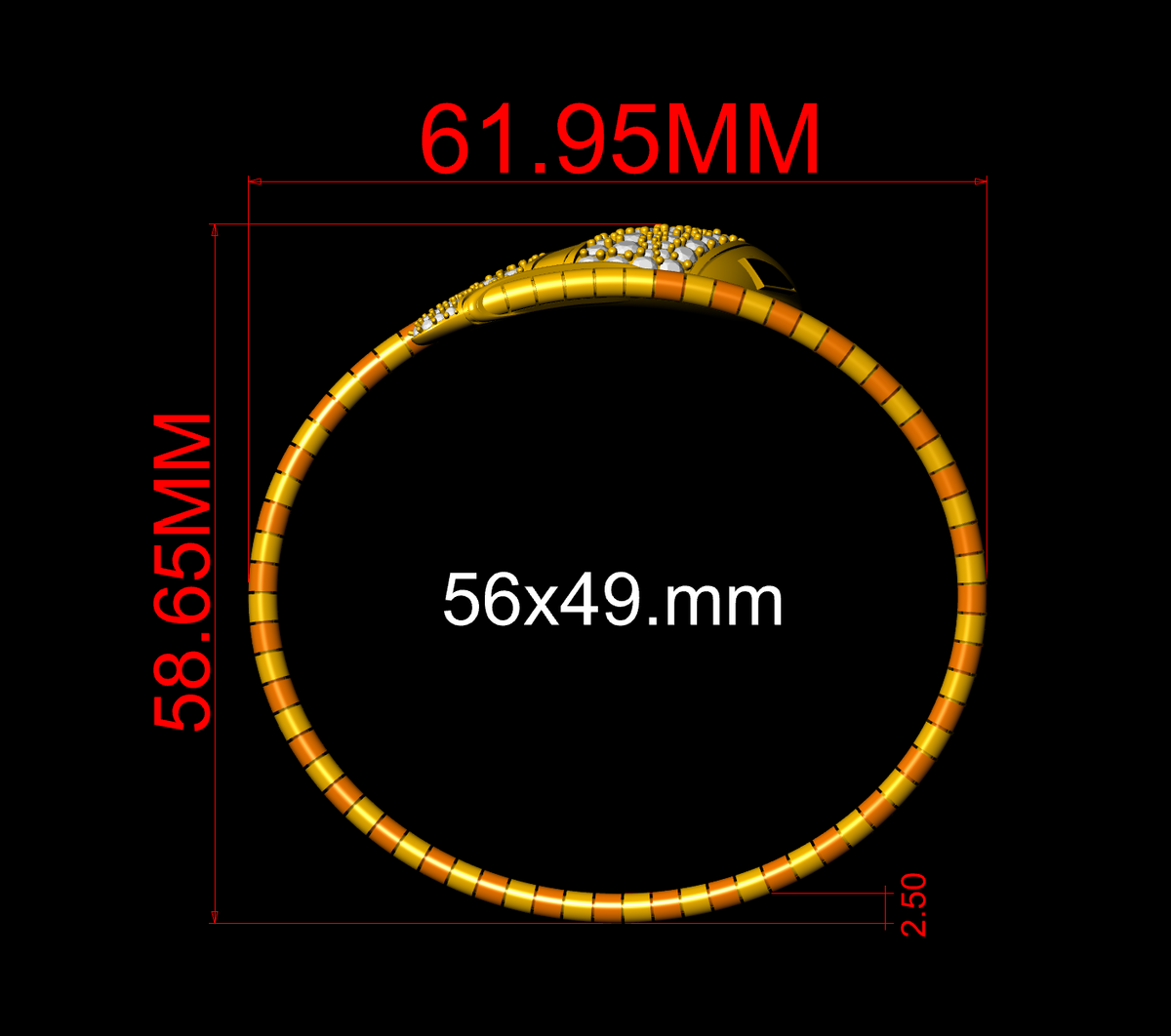

Dimensions

• Overall Width: 61.95 mm

• Overall Height: 58.65 mm

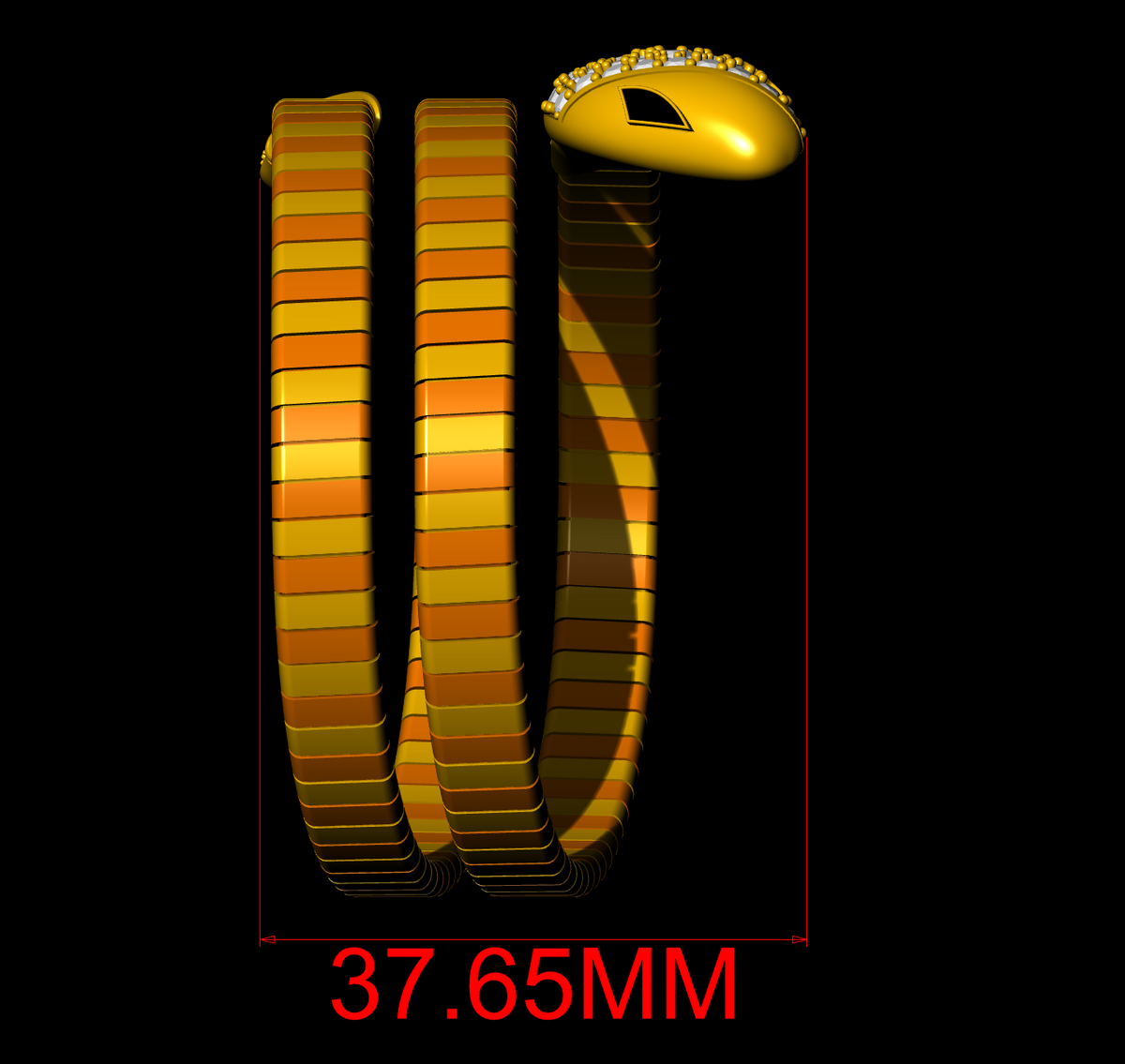

• Overall Side Width: 37.65 mm

• Inner Bracelet Size: 56 × 49 mm

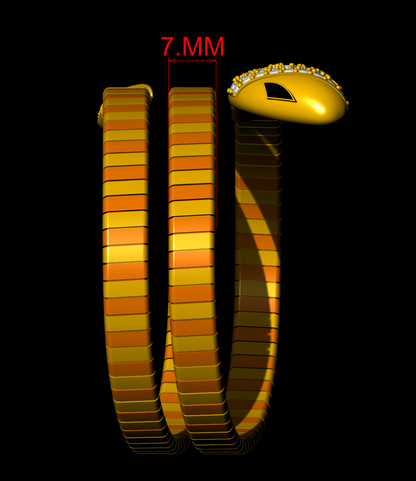

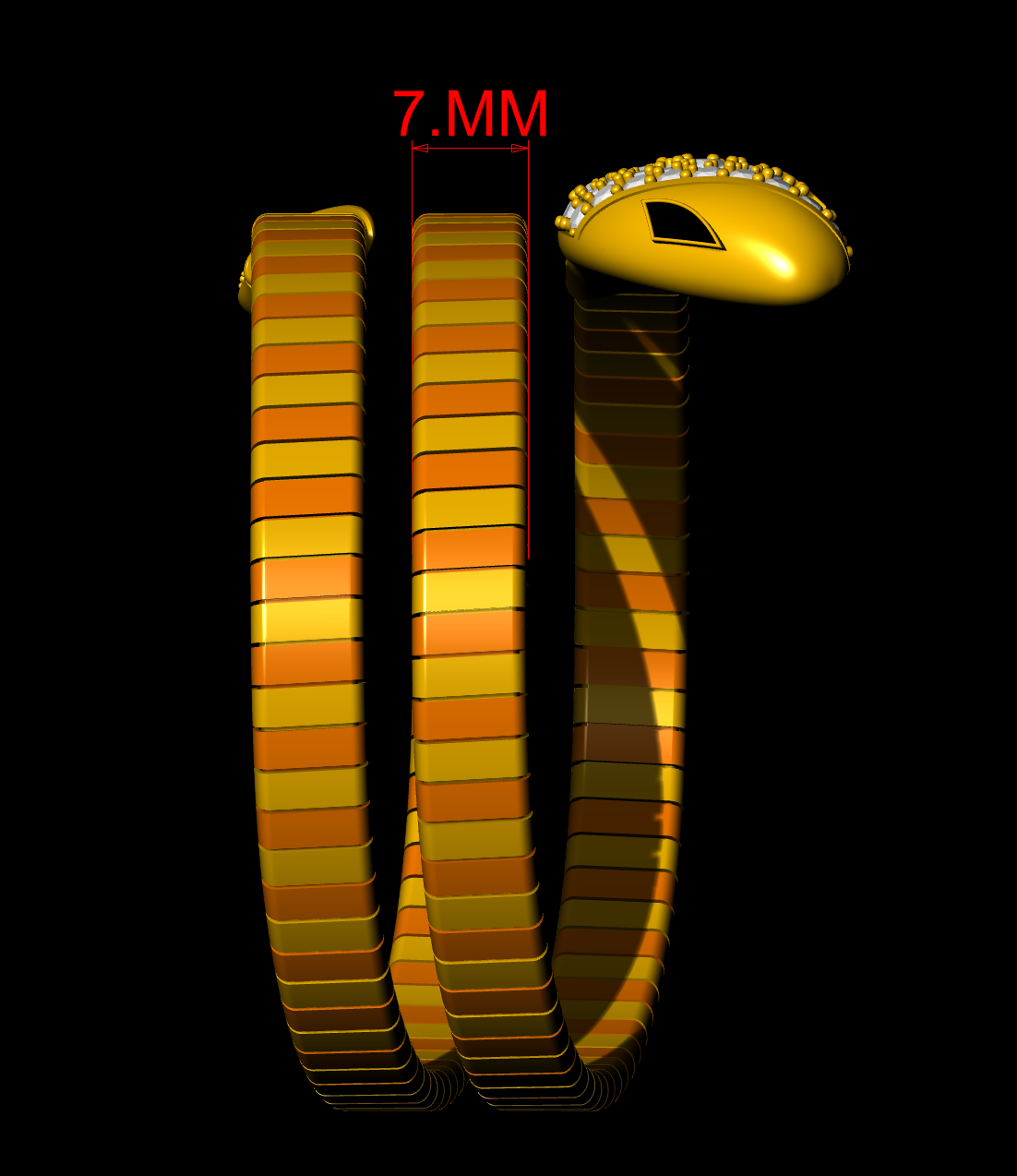

• Segment Width: 7.00 mm

• Band Thickness: Approximately 2.50 mm

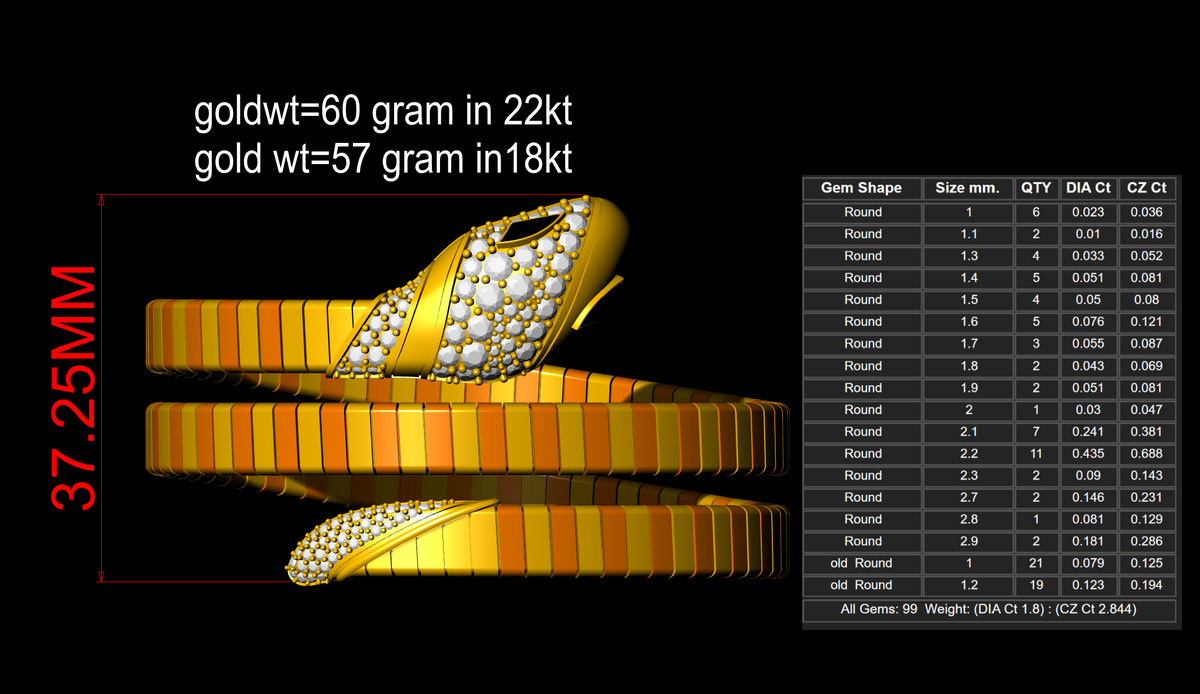

• Side Profile Height: 37.25 mm

Estimated Gold Weight

• 22K Gold: Approximately 60 grams

• 18K Gold: Approximately 57 grams

Gold weight is based on the CAD model and may vary depending on manufacturing, finishing, and final material density.

Diamond Details

• Diamond Shape: Round

• Total Stones: 99 Pieces

• Total Estimated Diamond Weight: 1.80 Carats

• Alternative CZ Weight: 2.844 Carats

• Stone Sizes: 1.00 mm to 2.90 mm, including additional 1.20 mm stones

CAD Model Highlights

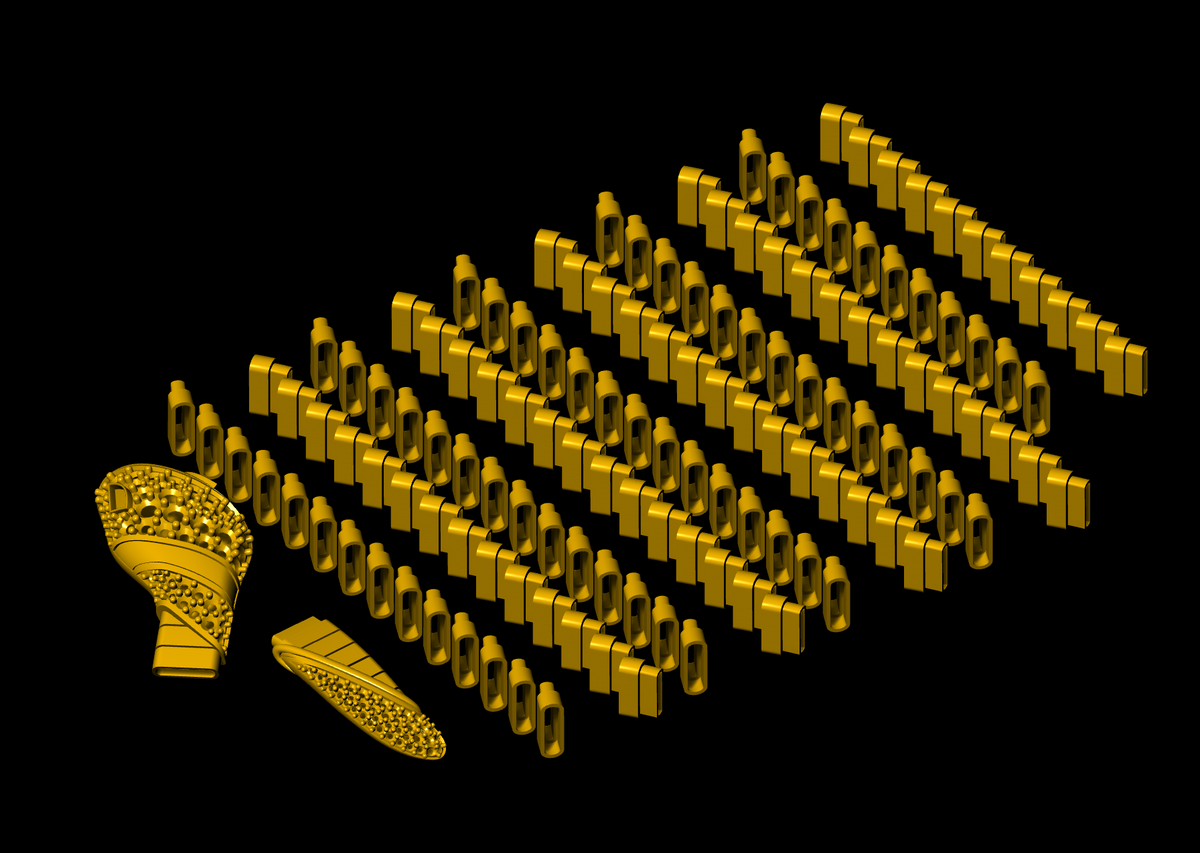

• Intricate segmented snake-body construction

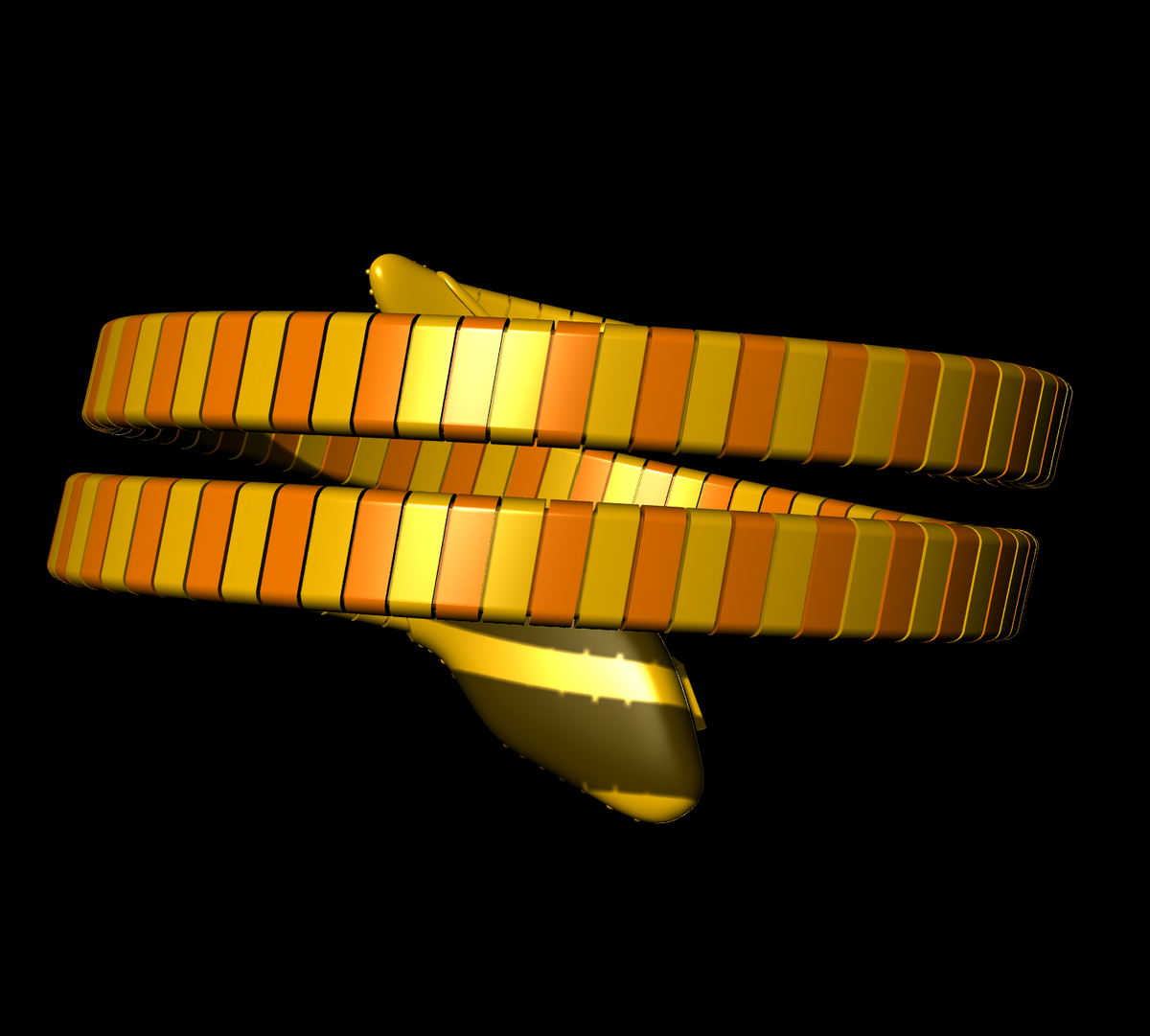

• Triple-wrap bracelet appearance

• Diamond-studded serpent head

• Smooth polished gold surfaces

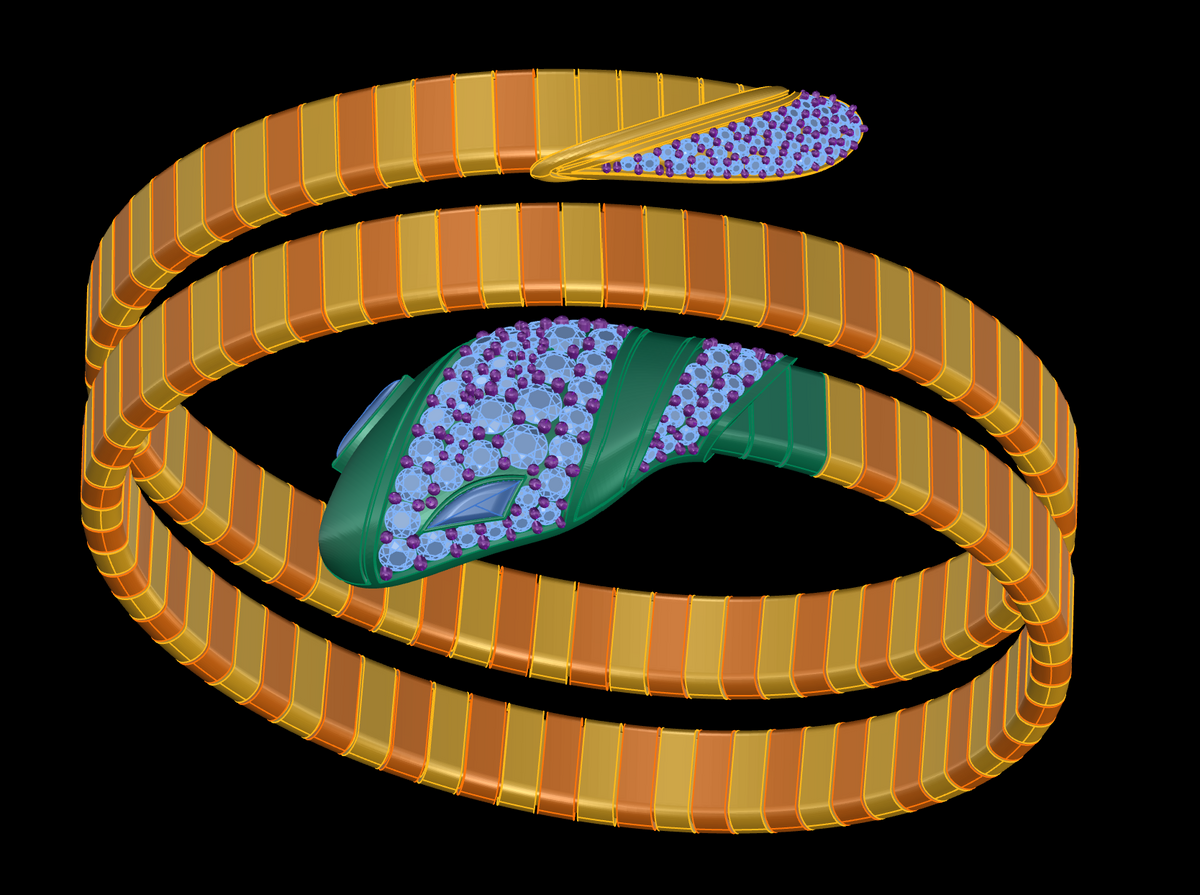

• Detailed stone-setting geometry

• Professional jewelry CAD proportions

• Suitable for high-end jewelry manufacturing

• Ideal for luxury custom jewelry collections

Applications

Suitable for jewelry CAD design references, prototyping, casting preparation, manufacturing development, luxury bracelet collections, and custom serpent-inspired jewelry projects.

Important: This is a digital 3D jewelry CAD design, not a physical bracelet. Flexible movement and manufacturing tolerances should be verified before production.
