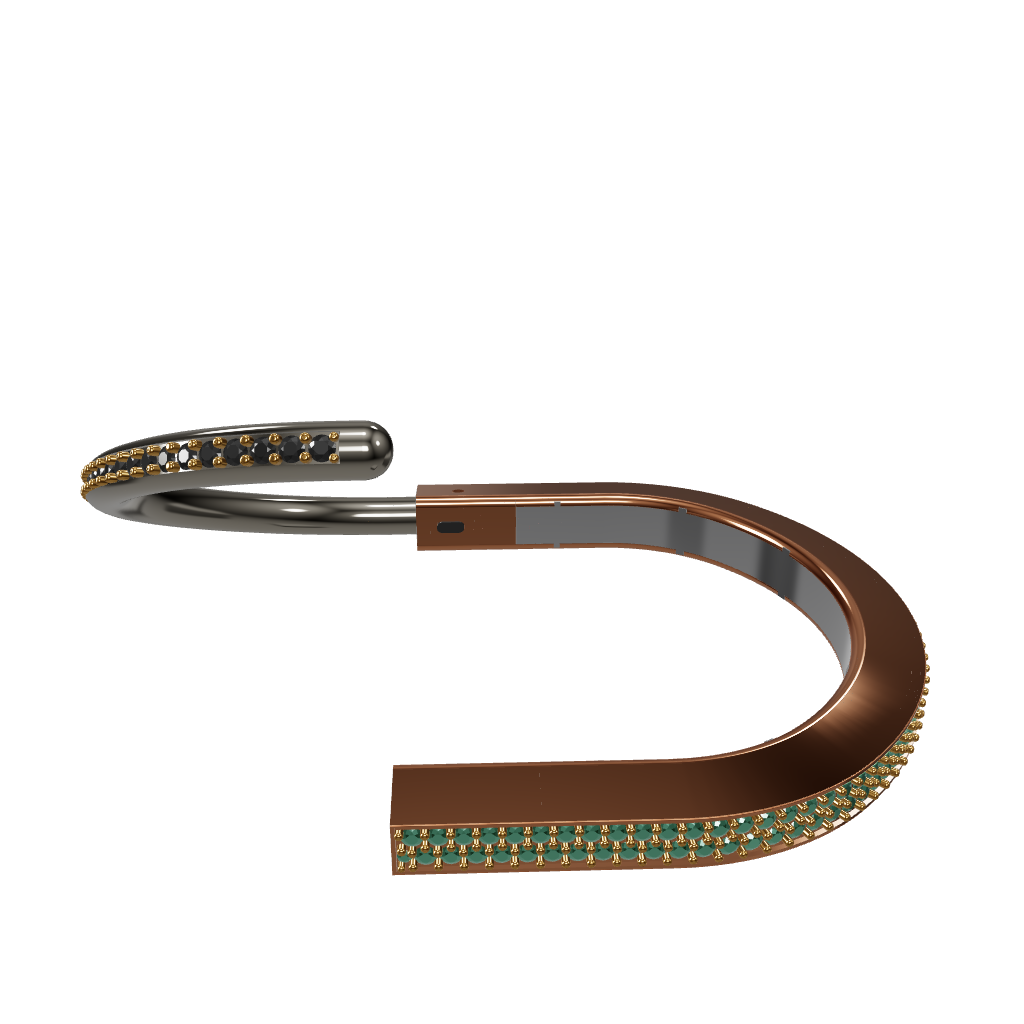

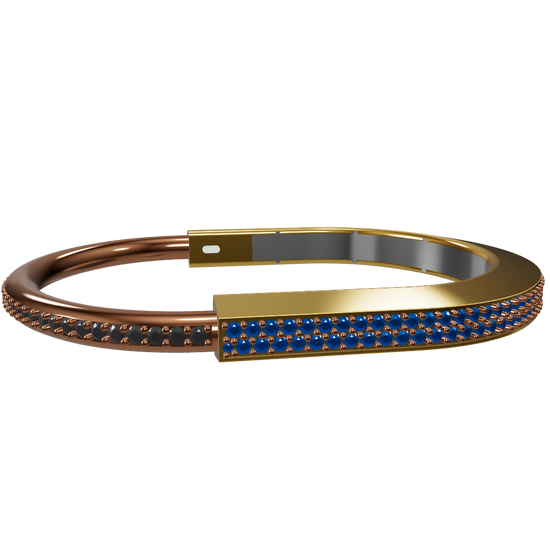

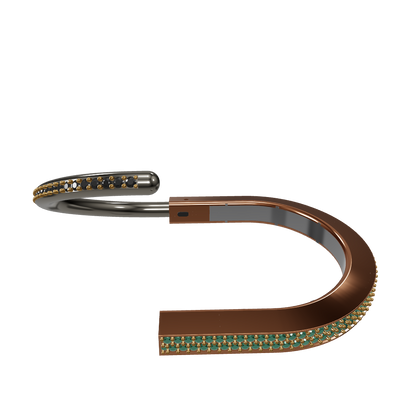

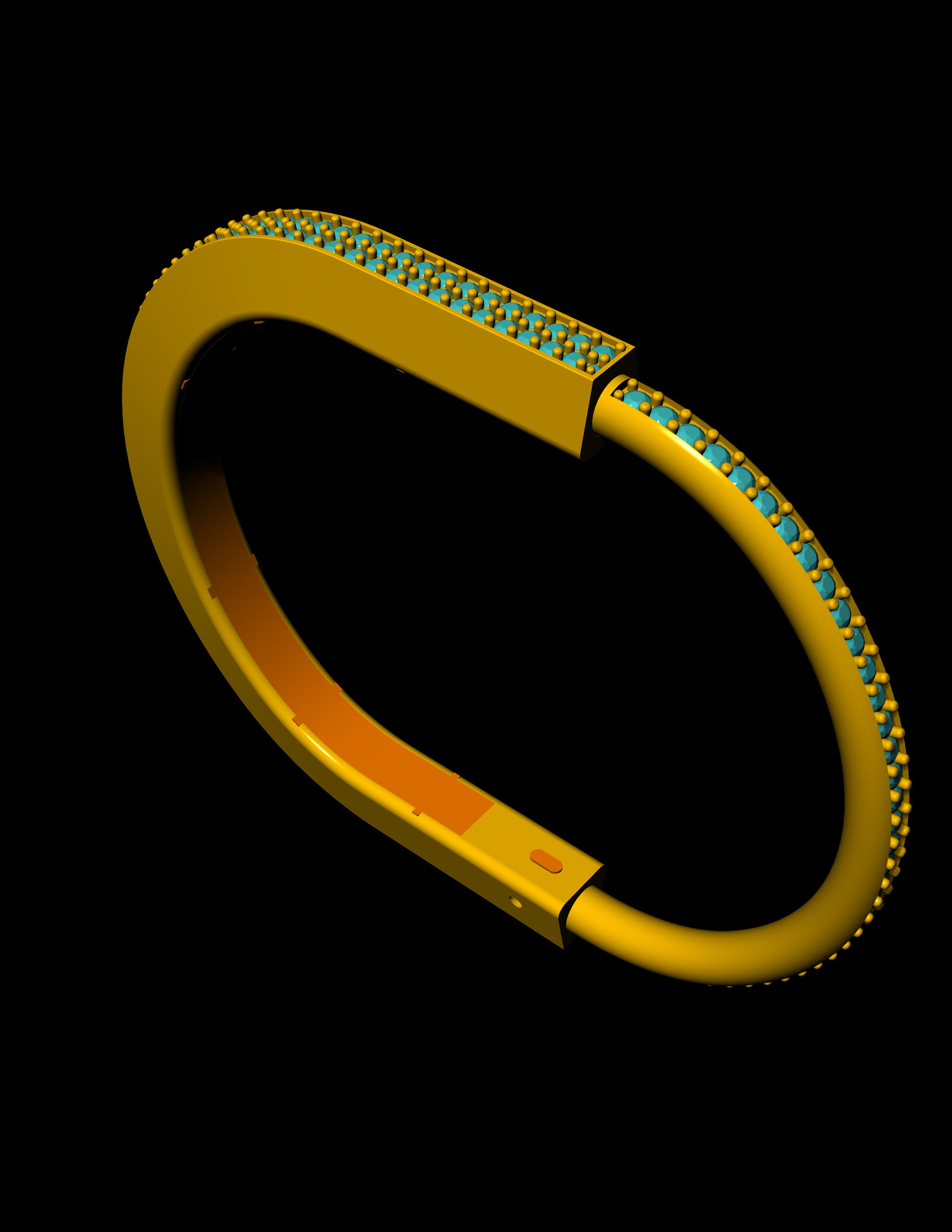

Tiffany Lock Style Full Pavé Diamond Bracelet Hinged Lock Mechanism CAD File

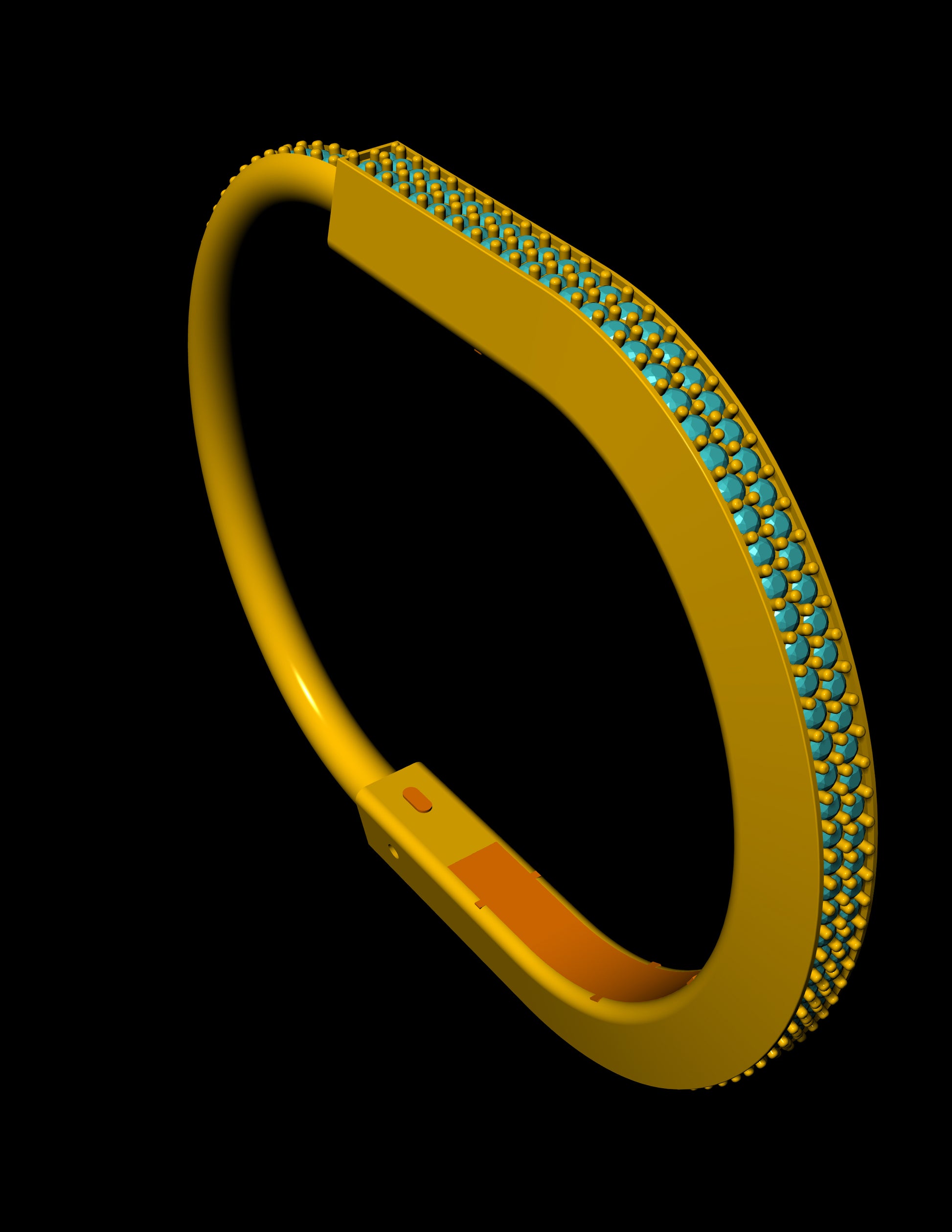

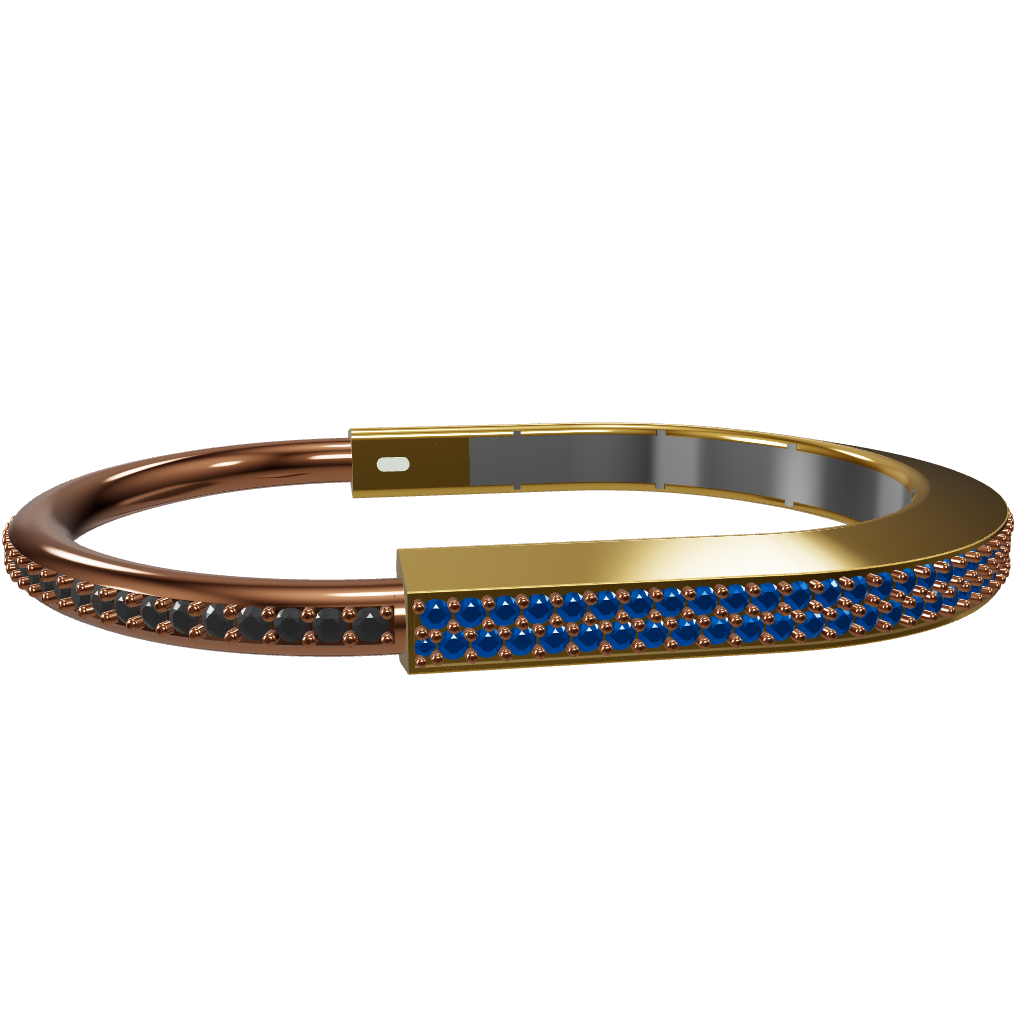

This premium 3D CAD model is a Tiffany-inspired diamond lock bracelet featuring the original working lock mechanism, crafted with production-ready precision. Ideal for fine jewelry brands, custom jewelers, and CAD designers, the file is optimized for manufacturing and high-end visual presentations.

Key Features:

• Original Functional Lock Mechanism included in the design

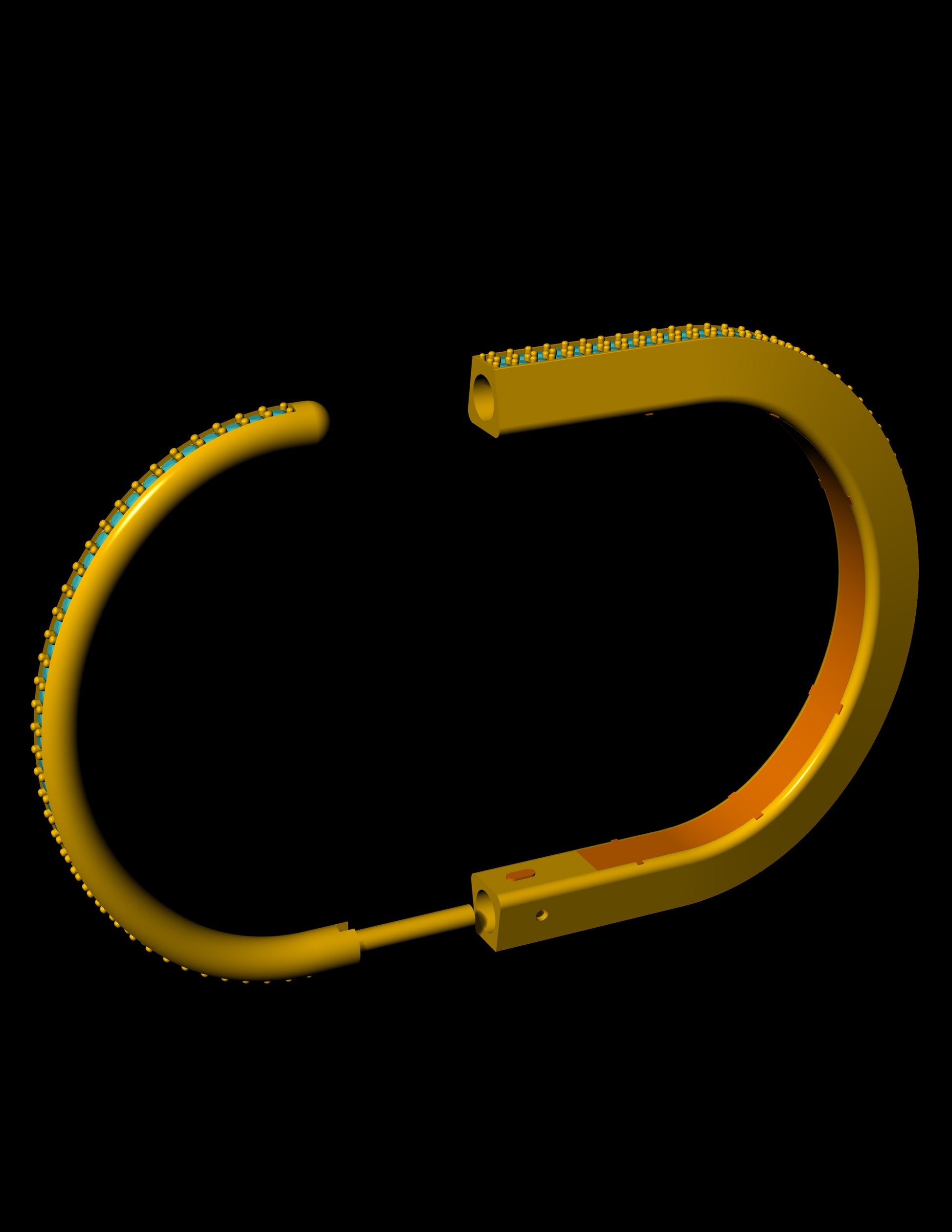

• Seamless hinged opening and closing system modeled in detail
• Pave diamond setting throughout the bangle for a luxurious look
• Realistic, manufacturer-friendly modeling suitable for gold casting and stone setting

Specifications:

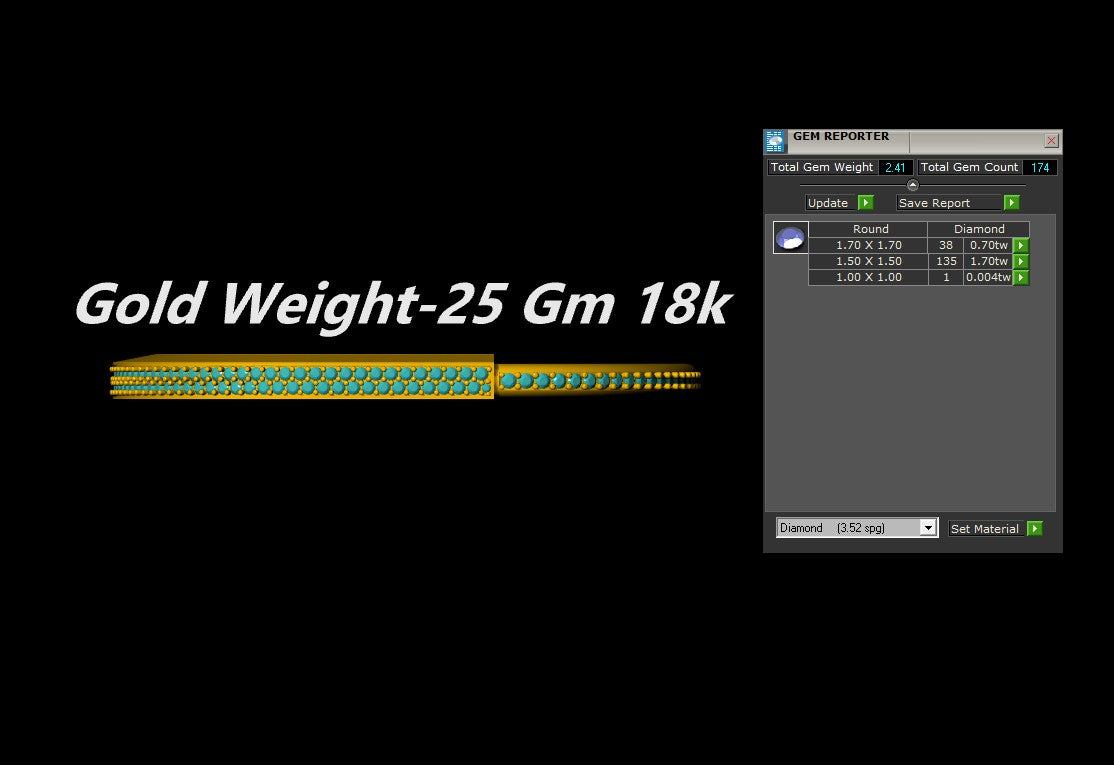

• Gold Weight (Estimated): 25 gm in 18K
• Diamond Weight (Total): 2.41 ct
• Diamond Breakdown:

• 38 pcs of 1.70 mm – 0.70 ct
• 135 pcs of 1.50 mm – 1.70 ct
• 1 pc of 1.00 mm – 0.004 ct
• Total Diamonds: 174 pcs

 Dimensions:

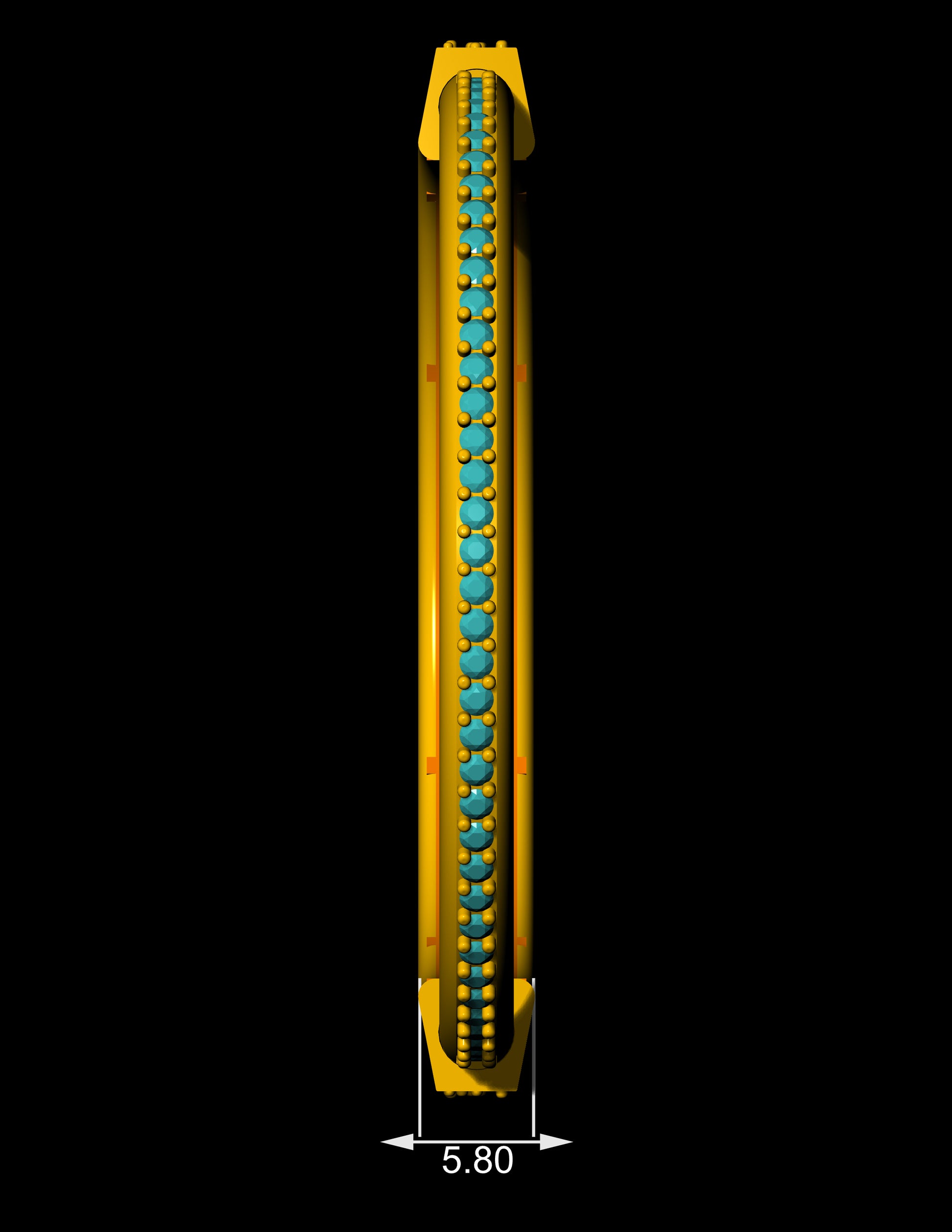

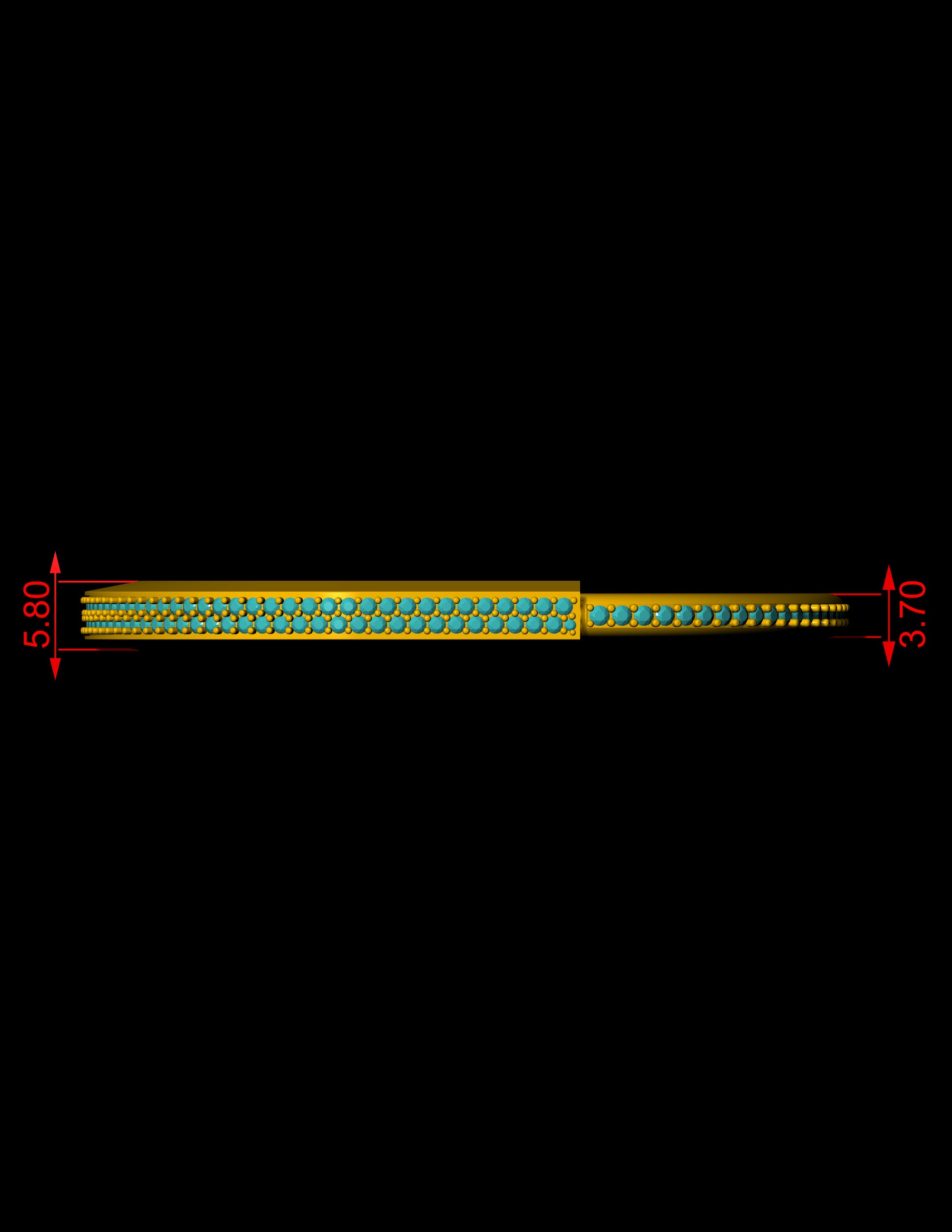

• Top Width: 5.80 mm
• Tapered Width: 3.70 mm

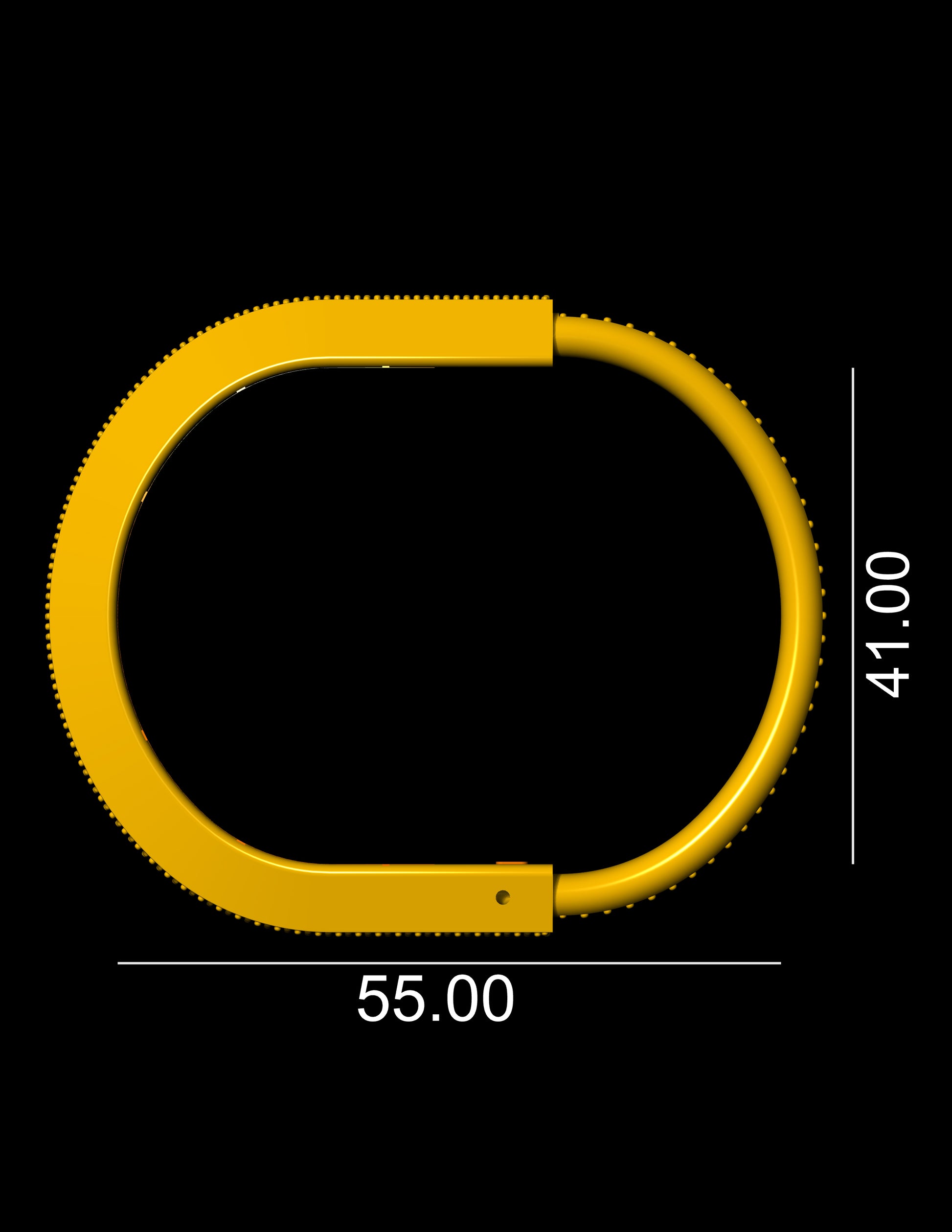

• Inner Size: 55 mm x 41 mm (Oval bangle fit)
• Closure Type: Locking clasp mechanism modeled accurately

File Includes:

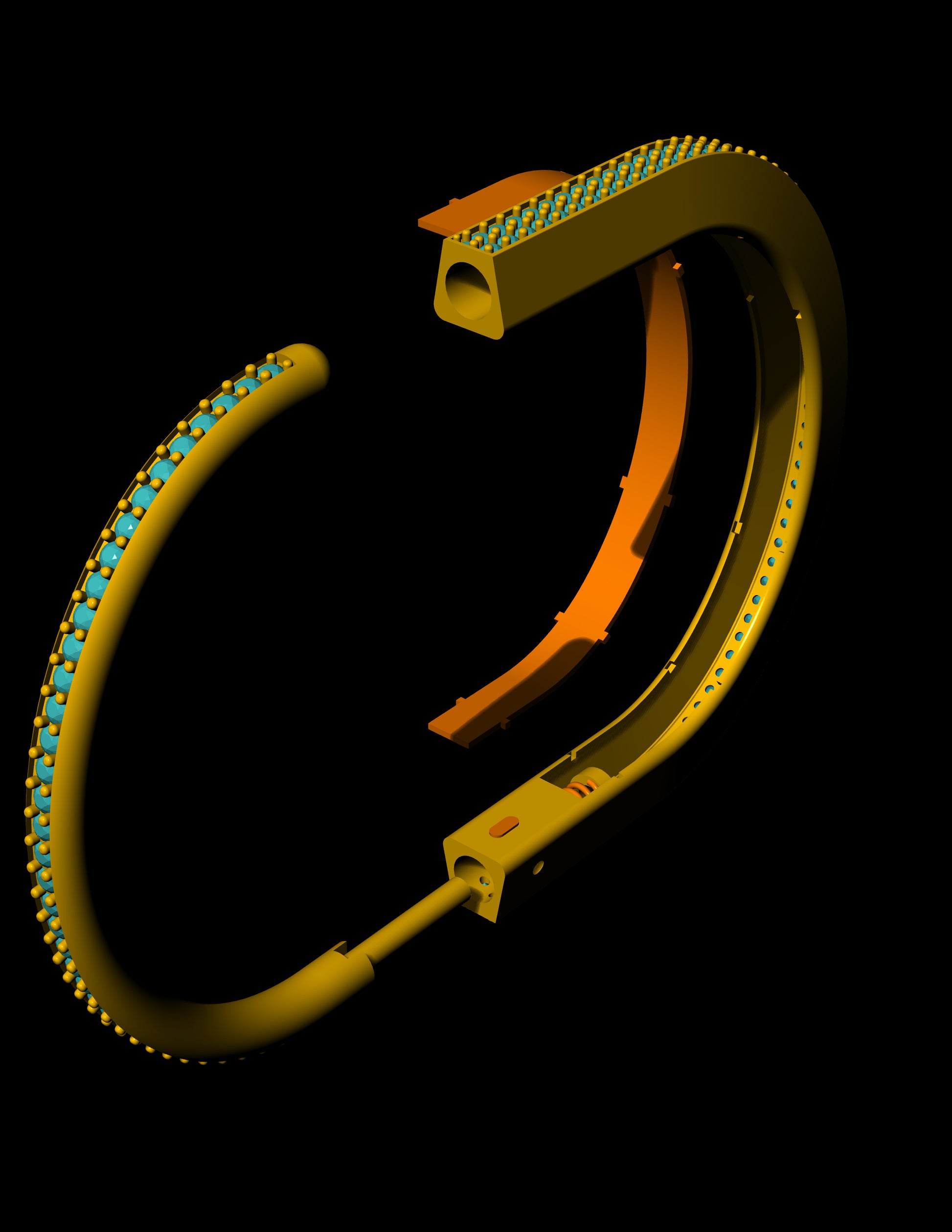

• Full bracelet assembly with working lock
• Gem-stone layout for pave setting
• Suitable for 3D printing, CNC, and rendering
• [Add your format: e.g. 3DM, STL, OBJ]

Note:

 This is a digital 3D model only. No physical item is included.

Perfect for jewelers, brands, and manufacturers looking to save hours on design time.
