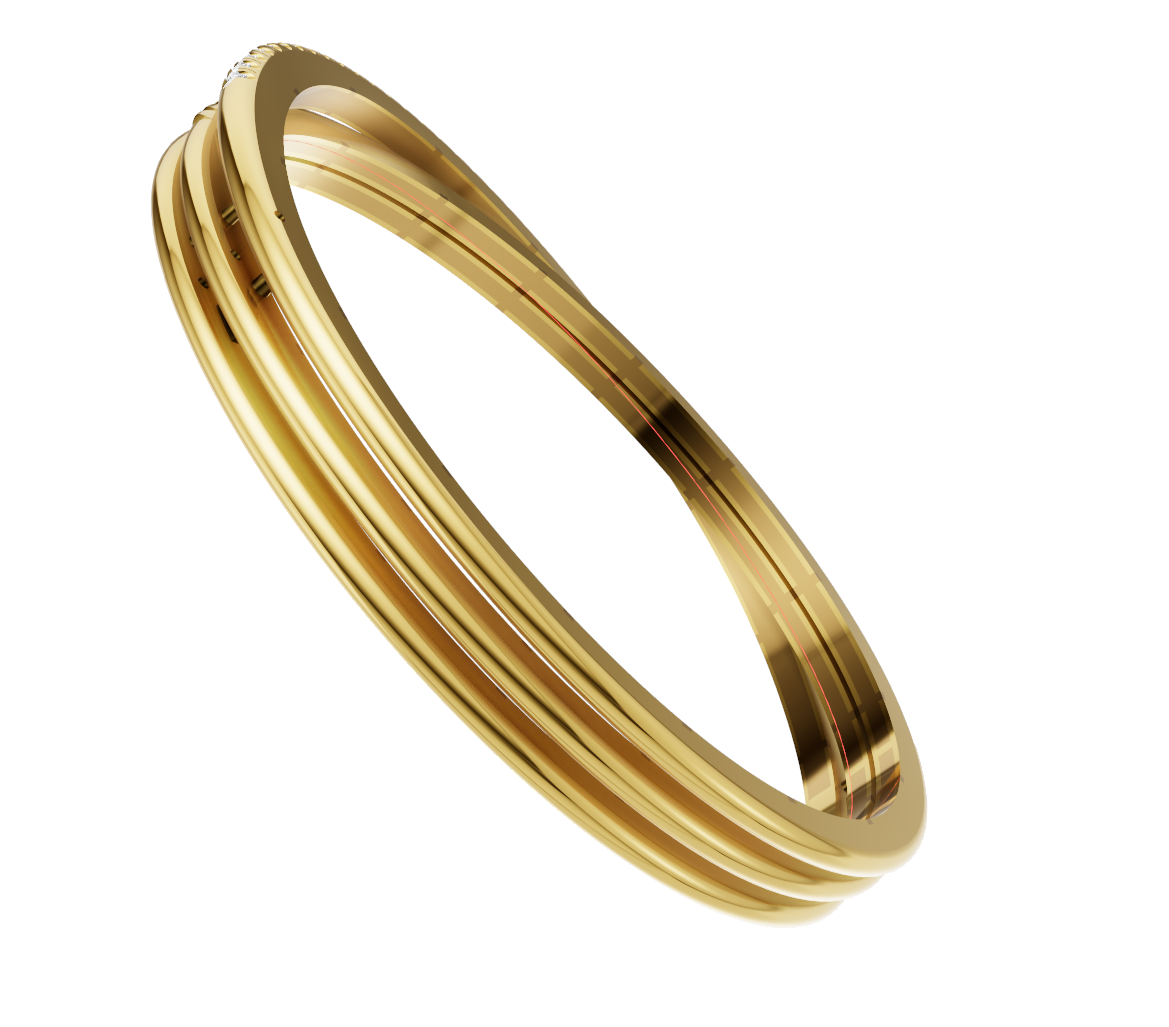

Twisted Diamond Openable Bangle CAD FILE

Bangle CAD Description

Jewelry Type: Openable Diamond Bangle (Twist Design)

Dimensions

• Outer Diameter: 70.00 mm
• Inner Diameter: 58.59 mm
• Top Width: 8.00 mm
• Bottom Width: 4.33 mm
• Height/Thickness: 8.04 mm

Stone Details

• Stone Shape: Round
• Stone Size: 2.00 mm
• Total Stones: 47 pcs
• Diamond Weight: 1.398 Ct
• CZ Weight: 2.209 Ct

Metal Weight

• 22KT Gold Weight: Approx. 34.00 grams
• 18KT Gold Weight: Approx. 28.00 grams

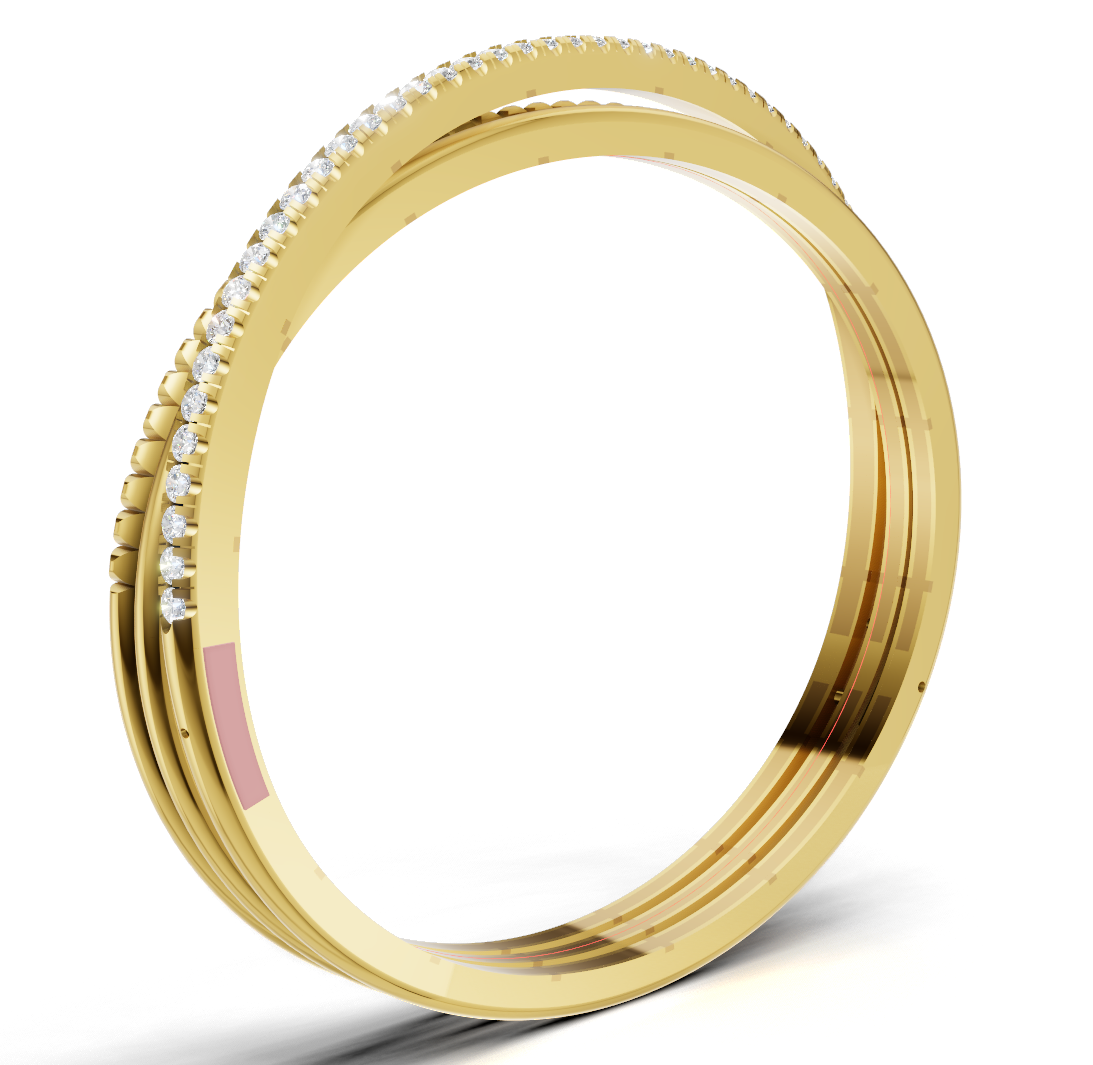

Design Features

• Elegant crossover/twist bangle design.

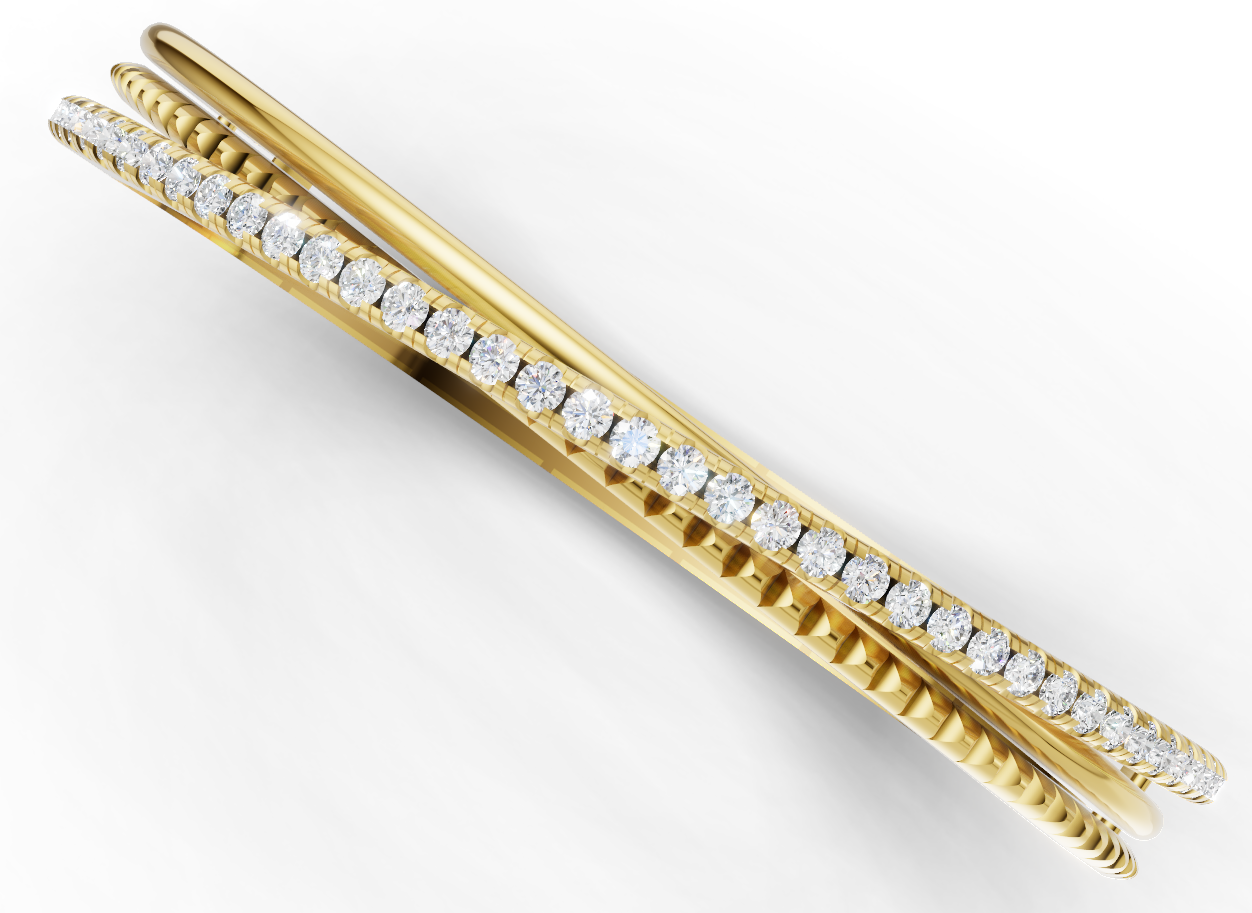

• Single row of round stones set across the top section.
• Openable construction with hinge and locking mechanism.
• Smooth comfort-fit inner profile.
• Suitable for daily wear as well as bridal and occasion jewelry.
• Modern luxury styling with continuous stone setting for enhanced brilliance.

Manufacturing Notes

• Recommended stone setting: Micro/Pavé setting.
• High-polish finish.
• Designed for casting and CAD/CAM production.
• Inner size suitable for approximately 2-6 to 2-7 bangle size range (depending on regional sizing standards).

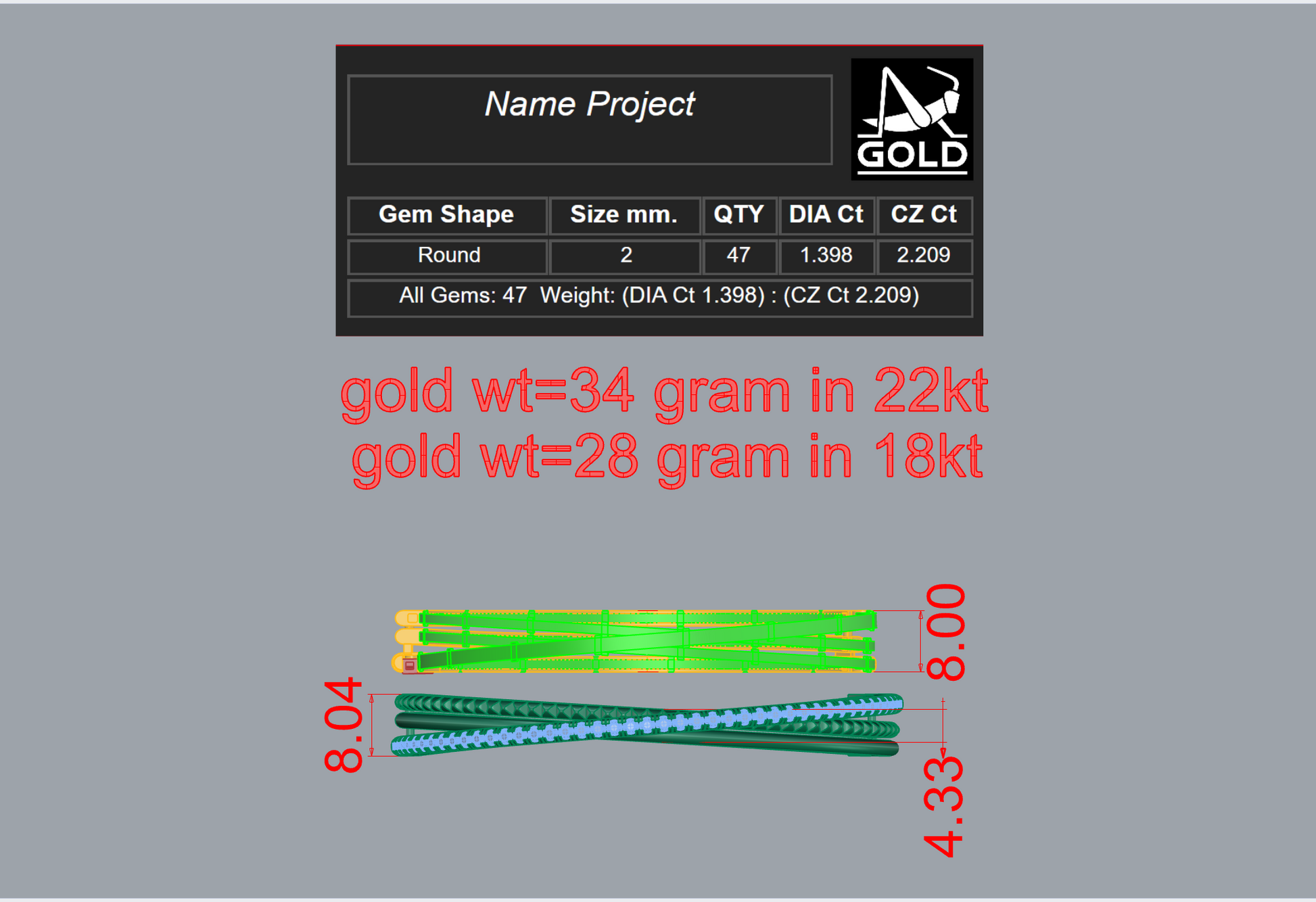

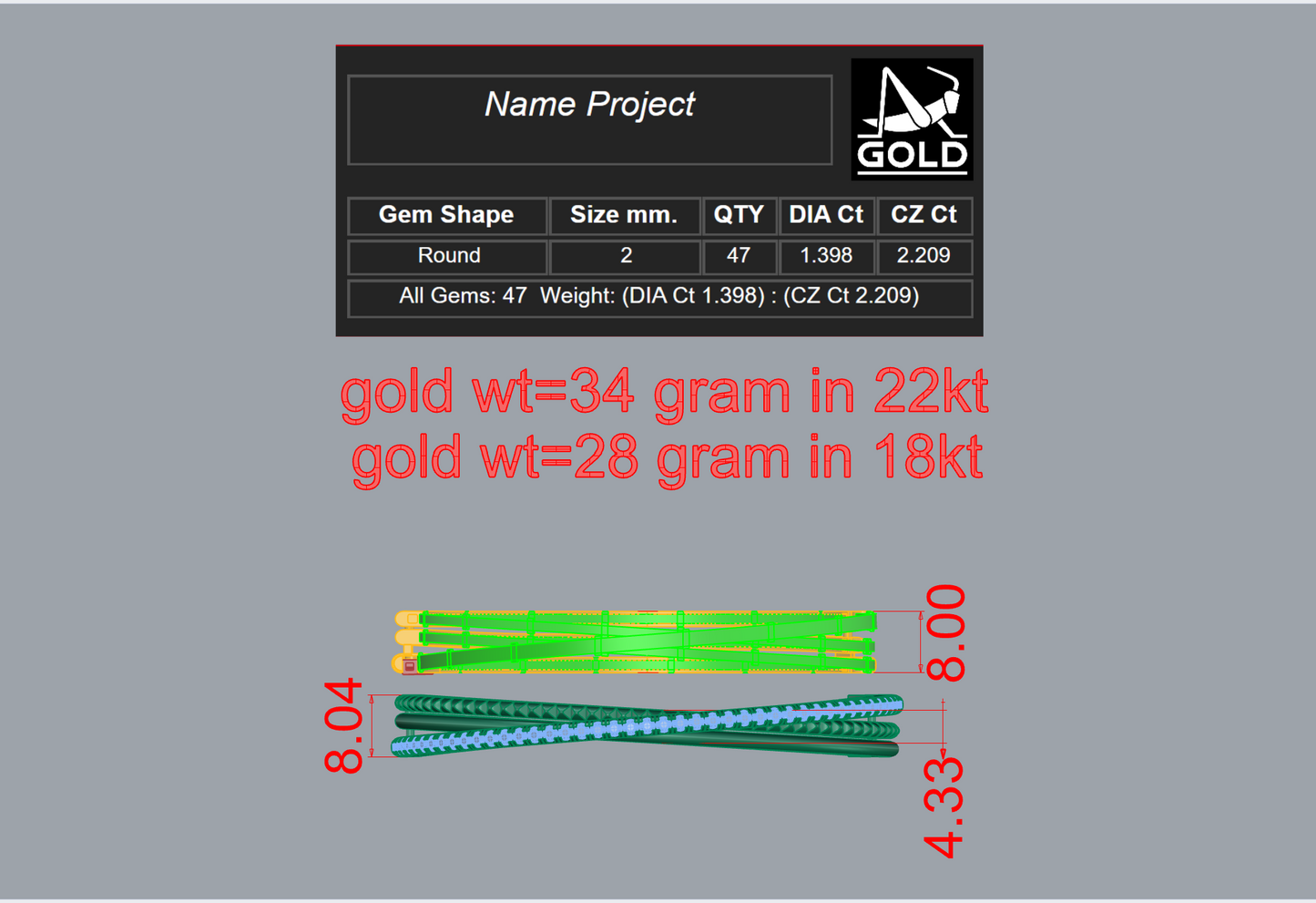

CAD Specifications Summary

• OD: 70.00 mm

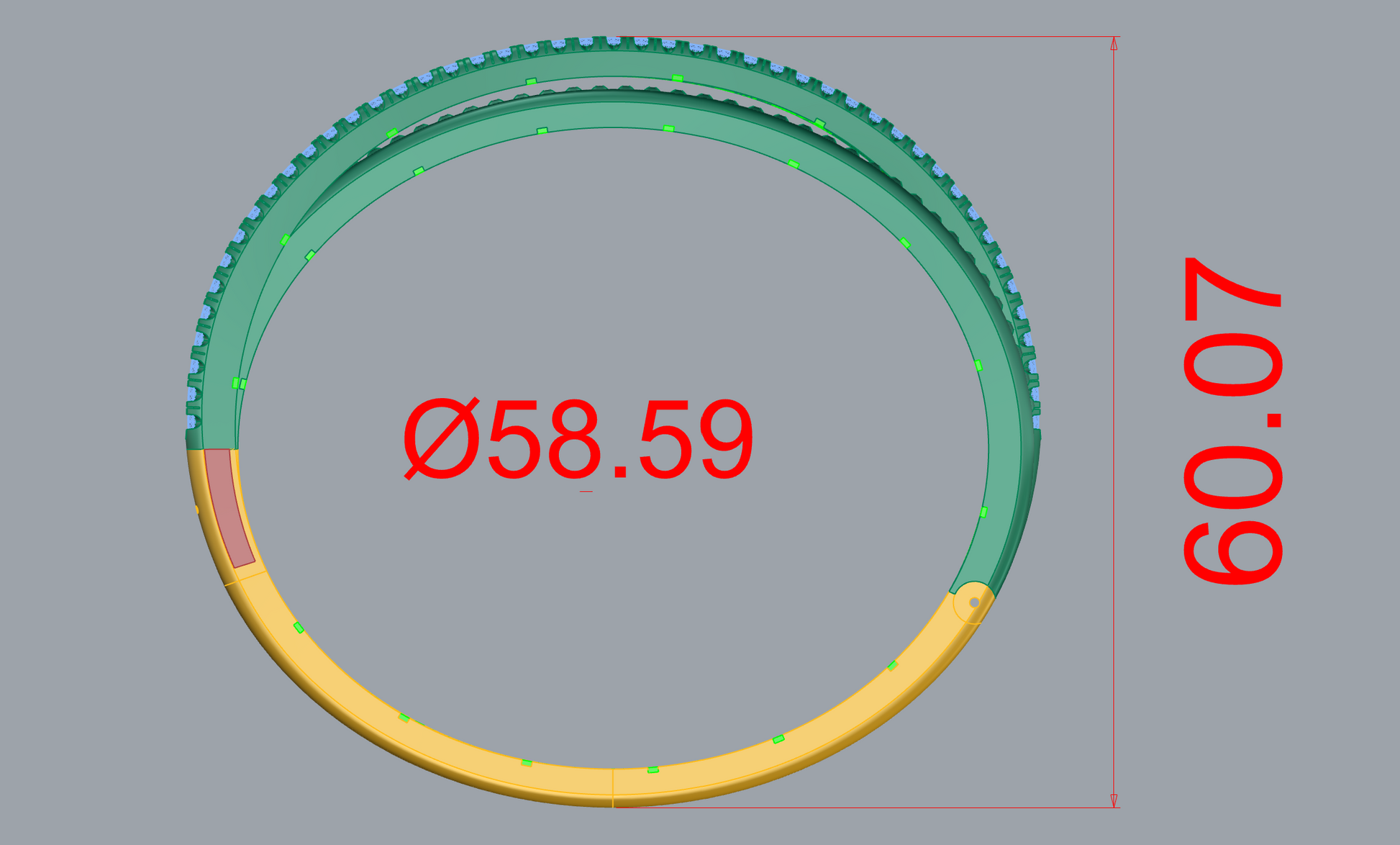

• ID: 58.59 mm
• Width: 8.00 mm – 4.33 mm
• Height: 8.04 mm
• Stones: 47 pcs × 2.00 mm Round
• Gold Weight: 34 g (22KT) / 28 g (18KT)
• Diamond Weight: 1.398 Ct
