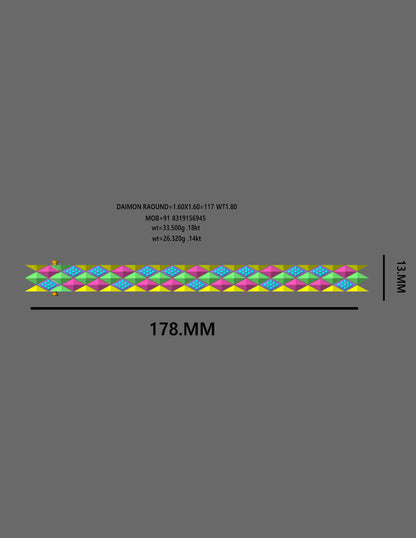

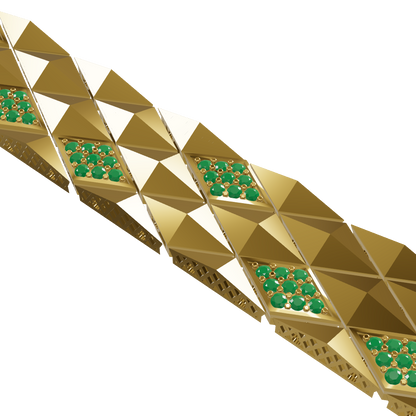

CarpetWoven Texture Bracelet CAD



This bracelet design features a refined carpet-weave pattern crafted on a smooth hydro-plane surface, giving the piece an organic, textile-inspired appearance with precise geometric balance. Each block is modeled with clean edges and uniform depth, ensuring excellent casting performance and a polished final finish.

The bracelet maintains structural stability while offering a detailed woven texture, making it suitable for everyday wear as well as premium jewelry collections. Its surface geometry allows easy modification, including the option to add micro-pavé diamonds or decorative stones if required.

• Height (Top to Bottom): 8.00 mm



• Width / Thickness: 2.80 mm

• Inner Length / Bracelet Size: 65.00 mm (standard)

• Pattern Depth: 1.80 mm



• Estimated Gold Weight (18K): 14.50 grams

• Estimated Gold Weight (22K): 16.80 grams



• Diamond Details: Diamonds Included in Original Design: No

• Diamond Modification Option: Yes (micro-pavé supported)
• Recommended Stone Size: 0.80 mm – 1.20 mm round diamonds
• Suggested Diamond Setting: Bead or micro-pavé
• Estimated Diamond Count (if added): 45–80 stones depending on placement• File Formats: STL / 3DM / OBJ





• Model Quality: High-precision, production-ready CAD file
